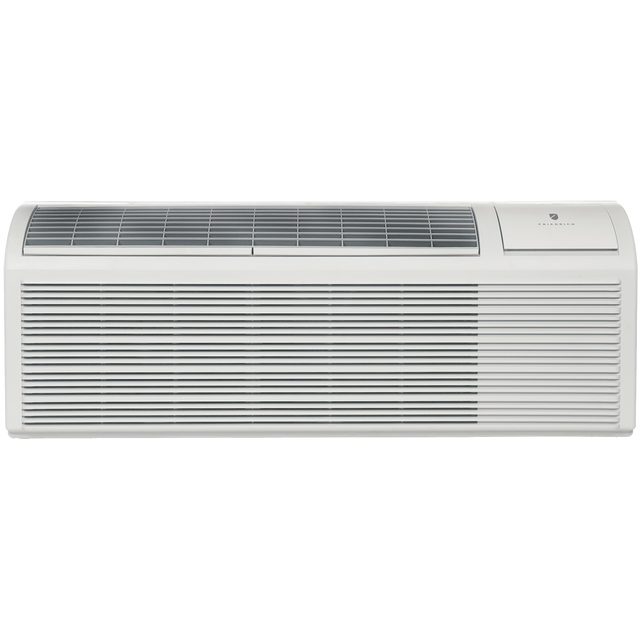

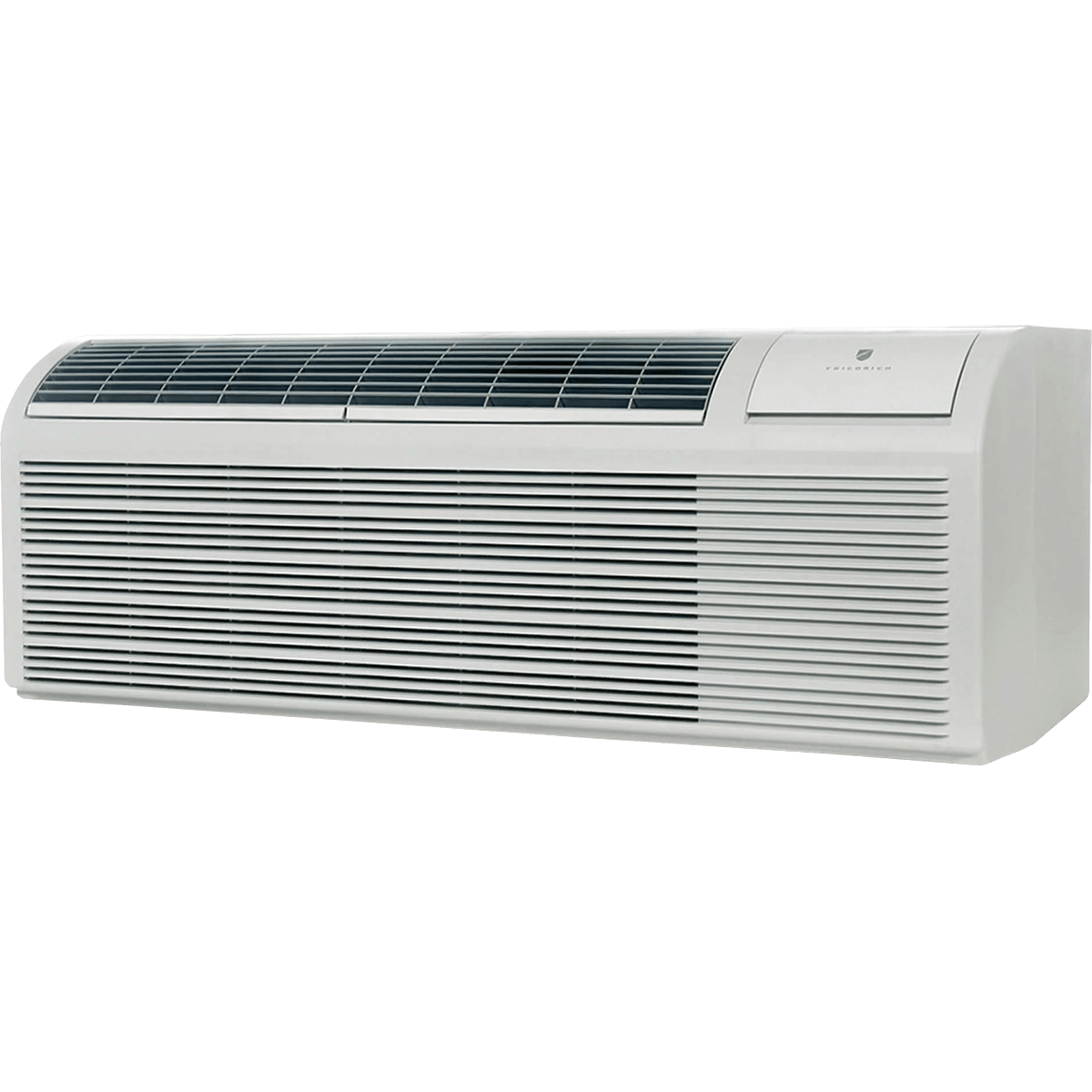

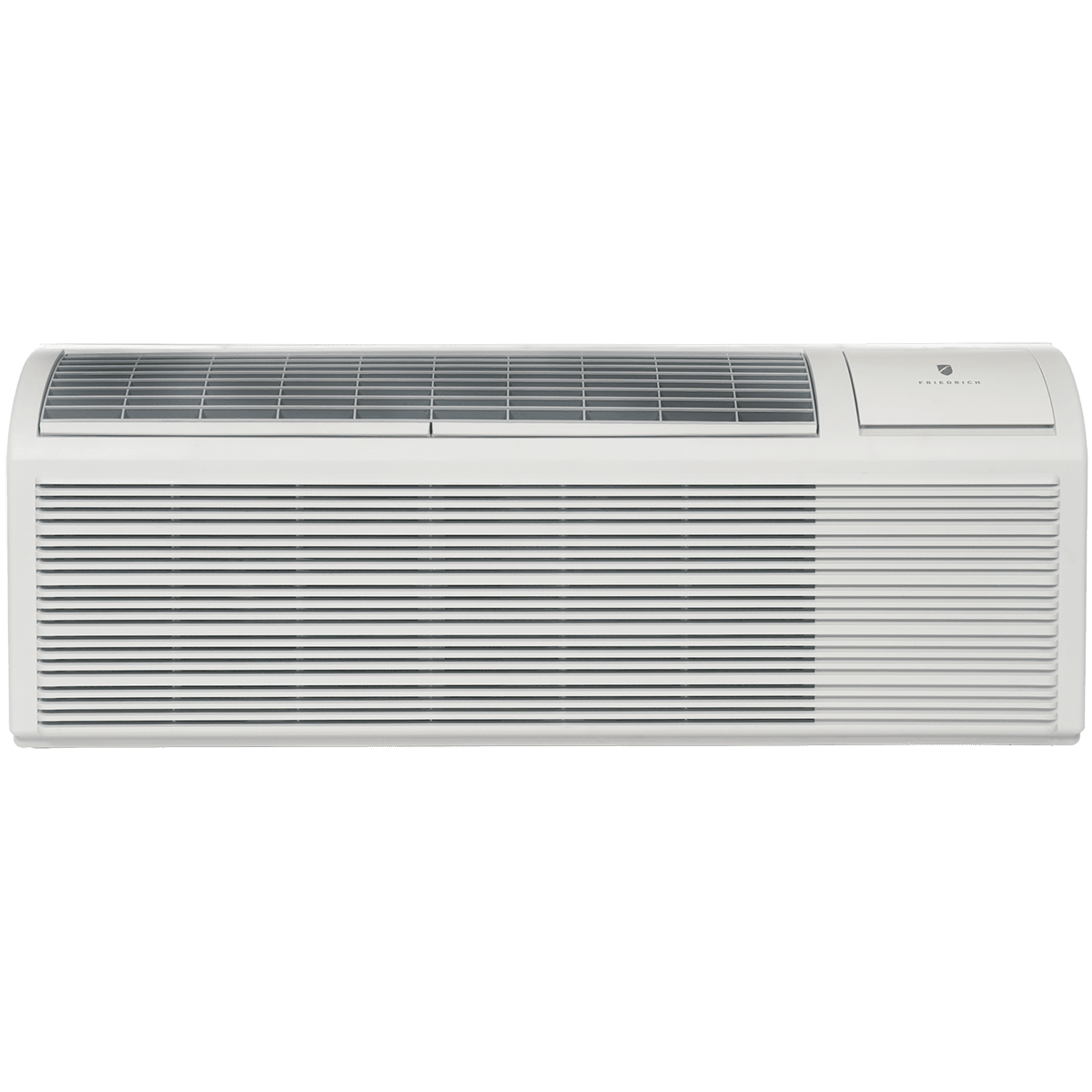

Friedrich 7,200 BTU Zone Premier PTAC with Heat Pump

SKU: fr3669  |  Model: PDH07K3SGR3
$1,199.00 $1,279.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

<ul>
<li>2-Year Limited Warranty on Parts and Labor</li>
<li><span style="line-height: 1.6em;">5-Year Limited Warranty on Sealed Refrigeration System</span></li>
</ul>

What's In The Box?

  • Friedrich ZoneAire Premier PTAC unit with Heat Pump
  • Front Cover
  • 3 kW Heater Cord
  • Owner's Manual

Info & Guides

Description

The Friedrich ZoneAire Premier PTAC with Heat Pump uses up to 7,200 BTUs of cooling power and an efficient heat pump to keep rooms up to 300 square feet comfortable all year. A large LED display shows the preset or current temperature which can be adjusted with the one-touch buttons, putting customization at your fingertips.

  • Digital Controls: Adjust the temperature, mode (cooling, heating, or fan-only), and fan speed (low, medium, and high) with easy-to-use digital controls.
  • Improved Air Distribution: The tangential blower wheel has almost five times the surface area of a typical PTAC fan and creates even air distribution.
  • Maintenance-Friendly Design: The modular design provides easy access to internal components for simple cleaning, service, and maintenance.
  • Internal Diagnostics: The self-diagnostic program alerts maintenance of component failures and operating problems.

Quiet and Efficient Operation

This Friedrich model was built to provide quiet and efficient heating and cooling during any season.

  • Two-Motor Design: Features one indoor and one outdoor motor. This permits the indoor motor to run slower, reducing indoor sound levels without giving up heating or cooling power
  • Quiet Operation: fans and sound-reducing insulation keep noise levels low.
  • Quick Start and Stop: To ensure quiet operation, the two permanently lubricated fans are delayed from starting or stopping at the same time as the compressor.
  • Vibration Isolators: The compressor is mounted with vibration isolators to ensure quiet and smooth operation.
  • High-end Insulation Materials: The thick steel inner walls and foam decrease energy loss and noise levels.
  • High-Efficiency Rotary Compressor: This rotary compressor maximizes the durability and efficiency of the Friedrich 7,200 BTU PTAC as the heat is running.
  • Eco-Friendly Refrigerant: The R-32 refrigerant possesses low global warming potential.

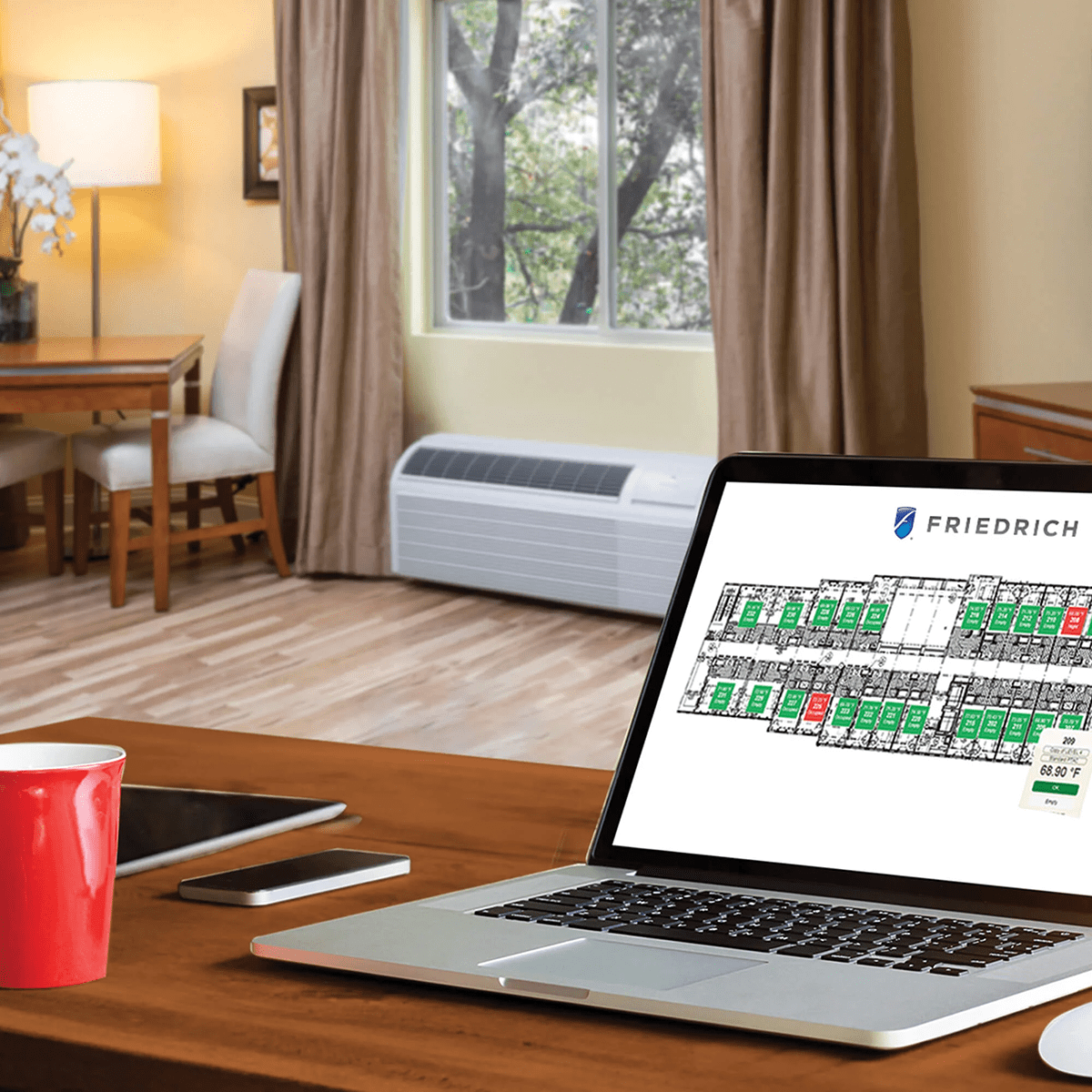

  • Desk Control: Connect to an Energy Management Thermostat to enable remote staff control. This provides control of the PTAC’s energy usage, earning it a 13.0 EER and saving money.

Unique Heating Design

This Friedrich PTAC uses an efficient heat pump to warm rooms. Heat pumps use less energy than traditional heaters by transferring warm air instead of creating it. This model includes a 3.6 kW electric heat backup for temperatures below 40 degrees F when the heat pump can’t operate.

  • Temperature Monitoring: Features a built-in thermostat that monitors the temperature every nine minutes to maintain desired temperatures.
  • Electronic Temperature Limiting: Set a low and high-temperature range to reduce energy usage.
  • Instant Heat: Quickly heat spaces with this high-power heat pump mode.
  • Electronic Defrost Control: The backup heater acts as a defrost control to keep the heat pump working effectively and efficiently for longer.
  • Friedrich PTAC Universal Heater Cord: To increase the power of the electric heater for colder environments, upgrade to a 5 kW backup electric heater with the Friedrich 5 kW Heater Cord.

Additional Features

  • Standard Sizing: This PTAC measures an industry-standard 42-inch width, making it simple to replace old PTACs.
  • Stainless Steel Durability: The Friedrich PTAC uses stainless steel parts and a powder-coated finish to avoid rust and corrosion.
  • Dehumidifier: Remove up to 1.7 pints of excess moisture every hour.
  • Adjustable Louvers: Redirect the airflow by tilting the reversible indoor louvers.
  • Air Filter: The easily replaceable filters catch airborne particles and extend the machine's lifespan.
  • Fresh Air Outlet: Adjust this outlet to allow fresh and filtered outdoor air inside.

Note: For new installations, a standard Friedrich grille and wall sleeve should be purchased separately.

Sylvane's Expert Take

The Friedrich 7,200 BTU Zone Premier PTAC with Heat Pump provides year-round comfort to dorms, hotels, and other spaces up to 300 square feet with a powerful airflow of 311.9 CFM. This durable and efficient machine is packed with energy-efficient features to ensure customers get the most out of their PTAC all while saving money.

  • Simple to Maintain: Maintenance is hassle-free thanks to its design, which offers easy access to the removable filters and other important components for repairs.
  • Trusted Warranty: A limited 5-year warranty and backing from Friedrich's nationwide service network allow for worry-free operation.
  • Voltage: Ensure your property is wired to handle this 230/208-volt air conditioner that uses a NEMA 6-20P plug face.

Specifications

    Key Specifications

    • Energy Efficiency Ratio (EER)
      13
    • Number of Speeds
      2

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
    • Certifications
      cETLus
    • Color
      White
    • Controls
      Electronic
    • Electric Heat BTU's (BTUs)
      8,300-17,000
    • Heater Type
      Heat Pump
    • Heating BTUs (BTUs)
      6000
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      312.0
    • Maximum Noise Level (dB)
      50
    • Maximum Operating Temperature (degrees F)
      115
    • Minimum Operating Temperature (degrees F)
      64
    • Moisture Removal per Hour (pints)
      1.7
    • Recommended Coverage Area (sq. ft.)
      300
    • Refrigerant Type
      R-32
    • Sensible Heat Ratio
      .83

    Power

    • Branch Circuit Fuse (amps)
      20
    • Electric Heat Max Amps (Amps)
      15
    • Electric Heat Max Wattage (W)
      3450
    • Maximum Cooling Amperage (Amps)
      2.6
    • Maximum Cooling Wattage (W)
      570
    • Maximum Heating Amperage (Amps)
      2.3
    • Maximum Heating Wattage (W)
      490
    • Plug Face Type
      6-20P
    • Power Cord Length (ft.)
      6
    • Voltage (V)
      208-230

    Dimensions

    • Cut Out Dimensions (H x W) (in.)
      16.25 x 42.25
    • Depth (in.)
      21.0
    • Depth (with front cover) (in.)
      21.0
    • Height (in.)
      16.0
    • Height (with front cover) (in.)
      16.0
    • Weight (lbs.)
      113
    • Width (in.)
      42.0
    • Width (with front cover) (in.)
      42.0

    Additional Features

    • Additional Features
      Adjustable Louvers, Fan-Only Mode

    Warranty

    • Manufacturer's Warranty
      • 2-Year Limited Warranty on Parts and Labor
      • 5-Year Limited Warranty on Sealed Refrigeration System
