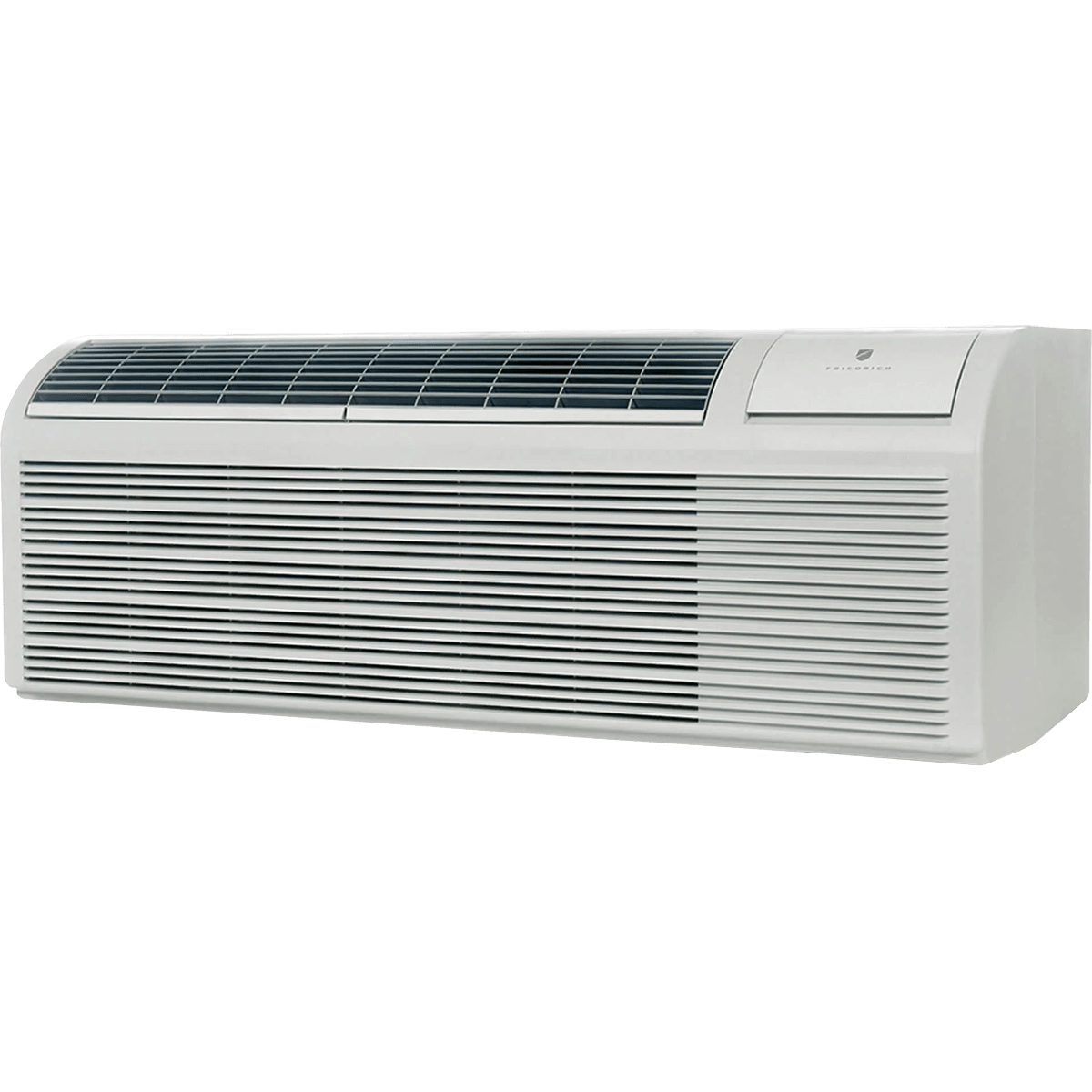

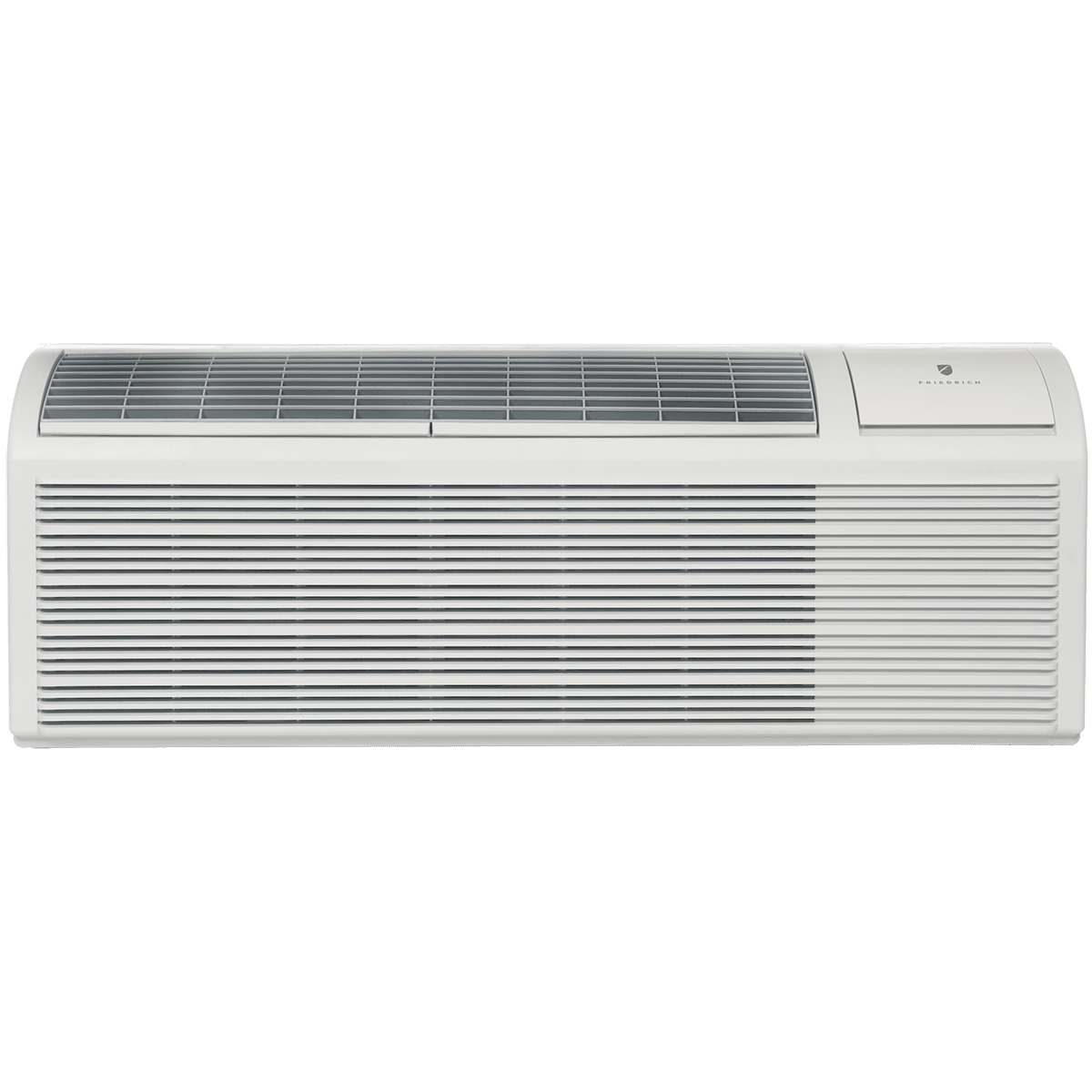

Friedrich 7,000 BTU ZoneAire Select PTAC w/ Electric Heat

SKU: fr9706  |  Model: PZE07K3SC
$1,169.00 $1,219.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty, 2-Year Limited Parts and Labor Warranty

What's In The Box?

  • Friedrich 7,000 BTU ZoneAire Select PTAC with Electric Heat
  • Owner's Manual

Info & Guides

Description

The Friedrich 7,000 BTU ZoneAire Select PTAC with Electric Heat reliably circulates 350 CFM of cooled or heated air in rooms up to 300 square feet. This easy-to-install and operate PTAC features a 12 EER, remote thermostat control compatibility, and ultra-quiet operation for dorm rooms, hotel rooms, or other multi-unit facilities.

  • LED Display: Easily view the set point or actual room temperature, mode, and fan speed with the digital control display.
  • Internal Diagnostic Program: This self-diagnosing program runs factory tests to reduce problems by alerting maintenance of component or operating problems.
  • Standard Sizing: This PTAC measures an industry-standard 42-inch width, making it simple to replace old PTACs and compatible with most standard Friedrich accessories.

Powerful and Efficient Heating

The 3.6 kW electric heater contains coils to provide more heated surface area to output quiet and powerful heat in minutes.

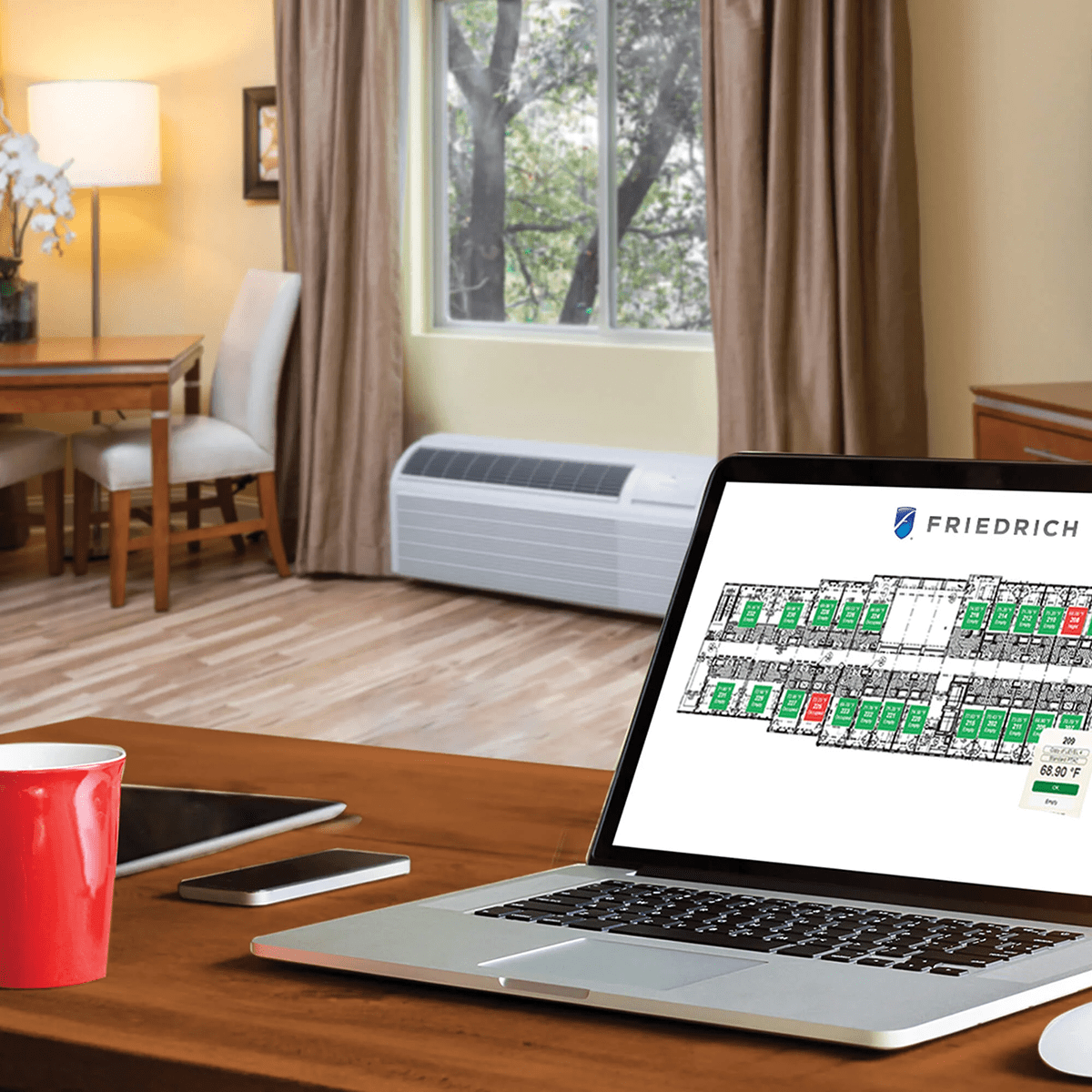

  • Energy Management: Connect with an Exceptional Energy Management Thermostat to integrate the PTAC into a central control system that allows remote settings adjustment.
  • Thermostat Capable: Its pop-out wiring module makes connecting to a universal thermostat quick and easy.
  • Temperature Monitoring: This PTAC will test the room temperature every nine minutes and adjust the output to maintain the desired temperature.
  • Temperature Limiting: Set a high and low-temperature limit range to reduce energy usage.
  • Freeze Protection: The electric heater will automatically start when set to auto heating if an unoccupied room temperature reaches below 50 degrees Fahrenheit.
  • Friedrich PTAC Universal Heater Cord: To increase the power of the electric heater for colder environments, upgrade to a 5 kW electric heater with the Friedrich 5 kW Heater Cord.

Ultra-Quiet and Durable Design

Friedrich PTACs utilize superior materials and an ultra-efficient design to reduce sound levels and increase durability for all-season temperature control.

  • Dual Motors: Features two permanently lubricated fan motors, one inside and one outside, so the indoor motor can run slower. This reduces sound levels without lowering performance.
  • Quick Start and Stop: The two permanently lubricated fans are delayed to prevent starting or stopping with the compressor, ensuring quiet operation.
  • High-Efficiency Rotary Compressor: This rotary compressor maximizes the durability and efficiency of the Friedrich 7,000 BTU PTAC as the heat is running.
  • Vibration Isolators: To ensure the quiet and smooth operation of the compressor, the rotary compressor is mounted with vibration isolators.
  • Even Air Distribution: The tangential blower wheel provides a wide airflow path, quietly and evenly distributing it throughout the room.
  • Durable Construction: The galvanized zinc-coated steel wall sleeve and steel base pan are powder-coated with a polyester finish for durability and sound reduction.
  • Corrosion Protection: The indoor and outdoor coils are coated in Diamonblue Advanced corrosion protection, and the outdoor coils are encased in aluminum endplates to withstand harsh outdoor environments.

Additional Features

  • Simple Controls: Adjust the temperature, mode (heat, cool, and constant fan), and fan speed (high, low, and auto) easily with the easy-to-use button controls
  • Maintenance-Friendly: The modular design ensures easy access to the internal parts for quick maintenance, repairs, and cleaning.
  • Air filters: The washable filters prevent airborne particles from reaching the internal components and extend the machine's life expectancy.
  • Dehumidification: Remove up to 0.7 pints of moisture in an hour to reduce humidity.
  • Fresh Air Damper: Open this damper to bring inside fresh and filtered outdoor air.
  • Reversible Air Louvers: Adjust the indoor louvers to control the airflow direction.
  • R-32 Refrigerant: This PTAC uses a refrigerant with a low global warming potential.

Note: For new installations, a standard Friedrich grille and standard Friedrich PTAC sleeves should be purchased separately.

Sylvane's Expert Take

The Friedrich 7,000 BTU ZoneAire Select PTAC w/ Electric Heat provides year-round temperature control for rooms in multi-unit facilities like hotels, dorms, and apartments. The temperature can be remotely adjusted to quickly heat or cool rooms up to 300 square feet, saving energy and earning it a 12 EER.

  • Multiple Fan Speed: This PTAC features a two-speed fan to provide up to 350 CFM of heated or cooled air, ensuring a comfortable room temperature is reached quickly.
  • Required Voltage: Ensure your property is wired to handle this 230/208-volt air conditioner that uses a NEMA 6-20P plug face.

Specifications

    Key Specifications

    • Energy Efficiency Ratio (EER)
      12
    • Number of Speeds
      2

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
    • Certifications
      cETLus
    • Color
      White
    • Controls
      Electronic
    • Electric Heat BTU's (BTUs)
      12000
    • Heater Type
      Electric Coil
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      350.0
    • Maximum Noise Level (dB)
      53
    • Maximum Operating Temperature (degrees F)
      114
    • Minimum Operating Temperature (degrees F)
      53
    • Moisture Removal per Hour (pints)
      1.7
    • Recommended Coverage Area (sq. ft.)
      300
    • Refrigerant Type
      R-32
    • Sensible Heat Ratio
      0.89

    Power

    • Branch Circuit Fuse (amps)
      20
    • Electric Heat Max Amps (Amps)
      15.9
    • Electric Heat Max Wattage (W)
      3650
    • Maximum Cooling Amperage (Amps)
      2.7
    • Maximum Cooling Wattage (W)
      585
    • Plug Face Type
      6-20P
    • Power Cord Length (ft.)
      6
    • Voltage (V)
      208-230

    Dimensions

    • Cut Out Dimensions (H x W) (in.)
      16.25 x 42.25
    • Depth (in.)
      21.5
    • Depth (with front cover) (in.)
      21.5
    • Height (in.)
      16.0
    • Height (with front cover) (in.)
      16.0
    • Weight (lbs.)
      90
    • Width (in.)
      42.0
    • Width (with front cover) (in.)
      42.0

    Additional Features

    • Additional Features
      Adjustable Louvers, Fan-Only Mode

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty, 2-Year Limited Parts and Labor Warranty
