General Aire 1042-LH Bypass Evaporative Humidifier For Up To 2,800 Sq. Ft.
General Aire 1042-LH Bypass Evaporative Humidifier For Up To 2,800 Sq. Ft. is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- General Aire Model 1042LH Bypass Flow-Through Humidifier
- MHX3C Manual Humidistat
- GA990-13 Vapor Pad
- Parts Kit
- Drain Hose
- Transformer
- Metal Distributor Tube
- Damper
- 15-foot 5/8-inch Drain Hose
- Drain Pan
- Solenoid Valve
- Installation/Owner’s Manual
Info & Guides
Info & Guides
General Aire 1042-LH Bypass Evaporative Humidifier For Up To 2,800 ...
Maintaining the most comfortable humidity level helps keep germs and bacteria away, especially with the help of a whole-house humidifier like the General Aire 1042-LH bypass evaporative humidifier. As warm air from your furnace flows into the humidifier, it meets a water-soaked vapor pad, which evaporates moisture deliver humidity throughout your home.
Note: This humidifier must be installed by a licensed contractor.

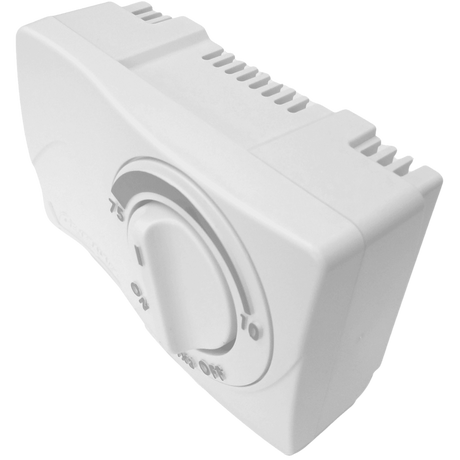

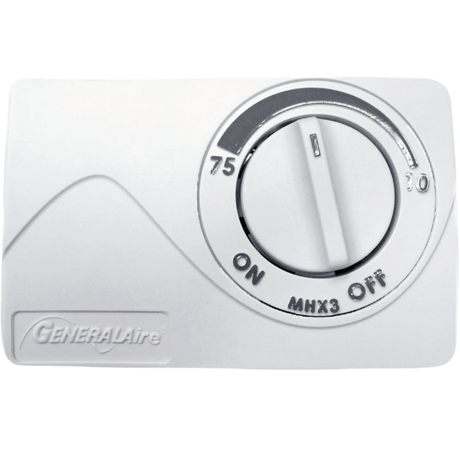

Manual Humidistat
Included with the General Aire evaporative humidifier is the MHX3C manual humidistat, featuring:
- Manual Controls: Simply turn the dial to your preferred humidity level.
- Design: A low-profile, contemporary design with solid construction.
- Flexible Installation: You can install the humidistat on your wall or directly on your duct with the General Aire humidifier.
- Humidity Range: This humidistat gives an extended humidity range from 10 to 75 percent.
Flow-Through Technology
The General Aire 1042-LH features the patented KineticFlo water distribution trough design to ensure the vapor pad is thoroughly and consistently moistened. As water flows through the trough, it is evenly dispersed across the pad, providing up to 19 gallons of humidified air daily. The Bypass Duct can be mounted to the left or right.
Additional Features
- Strong Construction: General Aire uses UV-stable automotive-grade plastic for this low-profile humidifier.
- Large Coverage Area: This evaporative humidifier covers homes of up to 2,800 square feet in size.
- Contemporary Design: This whole-house humidifier features a low-profile, space-saving design, making it lightweight and easy to install.
- Flexible Installation: You can install this bypass humidifier on one of several options: warm air plenum, return air plenum, right or left bypass, vertical or horizontal, or furnace or air handler.
Summary
The General Aire bypass humidifier is ideal for homes up to 2,800 square feet and includes a manual humidistat for easy control.
-
HVAC TypeBypass
-
Moisture Output Per Day (gallons)17.0
-
TypeEvaporative
-
ColorWhite
-
ControlsManual
-
Fill TypeDirect Water Line
-
Humidifier StyleHVAC/Duct
-
Humidity Range10% - 75%
-
Recommended Coverage Area (sq. ft.)2800
-
Recommended ForWhole House
-
Maximum Wattage (W)2.5
-
Voltage (V)24
-
Depth (in.)9.0
-
Depth (with front cover) (in.)9.0
-
Height (in.)14.0
-
Height (with front cover) (in.)14.0
-
Weight (lbs.)13
-
Width (in.)15.125
-
Width (with front cover) (in.)15.125
-
Additional FeaturesHumidistat, Mist Output Control, Wick Filter
-
Manufacturer's Warranty5-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
Shop All General Aire Humidifier Accessories-
-
Sold outGeneral Aire
MHX3C Manual Wall Control or Duct-Mounted Humidistat
Regular price $42.00Unit price /Unavailable
- JMJane M.Verified BuyerReviewingGeneral Aire 1042-LH Bypass Evaporative Humidifier For Up To 2,800 Sq. Ft.I recommend this productRated 5 out of 5 stars16 hours agoEasy installation
I’m happy Generalaire makes this same model as the humidifier that was installed in my furnace over 25 years ago. Installation was super easy because I was able to just remove the old one and put in the new one in the same spot. All the holes lined up exactly. I did have a little trouble understanding the wiring for the humidistat. The schematics didn’t make sense to me. Fortunately I was able to find a how-to video on You Tube. I’m very happy with my purchase.
