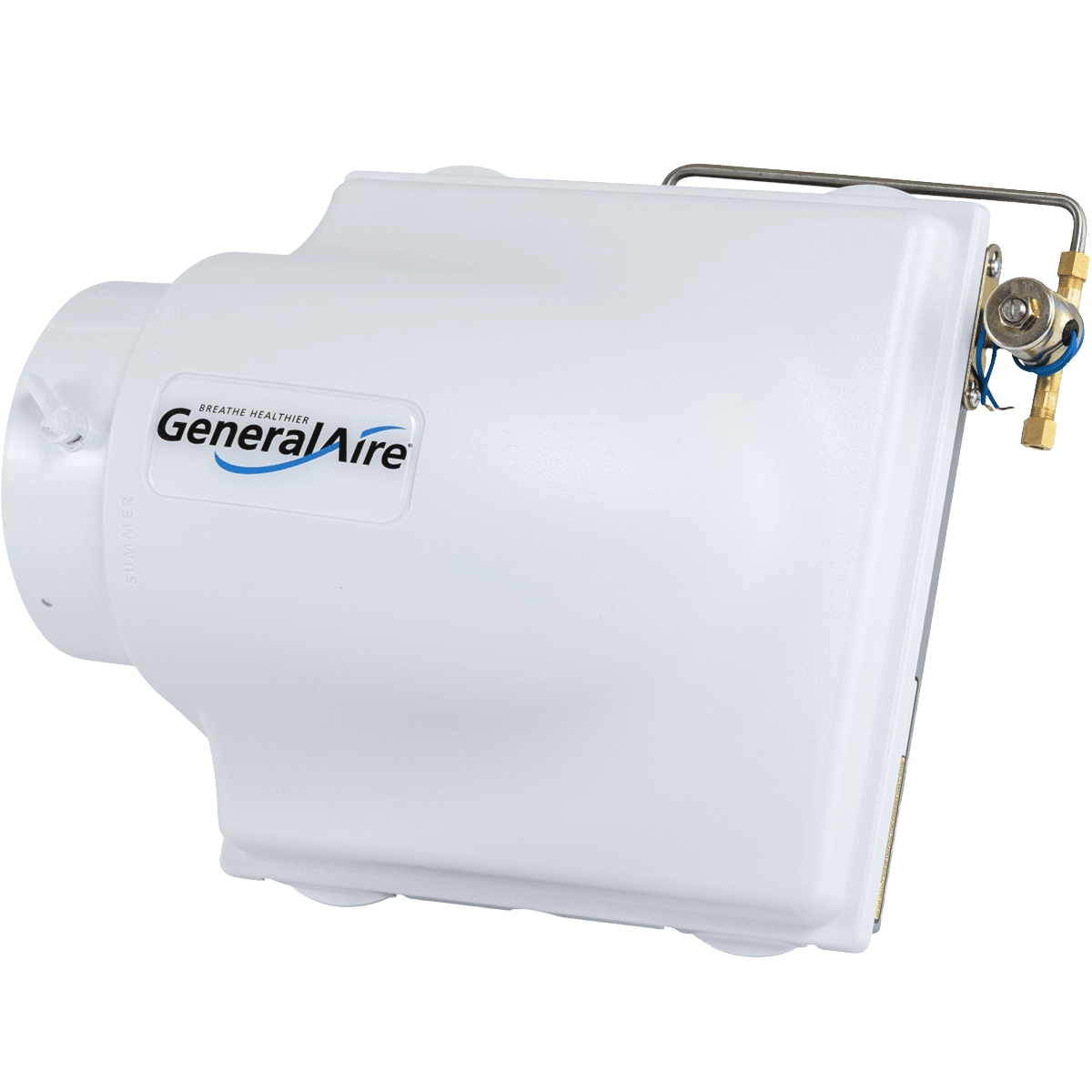

General Aire 3200 Bypass Evaporative Humidifier
General Aire 3200 Bypass Evaporative Humidifier - Automatic Digital Control is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

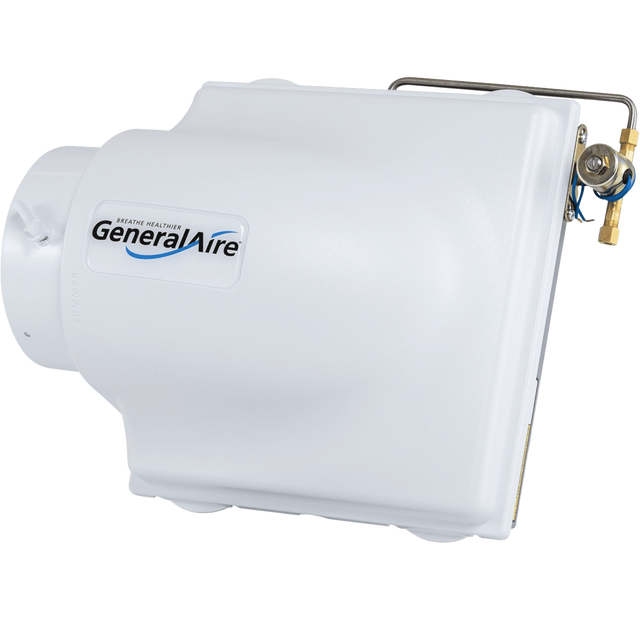

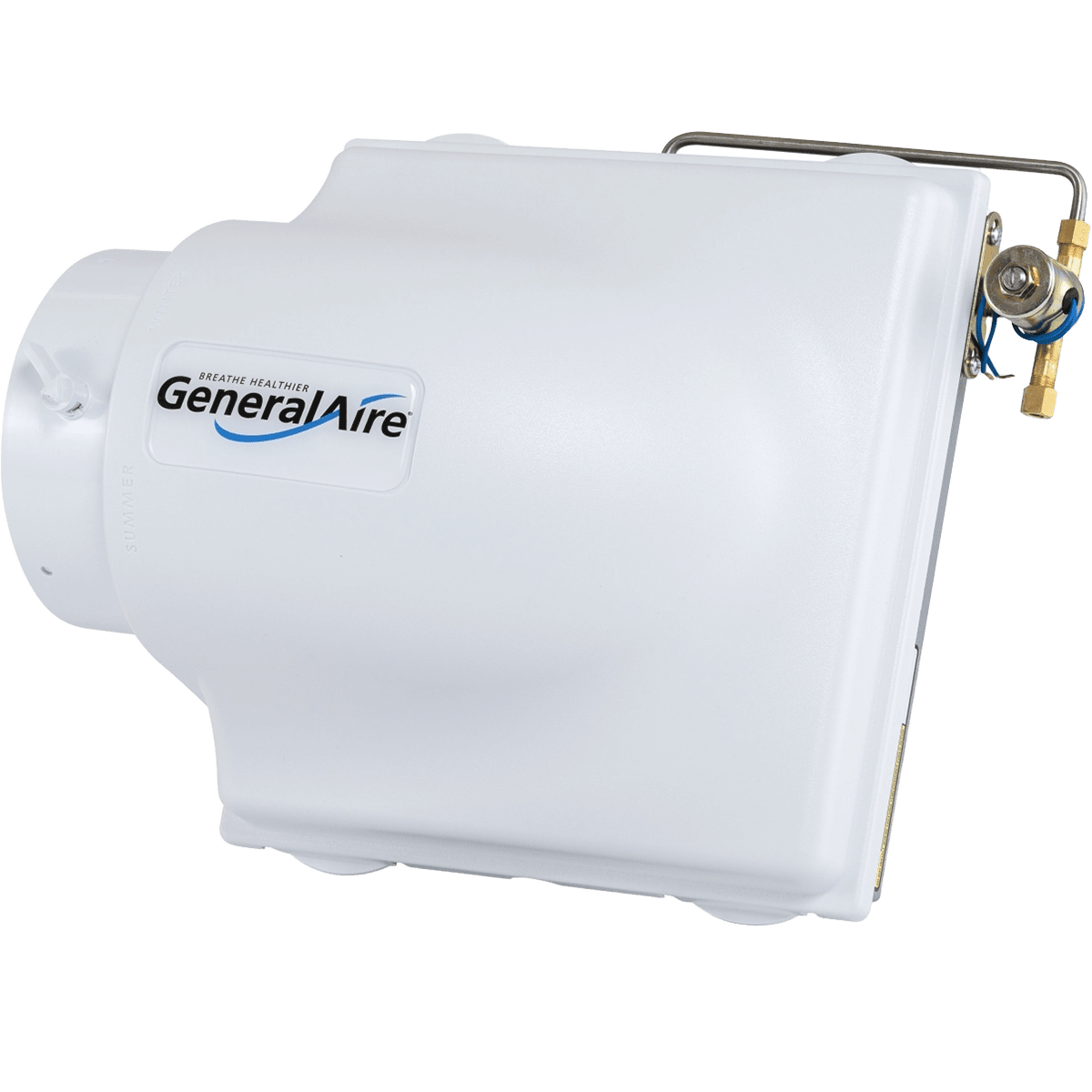

- General Aire 3200 Bypass Humidifier

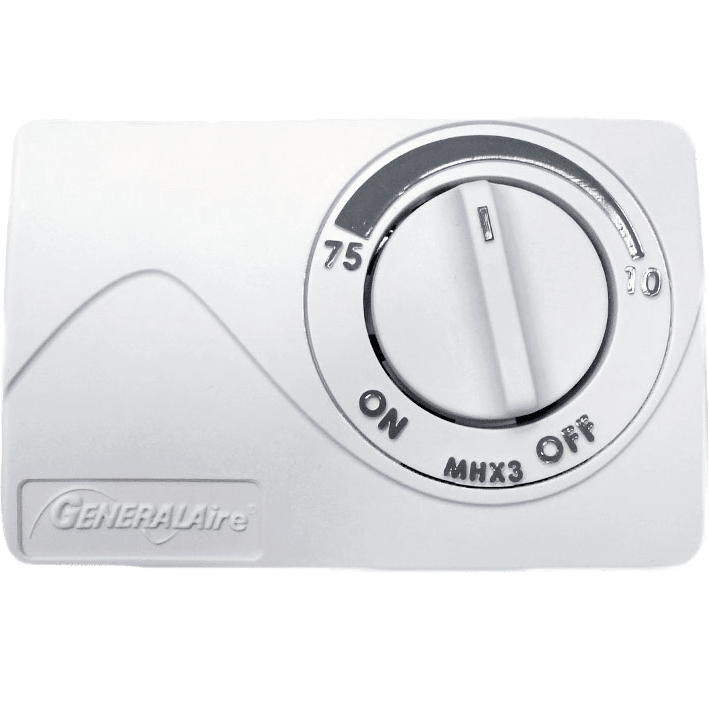

- MHX3C Manual Humidistat (3200M Only)
- GFX4 Automatic Digital Humidistat (3200A Only)
- Control Bypass Damper
- 24V Transformer

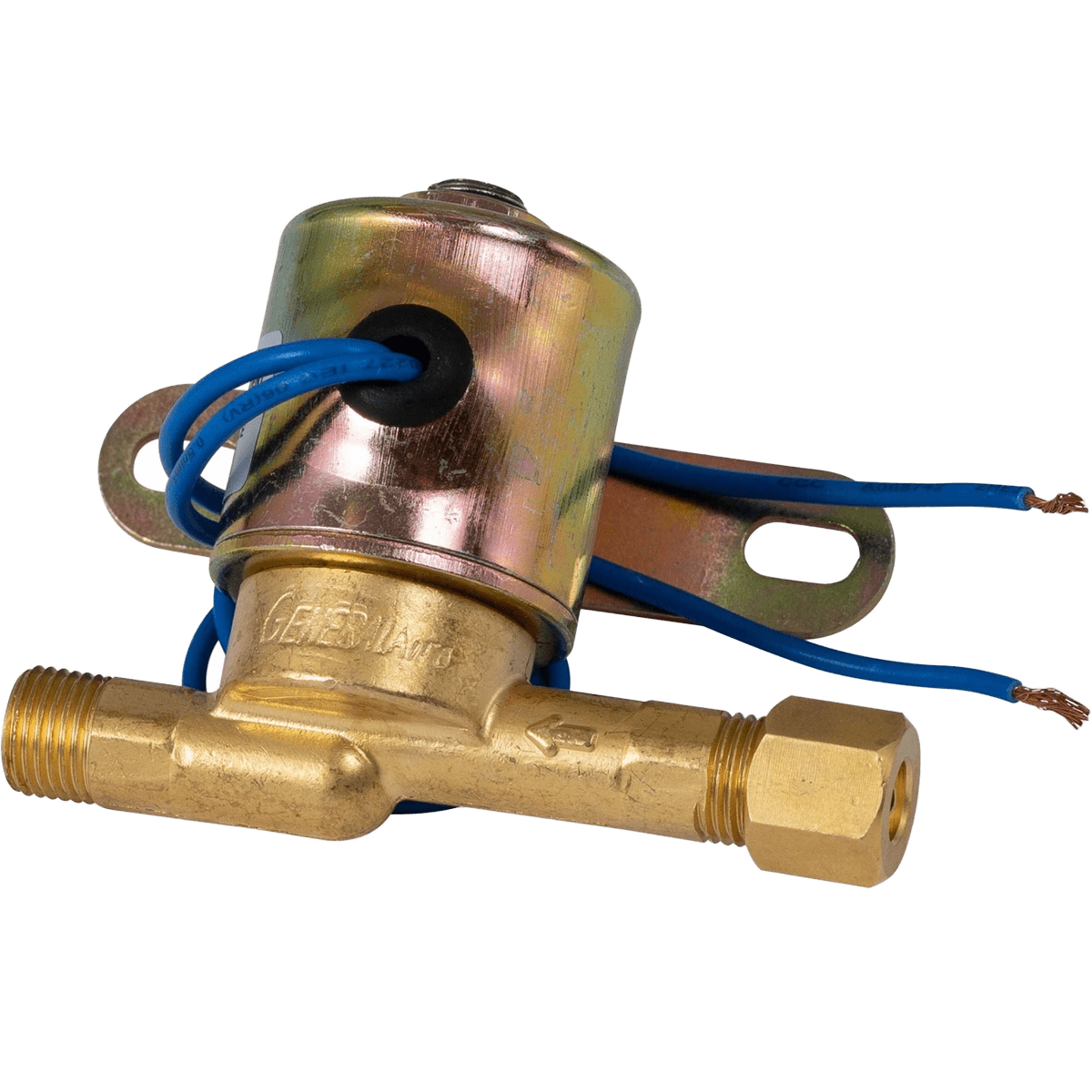

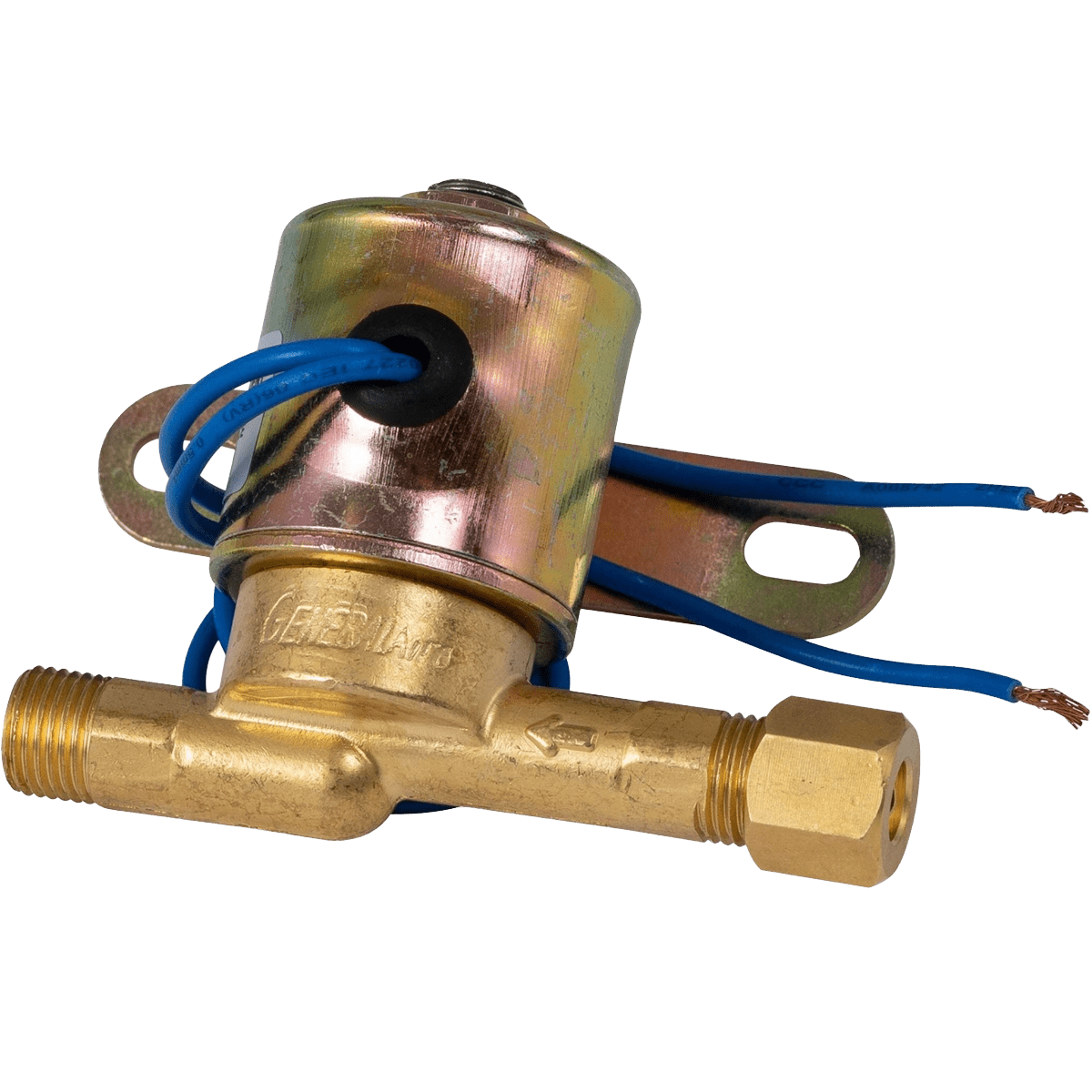

- Solenoid Valve

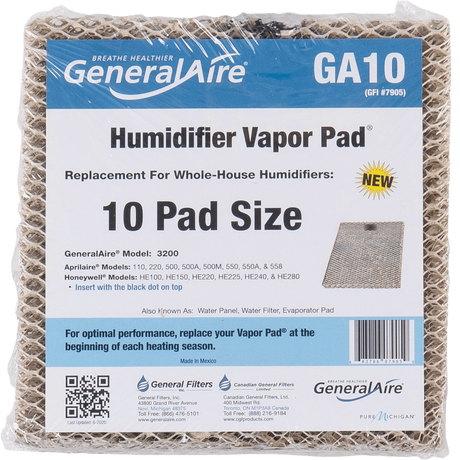

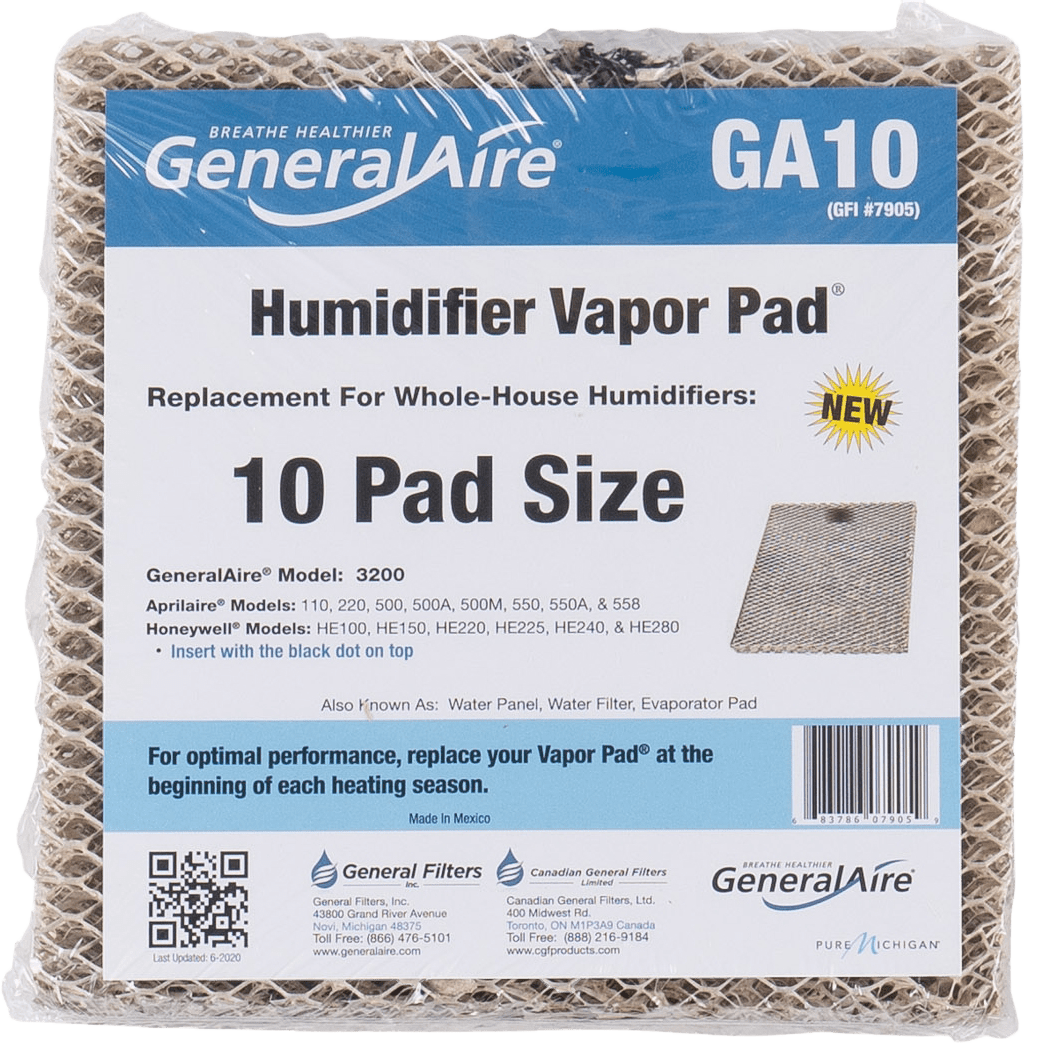

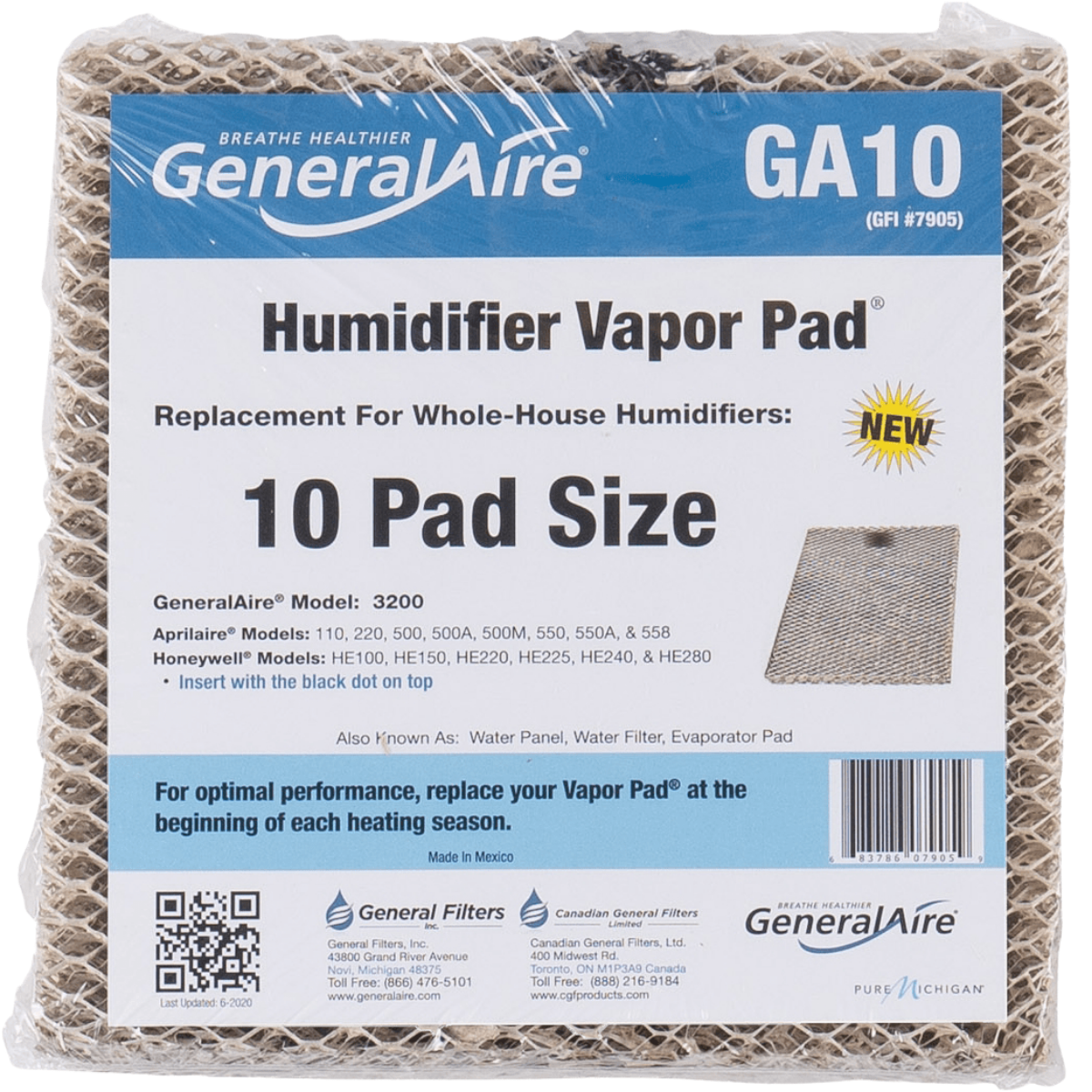

- GA10 Vapor Pad
- Push-to-Connect Valve
- Mounting Template
- Parts Kit
- Installation/Owner’s Manual
Info & Guides
Info & Guides

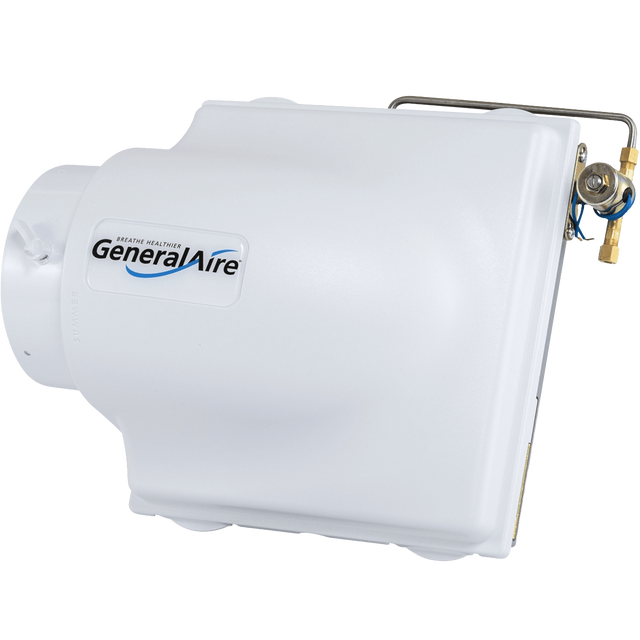

General Aire 3200 Bypass Evaporative Humidifier
Description
Description
Protect your health and your home from the side effects of dry air with the General Aire Model 3200 Bypass Evaporative Humidifier. Since cold air holds less moisture, it’s especially tricky in the winter months to maintain a comfortable humidity level while blasting the heat – installing a whole-house humidifier can ease that discomfort. As warm air from your furnace flows into the humidifier, it meets a water-soaked vapor pad that evaporates moisture into the air to deliver humidity throughout your home.
Note: This humidifier must be installed by a licensed contractor.
Manual or Automatic
The General Aire 3200 is available with two different operating controls:

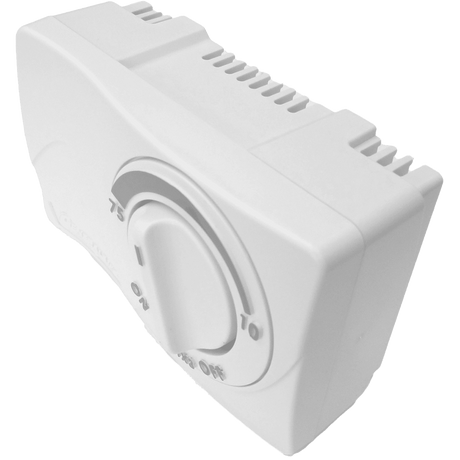

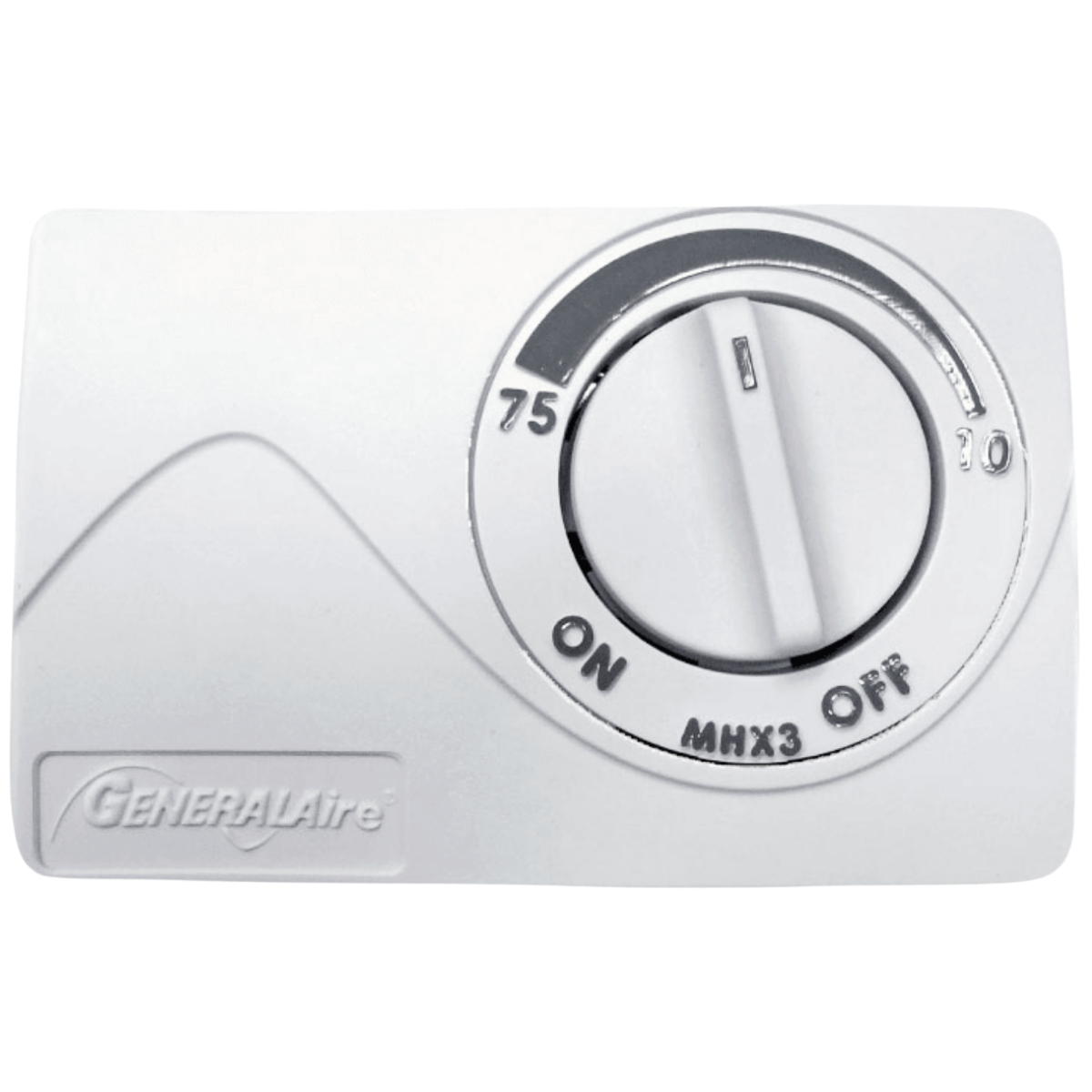

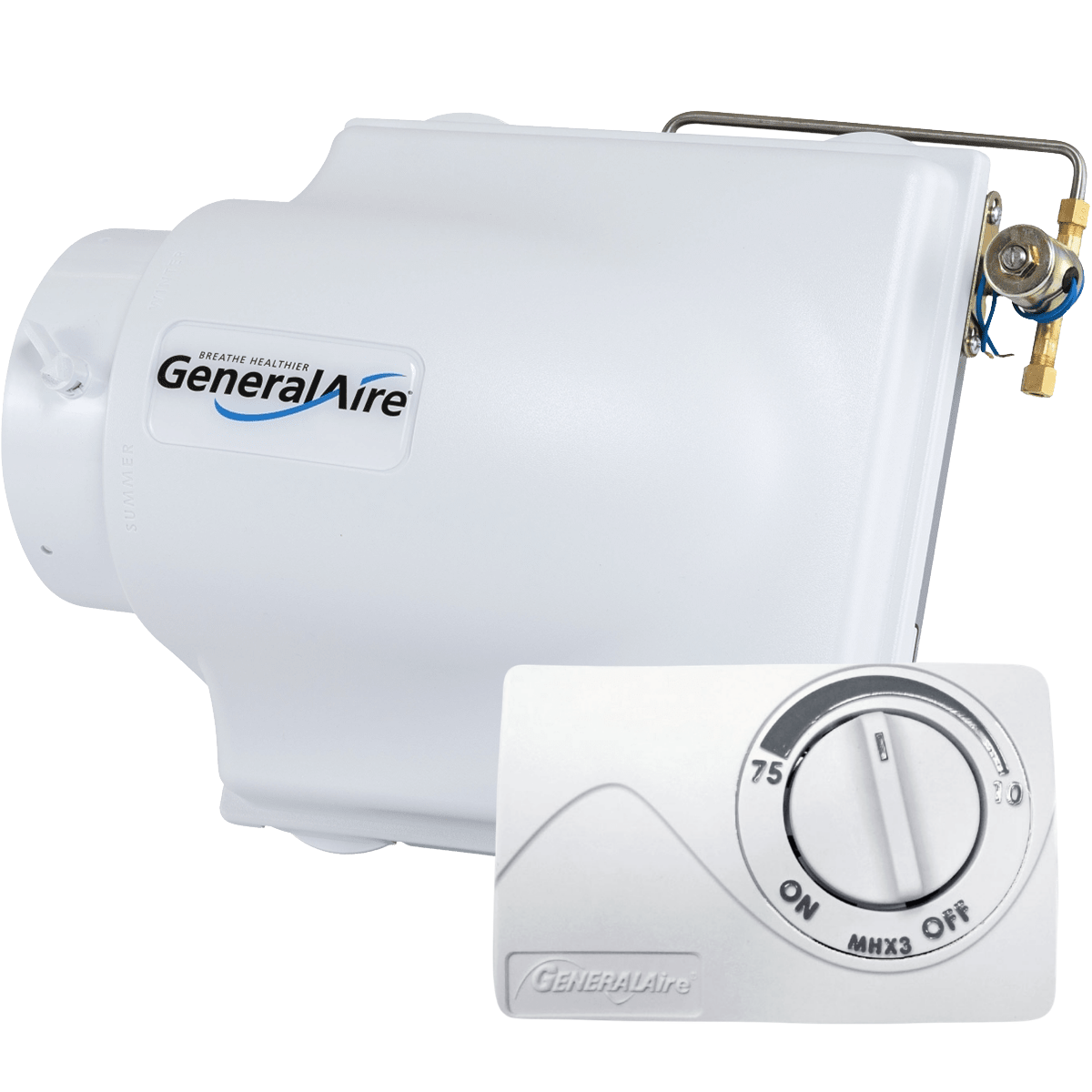

- General Aire 3200M: The bypass humidifier includes an MHX3C wall- or duct-mount humidistat with manual controls to adjust the humidity range.

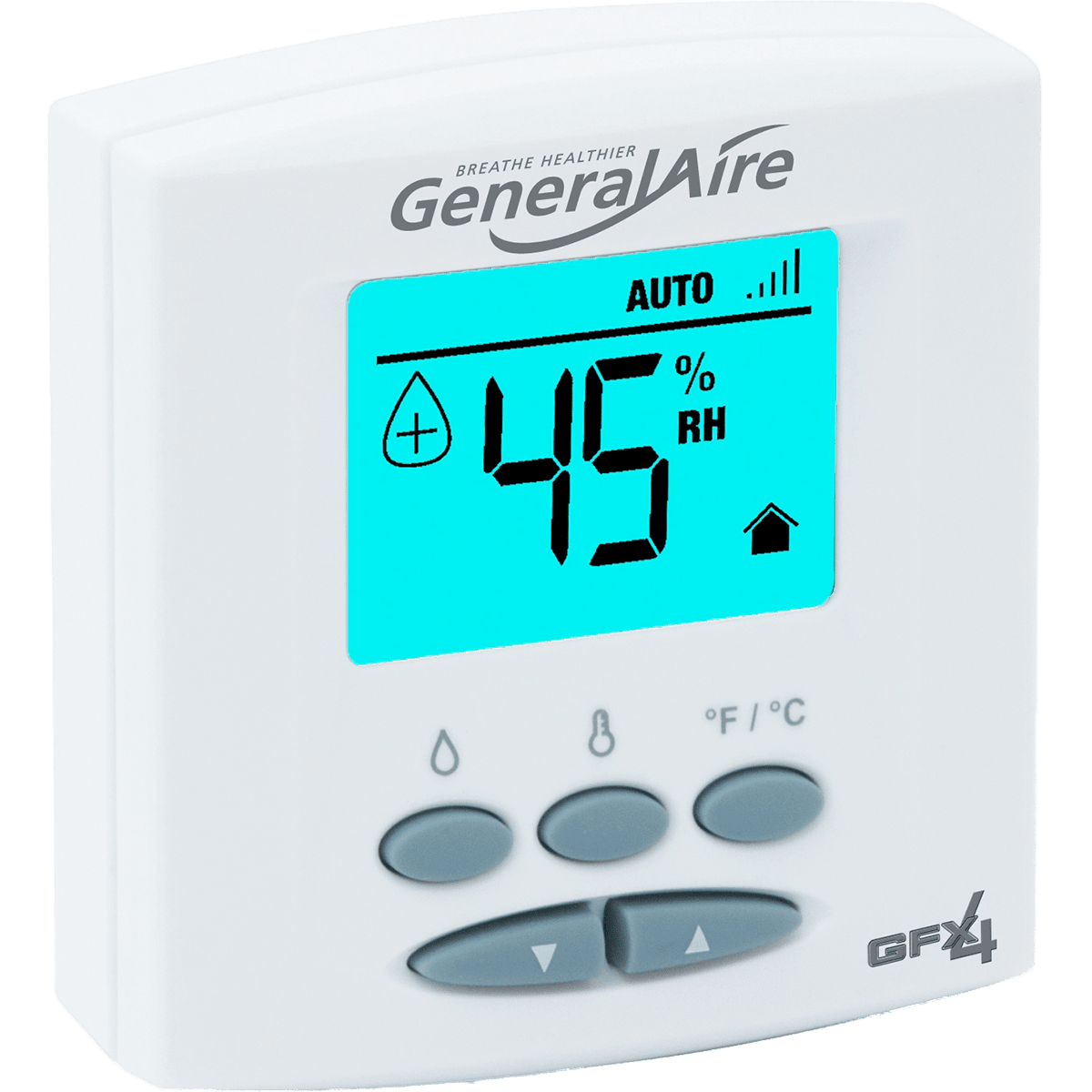

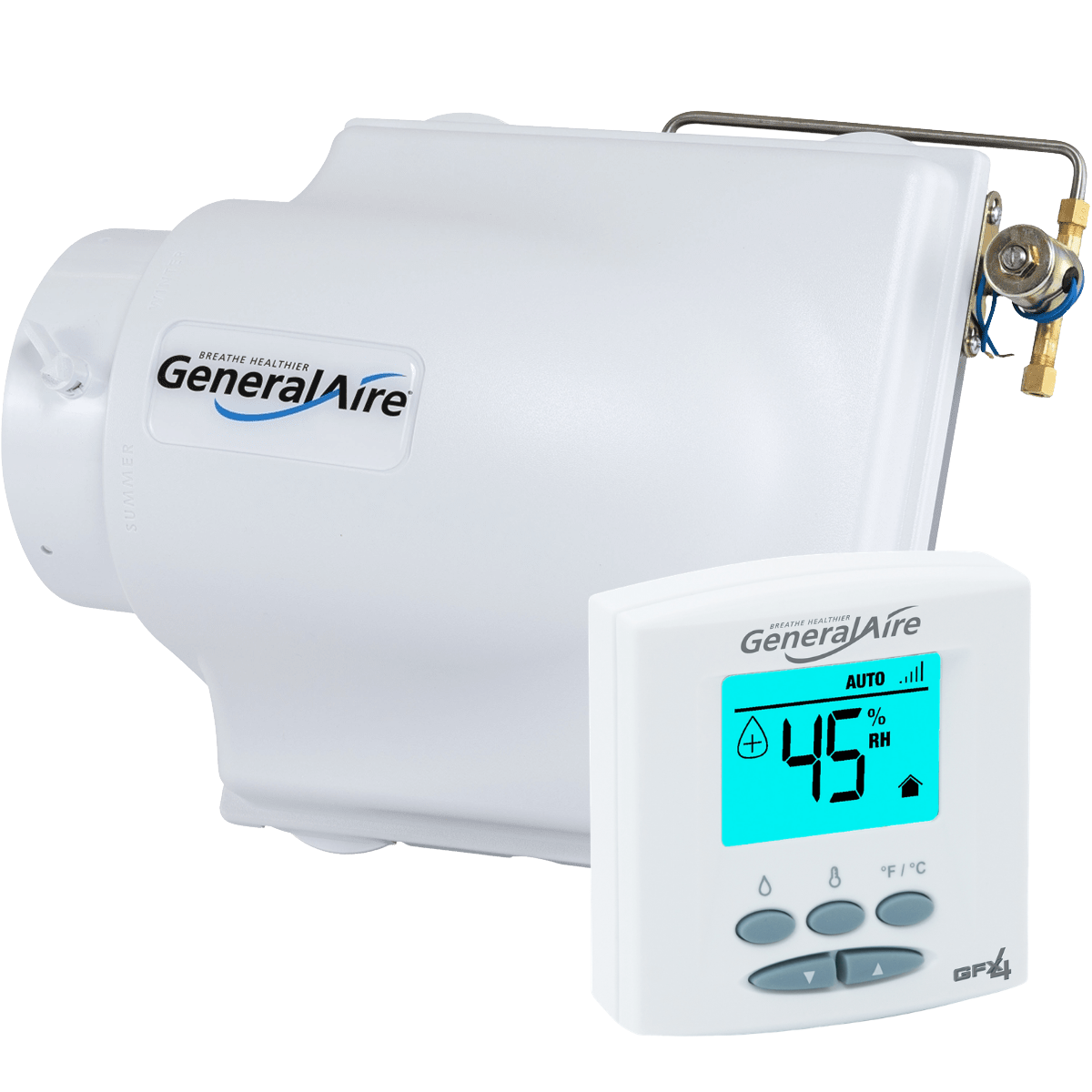

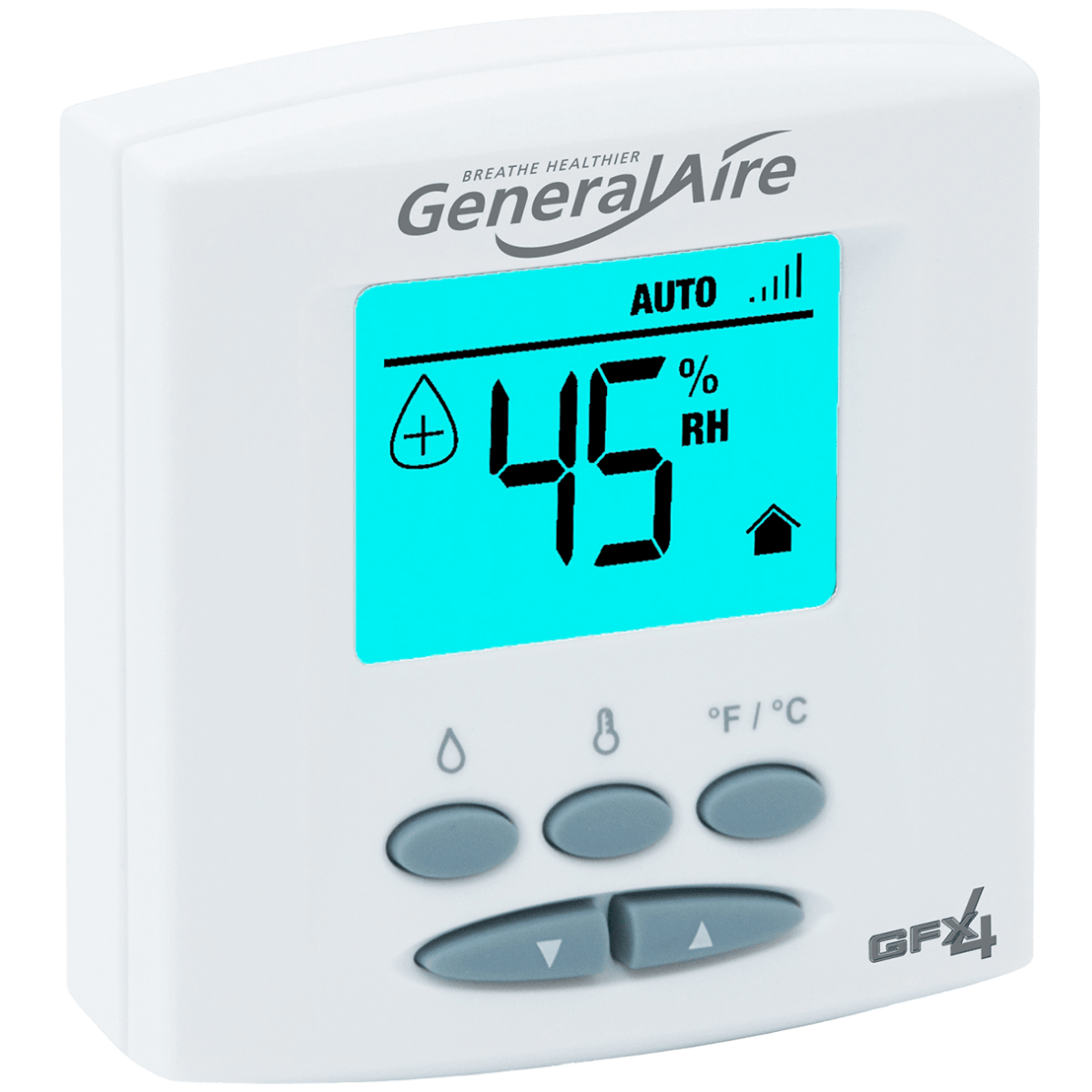

- General Aire 3200A: This GFX4 automatic digital humidistat controls the furnace blow motor and includes an easy-to-read LCD screen, an outdoor sensor, and accurate humidity readings. It can be installed directly on your wall or the duct, giving an extended humidity range from 10 to 75 percent.
Flexible Installation
Installation is easy and customizable with this General Aire bypass humidifier, and may be installed on either the return or supply plenum of a forced air handling system. The bypass panel is reversible, and can be mounted to the left or right. This flexibility is a great convenience, especially if you have a tight space on one side of your furnace; simply flip it around, and you’ll be humidifying your home in no time.
Additional Features
- Large Coverage Area: This evaporative humidifier covers homes up to 3,200 square feet.
- Contemporary Design: Featuring an innovative, space-saving design, this whole-house humidifier is lightweight and easy to install.

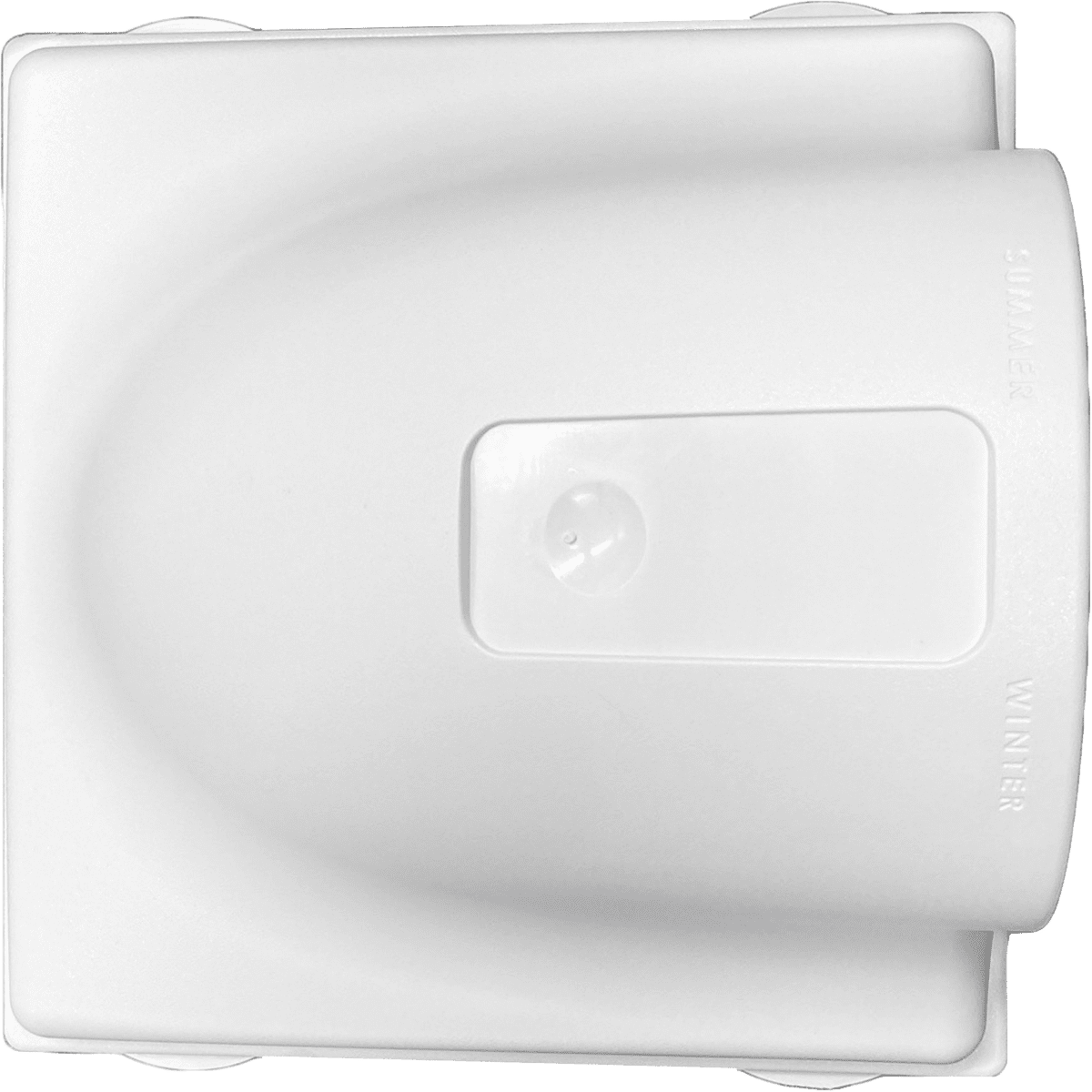

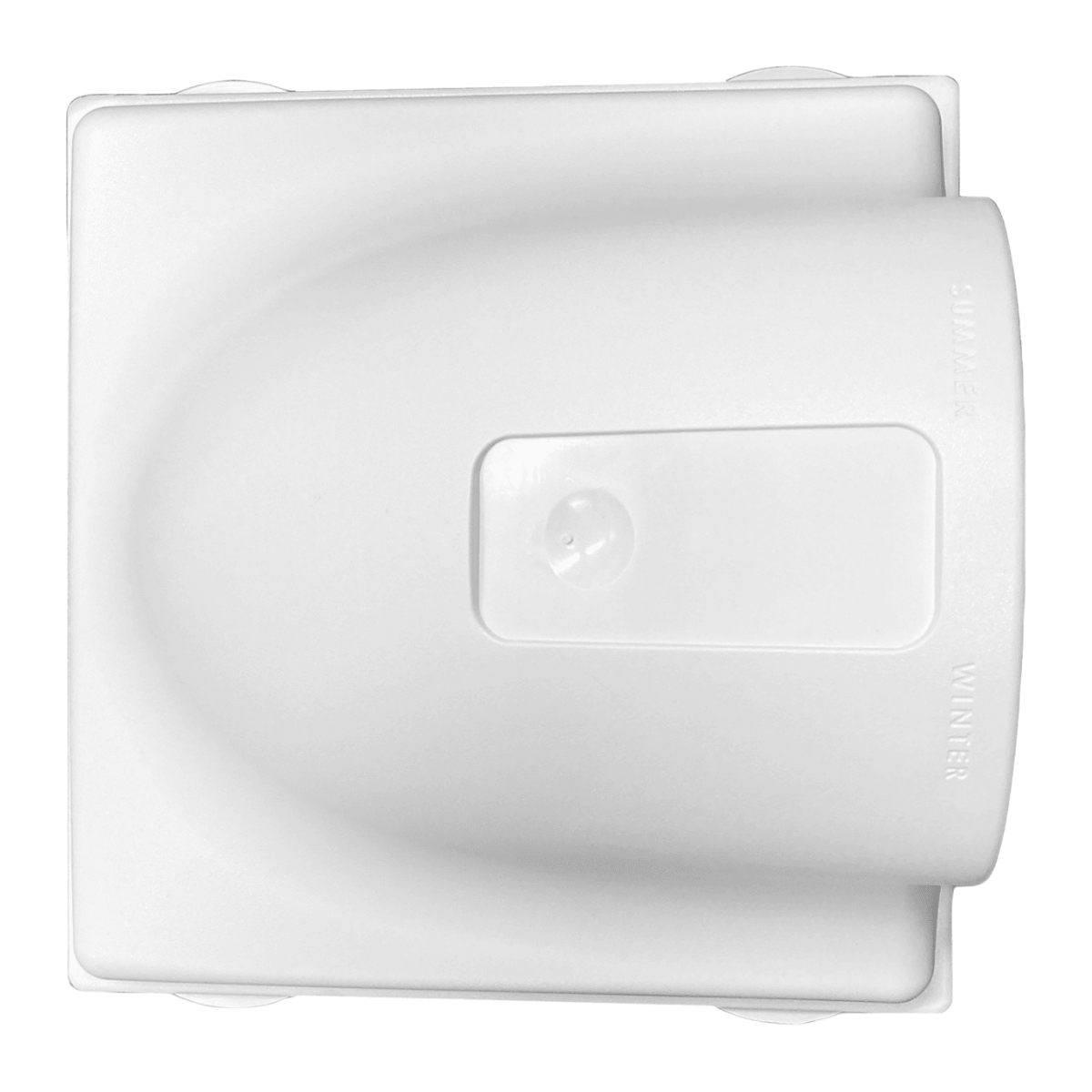

- Vapor Pad Replacement: Designed with a sturdy “pull apart” frame, the cover lifts off easily and snaps in place for a quick replacement routine.
- Strong Construction: General Aire uses UV-stable automotive-grade plastic for this low-profile humidifier.
- Water Supply: A stainless steel tube distributes cold or hot water from the direct line hookup.
Summary
Equipped with a low-profile design, easy-to-replace vapor pads, and available with either a manual or automatic humidistat, this General Aire evaporative humidifier maintains a comfortable level of humidity in your home all year long.
Specifications
Specifications
-
HVAC TypeBypass
-
Moisture Output Per Day (gallons)12.0
-
TypeEvaporative
-
ColorWhite
-
ControlsElectronicManual
-
Fill TypeDirect Water Line
-
Humidifier StyleHVAC/Duct
-
Humidity Range10% - 75%
-
Recommended Coverage Area (sq. ft.)3200
-
Recommended ForWhole House
-
Voltage (V)24
-

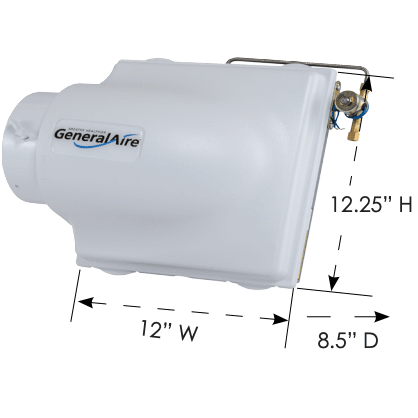

Depth (in.)8.5
-
Depth (with front cover) (in.)8.5
-
Height (in.)12.25
-
Height (with front cover) (in.)12.25
-
Weight (lbs.)7
-
Width (in.)12.0
-
Width (with front cover) (in.)12.0
-
Additional FeaturesHumidistat, Humidity Display, Wick FilterHumidistat, Wick Filter
-
Manufacturer's Warranty5-Year Limited Warranty
