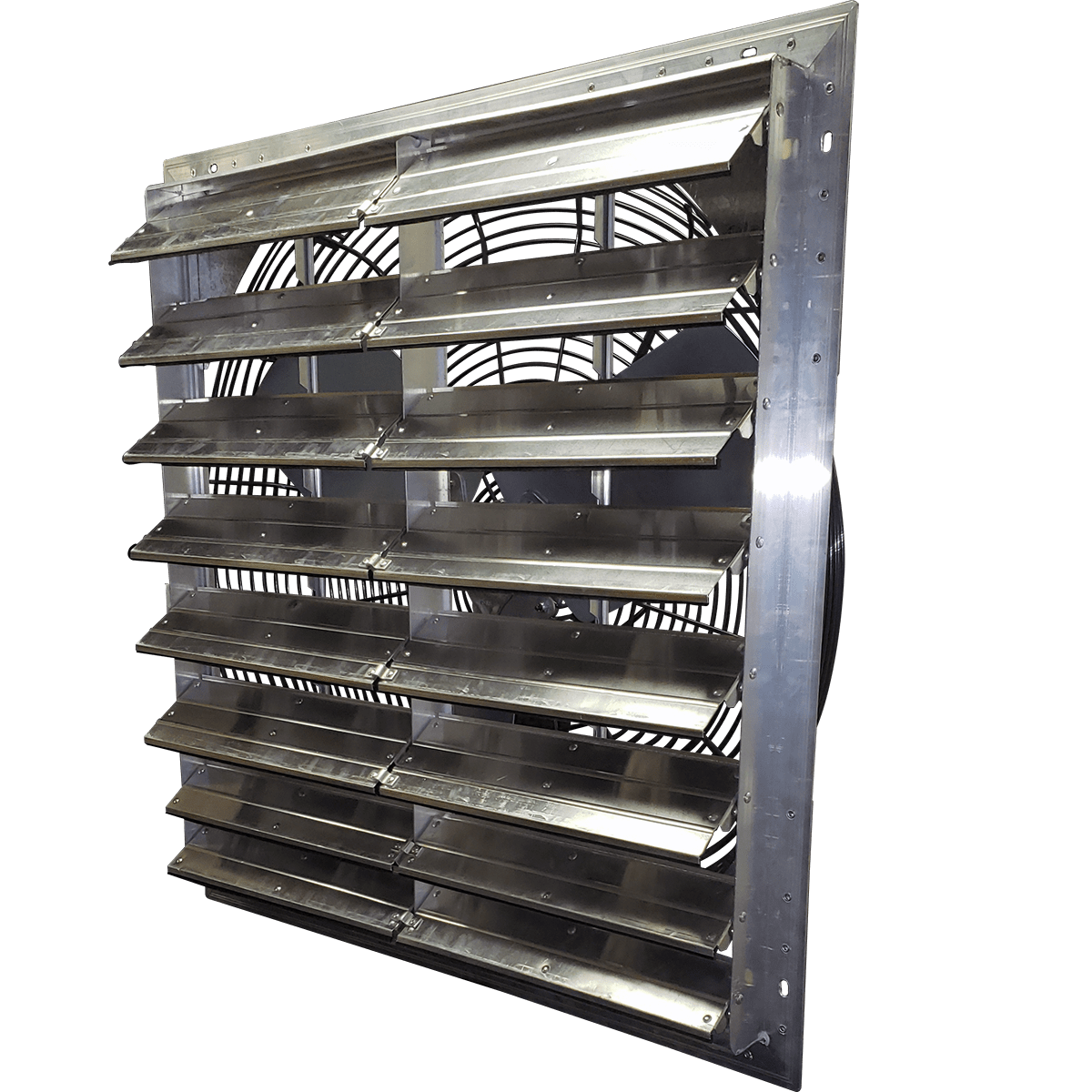

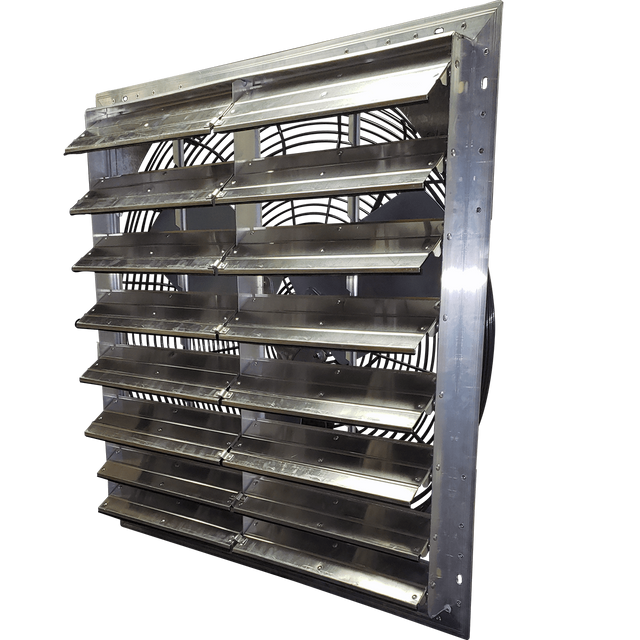

Hessaire 30-Inch Shutter Mounted Single Speed Exhaust Fan
Hessaire 30-Inch Shutter Mounted Single Speed Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Hessaire S301
- Owner's Manual
Info & Guides
Info & Guides
Hessaire 30-Inch Shutter Mounted Single Speed Exhaust Fan
Description
Description
Best for commercial and industrial settings, the Hessaire 5090 CFM Exhaust Fan easily vents areas up to 1,750-square feet with 5,895 cubic feet of airflow (CFM). This highly-efficient fan is corrosion-resistant with reinforced construction, and the single speed fan is made with OSHA and IP55 certifications for long-lasting use.
Other features include pre-assembly, pre-wired power cord, safety certifications, and more.
High Efficiency Fan
Get plentiful air movement with this 30-inch shutter fan, as it features durable components and construction for long-lasting use.
- Corrosion-Resistant: Gray polyester-powder coating protects against rust and weathering.
- Reinforced Construction: Reinforced rounded frame with riveted corners ensure quiet operation and minimal vibration.
- Automatic Shutters: Automatic shutters open and close in tandem with the operation of the fan without manual adjustment.
- Weather-Stripping: Weather-stripped louvers provide a tighter seal from outside moisture and noise.
Single Speed Fan
Heat and odor removal from industrial spaces, such as repair shops, gyms, and garages, is efficient. This single speed fan features 5,895 cubic feet per minute (CFM) of airflow for areas up to 1,750-square feet. The totally enclosed air over motor (TEAO) stays cool, and the IP55 rating protects the motor from dust and light moisture.
Additional Features
- OSHA Compliant: Features ½-inch spacing for safety and OSHA compliance.
- UL-Certified: The single speed fan comes with a UL705 certification for safety.
- Hardwired: Install this fan into any wall with existing circuitry.
Summary
The Hessaire S301 exhaust areas up to 1,750 square feet with 5,895 cubic feet per minute of airflow (CFM).
What Customers Love
- High CFM: This single speed fan is ideal for commercial and industrial areas up to 1,750-square feet.
Things to Consider
- Single Speed: This fan operates with a high single fan speed for quick exhausting.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)7.0
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)5895.0
-
Maximum RPM825
-
Recommended Coverage Area (sq. ft.)1750
-
Amperage (Amps)3.8
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)437
-
Ceiling or Wall Cutout Length (in.)31
-
Ceiling or Wall Cutout Width (in.)31
-
Depth (in.)18.0
-
Depth (with front cover) (in.)18.0
-
Height (in.)30.0
-
Height (with front cover) (in.)30.0
-
Shutter Fan Size (in.)30
-
Weight (lbs.)57
-
Width (in.)33.0
-
Width (with front cover) (in.)33.0
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty1-Year Warranty
