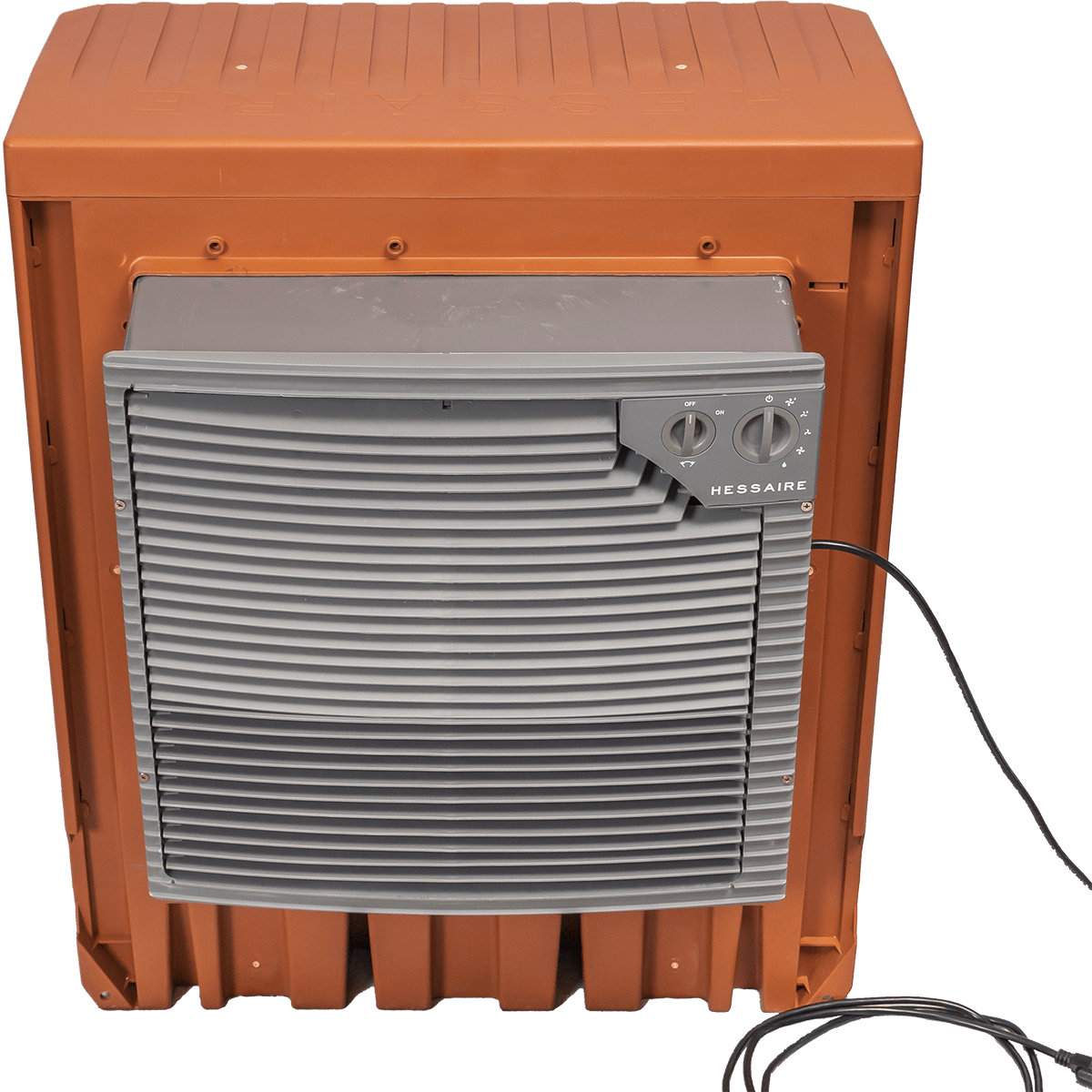

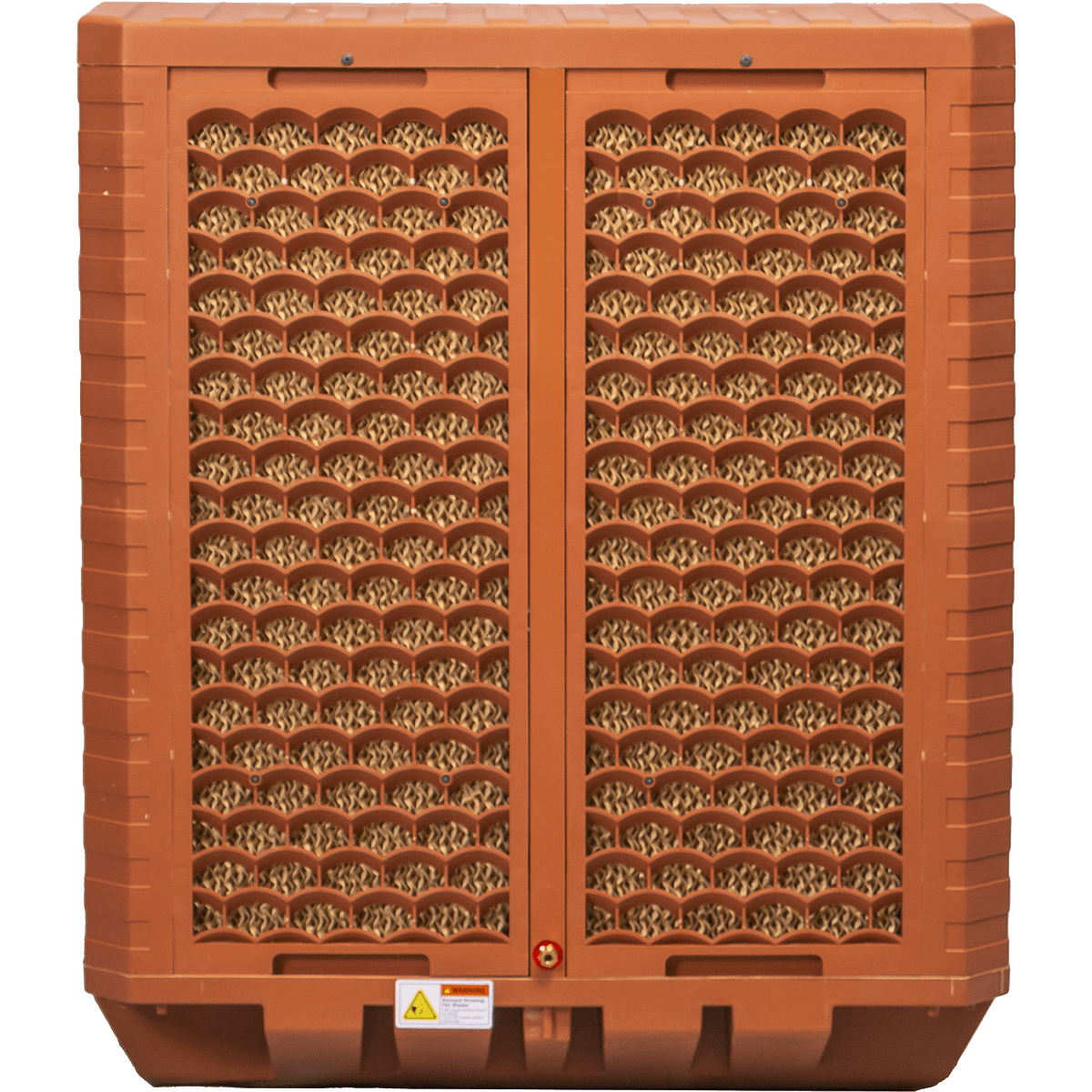

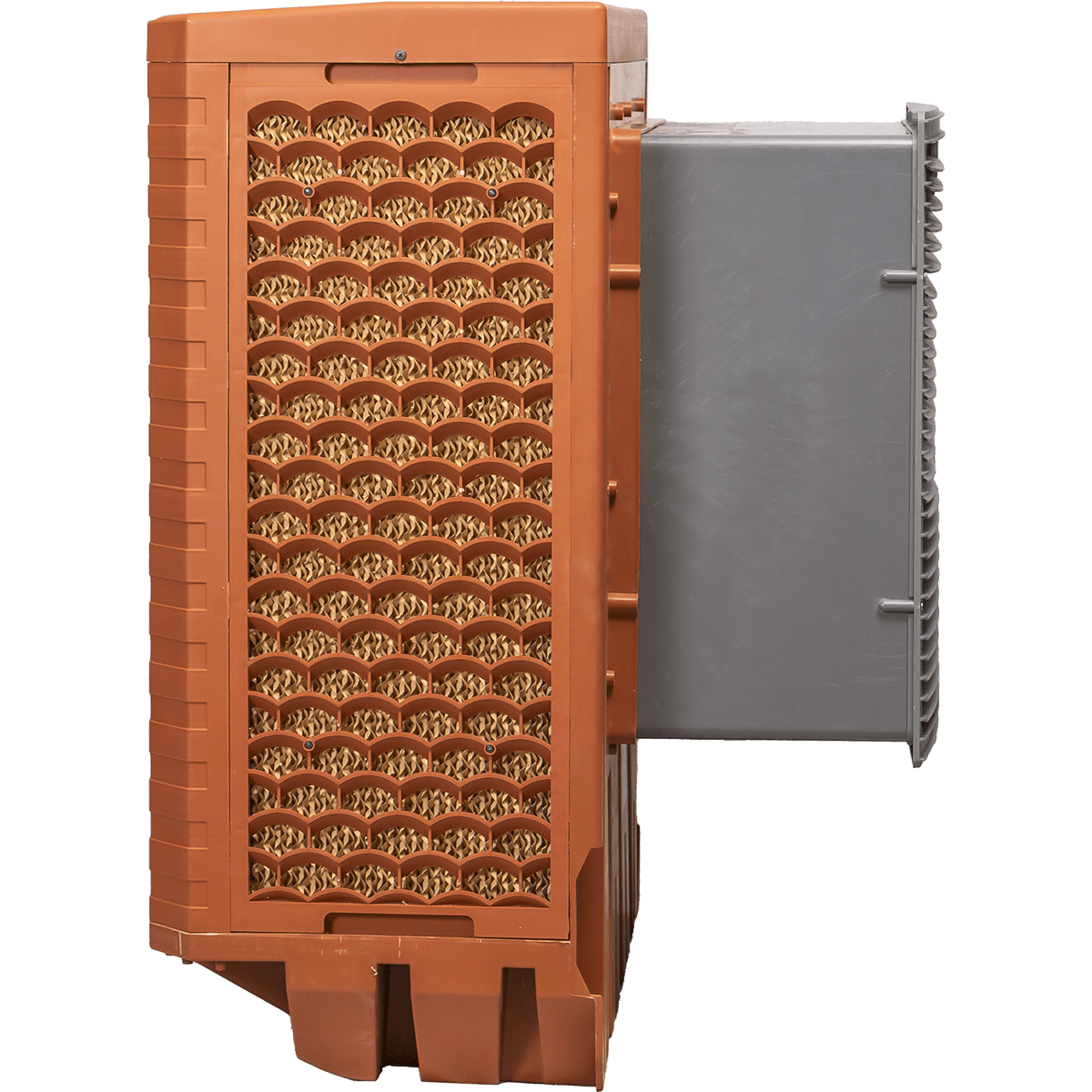

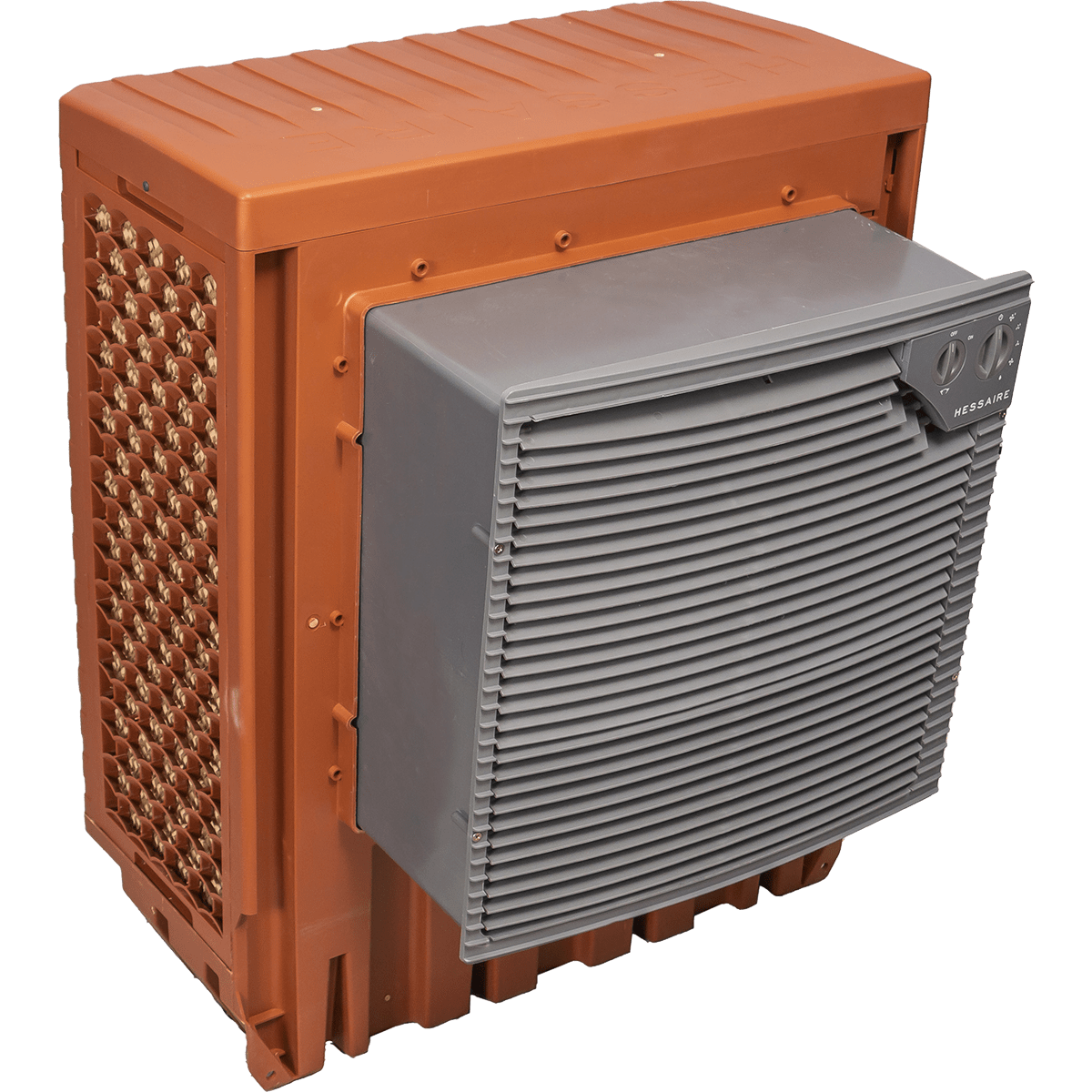

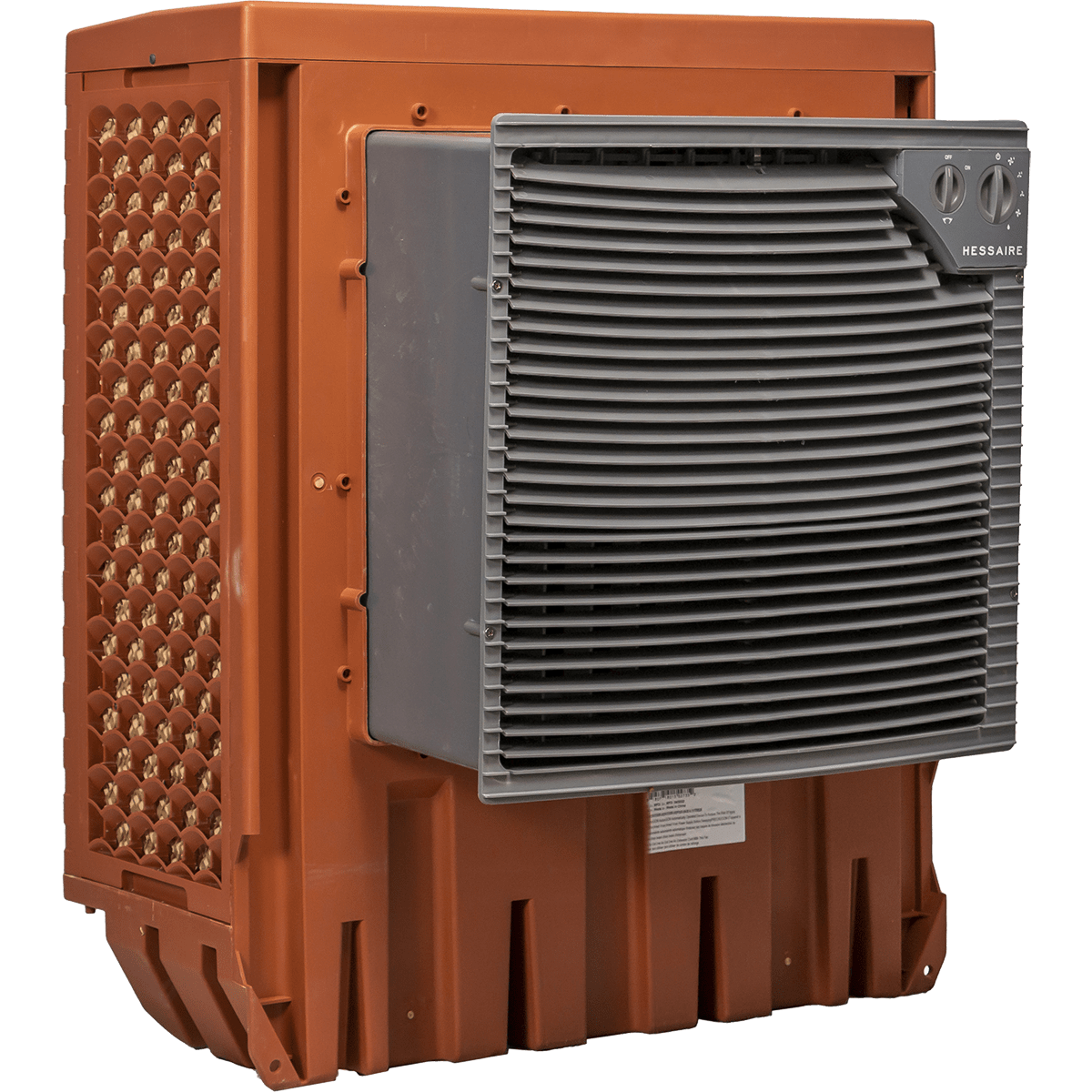

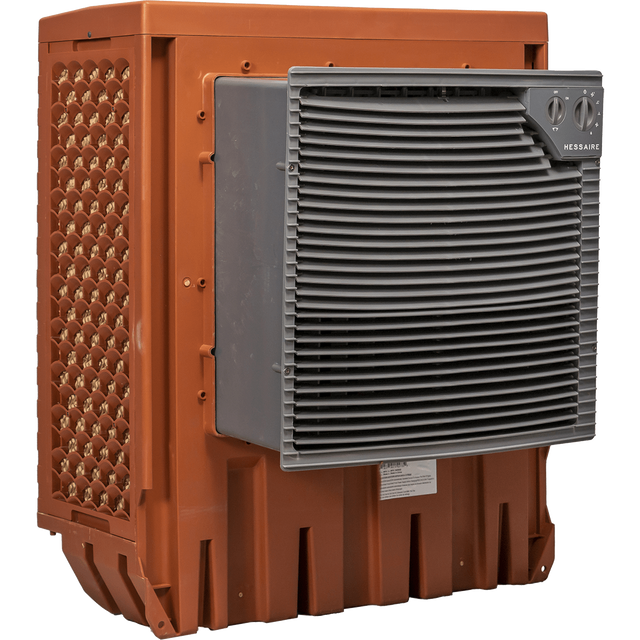

Hessaire DXW6100 CFM Front Discharge Window Evaporative Cooler
Hessaire DXW6100 CFM Front Discharge Window Evaporative Cooler is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Hessaire DXW6100 Window Evaporative Cooler
- Media Pads
- Owner's Manual
Info & Guides
Info & Guides
Hessaire DXW6100 CFM Front Discharge Window Evaporative Cooler
Description
Description
Add fresh air to your home or office with this Hessaire Window Evaporative Cooler. Ideal for dry climates, this unit installs directly into a window similar to the way a window air conditioner does.
Simple to operate, this evaporative swamp cooler has three cooling fan speeds, a high speed fan-only option, and can cool up to 2,000 square feet.
Powerful Cooling
The Hessaire DXW6100 Window Evaporative Cooler features a direct drive axial motor to deliver up to 6100 CFM of airflow.
- A 5052 aircraft aluminum prop features a swept design for high static and low dB noise
- Aluminum extrusion frame motor for superior heat dissipation and corrosion resistance
- Submersible permanent magnet sealed-rotor pump provides dependable service
- Standard ¼-inch float valve
This cooler has 80% evaporative efficiency thanks to the hi-density media, and the rigid media pads last 3-5 years.
For optimum operation, this window cooler needs sufficient air openings for the area being cooled, such as an open door or window.
Installation Options
Whether it’s your apartment, a family room, workshop, or garage, the DWX6100 is easily installed using one of two options.
- Window Installation: Insert the fan duct part of the cooler through the window, then on the outside, the tank part of the cooler fastens to the wall through the designated screw holes on the bottom.
- Through-Wall Installation: Construct a rough-in opening approximately 22.5 x 22.5 inches through the wall (a contractor may be needed for this). Then insert the fan duct through the opening—the telescoping neck adjust to accommodate wall thickness. Fasten to the outside as for window installation.
Evaporative Cooler Dimensions
- Fan Duct (Inside Air Vent): 21.625 H x 21.625 x 10 D inches (Neck is telescoping)
- Cabinet (Outside Tank): 35.5 H x 29.25 x 16.75 D inches
Additional Features
- Control Functions: Fan & Pump On High Speed; Fan & Pump On Low Speed; Fan Only on Low Speed; Fan Only on High Speed
- Washable Media: Remove the rigid media pads for cleaning using a soft brush and vinegar if necessary.
- UV-Resistant Polypropylene Housing: This light-weight, durable housing caries a lifetime warranty.
- Energy Efficient: This unit pulls only 3.6 amps on high and 2.9 amps on low, saving up to 75% over refrigerated air systems.
- Air Filtration: The hi-density media also filters particles as it cools.
Summary
The Hessaire DXW6100 Window Evaporative Cooler brings 6100 CFM of airflow to hot, dry spaces up to 2,000 sq. ft. Install in a window or through a wall. Durable hi-density media, lightweight UV-resistant casing, and fan-only option help create a fresh, cool environment.
Specifications
Specifications
-
Mounting TypeWindow
-
Number of Speeds2
-
ApplicationResidential, Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
ColorBrown
-
ControlsManual
-
Hose HookupNo
-
Maximum Cubic Feet per Minute (CFM) (CFM)6100.0
-
Recommended Coverage Area (sq. ft.)2000
-
Recommended ForBasement, Whole House, Warehouse, Repair Shop, Garage/Workshop
-
Water Reservoir Capacity (Gallons)8
-
Maximum Amperage (Amps)3.6
-
Maximum Wattage (W)320
-
Voltage (V)110-120
-
Depth (in.)26.75
-
Depth (with front cover) (in.)26.75
-
Height (in.)35.5
-
Height (with front cover) (in.)35.5
-
Weight (lbs.)62
-
Width (in.)29.25
-
Width (with front cover) (in.)29.25
-
Additional FeaturesAdjustable Louvers, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Parts Warranty; Lifetime Casing Warranty
