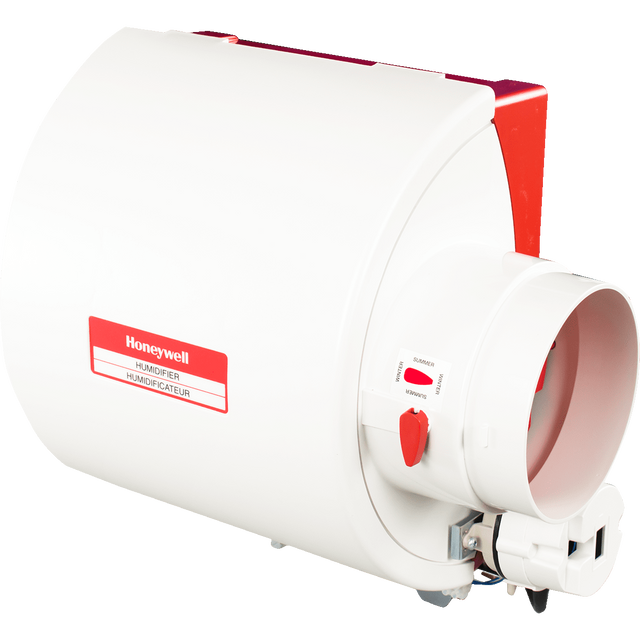

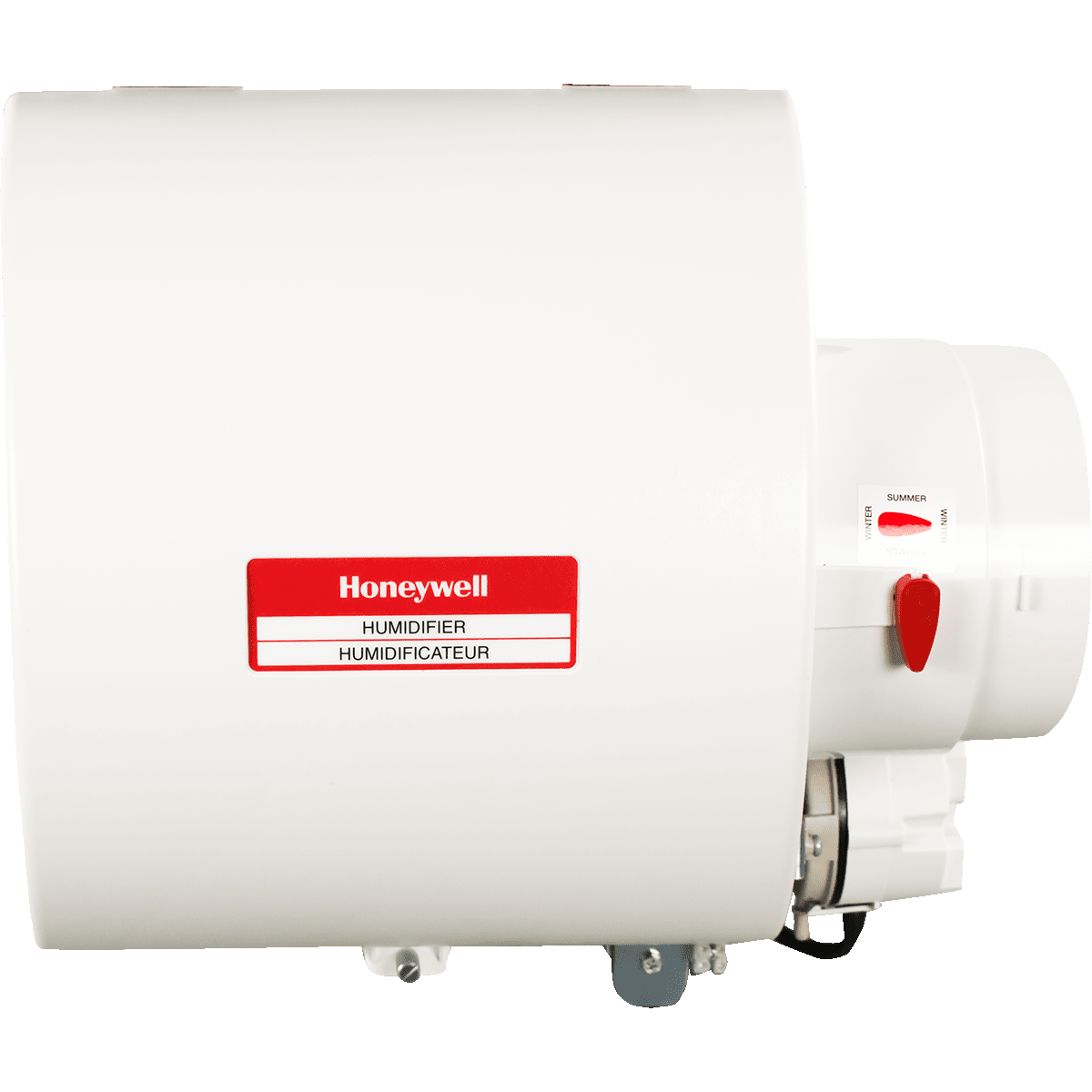

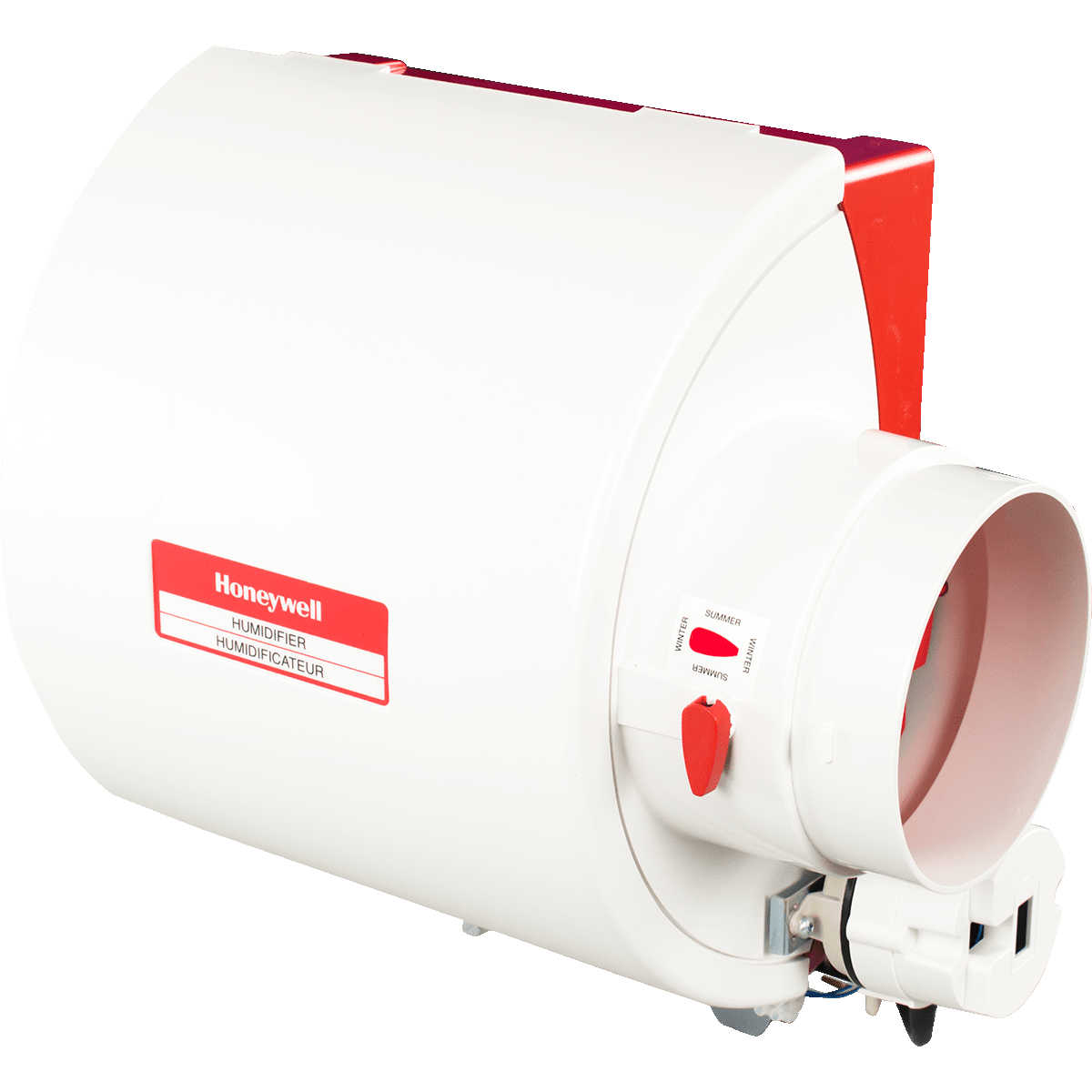

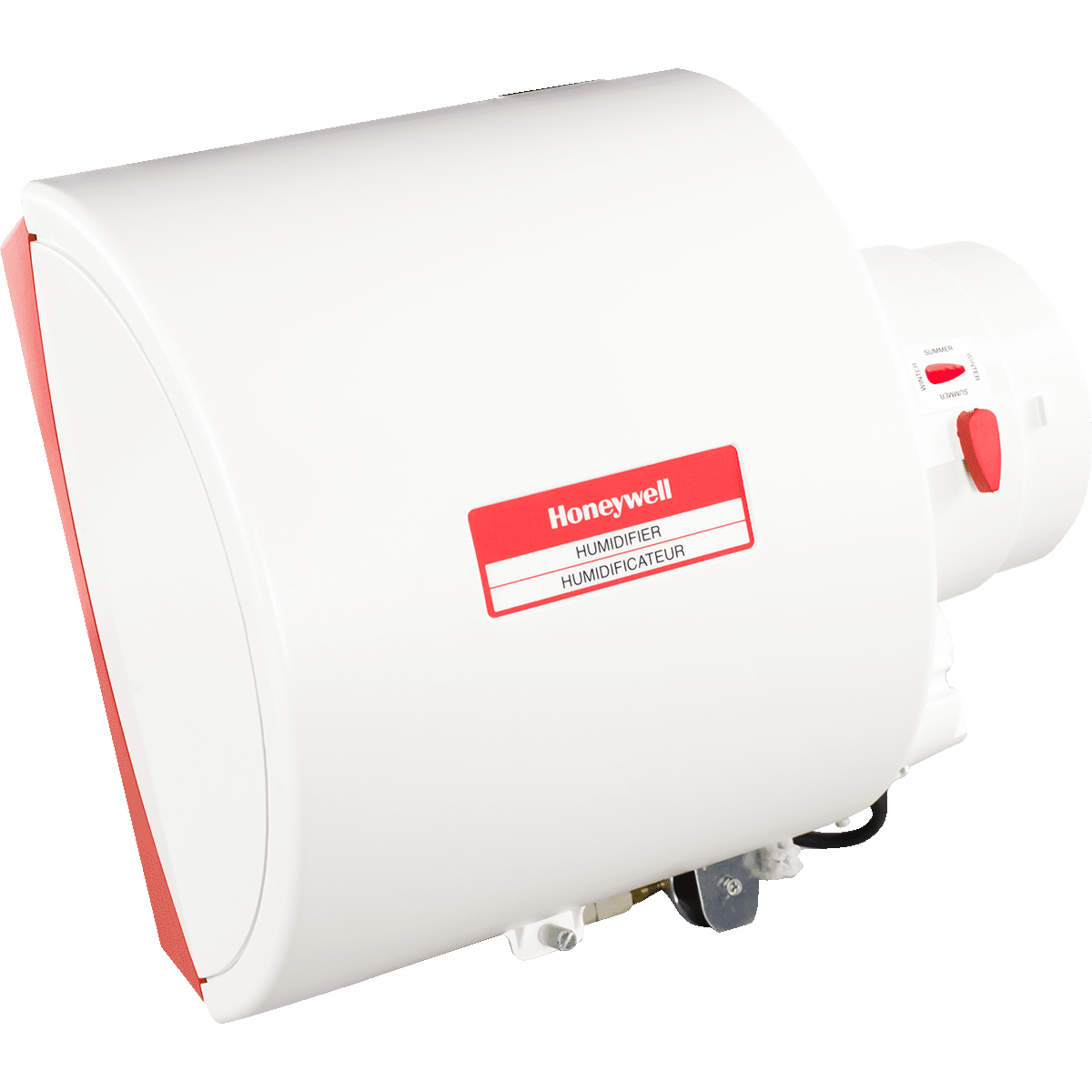

Honeywell HE240D Whole House Bypass Flow-Through Humidifier
Honeywell HE240D Whole House Bypass Flow-Through Humidifier is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

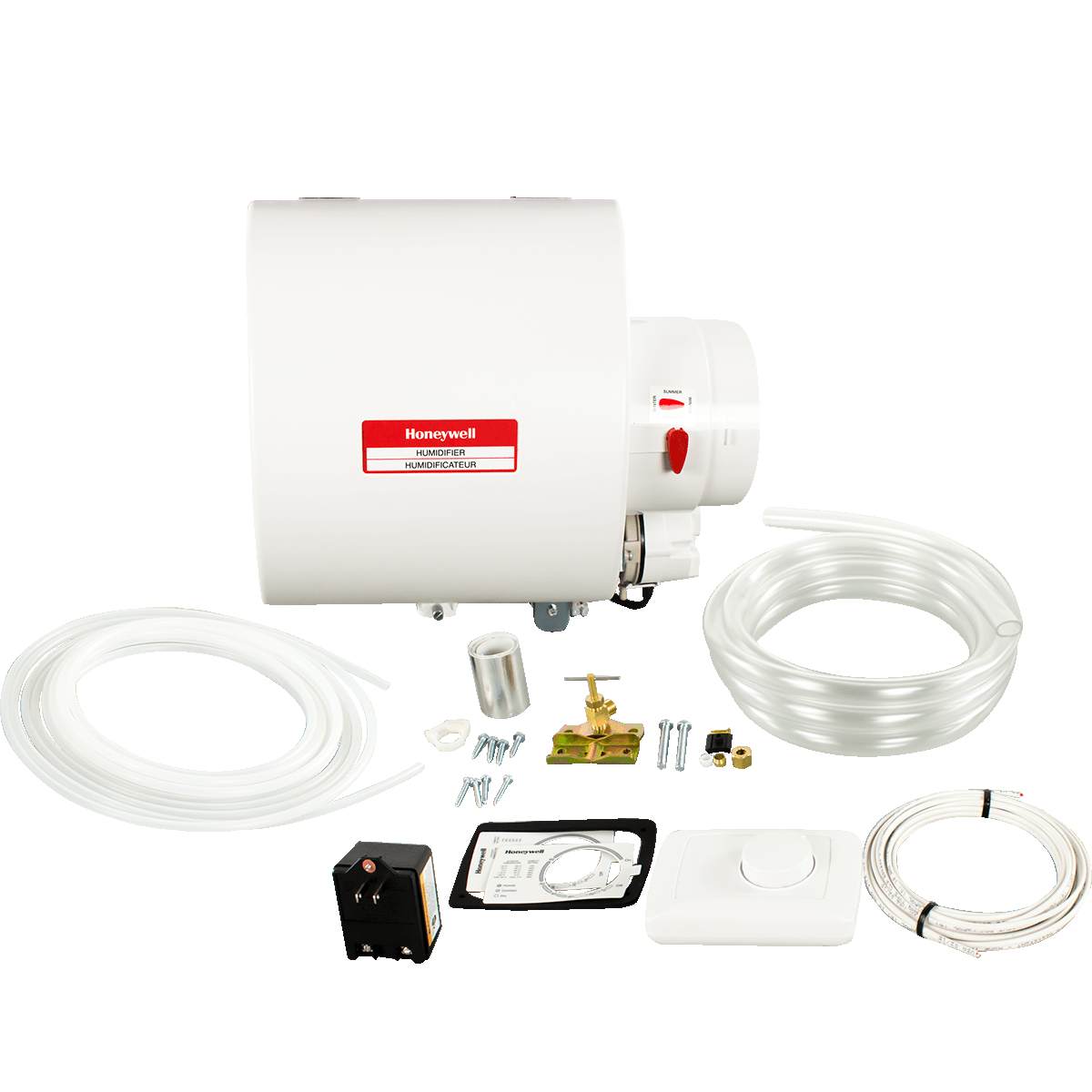

What's In The Box?
What's In The Box?
- Honeywell HE240D Bypass Flow-Through Humidifier
- Honeywell H8908 Digital Humidistat
- Installation Kit
- Owner's Manual
Info & Guides
Info & Guides
Honeywell HE240D Whole House Bypass Flow-Through Humidifier
Description
Description
Creaky floors, static shocks, dry skin, irritated breathing passages - dry winter air can trigger a number of uncomfortable side effects. While portable tabletop humidifiers provide temporary relief, they're usually only large enough to cover a single room, or small area and they may require lots of maintenance. Fortunately, Honeywell has created a better way. Stop dry air from wreaking havoc on your indoor comfort with the Honeywell HE240D Bypass Humidifier!
How It Works

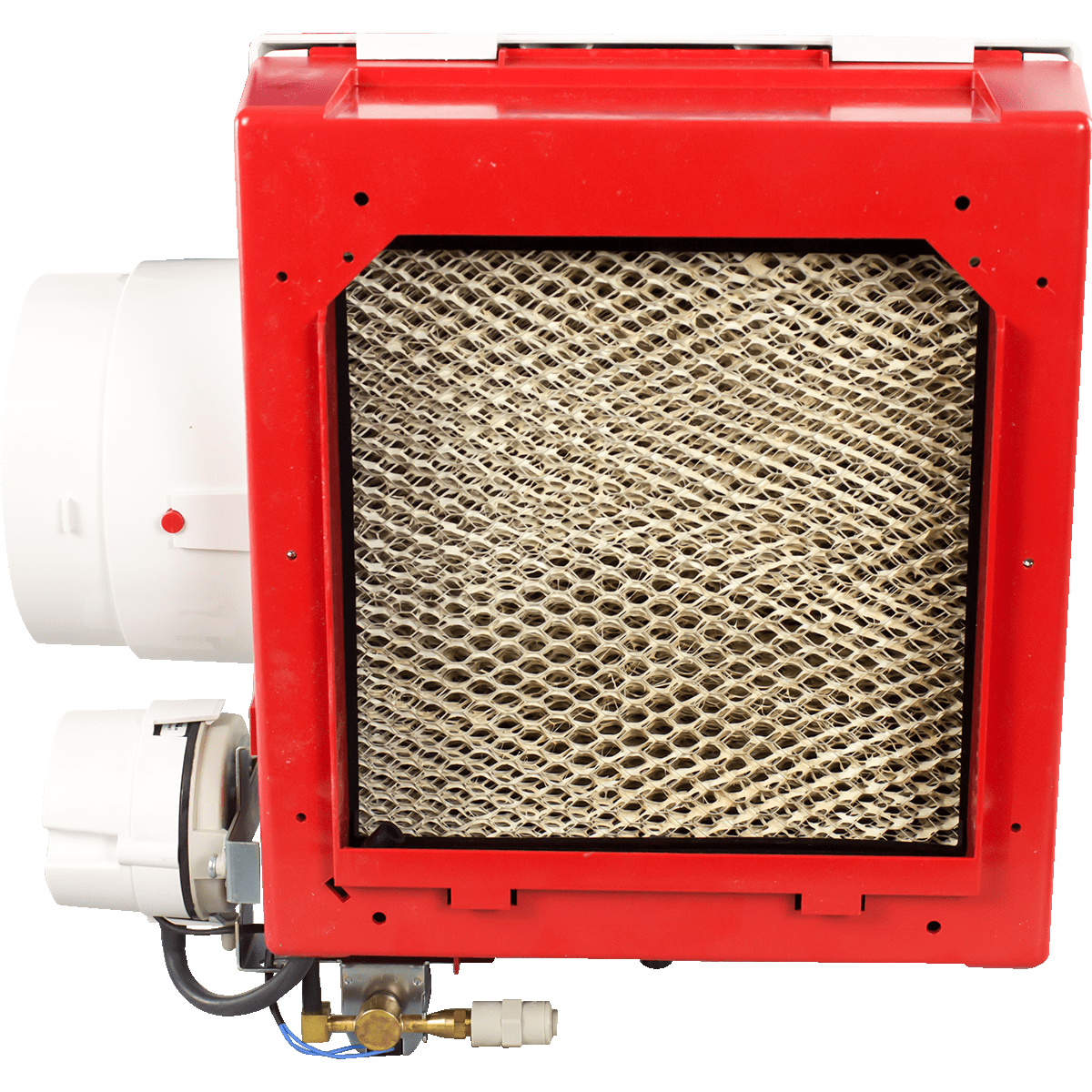

The Honeywell HE240D Humidifier is a whole house humidifier that works with your forced-furnace to distribute comfortable humidity throughout your entire home. It installs easily onto the warm air supply or return air duct of your furnace and hooks to a drain line with simple DIY installation. To operate, warm air from your furnace blows through a water-soaked evaporator pad and wicks up moisture, creating a moisture-rich vapor. Warm humidified air is then propelled out through your air ducts to circulate throughout all the rooms of your home. The HE240D includes the easy-to-use H8908 digital humidistat that monitors your home's relative humidity and activates the humidifier should it fall below your set humidity level.
Clean Humidity for Up to 3,000 Square Feet

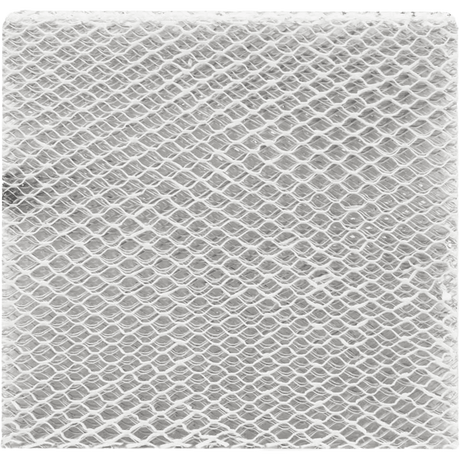

The Honeywell HE240D Whole House Bypass Humidifier is designed to humidify homes as large as 3,000 square feet, putting out roughly 16 gallons of moisture per day. Its design helps keep the unit clean of microorganisms by routinely rinsing and draining itself instead of drawing stagnant water from a reservoir. Plus, the evaporator pad helps filter out minerals from hard water and other impurities for cleaner moisture. These features contribute to less maintenance and less of a headache throughout the humidifying season.
Additional Benefits and Features
- PerfectFLO Water Distribution - Honeywell's unique PerfectFLO system optimizes water usage and efficiency for low-cost humidifying.
- Easy DIY Installation - Easy step-by-step installation instructions and all the parts you'll need are included. Plus, there's an online installation video available for reference.
- Protects Your Interior - Properly humidified air helps protect your wood floors and furnishings from damage.
- Saves Energy - Improved humidity can actually make it feel warmer indoors. That means you can turn your thermostat up a few degrees.
What You'll Need for Installation
The installation kit for this model is included. But you'll also need the following items:
- Forced-Air Furnace
- Floor Drain in Furnace Room
- Tin Snip
- Screwdriver
- Pliers
- Adjustable or Open-End Wrench
- Drill
- ¾-inch (19mm) sheet metal drill bit
- Level
- Marking Pen or Pencil
- Flex Duct
Summary
Stop uncomfortable dry air symptoms during the winter months with one easy-to-install solution - the Honeywell HE240D Whole House Bypass Flow-Through Humidifier.
What Customers Love
- Easy DIY Installation - An installation kit with all the parts you need is included as well as easy-to-follow instructions. Plus, Honeywell has an online installation video available.
- Set It and Forget It - Set your desired humidity level on the digital humidistat and the humidifier will run only when needed. No need to turn it on and off manually.
Things To Consider
- Have Hard Water? - If you have hard water, keep in mind that you might have to perform more frequent maintenance to keep this humidifier running optimally.
Specifications
Specifications
-
HVAC TypeBypass
-
Moisture Output Per Day (gallons)16.0
-
TypeEvaporative
-
ColorWhite
-
ControlsElectronic
-
Fill TypeDirect Water Line
-
Humidifier StyleHVAC/Duct
-
Recommended Coverage Area (sq. ft.)3000
-
Recommended ForWhole House
-
Voltage (V)24
-

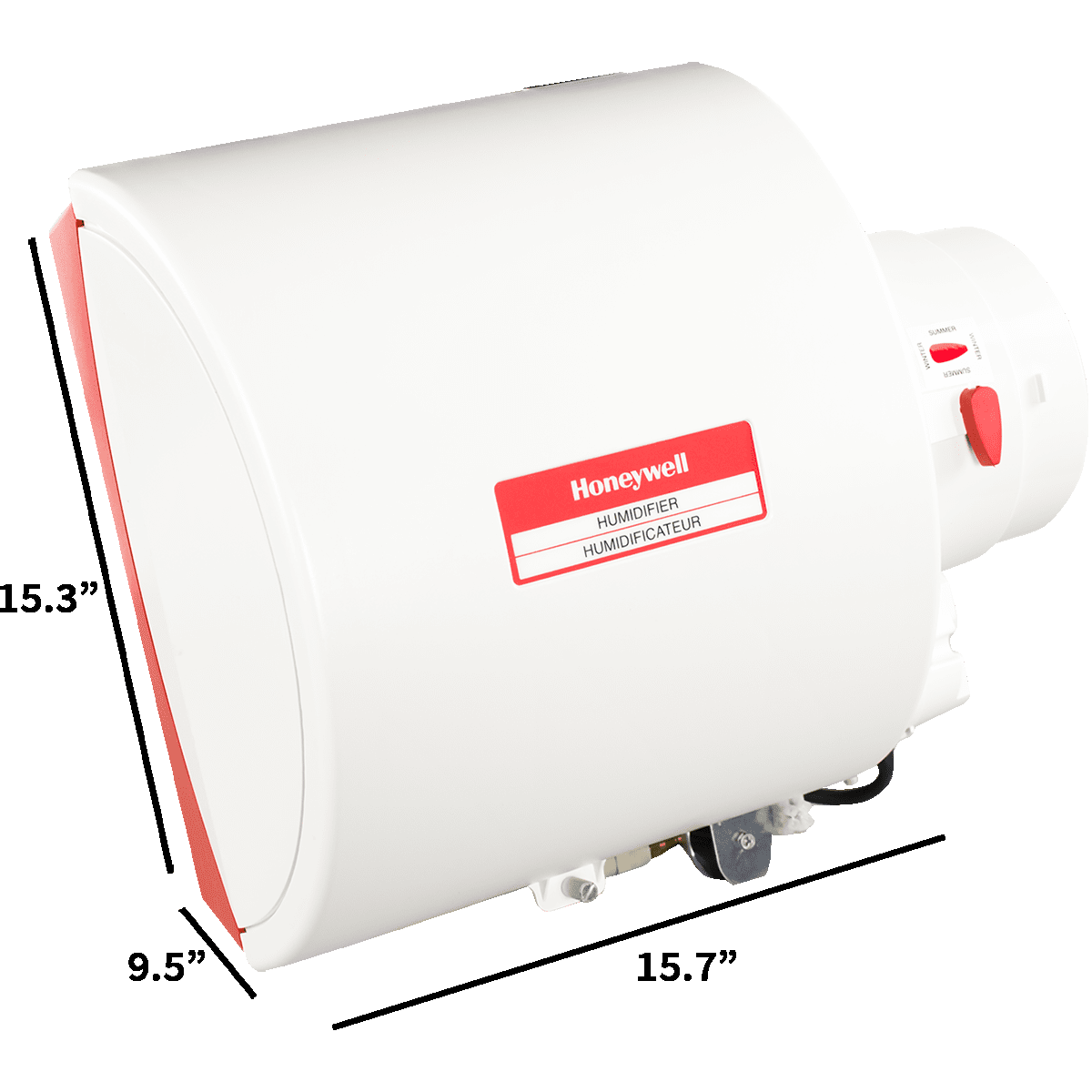

Depth (in.)9.47
-
Depth (with front cover) (in.)9.47
-
Height (in.)15.75
-
Height (with front cover) (in.)15.75
-
Weight (lbs.)9
-
Width (in.)15.75
-
Width (with front cover) (in.)15.75
-
Additional FeaturesHumidistat, Wick Filter
-
Manufacturer's Warranty1-Year-Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty

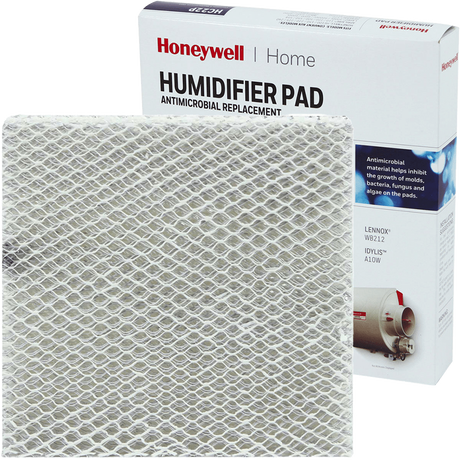

Recommended Accessories
- CChuckReviewingHoneywell HE240D Whole House Bypass Flow-Through HumidifierI do not recommend this productRated 1 out of 5 stars6 years agoDefective product
In reviewing other complaints on other boards, Honeywell has knowningly sold this product in which the solenoid fails after a few months (a couple of years). When I called Honeywell, the customer service rep let it slip that she knew of the problem and Honeywell has no replacement part available and no idea if and when a replacement part will be available. Totally worthless product, save your money and buy another brand.
- RRobertVerified BuyerReviewingHoneywell HE240D Whole House Bypass Flow-Through HumidifierI recommend this productRated 5 out of 5 stars4 years agoRetrofitted from an older fan powered humidifier.
Very easy to install. I retrofitted from an older fan powered humidifier in the outlet plenum. No more cleaning out replacing the moisture media and mold in the well. The entire install took about 3 1/2 hours including removing the old and patching the duct.
- JJodyVerified BuyerReviewingHoneywell HE240D Whole House Bypass Flow-Through HumidifierI recommend this productRated 5 out of 5 stars4 years agoFantastic
Exactly what I ordered.
- JJamesVerified BuyerReviewingHoneywell HE240D Whole House Bypass Flow-Through HumidifierI recommend this productRated 5 out of 5 stars7 years agoInstalls and works as advertised
HE240 was received on a timely basis with all parts and instructions in perfect condition. My installation was basic so the instructions were appropriate and easy to follow. I did, however, install the humidistat in the living area next to the furnace thermostat so that I did not have to go to the basement for adjustments. I also did not use the saddle clamp for the water connection, instead I found a ""shark bite"" tee that is made specifically for humidifier and ice maker installations -- it works on plastic, PVC, and copper. The humidifier was installed toward the end of the heating season so I don't have a lot of experience, but for the time in use it did maintain the set humidity in my 1450 sq. ft. ranch style home.
- WWendellVerified BuyerReviewingHoneywell HE240D Whole House Bypass Flow-Through HumidifierI recommend this productRated 4 out of 5 stars6 years agoSeems well made.
A couple minor(?) things: tools needed didn't say ""3/4 hole saw"" or ""Torx driver"". Alternative instructions for systems with humidity control in the furnace may have been helpful. (Perhaps the humidistat and 24v power supply could be separate?) Overall, I expect the HE240 humidifier to meet my needs. I found the best price at Sylvane, and it was delivered promptly.
