Honeywell Home THX1200 ElitePRO S1200 Smart Thermostat
Honeywell Home THX1200 ElitePRO S1200 Smart Thermostat - White is backordered and will ship as soon as it is back in stock.

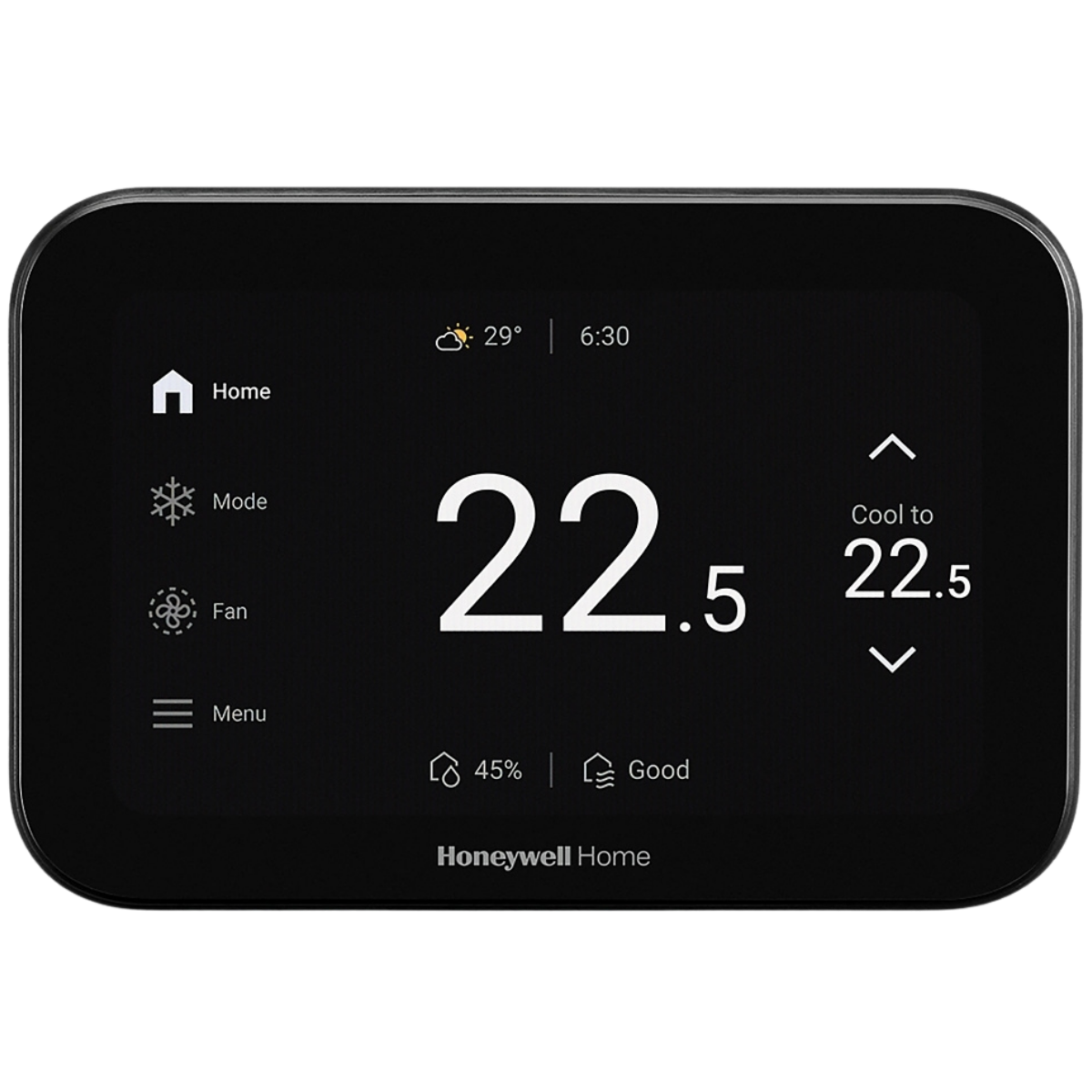

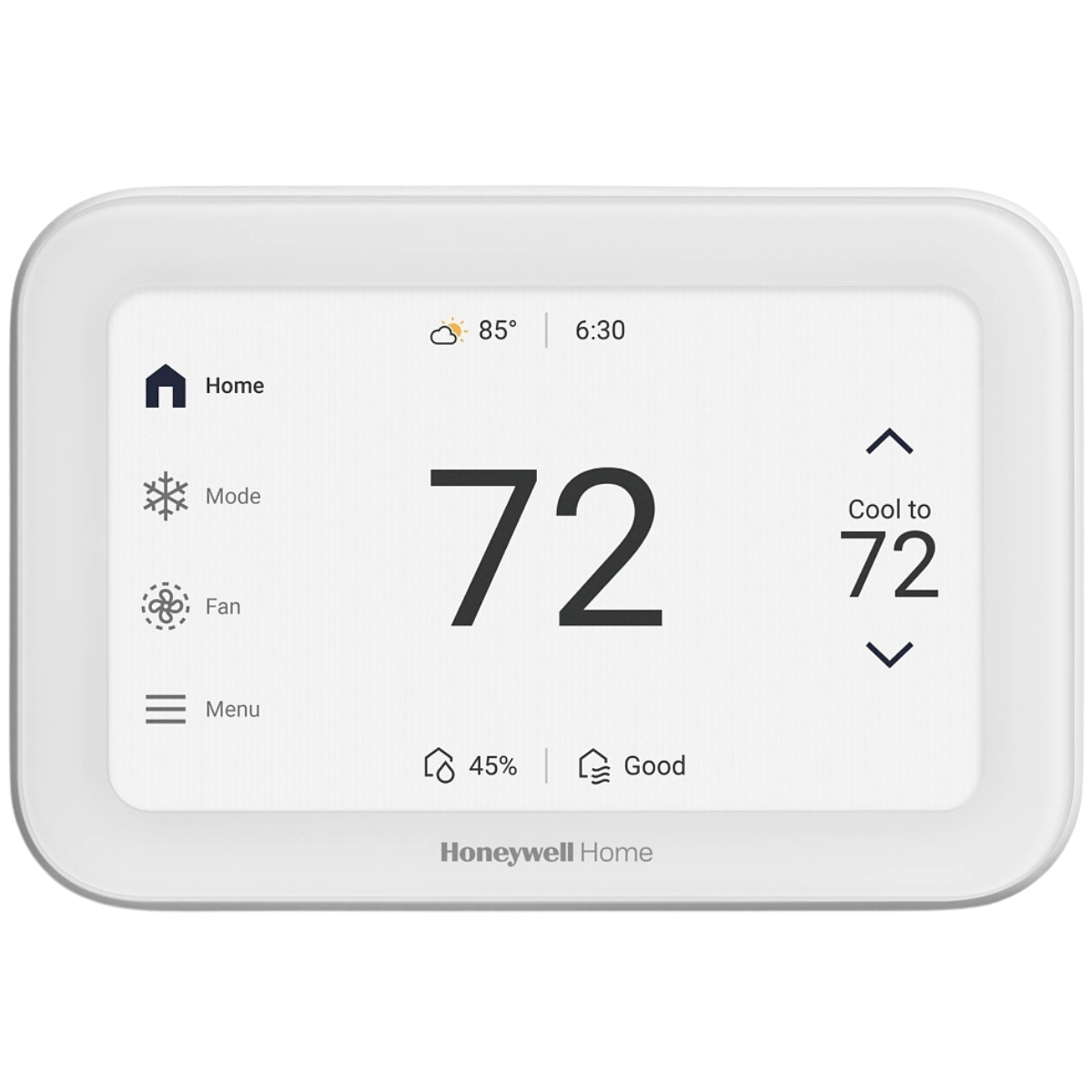

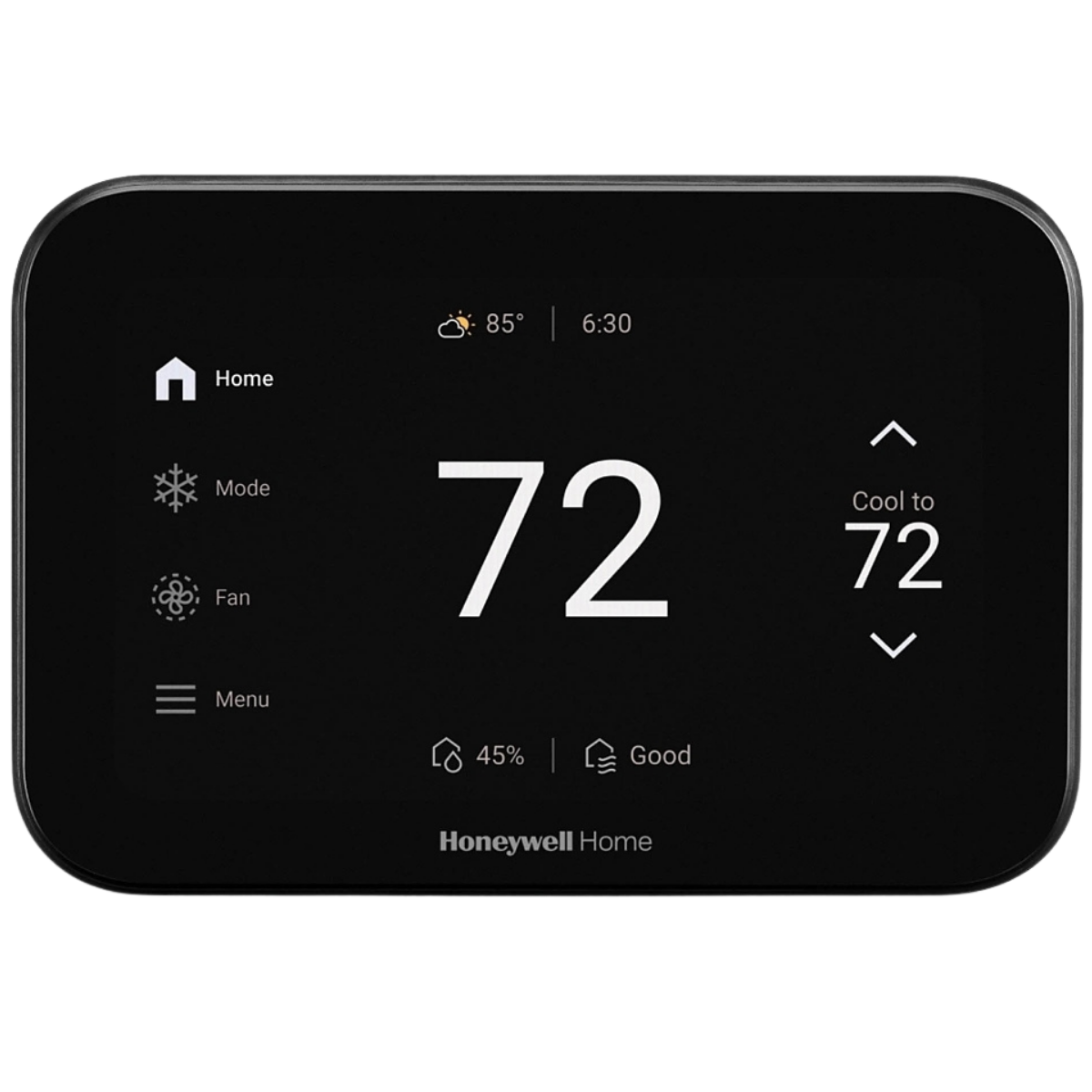

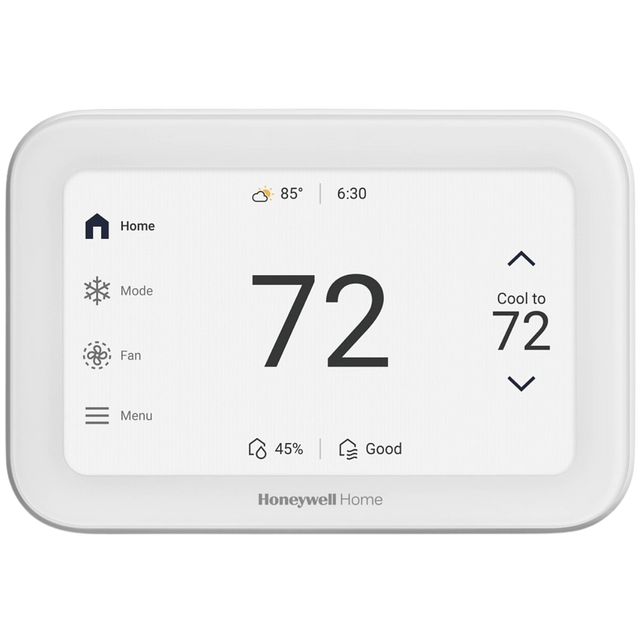

Most thermostats tell you the temperature and stop there. The Honeywell Home THX1200 ElitePRO S1200 Smart Thermostat not only uses an onboard radar sensor to detect occupancy and pull back heating and cooling when a space empties out, but also streams video from First Alert and Ring doorbells. This model is available in two color choices: white or black.
The ElitePRO S1200 earns its keep beyond standard furnace and air conditioning wiring systems, supporting dual fuel, fan-coil, PTAC, and radiant equipment, along with hot water and milli-volt systems. That makes one control platform workable across a house and a light commercial suite alike.
Key Features and Benefits of the Honeywell Home THX1200 ElitePRO S1200 Smart Thermostat
- Multi-Stage Compatibility: Controls up to 4H/2C heat pump or 3H/3C conventional equipment on 24 Vac wiring, so multi-stage systems get proper sequencing instead of simple on and off.

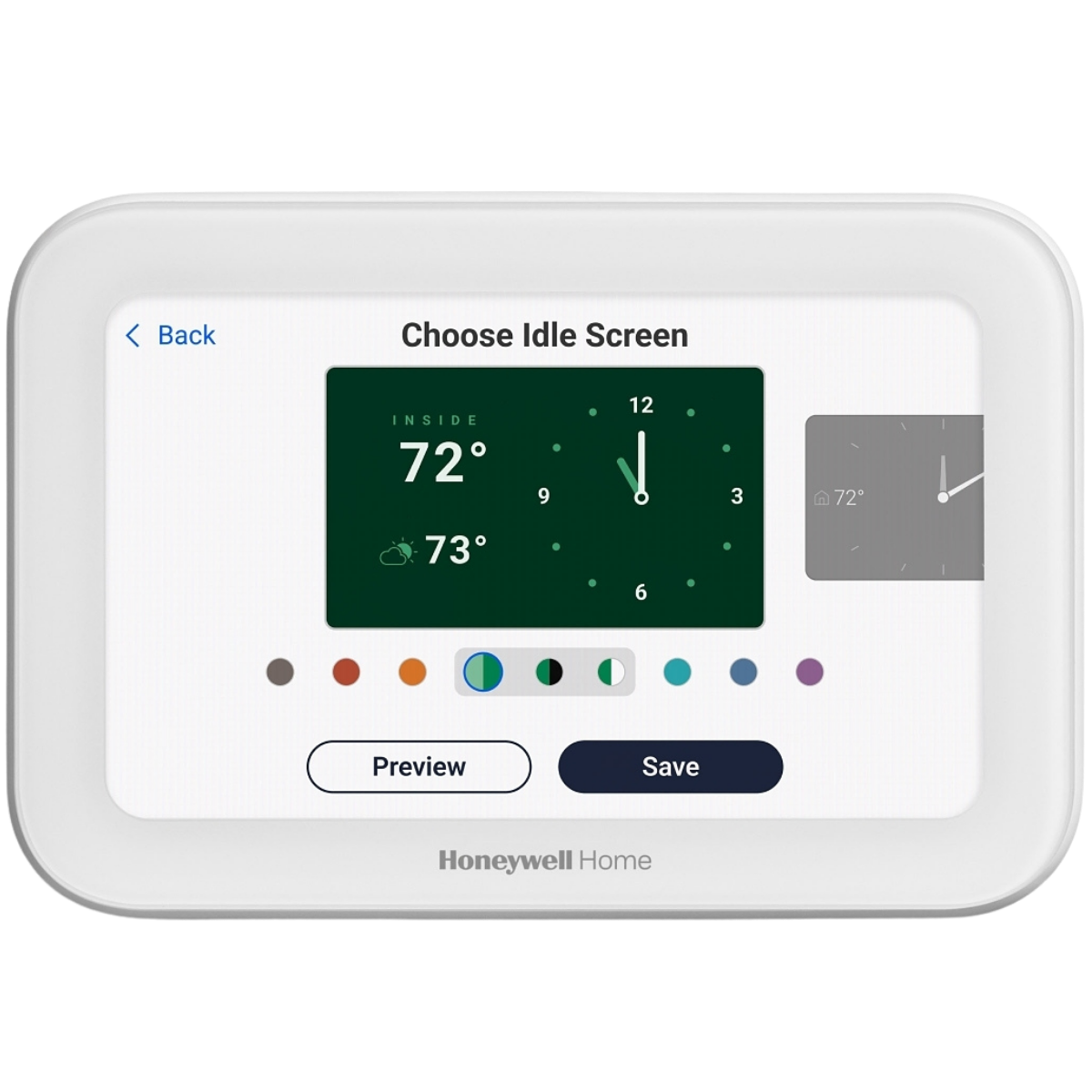

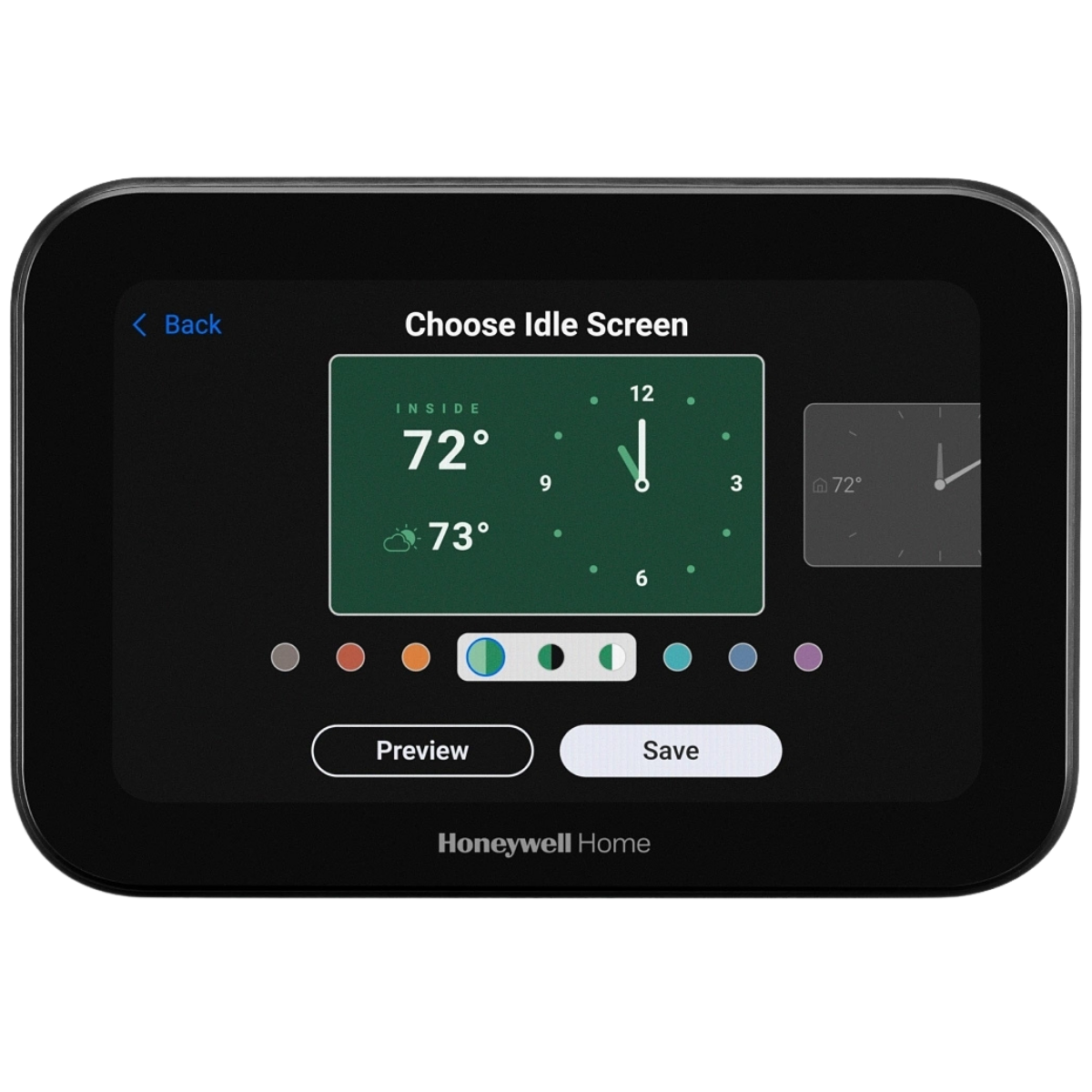

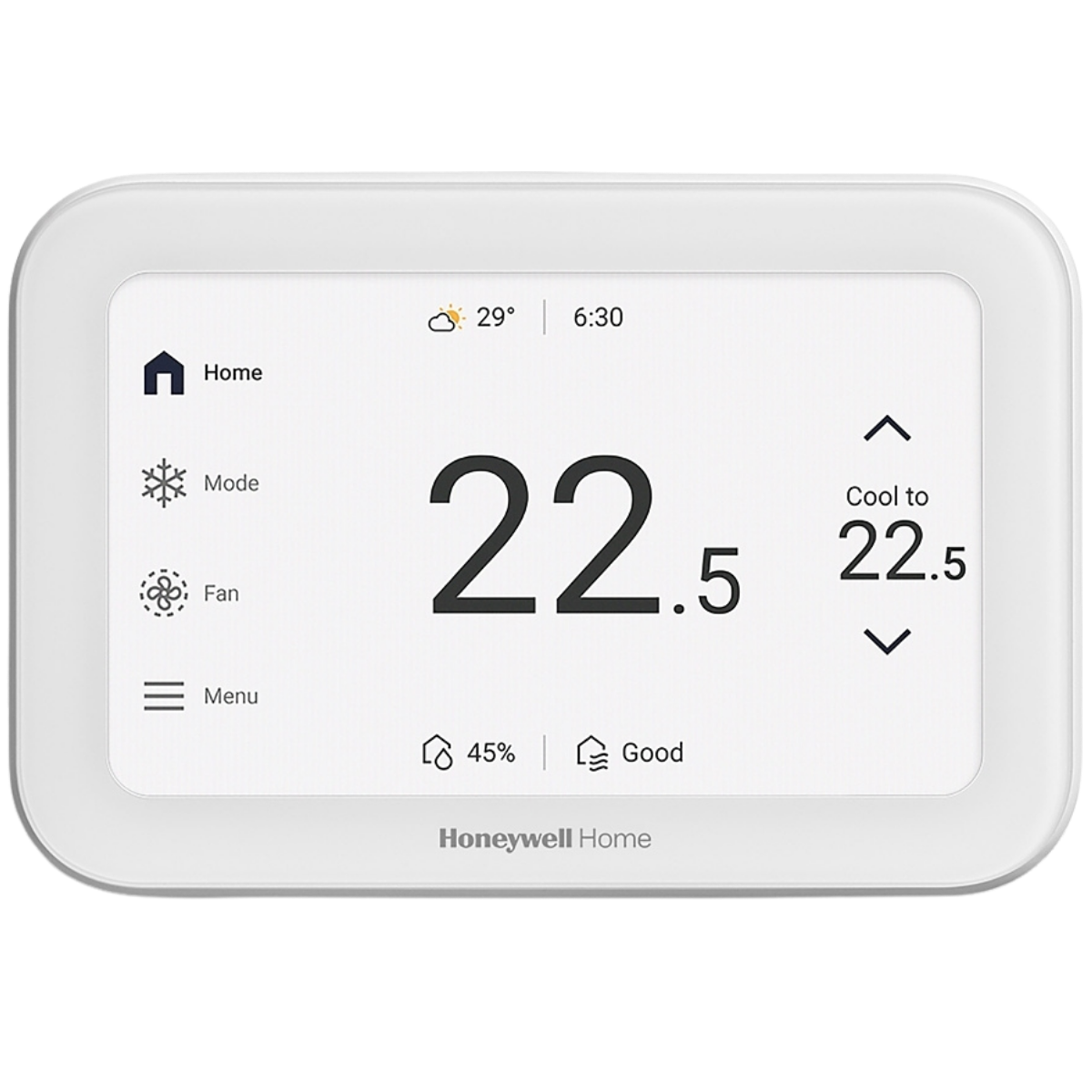

- Customizable Touchscreen: The 5-inch touchscreen features a customizable idle screen so you can set which readings appear on the home screen and match the style and colors to your space.

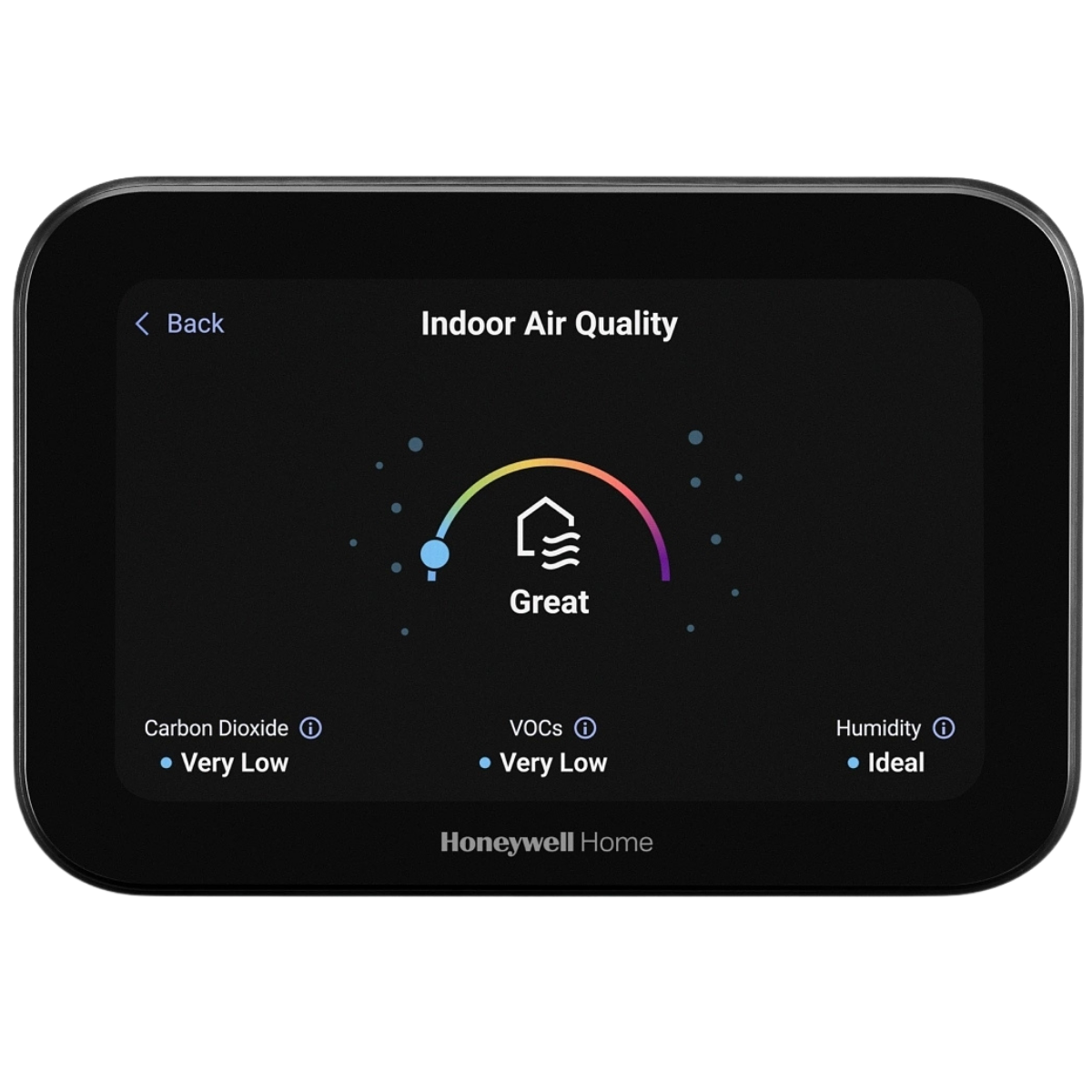

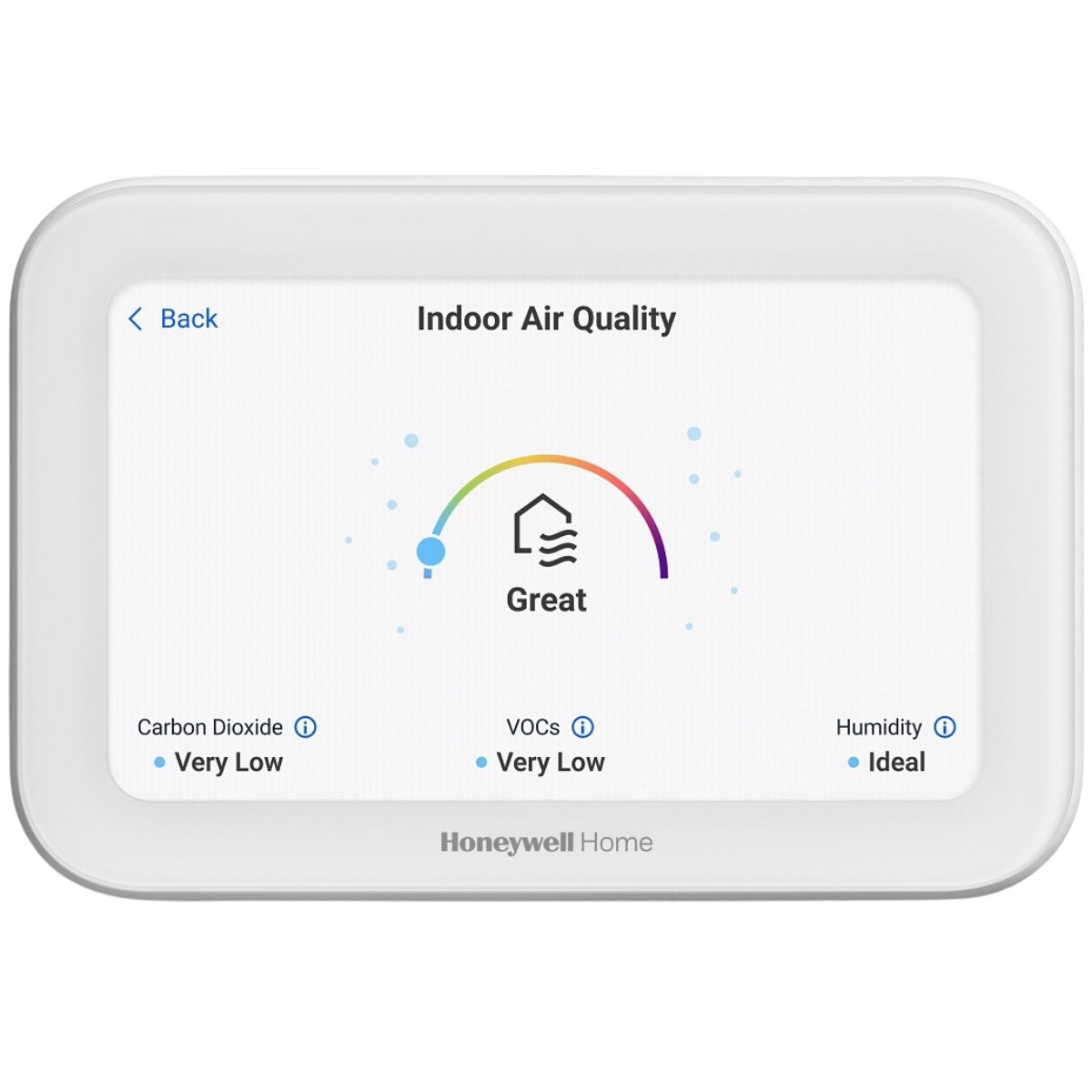

- Air Quality Monitoring: Onboard sensors track humidity, VOC levels, and estimated carbon dioxide, so stale air shows up on the S1200 display before anyone complains. Sensors sold separately.
- IAQ Control: Configurable outputs run for two indoor air quality accessories, keeping ventilation or humidity equipment on the same schedule as your heating and cooling.
- Wi-Fi Control: Use the First Alert app for full control with your smart device, letting you set auto control, smart schedules, and thermostat changes to manage your space. You can also get Alerts, reminders, and monthly energy reports directly to your device.

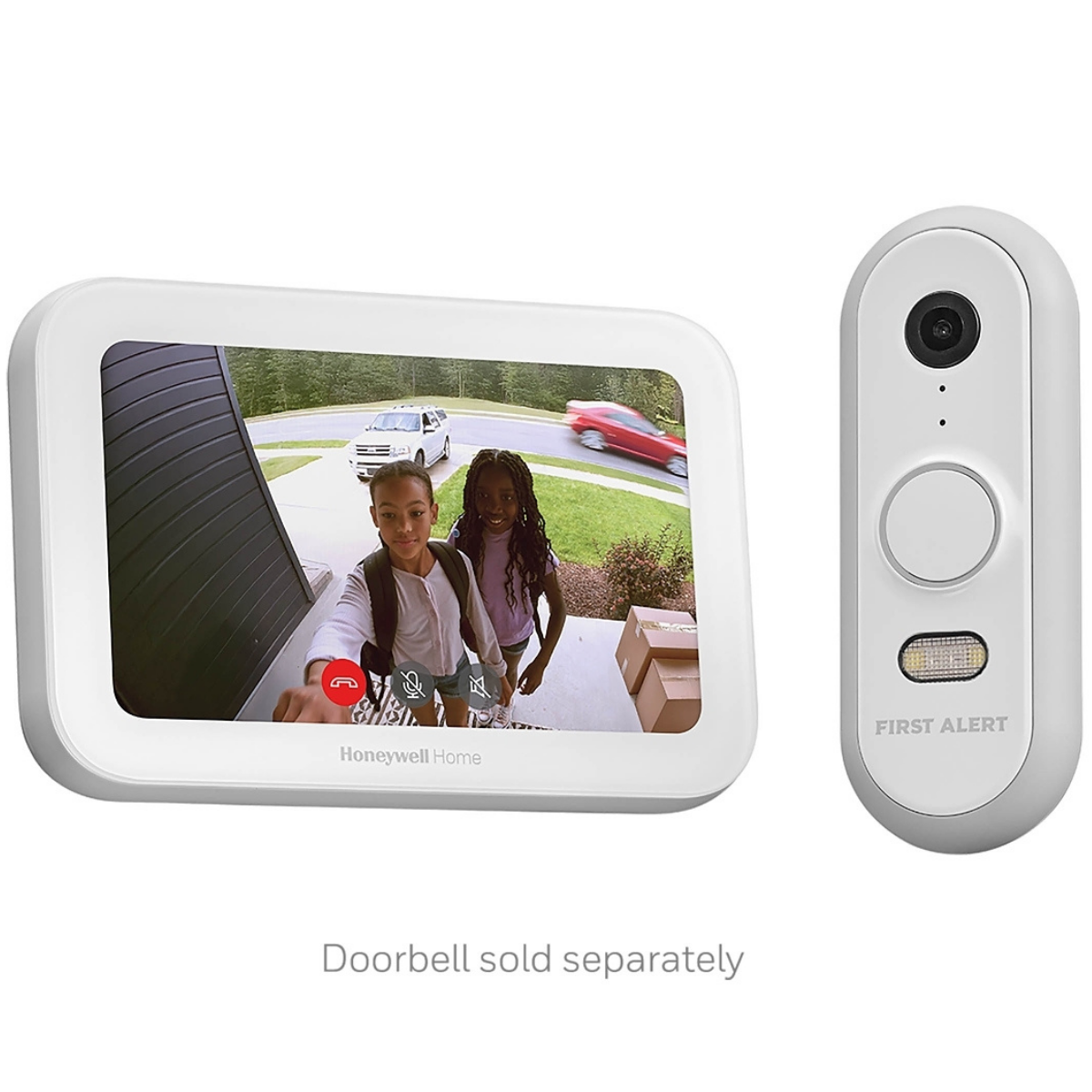

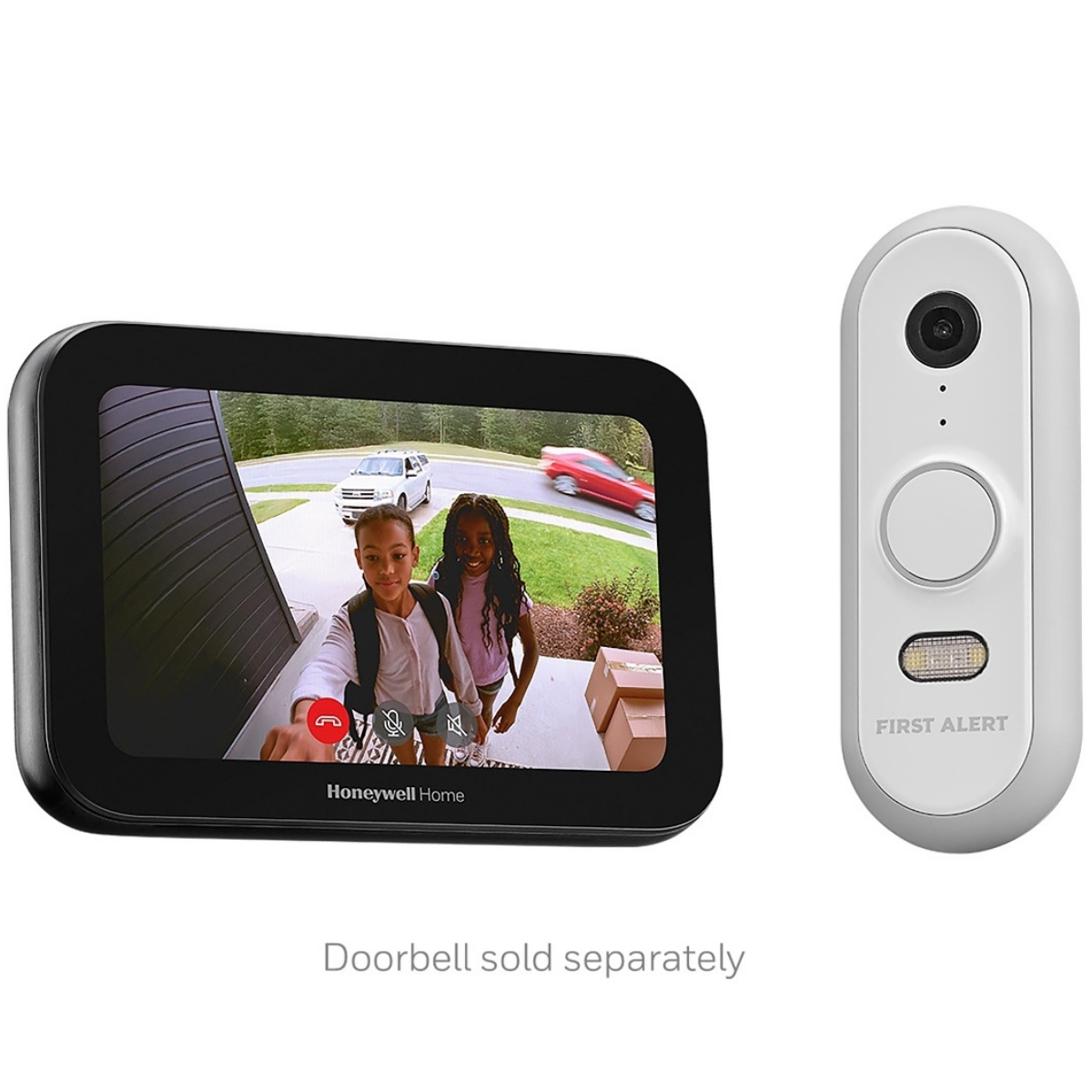

- Doorbell Streaming: Live video from First Alert and Ring doorbells plays on the thermostat, letting you see and speak to visitors without walking to the door.
- RedLINK Sensors: RedLINK 3.0 wireless links the C7189R3010-2 room sensors for temperature, humidity, and motion plus outdoor sensors, so you can prioritize comfort in the room that matters. Sensors sold separately.
- Flexible Scheduling: Program 7 days with 4 time periods per day, or switch to Smart Away mode so conditioning follows when the space is actually occupied.
- Fan Speed Control: Fan-coil applications run up to three fan speeds, letting you match airflow to the load rather than running flat out.

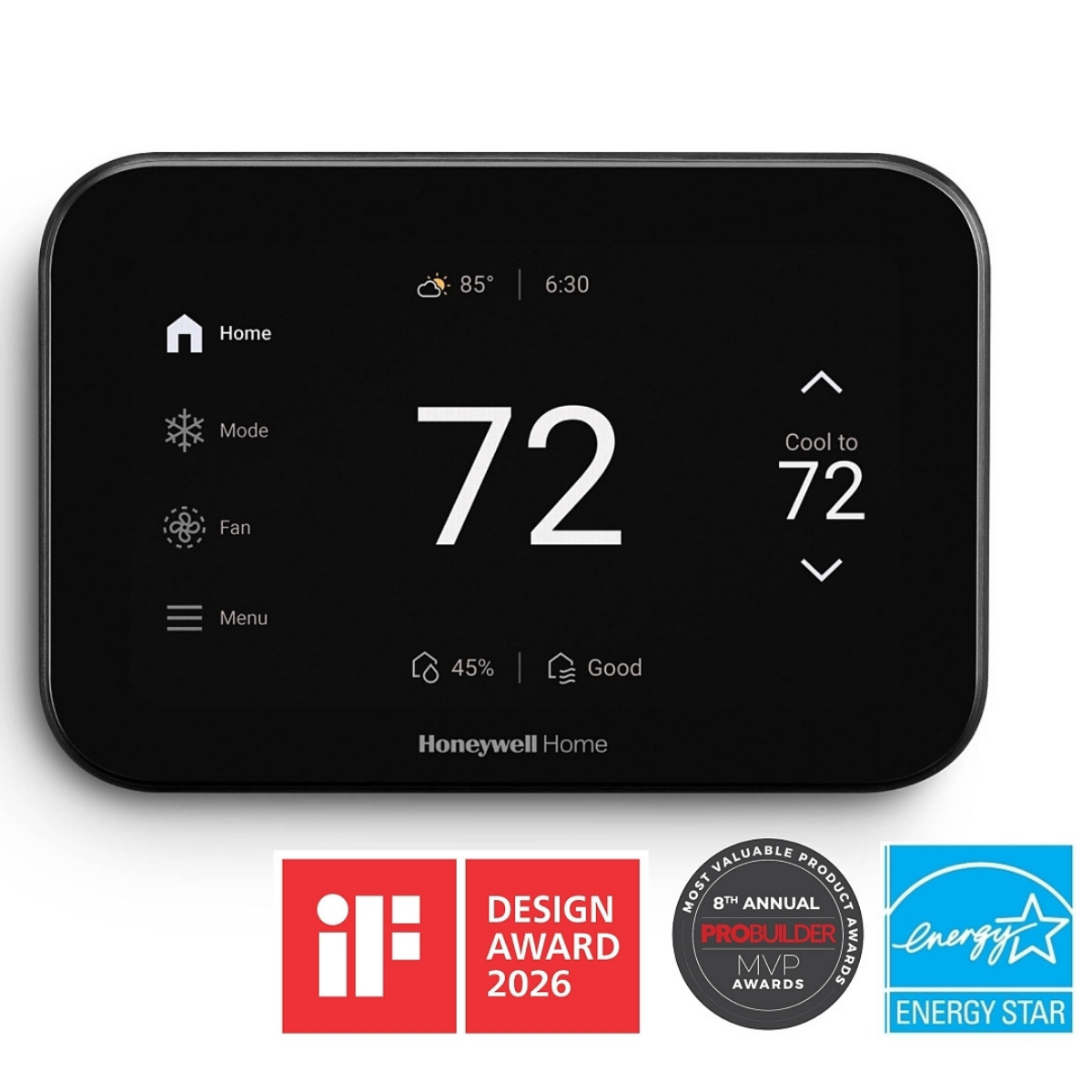

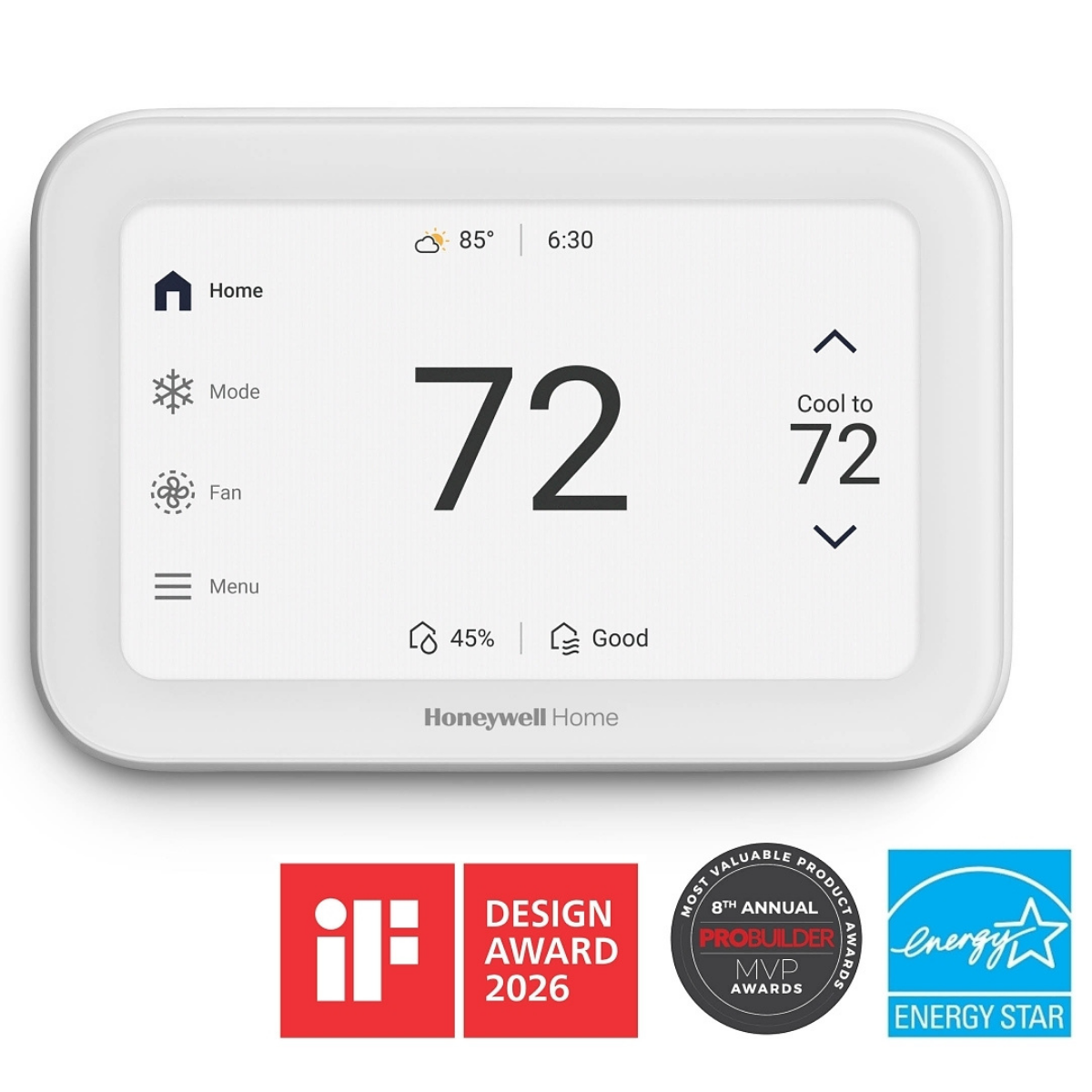

- Energy Star Certified: The thermostat is Energy Star certified and carries a 5-year warranty, so efficiency credentials and long-term coverage both come standard.
Choosing a Mounting Spot

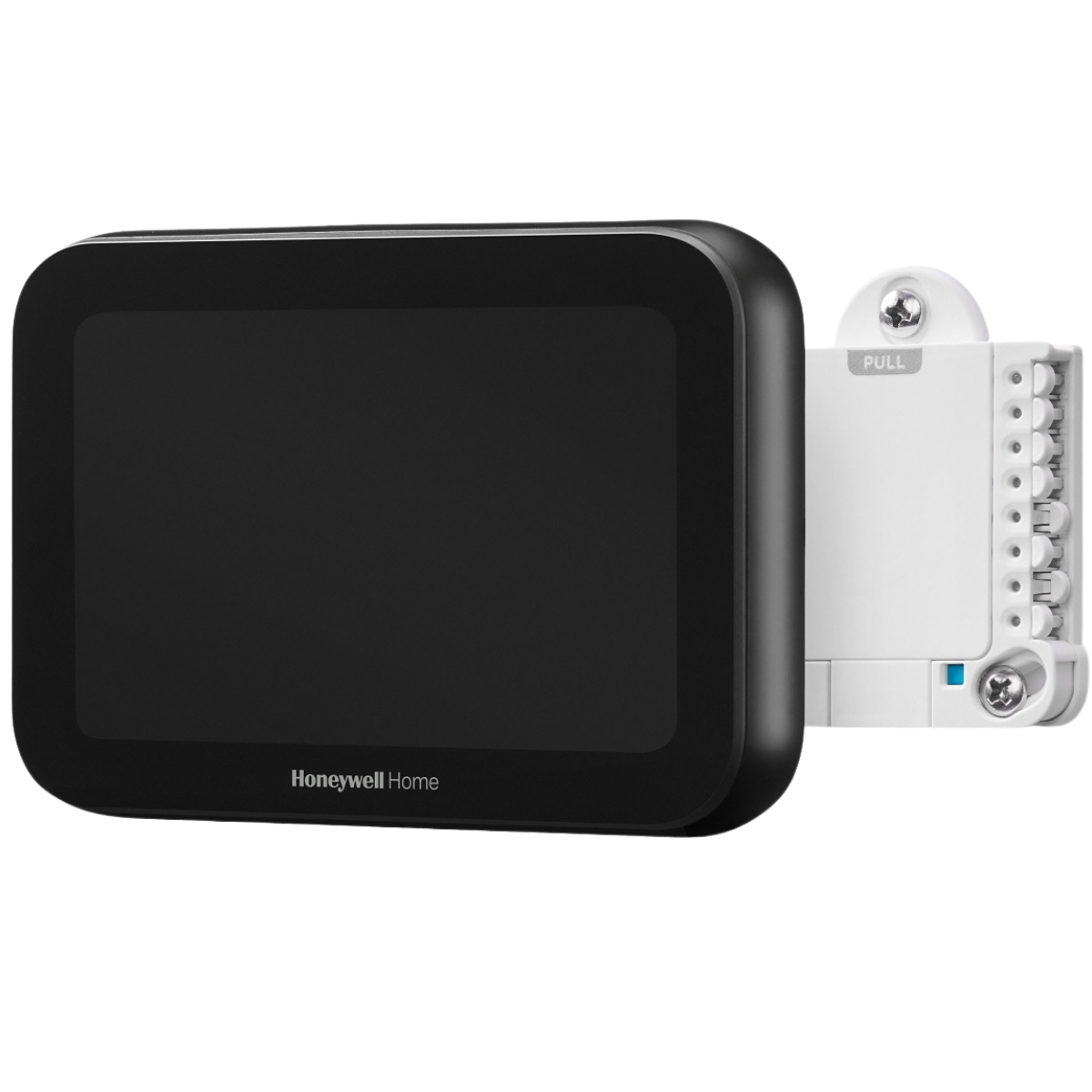

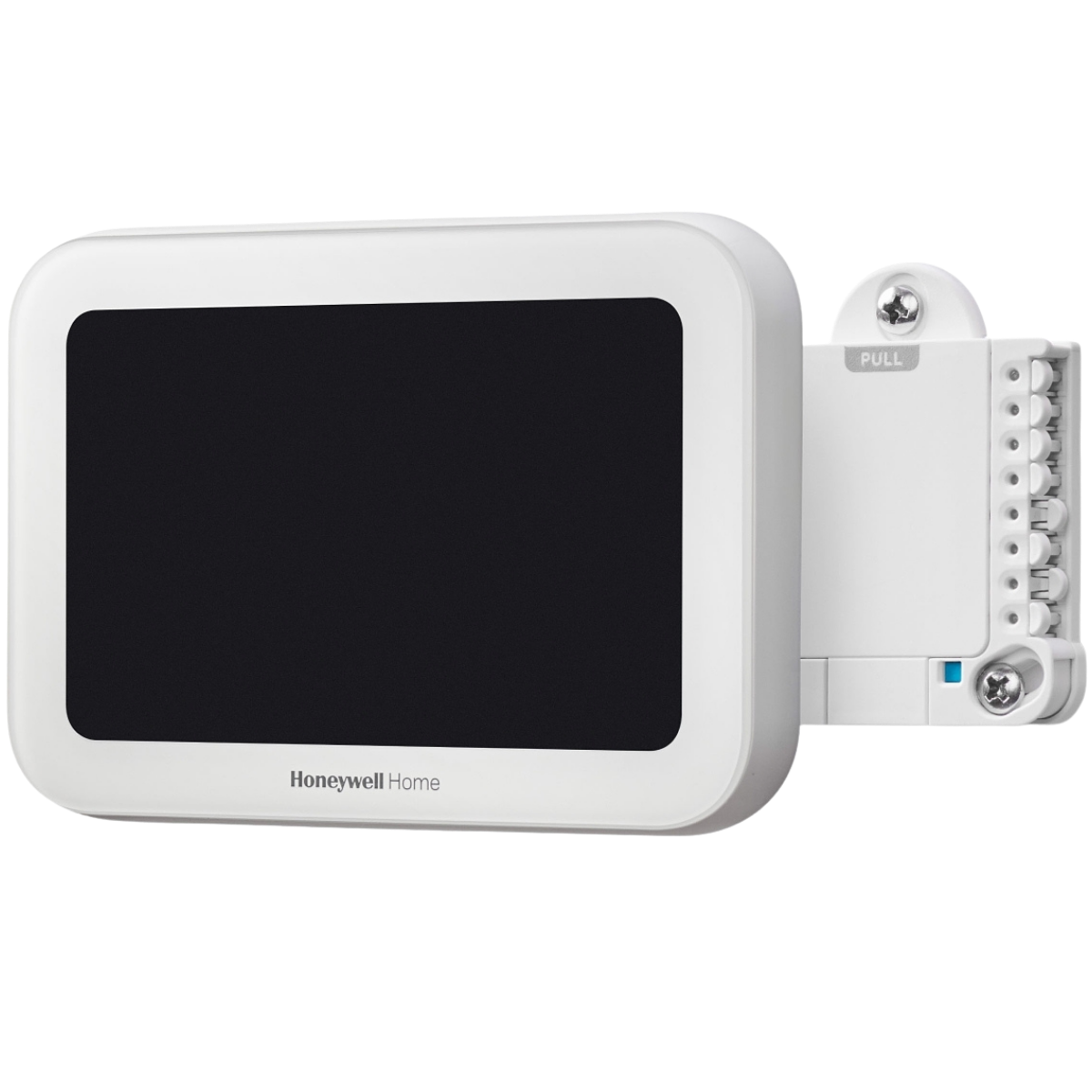

The THX1200 ElitePRO S1200 Smart Thermostat should be mounted horizontally to a J-Box using the included UWP wall plate and cover plate with J-Box adapter, and hardwired with the C-wire. It measures 3.54 x 5.24 x 0.96 inches (H x W x D) and weighs 0.91 pounds, so it sits flat without dominating the wall. It should be installed in a conditioned space between 37 and 102 degrees F and out of direct sun so the readings reflect the room.
Sylvane's Expert Take
If you install controls for client homes or light commercial spaces, the Honeywell Home THX1200 ElitePRO S1200 Smart Thermostat spares you from stocking a separate thermostat for staged and single-stage jobs. Paired with the C7189R3010-2 remote room sensor, the air quality readings do the most work day-to-day, giving you something measurable to show a client who says the back bedroom feels stuffy in an occupied building.
Whichever finish goes on the wall, performance comes down to your wiring plan and where you place the remote sensors.
-
Compatible SystemsSingle-Stage Heating and Cooling Systems, Heating-Only, Cooling-Only, Heat Pump, Heat Pump w/ Auxiliary Heat, Hot Water, Multi-Stage Heating and Cooling Systems, Central Air Conditioning, Furnaces, Milli-Volt Systems, Gas Fireplaces
-
Program Type7-Day
-
ColorWhiteBlack
-
ControlsElectronic
-
Number of Cooling Stages3
-
Number of Heating Stages4
-
System ControlHeating and Cooling
-
Time Periods per Day4
-
Voltage (V)24
-
Depth (in.)0.96
-
Height (in.)3.54
-
Width (in.)5.24
-
Additional FeaturesWi-Fi Capable, Touchscreen, Programmable, Filter Change Indicator, Automatic Heating/Cooling Changeover, Early-Start Function
-
Manufacturer's Warranty5-Year Limited Warranty
