iLiving 16- inch Variable Speed Wall Mounted Shutter Exhaust Fan

SKU: il8812  |  Model: ILG8SF16V
$12900

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?
  • iLiving 16-Inch Exhaust Fan
  • Owner's Manual

Info & Guides

Description

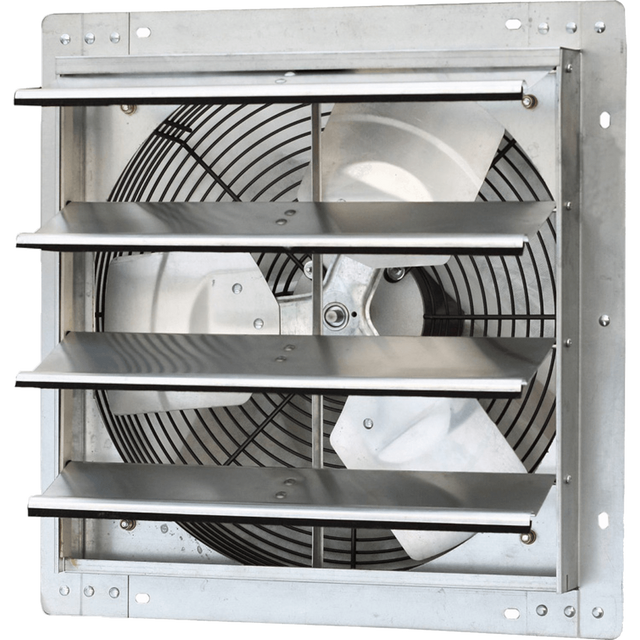

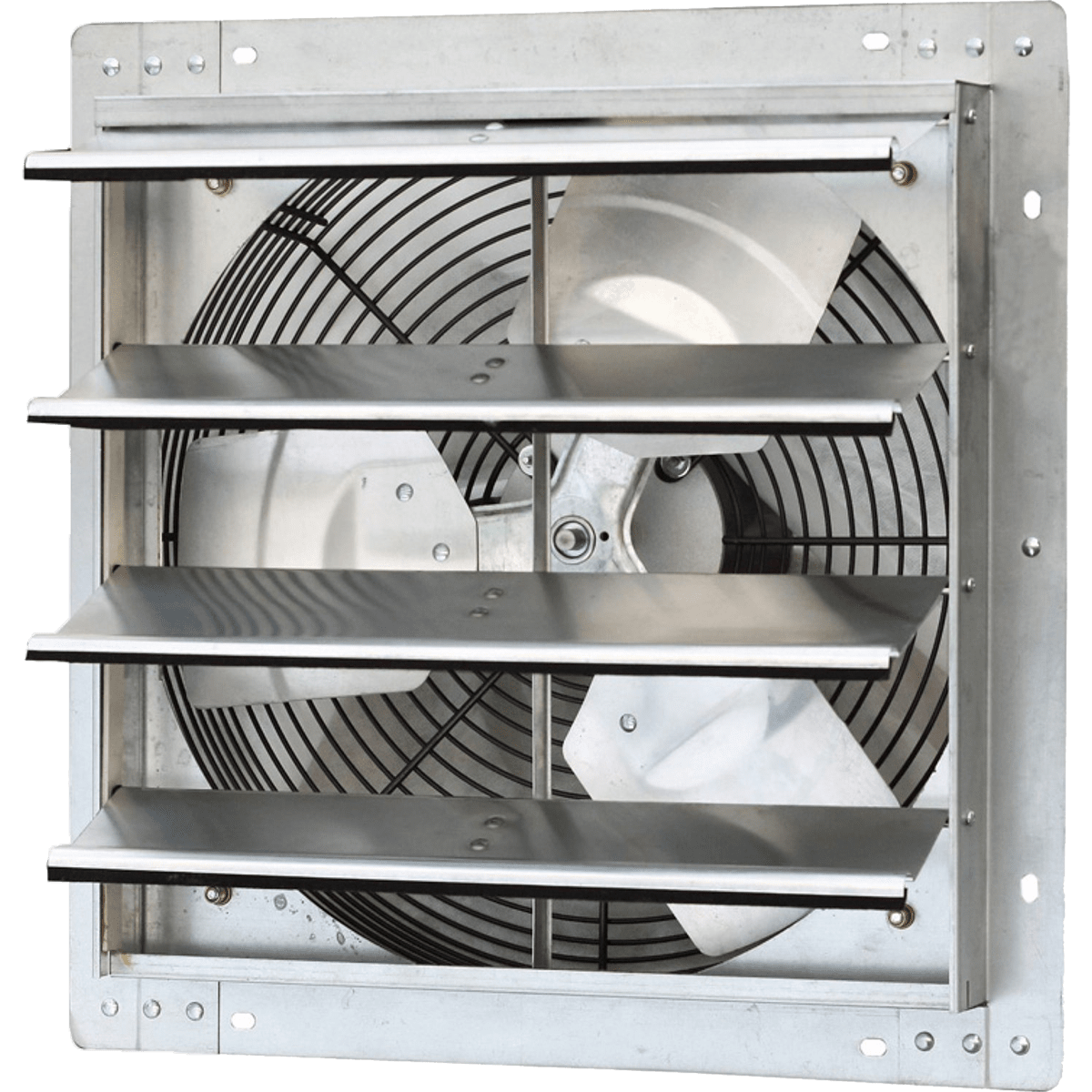

The iLiving 16-Inch Exhaust Fan is an ideal way to remove excess heat, moisture and odors from commercial locations. Made from galvanized steel, it’s commonly used in restaurants, greenhouses, factories, barns and warehouses. With 1,280 CFMs, it's ideal for rooms up to 320 square feet (based on 8 foot ceilings).

Durable Construction

The iLiving ILG8SF16V is designed for long-term use thanks to these features:

  • Permanently lubricated motor
  • Speed controlled
  • Corrosion-resistant with OSHA compliant wire guards
  • Galvanized steel frame
  • Aluminum shutters and fan blades

Control Options

This iLiving variable speed shutter fan requires a variable speed controller, or it will operate continuously at high speed. An additional option is to install a thermostat control box which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.

For a fan operation based on more than one variable, you can install the all-in-one fan controller which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.

Additional Features

  • Automatic Shutters: The shutters open when the fan is running and close when it’s not.
  • Product Dimensions: This iLiving Shutter Fan measures at 5.75 x 19 x 19 inches (LxWxH).
  • Fully Assembled: The only installation requirement is the electrical hardwiring. It’s a 120-volt, .85 amp, 1/20 HP, 1280 CFM fan.
  • UL-Listed: This exhaust fan met and exceeded UL listing requirements.

Add the ILG8SFSC speed controller (sold separately) for variable speed control. Simply hardwire it for single-speed air exhaust.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      6.39
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Residential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Housing Material
      Galvanized Steel
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1280.0
    • Maximum RPM
      1550
    • Recommended Coverage Area (sq. ft.)
      320
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      0.85
    • Power Supply
      Plug-In
    • Voltage (V)
      110-120
    • Watts (W)
      97.75

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      17
    • Ceiling or Wall Cutout Width (in.)
      17
    • Depth (in.)
      5.75
    • Height (in.)
      19.0
    • Shutter Fan Size (in.)
      16
    • Weight (lbs.)
      13.8
    • Width (in.)
      19.0

    Additional Features

    • Additional Features
      Meets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      1-Year Warranty
