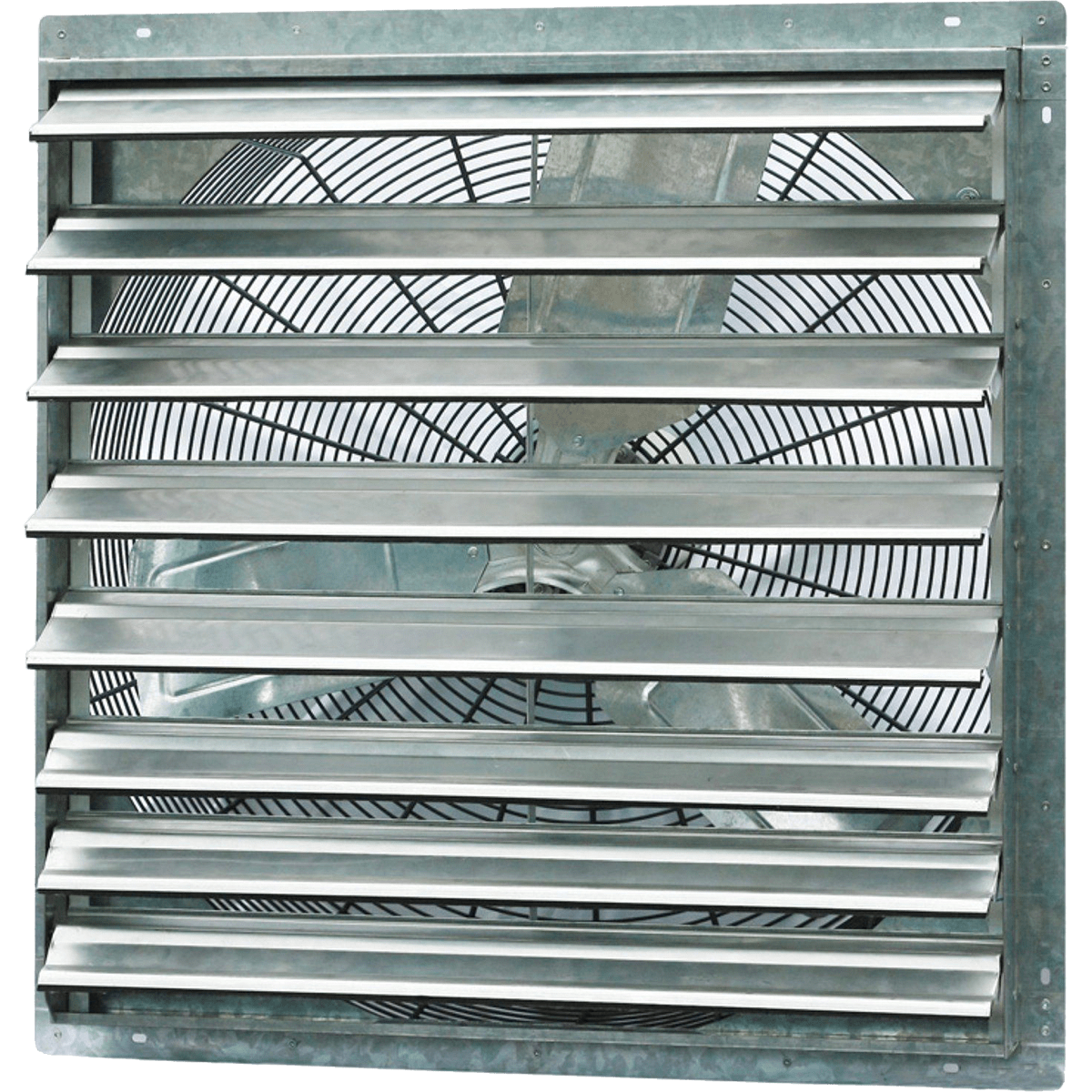

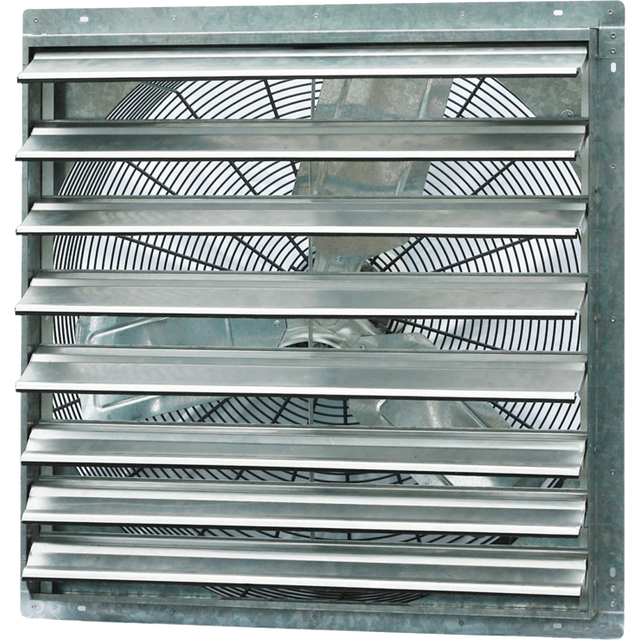

iLiving 30 inch Single Speed Wall Mounted Shutter Exhaust Fan
iLiving 30 inch Single Speed Wall Mounted Shutter Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving ILG8SF30S
- Owner's Manual
Info & Guides
Info & Guides
iLiving 30 inch Single Speed Wall Mounted Shutter Exhaust Fan
Description
Description
Get incredible airflow with the iLiving ILG8SF30S. Designed for commercial use in garages, greenhouses, and warehouses up to 1,250 square feet, this single speed fan supplies 5,000 cubic feet per minute of airflow (CFM). Pre-assembled right out of the box, it features a galvanized steel frame, automatic shutters, and a weather-resistant build.
Other features include OSHA compliance, UL705 rating, enclosed motor, and more.
Reinforced Assembly
Exhaust heat, moisture, and odors from any workspace with this 30-inch shutter exhaust fan. The fully-assembled fan features exceptional construction.
- Galvanized steel frame provides strengthened support.
- Corrosion-resistant shutters are designed in aluminum alloy to prevent rust.
- Automatic shutters open and close in tandem with the operation of the fan.
Single Speed Fan
Quickly move air in areas up to 1,250 square feet with this single speed fan. Designed with a completely enclosed motor, it is permanently lubricated and sealed against dust and moisture.
Additional Features
- OSHA Compliant: Half-inch wire guards protect the fan in commercial and working environments.
- UL-Listed: This fan is listed with a UL705 certification for safety.
- Thermal Protection: To prevent overheating, the fan will cut power to the motor if the fan stops working.
- Balanced Propeller: A motion balanced aluminum propeller ensures quiet operation.
- Hardwired: Hardwire into any wall with existing wiring for industrial garages, warehouses, or workshops.
Summary
Ventilate areas up to 1,250 square feet with the iLiving 30-inch single speed fan with 5,000 CFMs.
What Customers Love
- Durability: The corrosion-resistant build and reinforced riveted frame make it great for long-lasting use.
Things to Consider
- Single Speed: The iLiving ILG8SF30S uses one single speed and works to ventilate 1,250 square feet in minutes.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)7.01
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)5000.0
-
Maximum RPM825
-
Recommended Coverage Area (sq. ft.)1250
-
Amperage (Amps)3.3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)379.5
-
Ceiling or Wall Cutout Length (in.)31
-
Ceiling or Wall Cutout Width (in.)31
-
Depth (in.)5.75
-
Depth (with front cover) (in.)5.75
-
Height (in.)33.0
-
Height (with front cover) (in.)33.0
-
Shutter Fan Size (in.)30
-
Weight (lbs.)50.3
-
Width (in.)33.0
-
Width (with front cover) (in.)33.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection
-
Manufacturer's Warranty1-Year Warranty
