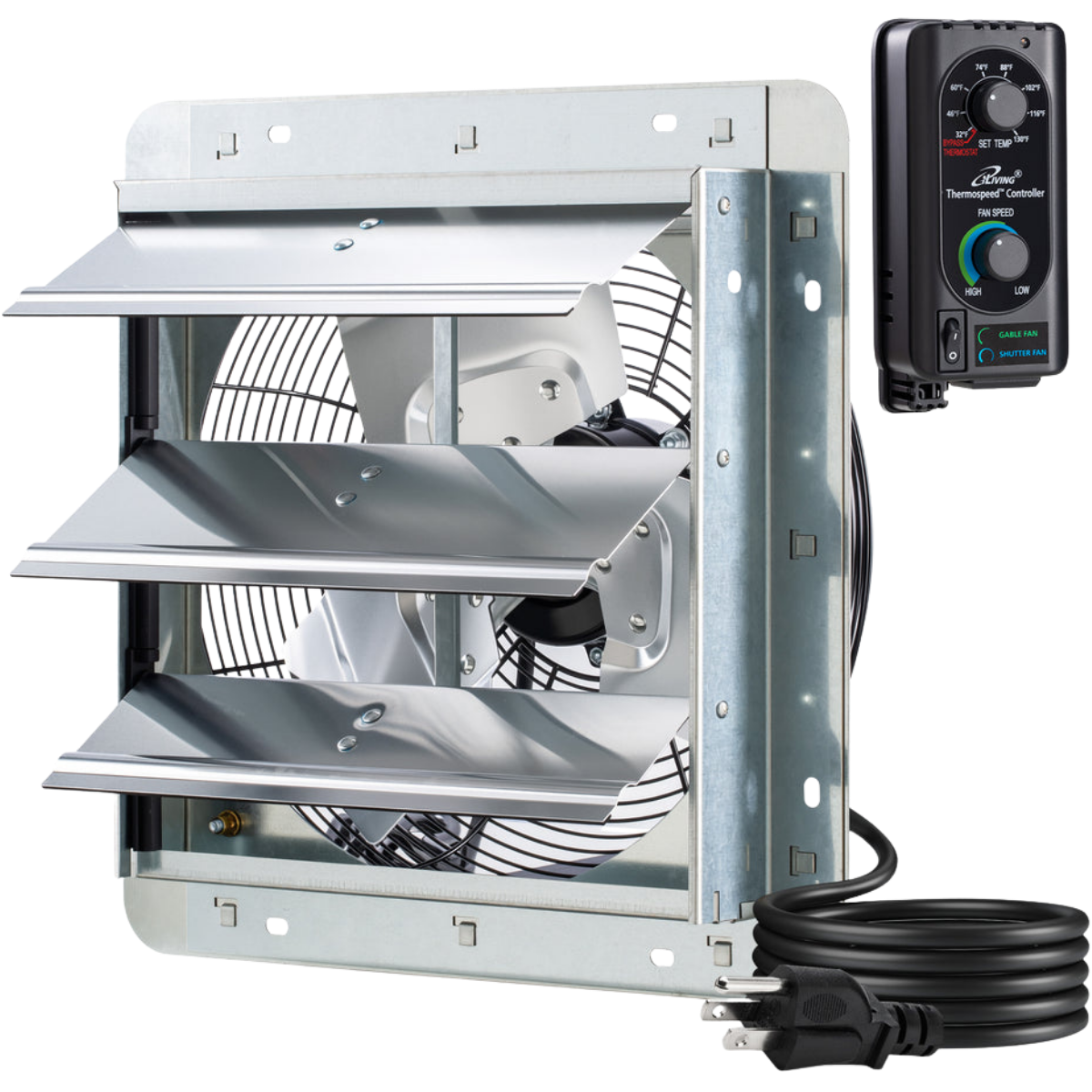

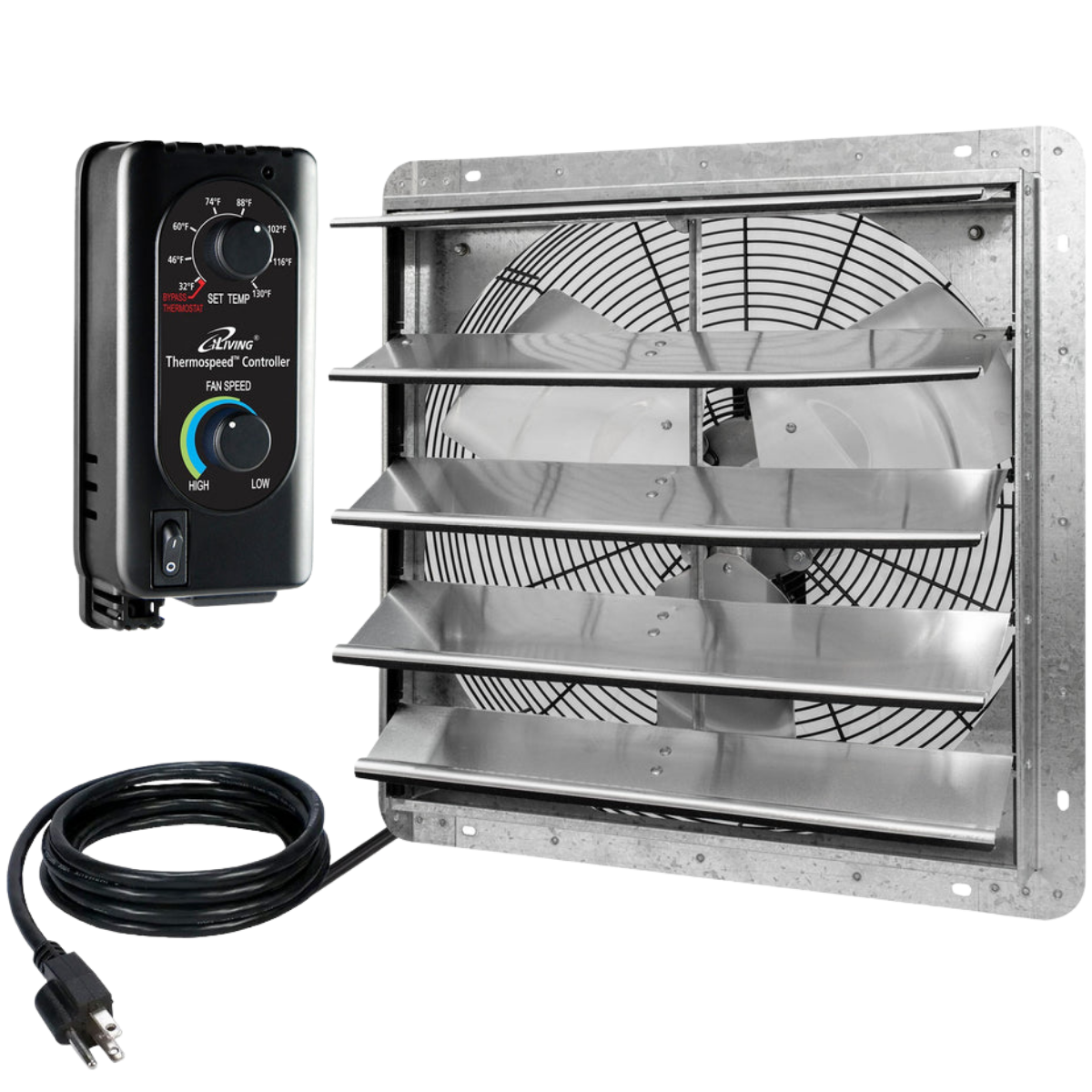

iLiving ILG8SFV-ST Shutter Exhaust Fan with Thermospeed Controller

SKU: il18875  |  Model: ILG8SF10V-ST
$9200
Fan Diameter

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Component Limited Warranty

What's In The Box?
  • iLiving ILG8SFV-ST Shutter Exhaust Fan

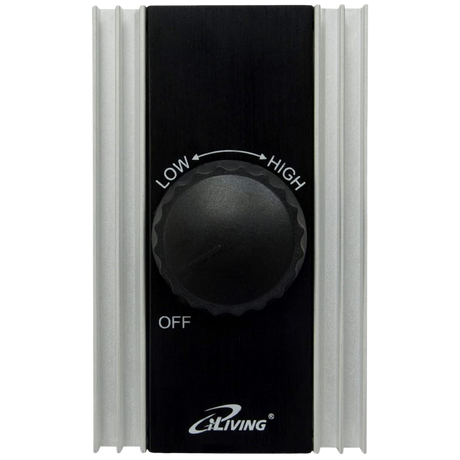

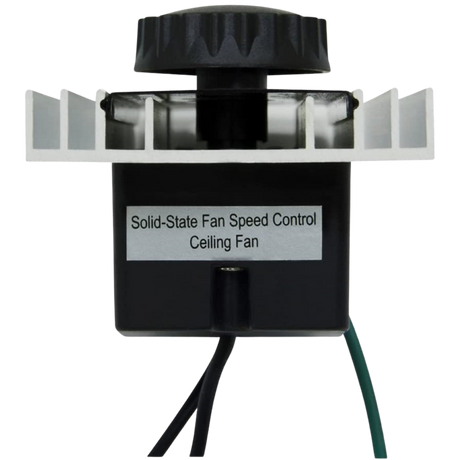

  • Thermospeed Controller
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

The iLiving ILG8SFV-ST Shutter Exhaust Fan with Thermospeed Controller moves stale air out of your factory, barn, greenhouse, or warehouse with airflow options ranging from 820 to 3,368 CFM. Built with a galvanized-steel housing and paired with a variable-speed Thermospeed controller, this shutter exhaust fan gives you precise electronic control over ventilation in spaces up to 5,000 square feet.

It is available in five sizes with different airflow outputs and compatibilities.

Key Features and Benefits of the iLiving ILG8SFV-ST Shutter Exhaust Fan with Thermospeed Controller

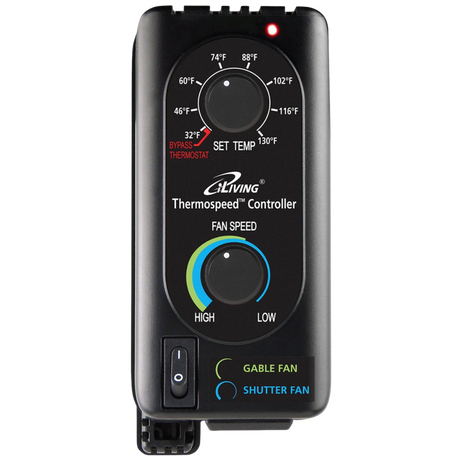

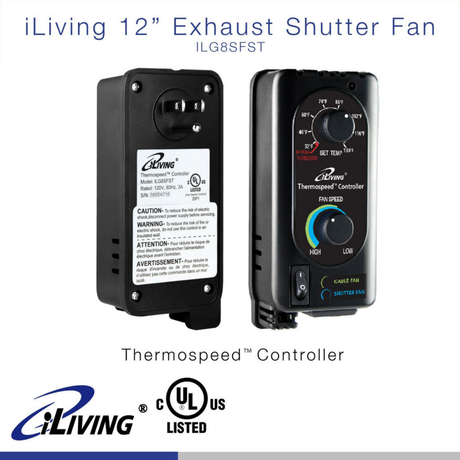

  • Variable-Speed and Temperature Control: The included Thermospeed controller lets you adjust fan speed electronically, and control the temperature from 32 to 130 degrees F.
  • High Airflow Output: Delivers between 820 and 3,368 CFM depending on the fan size, providing enough air exchange for spaces up to 5,000 square feet.
  • Galvanized-Steel Housing: The galvanized-steel frame resists corrosion and wear, keeping the fan durable in demanding garage, workshop, and warehouse settings.
  • Thermal-Cutoff Protection: A built-in thermal-cutoff switch shuts down the motor automatically if it overheats, protecting the fan and your property from heat damage.
  • Fully Assembled: The fan arrives fully assembled and ready to install in your facility.
  • Low Sone Ratings: Operates at 5.7 to 8.0 sones depending on the model, keeping noise levels manageable even during extended use.
  • Hardwired Installation: Connects directly to your 110-120V electrical supply for a permanent, reliable setup in any fixed location.
  • cULus Certified: Carries cULus certification, confirming the fan meets North American electrical safety standards for residential, commercial, and industrial use.

Choose the Right Size for Your Space

With five fan diameters to choose from, selecting the right iLiving shutter fan comes down to your space and airflow requirements.

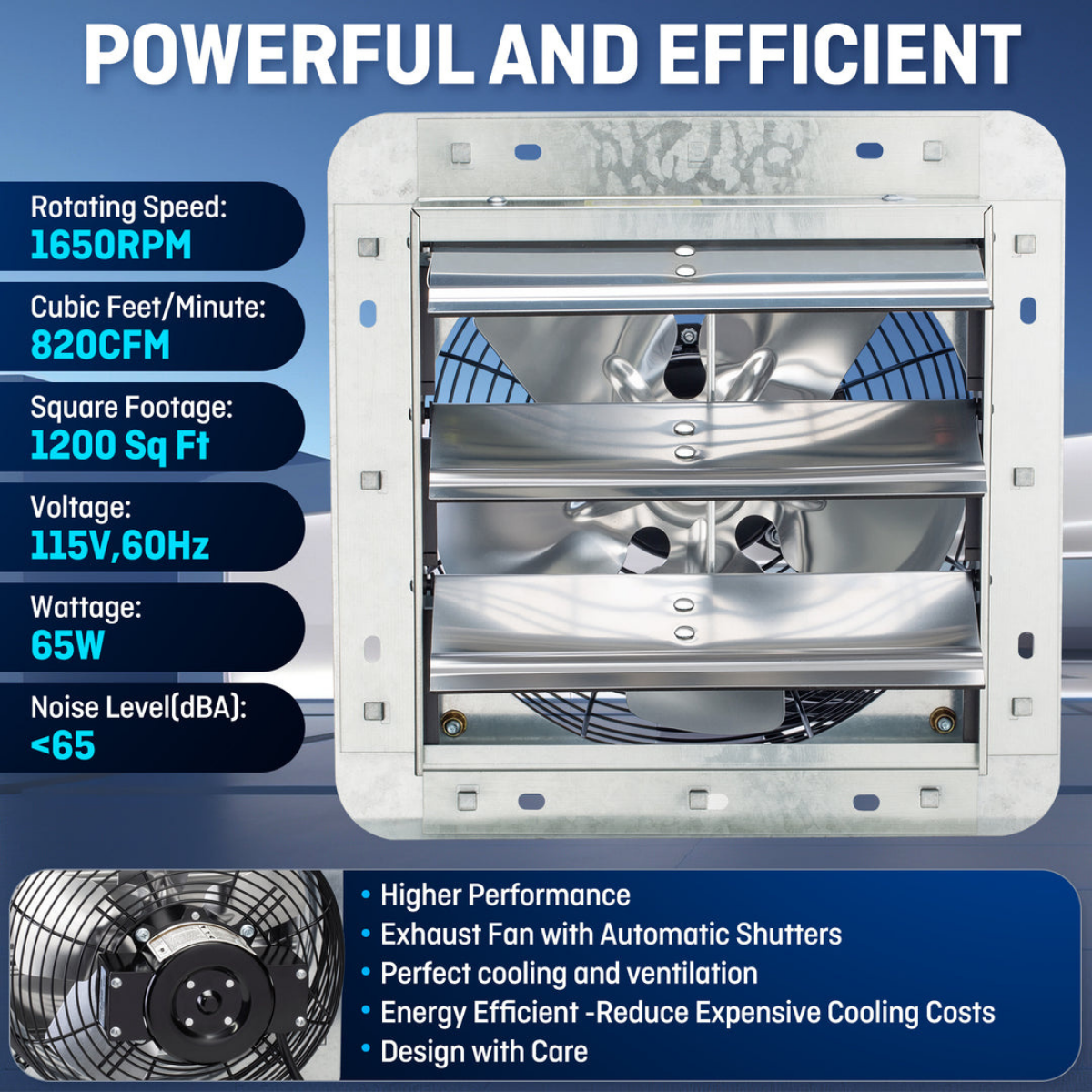

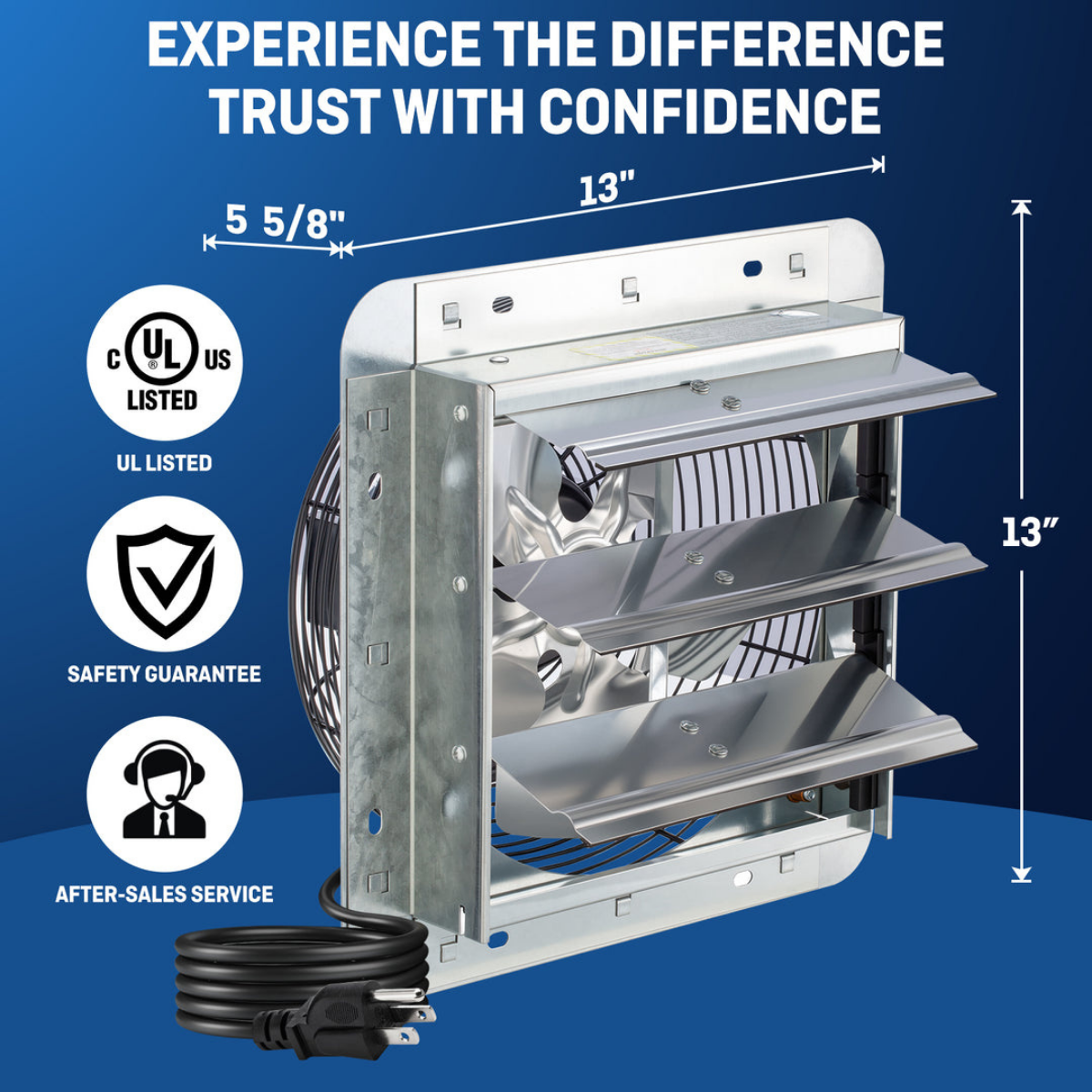

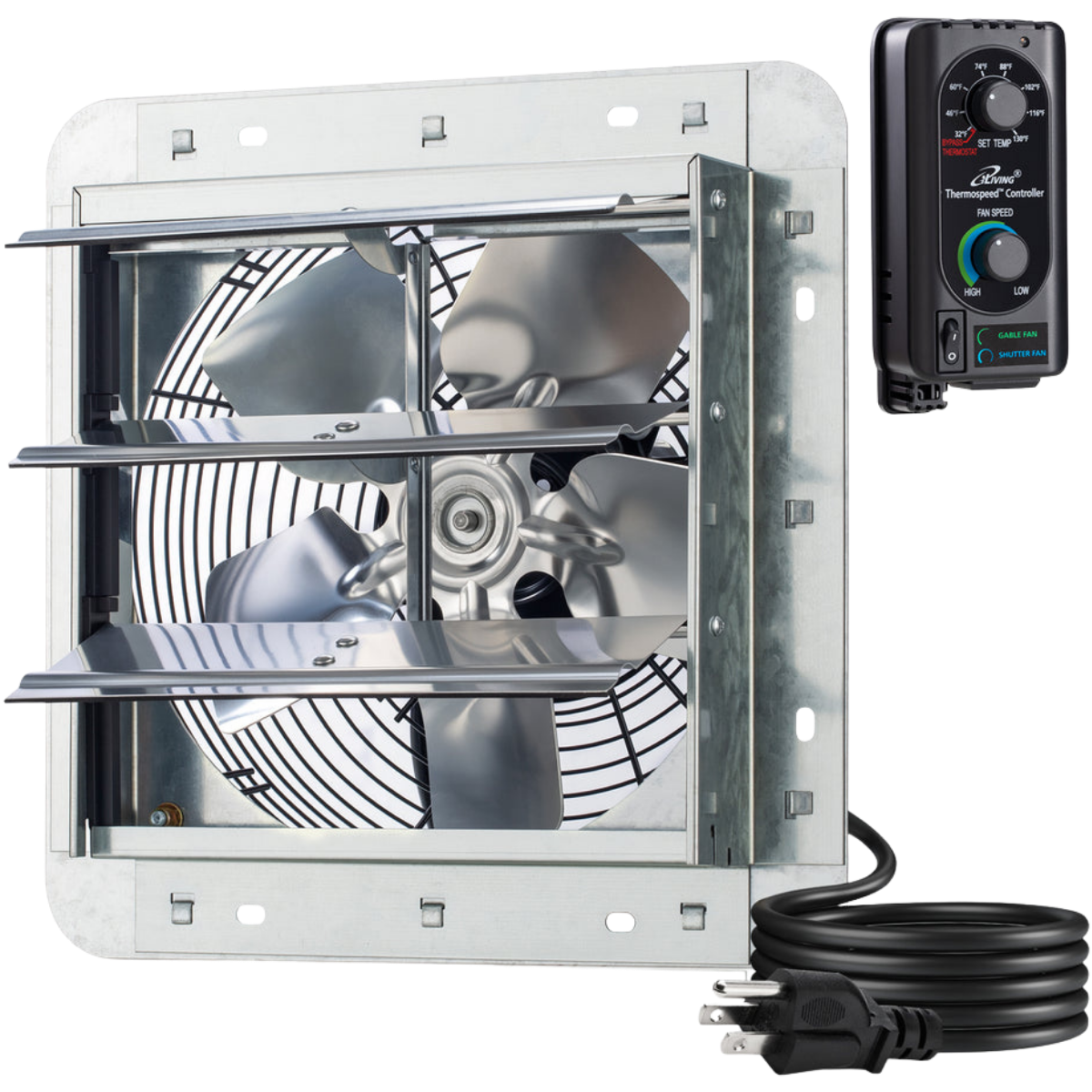

  • 10-Inch Model: The 10-inch model delivers 820 CFM with a 1/20 horsepower motor and covers up to 1,200 square feet. It requires a 10.5-inch wall opening for installation.

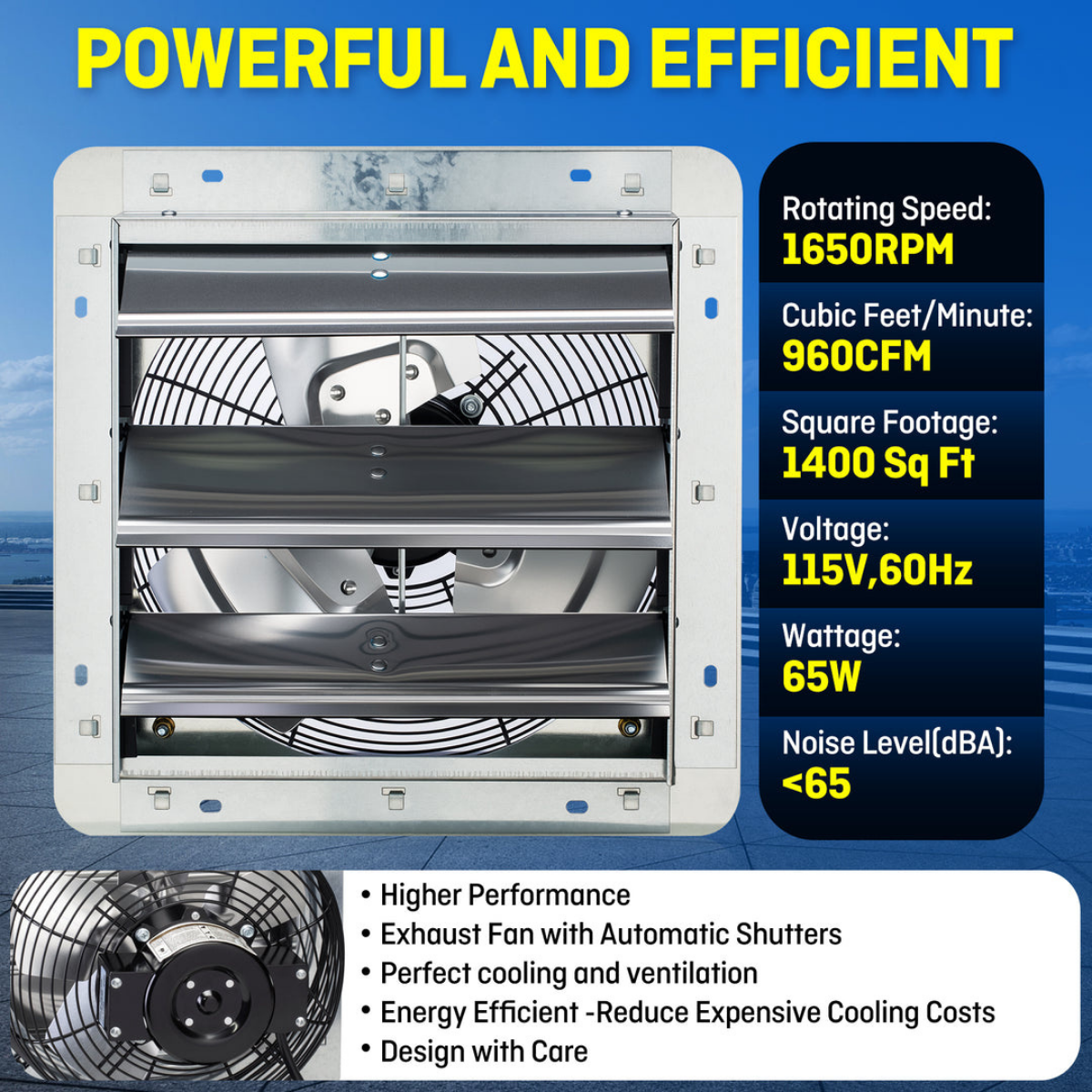

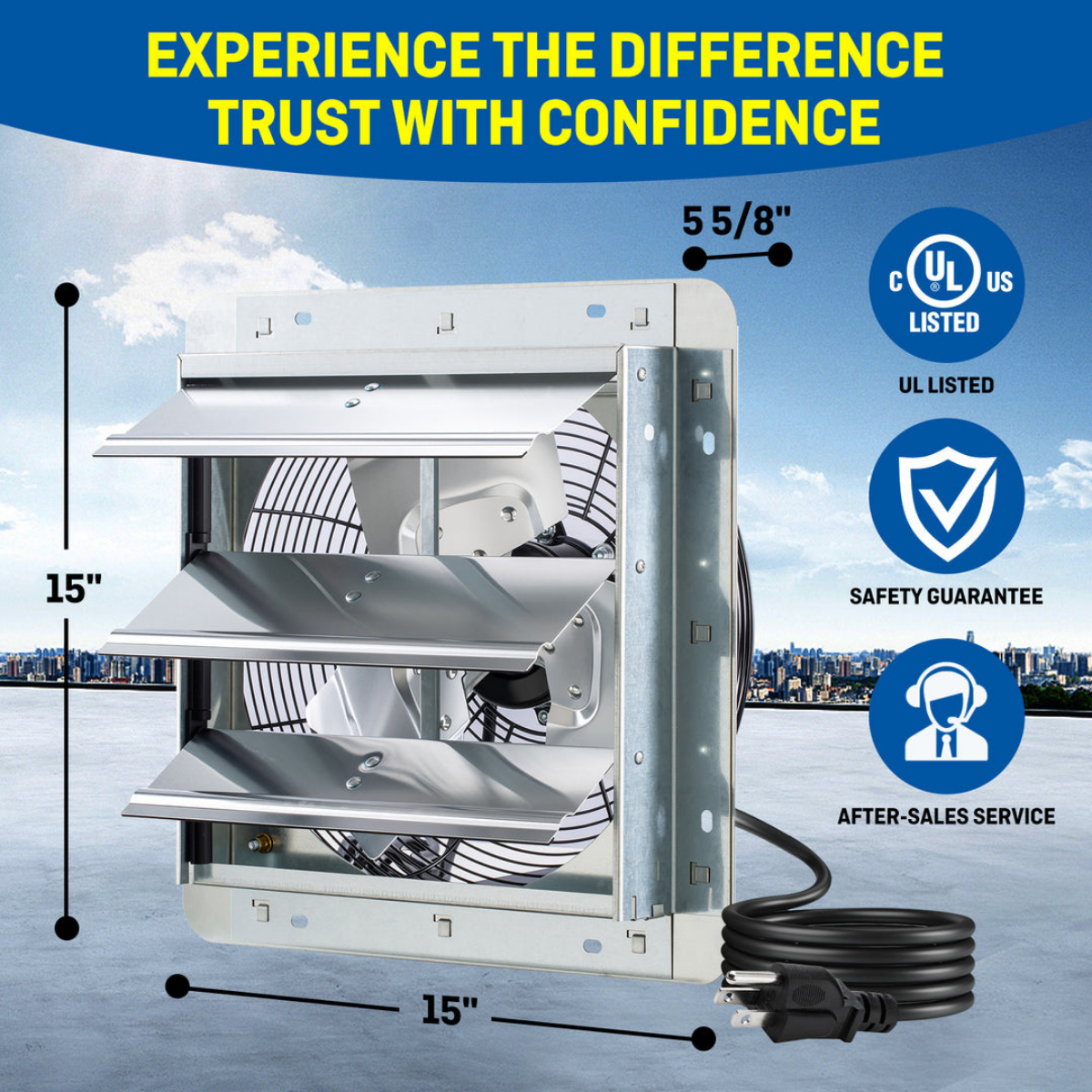

  • 12-Inch Model: The 12-inch model steps up to 960 CFM, also with a 1/20 horsepower motor, providing airflows for spaces up to 1,400 square feet. It requires a 13-inch wall opening for installation.

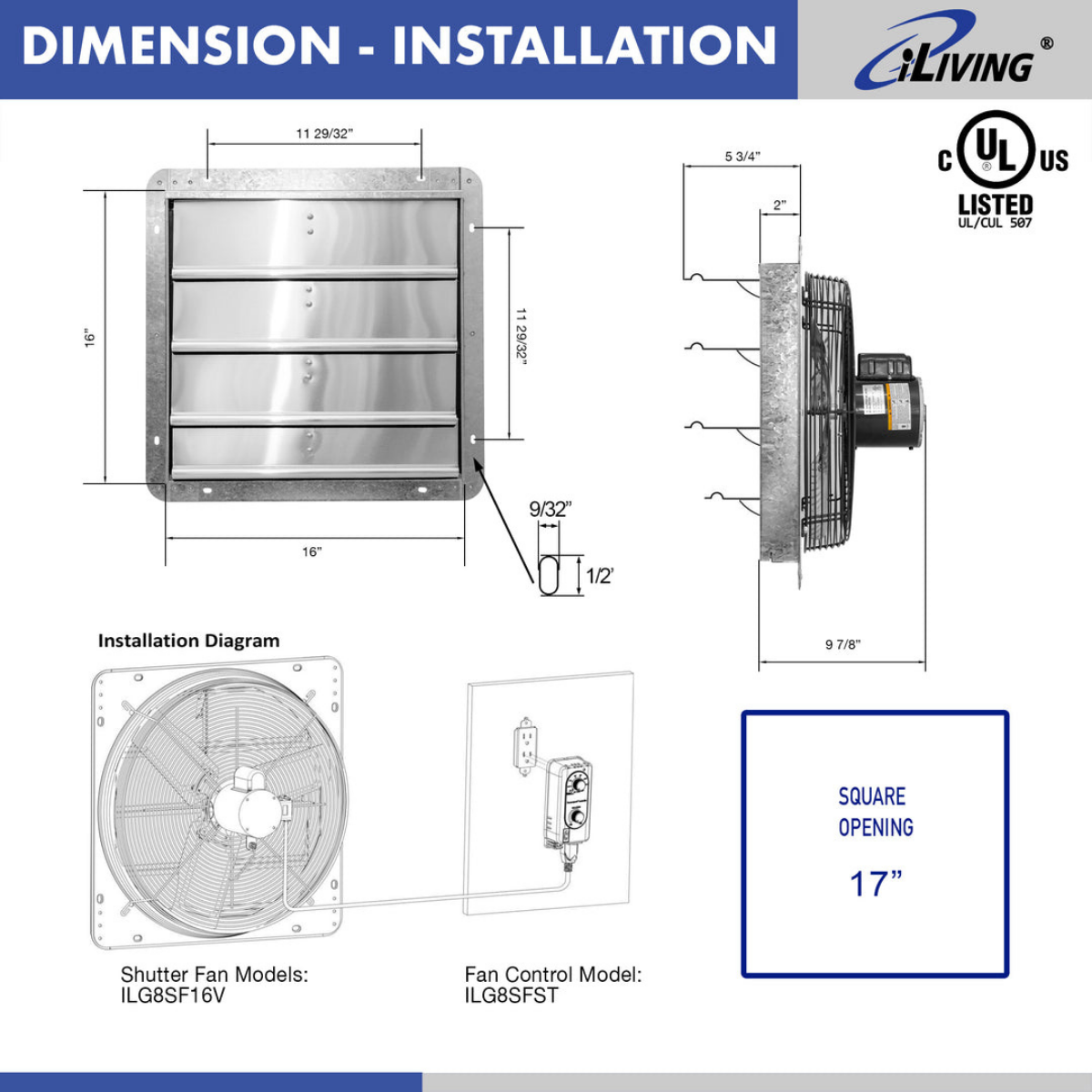

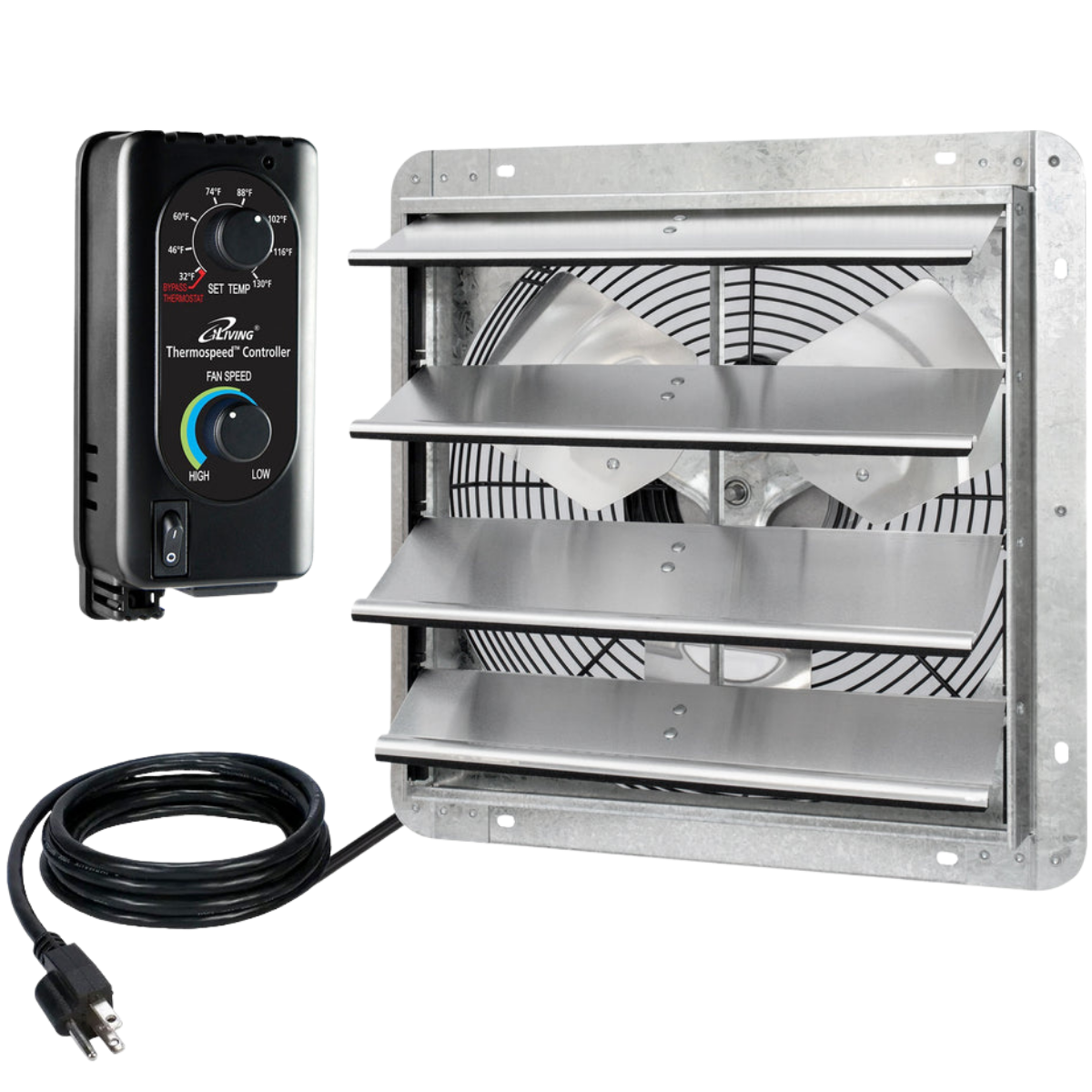

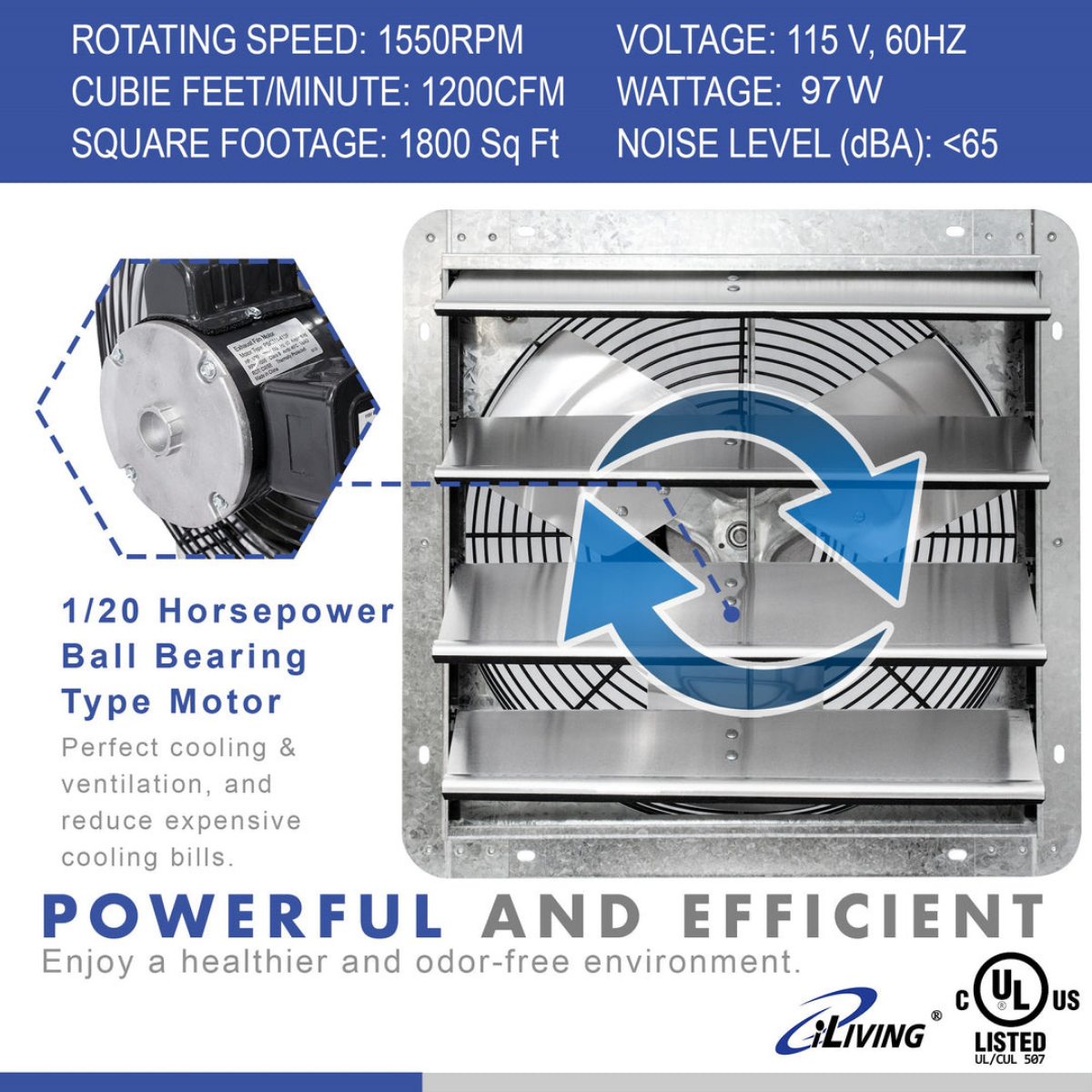

  • 16-Inch Model: For mid-size garages and workshops, the 16-inch model provides 1,200 CFM with a 1/20 horsepower motor and handles spaces up to 1,800 square feet. It requires a 17-inch wall opening for installation.

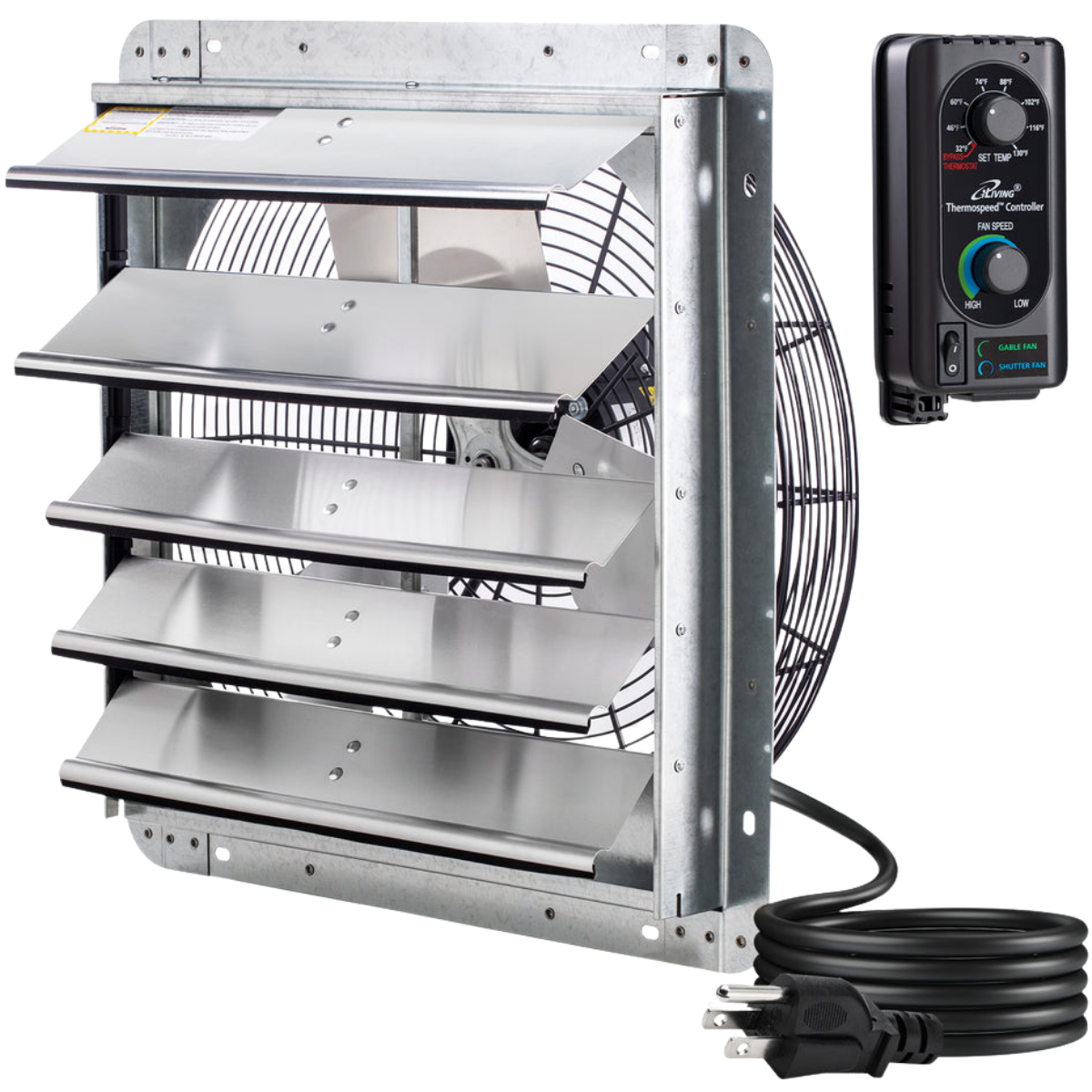

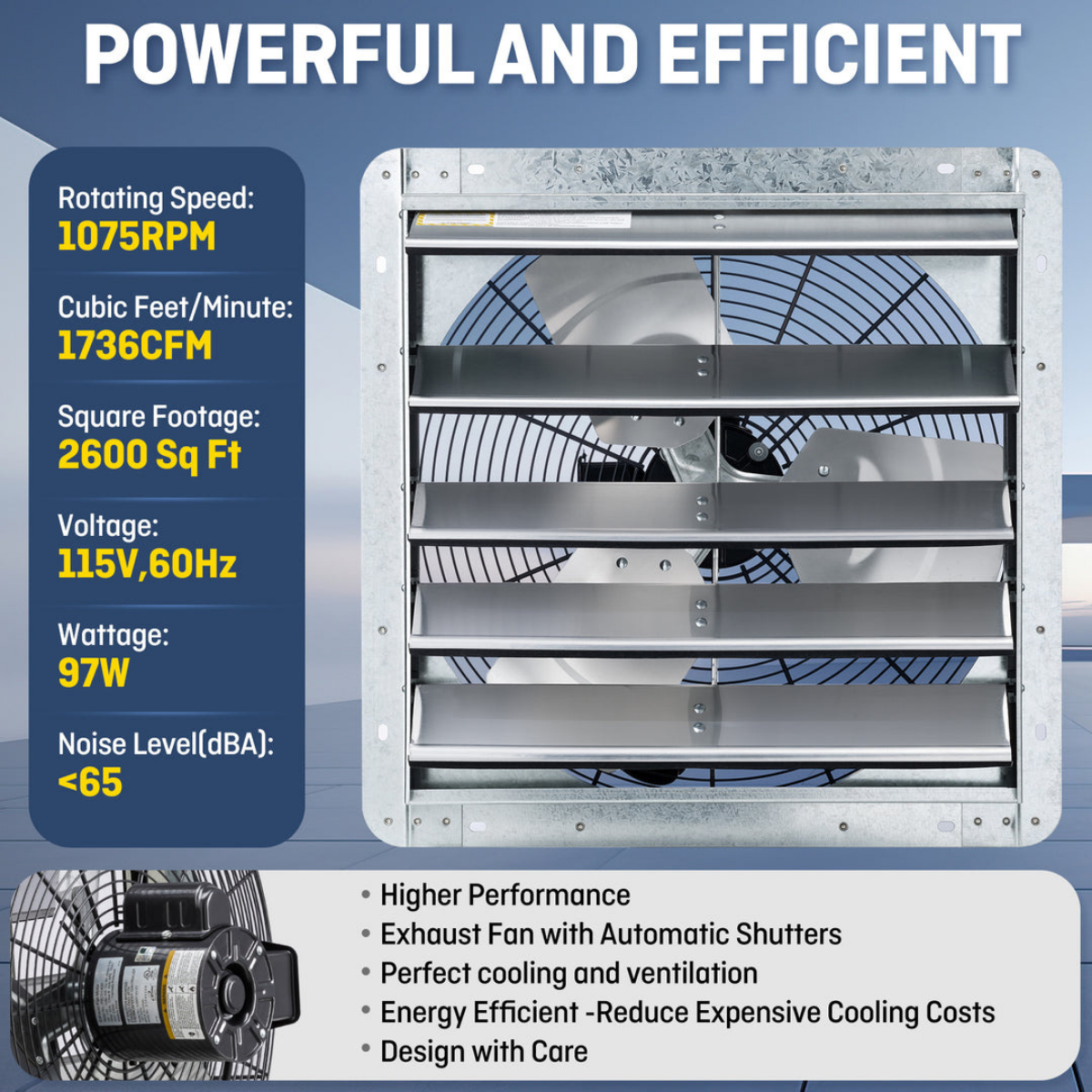

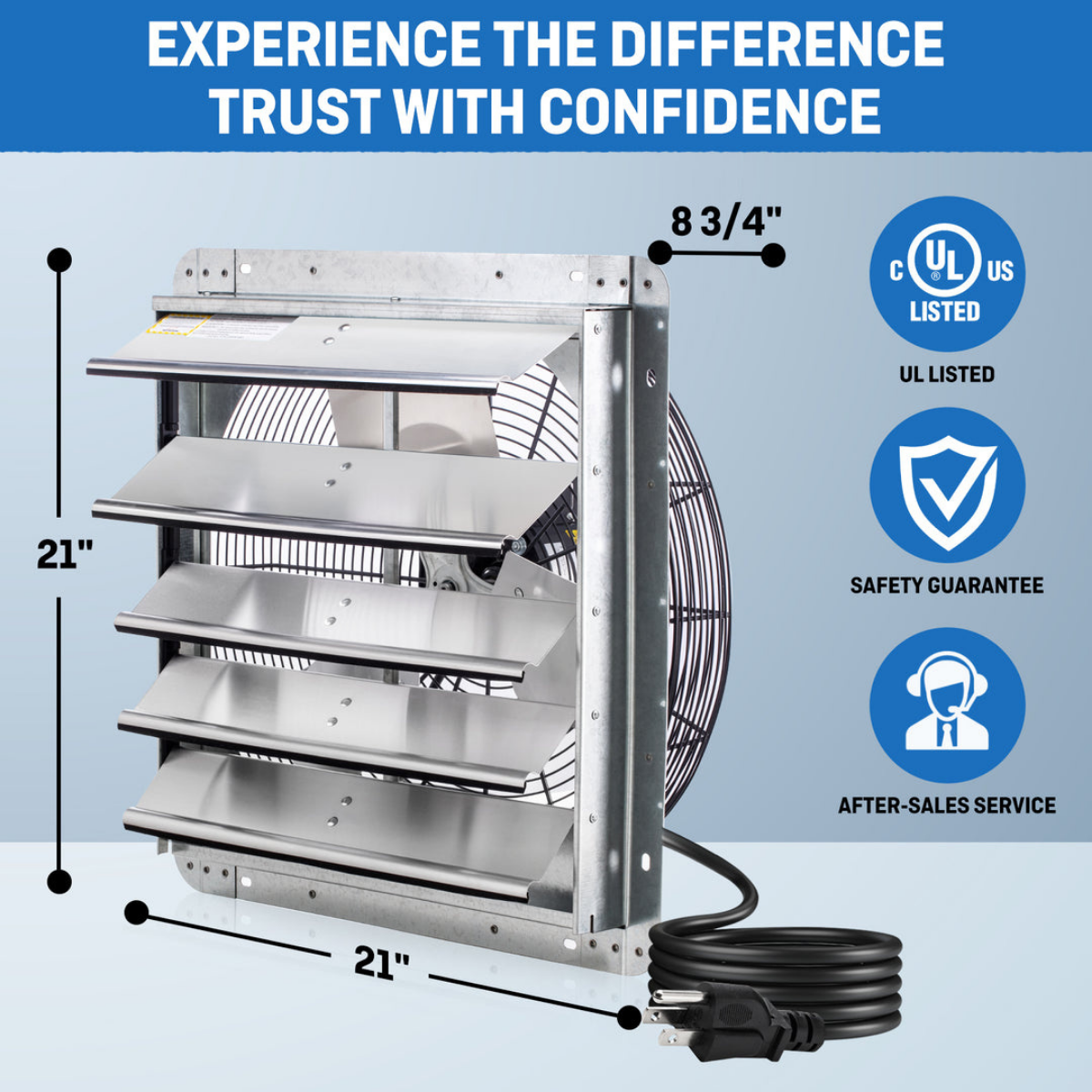

  • 18-Inch Model: The 18-inch model pushes 1,736 CFM with a 1/15 horsepower motor and moves air across spaces up to 2,600 square feet. It requires a 19-inch wall opening for installation.

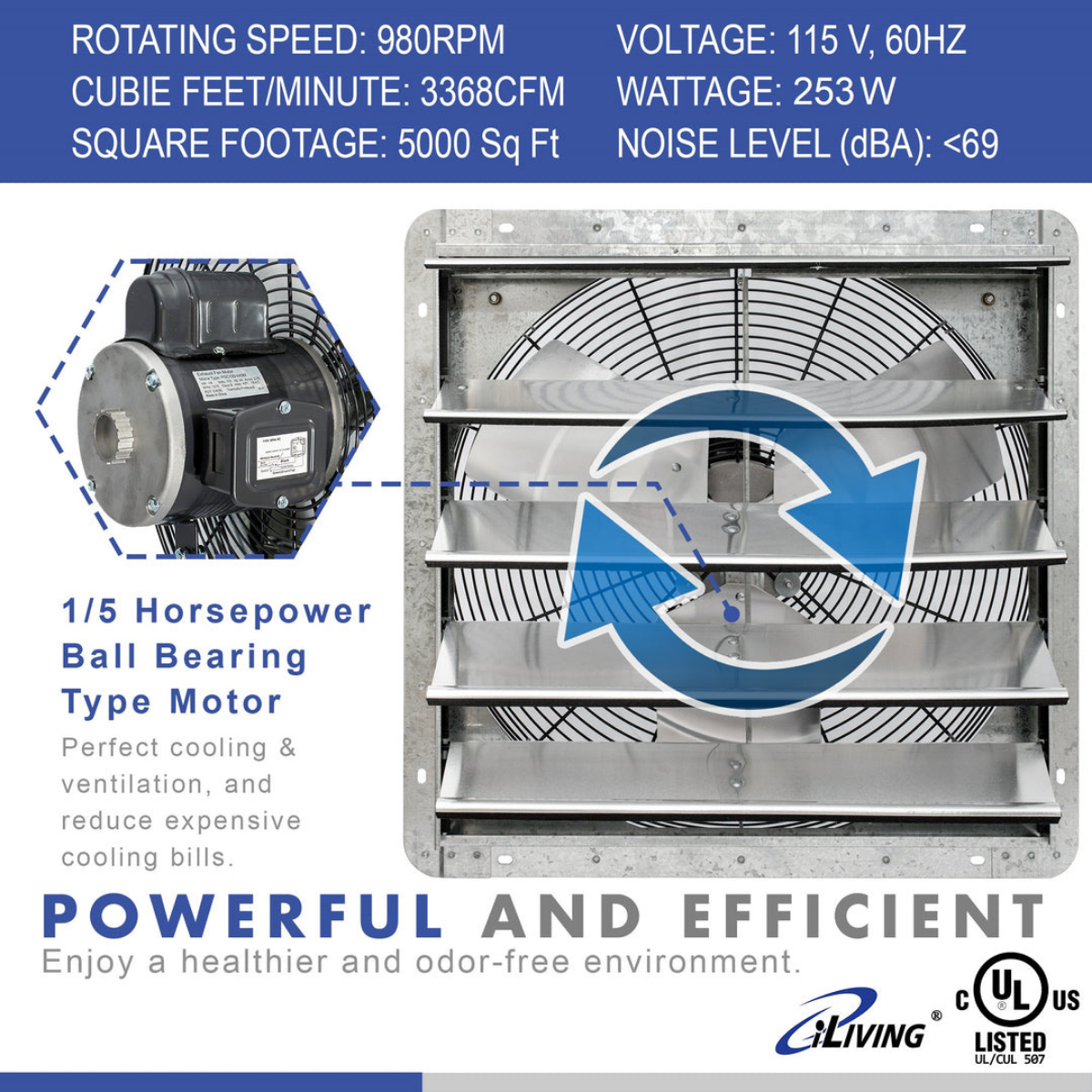

  • 20-Inch Model: The 20-inch model delivers 3,368 CFM for warehouses and large commercial spaces up to 5,000 square feet. It has a 1/5 horsepower motor and requires a 21-inch wall opening for installation.

Sylvane's Expert Take

If you run a workshop or garage and need reliable, variable-speed ventilation without a complex installation, the iLiving ILG8SFV-ST deserves a close look. Unlike basic single-speed shutter fans, the Thermospeed controller gives you instant airflow adjustment, which helps prevent heat buildup during the hottest parts of the day. When fumes, moisture, or heat accumulate quickly in your workspace, the variable-speed control and thermal-cutoff protection let you manage air quality without constant monitoring.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      10: 5.7
      12: 5.7
      16: 5.7
      18: 5.7
      20: 8.0
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Commercial/Industrial, Garage/Workshop, Residential
    • Certifications
      cULus
    • Color
      Silver
    • Controls
      Electronic
    • Housing Material
      Galvanized Steel
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      10: 820.0
      12: 960.0
      16: 1200.0
      18: 1736.0
      20: 3368.0
    • Maximum RPM
      10: 1650
      12: 1650
      16: 1550
      18: 1075
      20: 980
    • Recommended Coverage Area (sq. ft.)
      10: 1200
      12: 1400
      16: 1800
      18: 2600
      20: 5000
    • Recommended For
      Commercial/Industrial, Garage/Workshop, Warehouse
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      10: 0.6
      12: 0.6
      16: 0.85
      18: 0.85
      20: 2.2
    • Maximum Wattage (W)
      10: 65.0
      12: 65.0
      16: 97.0
      18: 97.0
      20: 253.0
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120

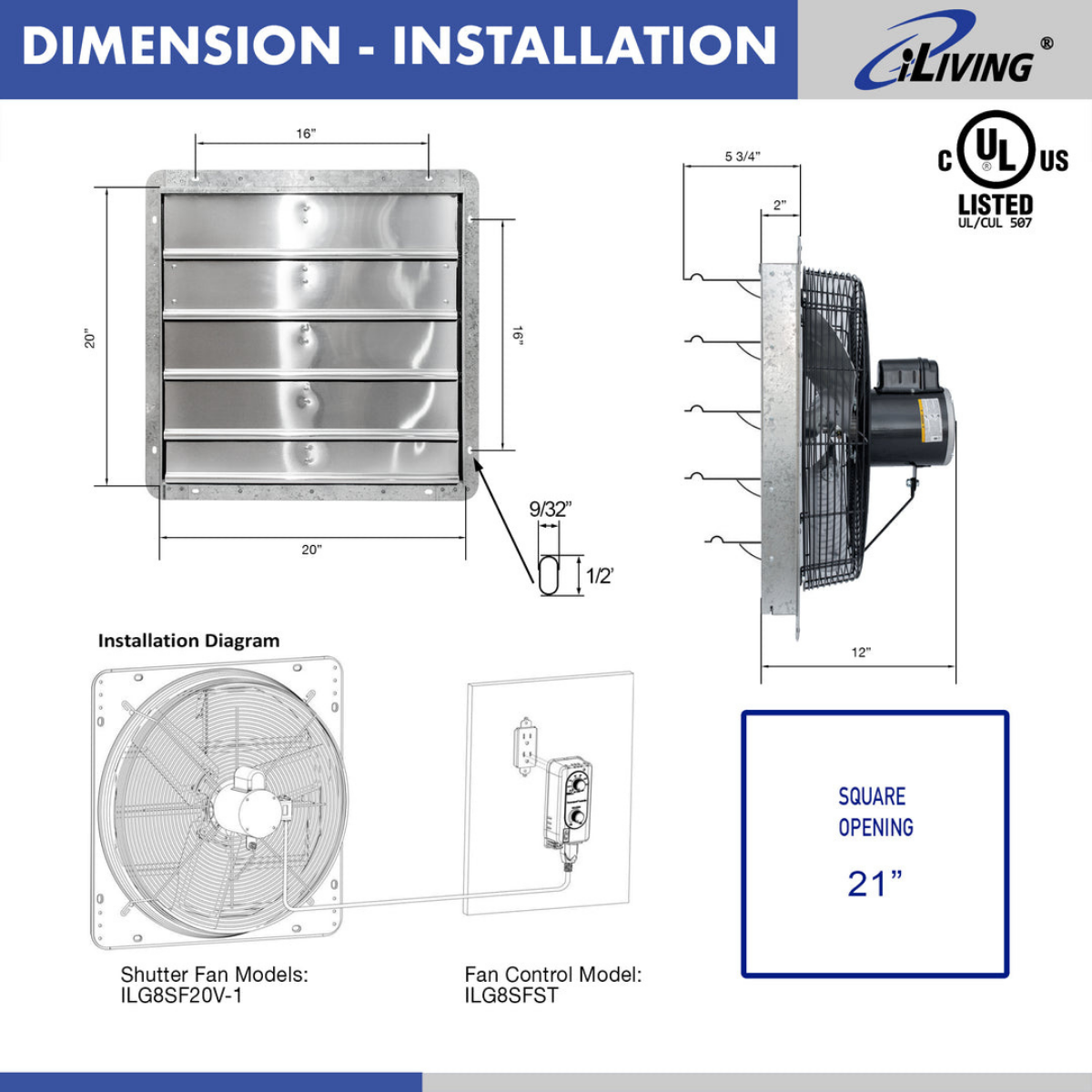

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      10: 10.0
      12: 12.13
      16: 16.0
      18: 18.0
      20: 20.0
    • Ceiling or Wall Cutout Width (in.)
      10: 10.0
      12: 12.13
      16: 16.0
      18: 18.0
      20: 20.0
    • Depth (in.)
      10: 7.63
      12: 7.63
      16: 9.88
      18: 10.75
      20: 12.0
    • Height (in.)
      10: 13.0
      12: 15.0
      16: 18.9
      18: 21.0
      20: 23.0
    • Shutter Fan Size (in.)
      10: 10
      12: 12
      16: 16
      18: 18
      20: 20
    • Weight (lbs.)
      10: 9
      12: 10.15
      16: 13.8
      18: 16.7
      20: 27.5
    • Width (in.)
      10: 13.0
      12: 15.0
      16: 18.9
      18: 21.0
      20: 23.0

    Additional Features

    • Additional Features
      Thermal Cutoff Protection, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      1-Year Component Limited Warranty
