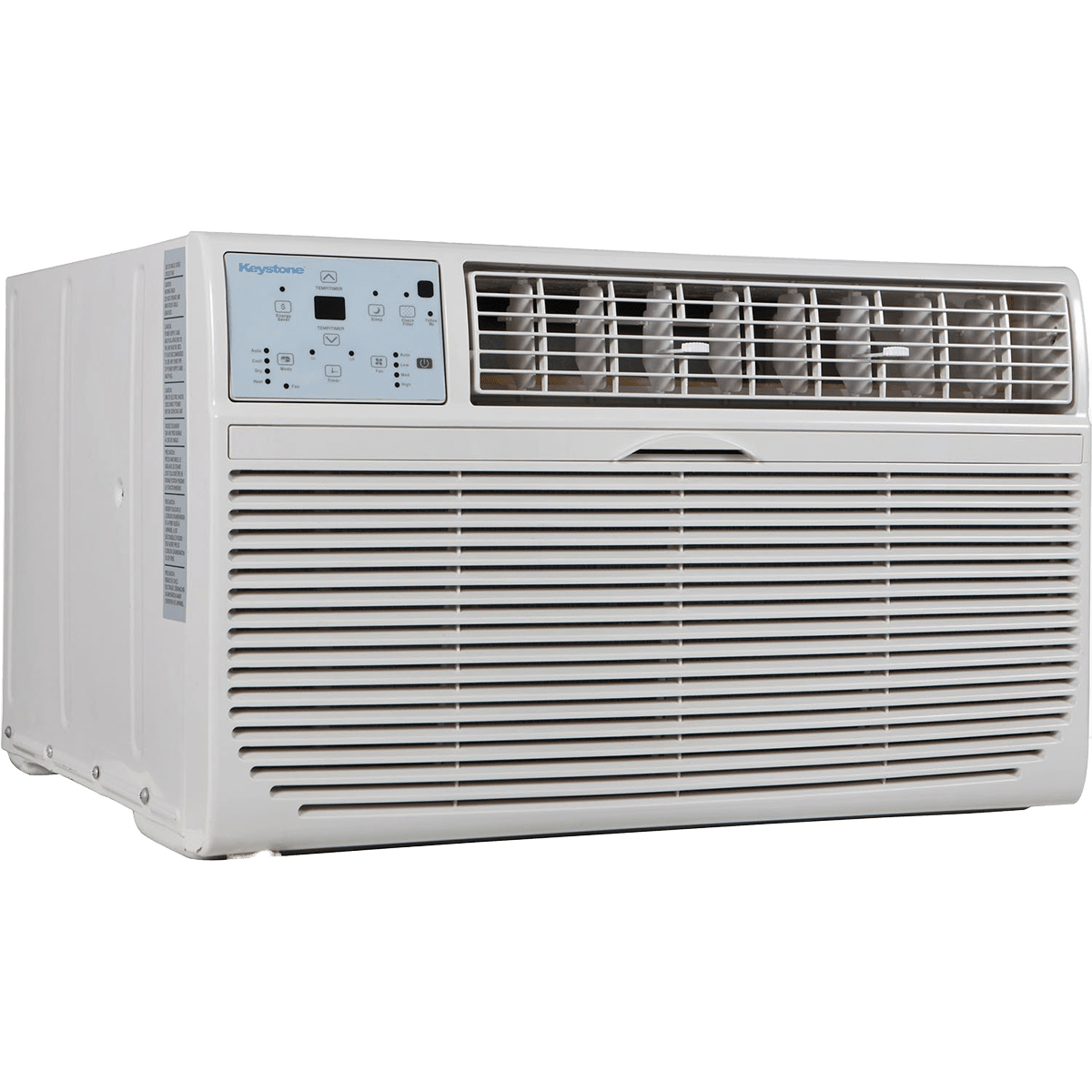

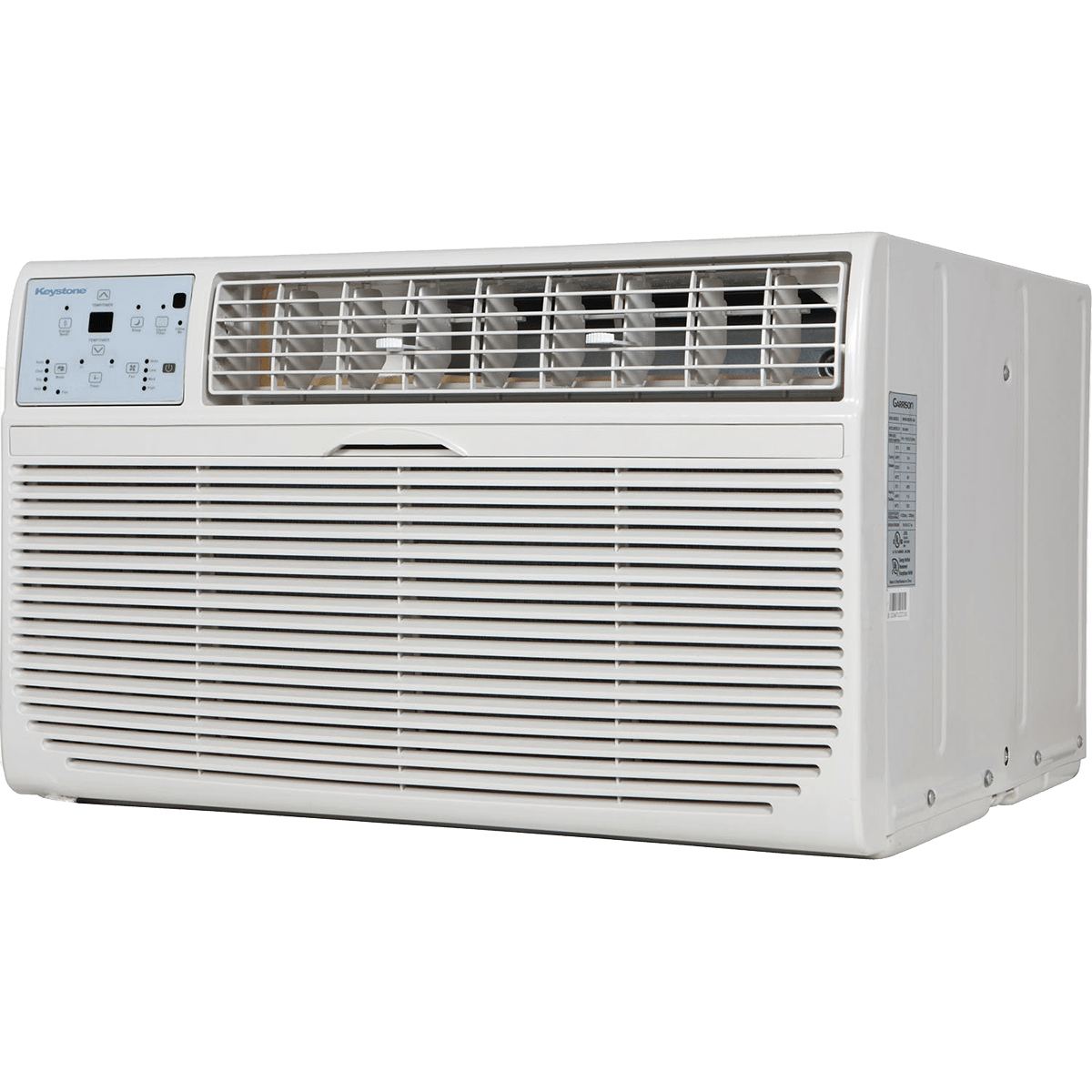

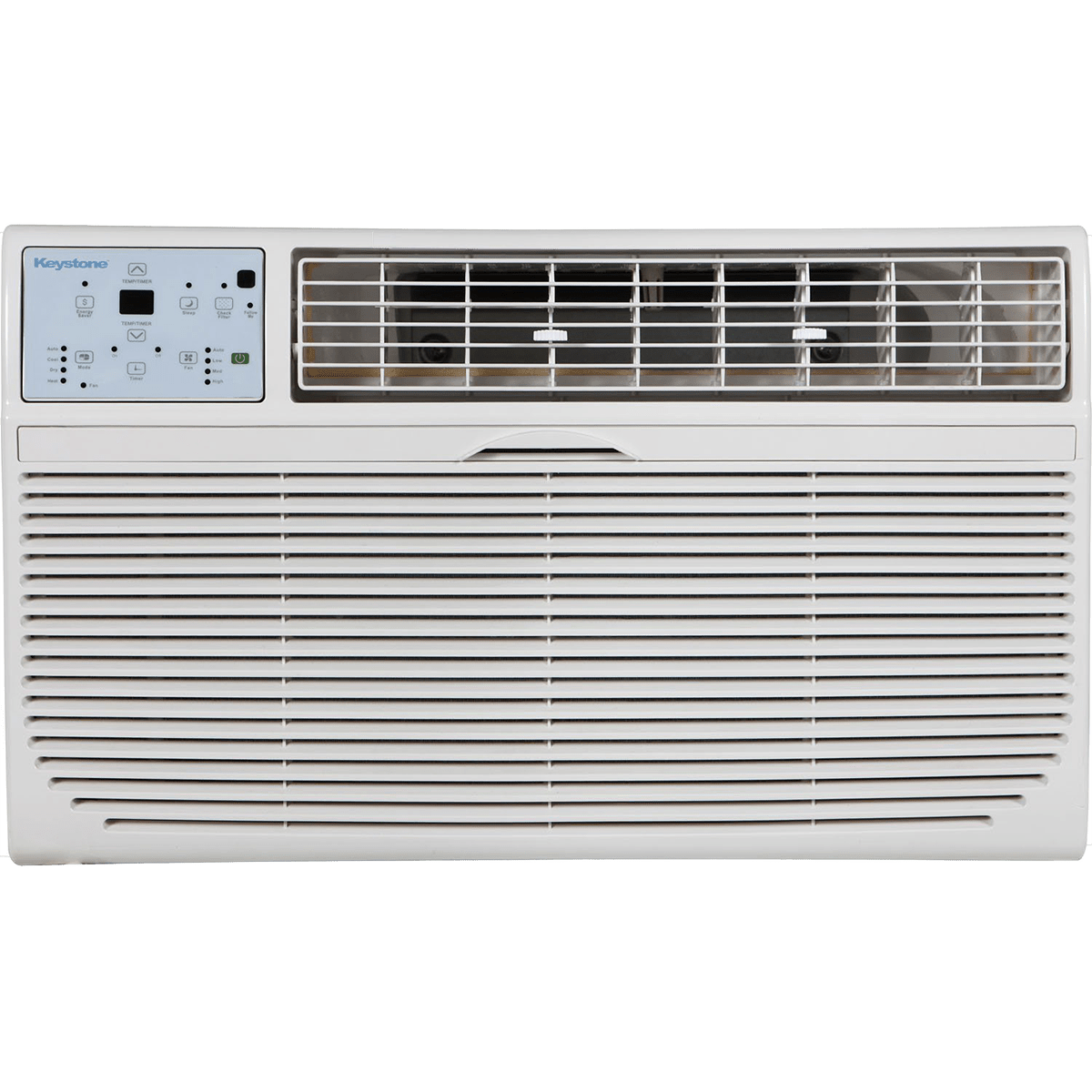

Keystone 14,000 BTU Through-the-Wall Air Conditioner with Heat
Keystone 14,000 BTU Through-the-Wall Air Conditioner with Heat is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Keystone KSTAT14-2HD 14,000 BTU Through-the-Wall Air Conditioner
- Owner's Manual

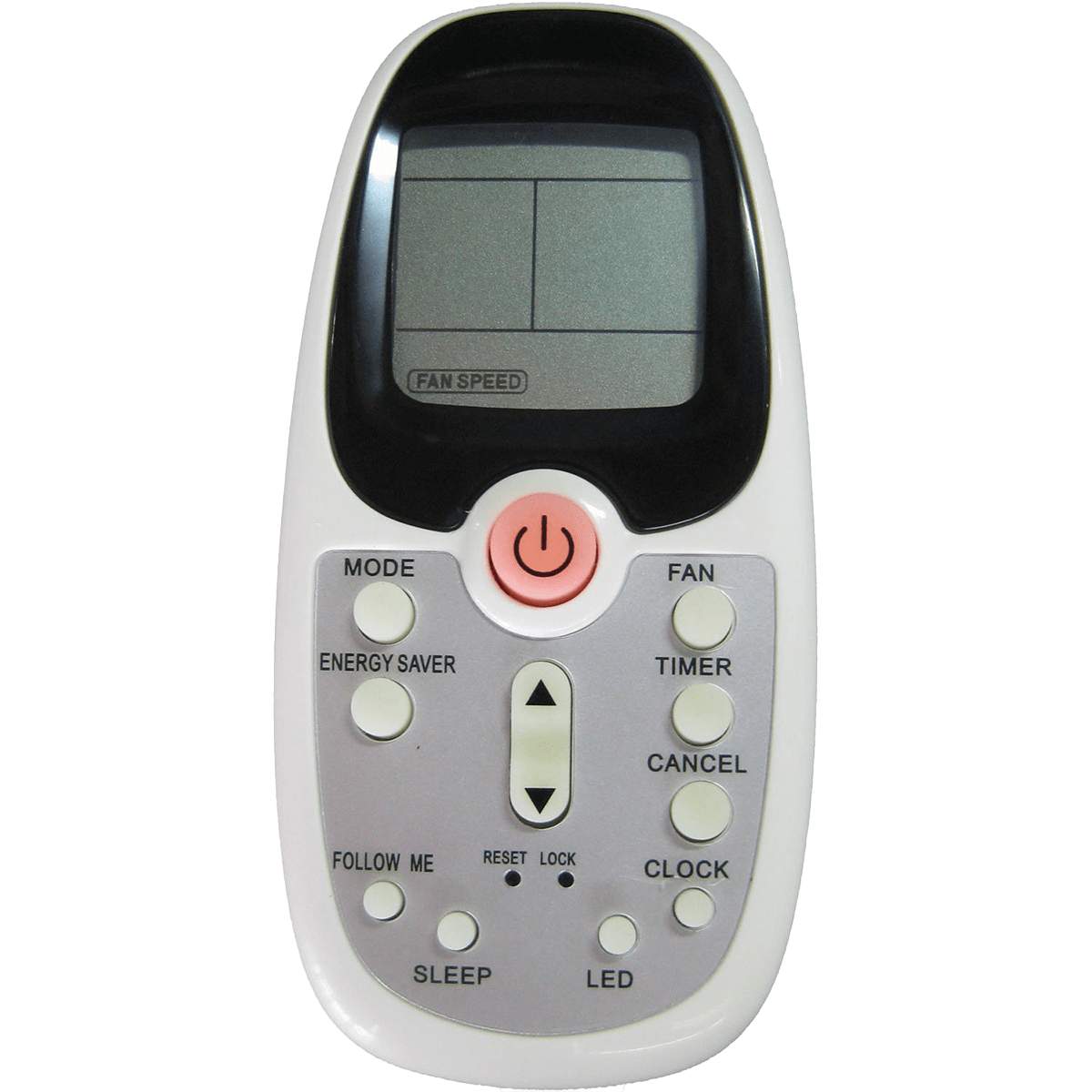

- Remote Control
- Interior Trim Kit
Info & Guides
Info & Guides
Description
Description
One of the largest Keystone models, the KSTAT14-2HD14,000 BTU Through-the-Wall Air Conditioner with Heat delivers a performance that few other ACs can match. Built for providing year-round comfort to hotel rooms, offices, basements, and other rooms as large as 700 square feet, it’ll consistently leave you and your guests more comfortable. Powerful comfort doesn’t have to be expensive, and it’s not with the energy efficient settings found one this easy-to-use air conditioner.
Note: This 230-volt unit is designed for through-the-wall installation and the wall sleeve is sold separately.
Powerful Cooling and Heating
The Keystone KSTAT14-2HC and its multiple operating modes is your one-stop appliance for comfort all year long.
- Cooling: Use up to 14,000 BTUs of power to quickly cool off on even the hottest days of the year.
- Heating: Capable of 10,600 BTUs of supplemental heat, you’ll stay warm and toasty indoors when the temperature drops outside.
- Multiple Fan Speeds: Manually choose between 3 fan speed (low, medium, high) to find the perfect airflow for you.
- Auto Mode: Choose your desired room temperature between 62 and 86 degrees Fahrenheit, and this mode will automatically choose the best operating mode and fan speed to achieve it.
Lower Your Cooling and Heating Costs
With its variety of energy-saving features, the Keystone 14,000 BTU Through-the-Wall AC is designed to keep you comfortable without wasting energy.
- Energy Saver Mode: When engaged, this feature reduces energy usage by using the fan to check your room's temperature, and only turns the compressor on when it rises above your set point.
- Sleep Mode: Lower energy usage while you sleep with this setting that gradually increases the temperature without interrupting your rest.
- Follow Me Feature: The remote control is able to operate as a remote thermostat, reading the temperature where it’s at in the room, and relaying the information to the AC.
Additional Features
- Moisture Removal: When it starts feeling a little muggy indoors, turn to dry mode and remove 2.5 pints of excess moisture every hour.
- Electronic Control Panel: Easy-touch electronic controls with an LED display makes operation simple.
- Programmable Timer: Set this Keystone air conditioner to automatically turn on or off in advance.
- Automatic Restart: If a power outage occurs, the unit will resume operation in its previous settings.
- Quiet Operation: Even on its highest fan speed, this AC is still a quiet 61 decibels.
- Multiple Airflow Directions: Adjust airflow to the areas you need it most with its 4-way adjustable louvers.
Summary
Cool and heat large rooms with the KSTAT14-2HC, one of Keystone’s most powerful through-the-wall air conditioners.
What Customers Love
- Year-Round Use: With cooling, heating, and dehumidifying operating modes, this AC is built for year-round operation.
- Follow Me Feature: Turn the remote control into a remote thermostat for precise temperature control.
Things to Consider
- Wall Sleeve Required: This Keystone AC designed for through-the-wall installation and the wall sleeve is sold separately.
Specifications
Specifications
-
ASHRAE Cooling Power (BTUs)[14000]
-
Energy Efficiency Ratio (EER)9.3
-
Number of Speeds3
-
California Residents⚠ WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov.
-
CertificationsUL
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating250V-20A
-
ColorWhite
-
Estimated Yearly Operating Cost136
-
Heat ModeYes
-
Heating BTUs (BTUs)10600
-
Maximum Cubic Feet per Minute (CFM) (CFM)300.0
-
Maximum Noise Level (dB)61
-
Minimum Noise Level (dB)56.5
-
Minimum Operating Temperature - Heating (degrees F)76
-
Moisture Removal per Hour (pints)2.5
-
Recommended Coverage Area (sq. ft.)700
-
Refrigerant TypeR-32
-
Maximum Cooling Amperage (Amps)20
-
Maximum Cooling Wattage (W)1515
-
Maximum Heating Amperage (Amps)15
-
Maximum Heating Wattage (W)3450
-
Plug Face Type6-20P
-
Power Cord Length (ft.)6.5
-
Voltage (V)208-230
-
Depth (in.)20.3
-
Depth (with front cover) (in.)20.3
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Through-Wall Finished Depth (in)17.5
-
Through-Wall Finished Height (in)15.25
-
Through-Wall Finished Width (in)25.5
-
Weight (lbs.)78.3
-
Width (in.)24.2
-
Width (with front cover) (in.)24.2
-
Additional FeaturesProgrammable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode
-
Manufacturer's Warranty1-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
