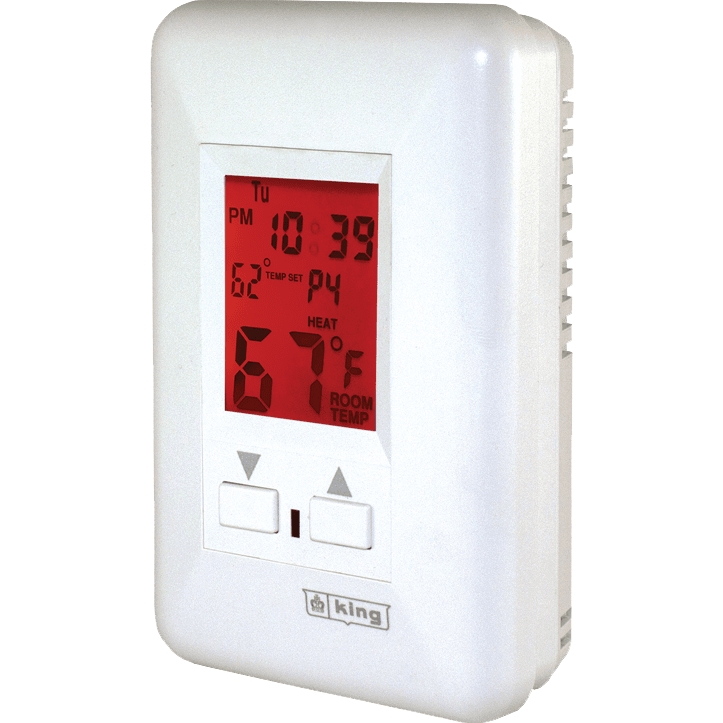

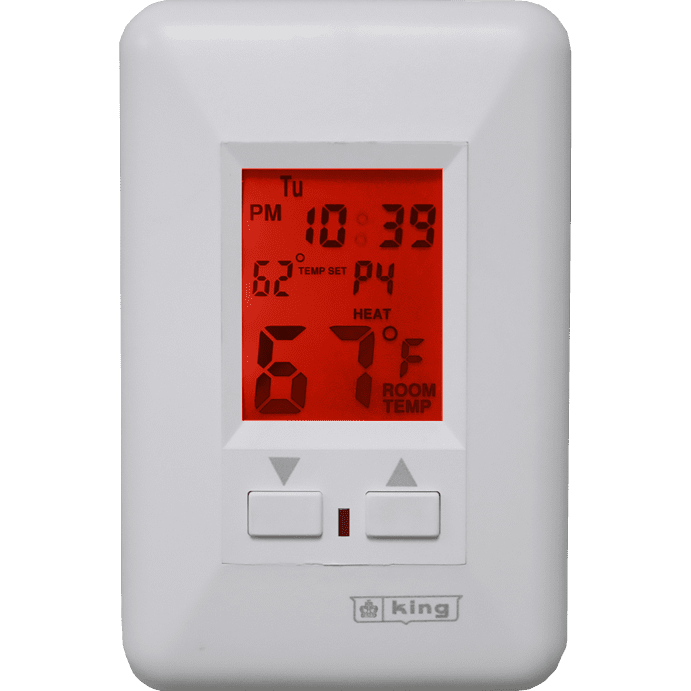

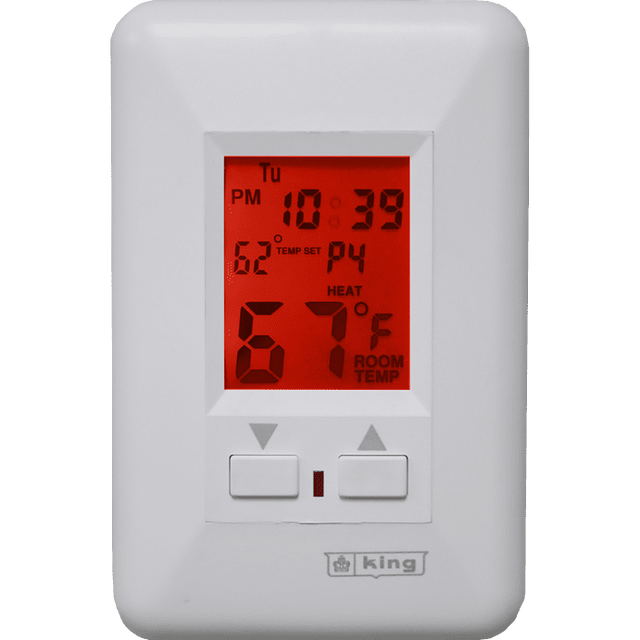

King Electric ESP 120V Electronic Line Voltage Thermostat
King Electric ESP 120V Electronic Line Voltage Thermostat is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- King Electric ESP Electronic Line Voltage Thermostat
- Owner's Manual
Info & Guides
Info & Guides
King Electric ESP 120V Electronic Line Voltage Thermostat
Description
Description
Easily control your 120-volt electric line voltage heater with the King Electric ESP Electronic Line Voltage Thermostat. Featuring a 22-amp max rating, it's ideal for use with larger heating circuits. User-friendly, this thermostat is designed with precise temperature control, multiple settings, and an easy-to-operate interface.
It’s designed to work with 120-volt line voltage heaters.
Top King Electric SP120-R Features
With its careful engineering, the King Electric ESP Thermostat is the perfect thermostat for your line voltage heater.
- Maximum Temperature Control: Features 7 individual day programmability.
- Multiple Settings: Capable of four distinct time and temperature settings.
- Easy to Operate: Two simple buttons make increasing and decreasing the temperature easy.
- Backlighting: Makes it easy to read your current settings and temperature and determine adjustments as needed.
Compatible Models
The King Electric Electronic Thermostat is compatible with the following models:
- King Electric 1,500-Watt Model SL Surface Mounted Wall Heater
- King Electric 120V MODEL KT-MW Multi-Watt Kickspace Heater
- King Electric 120V K Series Electric Baseboard Heater
Additional Features
- Temperature Range: Has a 44 – 95 degrees Fahrenheit set point range.
- Single Pole Design: Features a single-pole design with a third wire to power display.
- LED Indicator Light: A red LED indicator illumination lets you know when the heater is on.
- Electronic Temperature Sensing: Provides for the most accurate control of your heating temperature.
- Reduced Temperature Swings: Its 3-minute cycle rate helps to reduce temperature swings.
- System On/Off Switch: Easily turn the system on and off with one button.
Summary
Compatible with 120-volt line voltage heaters, this programmable thermostat is equipped with scheduling features, user-friendly operation, and much more.
Specifications
Specifications
-
Compatible SystemsHeating-Only
-
Program Type7-Day
-
ColorWhite
-
ControlsElectronic
-
Number of Cooling Stages0
-
Number of Heating Stages1
-
System ControlHeating Only
-
Time Periods per Day4
-
Voltage (V)110-120
-
Depth (in.)1.25
-
Depth (with front cover) (in.)1.25
-
Height (in.)4.875
-
Height (with front cover) (in.)4.875
-
Width (in.)3.125
-
Width (with front cover) (in.)3.125
-
Additional FeaturesProgrammable
-
Manufacturer's Warranty1-Year Limited Warranty
