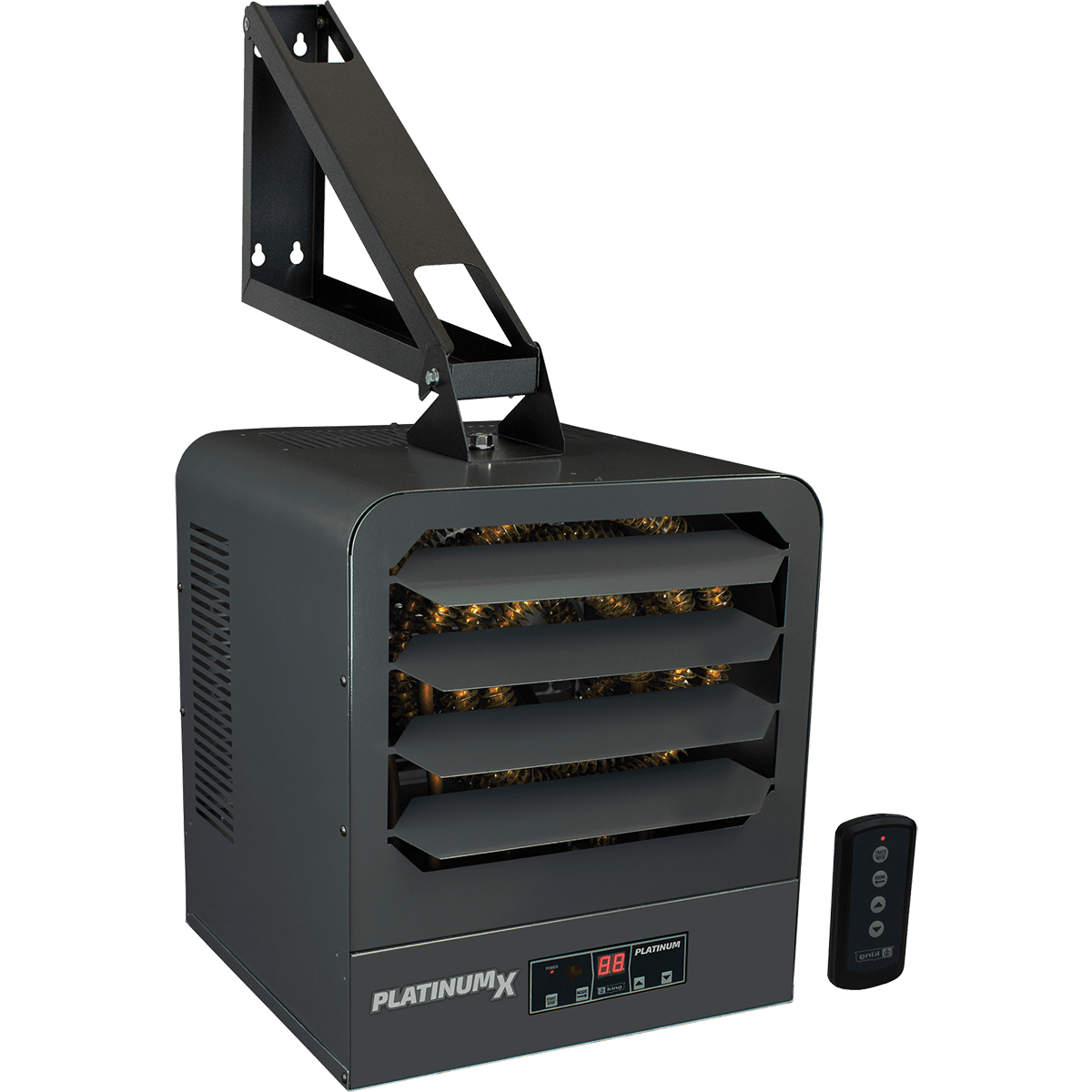

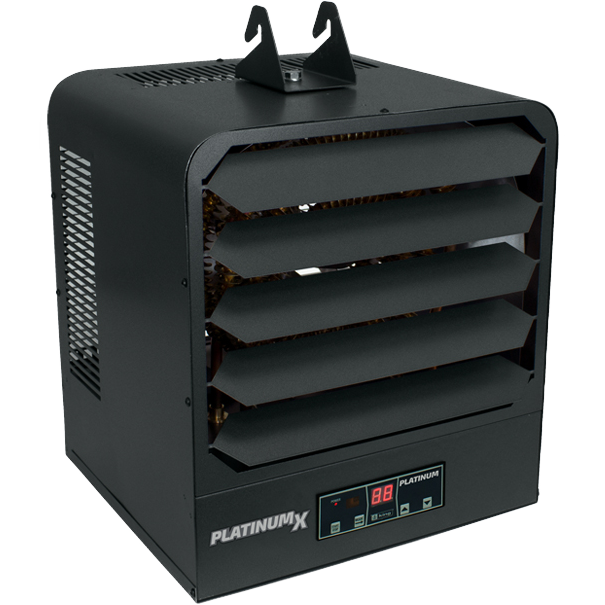

Open Box: King Electric KB PlatinumX Multi-Phase 208V Unit Heater

SKU: bstock-ki12414N  |  Model: KB2007-3MP-PLTMX
Max Wattage:
Condition
About Conditions

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Info & Guides

What's In The Box?

  • King Electric KB PlatinumX Multi-Phase 208V Unit Heater
  • Owner's Manual

This Open Box: King Electric KB PlatinumX Multi-Phase 208V Unit Heater has been fully inspected and tested to ensure proper functionality. You can buy confidently knowing every open-box comes with our 30-day money back guarantee. A great option if you're looking for quality and savings.

Learn more about condition types.

Cold concrete floors and drafty loading bays make it hard to keep your crew productive through winter. The King Electric KB PlatinumX Multi-Phase 208V Unit Heater runs on electricity, so it produces no open flame, odor, or carbon monoxide while it heats an enclosed space. It comes in 2 output tiers, so you can match the heat to the size of your building.

The PlatinumX also works for drying jobs that call for electric dry heat instead of heat from propane or kerosene. In warmer months, switch to fan-only mode to keep air moving with the heating element off. When the heater needs attention, a quick-access service panel makes diagnosis and maintenance easier.

Key Features and Benefits of the King Electric KB PlatinumX Multi-Phase 208V Unit Heater

  • Multi-Phase Power: A hardwired 208-volt multi-phase connection gives you permanent, fixed heat without extension cords or portable fuel tanks to manage.

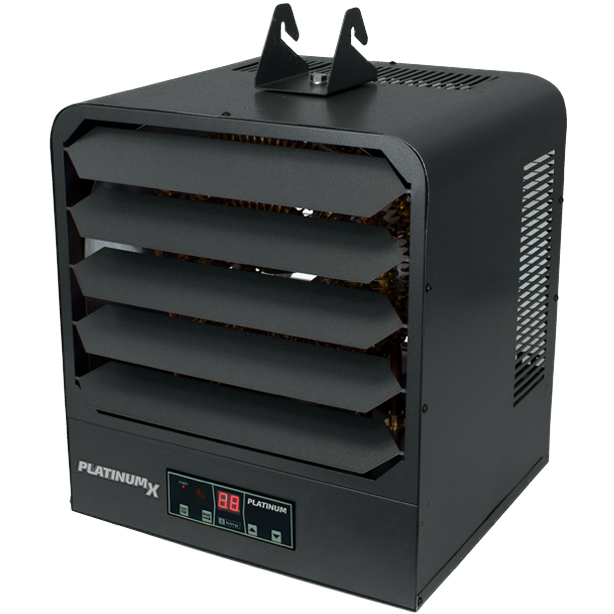

  • Wall or Ceiling: The universal mounting bracket handles wall or ceiling installation, and adjustable louvers aim warm air exactly where you need it.

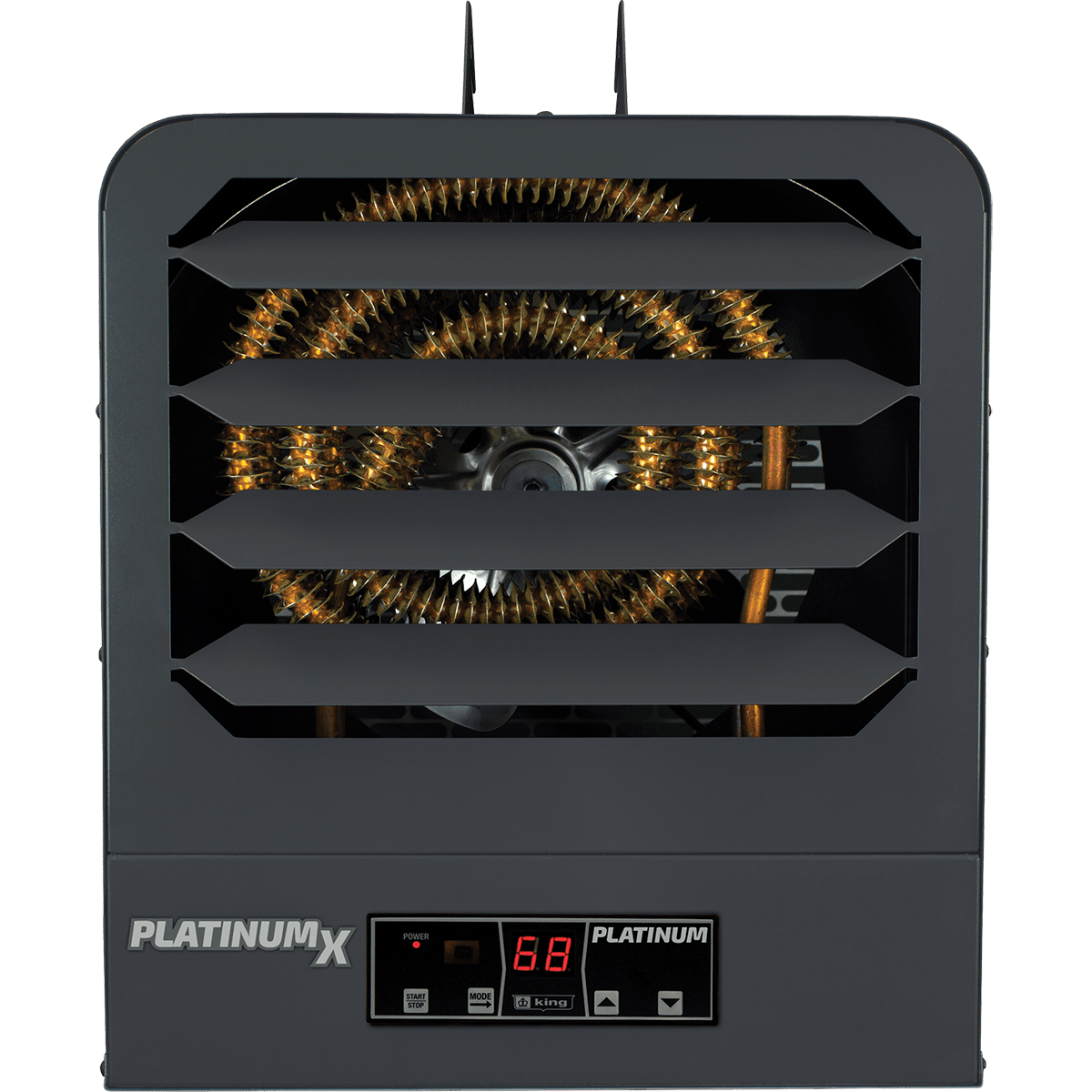

  • Thermostat Control: Electronic controls with a built-in thermostat and variable heat settings hold your target temperature and help you manage power use.

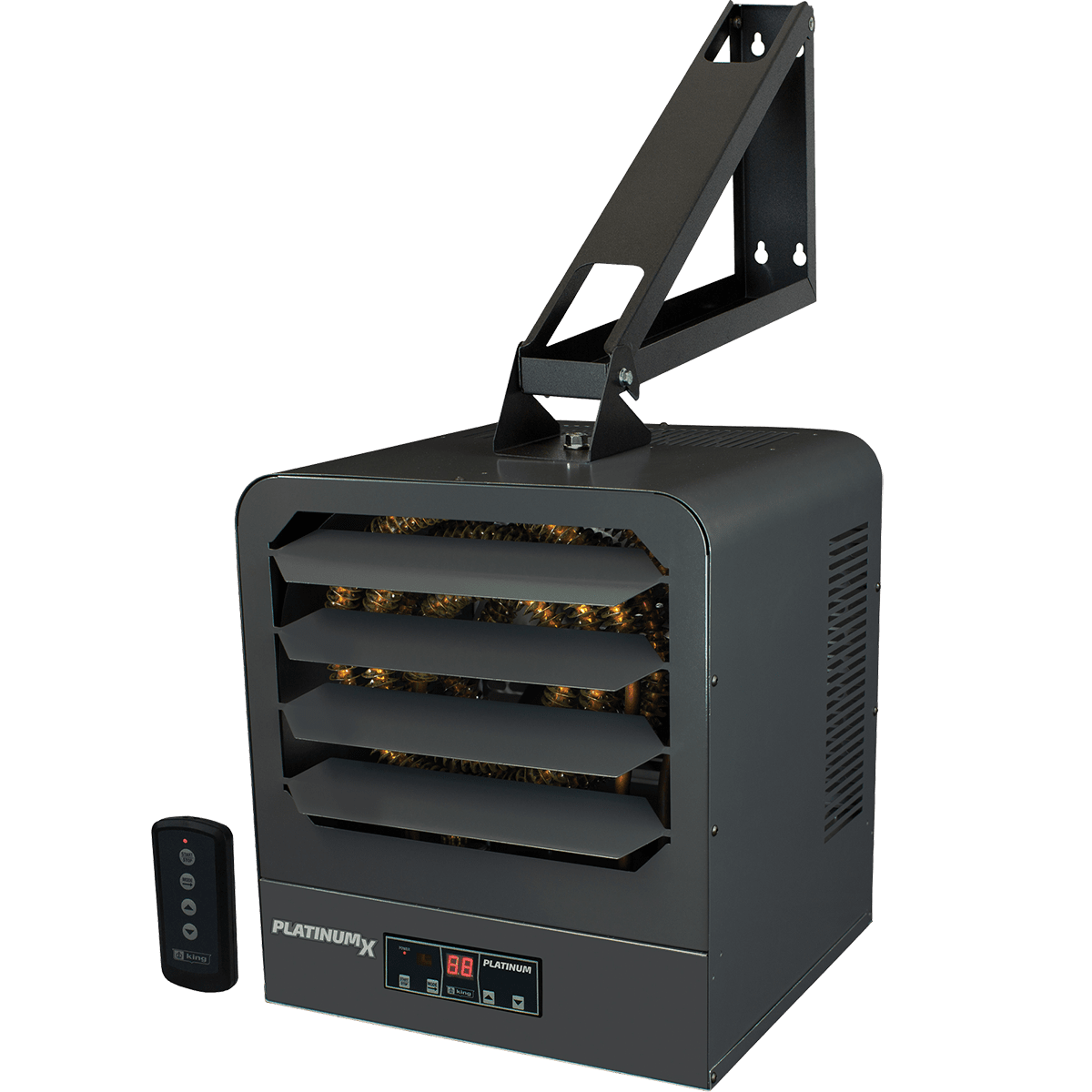

  • Remote and Timer: A remote control and programmable timer let you adjust heat from across the floor and schedule it around your work shifts.
  • Smart Limit Protection: King's Smart Limit protection automatically shuts the heater off if temperatures rise abnormally, and you can switch it back on once it cools.
  • UL Certified: UL certification confirms the heater has been tested against recognized electrical safety standards for your commercial space.
  • Compact Footprint: Measures 15 x 18 x 16.5-Inches (L x W x H) and weighs 46.5 pounds, so it mounts high without crowding your work area.

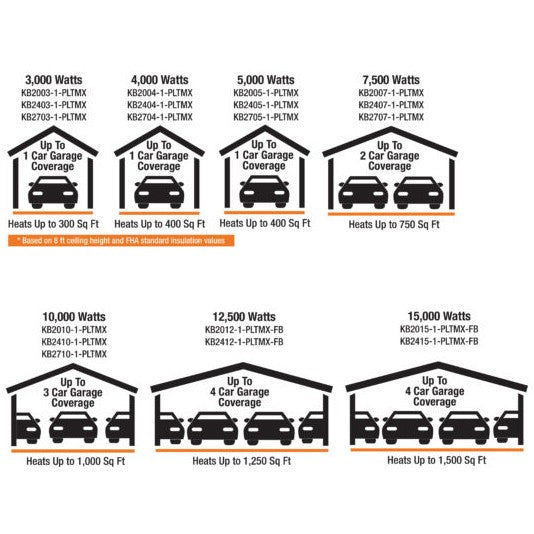

Choose Your Wattage

You can pick the PlatinumX as a 7,500-watt or a 10,000-watt model, depending on how much space you need to heat.

  • 7,500-Watt Model: This version puts out 25,600 BTU of heat and moves 600 CFM of air while drawing up to 36.1 amps, which suits smaller garages and single bays.
  • 10,000-Watt Model: Stepping up from the 7,500-watt model, this version raises output to 47,900 BTU and airflow to 825 CFM, so warm air reaches farther across larger spaces, draws up to 48 amps, and adds tip-over protection.

Note: Each model needs a circuit sized for its maximum amperage, so confirm your electrical service supports 36.1 or 48 amps before installation.

Sylvane's Expert Take

If you're heating a garage or warehouse that already has 208-volt multi-phase service, the PlatinumX is a strong fit. It does its best work mounted high, with the louvers angled down toward where your team stands. Because it is hardwired, plan on hiring an electrician for installation.

Choose the 10,000-watt model for large or poorly insulated spaces, and the 7,500-watt model for a tighter bay. With either one, the programmable timer keeps you from heating an empty building overnight.
