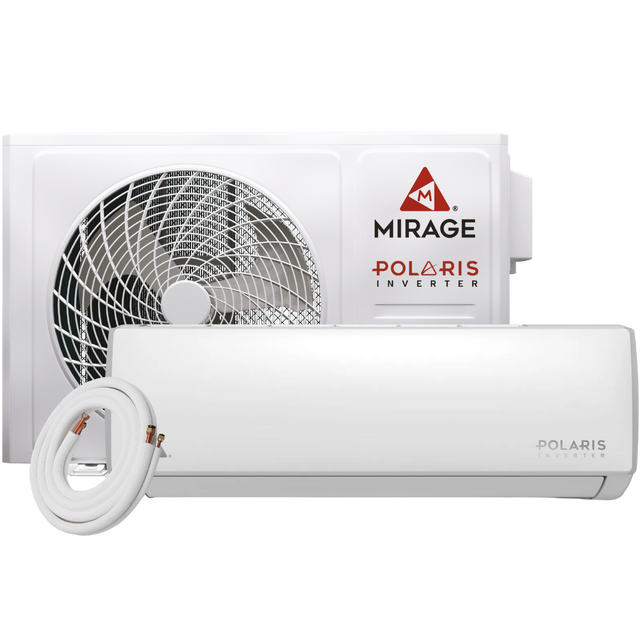

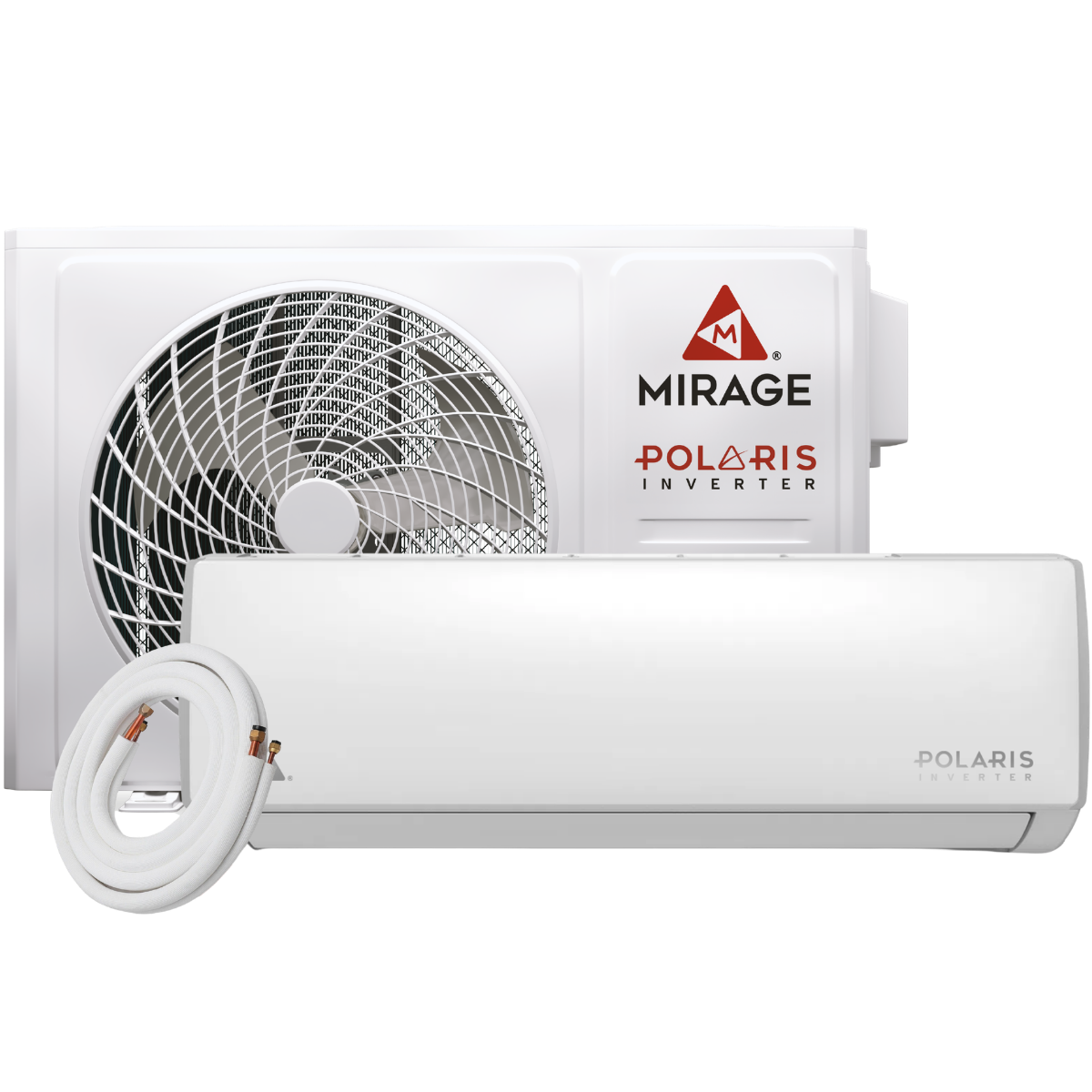

Mirage Polaris Series 9,000 BTU Ductless Mini Split Heat Pump 115V

Name: Mirage Polaris Series 9,000 BTU Ductless Mini Split Heat Pump 115V
Brand: Mirage
Price: 819.0 USD
Availability: InStock

SKU: mi17797k | Model: PWH090C

Save 10% with promo code MIRAGE10

$819.00 $889.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Compressor Warranty; 4-Year Control Board Warranty

What's In The Box?

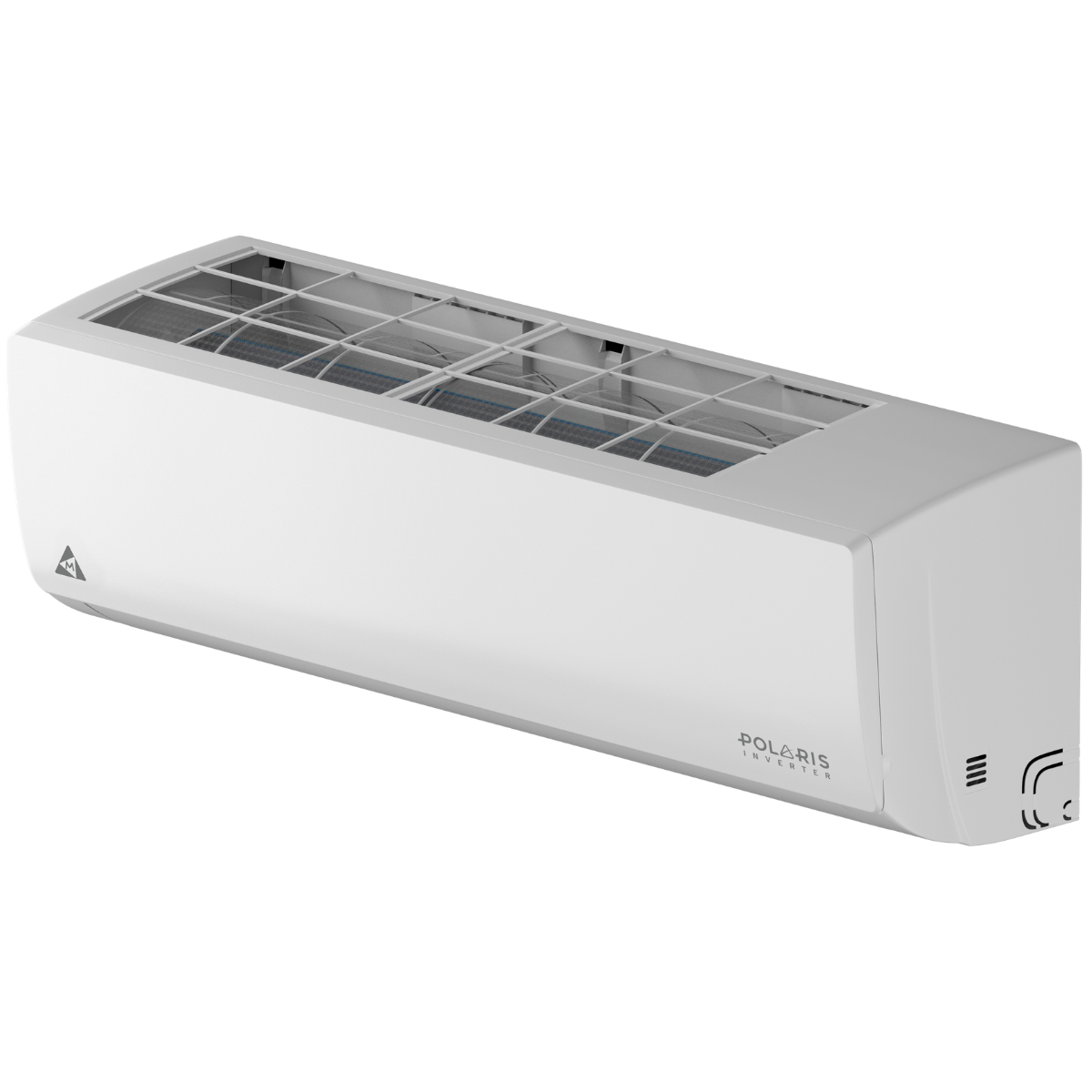

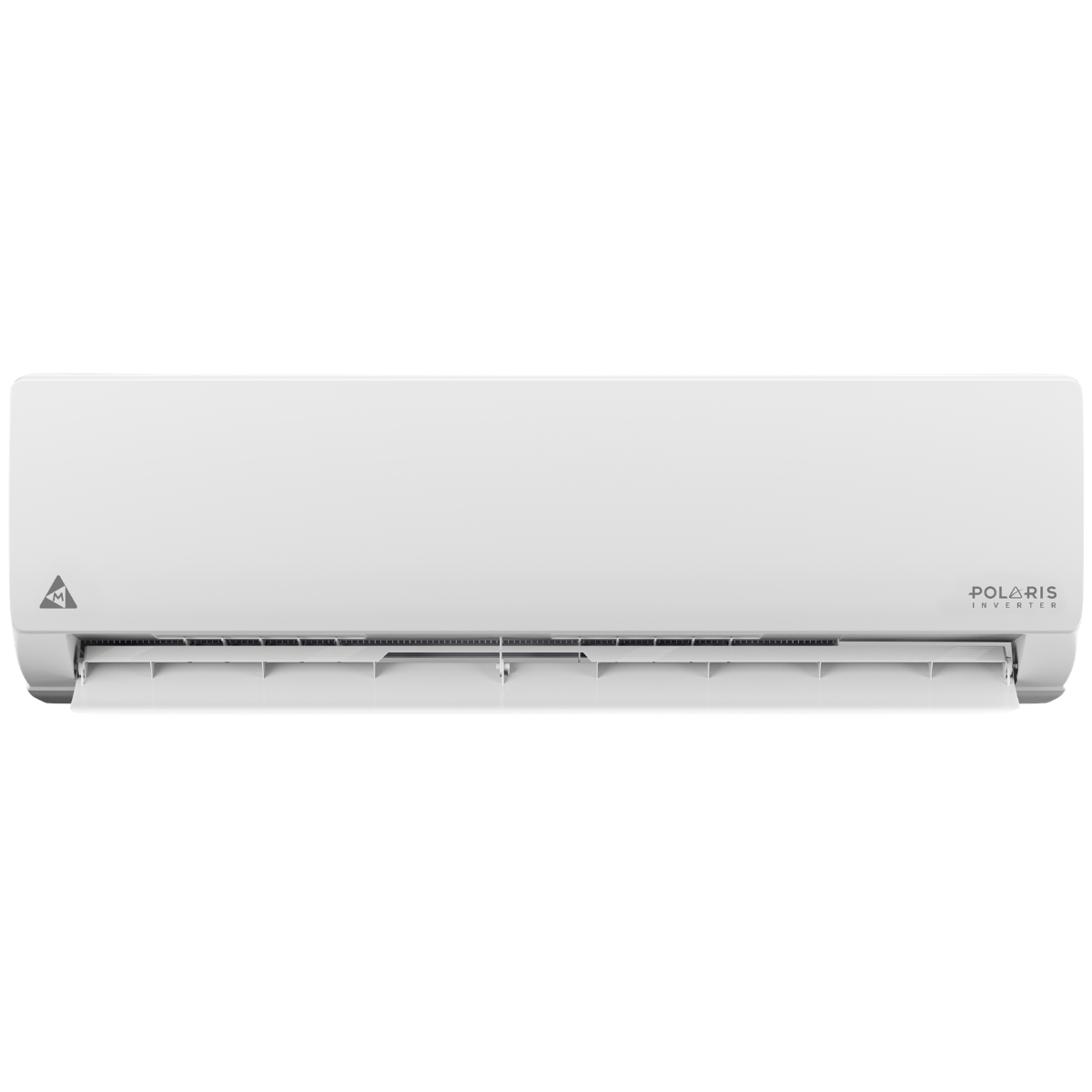

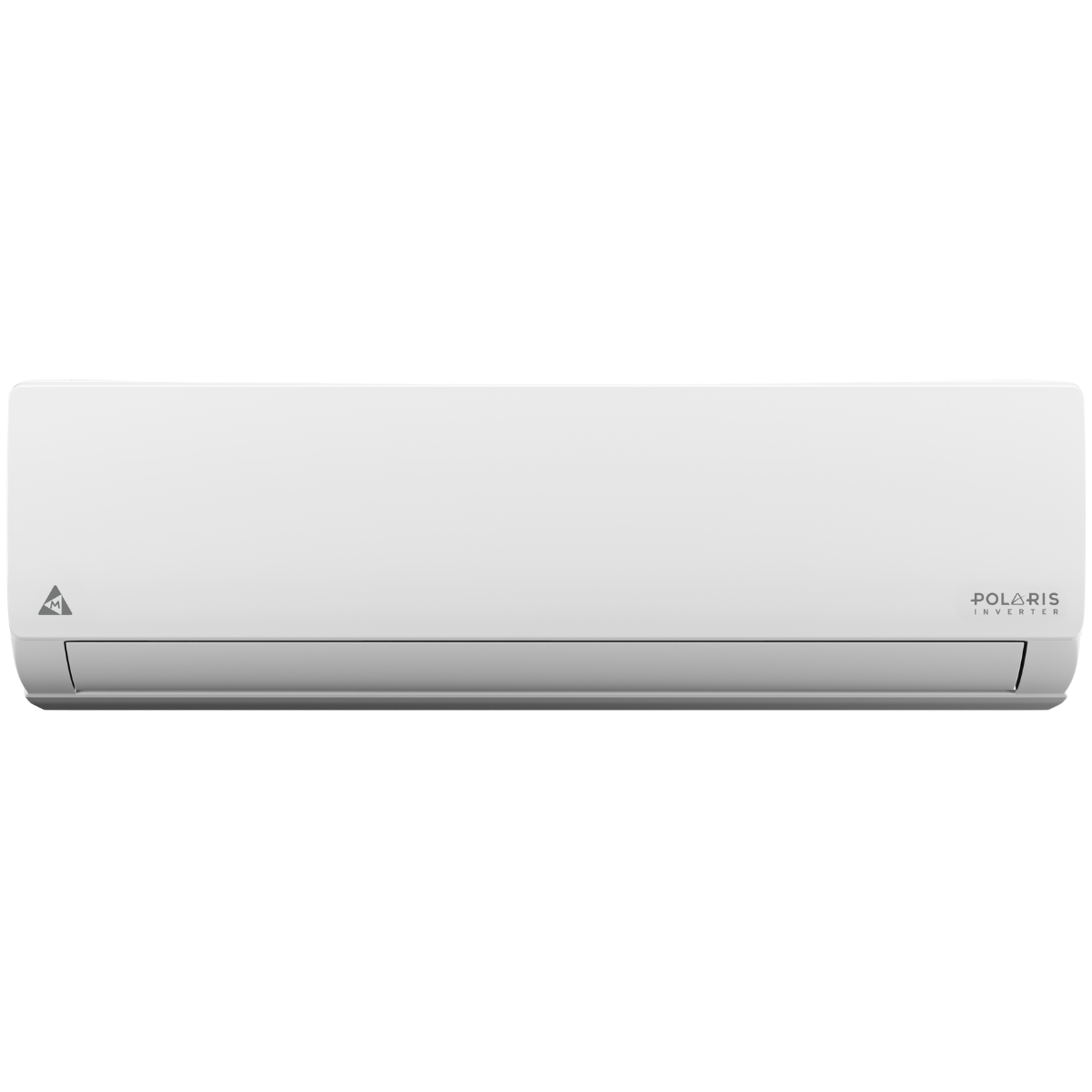

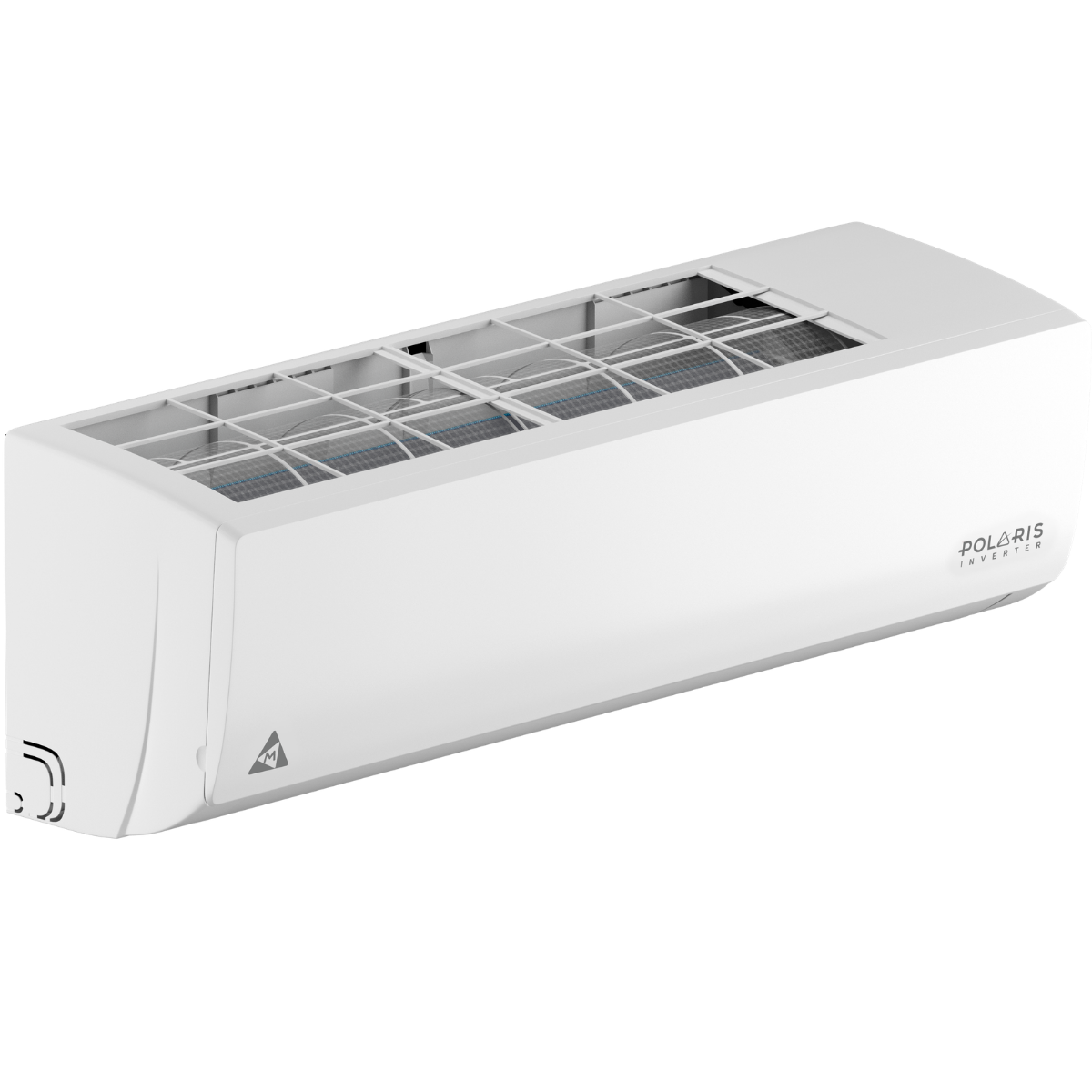

Mirage Polaris Series 9,000 BTU Indoor Air Handler IPWH090C

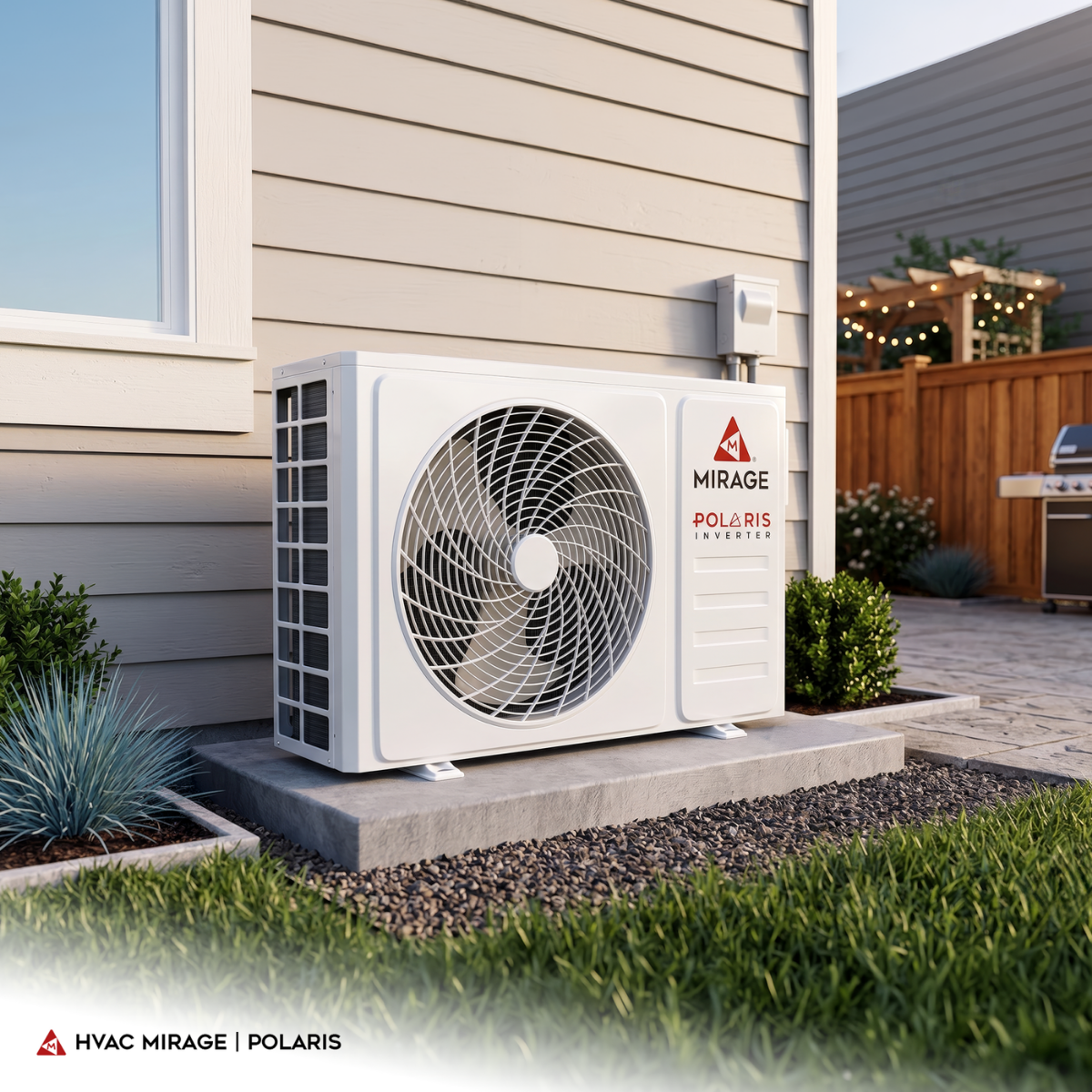

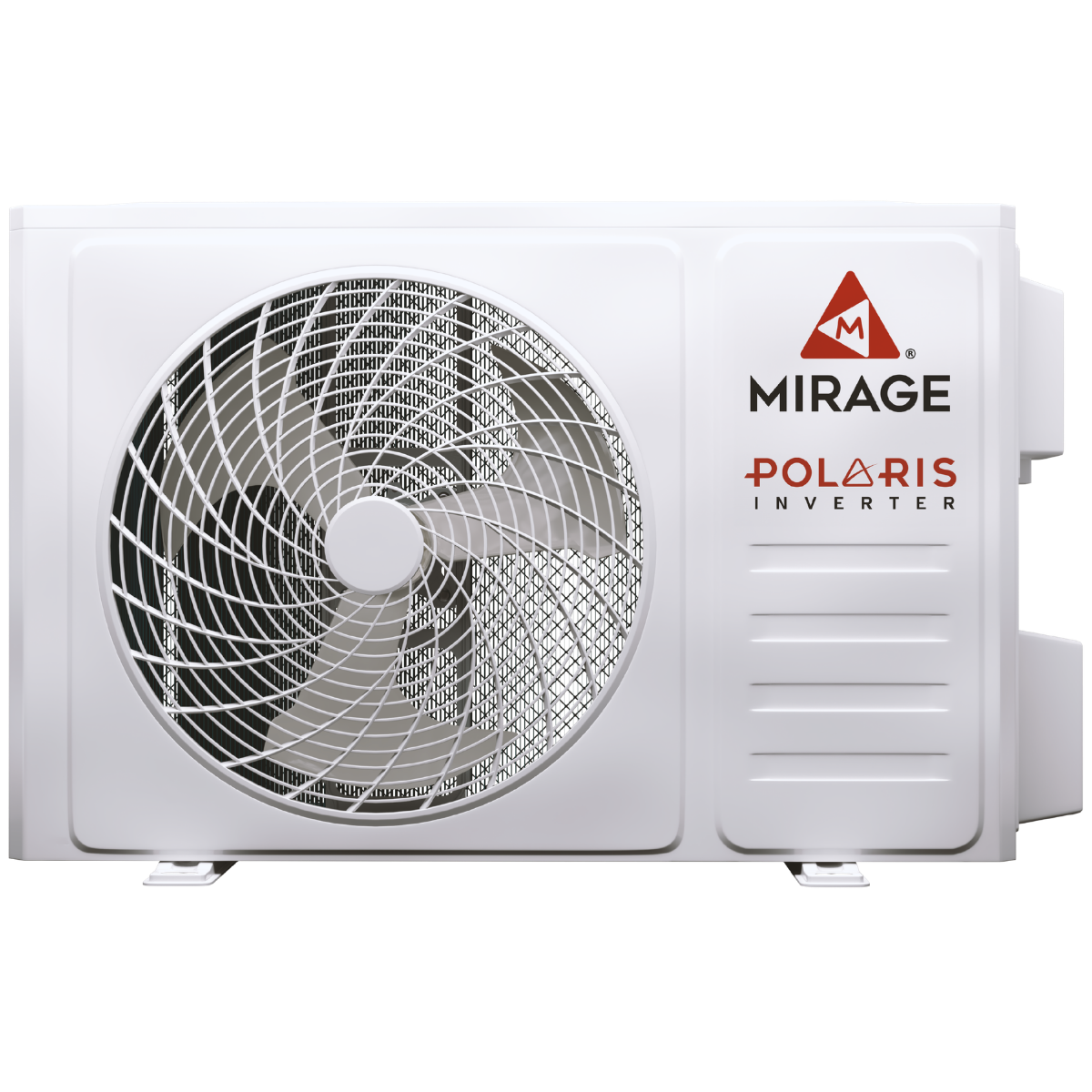

Mirage Polaris Series 9,000 BTU Outdoor Condenser OPWH090C

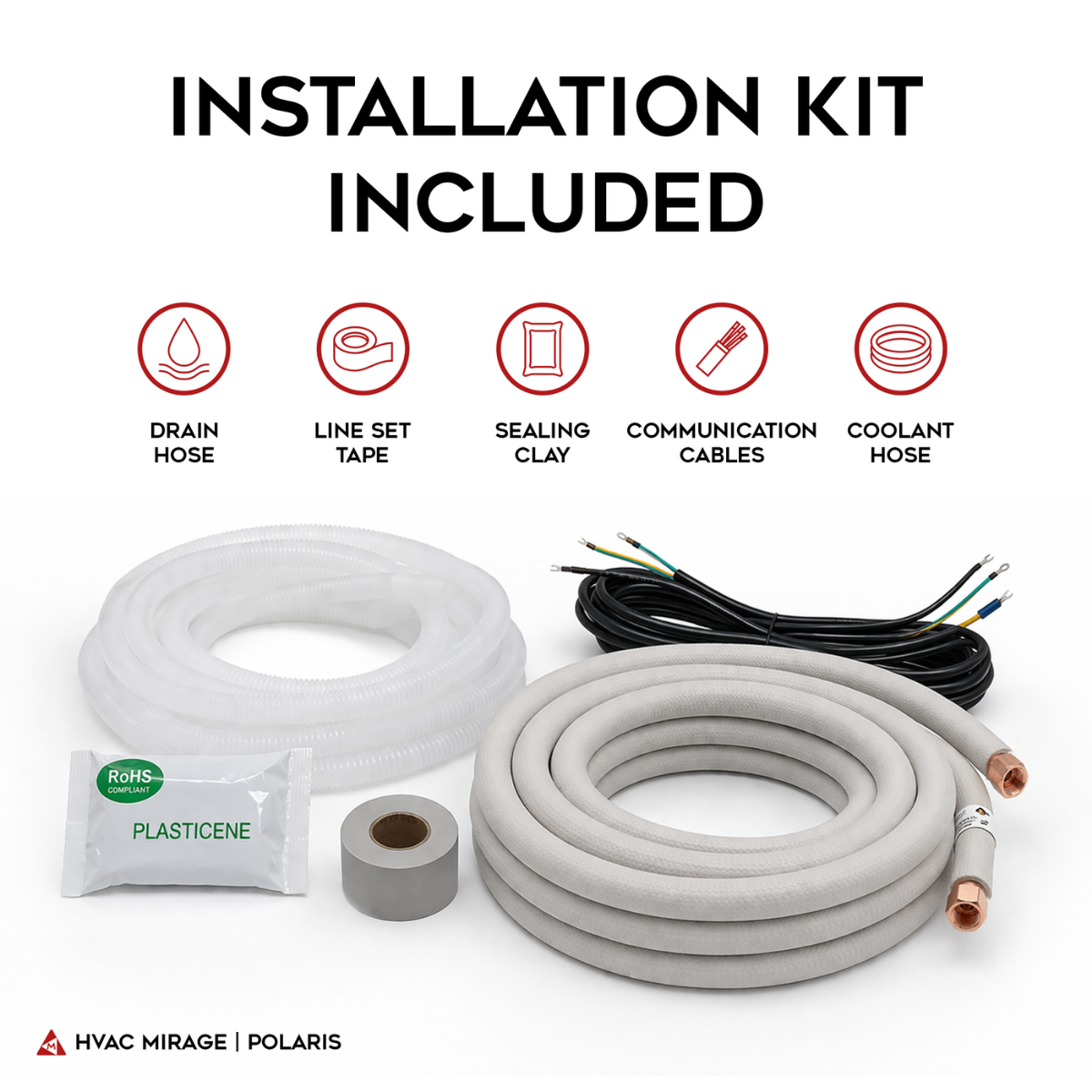

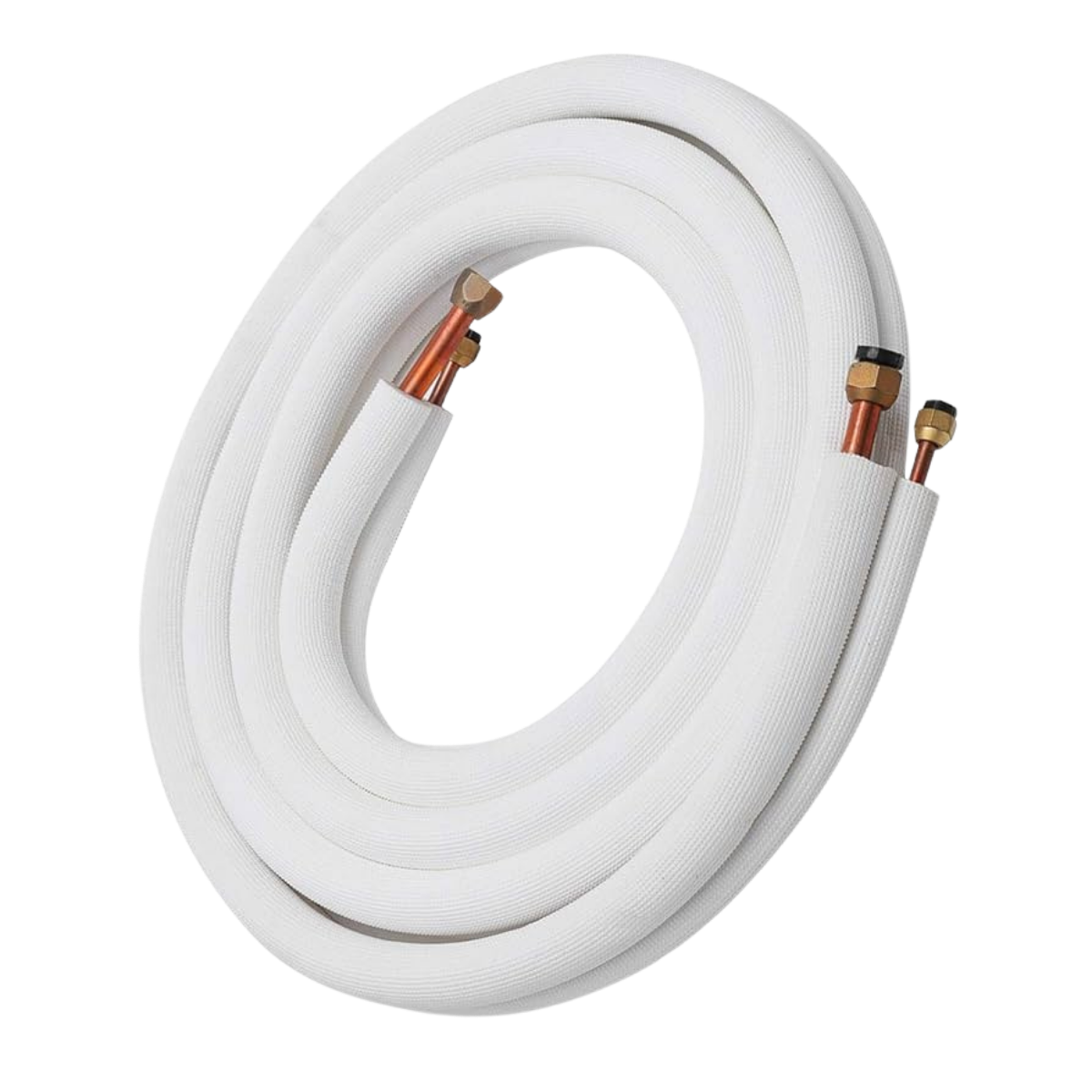

25-Foot 3/8 x 1/4-Inch Line Set
Remote Control
Air Filter
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

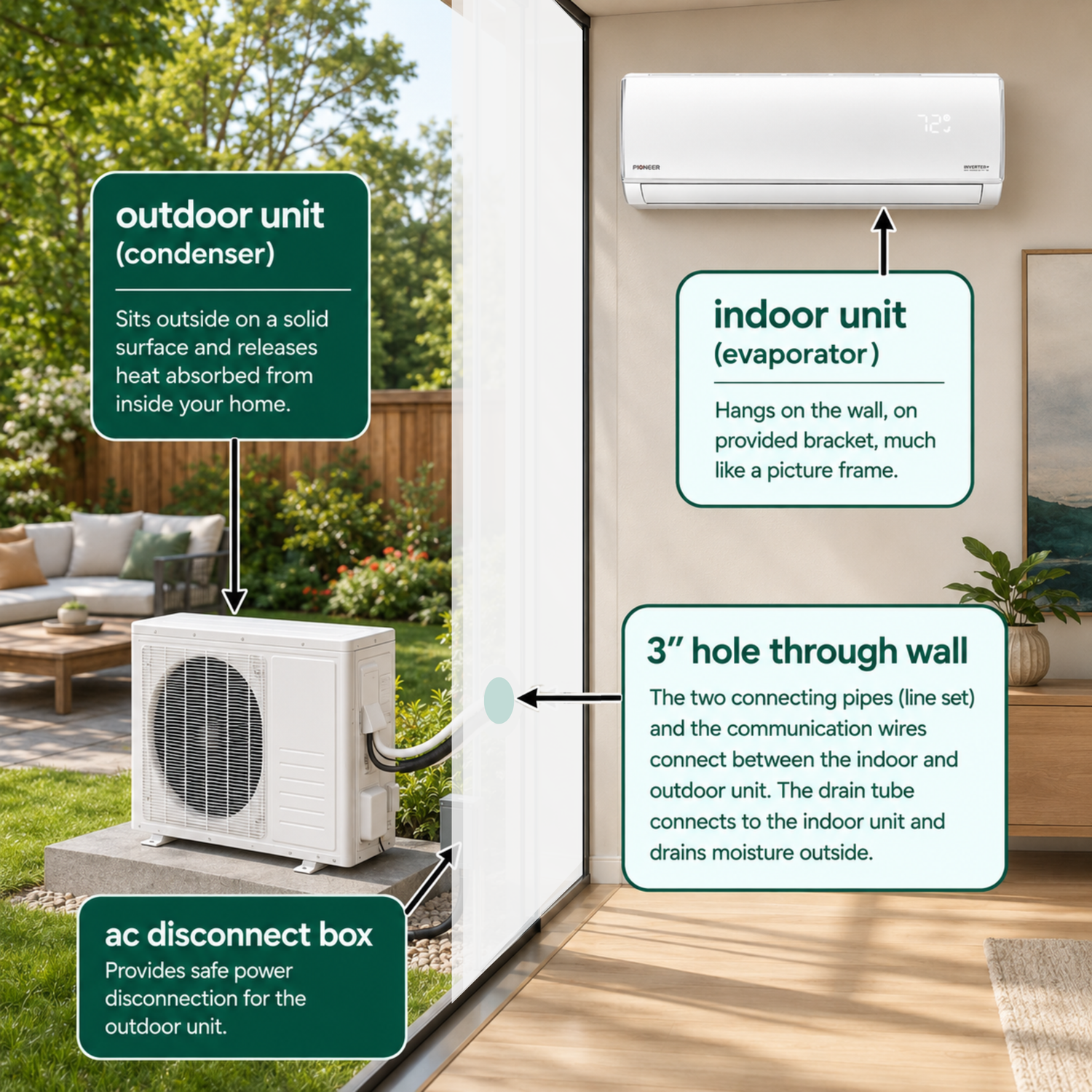

Engineered for targeted, single-zone climate control, the Mirage Polaris Series 9,000 BTU Ductless Mini-Split Heat Pump uses inverter technology and R-454B refrigerant to maintain comfortable temperatures year-round. This wall-mounted system combines an indoor air handler with an outdoor compressor, giving you precise heating and cooling without the need for ductwork.

Ideal for new additions, small offices, or retrofit projects up to 400 square feet, the 9,000 ductless mini-split heat pump installs cleanly while meeting modern efficiency and environmental standards.

Key Features and Benefits of the Mirage Polaris Series 9,000 BTU Ductless Mini-Split Heat Pump

Output Capacity: This Mirage Polaris mini-split can output up to 9,000 BTUs of cooling and 10,000 BTUs of heating. It has 11.7 EER2 and 19.0 SEER2 cooling efficiency ratings, and has a 9.5 HSPF2 heating rating.
Low-Ambient Heating: Provides reliable warmth down to 19 degrees F and cooling in temperatures up to 122 degrees F, allowing year-round operation in colder climates.
Eco-Friendly Refrigerant: The R-454B refrigerant uses a lower global warming potential refrigerant, supporting sustainability goals and upcoming regulations.
115-Volt Power: Runs on a standard residential circuit, so you can install it where 230-volt service is not available.
Multiple Operating Modes: Select from Auto, Cooling, Dry, Fan, or Heating Modes to match daily needs, then fine-tune with ECO or TURBO for quick adjustments.
IFEEL Remote Sensing: The handheld controller measures temperature at your location, delivering more accurate comfort where you spend time.
Wide Air Distribution: Motorized louvers move up-down and left-right, ensuring balanced airflow across the entire zone.
Convenience Features: Set 24-hour on or off scheduling and sleep curves to align operation with your business hours or off-peak utility rates.
Anti-Mildew Cycle: Post-cooling fan operation helps dry internal components, reducing moisture buildup and maintenance visits.
Safety Features: Child lock, mute, and emergency run buttons help protect settings and keep critical spaces conditioned even during control issues.
Line Set Included: This model includes a 25-foot 3/8 x 1/4" line set, but it can support line set runs of up to 50 feet.

Note: This mini-split system requires professional installation.

All-Season Performance

You need dependable climate control whether outdoor temperatures rise or fall. The Mirage Polaris has a low-ambient heating capability down to 19 degrees F and cooling up to 90 degrees F. When summer humidity arrives, switching to Dry Mode removes excess moisture, up to 2.3 pints per hour, without dropping the temperature too far, helping protect furnishings and finishes from damp conditions.

Sylvane’s Expert Take

The Mirage Polaris Series 9,000 BTU Mini-Split strikes a solid balance between performance, ease of installation, and modern control options. Its inverter compressor, low-ambient heat capability, and environmentally forward R-454B refrigerant make it a practical choice for professionals upgrading small zones or adding comfort to new spaces. Thoughtful service features, from the anti-mildew cycle to precise charge guidelines, further support long-term reliability. If you need a dependable 9,000 BTU ductless mini-split heat pump that aligns with evolving standards, the Polaris Series deserves a close look.
