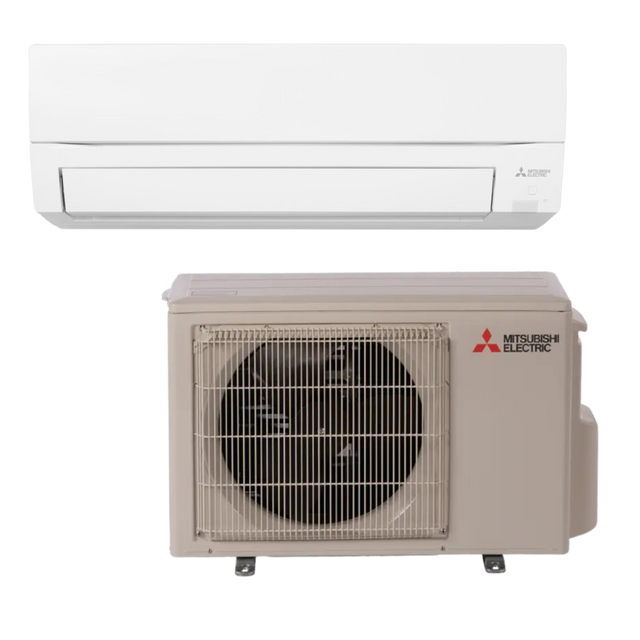

Mitsubishi HX Series 12000 BTU Ductless Mini Split
Mitsubishi HX Series 12000 BTU Ductless Mini Split is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

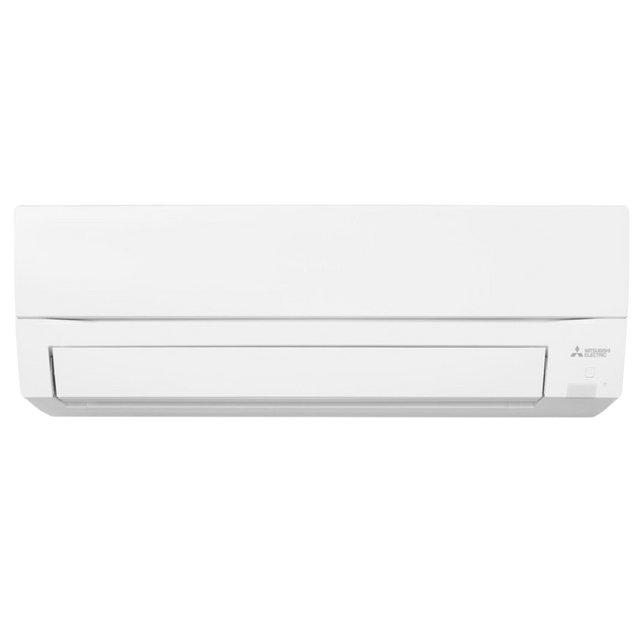

- Mitsubishi 12,000 BTU HX Series Ductless Mini Split Air Handler MSZ-HX12NL

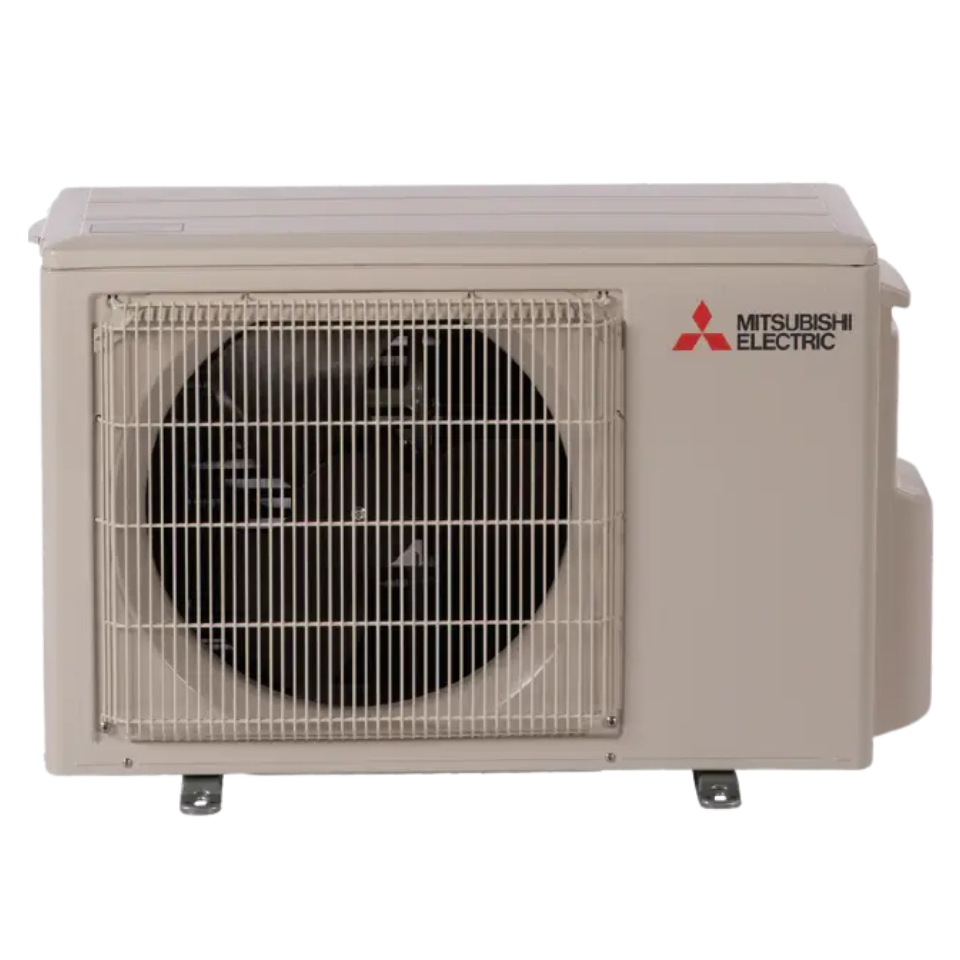

- Mitsubishi 12,000 BTU HX Series Ductless Mini Split Condenser MUZ-HX12NL
- Remote Control
- Installation and Owner’s Manual
Info & Guides
Info & Guides
Description
Description

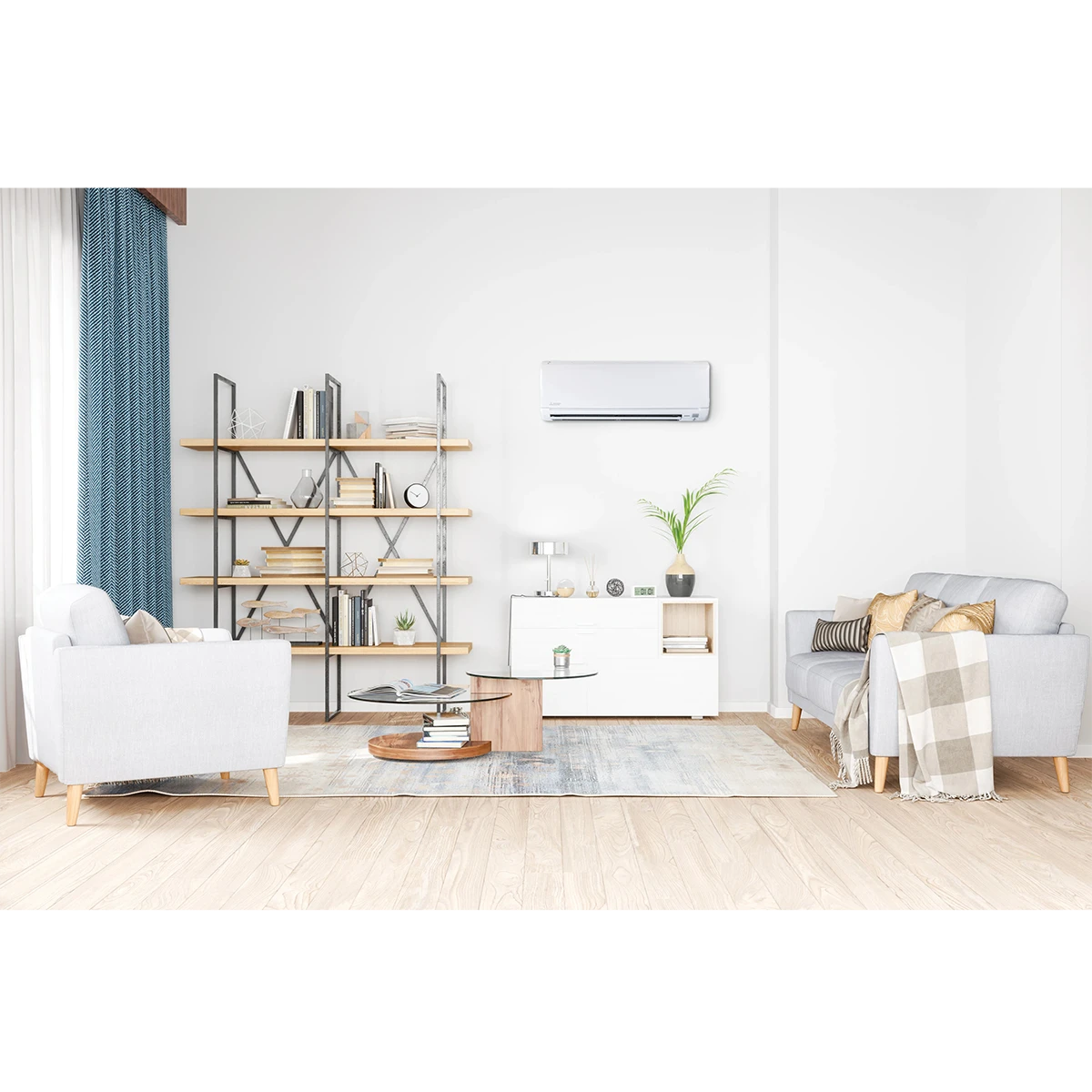

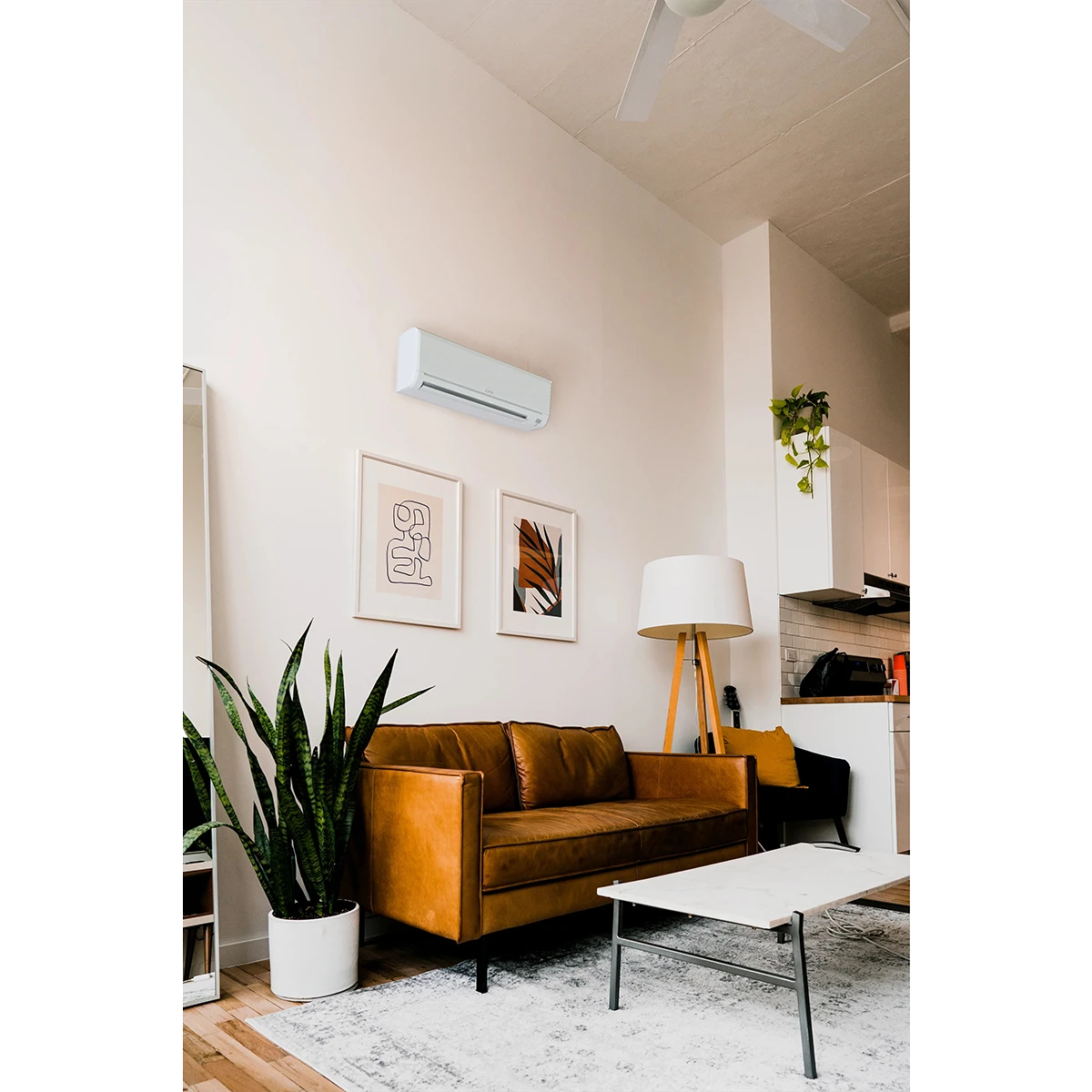

The Mitsubishi HX Series 12,000 BTU Ductless Mini-Split provides year-round comfort for single-zone spaces, such as bedrooms or offices. This wall-mounted unit uses advanced inverter technology to deliver efficient cooling in summer and reliable supplemental heating in winter.
Combining an elegant design with quiet operation and impressive energy efficiency, it's an ideal solution for maintaining a perfectly comfortable environment.
Key Features and Benefits of the Mitsubishi HX Series 12,000 BTU Ductless Mini-Split
- Efficient Cooling and Heating: This ductless mini-split heat pump delivers 12,000 BTUs of cooling and 10,900 BTUs of heating power. It is designed to easily regulate the temperature in areas up to around 550 square feet, ensuring a comfortable indoor environment.
- Advanced Inverter Technology: This unit features an inverter-driven compressor, offering precise temperature control by adjusting its capacity. This results in substantial energy savings and lower operating expenses. It boasts a SEER2 rating of 20, an HSPF2 rating of 10, and it is Energy Star certified.
- Dual Barrier Coating: Mitsubishi's Dual Barrier Coating, a patented technology, prevents the accumulation of dust, fibers, smoke, and oil on the interior of the mini-split's heat pump. This feature helps the unit sustain optimal airflow and reduces the need for maintenance.
- Enhanced Air Quality: This Mitsubishi wall-mounted mini-split features an Electrostatic Enzyme Filter that helps create a healthier indoor environment by capturing airborne particles such as dust, allergens, and smoke.
- R-454B Refrigerant: This model uses the eco-friendly R-454B refrigerant. It offers a reduced global warming potential compared to alternative refrigerant options.
- Quiet and Comfortable Operation: Operating at a nearly silent 22 decibels, this unit is ideal for quiet environments like bedrooms and offices due to its whisper-quiet operation.
- Dry Mode: During warm periods, the Smart Dry Mode provides enhanced humidity control by extracting up to 1.6 pints of moisture from the indoor air each hour.

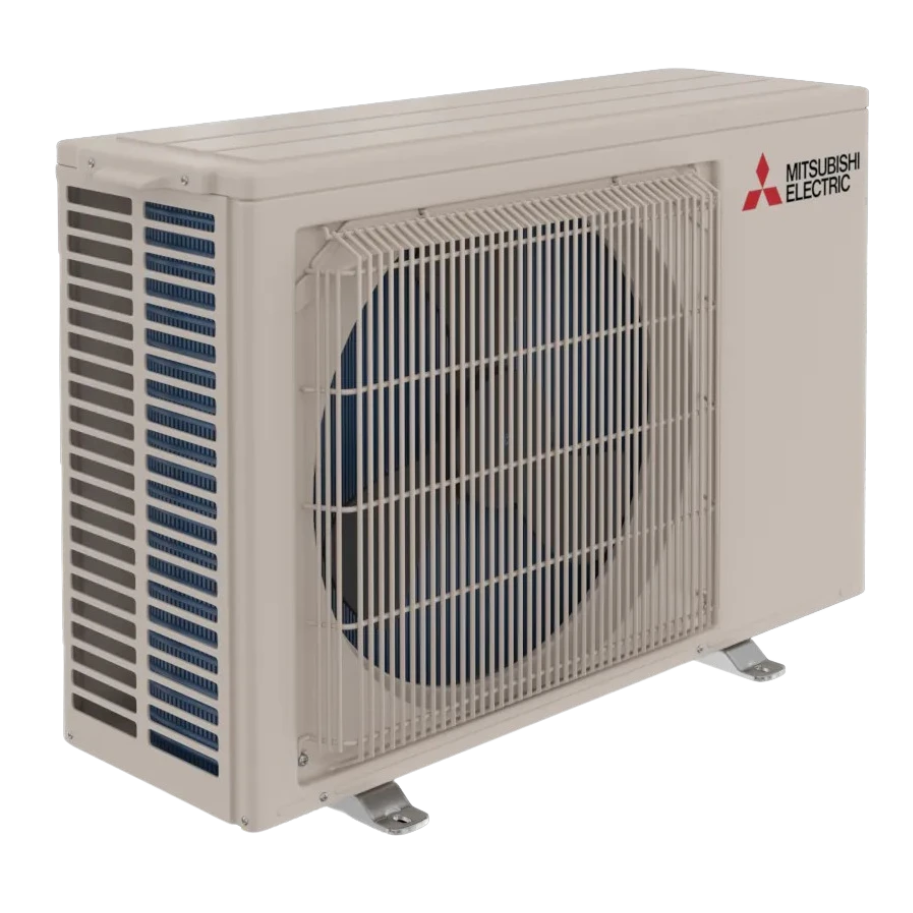

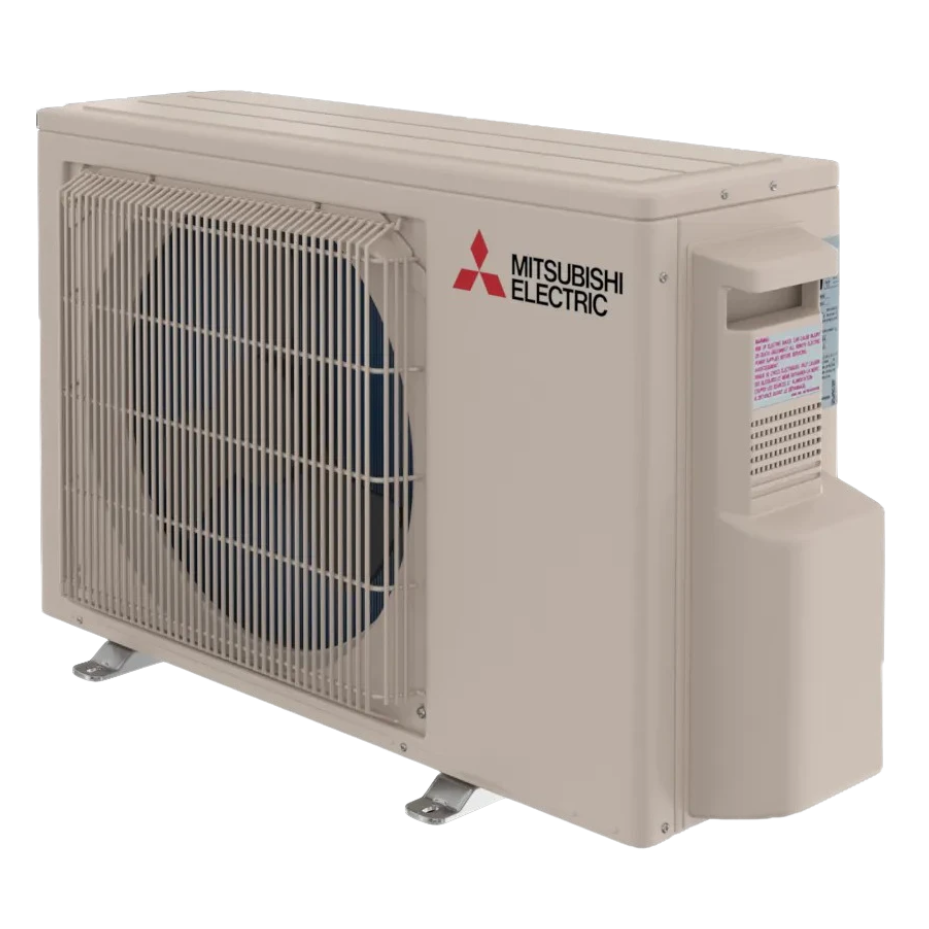

- Robust and Reliable: The outdoor unit is equipped with a Blue Fin anti-corrosion coating engineered for resilience against severe weather, including conditions found in coastal and industrial areas. This feature helps protect your investment and prolong its service life.

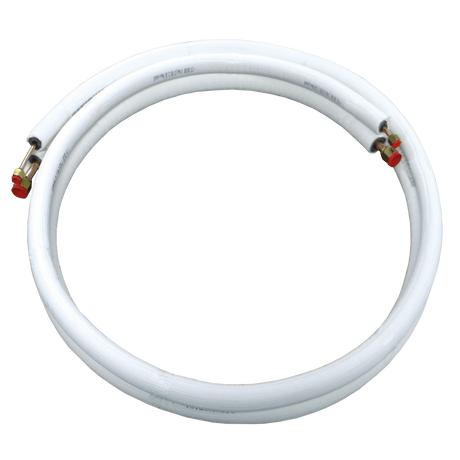

Note: This model does not include a line set, which is required for installation. This model is compatible with a 1/4 X 3/8 Line Set.
Flexible Control for Your Convenience
Experience ultimate convenience with the Mitsubishi HX Series 12,000 BTU Ductless Mini-Split's versatile control features. Adjust your comfort using the included handheld remote, the Comfort App, or optional wired and wireless thermostats. Effortlessly manage your ideal environment, whether you're home or away.
Sylvane's Expert Take
The Mitsubishi 12,000 BTU Mini-Split is a top-tier choice for dependable and efficient heating and cooling. Its inverter technology provides outstanding performance and significant energy savings, appealing to environmentally aware homeowners.
Its enhanced filtration and quiet operation make it ideal for individuals sensitive to air quality and noise. For a versatile and user-friendly mini-split heat pump, the Mitsubishi HX Series delivers reliable performance.
Specifications
Specifications
-
Energy Efficiency Ratio 2 (EER2)12.5
-
Mounting TypeWall
-
Number of Speeds4
-
Seasonal Energy Efficiency Ratio 2 (SEER2)20
-
Total Cooling Capacity (BTUs)12000
-
Total Heating Capacity (BTUs)12200
-
CertificationscETLus, AHRI
-
ColorWhite
-
Compressor TypeInverter
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Line Length OptionNo Line Set
-
Maximum Cubic Feet per Minute (CFM) (CFM)1166.0
-
Maximum Indoor Noise Level (dB)51
-
Maximum Operating Temperature - Cooling (degrees F)115
-
Maximum Operating Temperature - Heating (degrees F)75
-
Minimum Operating Temperature - Cooling (degrees F)14
-
Minimum Operating Temperature - Heating (degrees F)-5
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)550
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)12000
-
Zone Heating Capacity (BTUs)12200
-
Maximum Cooling Amperage (Amps)6.2
-
Maximum Cooling Wattage (W)1430
-
Maximum Heating Amperage (Amps)9.3
-
Maximum Heating Wattage (W)2140
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)9.25
-
Indoor Unit Height (in.)11.03
-
Indoor Unit Weight (lbs.)20
-
Indoor Unit Width (in.)33
-
Maximum Line Length (ft.)65
-
Outdoor Unit Depth (in.)11.25
-
Outdoor Unit Height (in.)21.63
-
Outdoor Unit Weight (lbs.)81
-
Outdoor Unit Width (in.)31.5
-
Additional FeaturesRemote Control, Energy Star, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty10-year warranty when installed by a licensed contractor and registered within 90 days of installation.
