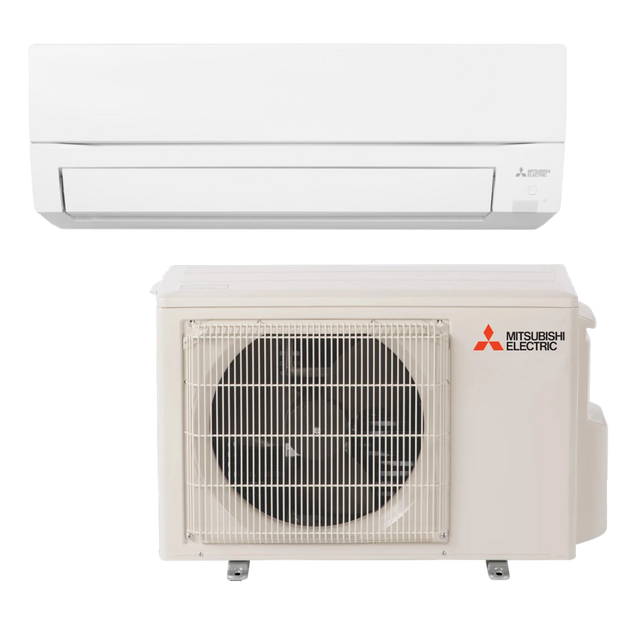

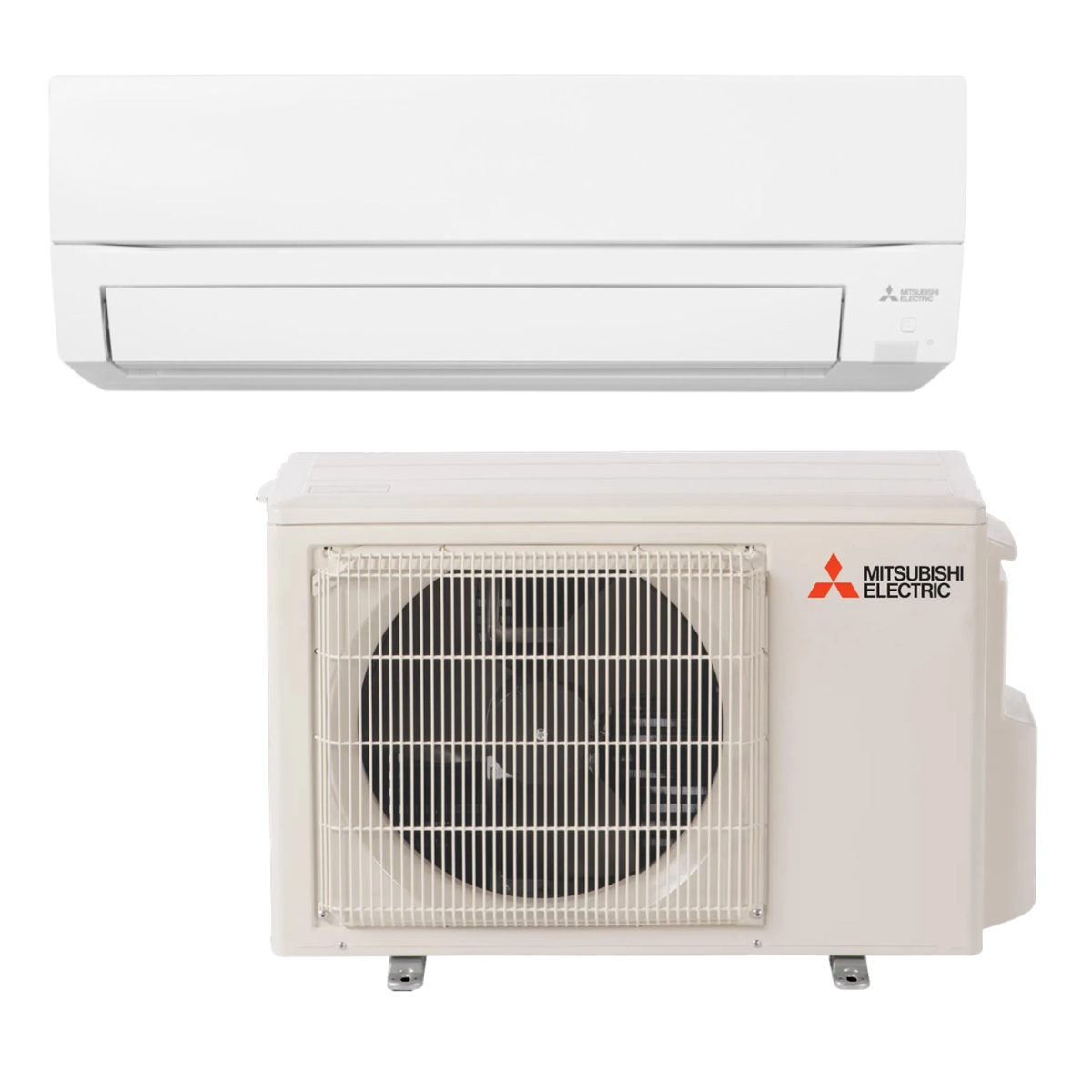

Mitsubishi WX Series 18000 BTU Ductless Mini Split

SKU: mi16896k  |  Model: WX18NL
$2,299.00 $2,399.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.


Add extended protection plan. (Select one)

learn more

A 2-year commercial-grade repair warranty for products less than $2,500.

learn more

A 4-year commercial-grade repair warranty for products less than $2,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-year warranty when installed by a licensed contractor and registered within 90 days of installation.

What's In The Box?

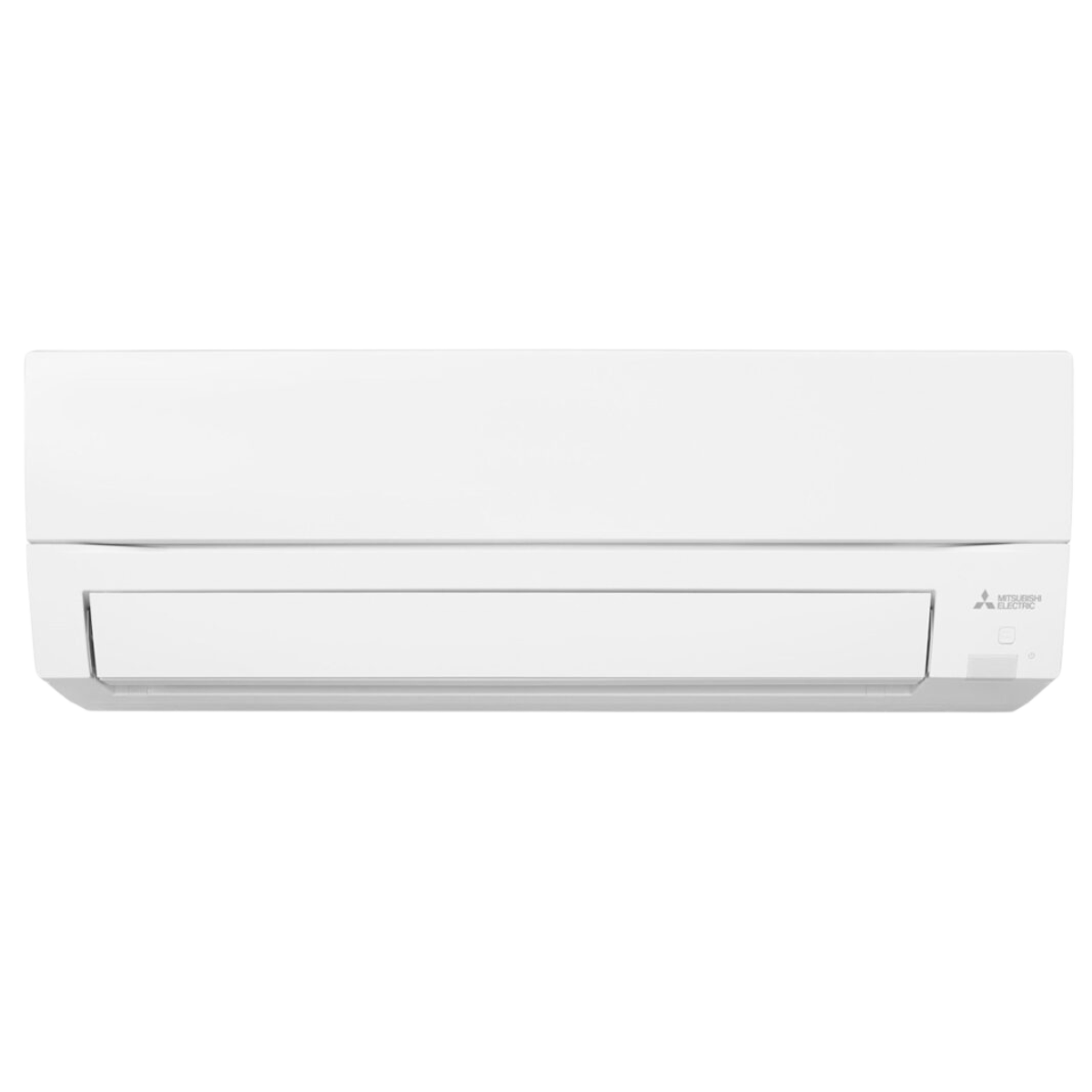

  • Mitsubishi 18,000 BTU Air Handler MSZ-WX18NL

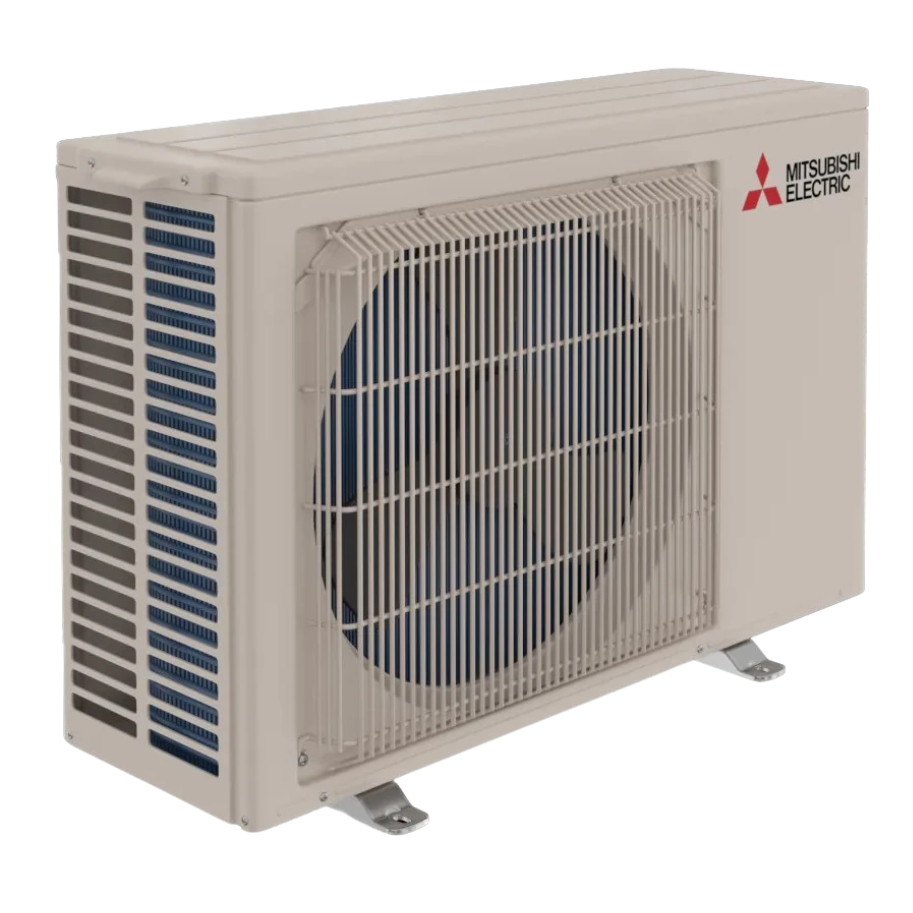

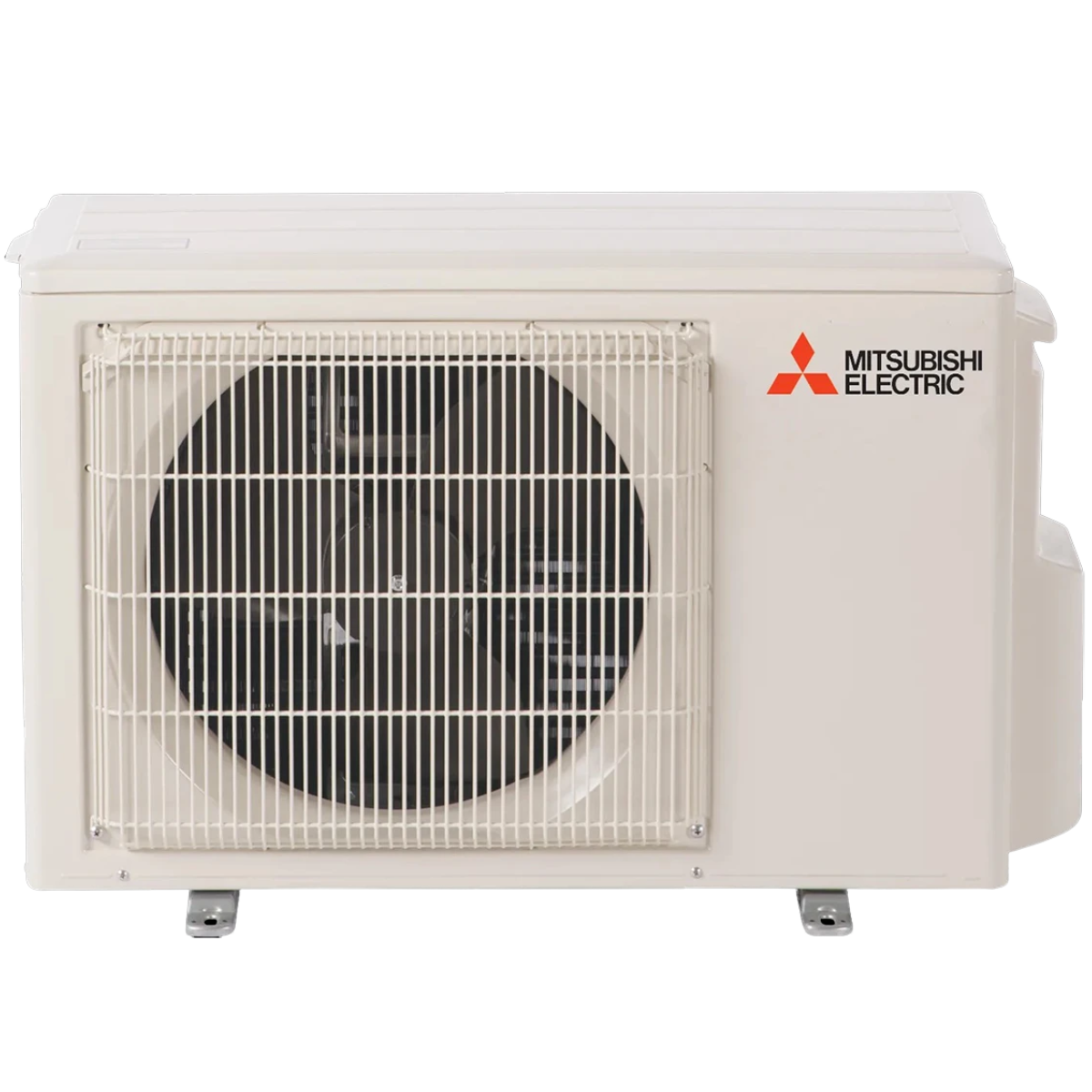

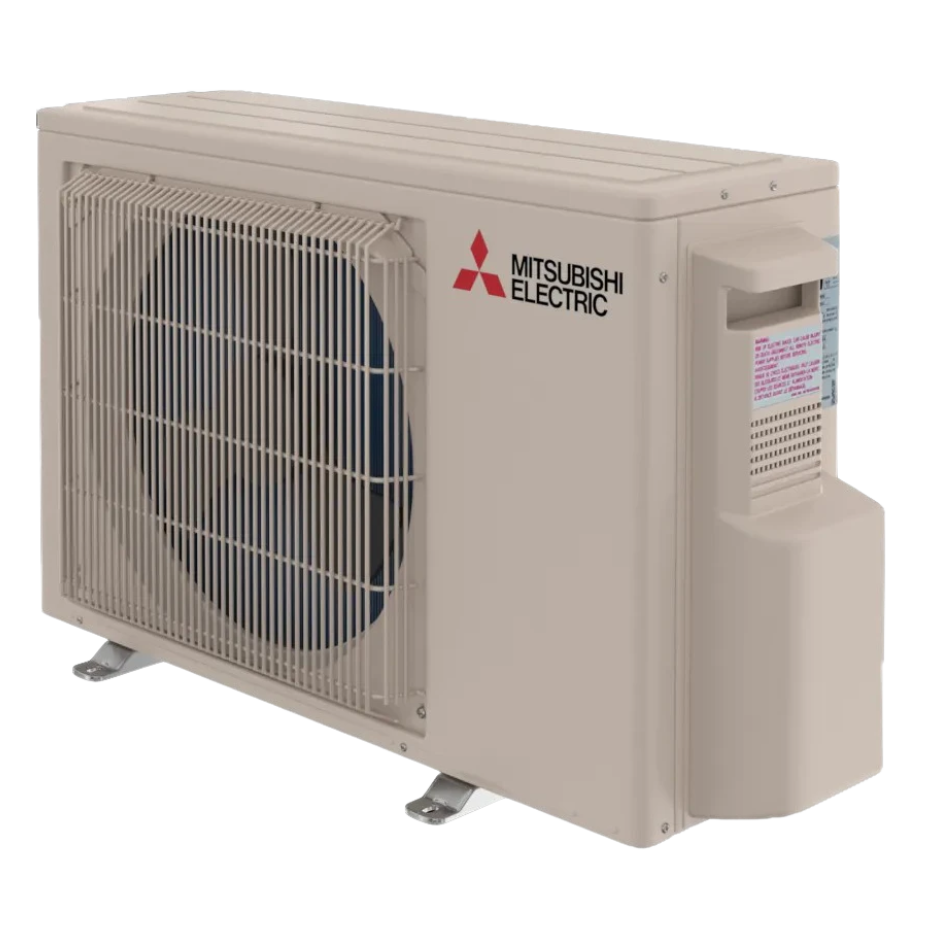

  • Mitsubishi 18,000 BTU Condenser Unit MUZ-WX18NL
  • Remote Control
  • Installation and Owner’s Manual


Description

Enjoy consistent comfort all year round with the Mitsubishi WX Series Ductless Mini Split. This 18,000 BTU wall-mounted unit efficiently cools and heats areas up to 1,000 square feet. Its modern, sleek aesthetic blends effortlessly with any interior, offering precise temperature regulation to maintain a comfortable environment in warm and cold seasons.

Key Features and Benefits of the Mitsubishi WX Series Ductless Mini Split

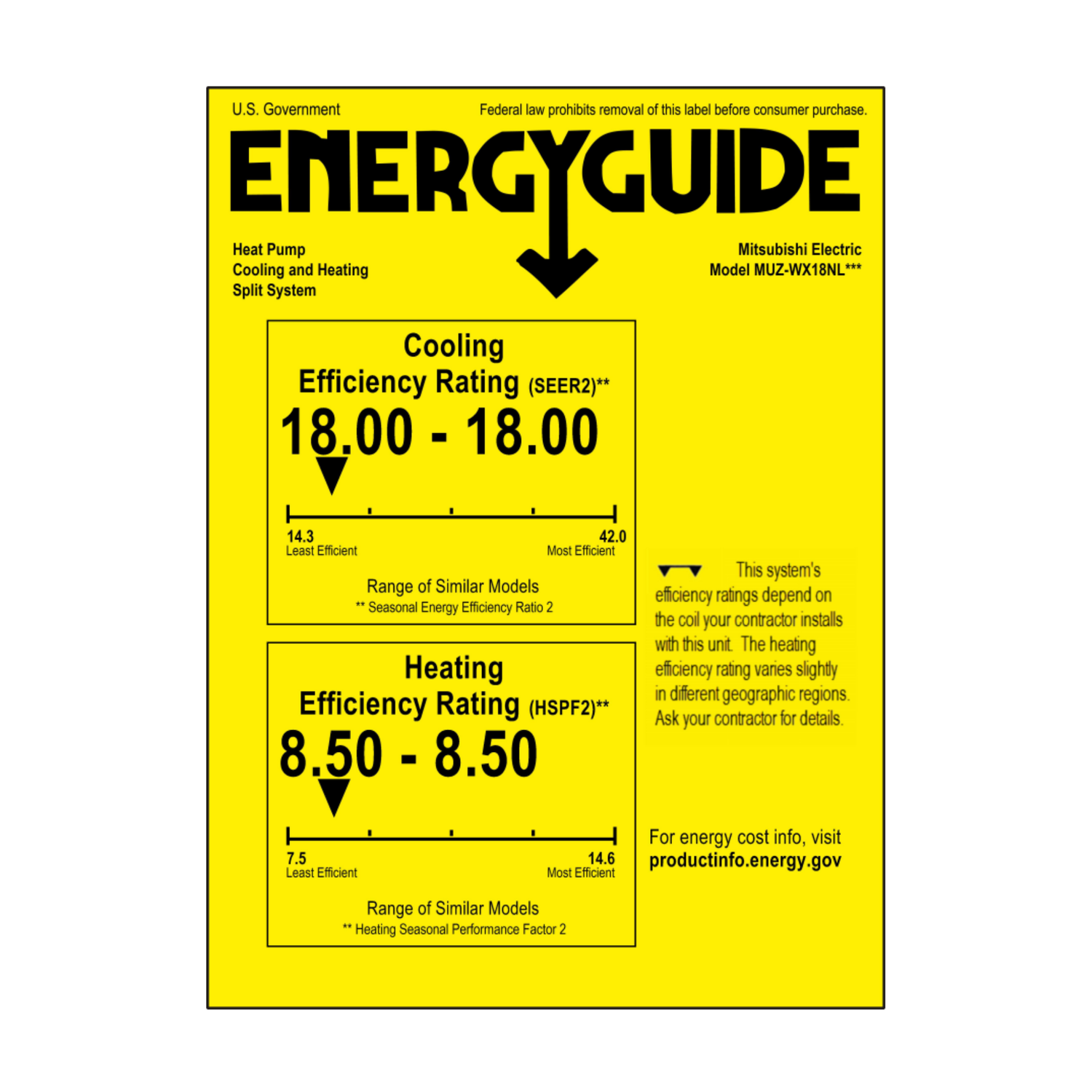

  • Inverter-Driven Compressor: The inverter-driven compressor adjusts its performance intelligently to match heating and cooling needs. This responsive technology greatly enhances efficiency and lowers energy expenses. The system features ratings of 18 SEER2, 9.5 EER2, and 8.5 HSPF, along with a coefficient of performance (COP) of 3.14 at 47 degrees F.
  • Multi-Level Filtration for Cleaner Air: This mini-split air conditioner features a dual filtration system for improved indoor air quality. An Electrostatic Enzyme Filter captures airborne particles, while a Nano Platinum Filter deodorizes and enhances air purification. This combination promotes a healthier environment.
  • Econo Cool Mode for Energy Savings: The Econo Cool mode intelligently saves energy by adjusting airflow in response to the heat exchanger's temperature, maintaining comfort levels. Furthermore, a 12-hour timer allows customized operation based on your desired schedule.
  • Blue Fin Anti-Corrosion Coating: The outdoor unit incorporates Mitsubishi's Blue Fin coating to safeguard against corrosion caused by environmental factors. This protective feature renders it suitable for installation in coastal or industrial environments.
  • Smart Dry Mode: Ensure ideal indoor comfort through effective humidity control and reduced over-cooling. This mode can remove up to 5.2 pints of moisture each hour.
  • Convenient Remote and Wireless Control: Easily operate your mini-split system with the provided backlit handheld remote. This model can also communicate with Mitsubishi’s controller app through Wi-Fi.

Note: This model does not include a line set, which is required for installation. This model is compatible with a  1/4 X 3/8 Line Set

Exceptional Comfort with Minimal Noise

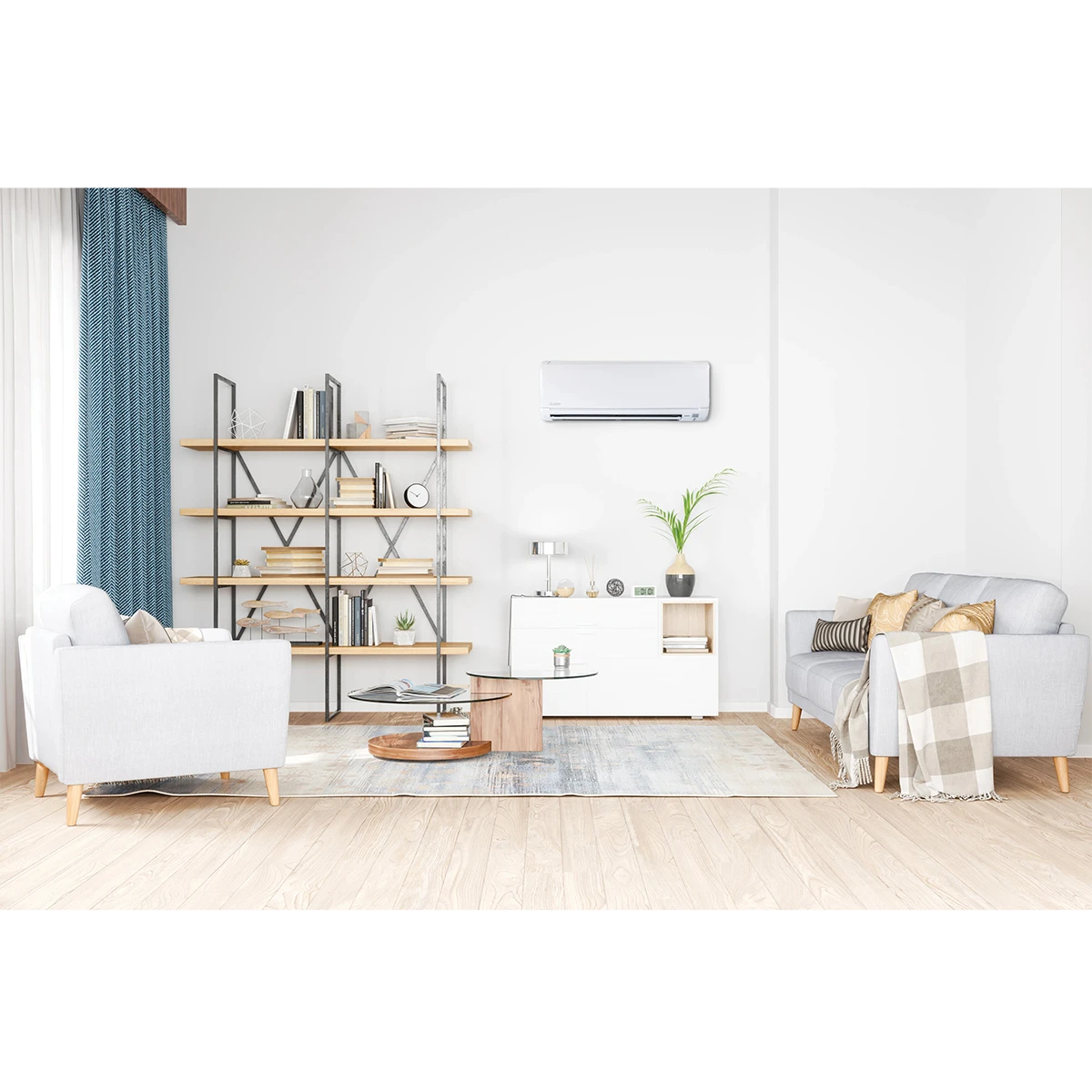

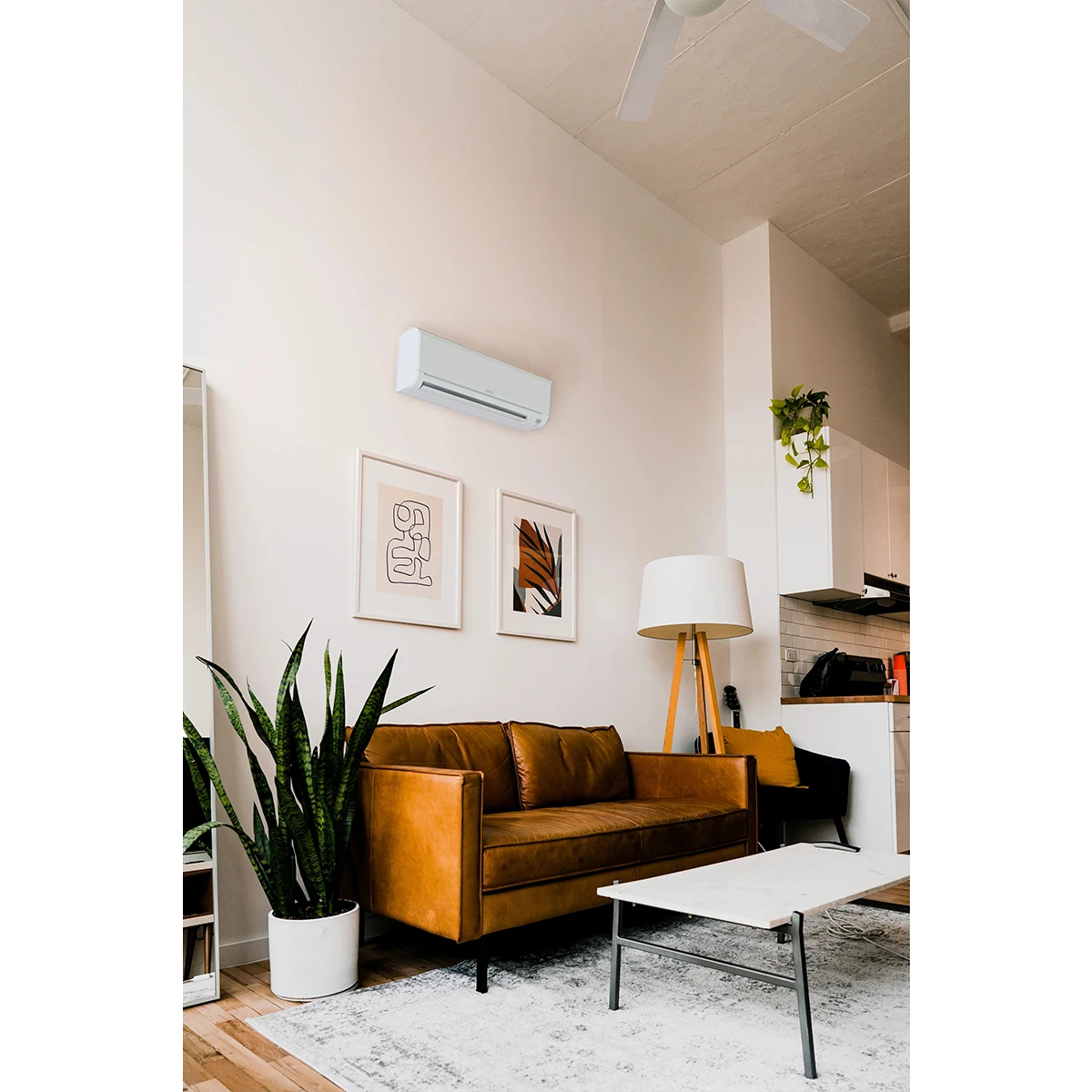

Offering incredibly quiet operation at just 31 dB, this wall-mounted mini split system provides subtle cooling and heating, making it suitable for bedrooms, home offices, and living areas, and promoting a tranquil environment. Experience comfortable temperatures without disruptive noise, as this unit quietly integrates into your space.

Sylvane's Expert Take

The Mitsubishi WX Series 18,000 BTU ductless mini-split system delivers dependable and efficient climate control for spaces up to 1,000 square feet. Built with Mitsubishi's celebrated quality, this model features an advanced inverter-driven compressor that dynamically adjusts power, providing precise comfort and improved energy efficiency.

Backed by Mitsubishi's long-standing reputation for durability and reliability, the WX Series ensures consistent indoor comfort year-round, making it a superior choice for long-term performance.

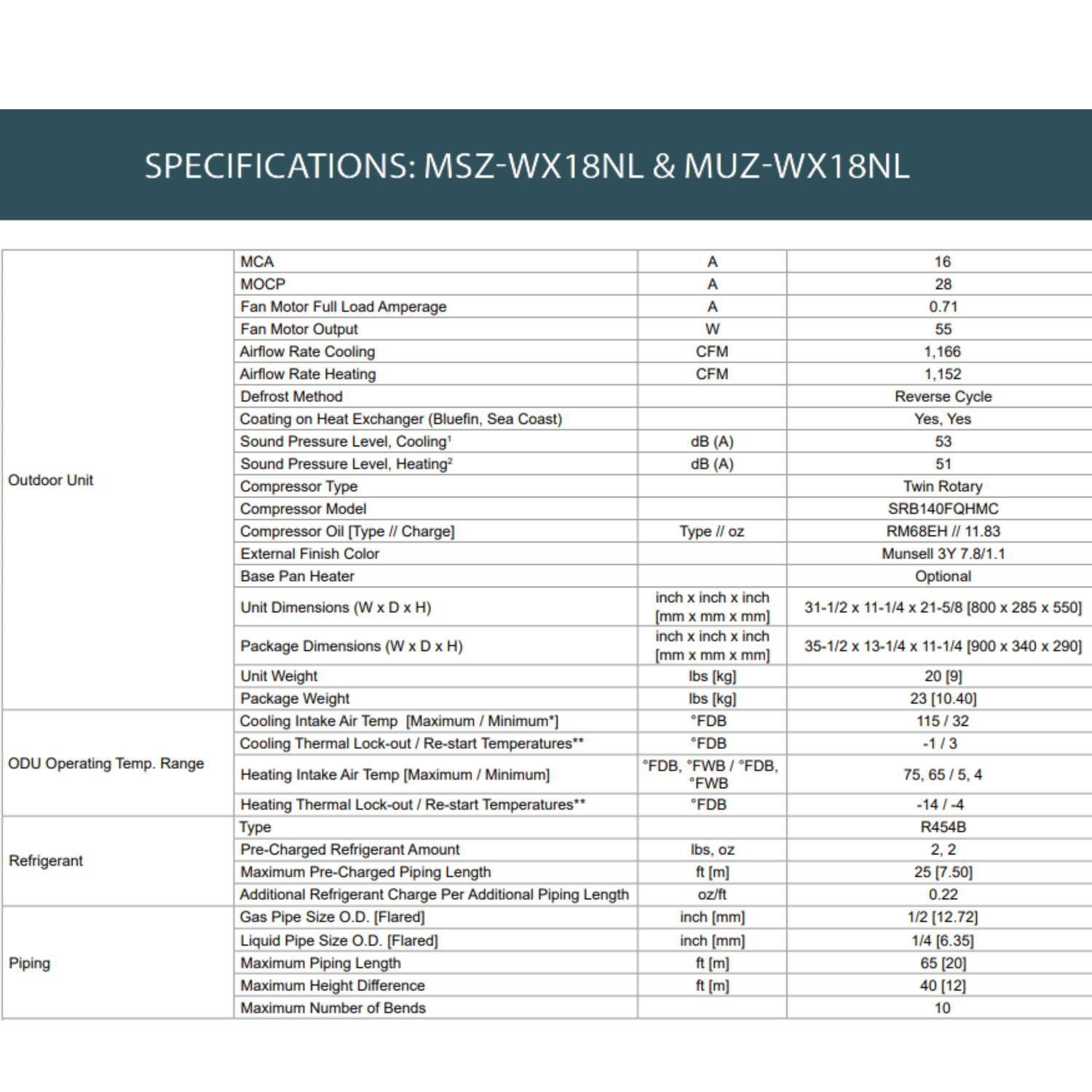

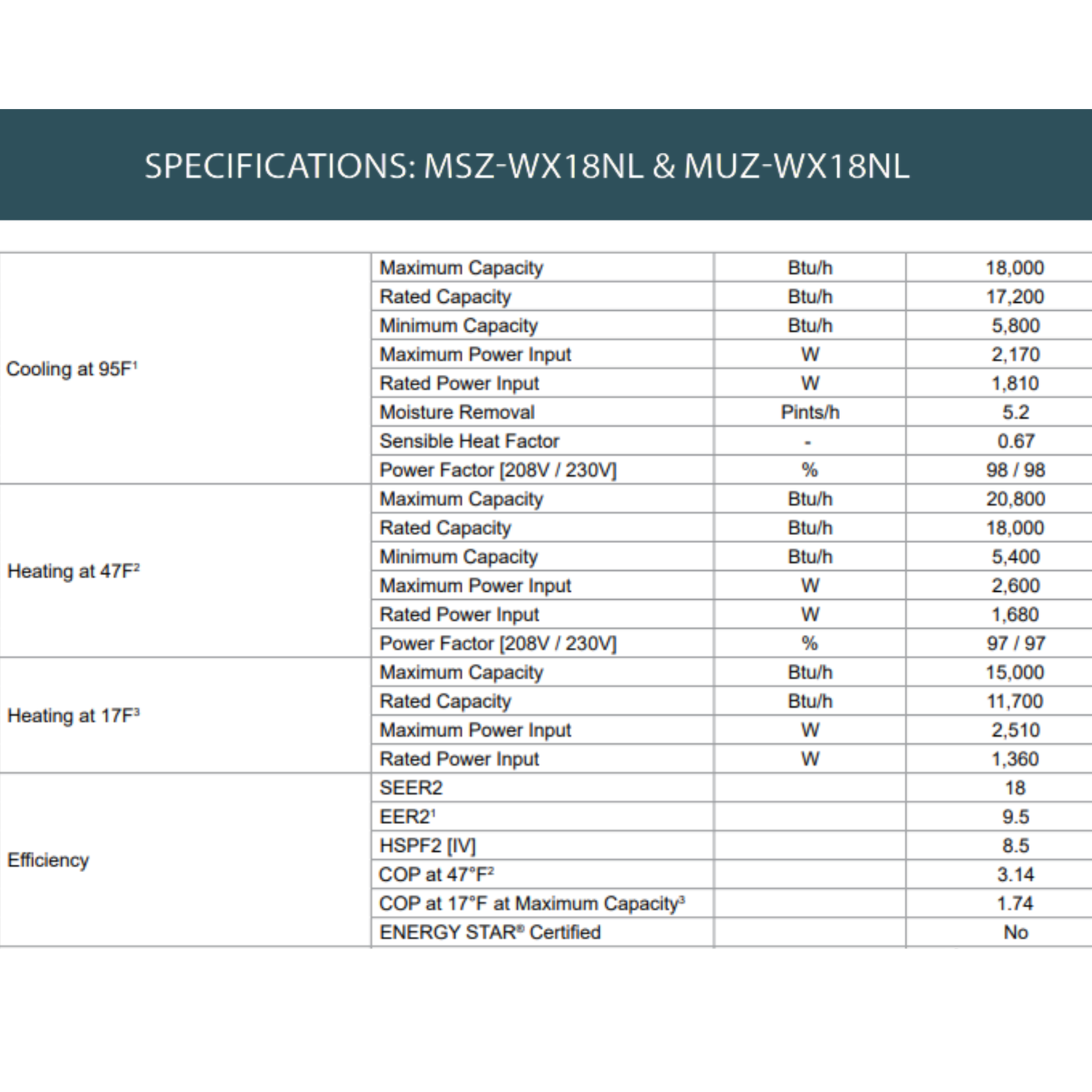

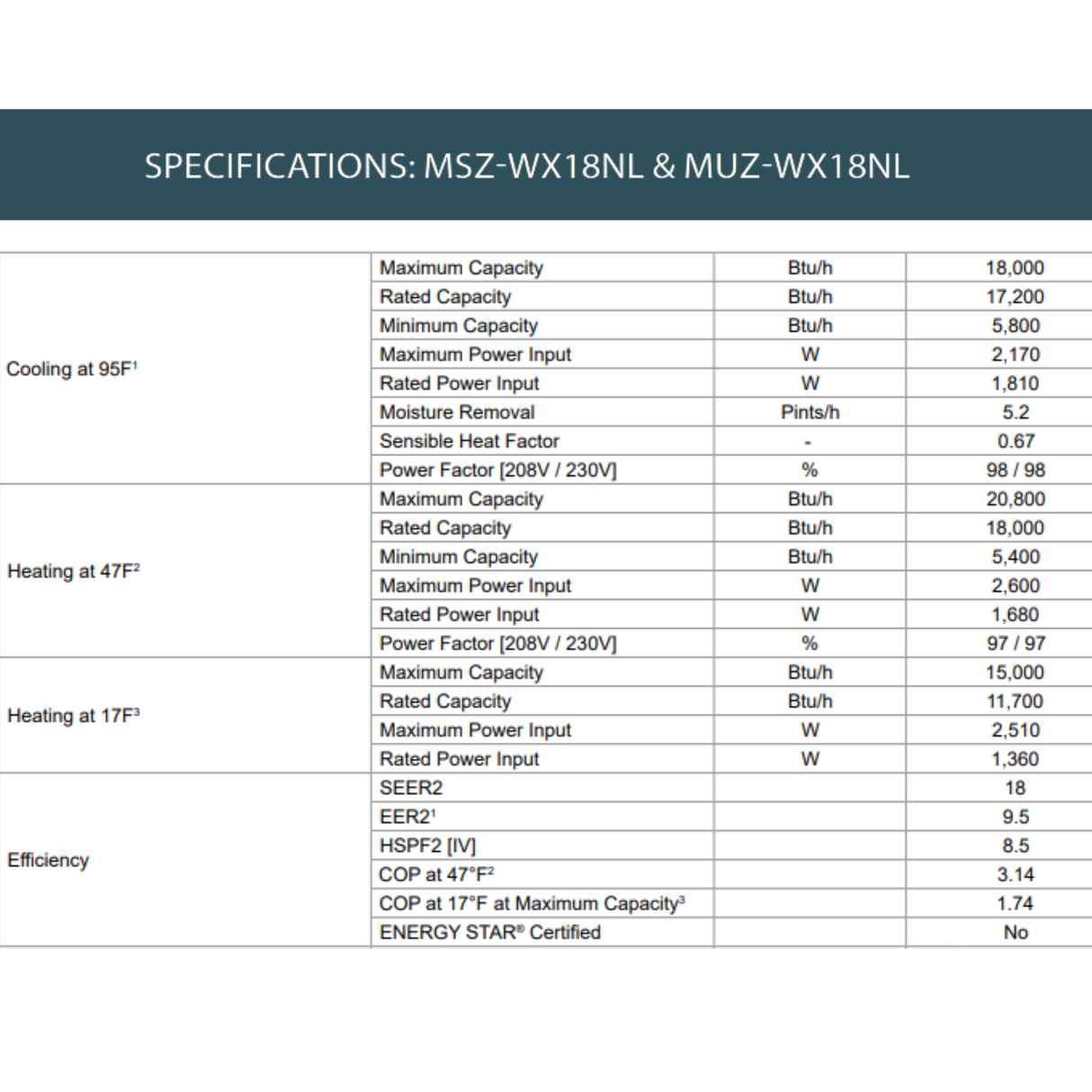

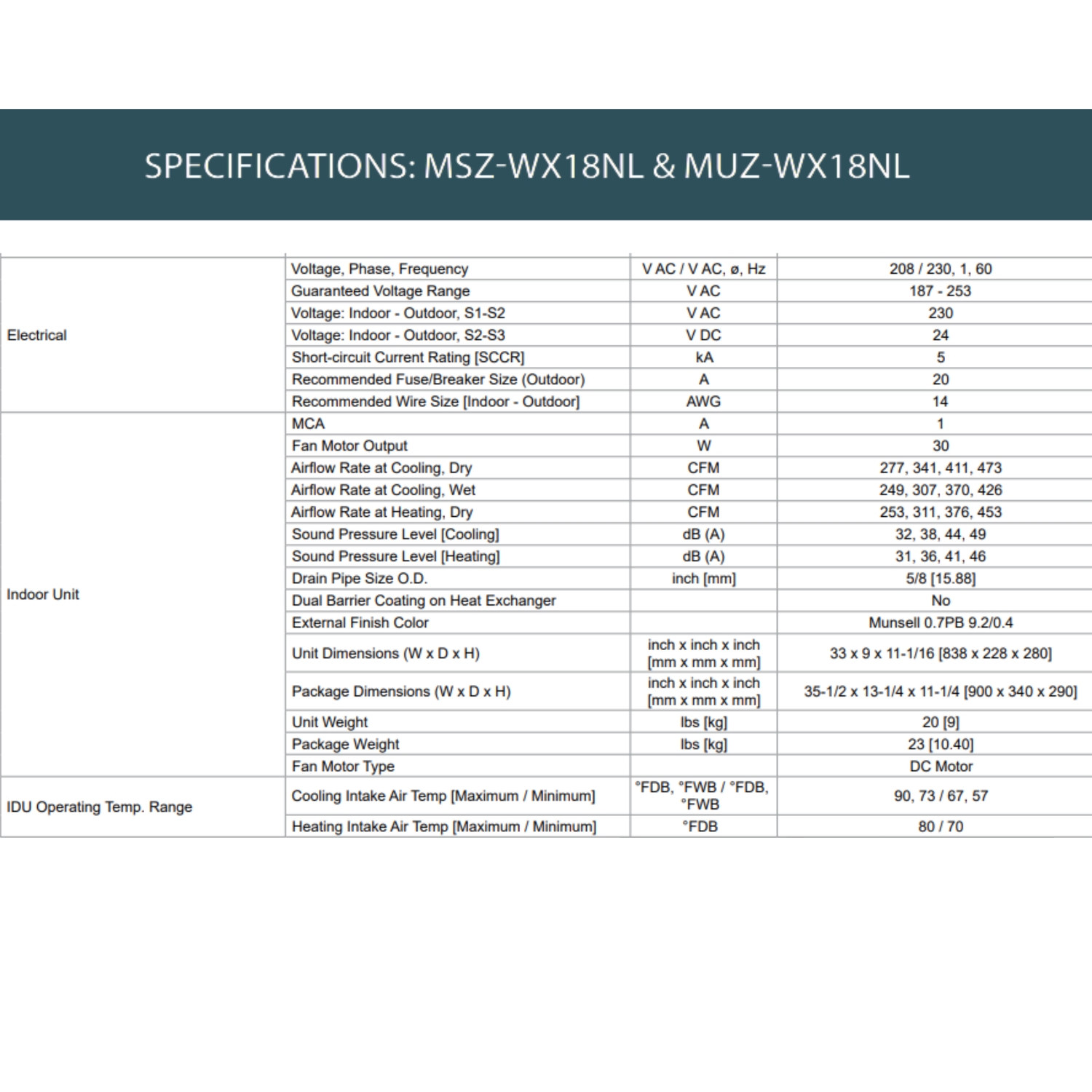

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      9.5
    • Mounting Type
      Wall
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      18
    • Total Cooling Capacity (BTUs)
      17200
    • Total Heating Capacity (BTUs)
      18000

    General

    • Certifications
      ETL, AHRI
    • Color
      White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Line Length Option
      No Line Set
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1166.0
    • Maximum Indoor Noise Level (dB)
      53
    • Maximum Operating Temperature - Cooling (degrees F)
      115
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      32
    • Minimum Operating Temperature - Heating (degrees F)
      5
    • Number of Zones
      1
    • Recommended Coverage Area (sq. ft.)
      1000
    • Refrigerant Type
      R-454B
    • Zone Cooling Capacity (BTUs)
      17200
    • Zone Heating Capacity (BTUs)
      18000

    Power

    • Maximum Cooling Amperage (Amps)
      9.4
    • Maximum Cooling Wattage (W)
      2170
    • Maximum Heating Amperage (Amps)
      11.3
    • Maximum Heating Wattage (W)
      2600
    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      9
    • Indoor Unit Height (in.)
      11.06
    • Indoor Unit Weight (lbs.)
      20
    • Indoor Unit Width (in.)
      33
    • Maximum Line Length (ft.)
      65
    • Outdoor Unit Depth (in.)
      11.25
    • Outdoor Unit Height (in.)
      21.63
    • Outdoor Unit Weight (lbs.)
      20
    • Outdoor Unit Width (in.)
      31.5

    Additional Features

    • Additional Features
      Remote Control, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      10-year warranty when installed by a licensed contractor and registered within 90 days of installation.
