MRCOOL 24,000 BTU 2 Ton Hyper Heat Central Ducted Heat Pump Split System

SKU: mr15612  |  Model: C24HP230BL50H15
$4,461.00

FREE shipping on orders over $45!

In Stock Usually ships in 2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Parts, Labor, and Compressor Warranty

What's In The Box?

  • MrCool 24,000 BTU Indoor Airhandler
  • MrCool 24,000 BTU Outdoor Compressor
  • Remote Control
  • Thermostat
  • Batteries (2)
  • Remote Control Holder (2)
  • Installation Kit
  • Owner’s Manual

Info & Guides

Description

The MrCool 2 Ton 24,000 BTU Hyper Heat Central Ducted Split System is a high-quality and efficient way to cool or heat ducted spaces as large as 1,000 square feet.



This ducted mini-split system is excellent for large spaces with new or existing ductwork. It combines the features and efficiency of a ductless mini-split with the power and coverage of a traditional HVAC system.

Multi-Position Air Handler

No matter how your home ducting is configured, the MrCool Hyper Heat central ducted system can handle it. MrCool designed the system’s multi-position air handler to accommodate upflow, downflow, horizontal left, and horizontal right ducting needs.

The air handler also has a self-diagnostics panel, a removable filter, and a modular design to facilitate professional maintenance.

Optional Heat Kit

Customers can choose between 5,000 kW, 8,000 kW, 10,000 kW, or 15,000 kW supplemental heater options as an upgrade for this central ducted system. These supplemental electric resistance coil heaters can provide up to 24,000 BTUs of heat per hour, even when outdoor temperatures range from -22 degrees F to 122 degrees F.

Efficient and Sturdy Outdoor Condenser

The outdoor condenser of this MrCool ducted mini-split features a DC inverter and state-of-the-art variable speed technology, which provides exceptional SEER 2 (Seasonal Energy Efficiency Ratio) efficiency ratings of up to 17.4 and HSPF 2 (heating seasonal performance factor) ratings up to 10.

This model also features Gold Fin technology, which helps the outdoor condenser resist corrosion even in the harshest conditions.

Simple Professional Installation

Thanks to the MrCool No-Vac Quick Connect Line Set, which may be purchased without a line set or comes in a 15, 25, 35, and 50-foot length, and the included installation kit, an HVAC professional can quickly and easily install the MrCool Hyper Heat.

The installation kit includes:

  • Installation Manual
  • 3/4 and 3/8 Stub Pipes (4)
  • Fastening Belts (2)
  • Drain Joint (1)
  • Seal (1)
  • Foam Insulation (4)
  • Copper Nut 3/8 and 3/4 (2)

Note: A licensed professional must install this model.

Additional Features

  • R-454B Refrigerant: The R-454B refrigerant provides powerful and efficient cooling.

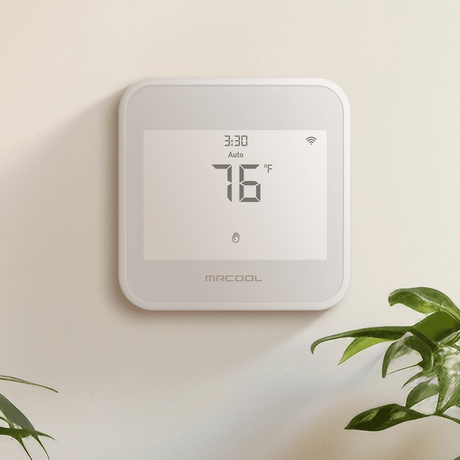

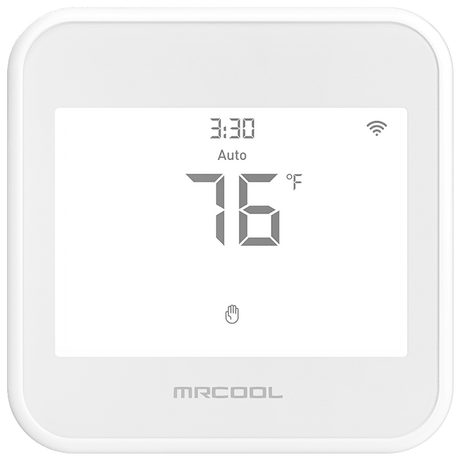

  • Controllers Included: This model includes a wired wall thermostat and a wireless remote control for added control flexibility. It also features third-party thermostat compatibility, so you can use your Nest or other branded controllers.
  • Follow Me Function: The system automatically senses the temperature of a space through the wireless remote and optimizes the temperature output for where you are currently.

Sylvane's Expert Take

If you are considering upgrading or replacing your old, traditional ducted HVAC system, look no further than this central ducted split system from Mr Cool. This 24,000 BTU system offers the best of both worlds: power, efficiency, technology, and more.

  • Gold Fin Corrosion Protection: Live on the coast, somewhere with extreme temperatures, or in a muggy, humid environment? Well, no matter where you live, this system’s outdoor condenser unit is ready to stand the test of time thanks to MrCool’s Gold Fin condenser technology.
  • Don't Forget Heat: If your space needs supplemental heating, add on the optional 10,000 kW heater or the 15,000 kW heater for extra power.
  • Multiple Sizes Available: Need to heat or cool a largest space up to 2,500 square feet? Check out other units in this series, found in 36,000 BTU, 48,000 BTU, and 60,000 BTU sizes.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      11.7
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      18.3
    • Total Cooling Capacity (BTUs)
      23000
    • Total Heating Capacity (BTUs)
      24000
    • Type
      Central Split

    General

    • Auxiliary Heat
      15 kW / 50 ft: 15 kW
      10 kW / 50 ft: 10 kW
      15 kW / 25 ft: 15 kW
      10 kW / 25 ft: 10 kW
      None / 50 ft: None
      None / 25 ft: None
      None / No Line Set: None
      8 kW / 50 ft: 8 kW
      5 kW / 50 ft: 5 kW
      15 kW / 35 ft: 15 kW
      10 kW / 35 ft: 10 kW
      8 kW / 35 ft: 8 kW
      5 kW / 35 ft: 5 kW
      8 kW / 25 ft: 8 kW
      5 kW / 25 ft: 5 kW
      15 kW / 15 ft: 15 kW
      10 kW / 15 ft: 10 kW
      8 kW / 15 ft: 8 kW
      5 kW / 15 ft: 5 kW
      None / 35 ft: None
      None / 15 ft: None
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      AHRI, ETL
    • Color
      Gray, White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      10
    • Installation Type
      Professional Installation
    • Line Length Option
      15 kW / 50 ft: 50 ft
      10 kW / 50 ft: 50 ft
      15 kW / 25 ft: 25 ft
      10 kW / 25 ft: 25 ft
      None / 50 ft: 50 ft
      None / 25 ft: 25 ft
      None / No Line Set: No Line Set
      8 kW / 50 ft: 50 ft
      5 kW / 50 ft: 50 ft
      15 kW / 35 ft: 35 ft
      10 kW / 35 ft: 35 ft
      8 kW / 35 ft: 35 ft
      5 kW / 35 ft: 35 ft
      8 kW / 25 ft: 25 ft
      5 kW / 25 ft: 25 ft
      15 kW / 15 ft: 15 ft
      10 kW / 15 ft: 15 ft
      8 kW / 15 ft: 15 ft
      5 kW / 15 ft: 15 ft
      None / 35 ft: 35 ft
      None / 15 ft: 15 ft
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1765.7
    • Maximum Indoor Noise Level (dB)
      60
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      -22
    • Minimum Operating Temperature - Heating (degrees F)
      -22
    • Number of Tons
      2
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      17.52
    • Indoor Unit Height (in.)
      45
    • Indoor Unit Weight (lbs.)
      105.6
    • Indoor Unit Width (in.)
      21.02
    • Maximum Line Length (ft.)
      164
    • Outdoor Unit Depth (in.)
      13.46
    • Outdoor Unit Height (in.)
      26.5
    • Outdoor Unit Weight (lbs.)
      102.29
    • Outdoor Unit Width (in.)
      35.04

    Additional Features

    • Additional Features
      15 kW / 50 ft: Energy Star, Line Set Included
      10 kW / 50 ft: Energy Star, Line Set Included
      15 kW / 25 ft: Energy Star, Line Set Included
      10 kW / 25 ft: Energy Star, Line Set Included
      None / 50 ft: Energy Star, Line Set Included
      None / 25 ft: Energy Star, Line Set Included
      None / No Line Set: Energy Star
      8 kW / 50 ft: Energy Star, Line Set Included
      5 kW / 50 ft: Energy Star, Line Set Included
      15 kW / 35 ft: Energy Star, Line Set Included
      10 kW / 35 ft: Energy Star, Line Set Included
      8 kW / 35 ft: Energy Star, Line Set Included
      5 kW / 35 ft: Energy Star, Line Set Included
      8 kW / 25 ft: Energy Star, Line Set Included
      5 kW / 25 ft: Energy Star, Line Set Included
      15 kW / 15 ft: Energy Star, Line Set Included
      10 kW / 15 ft: Energy Star, Line Set Included
      8 kW / 15 ft: Energy Star, Line Set Included
      5 kW / 15 ft: Energy Star, Line Set Included
      None / 35 ft: Energy Star, Line Set Included
      None / 15 ft: Energy Star, Line Set Included

    Warranty

    • Manufacturer's Warranty
      10-Year Parts, Labor, and Compressor Warranty
