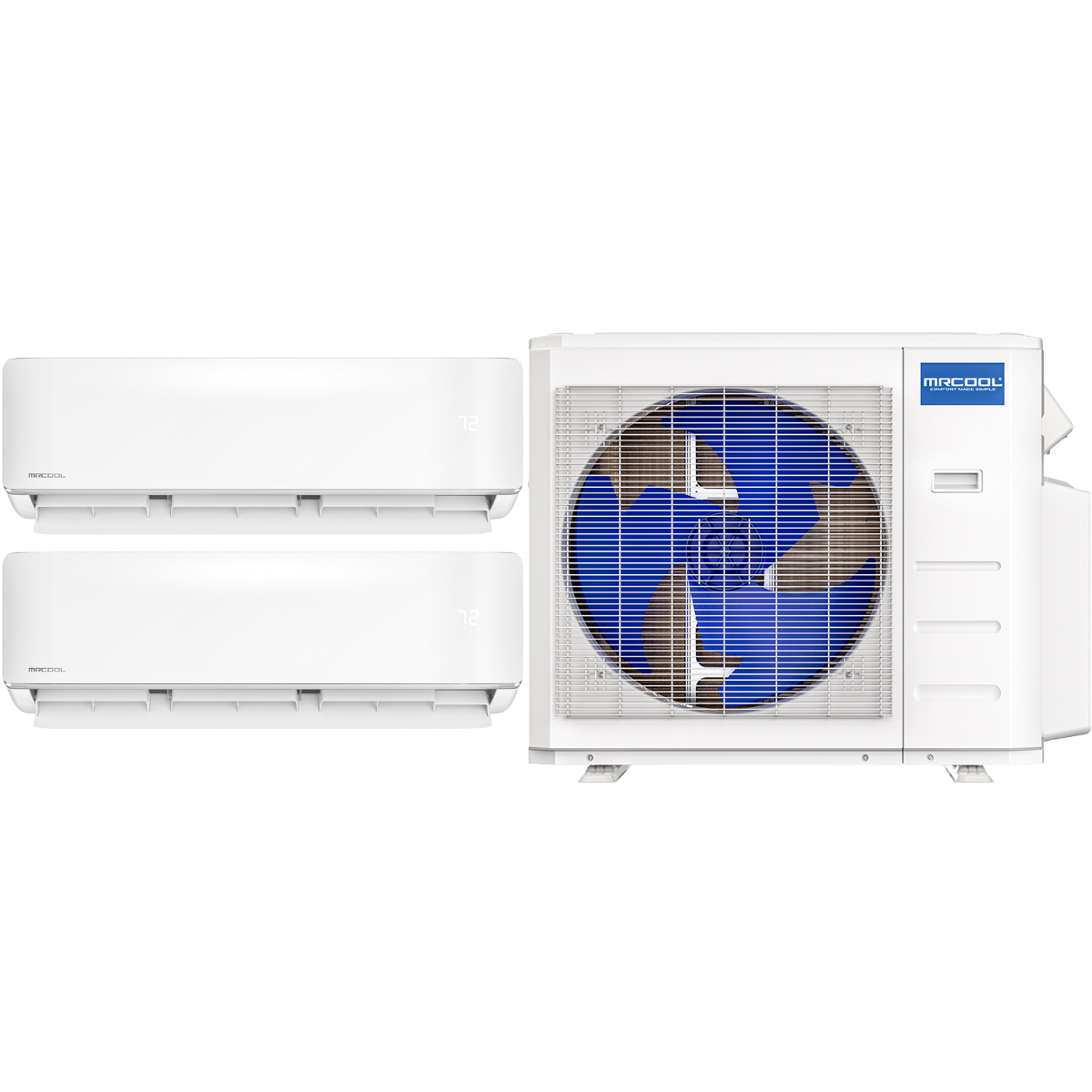

MRCOOL DIY 5th Gen 18,000 BTU Dual Zone Mini Split 6k + 12k
MRCOOL DIY 5th Gen 18,000 BTU Dual Zone Mini Split 6k + 12k is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

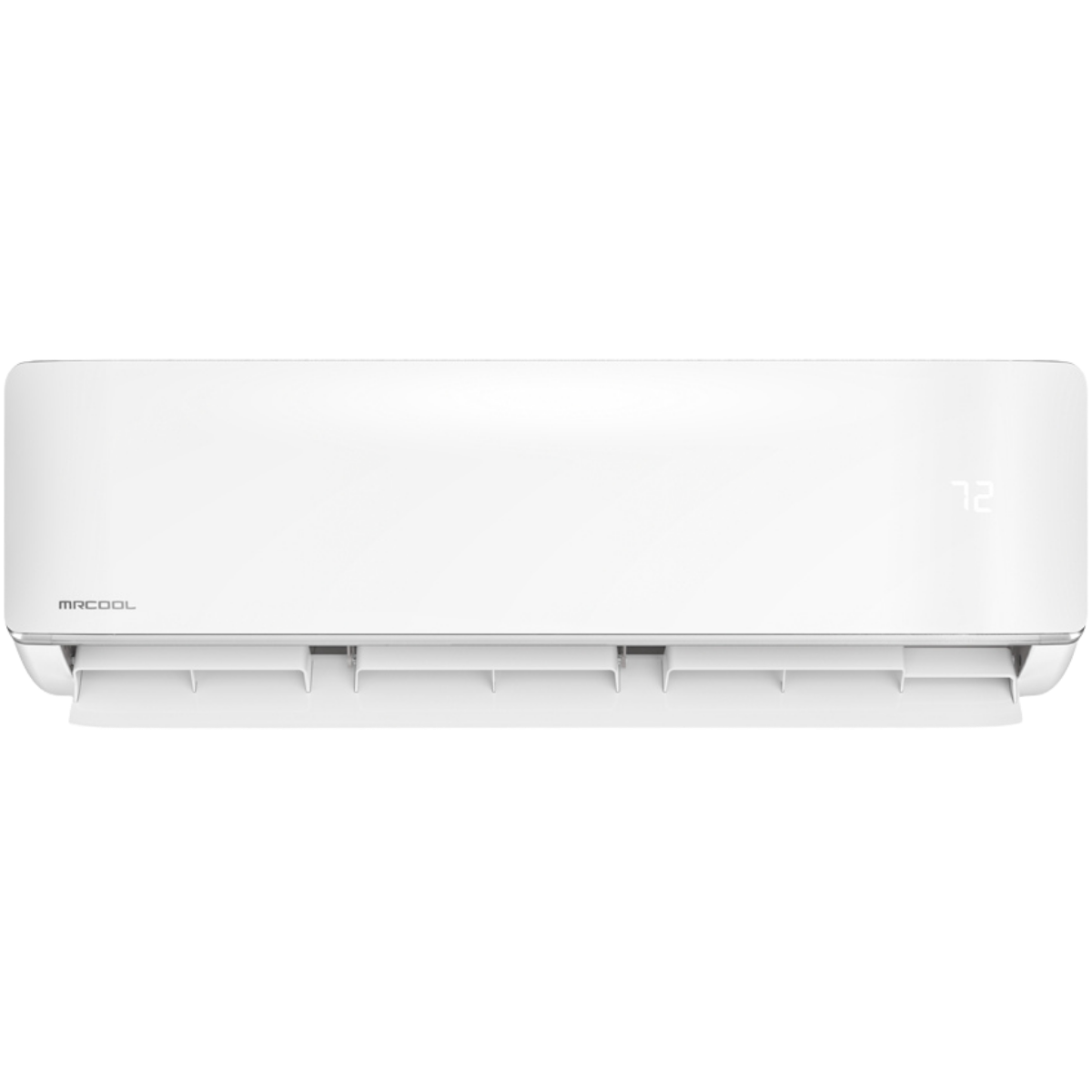

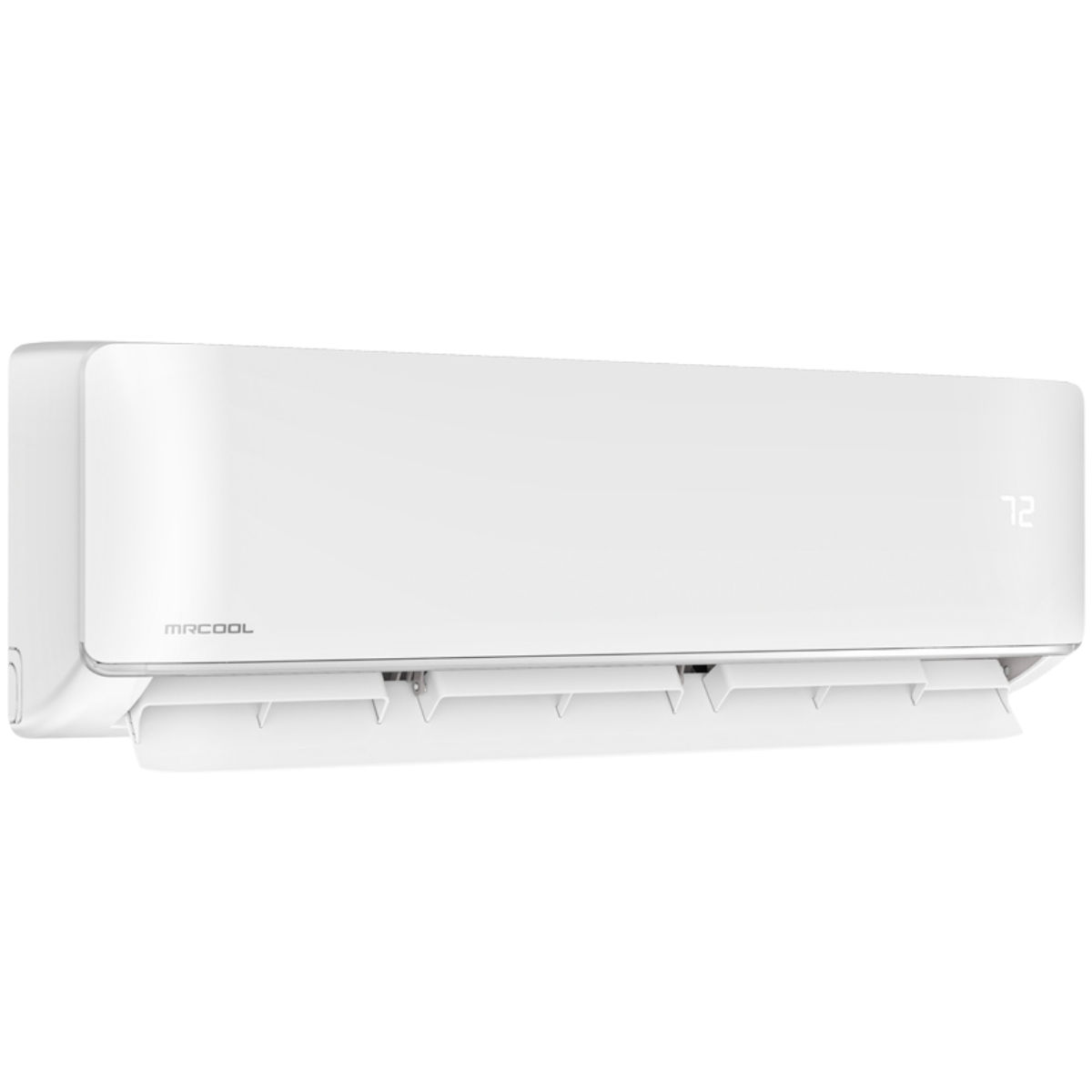

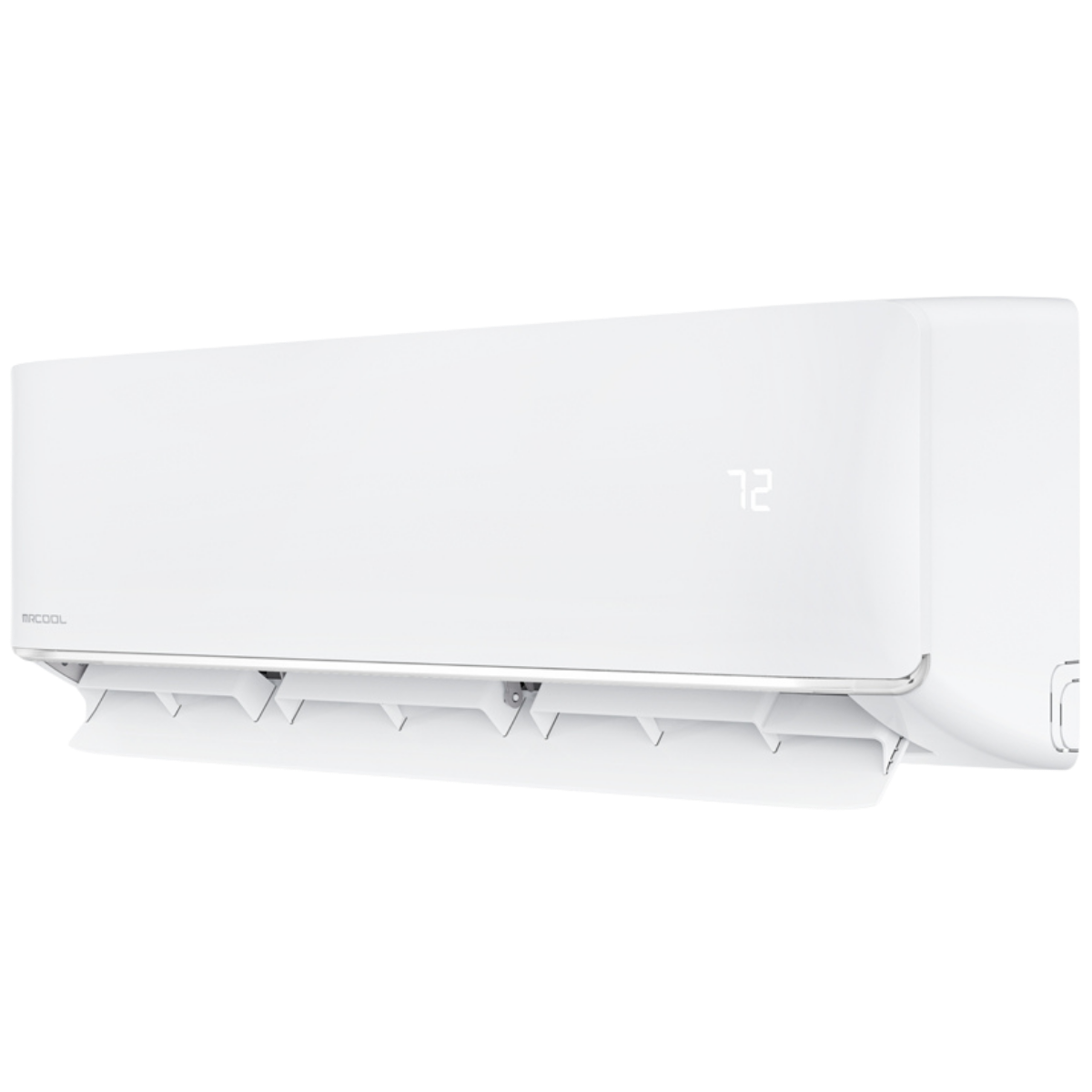

- MRCOOL DIY 5th Gen 6,000 BTU Air Handler DIY-06-HP-WMAH-230D25-O (1)
- MRCOOL DIY 5th Gen 12,000 BTU Air Handler DIY-12-HP-WMAH-230D25-O (1)

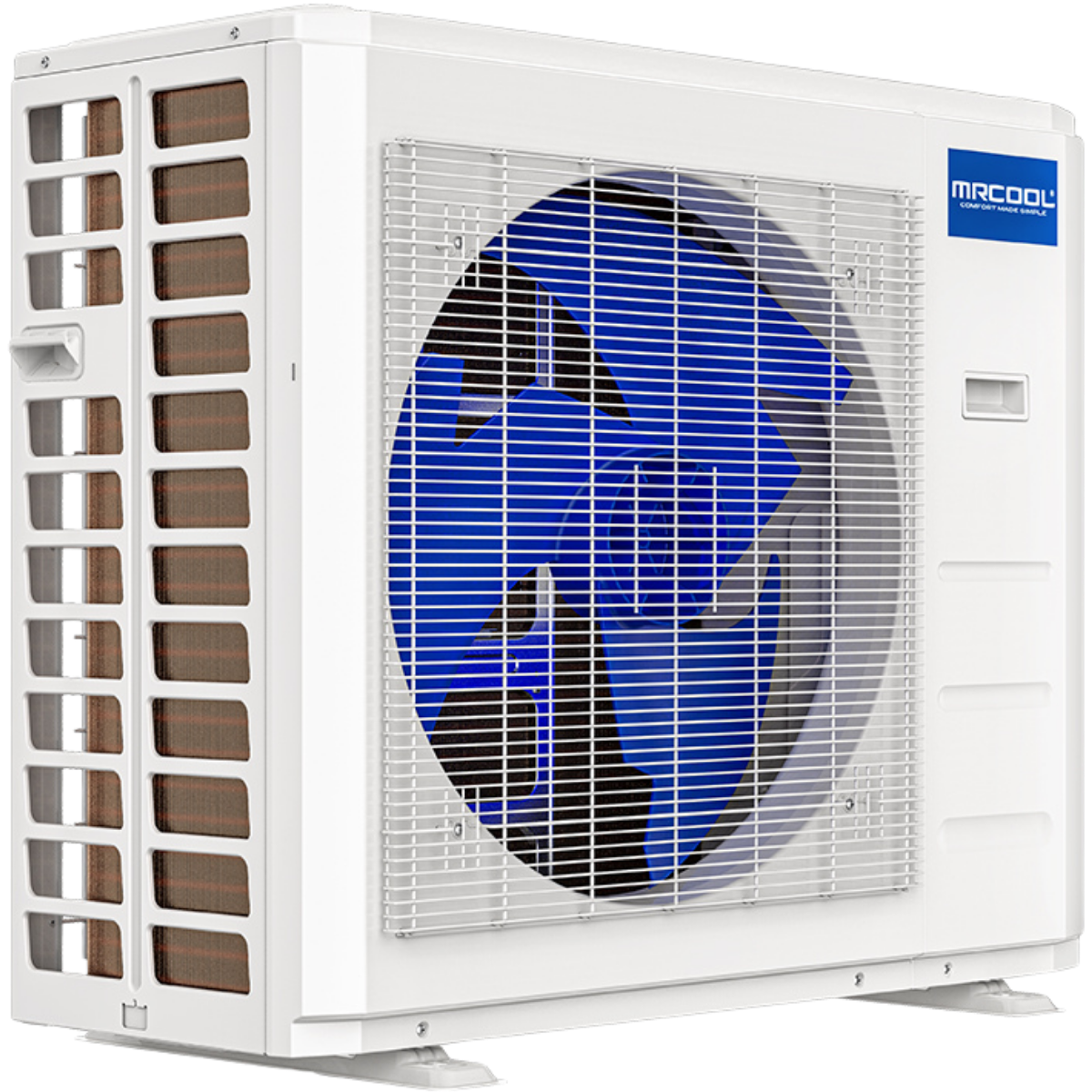

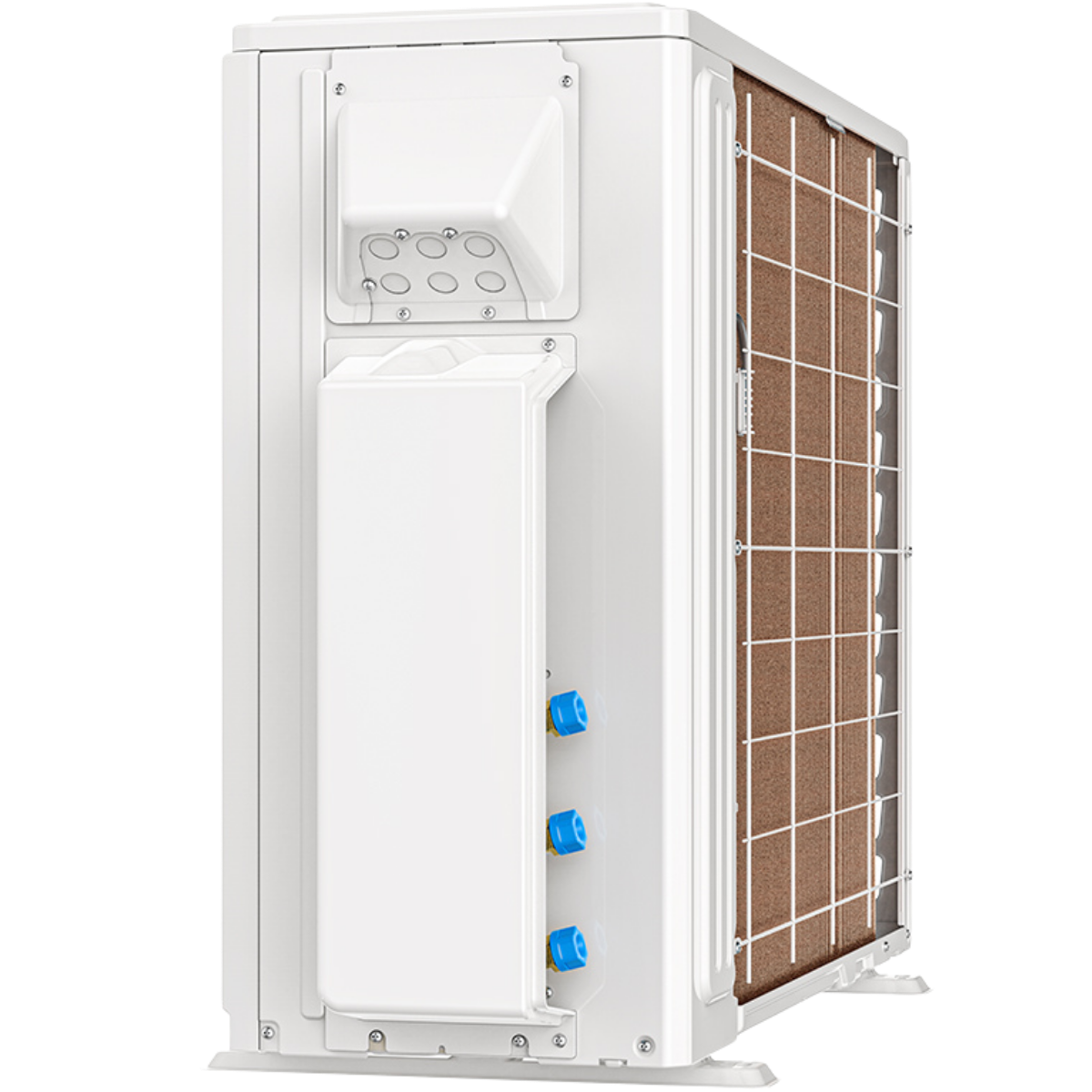

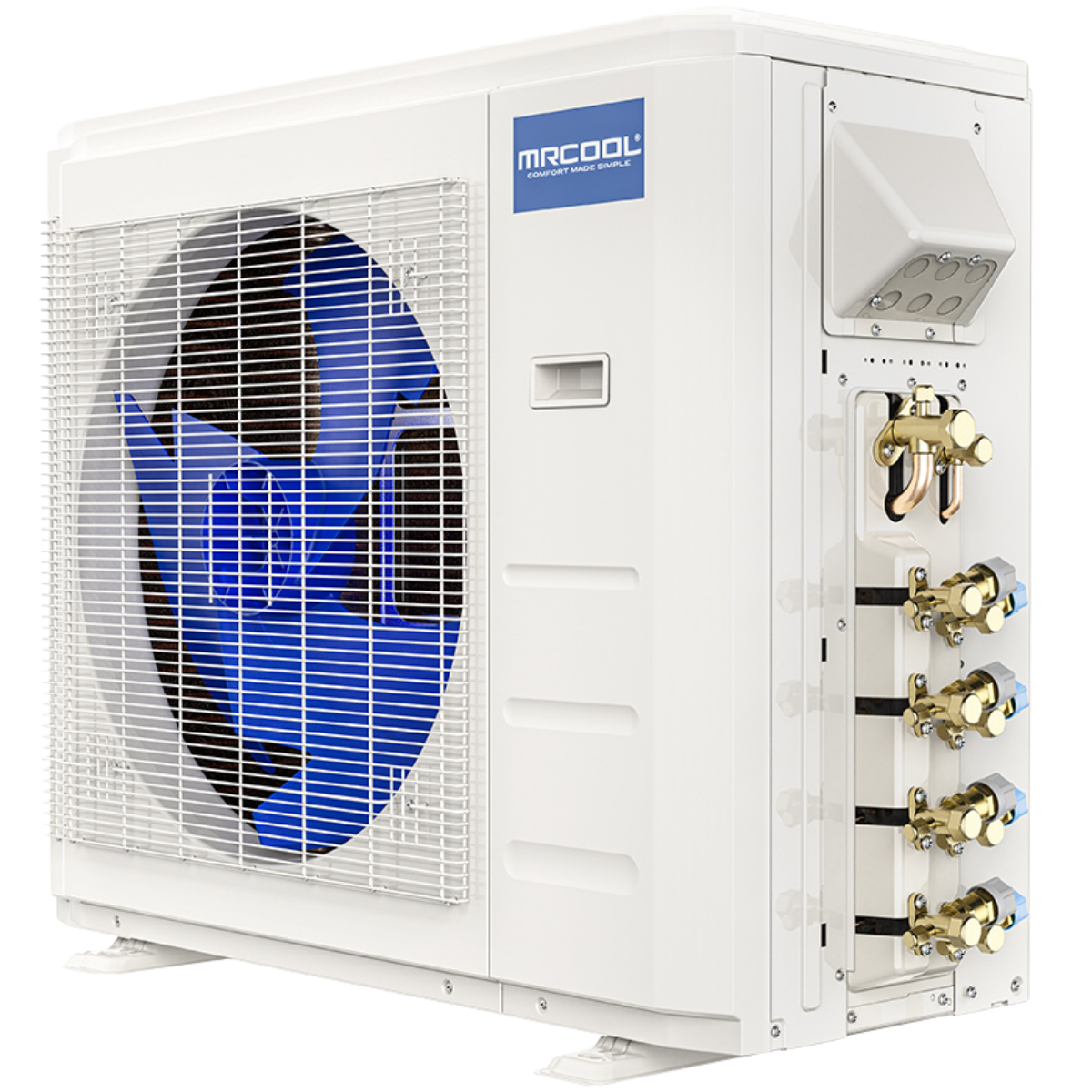

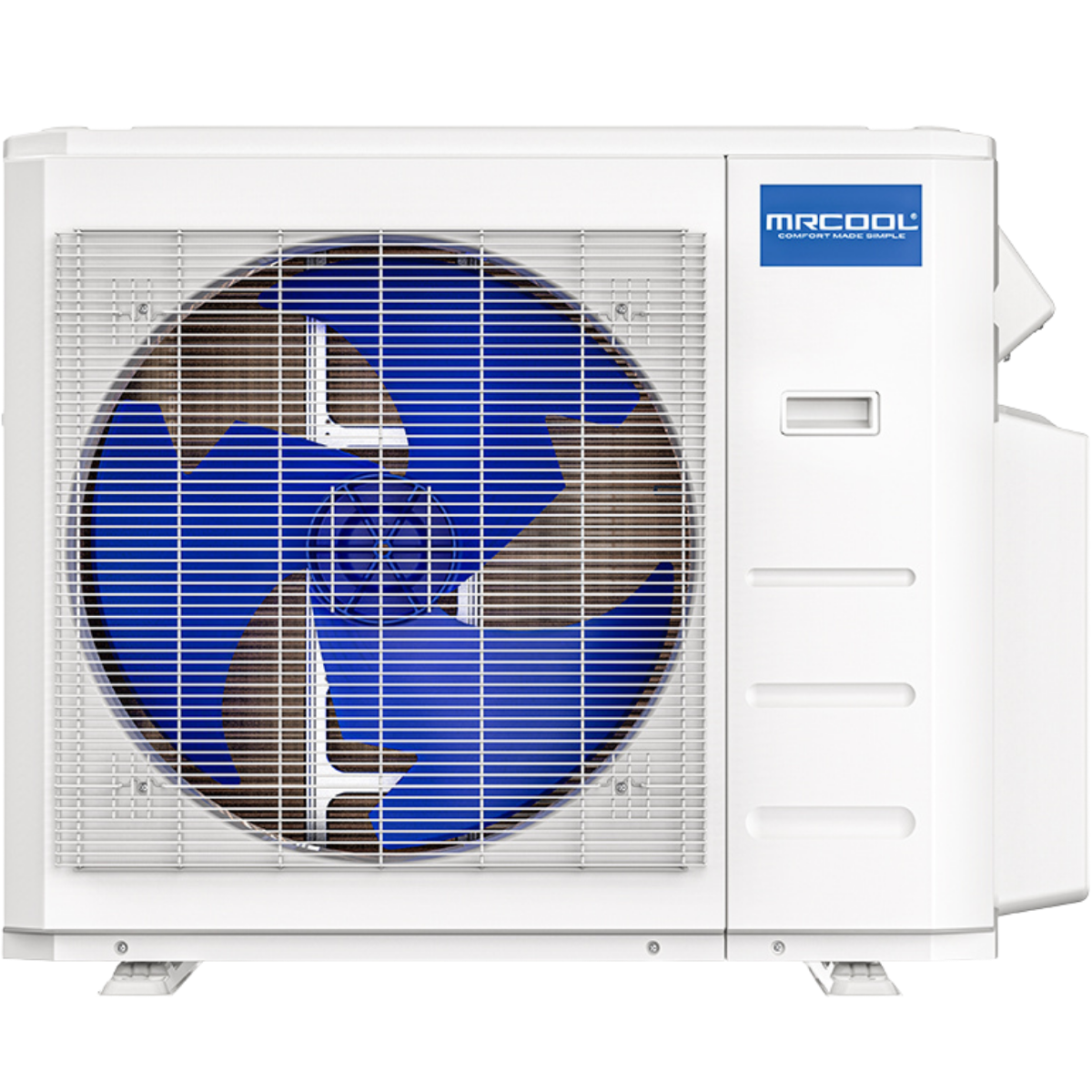

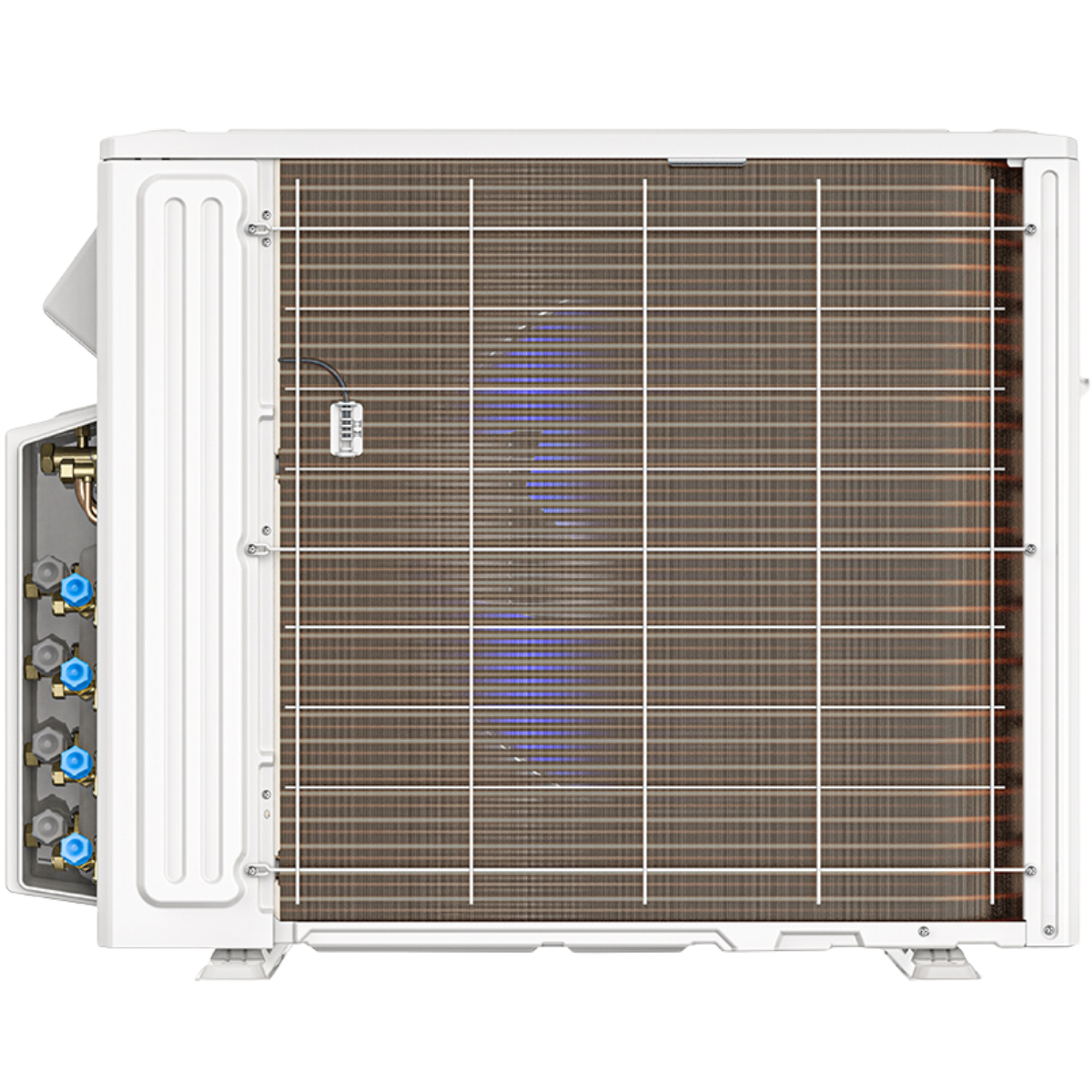

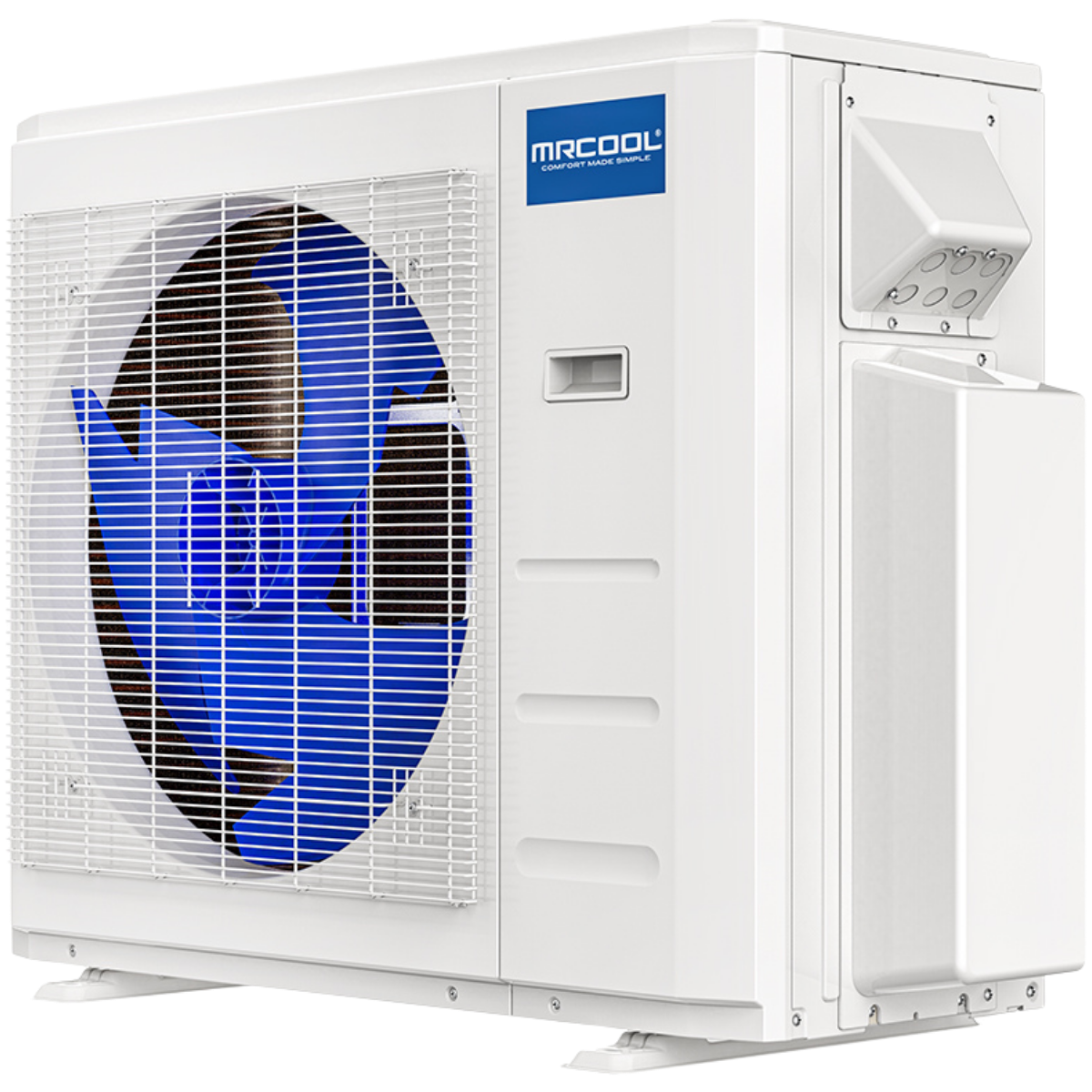

- MRCOOL DIY 5th Gen 18,000 BTU Condenser DIY-MULTI3-18HP230D-O (1)
- Remote Control
- Smart HVAC Module
- Owner’s Manual and Installation Guide
Info & Guides
Info & Guides
Description
Description
The MRCOOL DIY 5th Gen 18,000 BTU Dual Zone Mini Split is a cost-effective heating and cooling solution for two small and medium-sized rooms, providing year-round comfort without professional HVAC installation.
This mini-split AC heat pump system is designed for homeowners seeking personalized, energy-efficient comfort with low installation and operating expenses.
Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split
- DIY Installation: DIY installation is made easy with pre-charged R-454B line sets and quick-connect fittings, which eliminate the need for refrigerant handling and reduce labor costs.
- Independent Zones: Two air handlers, 6,000 BTU and 12,000 BTU, allow for individualized temperature control in places like bedrooms, offices, or living areas, ensuring personalized comfort.
- High Efficiency: Thanks to DC inverter technology, this system delivers consistent comfort and uses less energy for both cooling and heating. It boasts impressive efficiency ratings: 23 SEER2 and 12 EER2 for cooling, and 10 HSPF2-4 and 7.8 HSPF2-5 for heating.
- Superior Low-Temp Performance: With its low-ambient heating and cooling, this system provides year-round comfort, even in extreme temperatures as low as -13 degrees Fahrenheit.
- Smartphone Control: Settings, schedules, and performance can be monitored and controlled remotely using the MRCOOL app, Amazon Alexa, or Google Assistant.
- Gold Fin Protection: The outdoor condenser's protective coating resists salt and moisture, extending the system's lifespan, particularly in humid or coastal environments.
- Smart Alerts: Equipped with built-in sensors, the system detects refrigerant loss and automatically restarts after power outages, ensuring continuous comfort and protecting the equipment.
- Follow Me Sensor: Achieve consistent comfort with the handheld remote, which accurately measures the temperature at your precise location. This avoids the uncomfortable hot and cold spots often caused by traditional wall-mounted units.

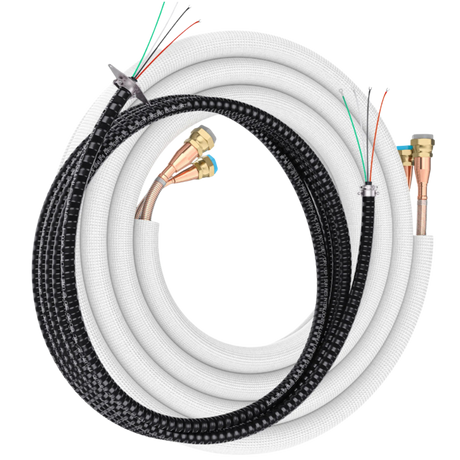

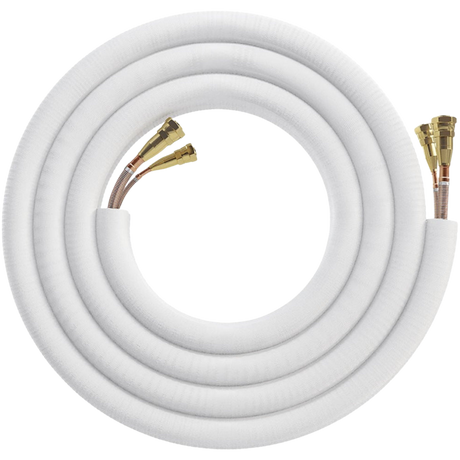

Note: This system requires two MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).
Faster Comfort, Lower Costs
The MRCOOL 5th Gen DIY series offers a simplified air conditioner installation process, eliminating the need for specialized tools, vacuum pumps, or licensed installers.

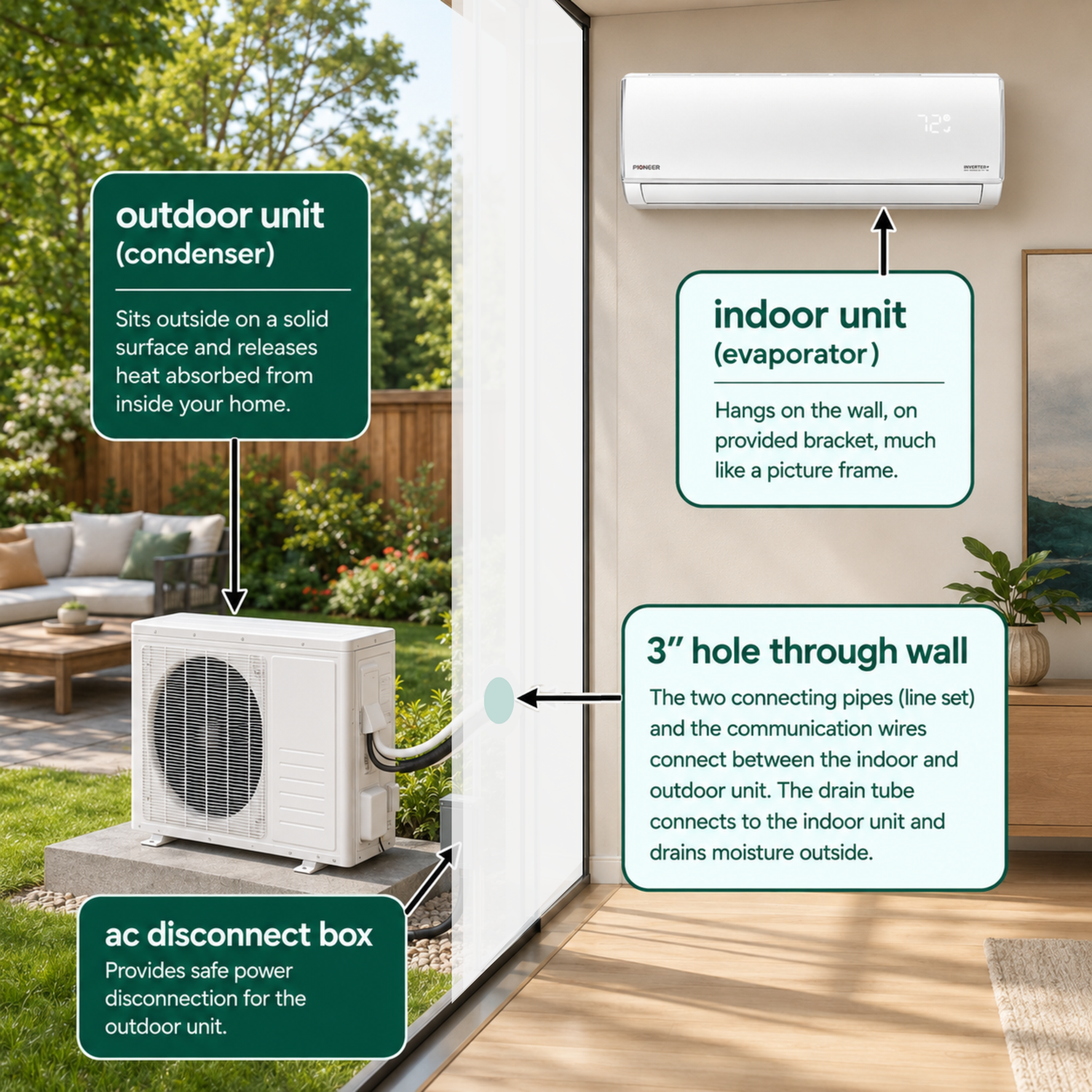

Installation is straightforward: route the required line through the wall, tighten the flare connections with the included wrench, and the system is ready for power. Most customers can complete the installation in a single weekend, resulting in significant savings on professional installation costs and avoiding scheduling delays.
Sylvane's Expert Take
The MRCOOL 5th Gen mini-split kit is an excellent and affordable DIY option for year-round climate control. This system provides efficient heating and cooling for two separate zones and can be installed without professional assistance.
It's an intelligent upgrade to home climate control systems, featuring a high SEER2 rating and Energy Star certification. Enhanced user convenience is also provided through features like Wi-Fi controls and Follow Me sensing.
Specifications
Specifications
-
Energy Efficiency Ratio 2 (EER2)13
-
Mounting TypeWall
-
Number of Speeds5
-
Seasonal Energy Efficiency Ratio 2 (SEER2)23.9
-
Total Cooling Capacity (BTUs)18000
-
Total Heating Capacity (BTUs)18000
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsAHRI, ETL, UL
-
ColorWhite
-
Compressor TypeRotary
-
Heat ModeYes
-
Installation TypeDo-It-Yourself (DIY)
-
Line Length Option25 ft
-
Maximum Indoor Noise Level (dB)60
-
Maximum Operating Temperature - Cooling (degrees F)122
-
Maximum Operating Temperature - Heating (degrees F)75
-
Minimum Operating Temperature - Cooling (degrees F)-22
-
Minimum Operating Temperature - Heating (degrees F)-22
-
Number of Zones2
-
Recommended Coverage Area (sq. ft.)750
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)12000 6000
-
Zone Heating Capacity (BTUs)12000 6000
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)7.44
-
Indoor Unit Height (in.)11.63
-
Indoor Unit Weight (lbs.)24.47
-
Indoor Unit Width (in.)31.57
-
Maximum Line Length (ft.)172.2
-
Outdoor Unit Depth (in.)13.46
-
Outdoor Unit Height (in.)26.5
-
Outdoor Unit Weight (lbs.)101.63
-
Outdoor Unit Width (in.)35.04
-
Additional FeaturesRemote Control, Energy Star, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty
