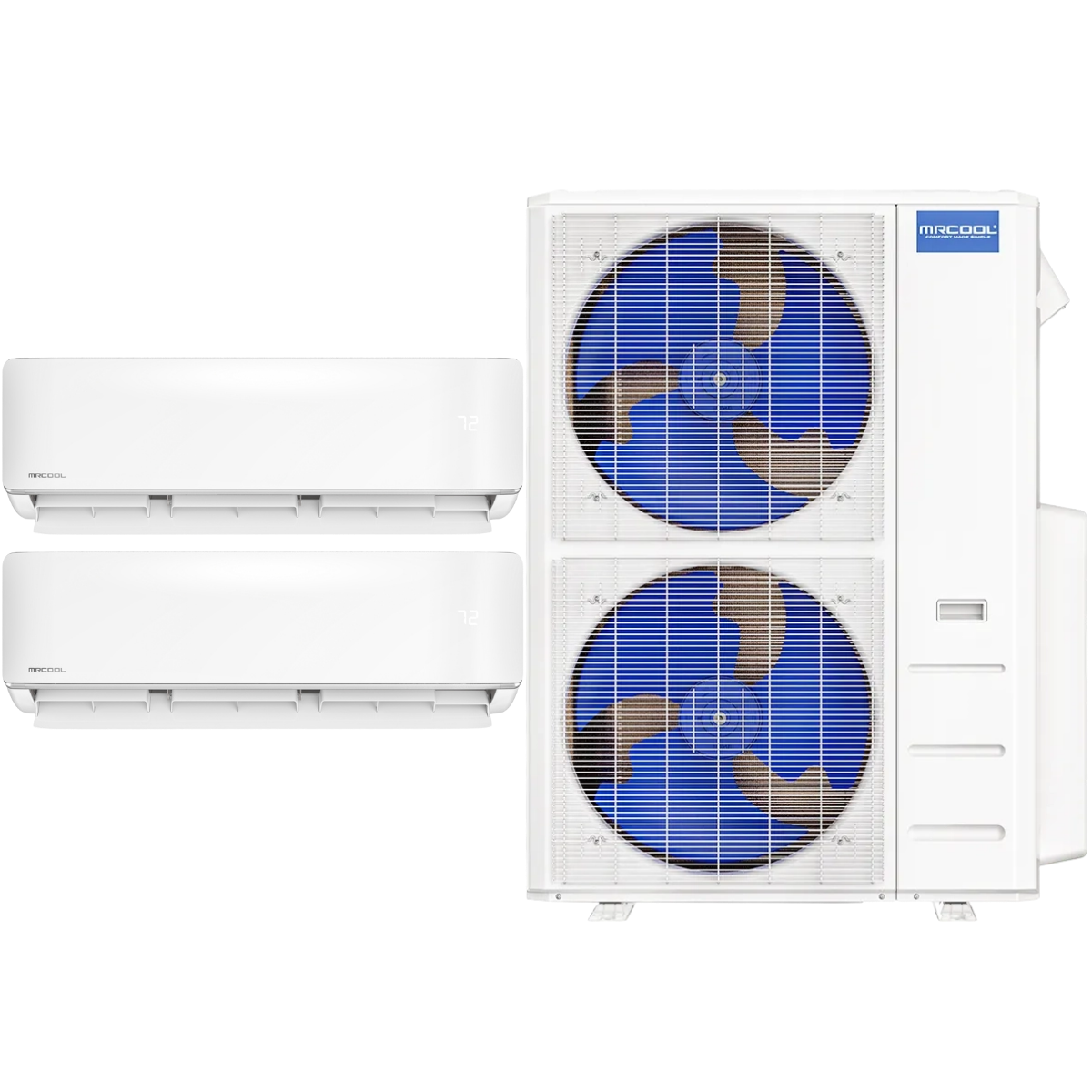

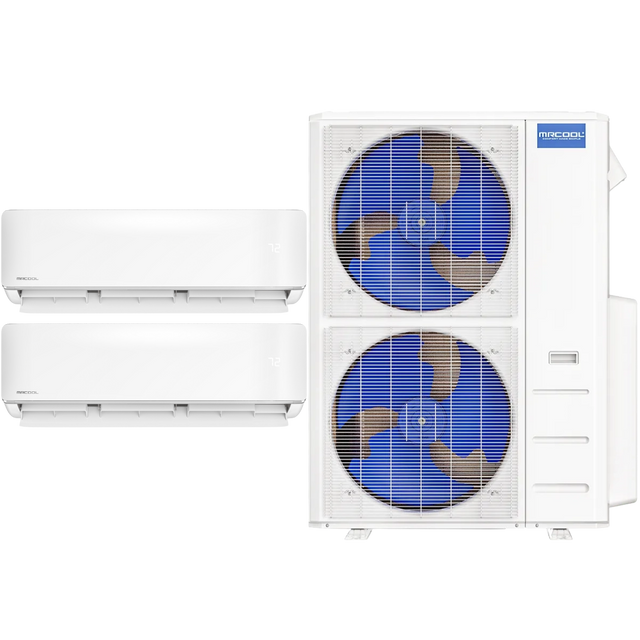

MRCOOL DIY 5th Gen 36,000 BTU Dual Zone Mini Split 18k + 18k

Name: MRCOOL DIY 5th Gen 36,000 BTU Dual Zone Mini Split 18k + 18k
Brand: MRCOOL
Price: 4405.0 USD
Availability: InStock

SKU: mr17216k | Model: DIYM236HPW07D

$4,405.00 $4,699.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

MRCOOL DIY 5th Gen 18,000 BTU Air Handler DIY-18-HP-WMAH-230D25-O (2)

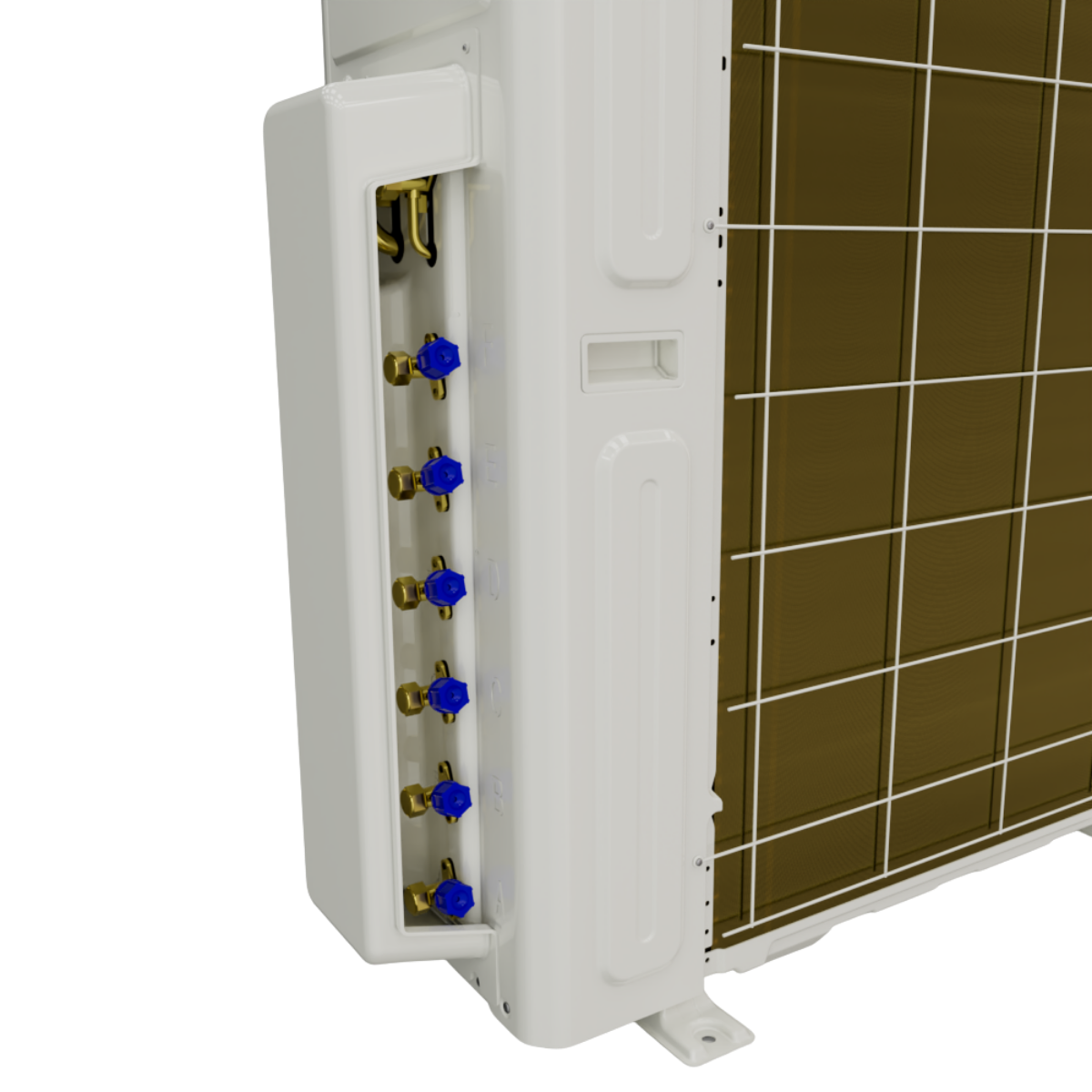

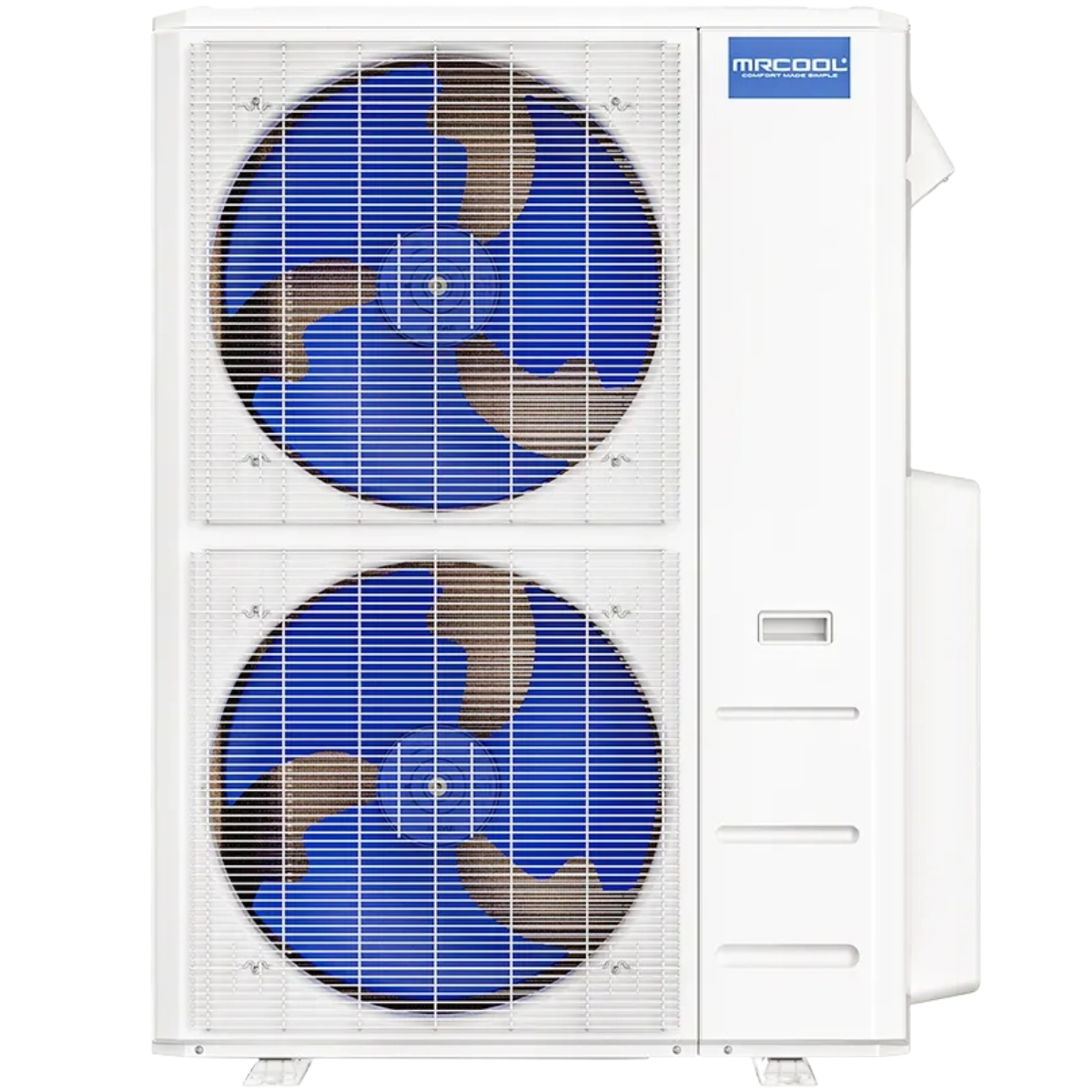

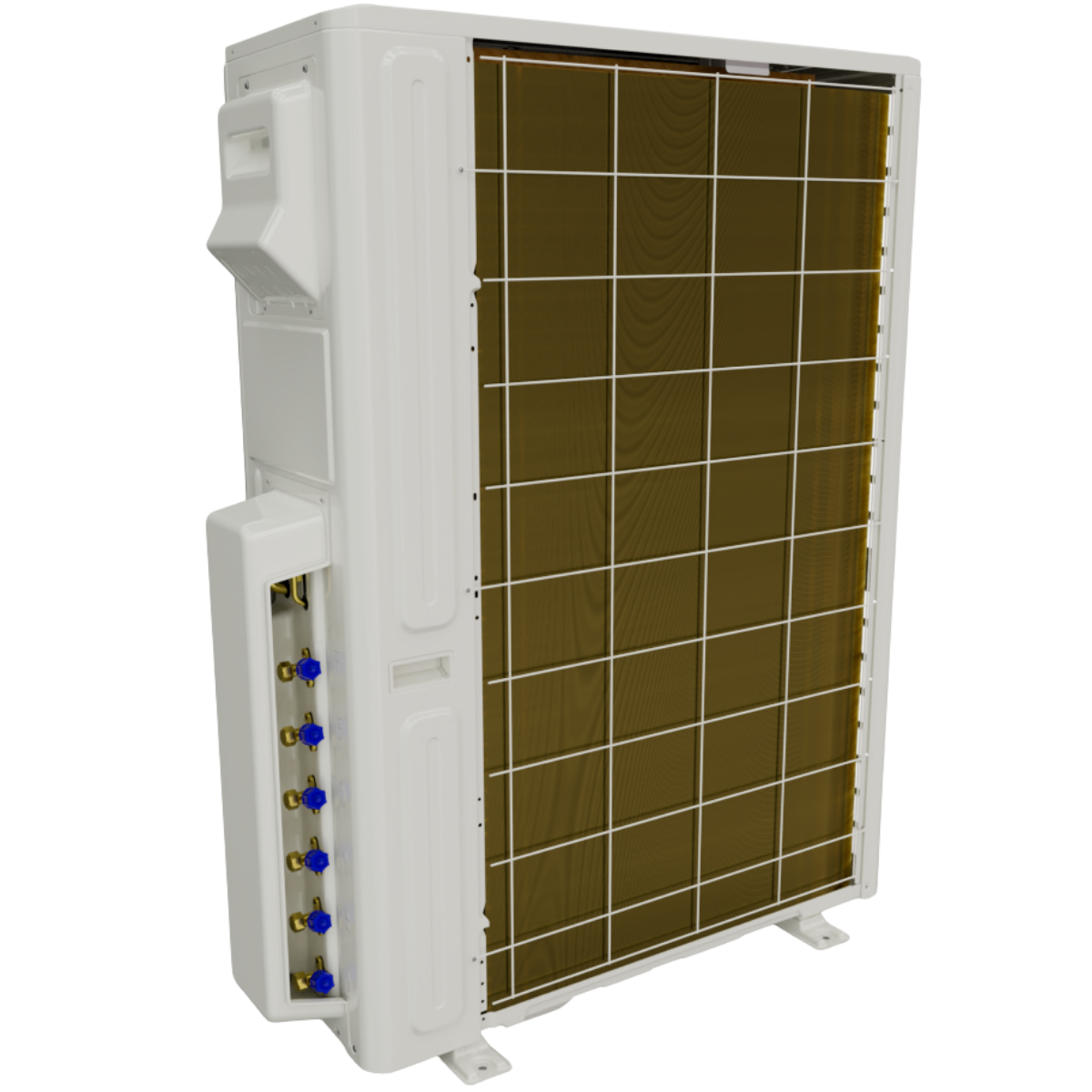

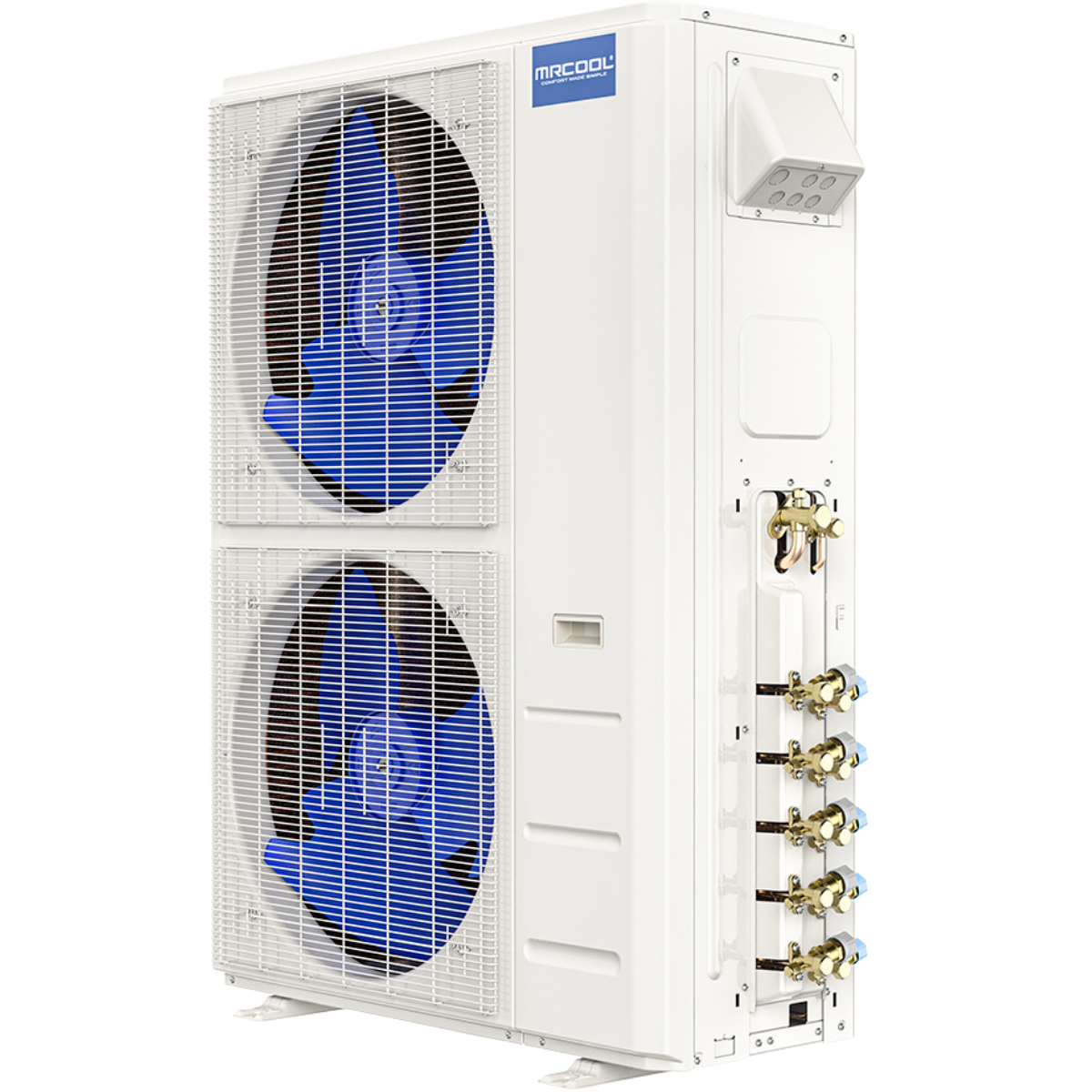

MRCOOL DIY 5th Gen 36,000 BTU Outdoor Condenser DIY-MULTI5-36HP230D-O (1)
Remote Control (2)
Wi-Fi Controller Kit
16-Foot Drain Hose
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

The MRCOOL DIY 5th Gen 36,000 BTU Dual Zone Mini Split is an ideal heating and cooling solution for homeowners who desire personalized, energy-efficient comfort in two 800-square-foot spaces without the need for professional HVAC installation.

This dual-zone mini-split AC heat pump system offers year-round comfort while keeping both installation and operating expenses low.

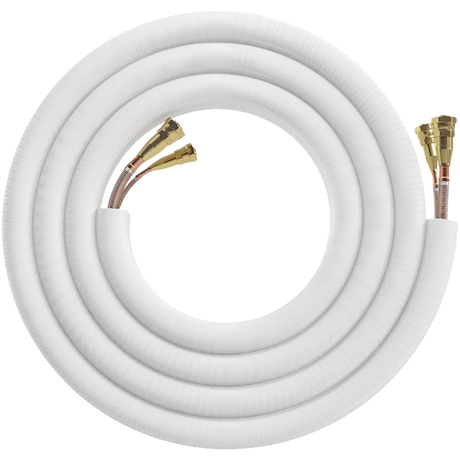

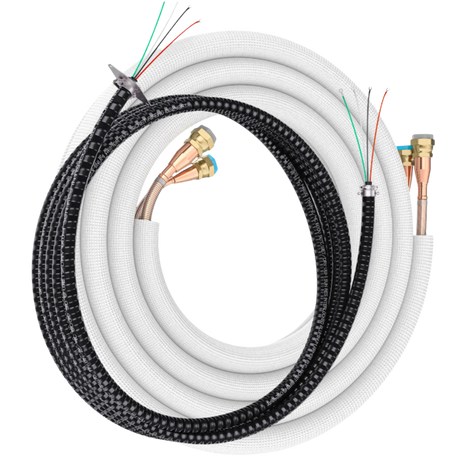

WARNING: This system REQUIRES two MRCOOL DIY 5th Generation 1/4 x 1/2" Line Sets (Not Included). Older versions/other brands of 1/4 x 1/2-inch line sets are not compatible with this system and will not work for installation.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Two Independent Zones: Two 18,000 BTU air handlers provide personalized comfort, allowing for individual temperature settings in bedrooms, offices, or living spaces.
High Efficiency: This system uses DC inverter technology to dynamically adjust its output, ensuring consistent comfort while reducing energy consumption in both cooling and heating modes. It boasts a 23 SEER2 and 12 EER2 for cooling, and a 9.9 HSPF2-4 and 7.5 HSPF2-5 for heating.
Superior Low-Temp Performance: Equipped with low-ambient heating and cooling, this system provides comfort in all four seasons, even in extreme temperatures as low as -13 degrees F.
Smartphone Control: Control settings, schedules, and monitor performance remotely via the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser features a protective coating designed to resist salt and moisture. This enhances the system's longevity, especially in humid or coastal areas.
Smart Alerts: With built-in sensors to detect refrigerant loss and automatic resumption after power outages, the system protects both comfort and equipment.
Follow Me Sensor: The handheld remote accurately measures the temperature at your current location, rather than relying solely on the wall unit. This ensures the elimination of uncomfortable hot and cold spots.

Faster Comfort, Lower Costs

The MRCOOL 5th Gen DIY series offers a simplified installation process, unlike traditional air conditioners that demand specialized tools, vacuum pumps, and licensed installers.

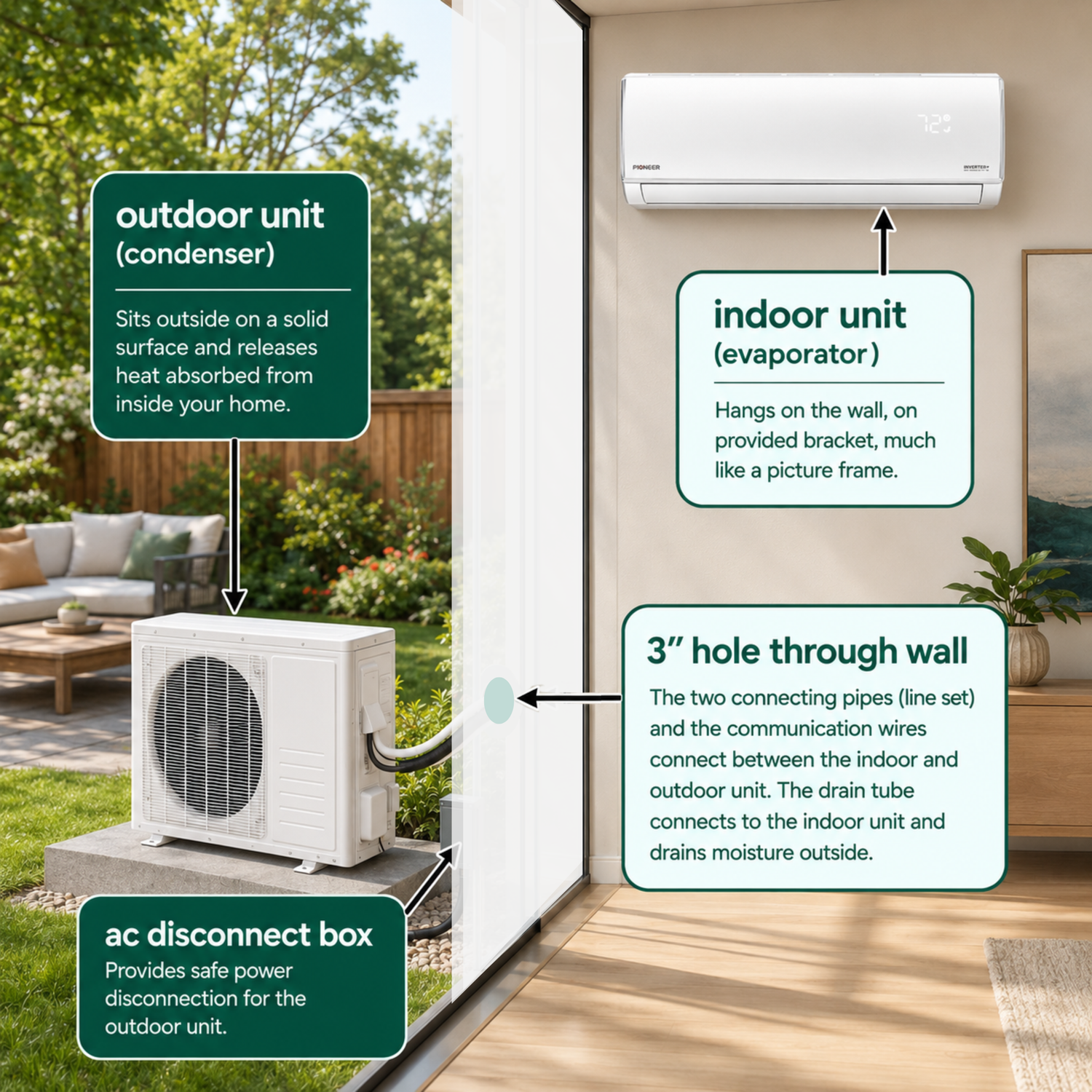

Installation is simple: route the required line set through the wall, tighten the flare connections with the provided wrench, and the system is ready for power. Most customers can complete the installation in a single weekend, saving money on professional installation fees (which can be as much as half the system's cost) and avoiding scheduling delays.

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit is an ideal, cost-effective solution for DIY enthusiasts seeking year-round climate control. It heats and cools two separate areas efficiently, eliminating the need for professional installation. This system features a high SEER2 rating, Energy Star certification, Wi-Fi controls, and Follow Me sensing.

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

23.0
Total Cooling Capacity (BTUs)

34000
Total Heating Capacity (BTUs)

36000

General

Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

64
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

2
Recommended Coverage Area (sq. ft.)

2500
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

18000
Zone Heating Capacity (BTUs)

18000
