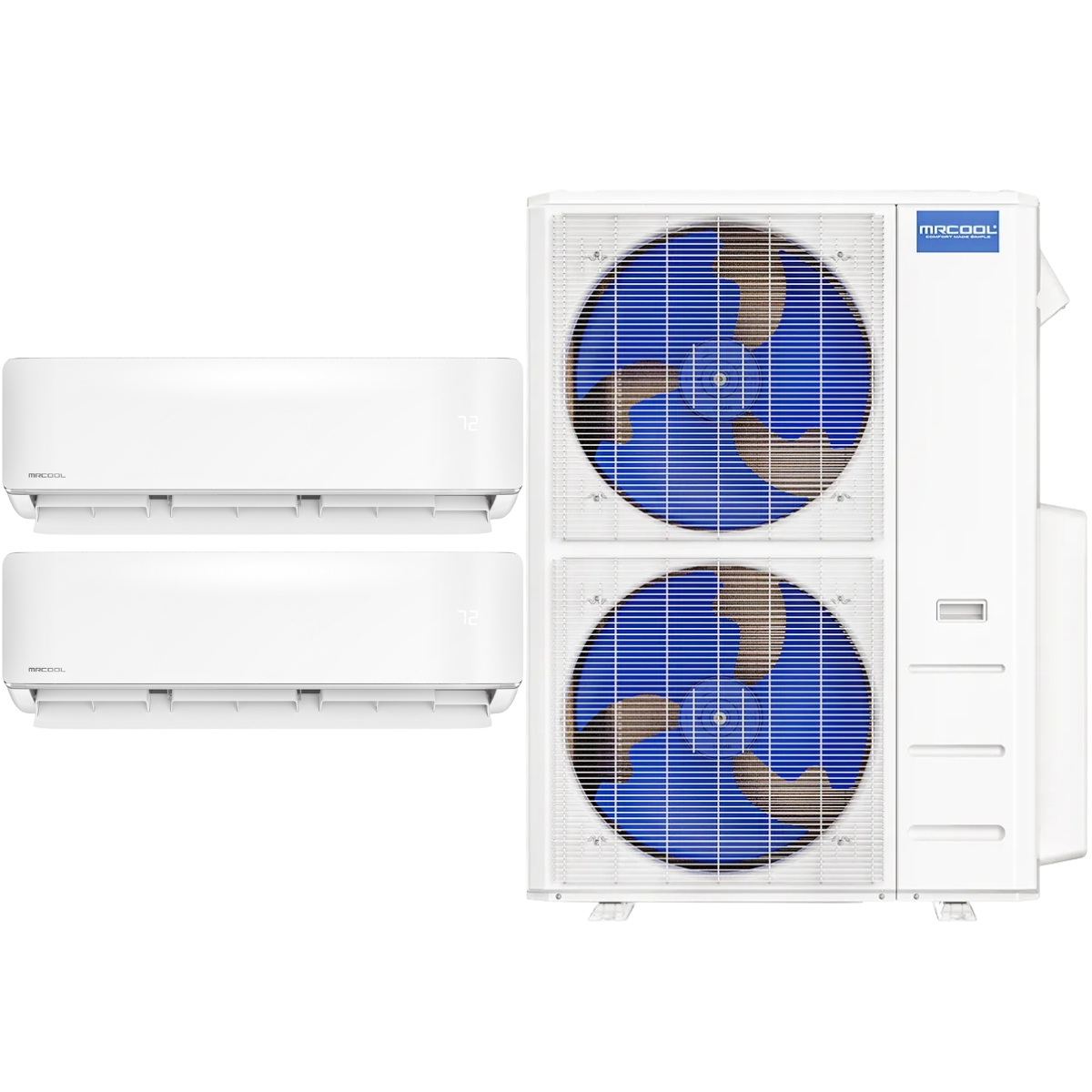

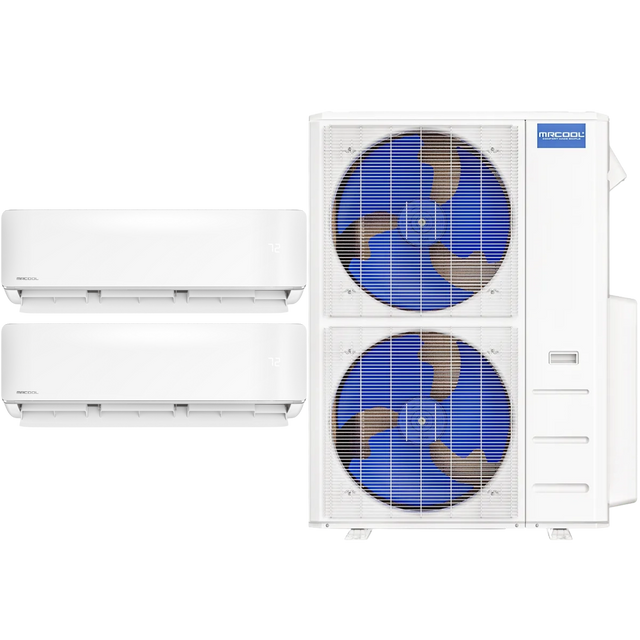

MRCOOL DIY 5th Gen 48,000 BTU Dual Zone Mini Split 24k+ 24k

Name: MRCOOL DIY 5th Gen 48,000 BTU Dual Zone Mini Split 24k+ 24k
Brand: MRCOOL
Price: 5158.0 USD
Availability: InStock

SKU: mr17213k | Model: DIYM248HPW07D

$5,158.00 $5,299.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

MRCOOL DIY 5th Gen 24,000 BTU Air Handler DIY-24-HP-WMAH-230D25-O (2)
MRCOOL DIY 5th Gen 48,000 BTU Outdoor Condenser DIY-MULTI6-48HP230D-O (1)
Remote Control (2)
Wi-Fi Controller Kit
16-Foot Drain Hose
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

The MRCOOL DIY 5th Gen 48,000 BTU Dual Zone Mini Split offers an easy way to provide personalized, energy-efficient heating and cooling for two 1,050 square foot rooms without needing professional installation.

This dual-zone system is perfect for homeowners seeking the versatility of a mini split AC heat pump, but without the added cost of hiring an HVAC installer. It ensures year-round comfort while keeping both installation and operating expenses low.

WARNING: This system REQUIRES two MRCOOL DIY 5th Generation 3/8 x 5/8" Line Sets (Not Included). Older versions/other brands of 3/8 x 5/8-inch line sets are not compatible with this system and will not work for installation.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Two Independent Zones: Personalized comfort is ensured with two 24,000 BTU air handlers, enabling individual temperature settings in different areas like bedrooms, offices, or living spaces.
High Efficiency: Using DC inverter technology, this system dynamically adjusts output to maintain consistent comfort in both cooling and heating modes, reducing energy consumption. It features a 21.8 SEER2 and 12 EER2 for cooling, and a 10 HSPF2-4 and 7.8 HSPF2-5 for heating.
Superior Low-Temp Performance: Ideal for four-season climates, the system offers comfort even in extreme temperatures down to -13 degrees F, thanks to its low-ambient heating and cooling capabilities.
Smartphone Control: Settings, schedules, and performance monitoring can be managed remotely through the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser is equipped with a protective coating that resists salt and moisture, which helps to extend the system's lifespan, particularly in coastal or damp environments.
Smart Alerts: Built-in sensors detect refrigerant loss, and the system automatically resumes operation after power outages, protecting both comfort and equipment.
Follow Me Sensor: The handheld remote precisely measures the temperature where you are, rather than solely at the wall unit. This helps to eliminate uncomfortable hot and cold spots.

Sylvane's Expert Take

The MRCOOL 5th Gen system offers DIY enthusiasts a user-friendly and cost-effective solution for year-round climate control. This mini-split kit eliminates professional installation expenses and provides efficient heating and cooling for two separate areas. Its high SEER2 rating and Energy Star certification make it a smart upgrade, while ease of use is boosted by Wi-Fi controls and Follow Me sensing.

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

21.8
Total Cooling Capacity (BTUs)

43000
Total Heating Capacity (BTUs)

48000

General

Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

64
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

2
Recommended Coverage Area (sq. ft.)

2800
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

24000
Zone Heating Capacity (BTUs)

24000
