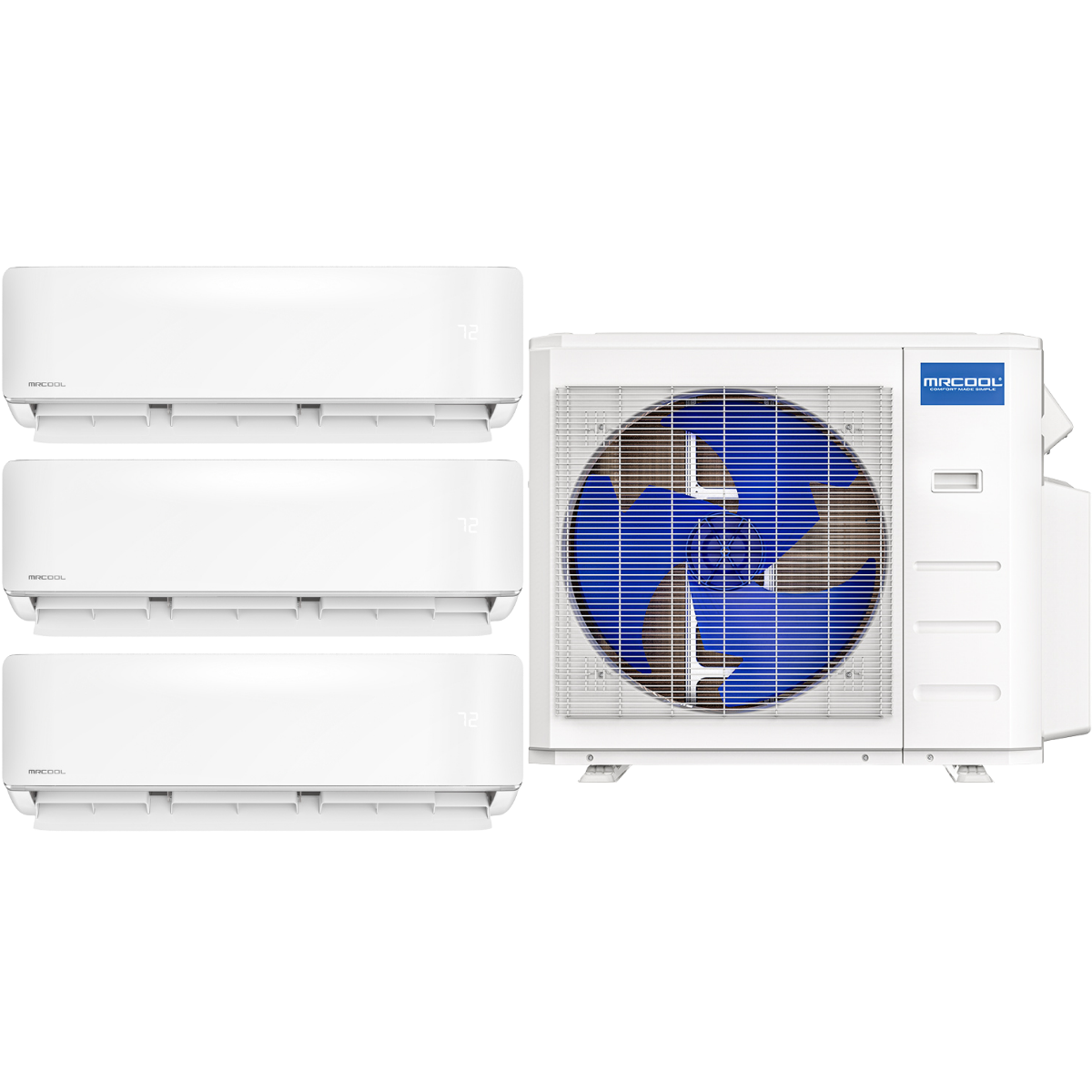

MRCOOL DIY 5th Gen 27,000 BTU Tri-Zone Mini Split 9k + 9k+ 9k

Name: MRCOOL DIY 5th Gen 27,000 BTU Tri-Zone Mini Split 9k + 9k+ 9k
Brand: MRCOOL
Price: 3696.0 USD
Availability: InStock

SKU: mr17222k | Model: DIYM327HPW05D

$3,696.00 ~~$3,999.00~~

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

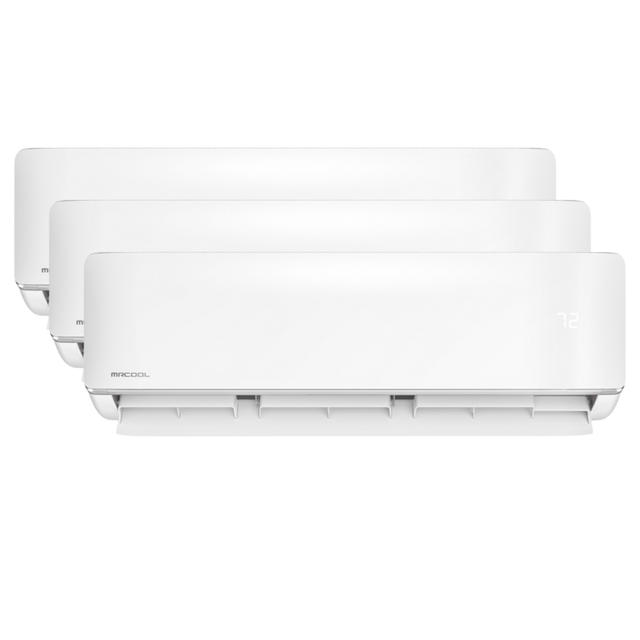

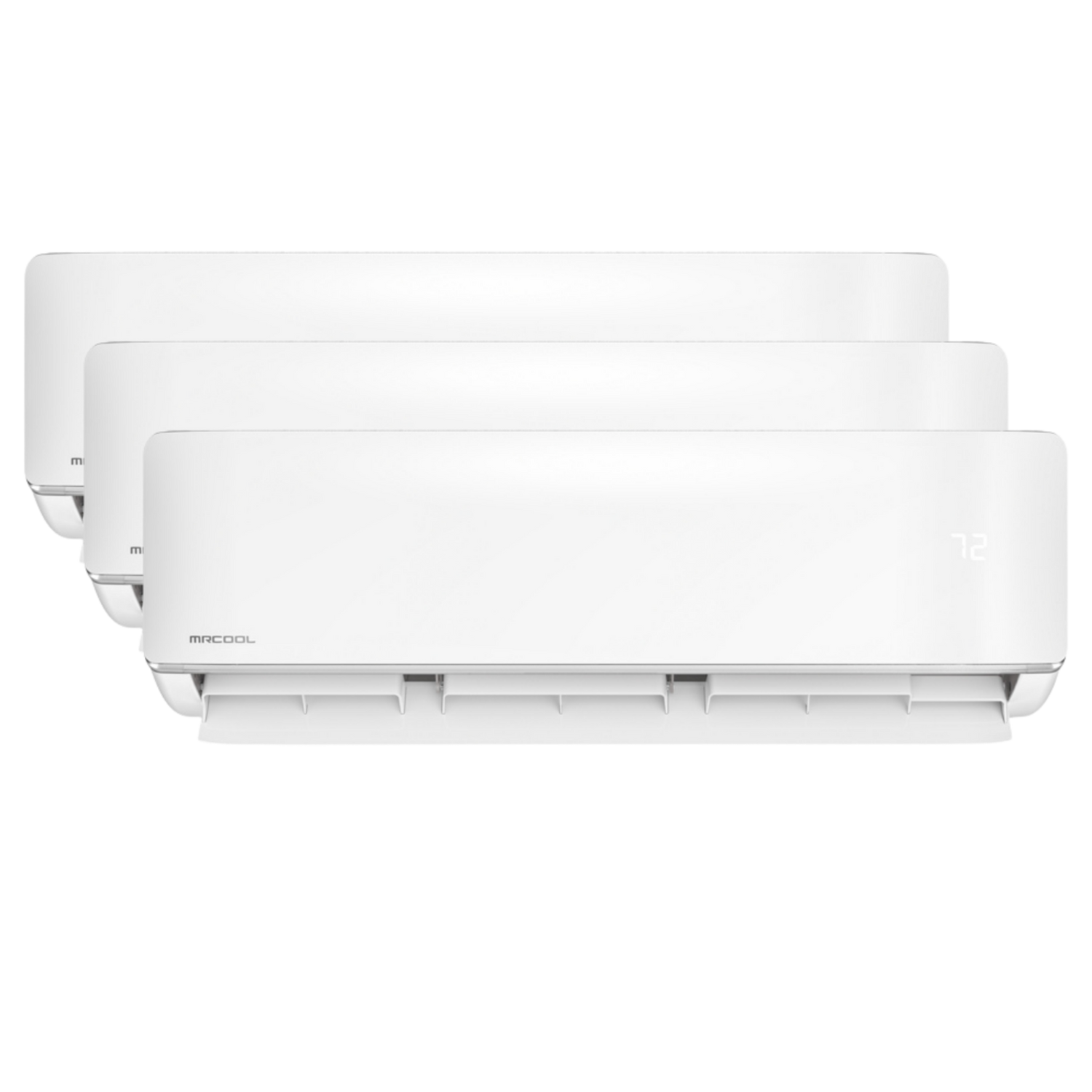

MRCOOL DIY 5th Gen 9,000 BTU Air Handler DIY-09-HP-WMAH-230D25-O (3)
MRCOOL DIY 5th Gen 18,000 BTU Condenser DIY-MULTI4-27HP230D-O (1)
Remote Control
Smart HVAC Module
Owner’s Manual and Installation Guide

Info & Guides

Description

The MRCOOL DIY 5th Gen 27,000 BTU Tri-Zone Mini Split is a cost-effective heating and cooling solution for three small rooms, providing year-round comfort without requiring professional HVAC installation.

This mini-split AC heat pump system is designed for homeowners seeking personalized, energy-efficient comfort with low installation and operating expenses.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Independent Zones: Three 9,000 BTU air handlers allow for individualized temperature control in various 400 square foot spaces like bedrooms, offices, or living areas, ensuring personalized comfort.
High Efficiency: Equipped with DC inverter technology, this system ensures consistent comfort while reducing energy consumption for both cooling and heating. It achieves remarkable efficiency with ratings of 25 SEER2 and 12 EER2 for cooling, and 9.5 HSPF2-4 and 7 HSPF2-5 for heating.
Superior Low-Temp Performance: This system ensures year-round comfort, offering heating and cooling even in extreme temperatures down to -13 degrees Fahrenheit.
Smartphone Control: Monitor and control settings, schedules, and performance remotely via the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser features a protective coating that resists salt and moisture, which extends the system's lifespan, especially in humid or coastal areas.
Smart Alerts: The system features built-in sensors that detect refrigerant loss. It also automatically restarts after power outages, ensuring continuous comfort and protecting the equipment.
Follow Me Sensor: Enjoy consistent comfort with the handheld remote, which precisely measures the temperature right where you are. This eliminates uncomfortable hot and cold spots common with traditional wall-mounted units.

Note: This system requires three MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit offers an excellent and affordable DIY solution for year-round climate control. This system efficiently heats and cools three separate zones and can be installed without professional assistance.

This intelligent cooling system features a high SEER2 rating and Energy Star certification. Enhanced user convenience is also provided through features such as Wi-Fi control and Follow Me sensing.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

23
Total Cooling Capacity (BTUs)

26000
Total Heating Capacity (BTUs)

26000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

61
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

3
Recommended Coverage Area (sq. ft.)

1125
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

9000
Zone Heating Capacity (BTUs)

9000
