MRCOOL DIY 5th Gen 36,000 BTU Tri-Zone Mini Split 12k +12k+12k

Name: MRCOOL DIY 5th Gen 36,000 BTU Tri-Zone Mini Split 12k +12k+12k
Brand: MRCOOL
Price: 4610.0 USD
Availability: InStock

SKU: mr17225k | Model: DIYM336HPW12D

$4,610.00 ~~$4,799.00~~

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

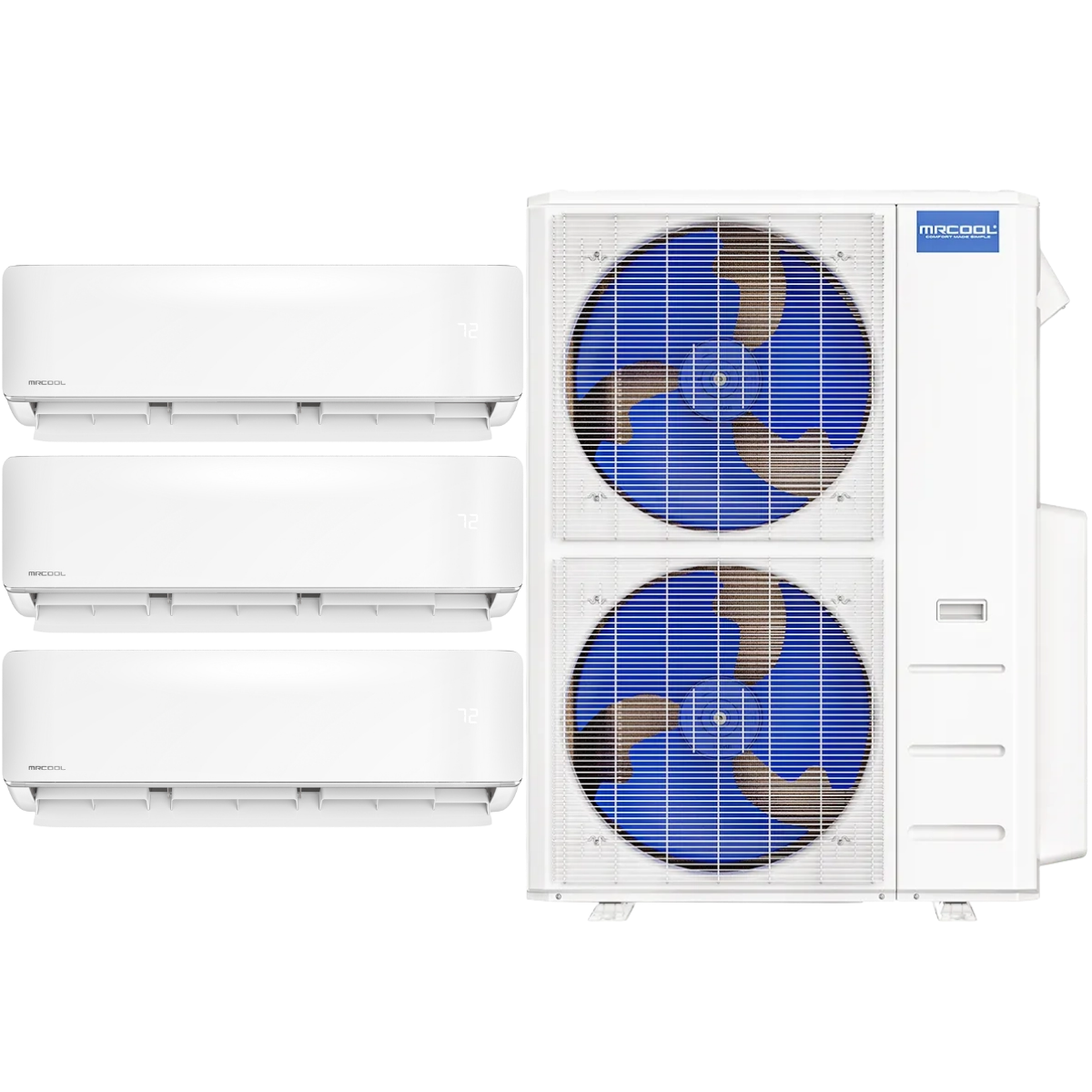

What's In The Box?

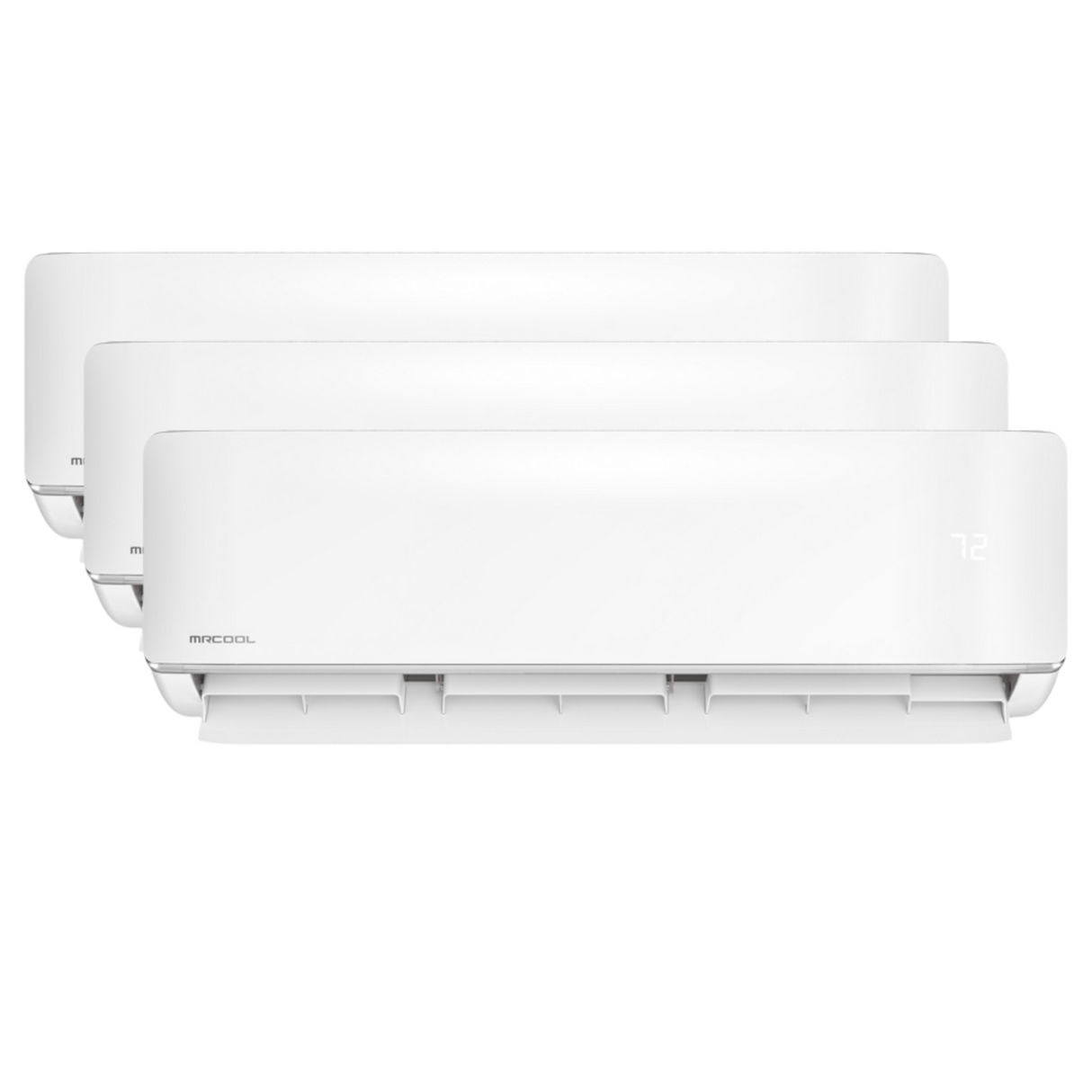

MRCOOL DIY 5th Gen 12,000 BTU Air Handler DIY-12-HP-WMAH-230D25-O (3)
MRCOOL DIY 5th Gen 36,000 BTU Condenser DIY-MULTI5-36HP230D-O (1)
Remote Control
Smart HVAC Module
Owner’s Manual and Installation Guide

Info & Guides

Description

The MRCOOL DIY 5th Gen 36,000 BTU Tri-Zone Mini Split offers a cost-effective heating and cooling solution for three spaces. Homeowners can enjoy personalized, energy-efficient comfort year-round without the need for professional HVAC installation, leading to low installation and operating expenses.

Key Features and Benefits of the MRCOOL Tri-Zone DIY 5th Gen Mini Split

Independent Zones: Maintain personalized comfort in three separate 550-square-foot areas, such as bedrooms, offices, or living spaces, with three 12,000 BTU air handlers that offer individualized temperature control.
High Efficiency: Utilizing DC inverter technology, this system delivers consistent comfort while significantly lowering energy usage for both cooling and heating. It boasts impressive efficiency ratings: 23 SEER2 and 12 EER2 for cooling, and 9.9 HSPF2-4 and 7.5 HSPF2-5 for heating.
Superior Low-Temp Performance: Enjoy comfort all year long with this system, which provides heating and cooling capabilities in temperatures as low as -13 degrees Fahrenheit.
Smartphone Control: Effortlessly manage settings, schedules, and performance from anywhere using the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser's protective coating resists salt and moisture, prolonging the system's lifespan, particularly in humid or coastal regions.
Smart Alerts: Built-in sensors detect refrigerant loss, and the system automatically restarts after power outages, ensuring continuous comfort and equipment protection.
Follow Me Sensor: Maintain consistent comfort using the handheld remote, which accurately measures the temperature at your exact location. This feature helps to eliminate the common hot and cold spots associated with traditional wall-mounted units.

Note: This system requires three MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).

Faster Comfort, Lower Costs

The MRCOOL 5th Gen DIY series offers a straightforward air conditioner installation process, eliminating the need for specialized tools, vacuum pumps, or licensed installers.

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit provides an excellent and affordable DIY solution for year-round climate control. This system efficiently heats and cools three separate zones and can be installed without professional assistance.

This intelligent upgrade offers enhanced user convenience through features such as Wi-Fi control and Follow Me sensing. It also features a high SEER2 rating and Energy Star certification.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

23
Total Cooling Capacity (BTUs)

34000
Total Heating Capacity (BTUs)

36000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

64
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

3
Recommended Coverage Area (sq. ft.)

1500
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

12000
Zone Heating Capacity (BTUs)

12000
