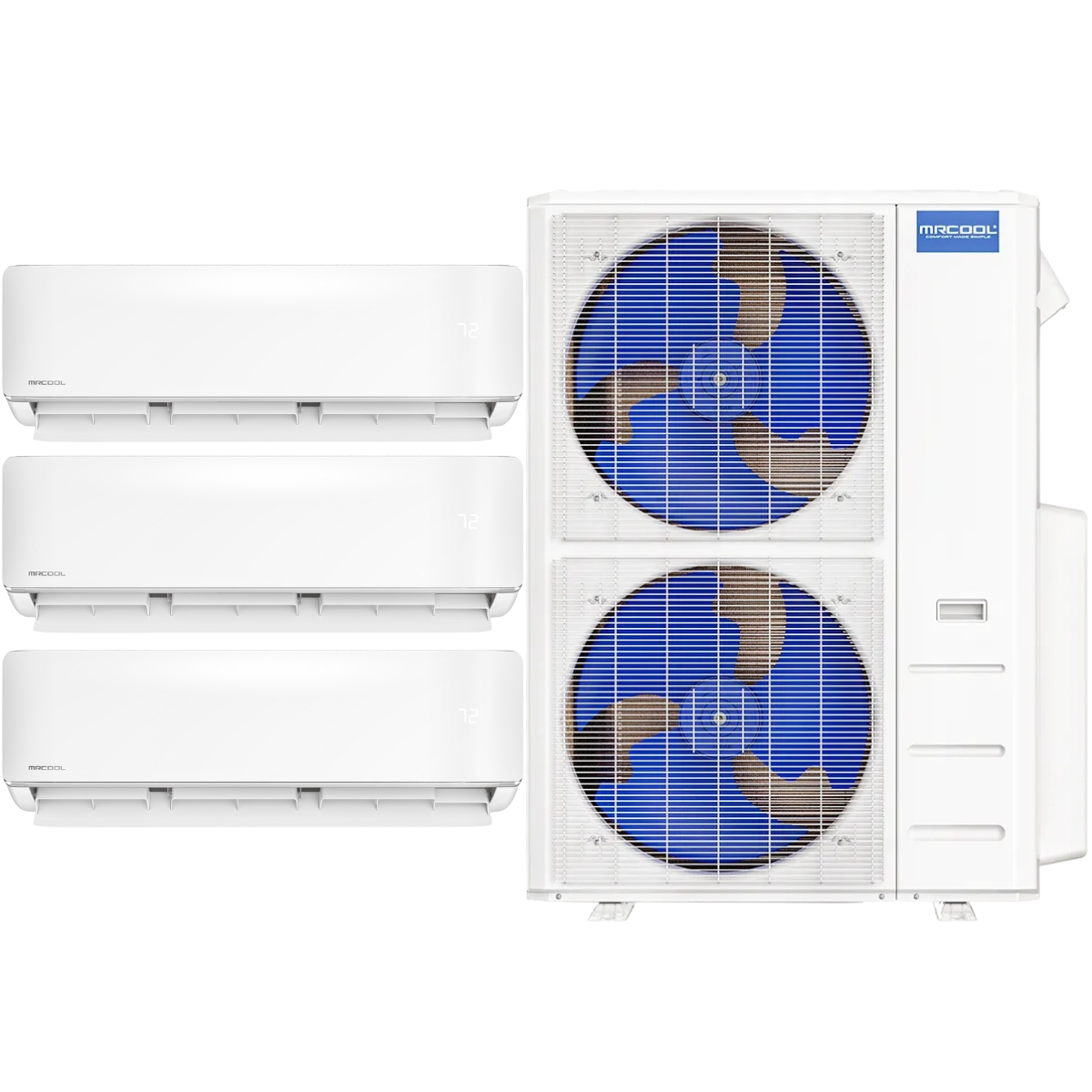

MRCOOL DIY 5th Gen 48,000 BTU Tri-Zone Mini Split 12k + 12k + 24k

SKU: mr17228k  |  Model: DIYM348HPW16D
$5,571.00 $5,899.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

  • MRCOOL DIY 5th Gen 12,000 BTU Air Handler DIY-12-HP-WMAH-230D25-O (2)
  • MRCOOL DIY 5th Gen 24,000 BTU Air Handler DIY-24-HP-WMAH-230D25-O (1)
  • MRCOOL DIY 5th Gen 48,000 BTU Condenser DIY-MULTI6-48HP230D-O (1)
  • Remote Control
  • Smart HVAC Module
  • Owner’s Manual and Installation Guide

Description

The MRCOOL DIY 5th Gen 48,000 BTU Tri-Zone Mini Split provides an economical heating and cooling option for up to three medium to large rooms. With this system, homeowners can achieve customized, energy-efficient comfort throughout the year without requiring professional HVAC installation, resulting in reduced installation and operating costs.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

  • Independent Zones: Maintain personalized comfort in two 500 square foot spaces and one 1,050 square foot space, like bedrooms, offices, or living spaces, with two 12,000 BTU air handlers and one 24,000 BTU air handler.
  • High Efficiency: This system uses DC inverter technology to provide continuous comfort and significantly reduce energy consumption for both cooling and heating. It has excellent efficiency ratings: 21.8 SEER2 and 12 EER2 for cooling, and 10 HSPF2-4 and 7.8 HSPF2-5 for heating.
  • Superior Low-Temp Performance: This system offers year-round comfort with heating and cooling capabilities, even in temperatures as low as -13 degrees Fahrenheit.
  • Smartphone Control: Effortless management of settings, schedules, and performance is available from any location through the MRCOOL app, Amazon Alexa, or Google Assistant.
  • Gold Fin Protection: The outdoor condenser's protective coating resists salt and moisture, prolonging the system's lifespan, particularly in humid or coastal regions.
  • Smart Alerts: Continuous comfort and equipment protection are ensured by built-in sensors that detect refrigerant loss and an automatic restart system that activates after power outages.
  • Follow Me Sensor: The handheld remote ensures consistent comfort by precisely measuring the temperature at your location, thereby eliminating the common hot and cold spots found with traditional wall-mounted units.

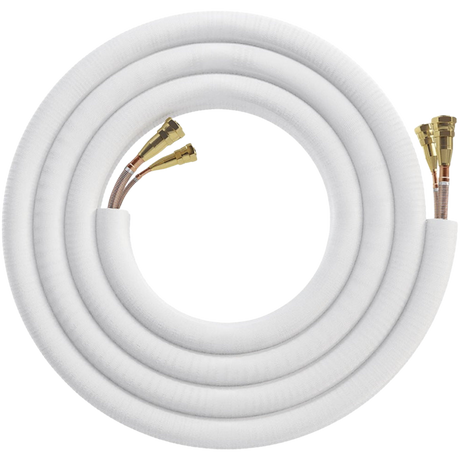

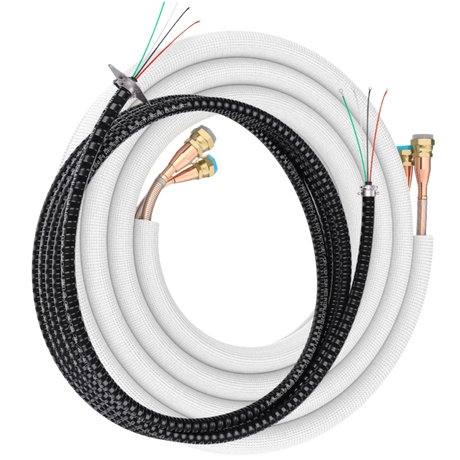

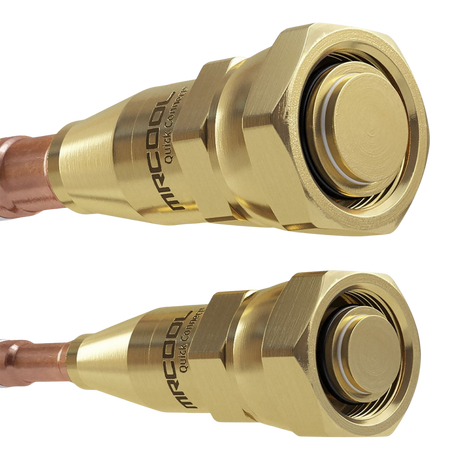

Note: Each 12,000 BTU air handler requires a MRCOOL DIY 5th Generation 1/4 x 3/8 Line Set, while the 24,000 BTU air handler requires a MRCOOL DIY 5th Generation 3/8 x 5/8 Line Set (Not Included).

Faster Comfort, Lower Costs

The MRCOOL 5th Gen DIY series simplifies air conditioner installation, eliminating the need for specialized tools, vacuum pumps, or licensed installers.

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit is an excellent and affordable DIY solution for year-round climate control, capable of heating and cooling three separate zones without professional installation.

This intelligent system offers enhanced user convenience with features like Wi-Fi control and Follow Me sensing. It also boasts a high SEER2 rating, Energy Star certification, and eligibility for potential tax credits.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      12
    • Mounting Type
      Wall
    • Number of Speeds
      5
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      21.8
    • Total Cooling Capacity (BTUs)
      43000
    • Total Heating Capacity (BTUs)
      48000

    General

    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      AHRI, ETL, UL
    • Color
      White
    • Compressor Type
      Rotary
    • Heat Mode
      Yes
    • Installation Type
      Do-It-Yourself (DIY)
    • Line Length Option
      25 ft
    • Maximum Indoor Noise Level (dB)
      64
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      -22
    • Minimum Operating Temperature - Heating (degrees F)
      -22
    • Number of Zones
      3
    • Recommended Coverage Area (sq. ft.)
      2000
    • Refrigerant Type
      R-454B
    • Zone Cooling Capacity (BTUs)
      24000 12000
    • Zone Heating Capacity (BTUs)
      24000 12000

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      8.9 7.44
    • Indoor Unit Height (in.)
      13.19 11.63
    • Indoor Unit Weight (lbs.)
      35.93 24.47
    • Indoor Unit Width (in.)
      42.52 31.57
    • Maximum Line Length (ft.)
      221.4
    • Outdoor Unit Depth (in.)
      16.34
    • Outdoor Unit Height (in.)
      52.48
    • Outdoor Unit Weight (lbs.)
      223.77
    • Outdoor Unit Width (in.)
      37.48

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty
