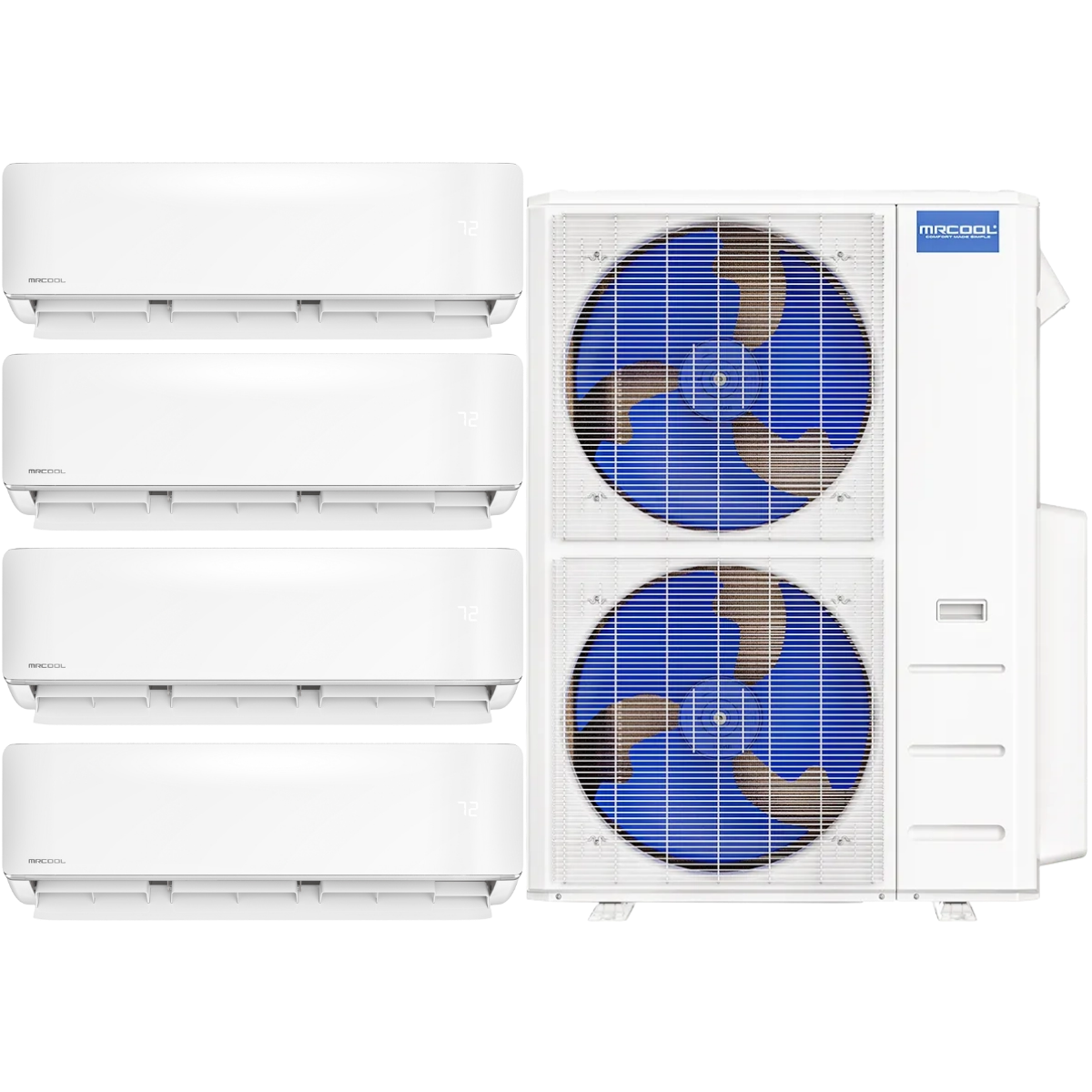

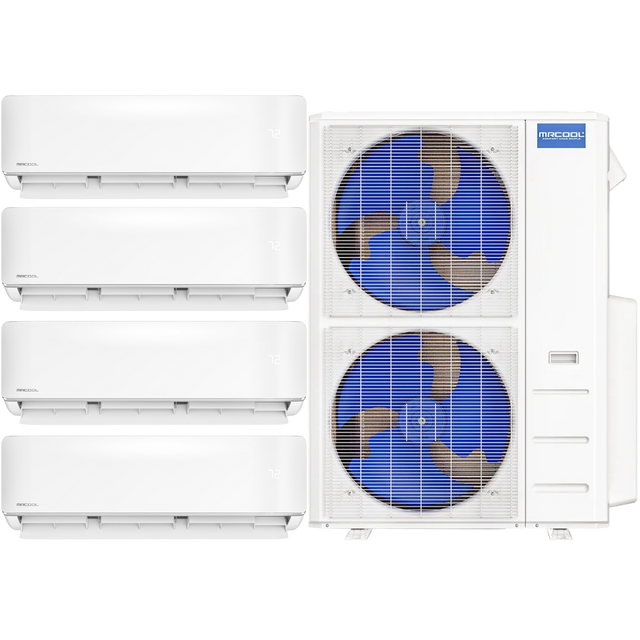

MRCOOL DIY 5th Gen 36,000 BTU Quad-Zone Mini Split 9k + 9k + 9k+ 9k

Name: MRCOOL DIY 5th Gen 36,000 BTU Quad-Zone Mini Split 9k + 9k + 9k+ 9k
Brand: MRCOOL
Price: 4671.0 USD
Availability: InStock

SKU: mr17232k | Model: DIYM436HPW09D

$4,671.00 ~~$4,899.00~~

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

MRCOOL DIY 5th Gen 9,000 BTU Air Handler DIY-09-HP-WMAH-230D25-O (4)
MRCOOL DIY 5th Gen 48,000 BTU Condenser DIY-MULTI5-36HP230D-O (1)
Remote Control
Smart HVAC Module
Owner’s Manual and Installation Guide

Info & Guides

Description

The MRCOOL DIY 5th Gen 36,000 BTU Quad-Zone Mini Split offers an affordable heating and cooling solution for four small 400 square foot spaces. Homeowners can enjoy personalized, energy-efficient comfort year-round without the need for professional HVAC installation, which lowers both installation and operating costs.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Independent Zones: Customize the comfort of rooms up to 1,800 square feet, with four 9,000 BTU air handlers. These are ideal for bedrooms, offices, or living spaces, providing individual temperature control for each area.
High Efficiency: Using DC inverter technology, this system delivers consistent comfort and significantly lowers energy consumption for both cooling and heating. It boasts impressive efficiency ratings: 23 SEER2 and 12 EER2 for cooling, and 9.9 HSPF2-4 and 7.5 HSPF2-5 for heating.
Superior Low-Temp Performance: Enjoy comfort all year long with this system's heating and cooling capabilities, effective even in temperatures as low as -13 degrees Fahrenheit.
Smartphone Control: Easily manage settings, schedules, and performance from anywhere using the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser is designed with a protective coating that resists salt and moisture. This feature extends the system's lifespan, especially in humid or coastal areas.
Smart Alerts: Built-in sensors detect refrigerant loss, while an automatic restart system activates after power outages, ensuring continuous comfort and equipment protection.
Follow Me Sensor: Say goodbye to hot and cold spots. The handheld remote precisely measures the temperature where you are, ensuring consistent comfort that traditional wall-mounted units can't provide.

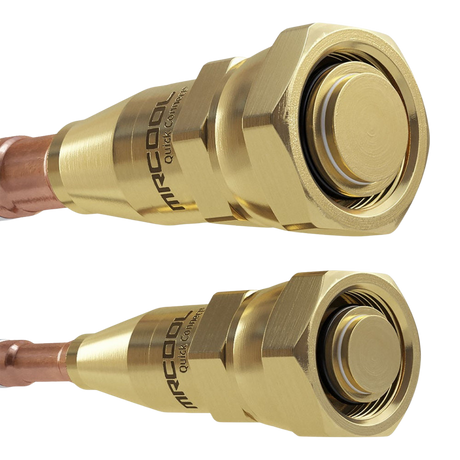

Note: This system requires four MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).

Faster Comfort, Lower Costs

The MRCOOL 5th Gen DIY series offers a simplified air conditioner installation process, eliminating the need for specialized tools, vacuum pumps, or licensed installers.

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit provides an excellent and economical DIY solution for year-round climate control. This system can heat and cool four independent zones without requiring professional installation. Enhanced user convenience is a hallmark of this intelligent system, which includes features like Wi-Fi control and Follow Me sensing. Additionally, it offers a high SEER2 rating and Energy Star certification.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

23
Total Cooling Capacity (BTUs)

34000
Total Heating Capacity (BTUs)

36000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

64
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

4
Recommended Coverage Area (sq. ft.)

1500
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

9000
Zone Heating Capacity (BTUs)

9000
