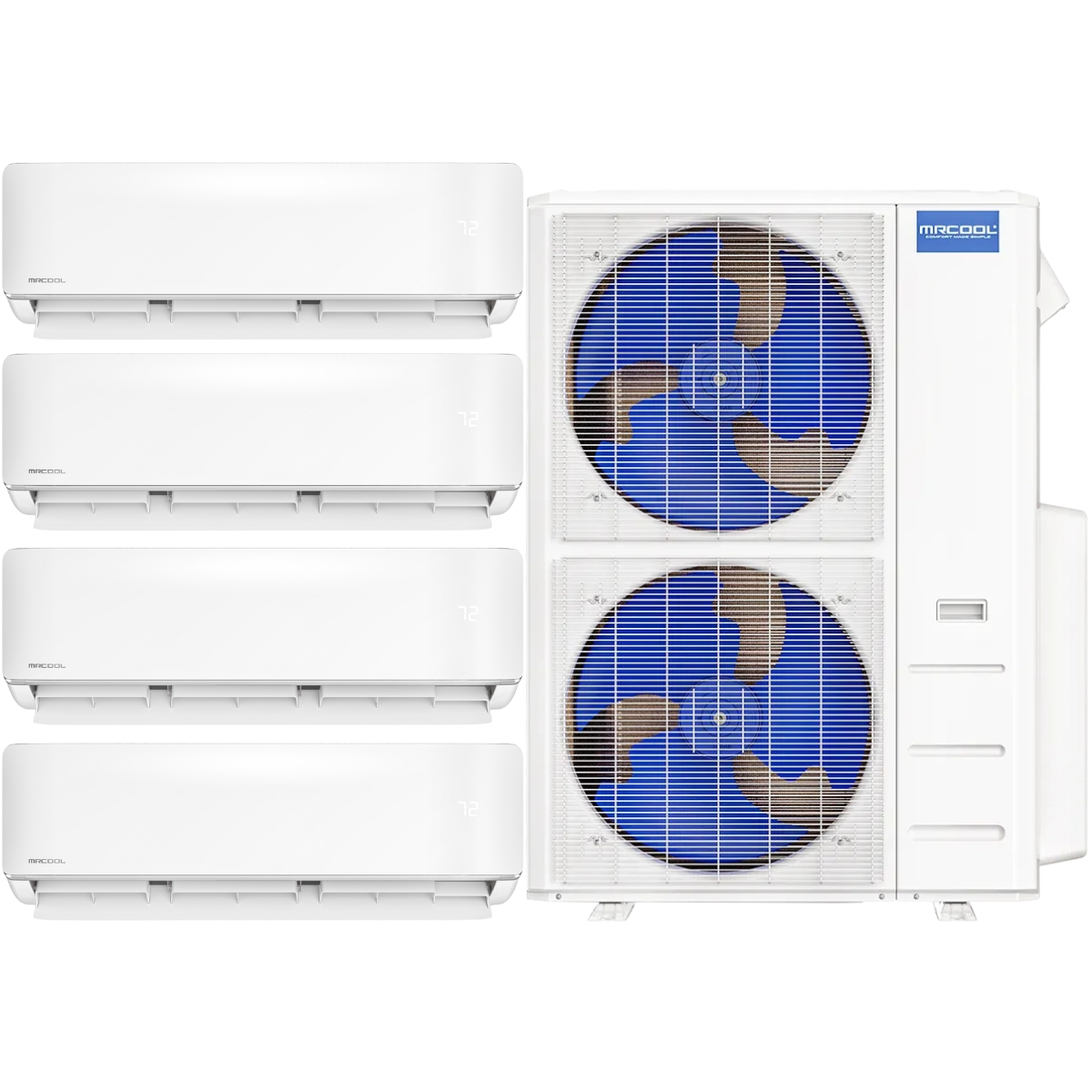

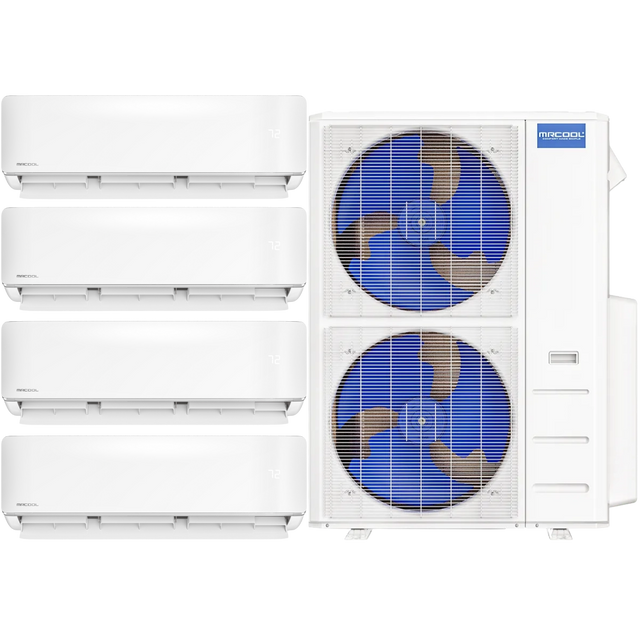

MRCOOL DIY 5th Gen 48,000 BTU Quad-Zone Mini Split 12k +12k + 12k +12k

Name: MRCOOL DIY 5th Gen 48,000 BTU Quad-Zone Mini Split 12k +12k + 12k +12k
Brand: MRCOOL
Price: 5984.0 USD
Availability: InStock

SKU: mr17234k | Model: DIYM448HPW23D

$5,984.00 ~~$6,299.00~~

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

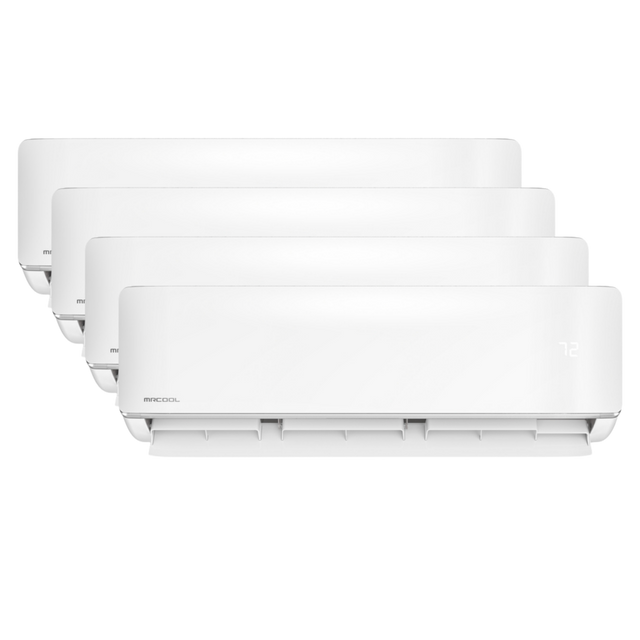

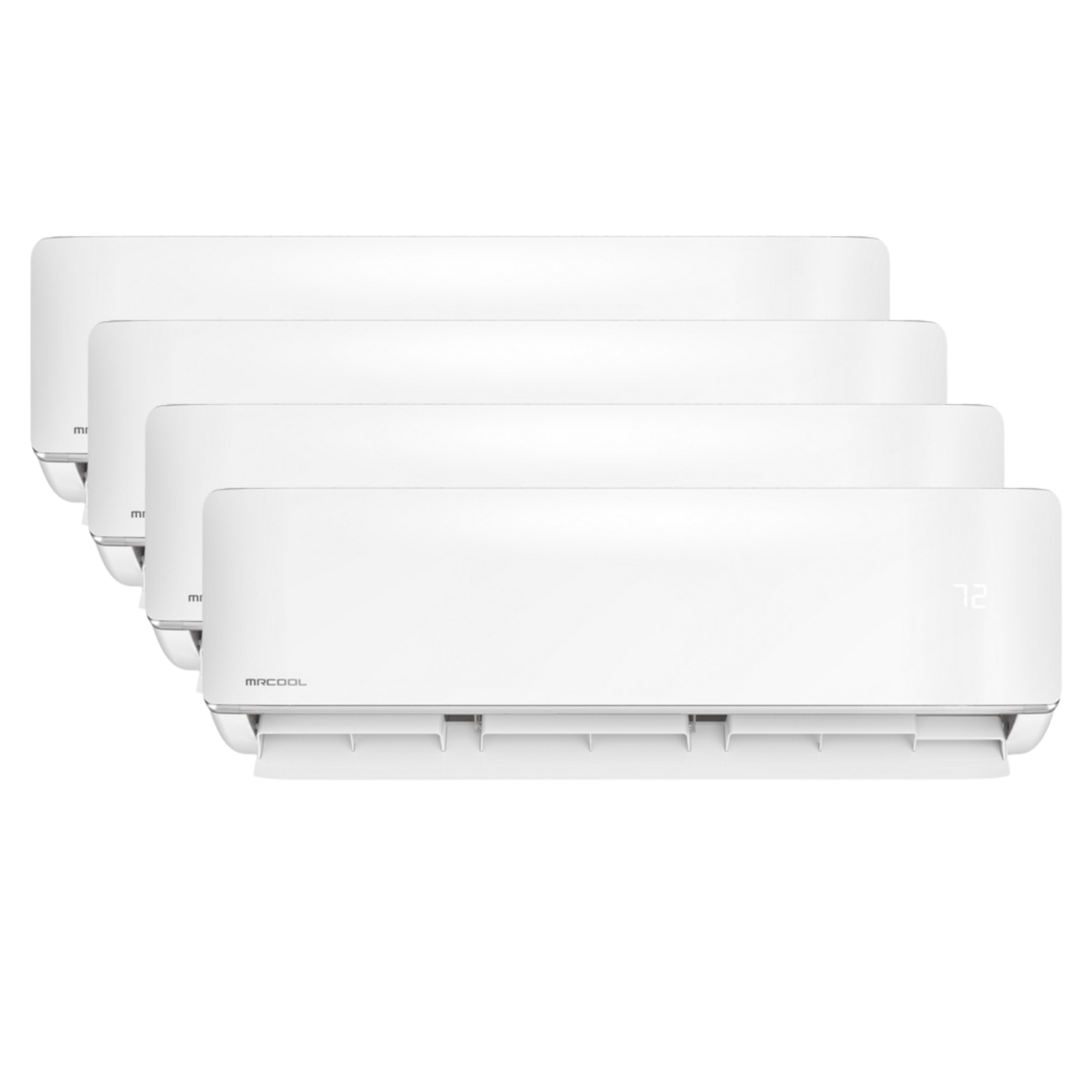

MRCOOL DIY 5th Gen 12,000 BTU Air Handler DIY-12-HP-WMAH-230D25-O (4)
MRCOOL DIY 5th Gen 48,000 BTU Condenser DIY-MULTI6-48HP230D-O (1)
Remote Control
Smart HVAC Module
Owner’s Manual and Installation Guide

Info & Guides

Description

The MRCOOL DIY 5th Gen 48,000 BTU Quad-Zone Mini Split provides an economical way to heat and cool four 550 square foot spaces. This system allows homeowners to achieve customized, energy-efficient comfort throughout the year, eliminating the need for professional HVAC installation, thereby reducing both setup and running expenses.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Independent Zones: Tailor the climate in four separate rooms, covering up to 2,200 square feet, using 12,000 BTU air handlers. Each area, whether a bedroom, office, or living space, will benefit from individual temperature control.
High Efficiency: This system utilizes DC inverter technology to provide consistent comfort and significantly reduce energy consumption for both cooling and heating. It achieves high-efficiency ratings: 21.8 SEER2 and 12 EER2 for cooling, and 10 HSPF2-4 and 7.8 HSPF2-5 for heating.
Superior Low-Temp Performance: This system provides year-round comfort with heating and cooling, functioning effectively in temperatures as low as -13 degrees Fahrenheit.
Smartphone Control: Control settings, schedules, and performance effortlessly from any location via the MRCOOL app, Amazon Alexa, or Google Assistant.
Gold Fin Protection: The outdoor condenser features a protective coating that resists salt and moisture, extending the system's lifespan, particularly in humid or coastal environments.
Smart Alerts: Sensors are built in to detect refrigerant loss, and an automatic restart system activates after power outages, ensuring continuous comfort and protecting the equipment.
Follow Me Sensor: Eliminate uneven temperatures. Unlike traditional wall-mounted units, the handheld remote accurately gauges the temperature at your precise location, guaranteeing consistent comfort.

Note: This system requires four MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).

Faster Comfort, Lower Costs

The MRCOOL 5th Gen DIY series simplifies air conditioner installation, eliminating the need for specialized tools, vacuum pumps, or licensed installers.

Sylvane's Expert Take

The MRCOOL 5th Gen mini-split kit offers an excellent and affordable DIY option for year-round climate control. This smart system provides enhanced user convenience with features like Wi-Fi control and Follow Me sensing.

It can heat and cool four independent zones without requiring professional installation and boasts a high SEER2 rating and Energy Star certification.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

21.8
Total Cooling Capacity (BTUs)

43000
Total Heating Capacity (BTUs)

48000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

64
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

4
Recommended Coverage Area (sq. ft.)

2000
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

12000
Zone Heating Capacity (BTUs)

12000
