MRCOOL 2.5 Ton Universal Series Central Heat Pump Split System

SKU: mr17937  |  Model: UHP1830AH30-O
$4,010.00 $4,099.00
Auxiliary Heat
Line Length

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Parts and Compressor Limited Warranty; 2-Year Labor Limited Warranty

What's In The Box?
  • MRCOOL Universal Series 2.5 Ton Indoor Air Handler UAH18030-O

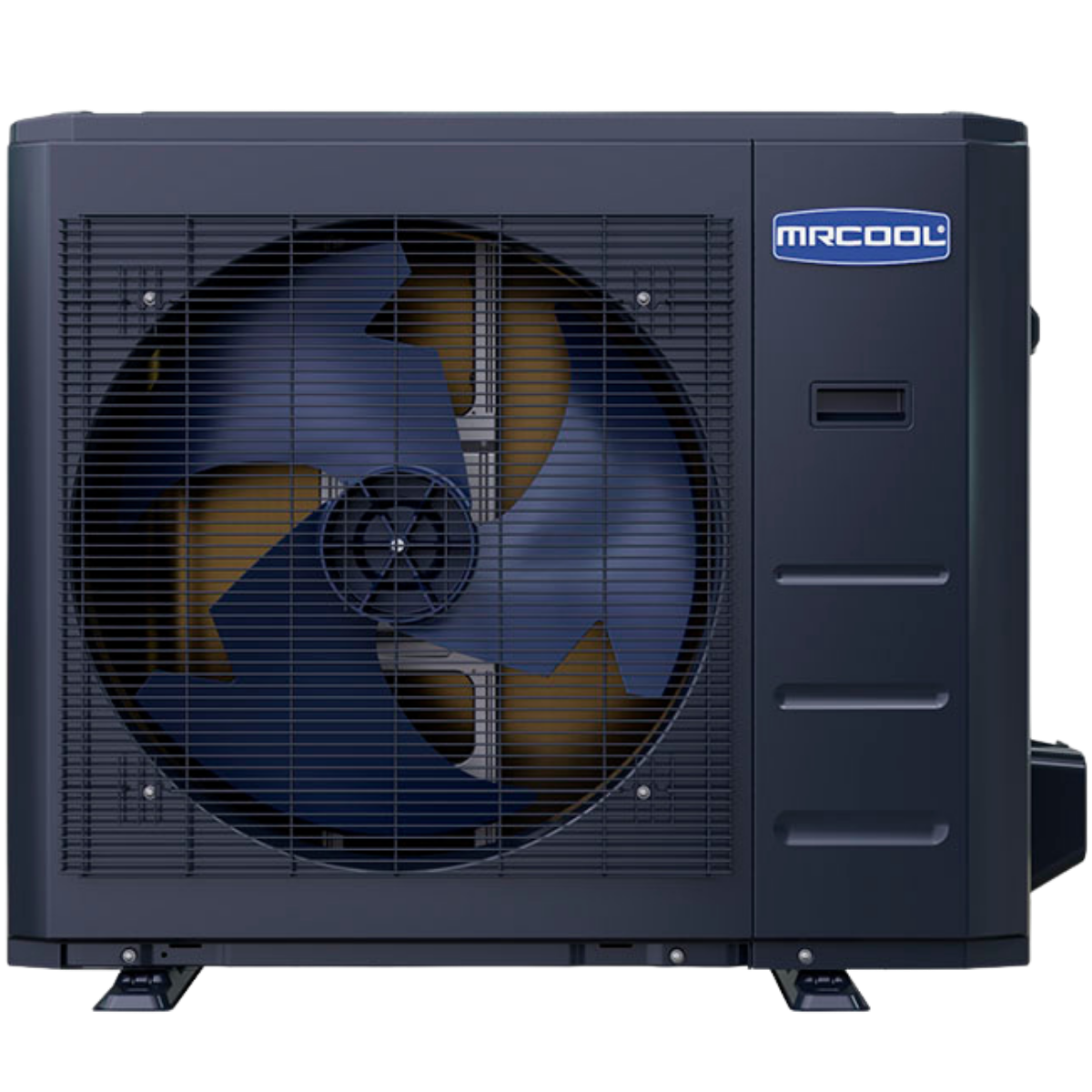

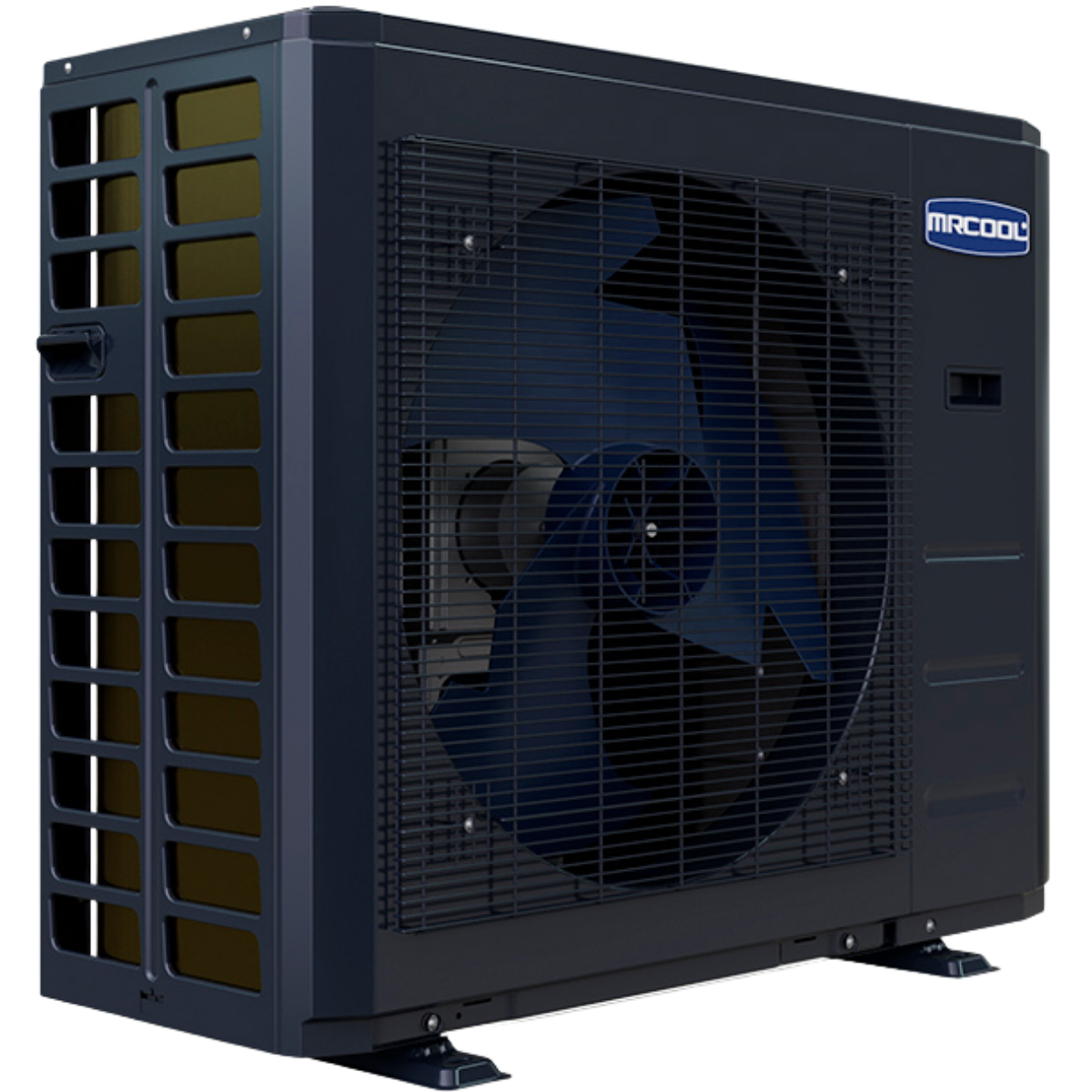

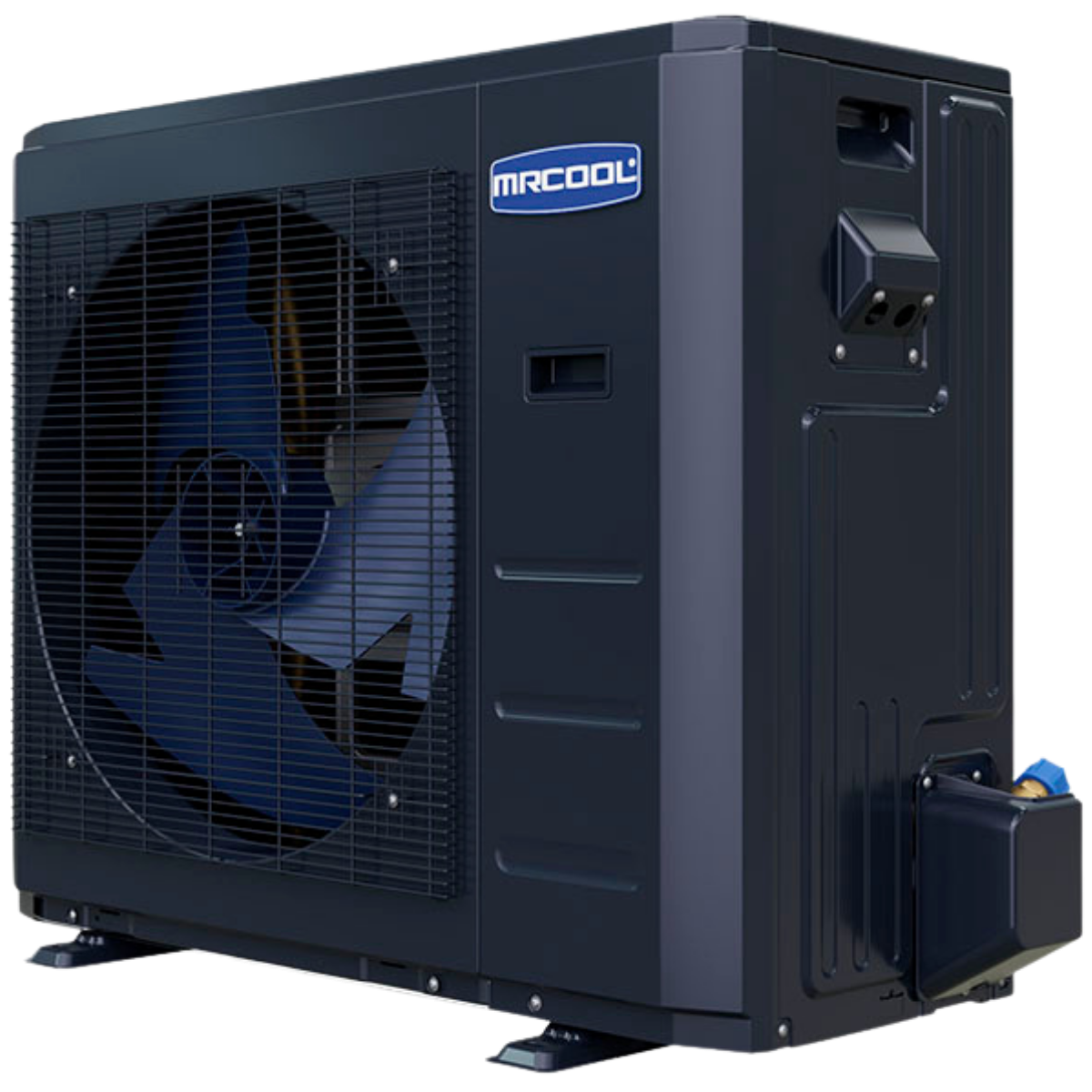

  • MRCOOL Universal Series 2.5 Ton Outdoor Condenser UHP18030-O
  • None, 15, 25, 35, or 50-Foot 3/8 x 3/4-Inch Line Set
  • Air Filter
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Designed for demanding climates and flexible installations, the MRCOOL Universal Series 2.5 Ton Central Heat Pump Split System provides reliable heating and cooling through a compact, two-piece configuration. The inverter-driven outdoor compressor pairs with a versatile air handler to maintain stable comfort while reducing energy consumption.

Whether you're updating an existing forced-air setup or planning a new build, this high-efficiency system integrates seamlessly with standard ductwork and offers the flexibility professionals need to meet modern performance standards.

Key Features and Benefits of the MRCOOL Universal Series 2.5 Ton Central Heat Pump Split System

  • 2.5-Ton Capacity: Delivers up to 30,000 BTUs of cooling and 33,000 BTUs of heating, providing reliable comfort for large residential floor plans and open commercial areas up to 1,450 square feet.
  • Seasonal Efficiency: Rated up to 17.2 SEER cooling efficiency and 10.8 HSPF heating efficiency, with a coefficient of performance up to 2.14 at 5 degrees F, helping you lower utility bills without sacrificing performance.
  • Energy Star: This model is Energy Star-rated and Energy Star Cold Climate-rated.
  • DC Inverter Technology: Modulates from low to high capacity, so you enjoy precise temperature control and reduced energy consumption during mild weather.
  • Quiet Operation: Sound levels as low as 31 dB inside and 62 dB outside minimize noise, making it both living room and neighborhood-friendly.
  • Multi-Position Air Handler: The Universal Series air handler can be installed in vertical or horizontal configurations, giving you greater flexibility in tight mechanical rooms and attics.
  • R-454B Refrigerant: Uses the A2L R-454B refrigerant that meets current U.S. Environmental Protection Agency (EPA) standards for ozone protection.
  • Compact Outdoor Footprint: The slim air handler design fits on narrow pads and leaves more clearance for landscaping or walkways.
  • Optional Pre-Charged Line Sets: Choose between a 15, 25, 35, or 50-foot 3/8 x 3/4" line set. It's also offered without a line set.

Note: This central ducted split system requires professional installation.

Cold-Climate Ready

This 2.5 Ton split system is designed for locations where winter temperatures routinely drop below zero. The MRCOOL Universal system maintains a 100 percent heating output in as little as -14 degrees F. It can heat in a reduced-capacity mode down to -22 degrees F and cool effectively up to 122 degrees F. Upgrade the heat pump output with a 10kW, 15kW, or 20kW supplemental auxiliary heat kit, featuring a slide-out design for easy installation and maintenance.

Sylvane’s Expert Take

The MRCOOL Universal Series 2.5 Ton Central Heat Pump Split System stands out for pairing true cold-climate performance with an installer-friendly design. We appreciate the dual-position air handler, narrow width, and optional pre-charged line sets and supplemental heater, which make retrofits straightforward, and the efficiency ratings, which support aggressive energy goals. For professionals who need dependable heating and cooling without complex field modifications, the MRCOOL Universal Series 2.5 Ton system is a strong choice.
