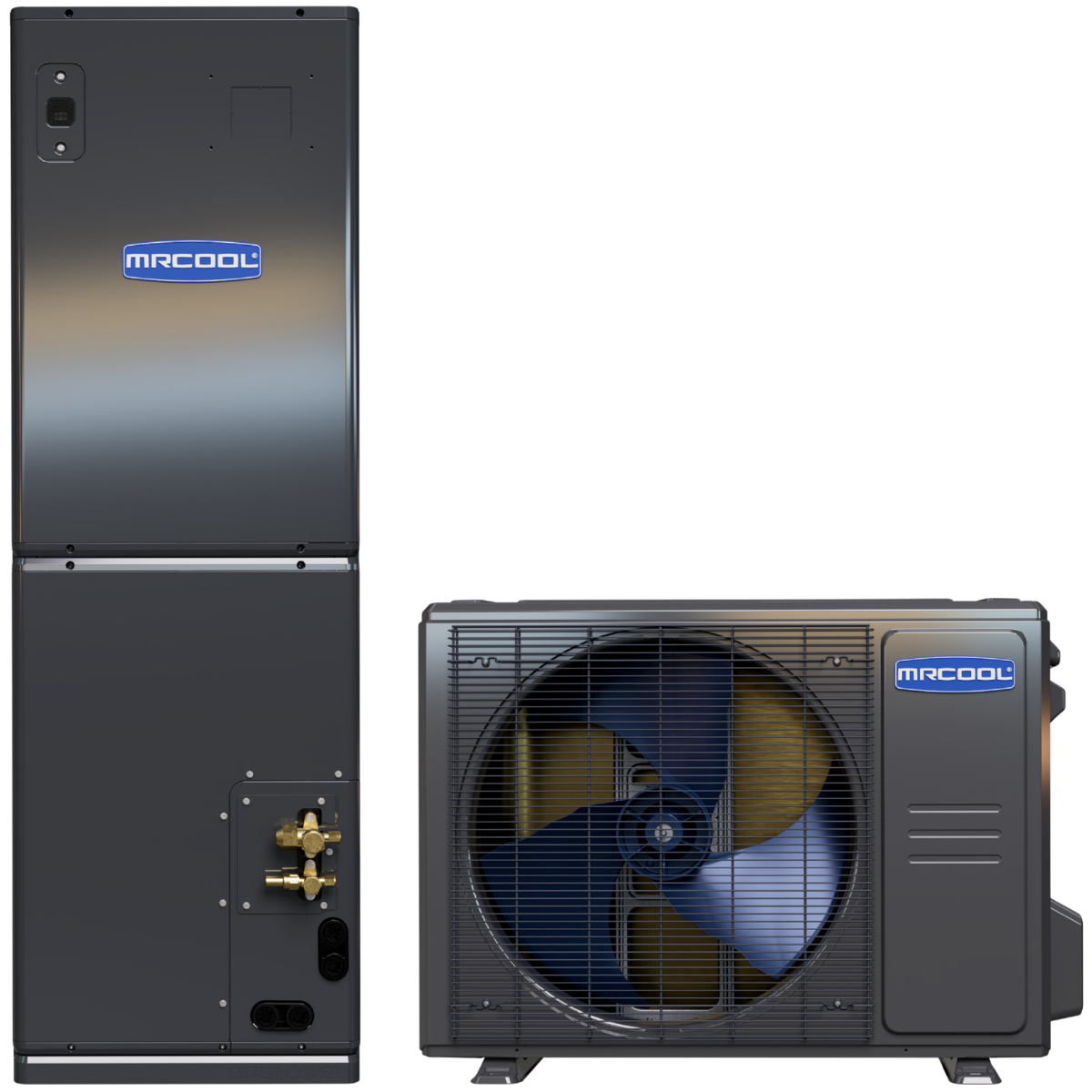

MRCOOL Universal Series 2 Ton Central Heat Pump Split System

SKU: mr17912  |  Model: UHP1824AH1824-O
$3,601.00 $3,699.99
Auxiliary Heat
Line Length

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Parts and Compressor Limited Warranty; 2-Year Labor Limited Warranty

What's In The Box?
  • MRCOOL Universal Series 2 Ton Indoor Air Handler UAH18024-O

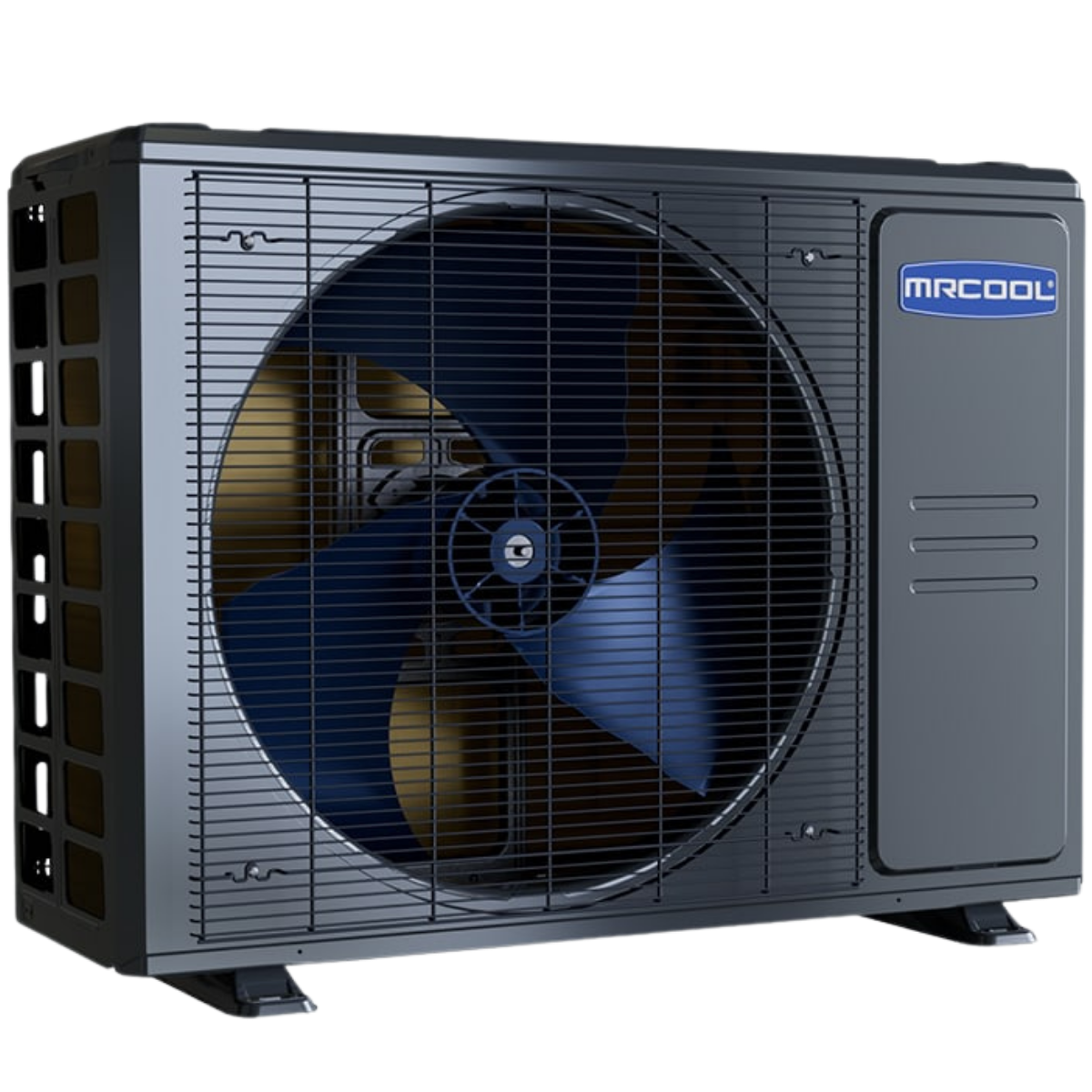

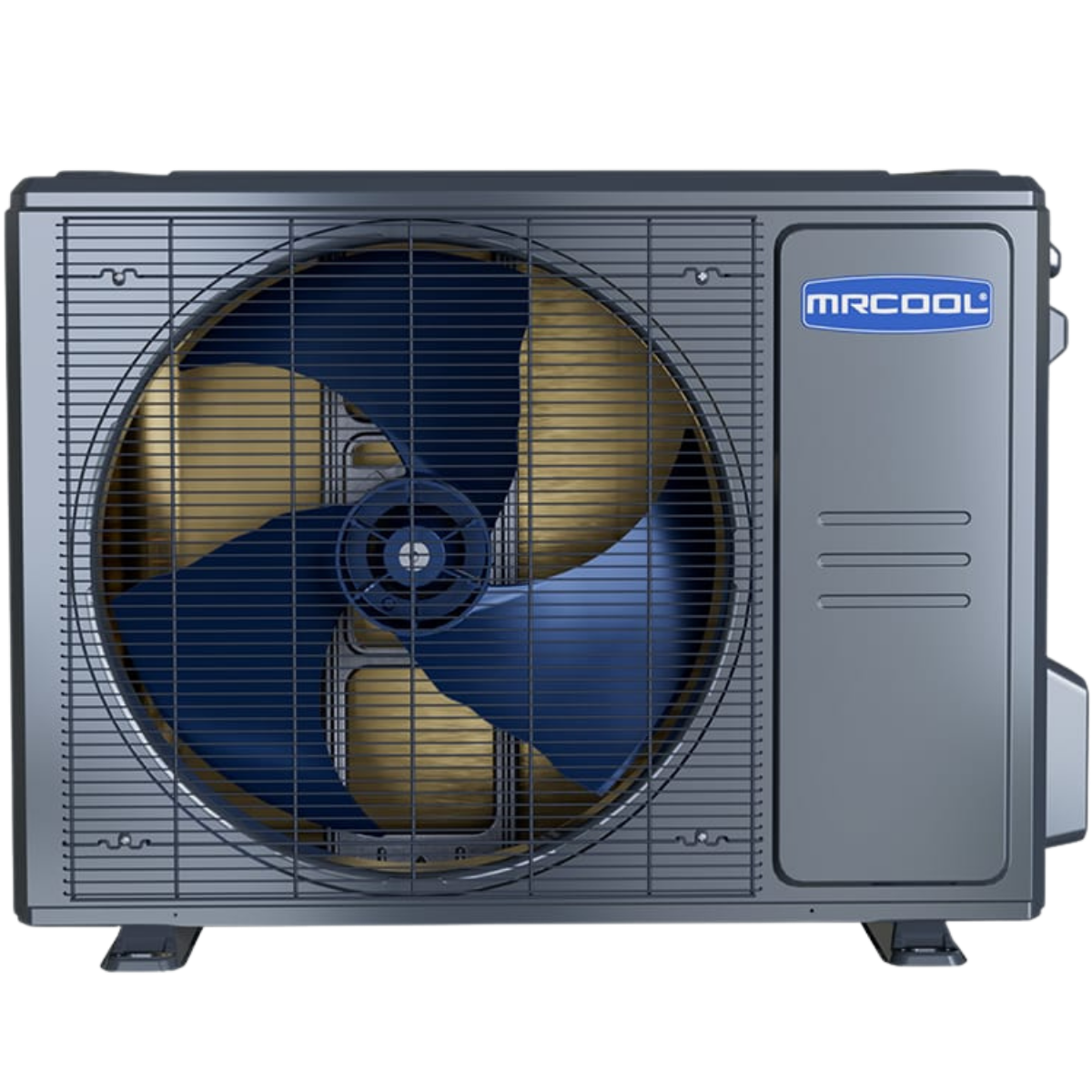

  • MRCOOL Universal Series 2 Ton Outdoor Condenser UHP18024-O
  • None, 15, 25, 35, or 50-Foot 3/8 x 3/4-Inch Line Set",
  • Air Filter
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Reliable year-round climate control for smaller homes, additions, and light commercial spaces, the MRCOOL Universal Series 2 Ton Central Heat Pump Split System delivers efficient heating and cooling in a compact package. Built around inverter technology and an all-aluminum coil, this two-piece system is engineered for straightforward installation and consistent performance.

With its multi-voltage air handler and outdoor condenser using low-GWP R-454B refrigerant, the Universal Series 2 Ton Central Heat Pump Split System meets today’s efficiency standards while giving you the flexibility to adapt to changing electrical or space requirements.

Key Features and Benefits of the MRCOOL Universal Series 2 Ton Central Heat Pump Split System

  • 2-Ton Capacity: Delivers up to 24,000 BTUs of cooling and heating, providing reliable comfort for large residential floor plans and open commercial areas up to 1,350 square feet.
  • Seasonal Efficiency: Rated up to 18.6 SEER cooling efficiency and 10.0 HSPF heating efficiency, with a coefficient of performance up to 2.14 at 5 degrees F, helping you lower utility bills without sacrificing performance.
  • Energy Star: This model is Energy Star-rated and Energy Star Cold Climate-rated.
  • DC Inverter Technology: Modulates from low to high capacity, so you enjoy precise temperature control and reduced energy consumption during mild weather.
  • Quiet Operation: Sound levels as low as 33 dB inside and 59 dB outside minimize noise, making it both living room and neighborhood-friendly.
  • Multi-Position Air Handler: The Universal Series air handler can be installed in vertical or horizontal configurations, giving you greater flexibility in tight mechanical rooms and attics.
  • R-454B Refrigerant: Uses the A2L R-454B refrigerant that meets current U.S. Environmental Protection Agency (EPA) standards for ozone protection.
  • Compact Outdoor Footprint: The slim air handler design fits on narrow pads and leaves more clearance for landscaping or walkways.

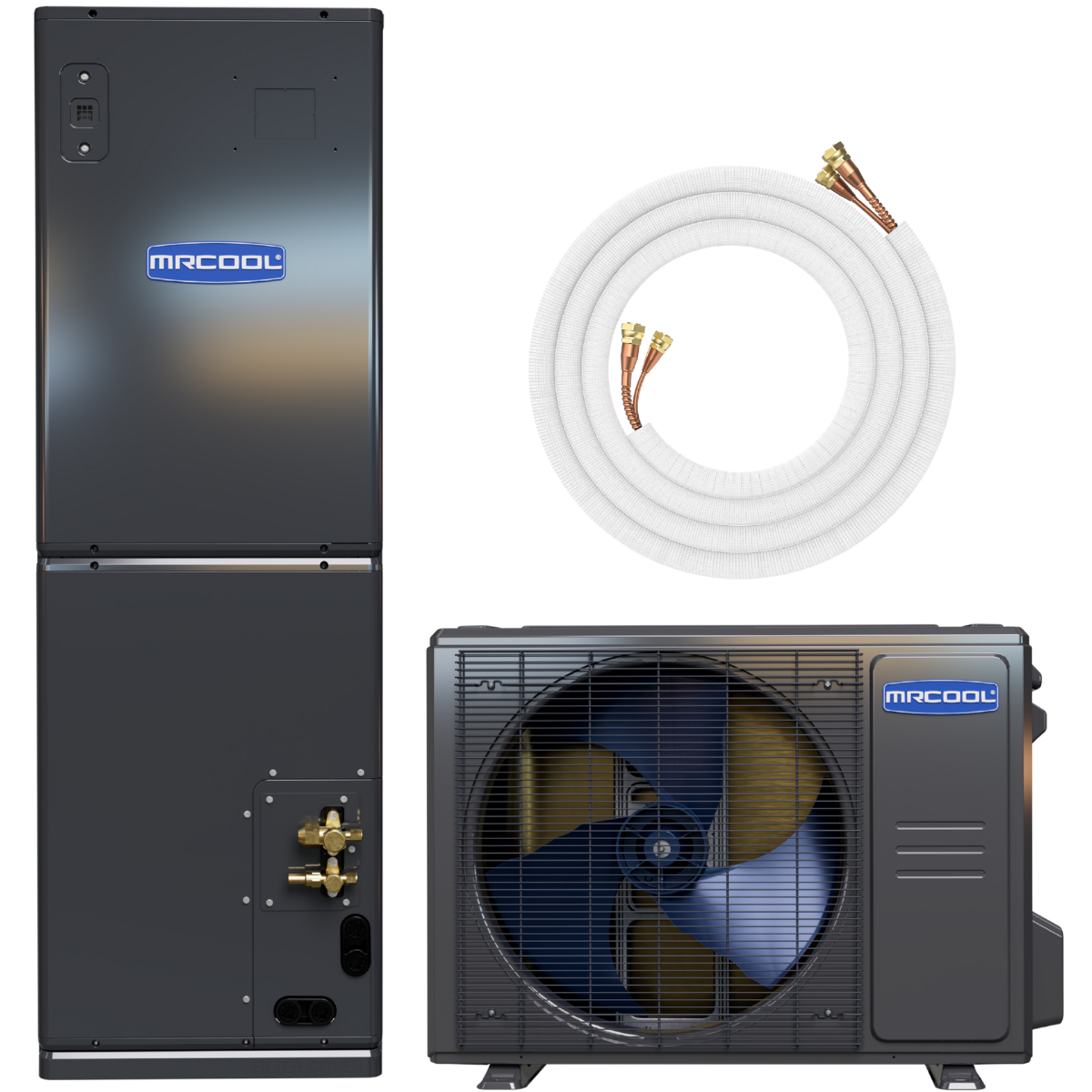

  • Optional Pre-Charged Line Sets: Choose between a 15, 25, 35, or 50-foot 3/8 x 3/4" line set. It's also offered without a line set.

Note: This central ducted split system requires professional installation.

Cold-Climate Confidence

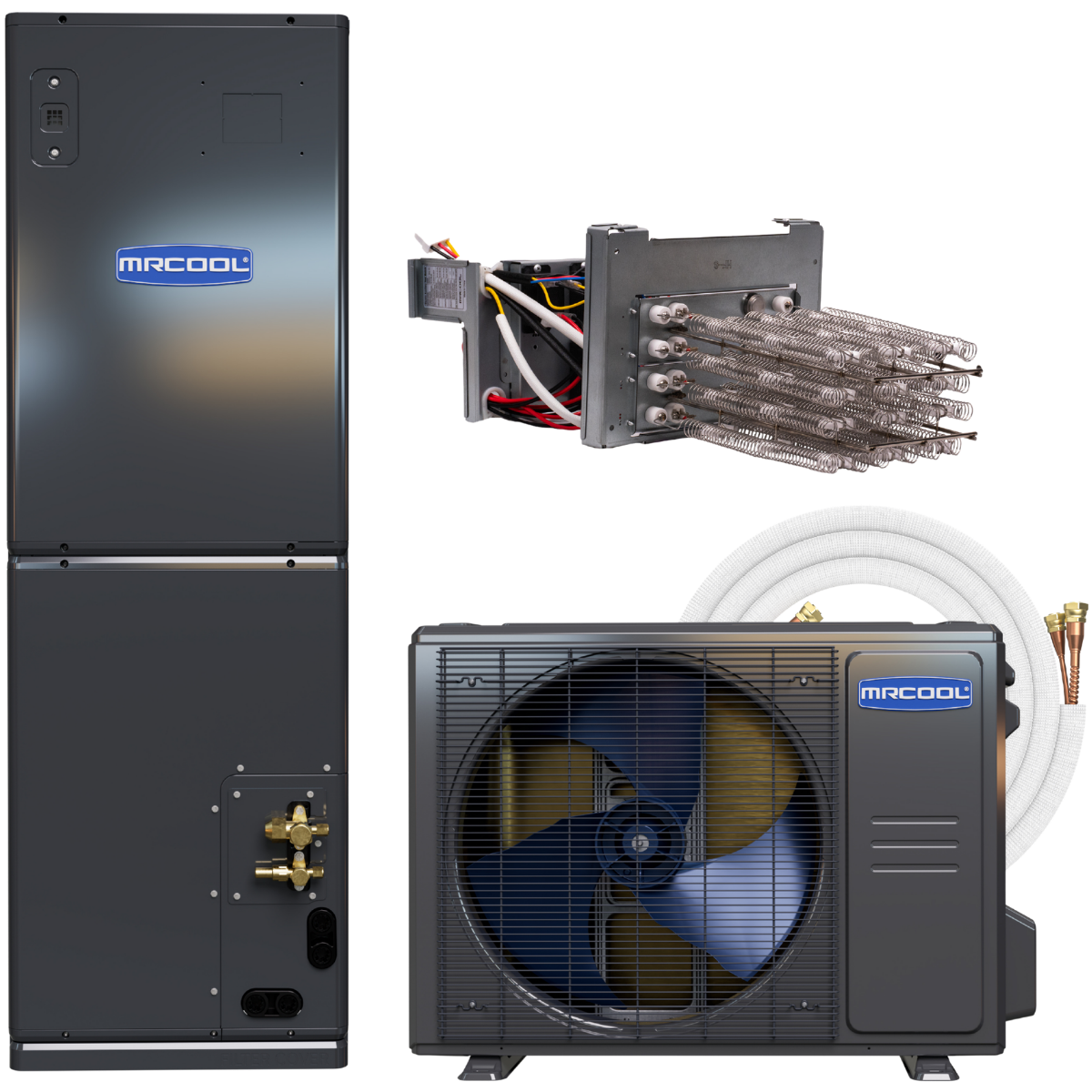

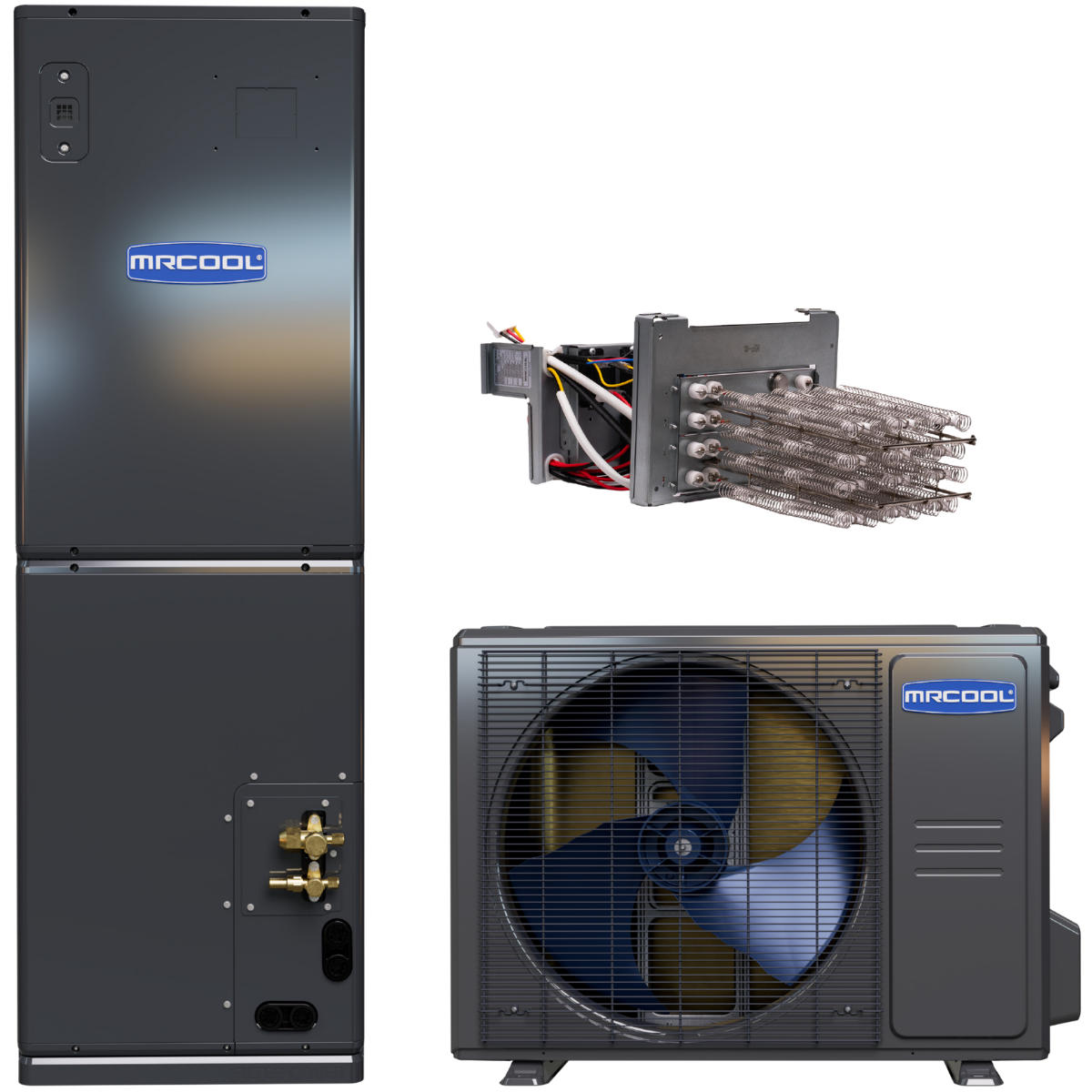

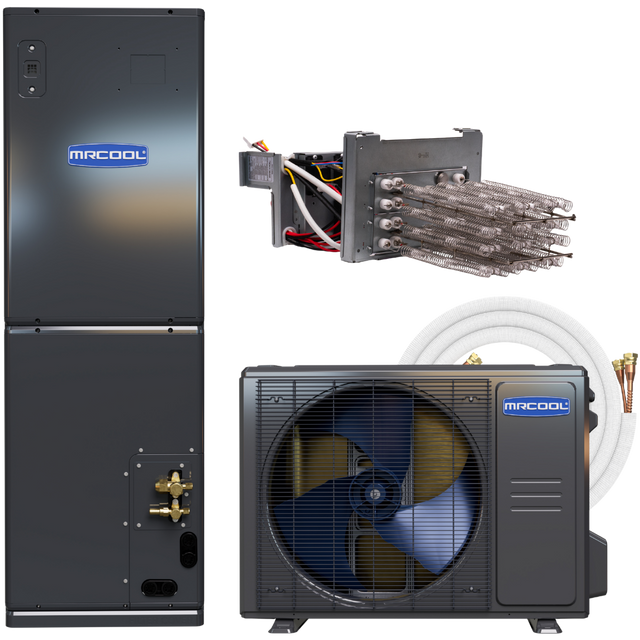

Not every heat pump can maintain full capacity when temperatures plunge, but this MRCOOL design is built for dependable performance in demanding climates. Laboratory testing confirms a full heating output at -13 degrees F, eliminating the need for oversized equipment or supplementary fossil-fuel systems. On the cooling side, it remains at full output up to 110 degrees F, helping you address heat-load spikes common in attics, sunrooms, or west-facing spaces. A 10kW, 15kW, or 20kW supplemental auxiliary heat kit, featuring a slide-out design for easy installation and maintenance,

Sylvane’s Expert Take

This MRCOOL Universal Series 2 Ton Central Heat Pump Split System checks the boxes pros care about: reliable low-temperature heating, an air handler that trims installation headaches, and optional upgrades that supplement heating performance. The inverter compressor keeps performance targeted when it's needed most, while the all-aluminum coil stands up to coastal or high-humidity environments. If you need a right-sized, high-efficiency heat pump for a project where space, flexibility, and year-round performance matter, this model is an excellent fit.
