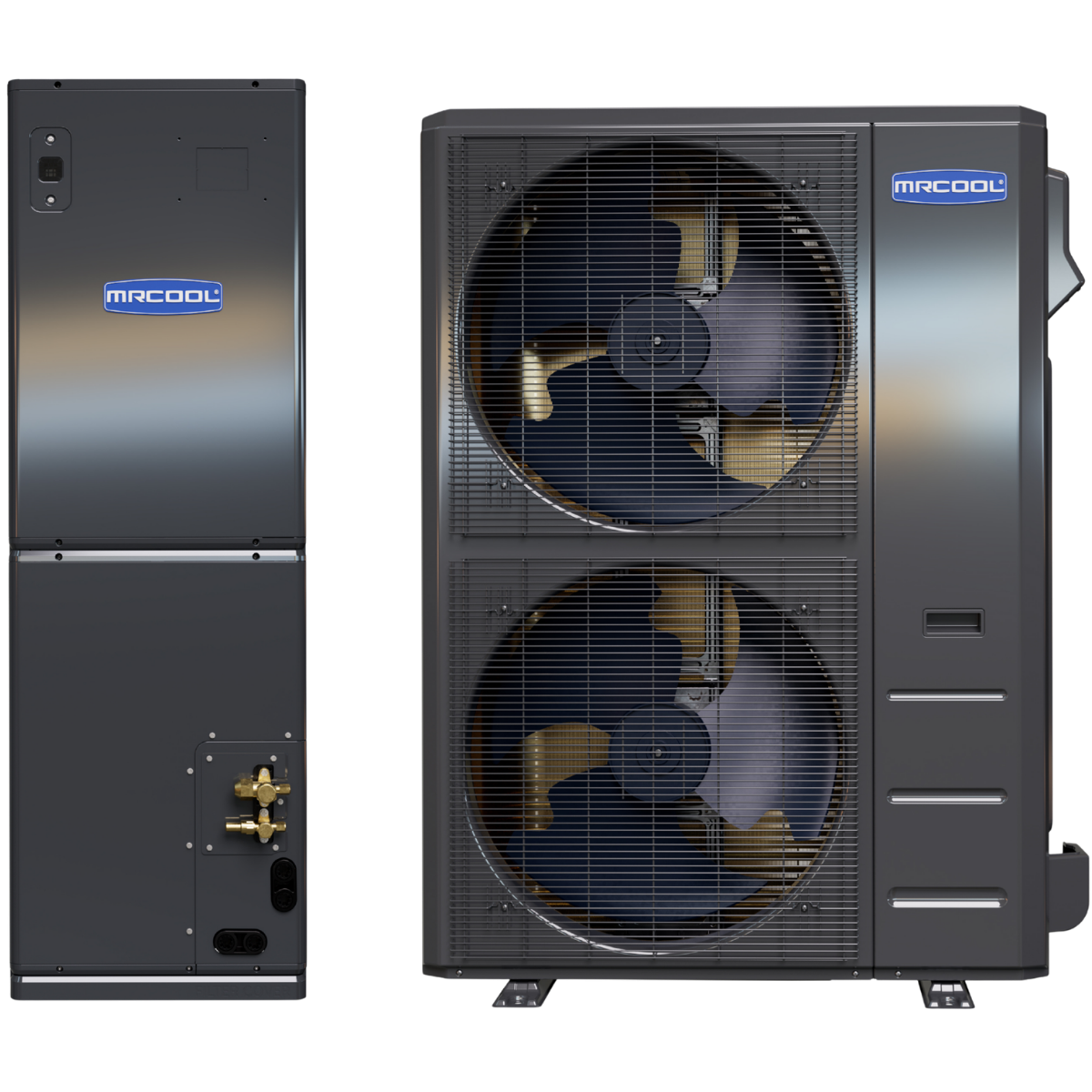

MRCOOL 5 Ton Universal Series Central Heat Pump Split System

SKU: mr18017  |  Model: UHP1860AH60-O
$5,29900
Auxiliary Heat
Line Length

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Parts and Compressor Limited Warranty; 2-Year Labor Limited Warranty

What's In The Box?
  • MRCOOL Universal Series 5 Ton Indoor Air Handler UAH18060-O

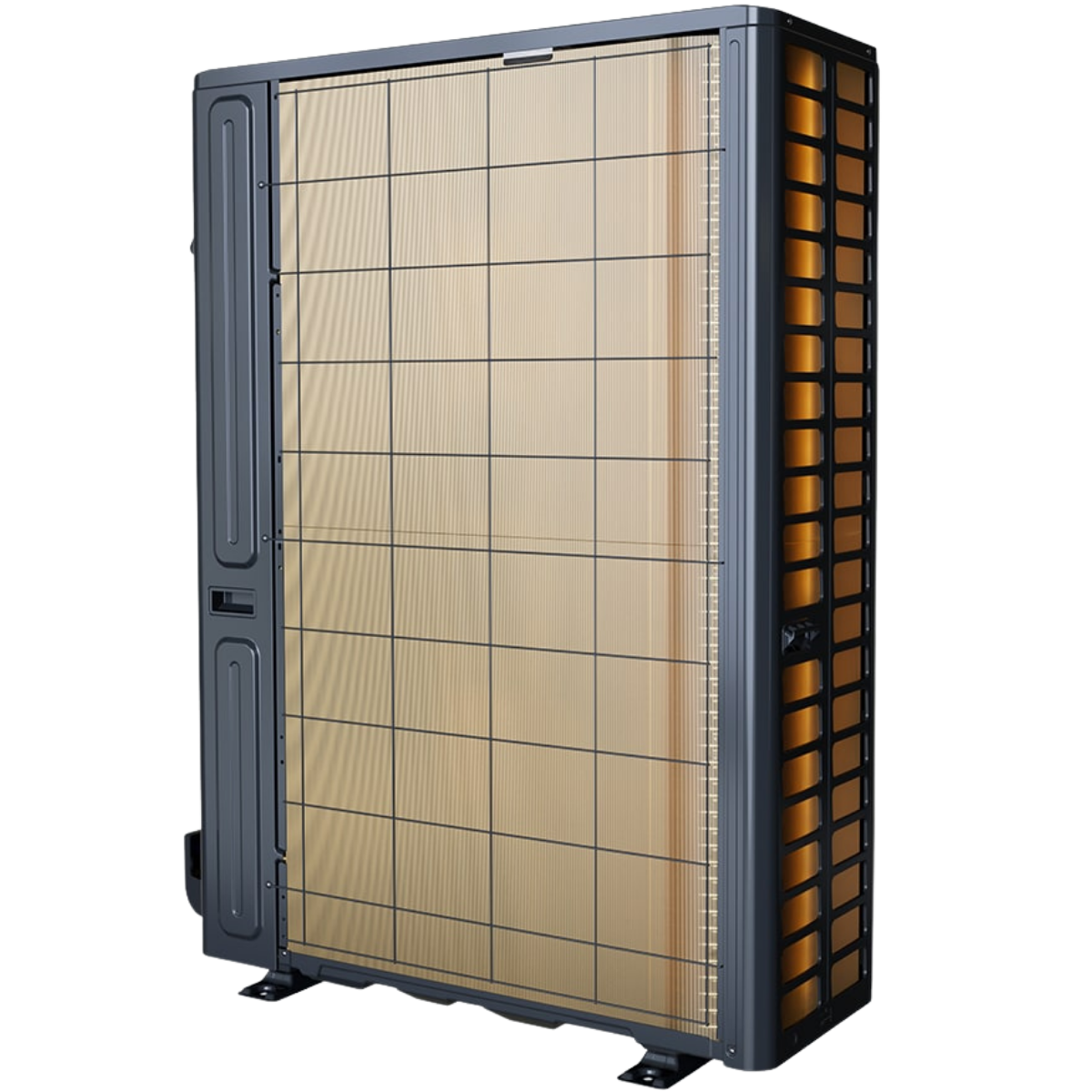

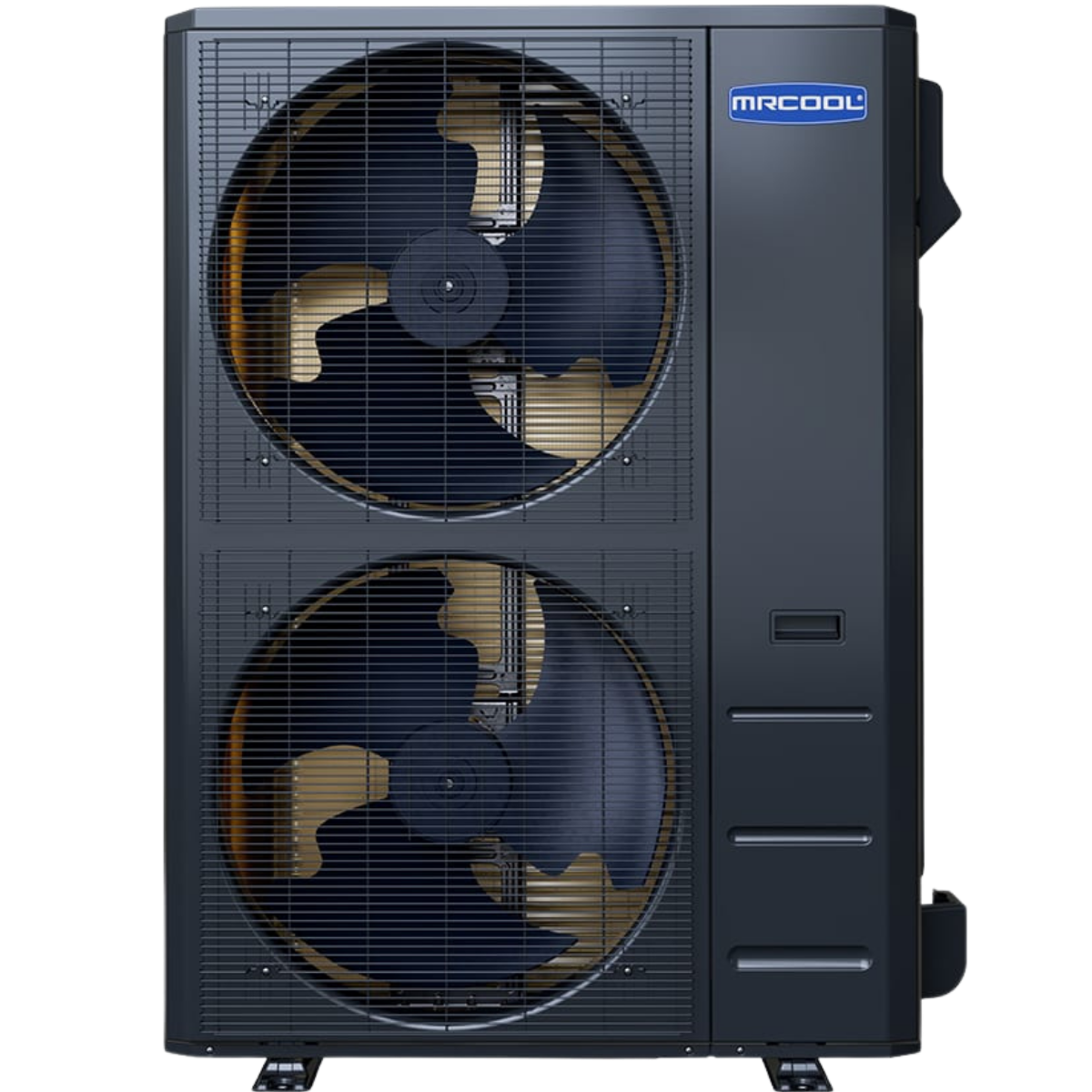

  • MRCOOL Universal Series 5 Ton Outdoor Condenser UHP18060-O
  • None, 15, 25, 35, or 50-Foot 3/8 x 3/4-Inch Line Set
  • Air Filter
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

Deliver whole-house comfort with the MRCOOL Universal Series 5 Ton Central Heat Pump Split System, a residential solution that combines high-capacity cooling and efficient heat pump performance in one ducted package. Designed as a matched outdoor condenser and indoor air handler system, it integrates seamlessly with existing or new ductwork to maintain consistent temperatures throughout large homes or light commercial spaces.

Whether you are upgrading an aging system or installing equipment for new construction, the Universal Series 5 Ton Central Heat Pump Split System offers dependable four-season operation with straightforward controls.

Key Features and Benefits of the MRCOOL Universal Series 5 Ton Central Heat Pump Split System

  • 5-Ton Capacity: Delivers up to 54,000 BTUs of cooling or 55,000 BTUs of heating, providing reliable comfort for large residential floor plans and open commercial areas up to 2,350 square feet.
  • Seasonal Efficiency: Rated up to 17.5 SEER cooling efficiency and 9.5 HSPF heating efficiency, with a coefficient of performance up to 2.14 at 5 degrees F, helping you lower utility bills without sacrificing performance.
  • Energy Star: This model is Energy Star-rated and Energy Star Cold Climate-rated.
  • DC Inverter Technology: Modulates from low to high capacity, so you enjoy precise temperature control and reduced energy consumption during mild weather.
  • Quiet Operation: Sound levels as low as 33 dB inside and 59 dB outside minimize noise, making it both living room and neighborhood-friendly.
  • Multi-Position Air Handler: The Universal Series air handler can be installed in vertical or horizontal configurations, giving you greater flexibility in tight mechanical rooms and attics.
  • R-454B Refrigerant: Uses the A2L R-454B refrigerant that meets current U.S. Environmental Protection Agency (EPA) standards for ozone protection.
  • Compact Outdoor Footprint: The slim air handler design fits on narrow pads and leaves more clearance for landscaping or walkways.

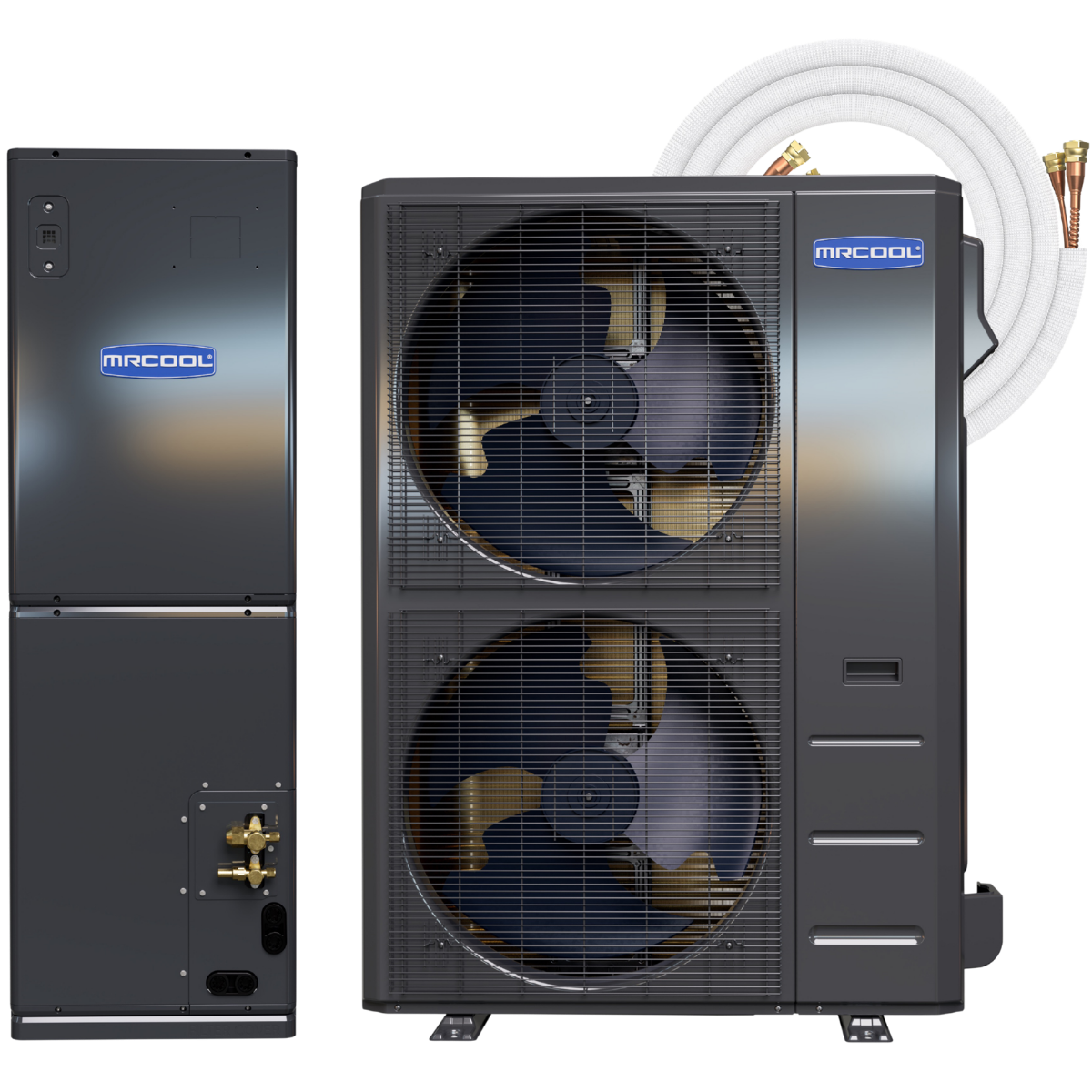

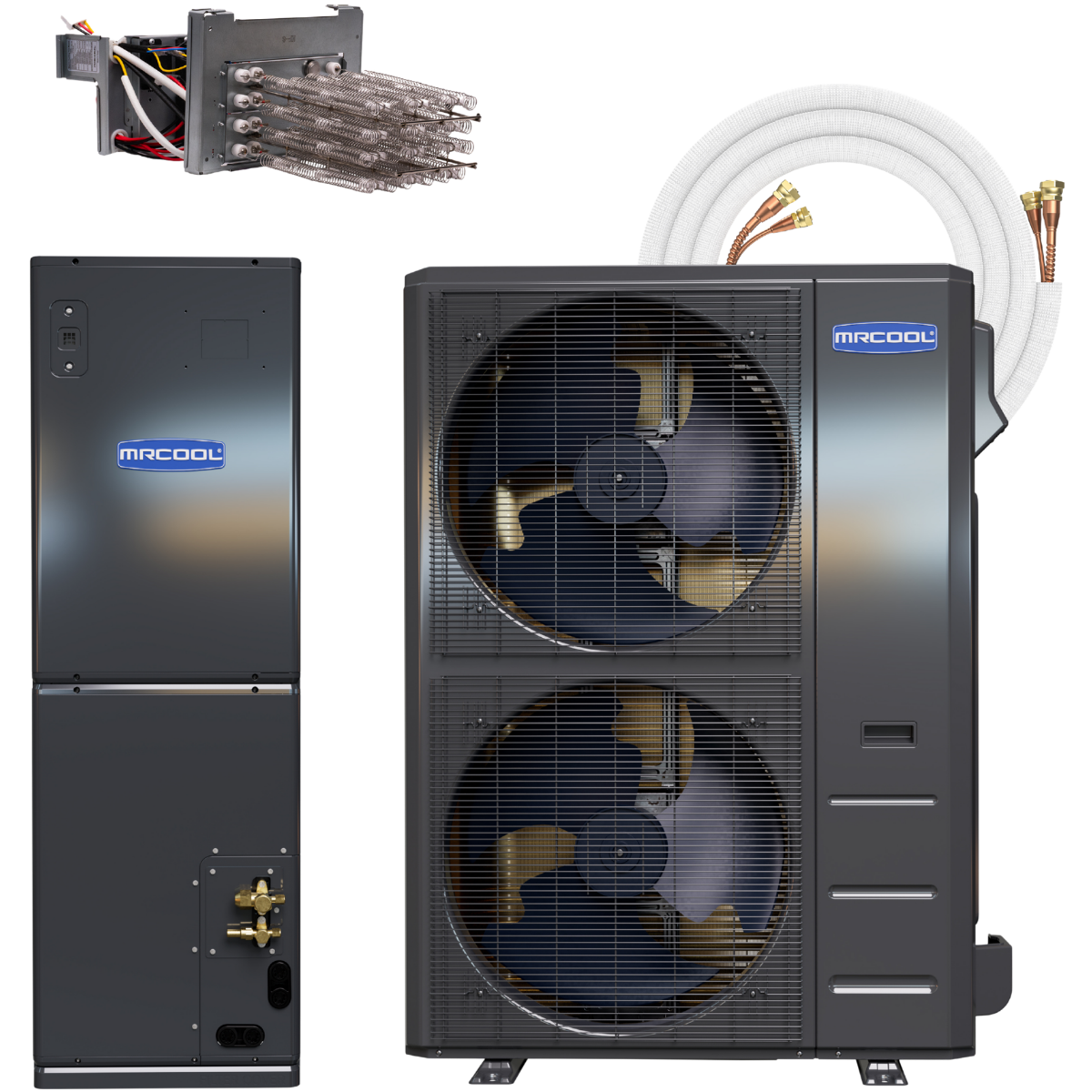

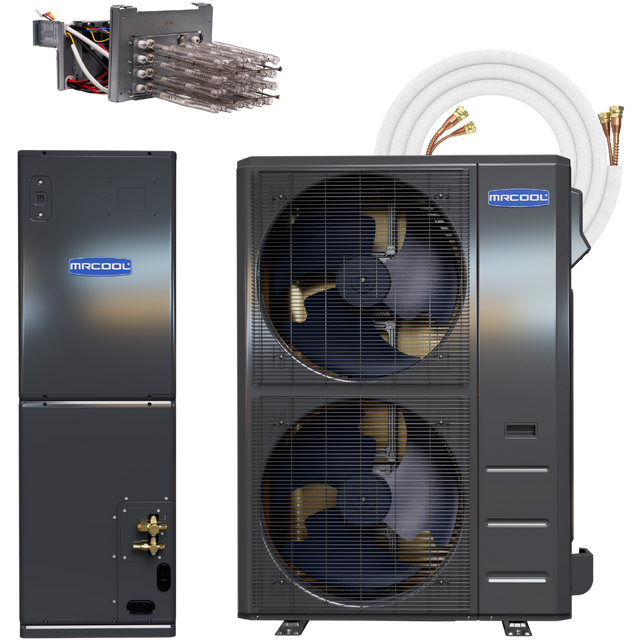

  • Optional Pre-Charged Line Sets: Choose between a 15, 25, 35, or 50-foot 3/8 x 3/4" line set. It's also offered without a line set.

Note: This central ducted split system requires professional installation.

Extreme Heating and Cooling

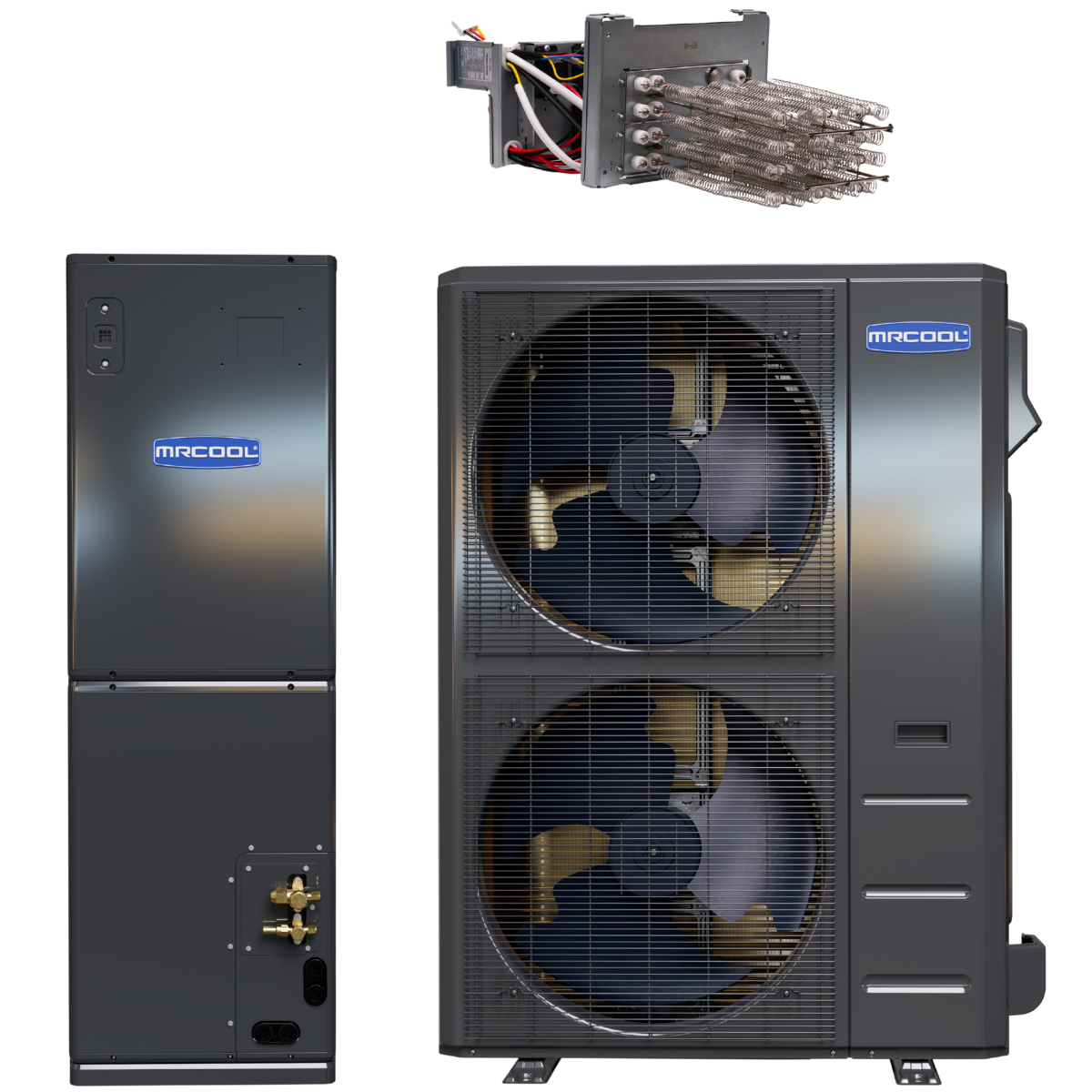

The MRCOOL Universal Series Central Split System keeps producing heat when outdoor temperatures fall below -13 degrees F and cooling up to 122 degrees F, letting you rely on a single system year-round. To bolster the heat pump performance, you can order this system with a 10kW, 15kW, or 20kW supplemental auxiliary heat kit, featuring a slide-out design for easy installation and maintenance.

Sylvane’s Expert Take

If you are looking for a single piece of equipment that can both cool in summer and heat in winter, the MRCOOL Universal Series 5 Ton Central Heat Pump Split System delivers. Its inverter technology trims operating costs, the low-ambient capability keeps you comfortable in extreme temperatures, and the adaptable air handler gives contractors the freedom to fit the system almost anywhere. Add the optional pre-charged line sets, and installation becomes even more straightforward. Overall, this model is a practical, high-efficiency choice for large homes and light commercial sites that demand dependable, year-round climate control.

Specifications

    Key Specifications

    • Mounting Type
      Floor
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      17.5
    • Total Cooling Capacity (BTUs)
      54000
    • Total Heating Capacity (BTUs)
      55000
    • Type
      Central Split

    General

    • Certifications
      AHRI, UL, CSA, ETL
    • Color
      Dark Gray
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1801.0
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Additional Features

    • Additional Features
      None / No Line Set: Energy Star
      None / 15': Energy Star, Line Set Included
      None / 25': Energy Star, Line Set Included
      None / 35': Energy Star, Line Set Included
      None / 50': Energy Star, Line Set Included
      10 kW / No Line Set: Energy Star
      10 kW / 15': Energy Star, Line Set Included
      10 kW / 25': Energy Star, Line Set Included
      10 kW / 35': Energy Star, Line Set Included
      10 kW / 50': Energy Star, Line Set Included
      15 kW / No Line Set: Energy Star
      15 kW / 15': Energy Star, Line Set Included
      15 kW / 25': Energy Star, Line Set Included
      15 kW / 35': Energy Star, Line Set Included
      15 kW / 50': Energy Star, Line Set Included
      20 kW / No Line Set: Energy Star
      20 kW / 15': Energy Star, Line Set Included
      20 kW / 25': Energy Star, Line Set Included
      20 kW / 35': Energy Star, Line Set Included
      20 kW / 50': Energy Star, Line Set Included

    Warranty

    • Manufacturer's Warranty
      10-Year Parts and Compressor Limited Warranty; 2-Year Labor Limited Warranty
