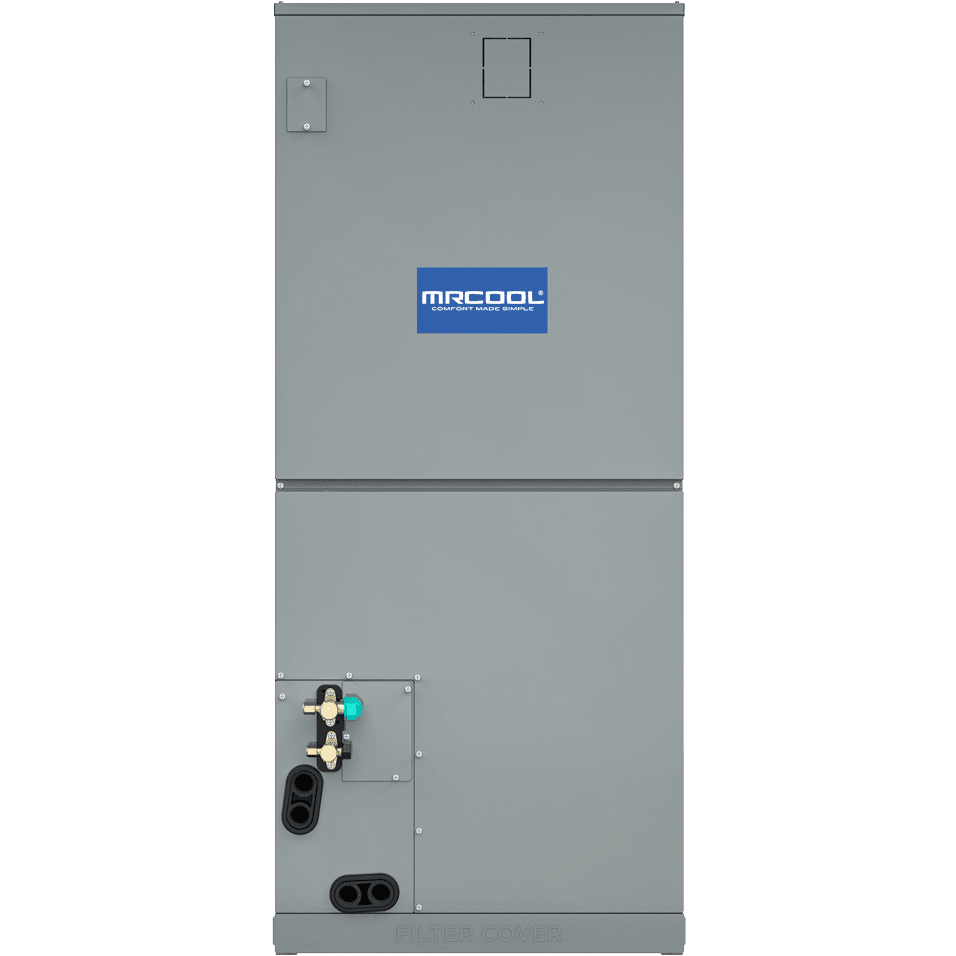

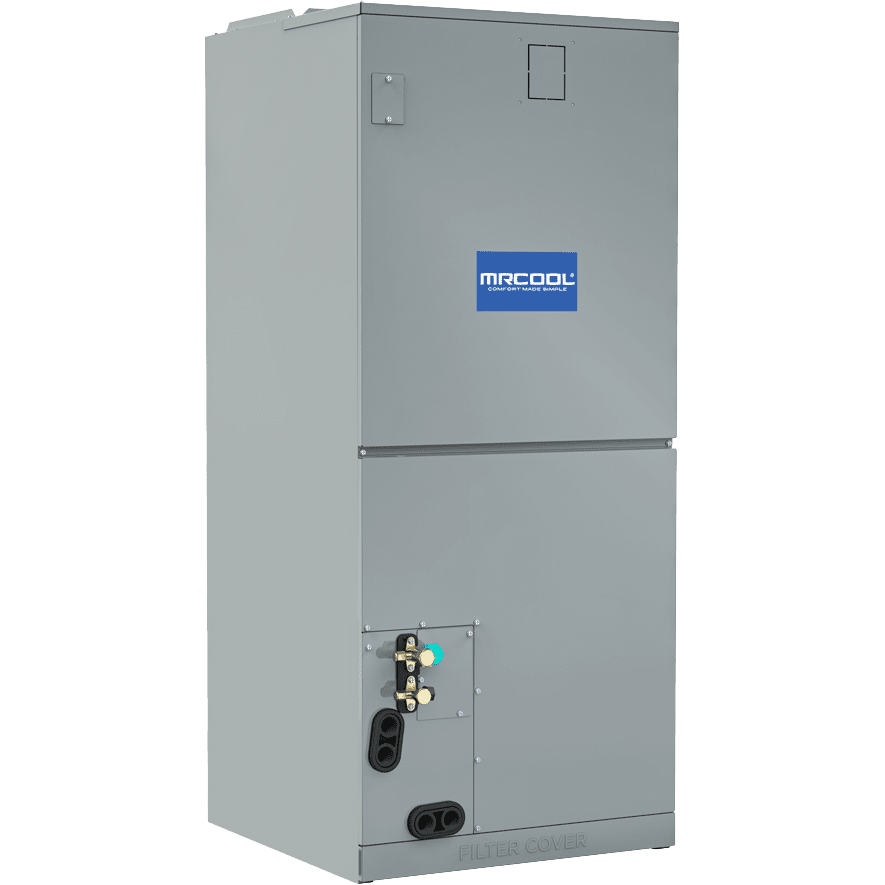

- Multi-Position Air Handler
- Smart Thermostat
- Installation and Owner’s Manual
Info & Guides
Info & Guides
MRCOOL 60,000 BTU 5 Ton VersaPro Central Ducted Heat Pump Split System
MRCOOL 60,000 BTU 5 Ton VersaPro Central Ducted Heat Pump Split System - 20 kW / 15 ft is backordered and will ship as soon as it is back in stock.
The MRCOOL 2nd Gen VersaPro 60,000 BTU 5 Ton Central Split System is an Energy Star-rated ducted mini-split designed for homes up to 2,550 square feet. It provides efficient and reliable climate control. Its advanced inverter technology ensures optimal performance, while the painted galvanized steel outdoor unit guarantees durability. This system, featuring a multi-position air handler, accommodates various home layouts.
Installation and climate control are hassle-free thanks to the Follow Me remote control, smart thermostat compatibility, and pre-charged Quick Connect line set. The easy-access removable filter simplifies maintenance, ensuring long-term efficiency and air quality.
Powerful Ducted Mini-Split Cooling
The MRCOOL VersaPro split AC delivers powerful airflow ranging from 1,930 to 3,070 CFM, efficiently cooling an entire home or designated areas within a larger residence.
- High Energy Efficiency: This system cools large spaces and whole homes efficiently with a SEER2 rating of 15.2 and an EER2 rating of 8.6, which reduces energy costs.
- Heat Pump: The heating capacity of the integrated heat pump system is up to 54,000 BTUs. This model heats with an HSPF2-4 rating of 8.4 and an HSPF2-5 rating of 6.8.
- R-454B Refrigerant: This model uses the environmentally friendly R-454B refrigerant, which has a much lower global warming potential than other refrigerant formulas.
- Quiet Operation: Running as low as 34.5 dB, this split AC's indoor noise level won't disturb you.
Flexible Installation and Operation
The VersaPro split system continues MRCOOL's tradition of offering versatile and flexible air conditioning solutions. Its multi-position air handler and other features enhance usability and maintenance.

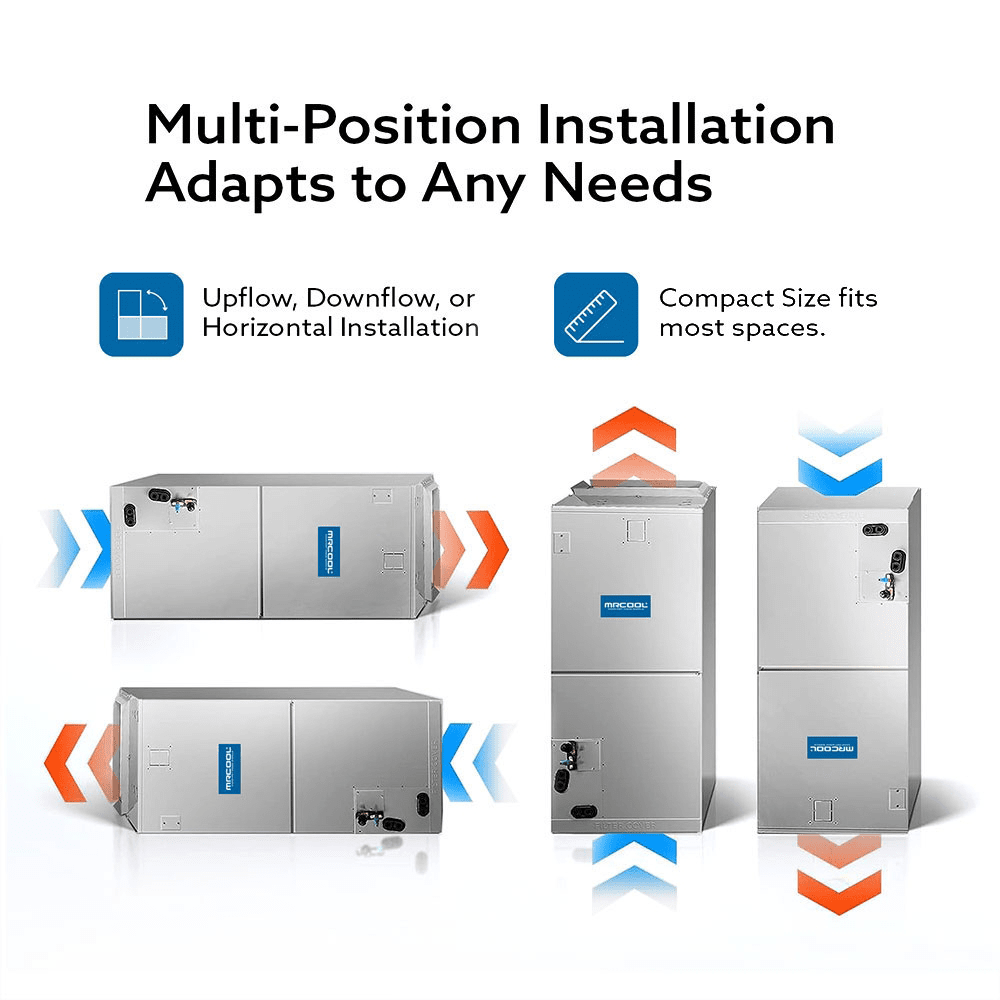

- Multi-Position Air Handler: The air handler can be installed in multiple configurations, including upflow, downflow, and horizontal, providing flexibility for your home's layout.

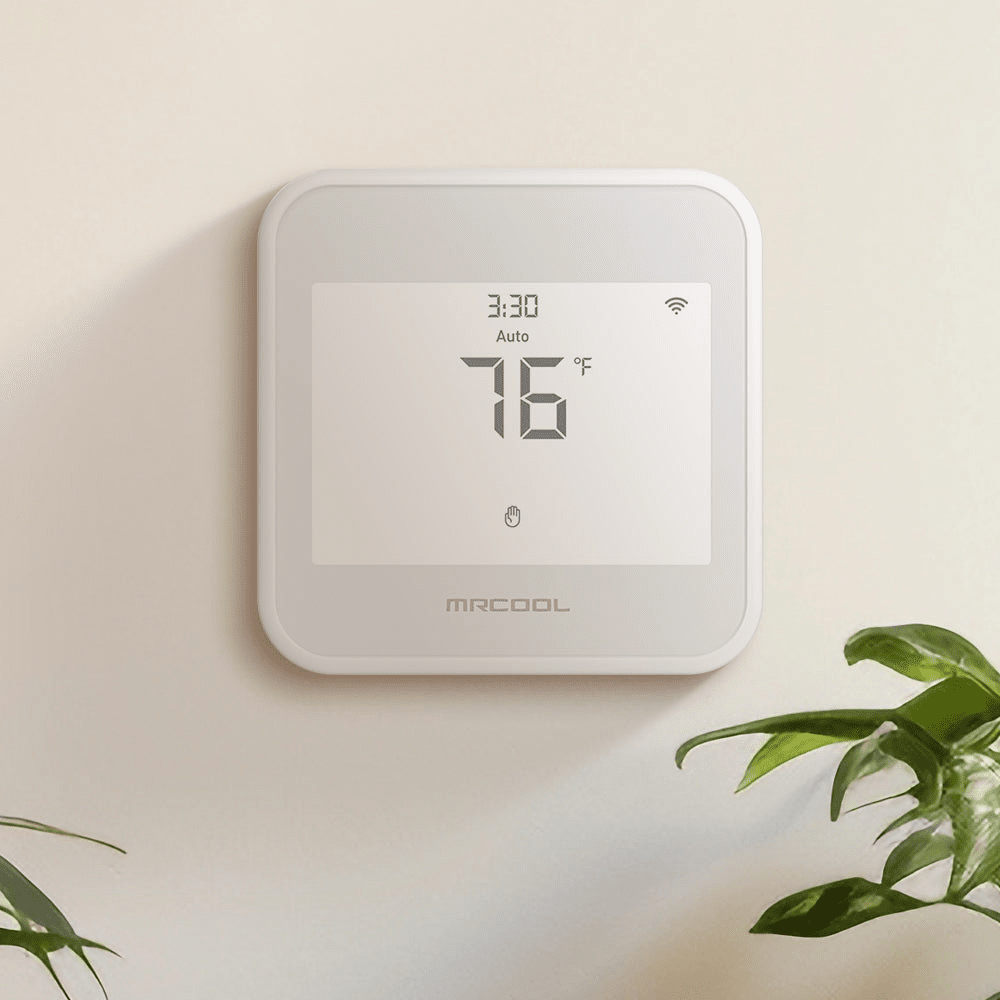

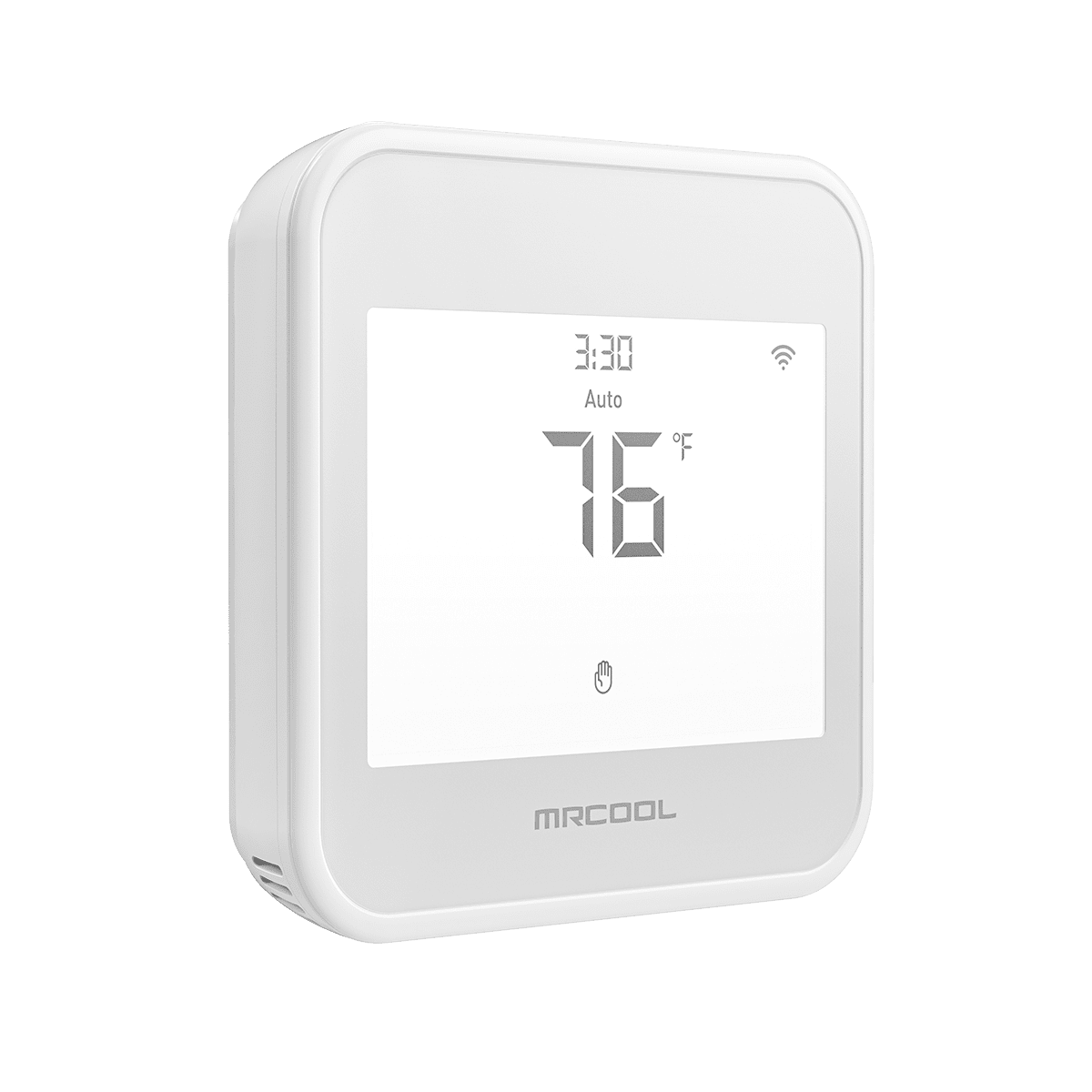

- Smart Climate Control: The system includes a wired MRCOOL Smart Thermostat that offers various programming and scheduling options. It is also compatible with any third-party 24V controller, including the Nest thermostat.
Lineset Length Options

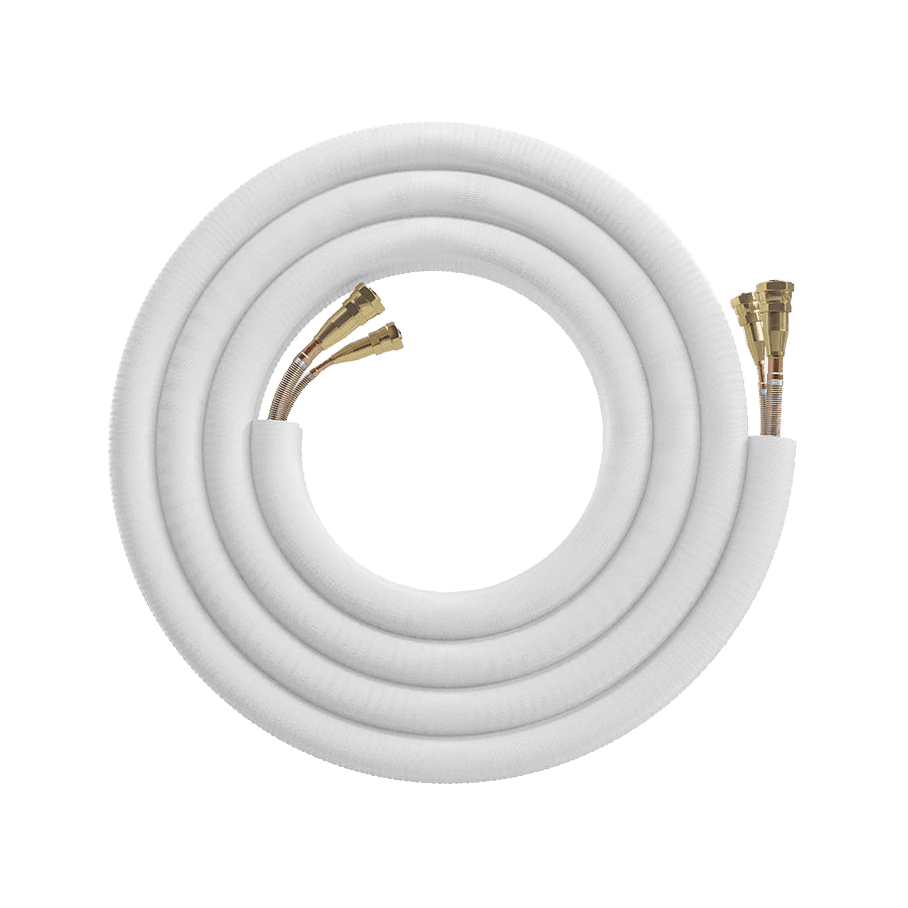

The model is available with a pre-charged R-454B refrigerant quick-connect lineset in 15, 25, 35, and 50-foot lengths. You can also choose a model without a lineset.
Optional Supplemental Heater
This central ducted split system can be selected with a 10kW, 15kW, or 20kW supplemental heater kit.
Easy Care and Maintenance Features
Like many split system models, care and maintenance for the VersaPro is made easier by built-in features like the modular design and easy-access removable filter.
- Modular Design: Technicians can easily access the AC's internal workings and parts, simplifying maintenance and repairs.
- Durable Construction: The system includes a corrosion-resistant outdoor compressor unit with a durable exterior that can withstand the elements and an air handler featuring a long-lasting painted galvanized steel case.
- Self-Diagnostic Mode: The VersaPro features a self-diagnostic mode that monitors system health and alerts you to potential issues.
Sylvane's Expert Take
Experience optimal comfort and energy efficiency throughout the year with this advanced, high-efficiency 5-ton AC unit. Its adaptable design and multi-position air handler ensure seamless installation and reliable heating and cooling performance in any home.
- Customizable Comfort: The system's ability to customize to specific household needs is made easier by multiple lineset length options and supplemental heater kits, which accommodate unique floor plans and a range of climates.
- Flexible Installation: The exceptional versatility of this multi-position air handler is ideal for challenging spaces or retrofitted projects, as it can be installed in upflow, downflow, or horizontal configurations, unlike typical central AC units.
-
Energy Efficiency Ratio 2 (EER2)8.6
-
Number of Speeds4
-
Seasonal Energy Efficiency Ratio 2 (SEER2)15.2
-
Total Cooling Capacity (BTUs)54000
-
Total Heating Capacity (BTUs)54000
-
TypeCentral Split
-
Auxiliary Heat10 kW20 kW15 kW10 kWNoneNoneNoneNoneNone15 kW20 kW10 kW15 kW20 kW15 kW10 kW20 kW
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsETL, AHRI
-
ColorGray, White
-
Compressor TypeInverter
-
Heat ModeYes
-
Heating Seasonal Performance Factor 2 (HSPF2)8.4
-
Installation TypeProfessional Installation
-
Line Length Option25 ft15 ft15 ft15 ft50 ft35 ft25 ft15 ftNo Line Set25 ft25 ft35 ft35 ft50 ft50 ft50 ft35 ft
-
Maximum Cubic Feet per Minute (CFM) (CFM)1807.0
-
Maximum Indoor Noise Level (dB)56
-
Maximum Operating Temperature - Cooling (degrees F)122
-
Maximum Operating Temperature - Heating (degrees F)75
-
Minimum Operating Temperature - Cooling (degrees F)-22
-
Minimum Operating Temperature - Heating (degrees F)-22
-
Number of Tons5
-
Refrigerant TypeR-454B
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)24.49
-
Indoor Unit Height (in.)52.99
-
Indoor Unit Weight (lbs.)162.92
-
Indoor Unit Width (in.)21.02
-
Maximum Line Length (ft.)246
-
Outdoor Unit Depth (in.)16.34
-
Outdoor Unit Height (in.)38.39
-
Outdoor Unit Weight (lbs.)192.9
-
Outdoor Unit Width (in.)38.58
-
Additional FeaturesEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy StarEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set IncludedEnergy Star, Line Set Included
-
Manufacturer's Warranty10-Year Limited Parts and Compressor Warranty
