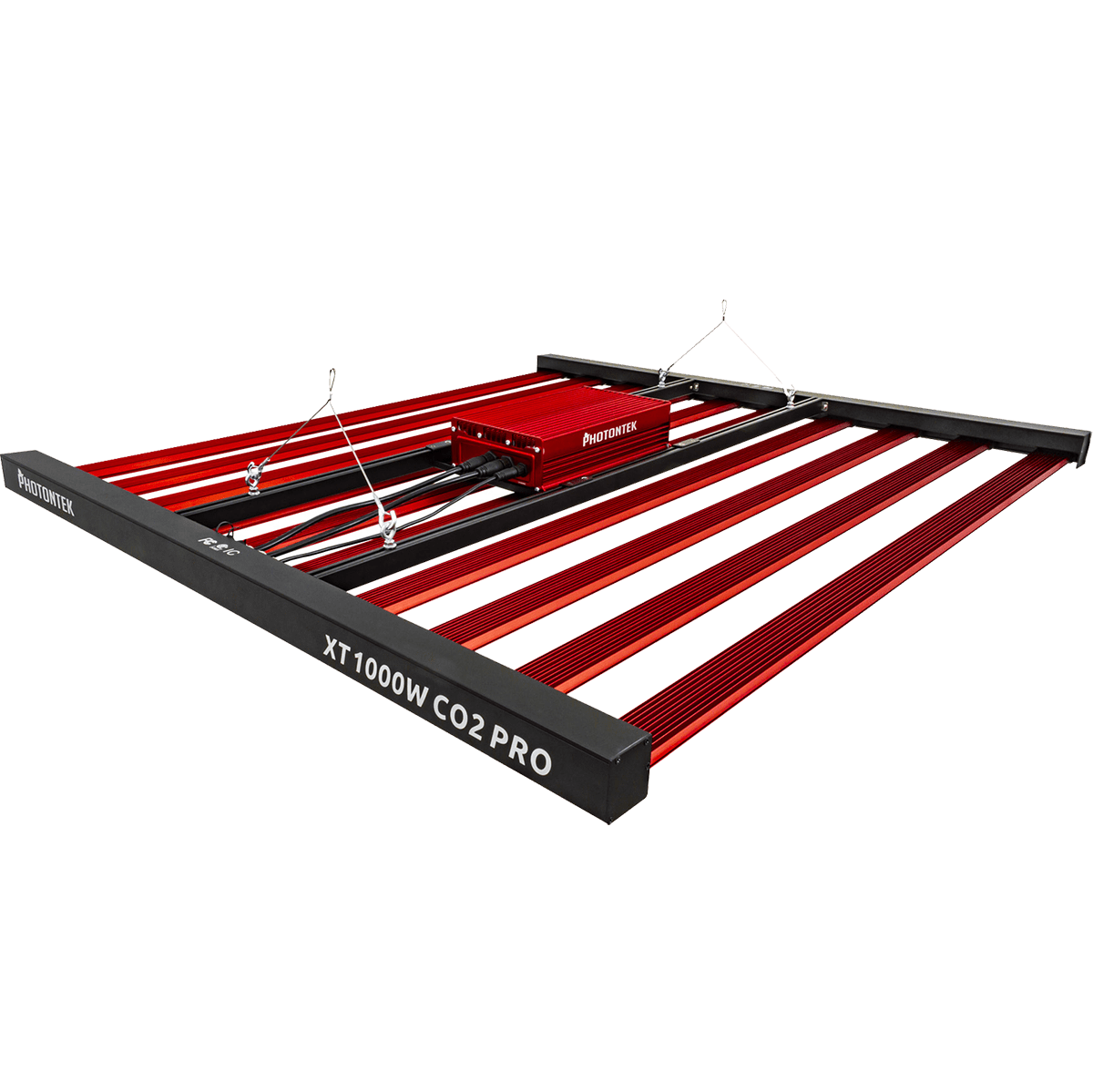

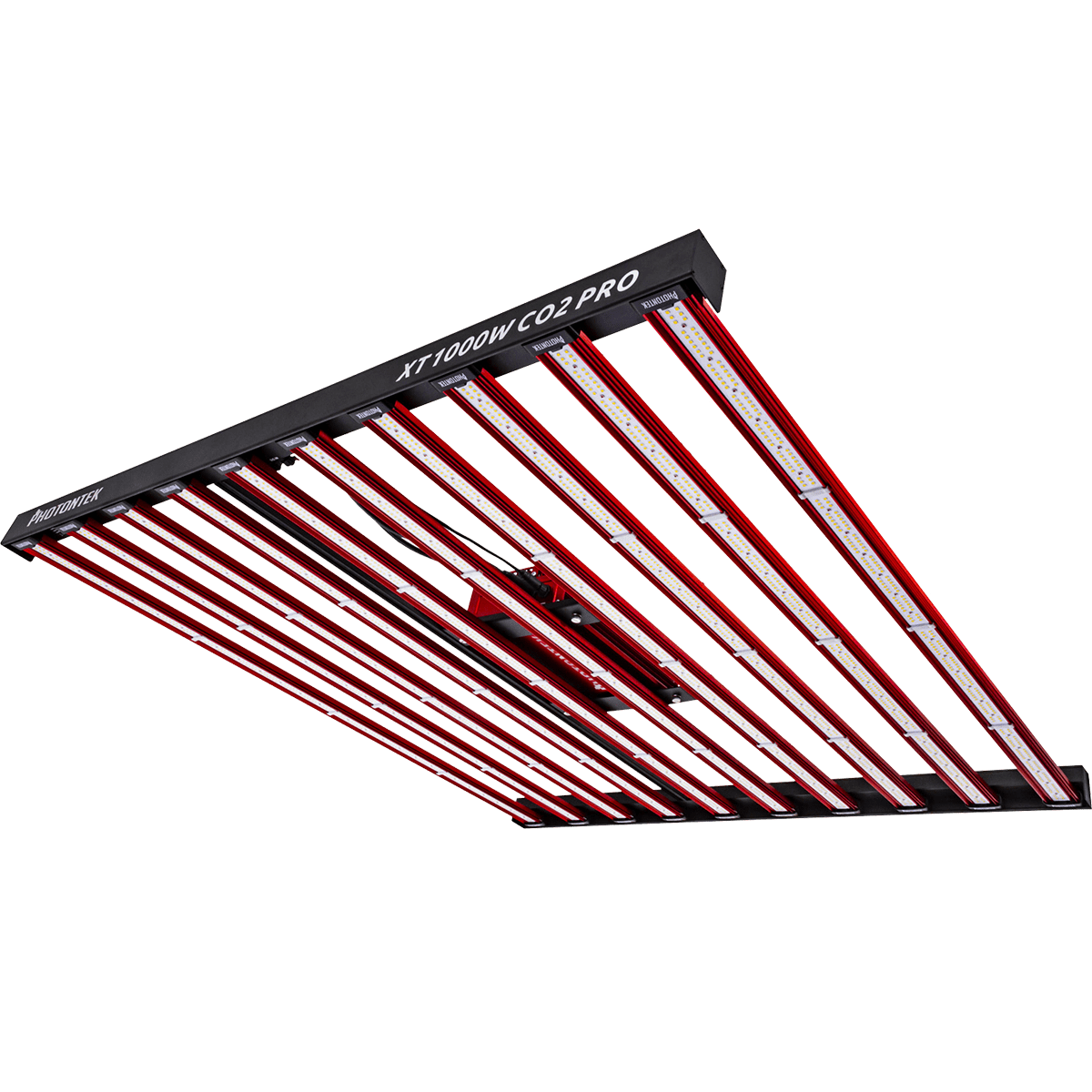

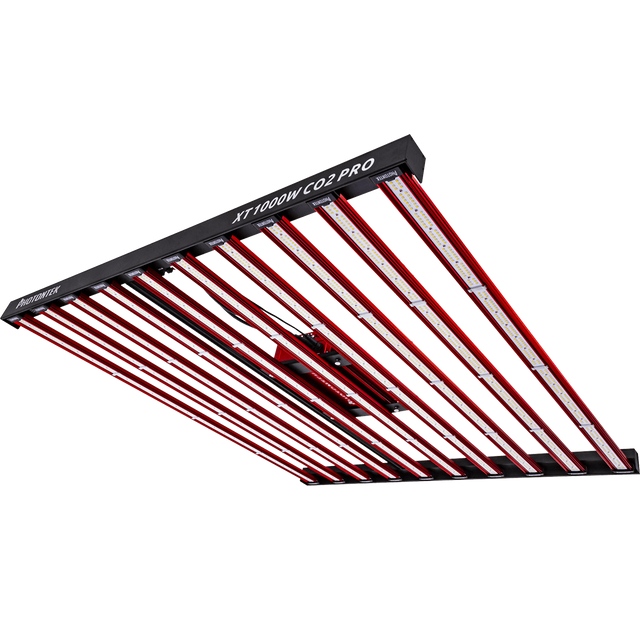

PhotonTek XT 1000W Pro LED Grow Light
PhotonTek XT 1000W Pro LED Grow Light is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- 10 100W 2.9 Full-Spectrum Magnet LED Bars

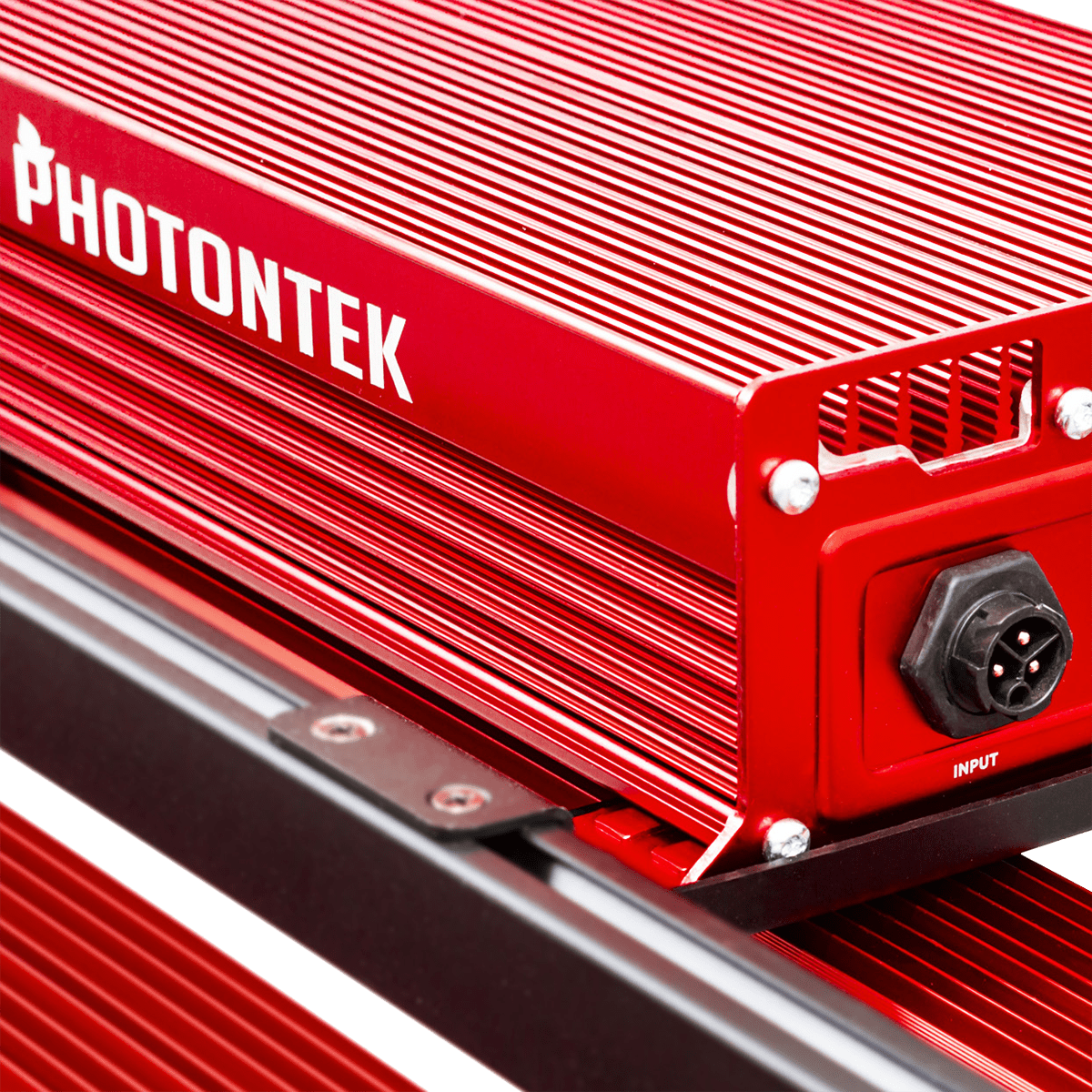

- 1000W Driver with Connecting Cables
- LED Structure with Connecting Cables
- Power Cable
- 1-10V Dimmer + Velcro
- 2 Metal Cable Hangers
- Owner's Manual
Info & Guides
Info & Guides
PhotonTek XT 1000W Pro LED Grow Light
Description
Description
This Pro LED Grow Light from PhotonTek not only delivers perfectly balanced light is also gives you the option of incorporating CO2 supplement delivery.
Its unique magnetic light bar design allows you to use a single bar or up to 10 bars of high-quality LED light for any grow space.
Add CO2 Delivery
With extremely high levels of PPF output used at a close distance from the canopy in this 5x5 footprint, the addition of a CO2 supplement for plants will produce better results. Correct use of CO2 in a controlled growing environment can improve crop yield. When a PPFD level of 1000 µmole/s/m2 is exceeded, the following proportions of CO2 supplementation should be used:
- Up to 1500 µmole/s/m2: 1:1 CO2 PPM
While this is not required, if used without it, lights should be positioned higher from the plant canopy. This will create a 6x6 coverage area, but with a lower PPFD concentration.
Versatile Design
The PhotonTek XT 1000W Pro LED comes with a frame structure and 10 magnet LED bars. You can use a single bar up to 10 LED bars to suit your grow space. Connecting cables are included, as well as a 0–10V light dimmer.
The full-spectrum light bars are coated with a new clear glue technology protection cover for lasting stability.

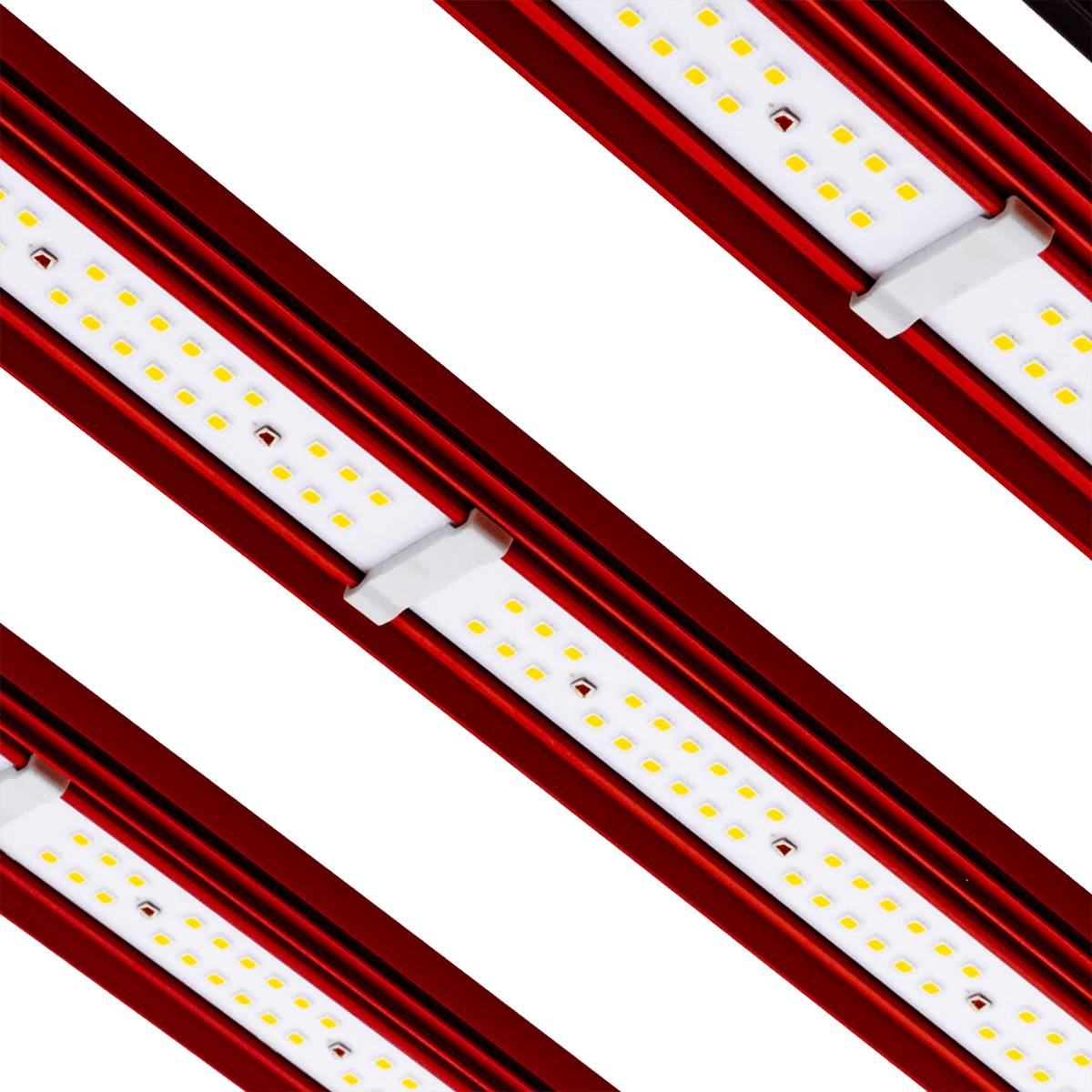

High-Performance LEDs
Equipped with top-shelf Osram and Lumileds, the XT Pro generates an optimized full-spectrum light that is ideal for all stages of plant growth, from vegetative to flowering and harvest.
Fully dimmable, PPFD levels can be adjusted to any desired level without losing efficiency. This dynamic, low-powered fixture configuration reduces the temperature of the LEDs, increasing output and improving light maintenance.
Control Systems
When controlled using the PhotonTek digital lighting controller, you can incorporate automated 1% incremental dimming, sunrise and sunset modes, and temperature safety control for up to 100 fixtures per controller.

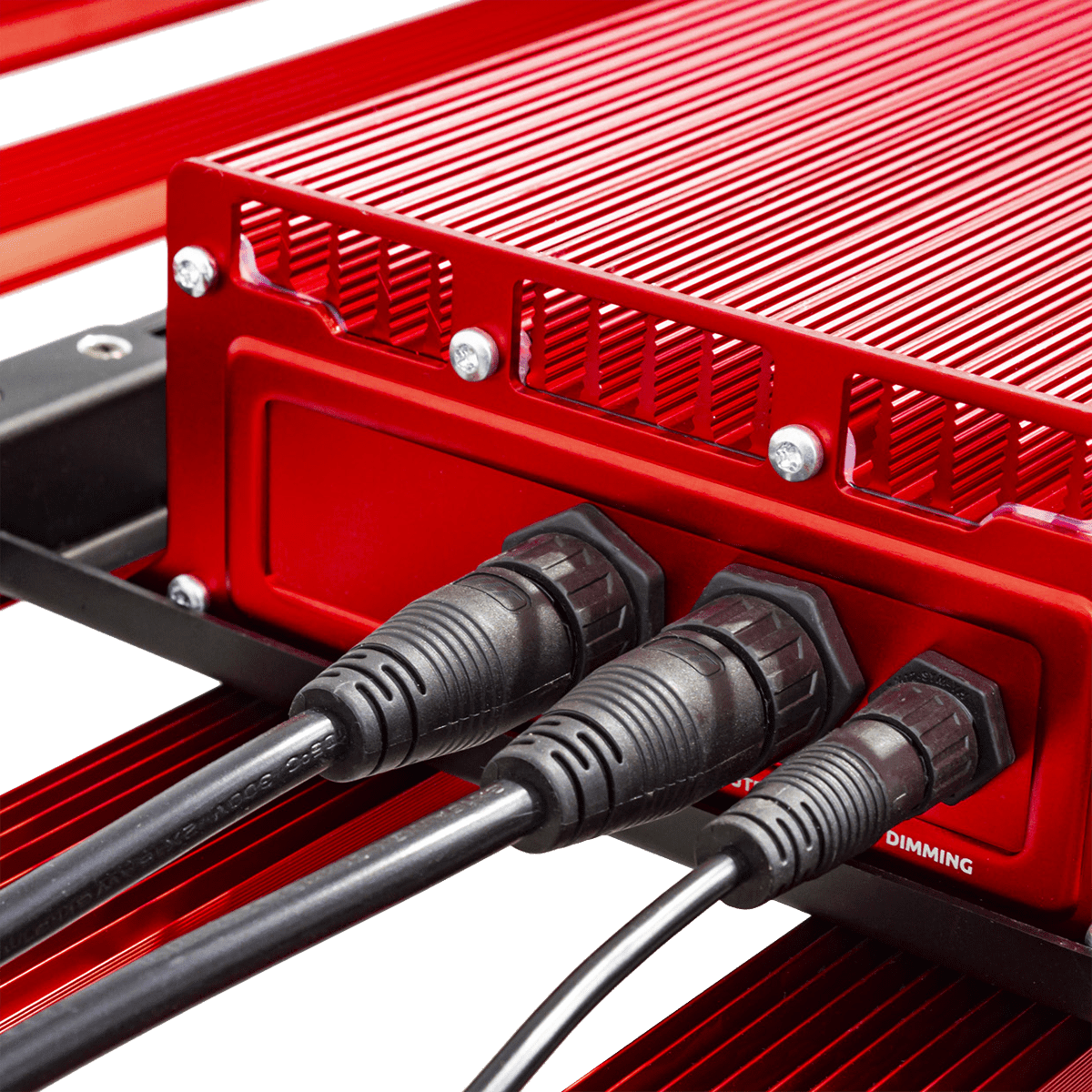

The PhotonTek XT Pro LED grow light can also be controlled with any control system that utilizes a 0–10 V output signal, including those with an RJ port interface.
Specification Highlights
- Total Output: 2925 µmole/s
- Efficacy: 2.9 µmole/J
- Footprint: 5x5-ft. with CO2; 6x6-ft. without CO2 at increased height
- Waterproof Rating: IP65
- Lifetime: 60,000 hours
- Light Distribution: 120°
- Dimmable: OFF-25%-50%-75%-100% with 0-10V Dimmer (included)
- External Control: With Digital Controller
Summary
The PhotonTek X% Pro LED Grow Light with CO2 Supplement features magnet LED light bars for flexible configuration and the ability to add supplemental CO2 for a 5x5 footprint and higher yield. Features high-performance LEDs, an included dimmer, and versatile controller compatibility.
Specifications
Specifications
-
Heat Output (BTUs)3497
-
Total Output (PPF)2925
-
CertificationsANSI, UL
-
Dimming Control TypeRJ12 0-10V (Requires 3rd Party Controller)
-
Flowering Footprint (ft.)5 x 5
-
Lighting TypeLED
-
System PPF Efficacy (μmol/joule)2.9
-
Veg Footprint (ft.)5 x 5
-
Maximum Amperage (Amps)8.56
-
Plug Face Type5-15P
-
Voltage (V)120-277
-
Watts (W)1025
-
Depth (in.)46.5
-
Depth (with front cover) (in.)46.5
-
Height (in.)4.16
-
Height (with front cover) (in.)4.16
-
Weight (lbs.)39.68
-
Width (in.)42.95
-
Width (with front cover) (in.)42.95
-
Additional FeaturesFull Spectrum, Dimmable, Applicable for Indoor Growing
-
Manufacturer's Warranty5-Year Warranty
