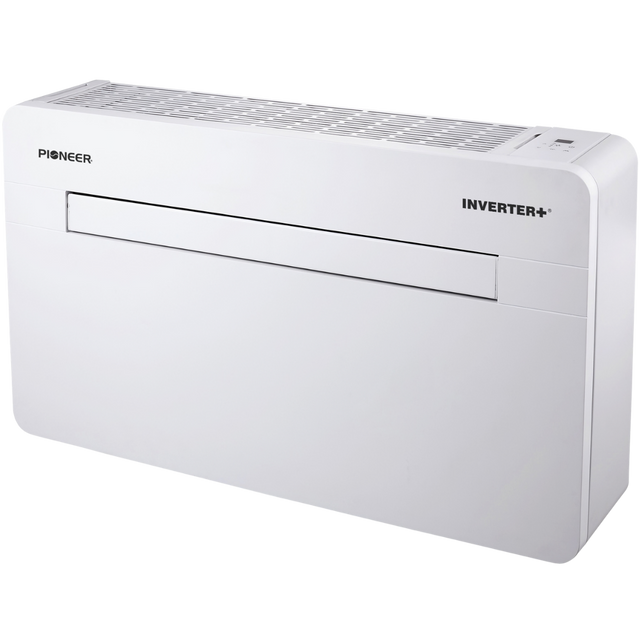

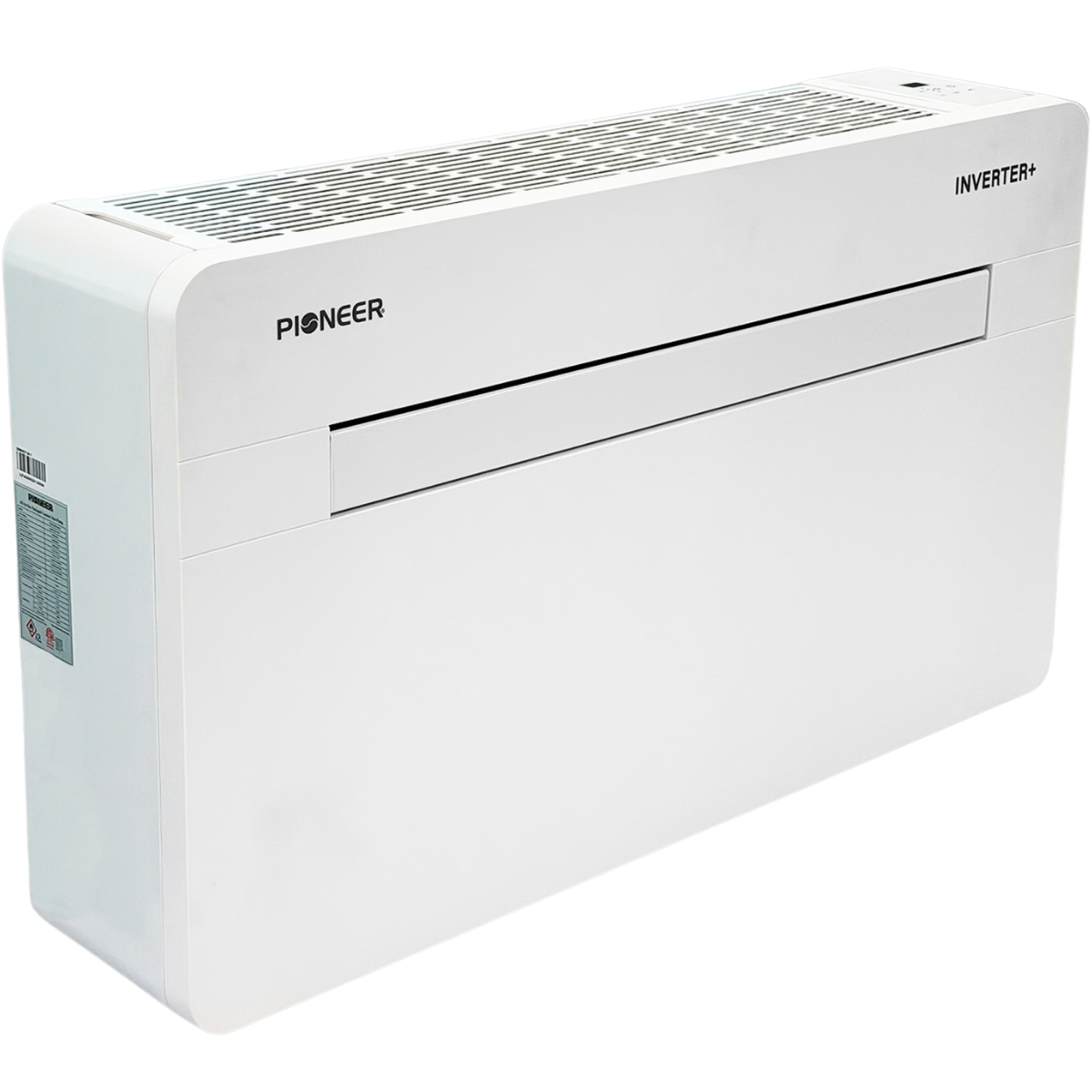

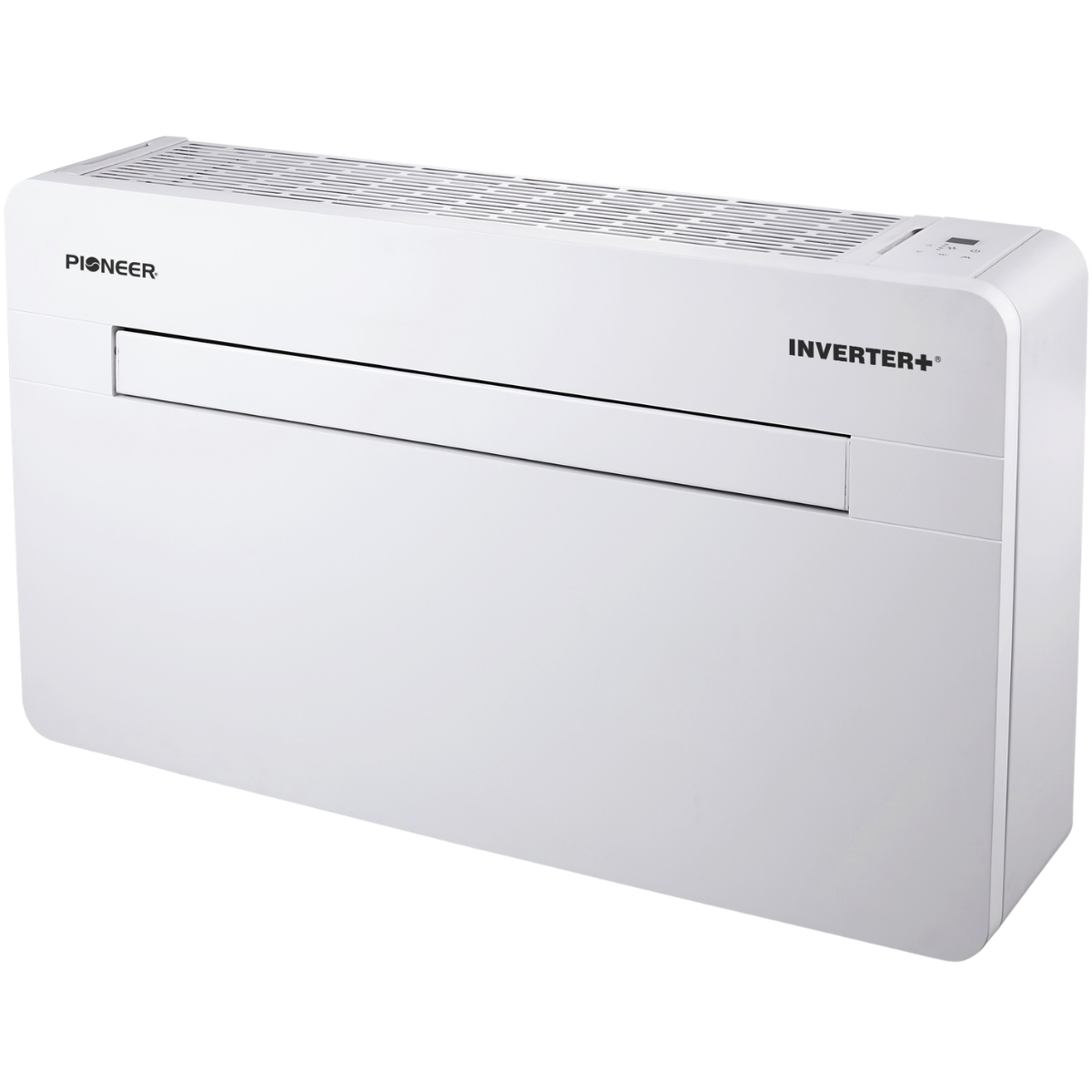

Pioneer 12,000 BTU Monoblock Air Conditioner Heat Pump 230V

SKU: pi19405  |  Model: PYM012GZUI16RD
$1,84800

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Parts and Compressor Limited Warranty (With Registration)

What's In The Box?
  • Pioneer 12,000 BTU Monoblock Air Conditioner Heat Pump 230V
  • Mounting Bracket
  • Drain Hose, Extension, and Adapter
  • Wireless Remote Control and Wall Holder
  • Batteries
  • Screw Kit
  • Owner's Manual, Guides, and Other Documents

Info & Guides

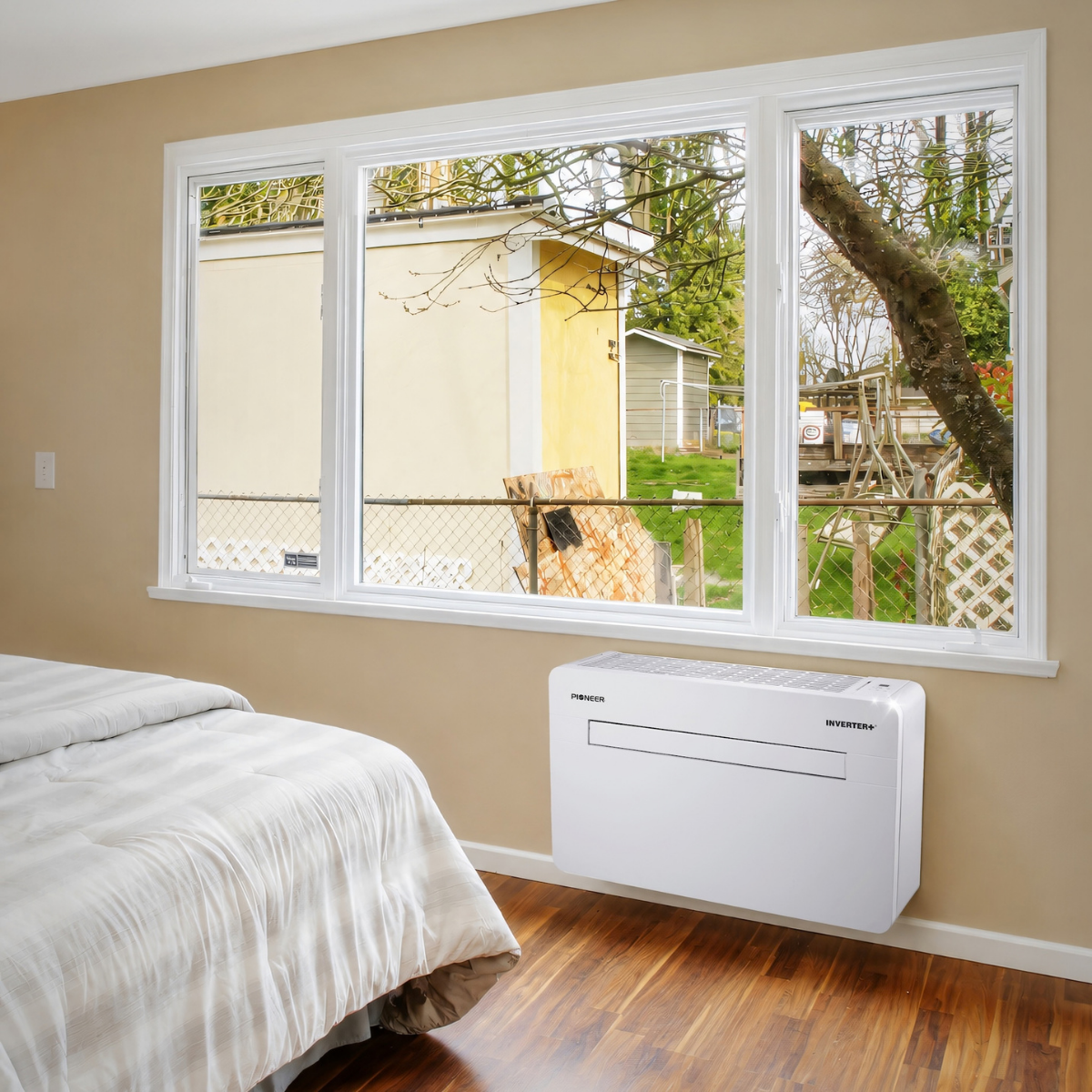

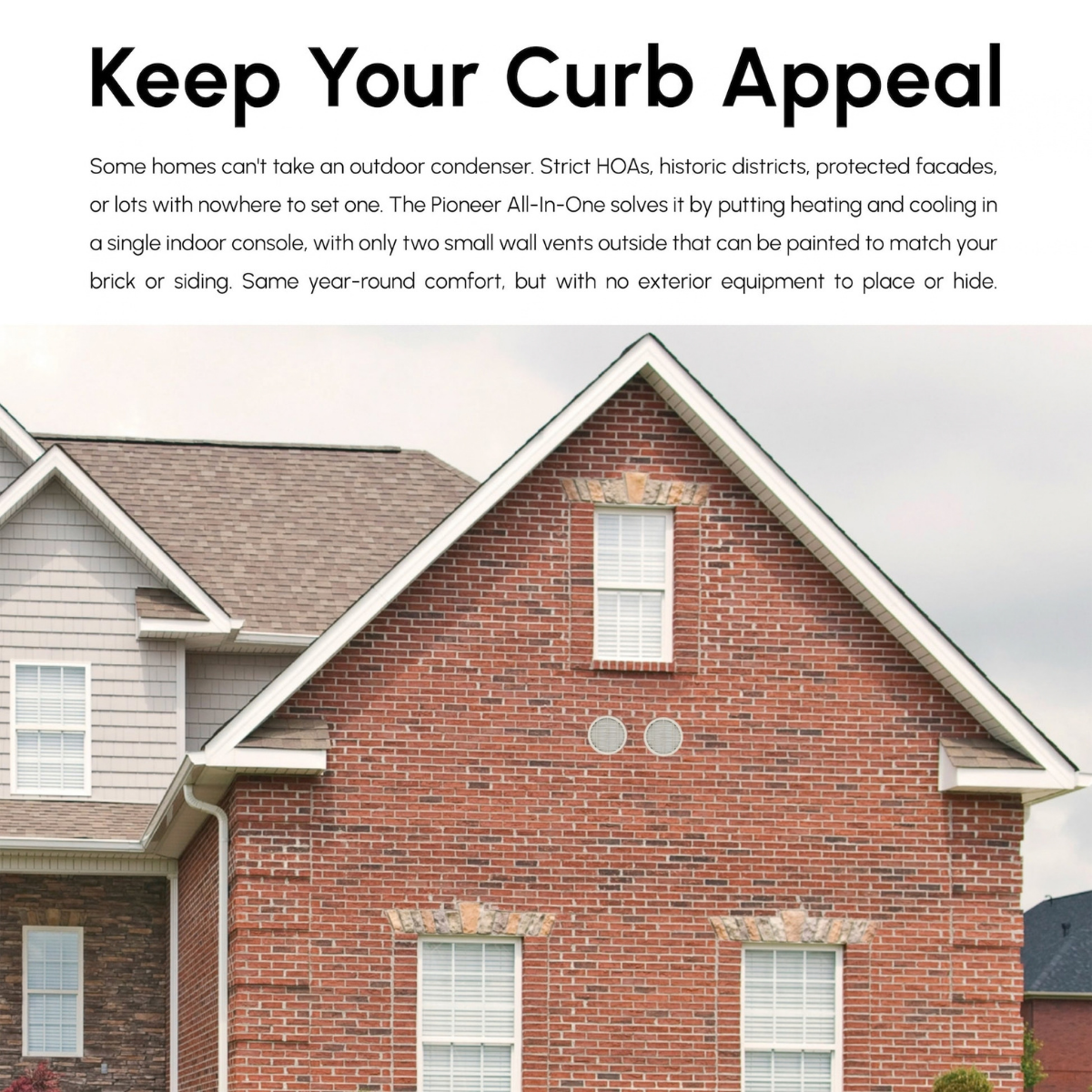

Some spaces have nowhere to put an outdoor condenser. The Pioneer 12,000 BTU Monoblock Air Conditioner Heat Pump 230V solves that problem by keeping the whole AC unit inside one console on an exterior wall, drawing and exhausting outdoor air through two wall openings. It arrives factory pre-charged with R-32 refrigerant, so the sealed circuit is ready to run once it's mounted and wired.

Key Features and Benefits of the Pioneer 12,000 BTU Monoblock Air Conditioner Heat Pump 230V

  • Inverter Compressor: A variable-speed, inverter-driven compressor adjusts its output to your room's load, so temperatures hold steady instead of swinging with on-off cycling.
  • Cooling and Dry: Provides 11,800 BTU/h of cooling, and Dry mode removes up to 1 liter of moisture per hour, so humid rooms feel cooler and less sticky.
  • Heating Output: Rated for 10,900 BTU/h from the heat pump and 10,236 BTU/h from the electric element, so you get strong heat in either mode.
  • Efficiency Ratings: The 15.55 SEER2, 8.15 HSPF2, and 9.76 EER ratings help trim your seasonal energy bills.
  • Measured Sound Levels: Runs at 42 dB on low, 45 dB on medium, and 48 dB on high, so the AC stays unobtrusive no matter where you're using it.
  • Wi-Fi App Control: The built-in Wi-Fi connects to your smartphone with the Pioneer Airlink app, so you can change modes and temperature on the go.

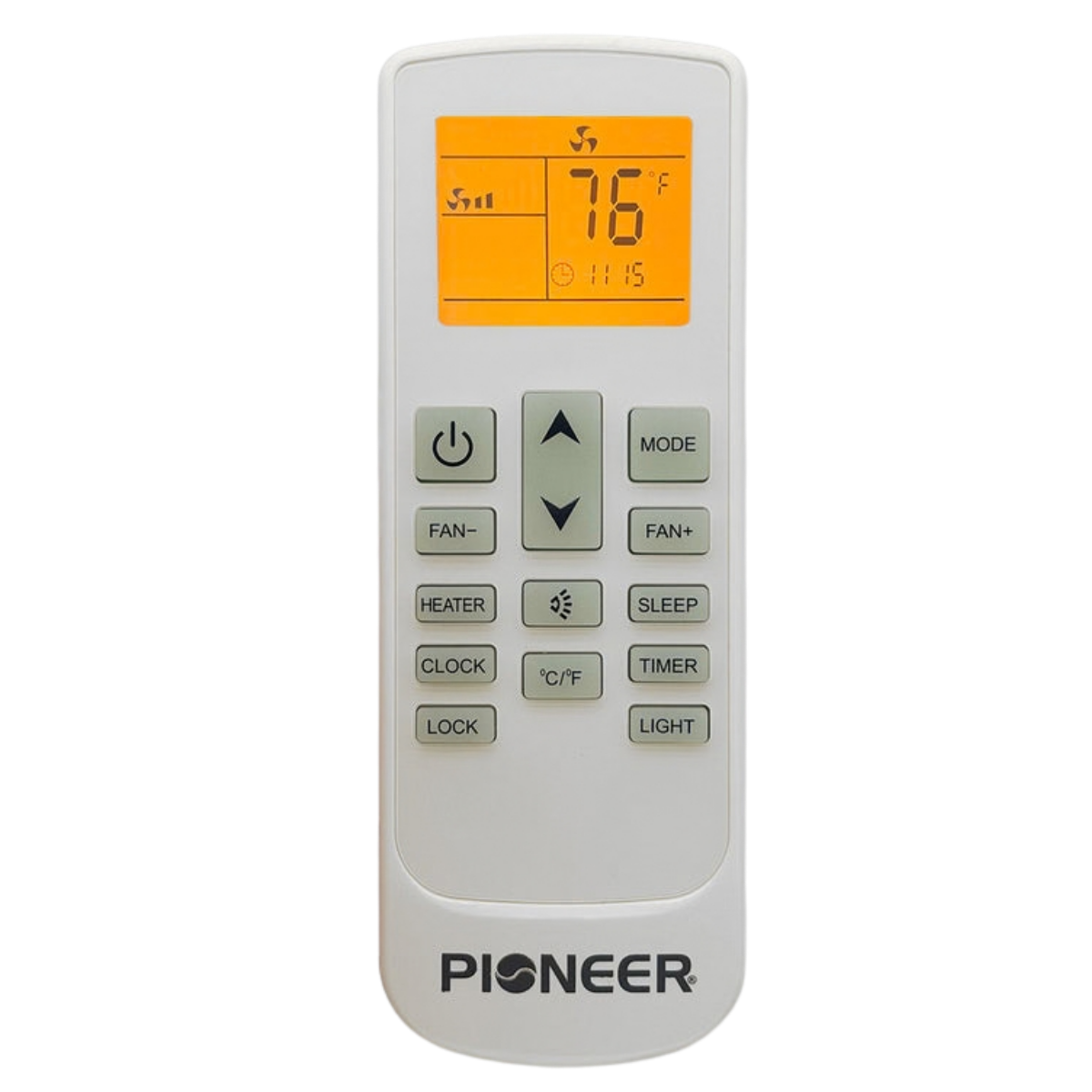

  • Remote and Thermostat: Onboard touch controls and an included wireless remote with Sleep and Timer handle daily use, and the wiring accepts a standard 24V heat pump thermostat.
  • Dual-Axis Louvers: Motorized louvers swing up-down and left-right to spread the 330 CFM max airflow output evenly, cutting down on hot and cold spots.
  • Fresh Air Intake: An included 18-inch fresh air intake duct measuring brings in up to 18 CFM of outdoor air, so a closed room stays fresher.
  • Washable Filters: Reusable air filters rinse clean every two weeks, so upkeep takes minutes, and nothing goes in the trash.

Check Your Wall and Circuit Before Installation

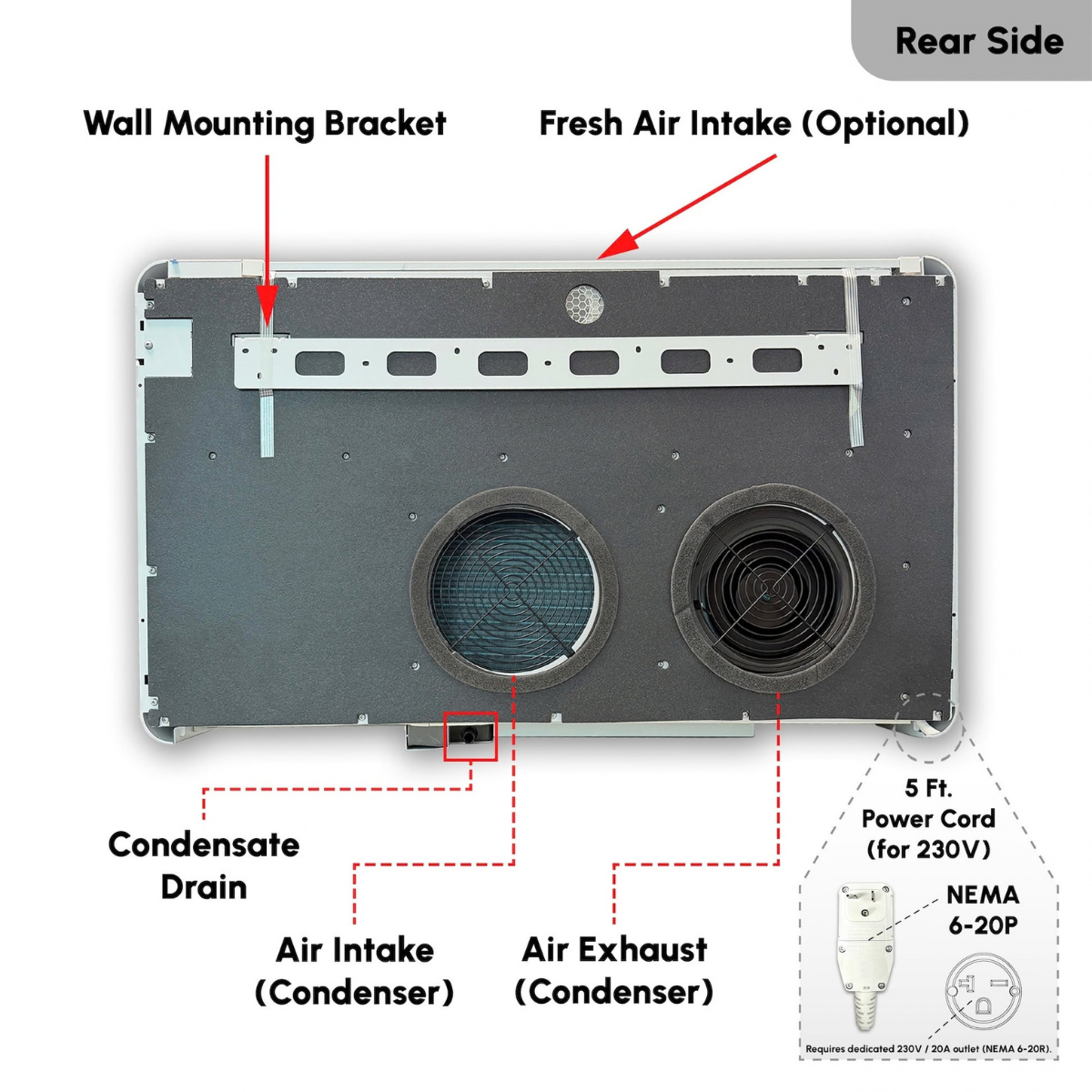

At 22.75 x 39.5 x 7.63 inches (H x W x D) and 117 pounds, this console needs a structurally sound exterior wall. Installation requires two holes, each 8 inches in diameter, for intake and exhaust, plus a drain hole 1-1/4 inches wide. All three holes need to slope outward to drain condensate; the included drain hose and extension route water inside the wall in cold climates.

Make sure you're on a dedicated circuit rated at 208/230 volts and a double-pole breaker rated for 20 amps. The NEMA 6-20P plug and 5-foot cord help you plan outlet placement. Cooling operates with outdoor temperatures from 63 to 109 degrees F, while heating operates from 28 to 81 degrees.

Sylvane's Expert Take

Choose the Pioneer 12,000 BTU Monoblock Air Conditioner Heat Pump for simple, single-room heating and cooling without outdoor equipment. It works best in a well-insulated space with a sturdy wall and a dedicated outlet close to the mounting location. We especially appreciate this AC's compact design, the efficient inverter compressor, and the convenient app control, which will give you year-round comfort and won't take up space in your yard.
