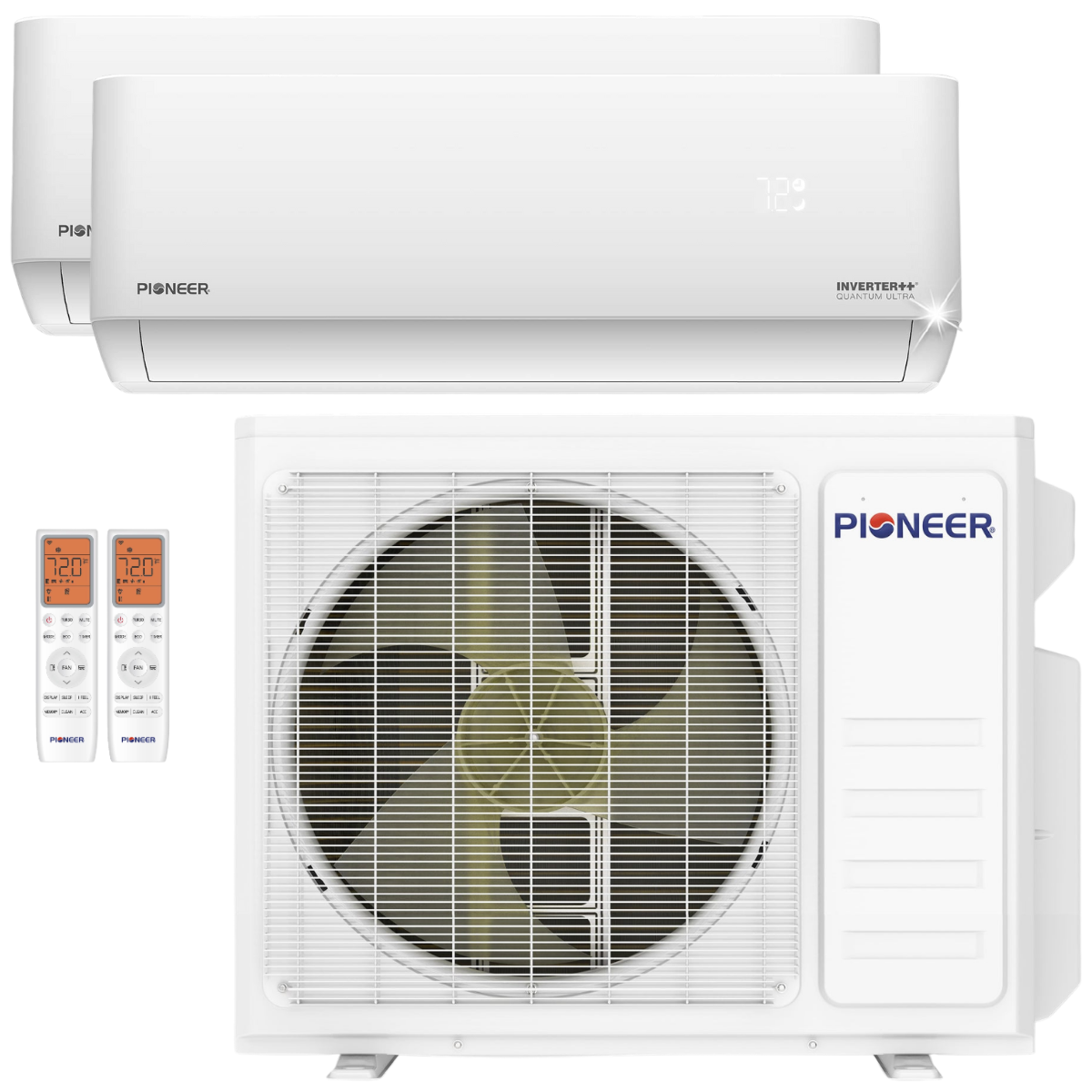

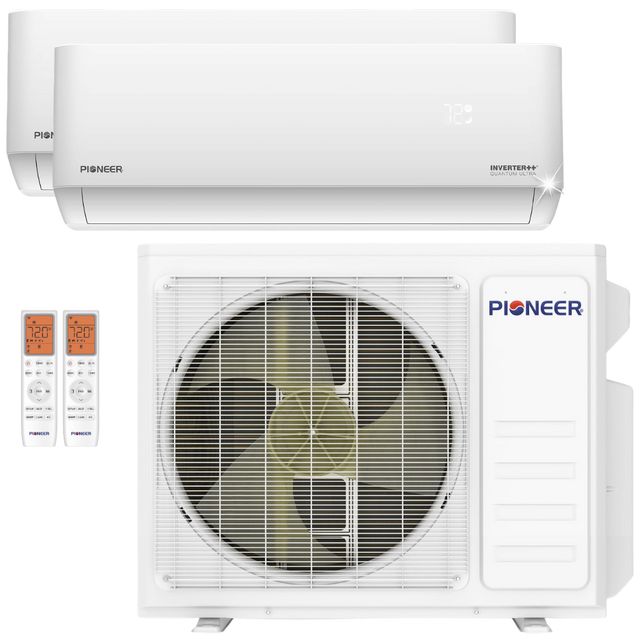

Pioneer 18,000 BTU Dual Zone Quantum Ultra Mini Split Heat Pump 9k + 9k

Name: Pioneer 18,000 BTU Dual Zone Quantum Ultra Mini Split Heat Pump 9k + 9k
Brand: Pioneer
Price: 2104.0 USD
Availability: InStock

SKU: pi17318k | Model: WYT020GLSI24M2-9W-9W

$2,104.00 $2,299.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

What's In The Box?

Pioneer 20,000 BTU Dual Zone Outdoor Condenser YN020GLSI24M2G
Pioneer 9,000 BTU Indoor Evaporator WT009GLSI24HLG (2)
Installation Manual
Owner's Manual

Info & Guides

The Pioneer 18,000 BTU Dual Zone Quantum Ultra Mini-Split Heat Pump delivers targeted, year-round climate control for two separate rooms or zones. Built around inverter technology and a cold-climate rated heat pump, it balances high efficiency with dependable performance in residential and light-commercial spaces.

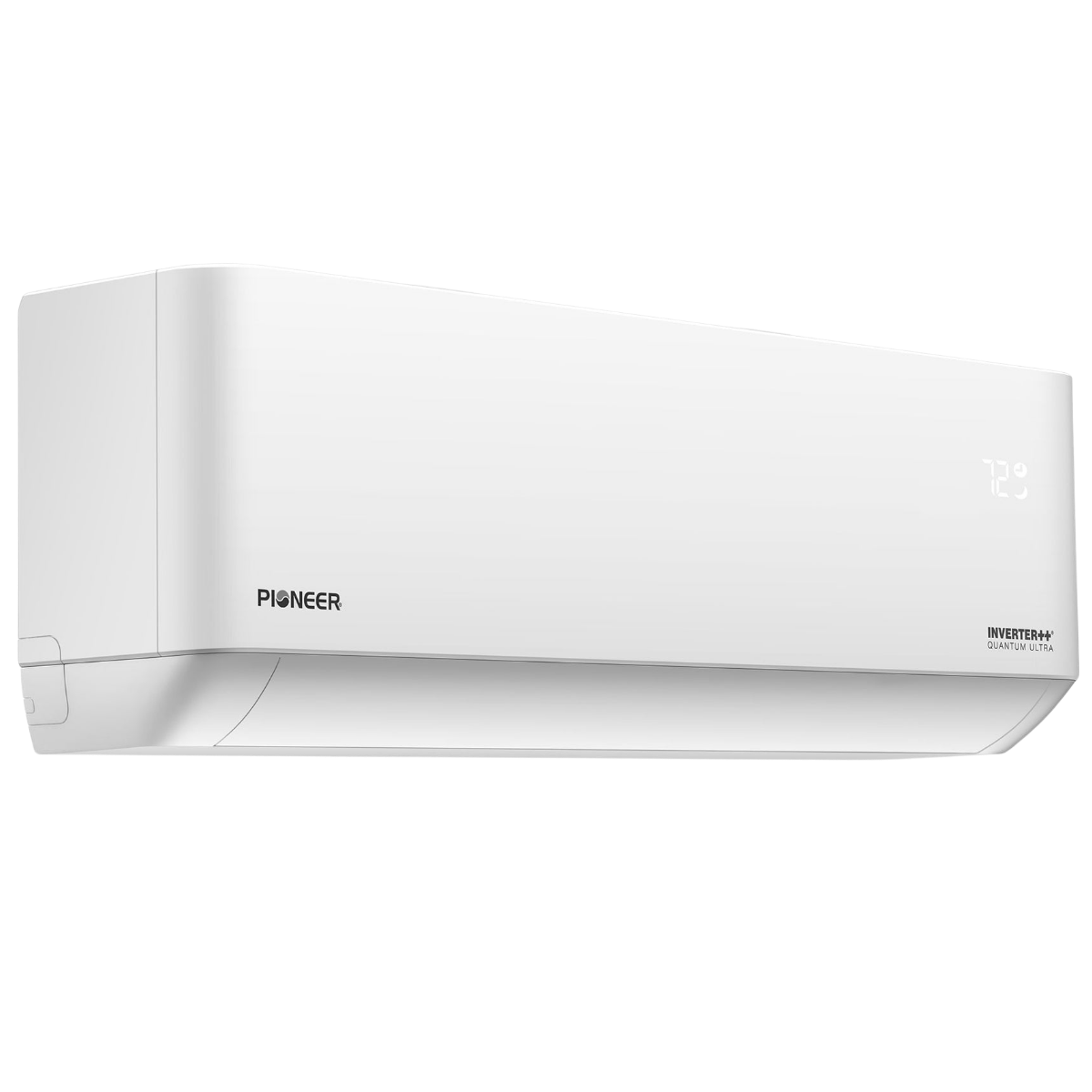

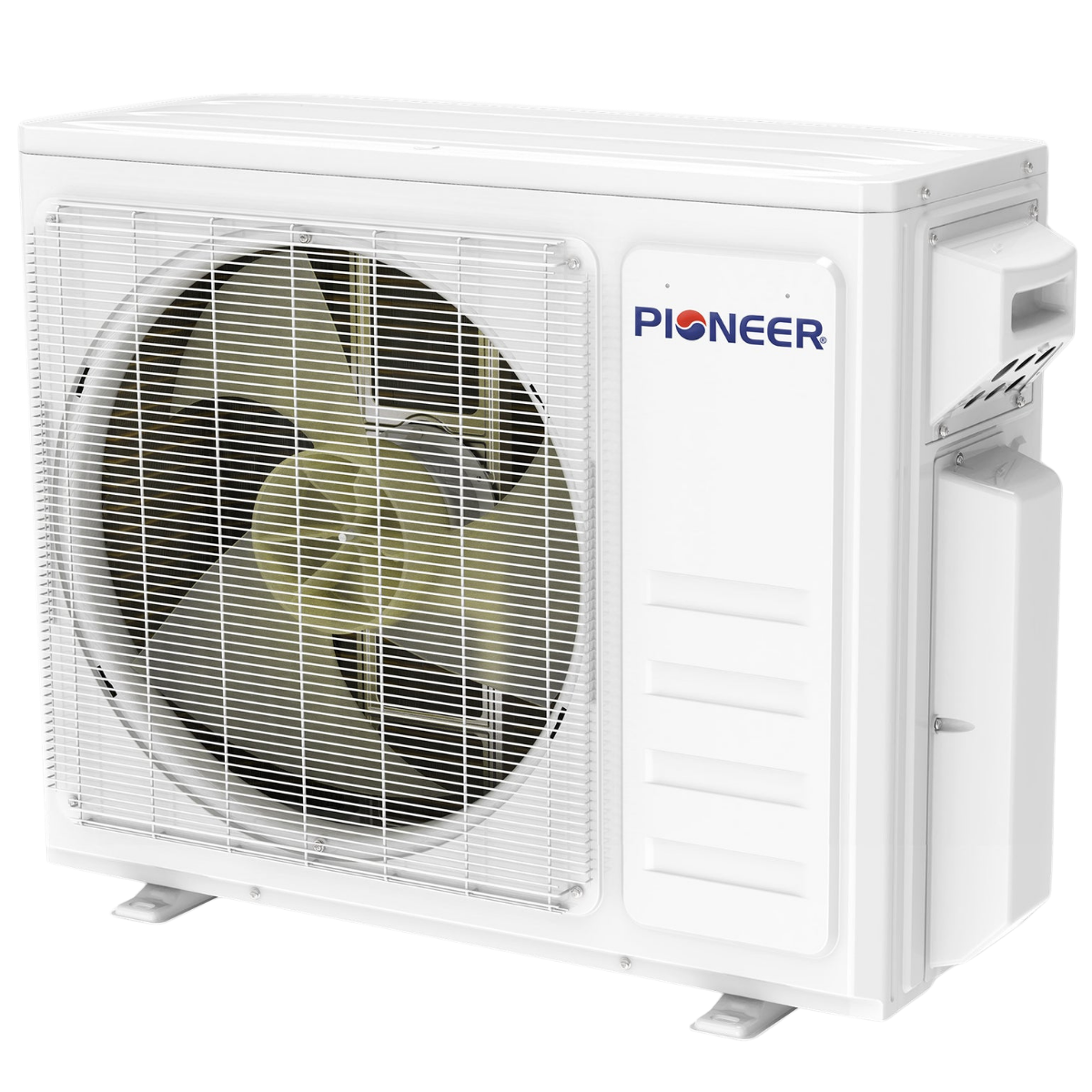

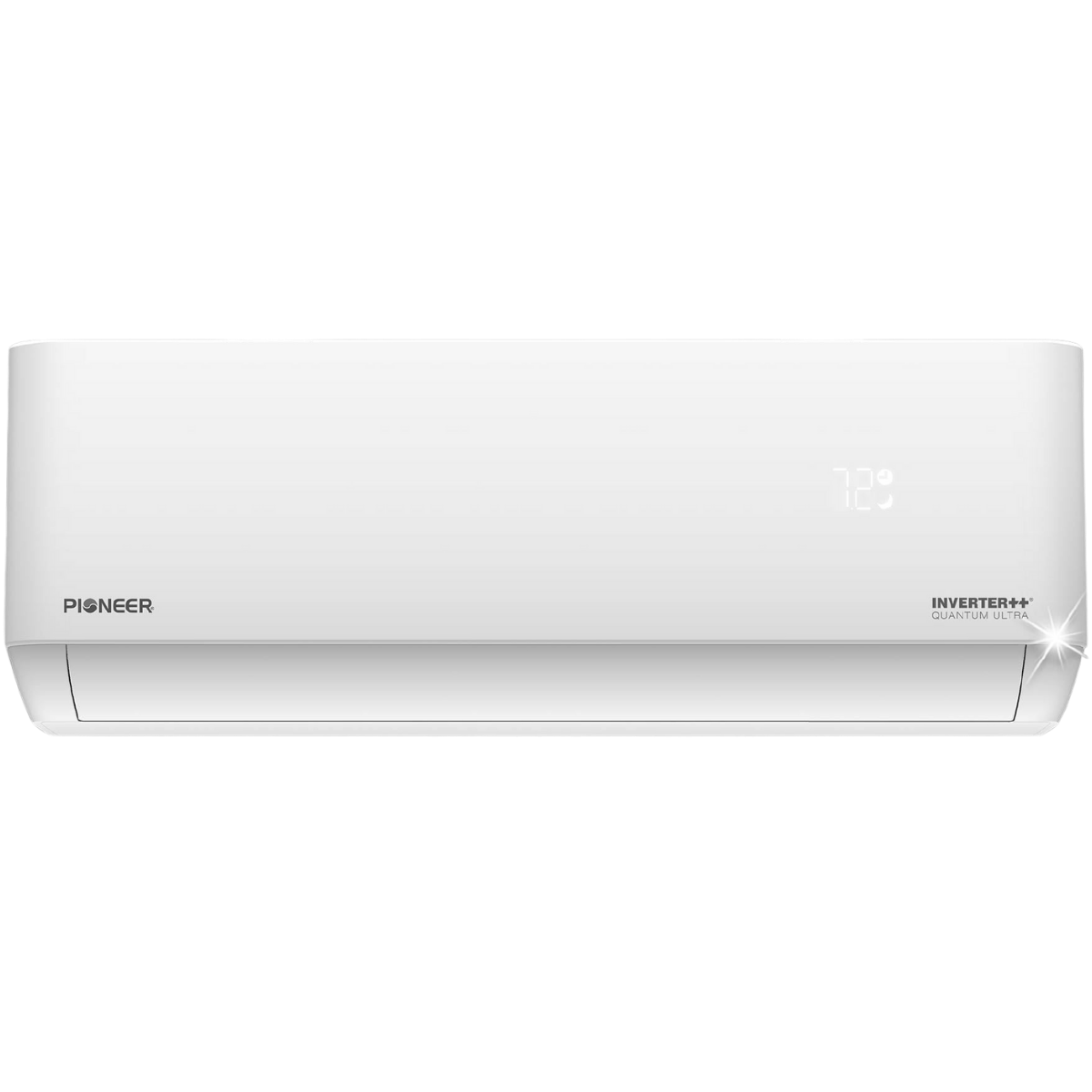

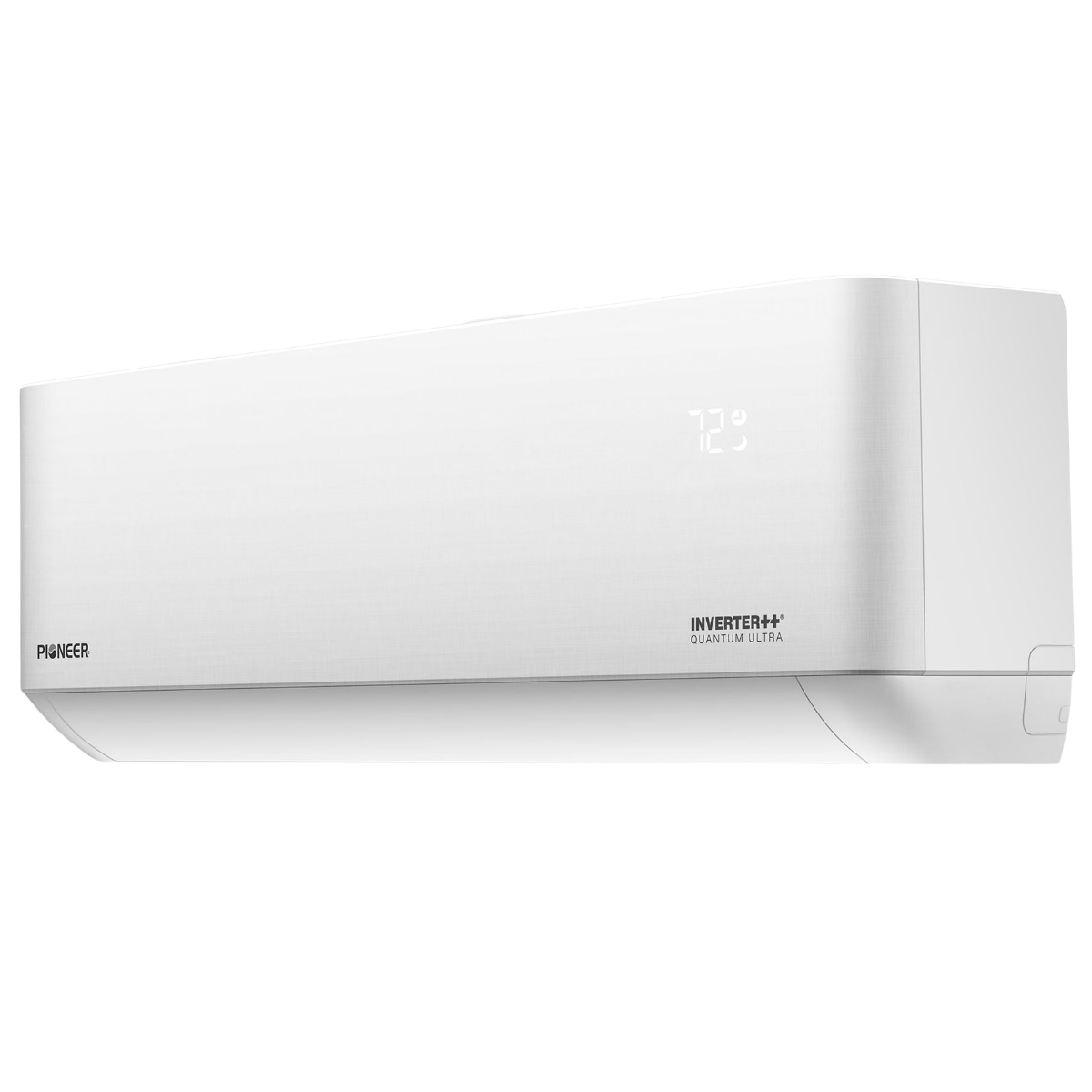

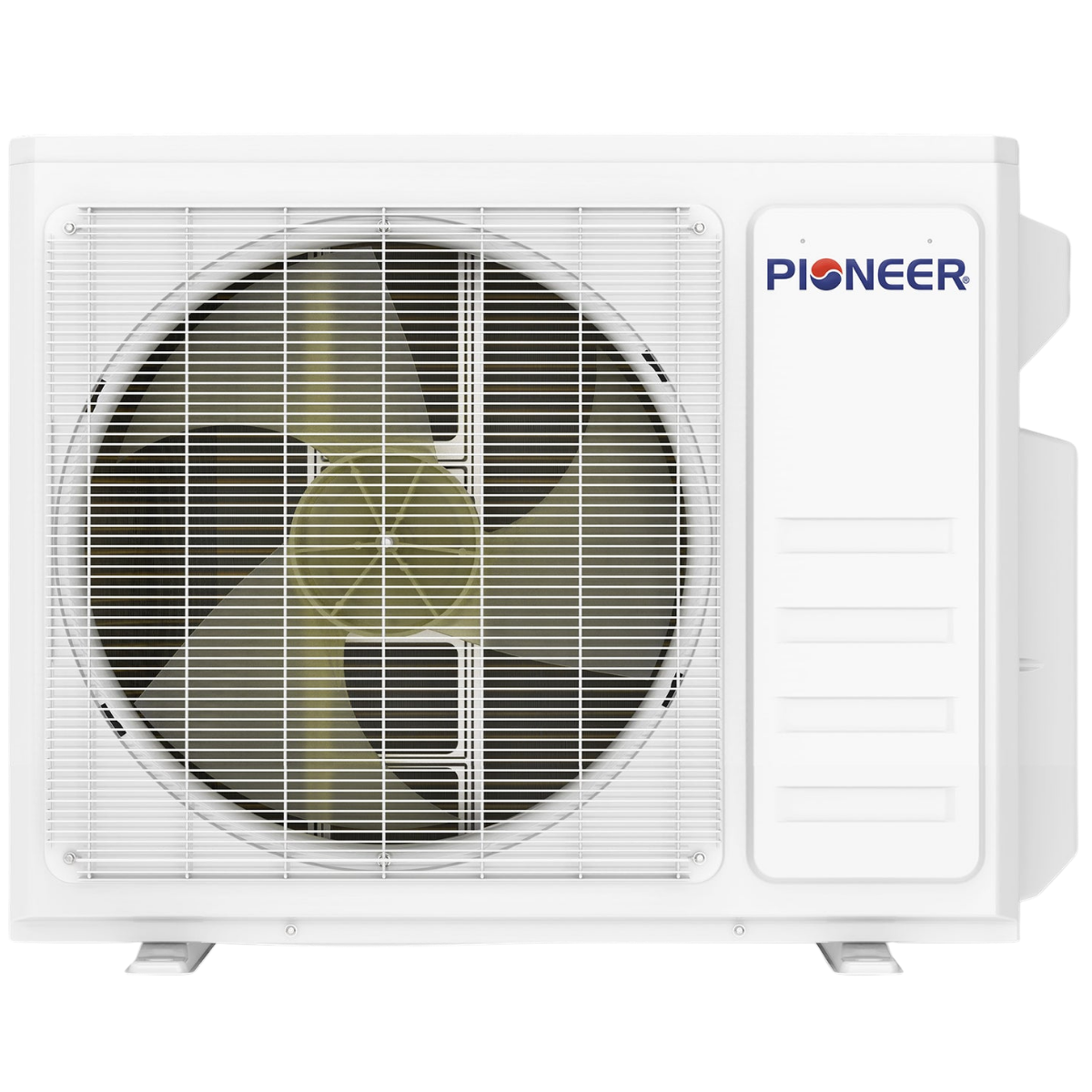

This ductless mini-split pairs an outdoor compressor unit with two 9,000 BTU wall-mounted air handlers, giving you independent temperature control without the need for ductwork. The result is precise comfort, easy installation, and energy-conscious operation.

Key Features and Benefits of the Pioneer 18,000 BTU Dual Zone Quantum Ultra Mini-Split

Dual-Zone Flexibility: Heat and cool two separate 350-square-foot spaces with two 9,000 BTU air handlers and a 20,000 BTU outdoor compressor, giving you room-by-room temperature control and helping reduce energy waste in unused spaces.
High Efficiency Operation: This system's 24 SEER2 cooling rating and 10.0 HSPF2 heating ratings lower operating costs compared with traditional split systems, helping you keep operating costs under budget.
Pioneer Inverter++ Compressor: This compressor's patented Pioneer Inverter++ technology automatically scales the output from 30 to 100 percent of capacity as needed, alleviating temperature swings and eliminating the hard start cycles that shorten equipment life.
Eco-Friendly Refrigerant: This model uses R-454B refrigerant, which has a lower global warming potential compared to legacy blends, supporting sustainability goals and regulatory requirements.
Quiet Operation: A 58 dB outdoor and 43 dB indoor max noise level minimizes disturbance in living spaces, offices, and patios.

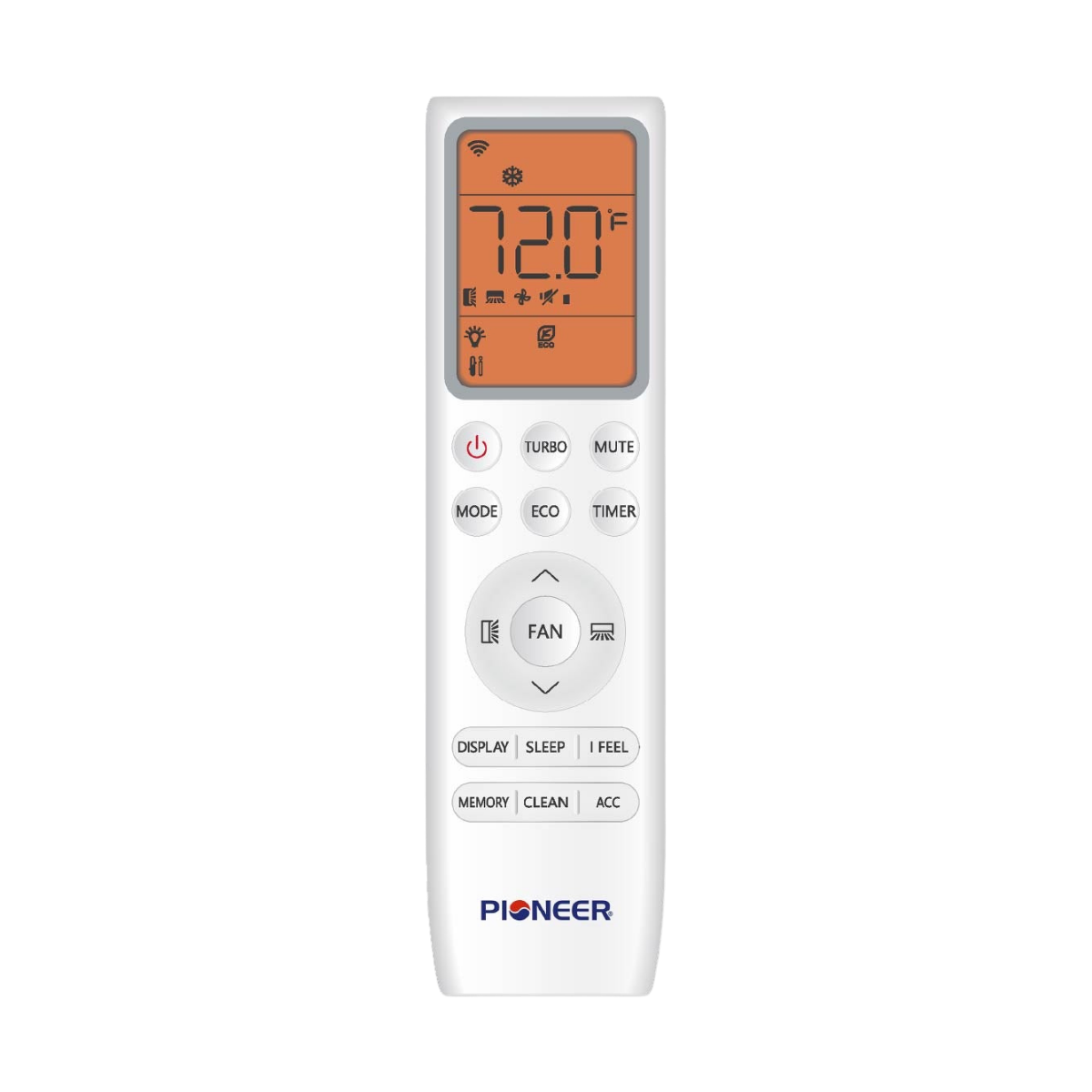

Wi-Fi Ready Air Handlers: Pair the indoor air handlers with the Pioneer Free Airlink App, Google Assistant, Amazon Alexa, and other third-party voice control apps for remote scheduling, temperature adjustments, and zone monitoring from any smartphone. It also comes with a remote control for each air handler.

Note: This mini-split requires professional installation and does not include the two 1/4 x 3/8-inch line sets required for proper installation.

Year-Round Comfort

This Pioneer mini-split heat pump is engineered to handle serious temperature swings. Cooling performance remains steady in outdoor conditions up to 131 degrees F, while the low-ambient heating feature tackles sub-zero cold snaps down to -13 degrees F. Whether you're offsetting the heating and cooling load in a bedroom and office or delivering supplemental heat to a finished basement, the system maintains consistent comfort without needing traditional HVAC equipment and ducting.

Sylvane’s Expert Take

If you need flexible, energy-smart climate control for two separate spaces, the Pioneer Quantum Ultra checks all the right boxes. Its high SEER2 rating, cold-climate heating capability, and Wi-Fi connectivity make it a practical choice for living areas, rental homes, or light-commercial buildings. Installation is straightforward for qualified professionals, and the R-454B refrigerant lowers your energy use. Overall, this dual-zone mini-split offers a reliable balance of efficiency, performance, and long-term value.
