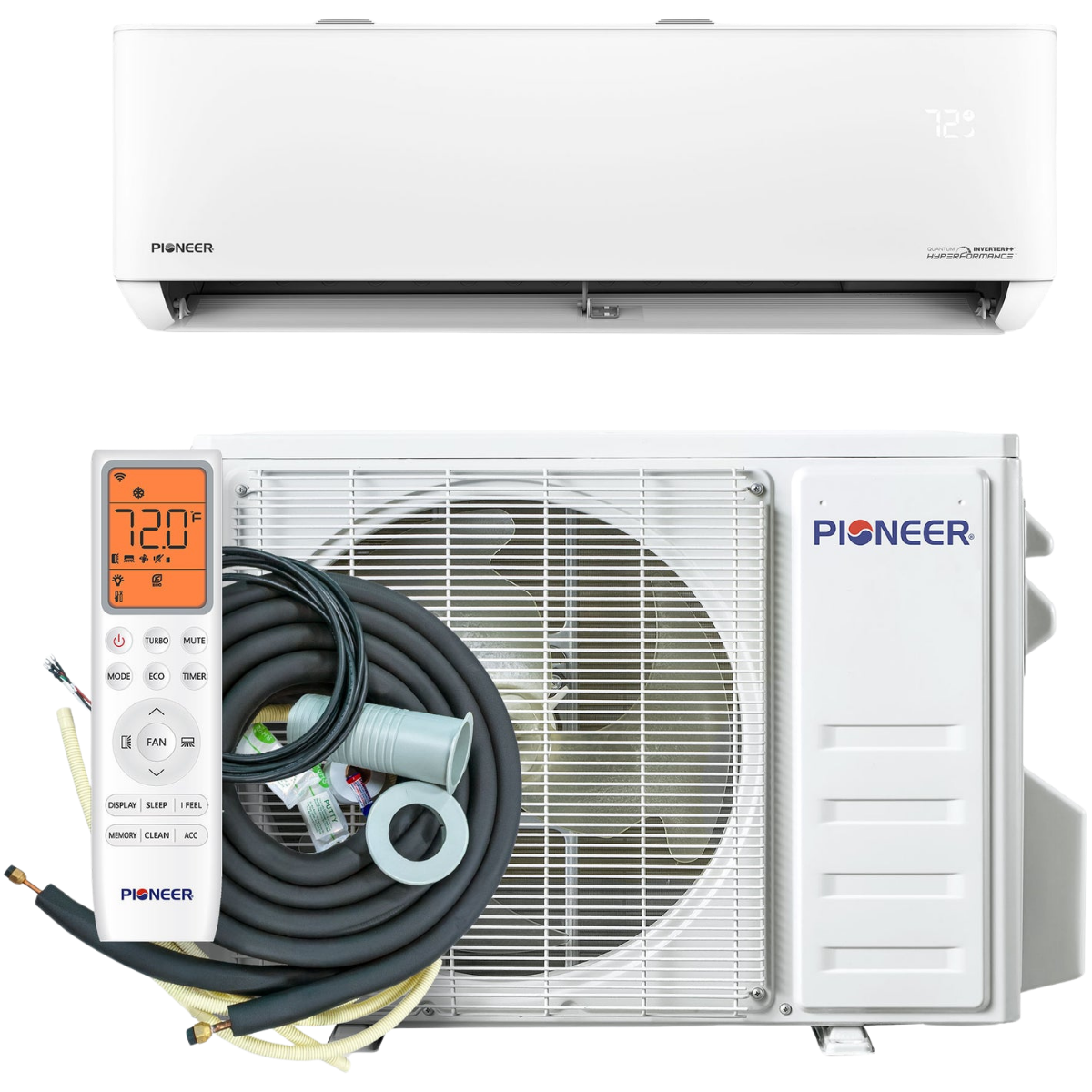

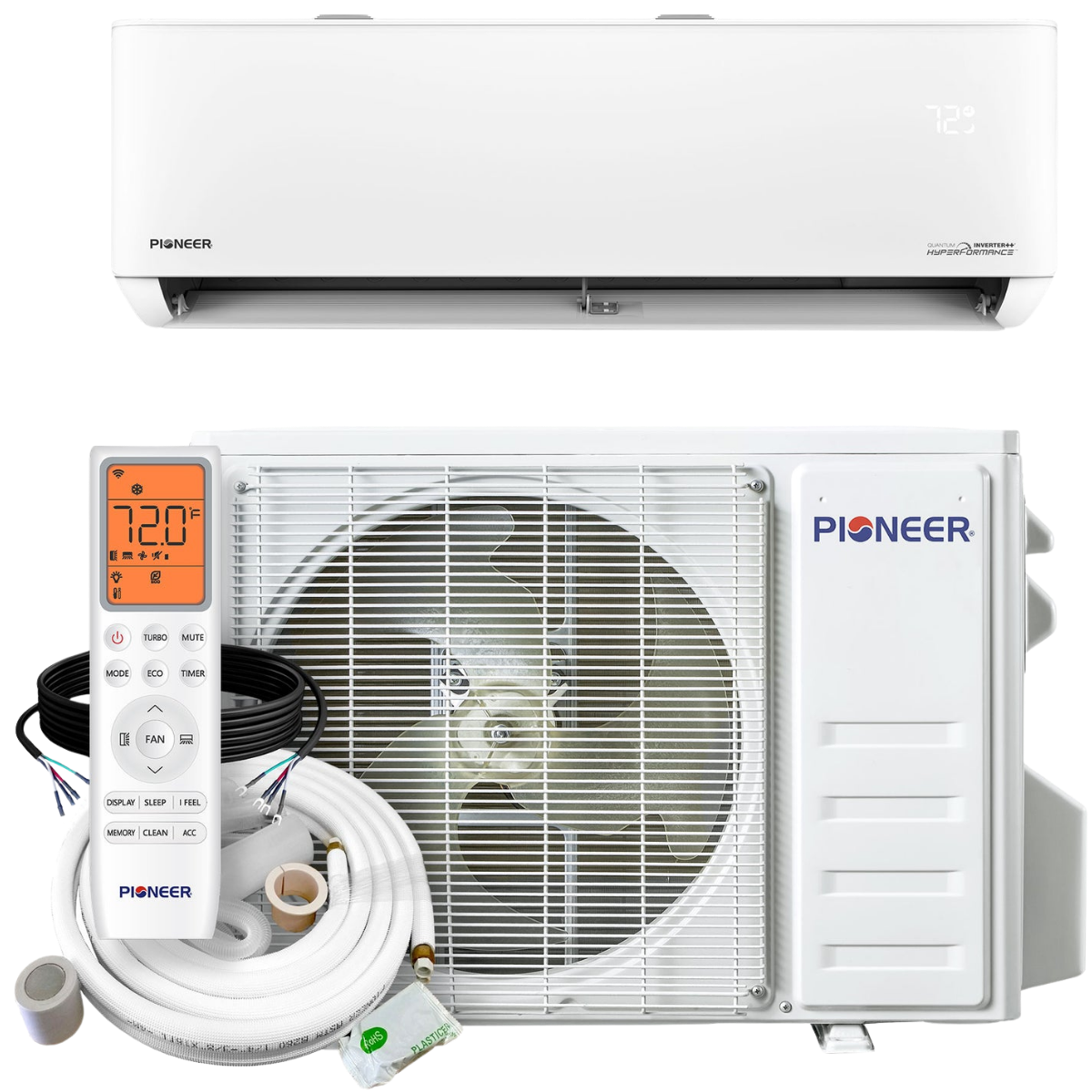

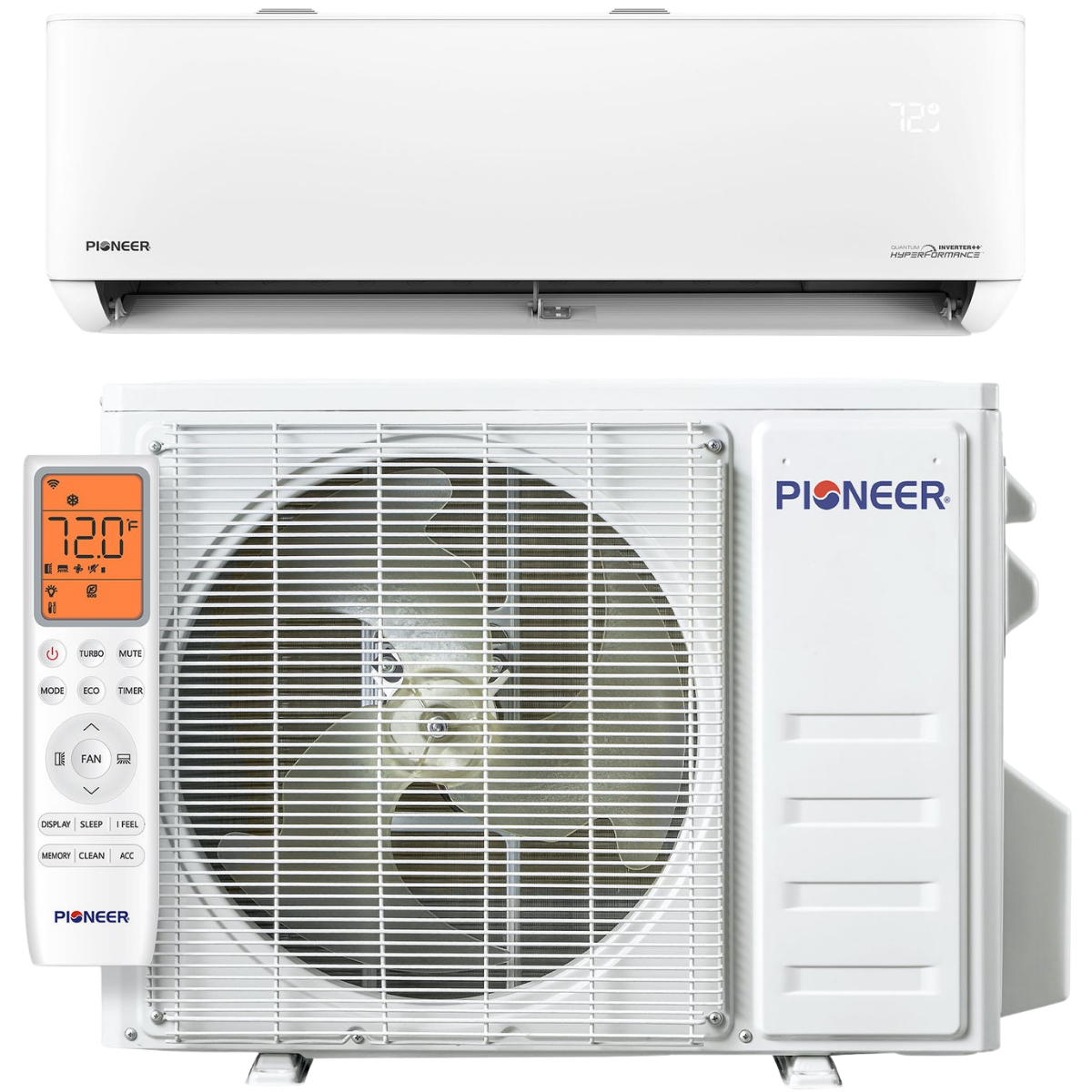

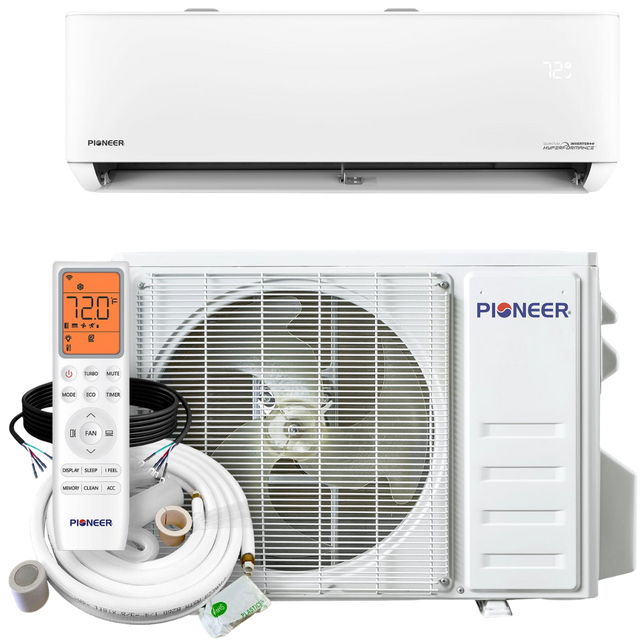

Pioneer 24,000 BTU Quantum Hyperformance Mini Split Hyper Heat Pump 230V

Name: Pioneer 24,000 BTU Quantum Hyperformance Mini Split Hyper Heat Pump 230V
Brand: Pioneer
Price: 2316.0 USD
Availability: InStock

SKU: pi17409k | Model: WYT024GLSI25RH-16S

$2,316.00 $2,799.00

Pioneer Copper Piping Kit for Mini Split Installation 3/8-5/8 (Line Length)

16 Ft 25 Ft 33 Ft 50 Ft

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

What's In The Box?

24,000 BTU Indoor Unit
24,000 BTU Outdoor Unit
Wireless Remote Control
Remote Control Wall Holder and Batteries
16-, 25-, 33-, or 50-foot Line Set
10 Foot Drain
Wall Passage Sleeve
Hardware
Installation and User's Manual

Info & Guides

The Pioneer 24,000 BTU Quantum Hyperformance Mini-Split Hyper Heat Pump 230V delivers year-round climate control for medium to large rooms without the need for ductwork. Designed around inverter technology and a high-efficiency heat pump core, it offers Energy Star-rated cooling and heating while maintaining low energy draw.

This ductless system is built for professional installations in homes and offices up to 1,000 square feet. A streamlined indoor wall air handler pairs with a durable outdoor condenser to provide precise temperature management in a broad range of outdoor conditions.

Key Features and Benefits of the Pioneer 24,000 BTU Quantum Hyperformance Mini-Split Heat Pump

High-Efficiency Performance: The mini-split is Energy Star rated and has a 23 SEER2 cooling rating and 10.0 HSPF2 heating rating, which reduces operating costs, so you can maintain comfort without unexpected energy spikes.
Wi-Fi Smart Controls: Using the Pioneer Airlink app or other voice assistant apps via Wi-Fi, you can adjust settings, set a heating and cooling schedule, and monitor the mini split's performance from anywhere.
Dual-Axis Airflow: Motorized horizontal and vertical louvers distribute conditioned air evenly, helping eliminate hot and cold spots across the room.
ECO and SLEEP Modes: These automated settings fine-tune temperature and fan speed overnight or during low-load periods, saving additional kilowatt-hours.
Low Indoor Sound: Operates as quietly as 32 dB, so meetings, conversations, and downtime remain undisturbed.
TURBO Function: Rapidly ramps up compressor and fan speed to reach set temperatures faster when occupancy levels or outdoor conditions change suddenly.
Washable Filters: Reusable intake filters capture dust and are simple to clean, keeping maintenance costs low.
R-454B Refrigerant: This model uses the next-generation R-454B refrigerant, which is more energy efficient and has a lower global warming potential than legacy blends, supporting sustainability goals.
Optional Linesets: You can select this mini-split with a 16, 25, 33, or 50-foot line set.

Note: This model requires professional installation.

Ready for Any Climate

Unlike conventional mini-split AC systems that require supplemental heat in freezing weather, this hyper heat pump maintains output down to -22 degrees F and up to 131 degrees F. That means you only need one system to handle both peak-summer cooling and sub-zero heating.

Sylvane’s Expert Take

If you need a single device that heats and cools efficiently, no matter the region or season, Pioneer’s Quantum Hyperformance is a strong contender. This model's 23 SEER2 efficiency, full-featured smart control, and quiet indoor operation present a solid blend of performance and convenience. Add in the eco-friendly R-454B refrigerant and an installer-friendly footprint, and you have a mini-split air conditioner that meets both sustainability and practical installation requirements.
