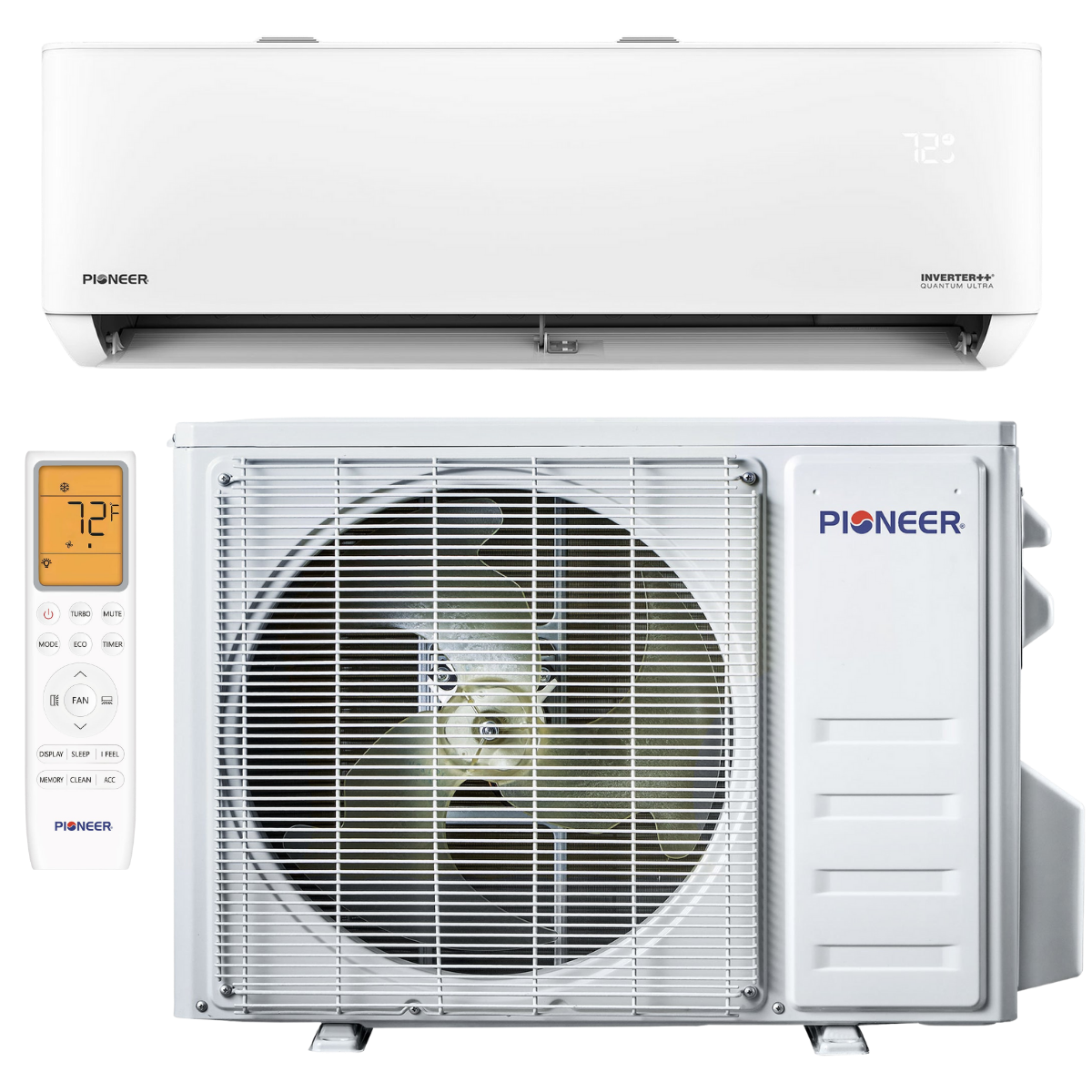

Pioneer 24,000 BTU Quantum Ultra High-Wall Series Ductless Mini Split
Pioneer 24,000 BTU Quantum Ultra High-Wall Series Ductless Mini Split is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Pioneer 24,000 BTU Quantum Ultra High-Wall Ductless Mini Split Indoor Unit WT024GLSI24HLG
- Pioneer 24,000 BTU Quantum Ultra High-Wall Ductless Mini Split Outdoor Unit YN024GLSI24RPG
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 10-foot Drain
- Wall Passage Sleeve
- Installation Hardware
- Owner’s Guide
Info & Guides
Info & Guides
Description
Description

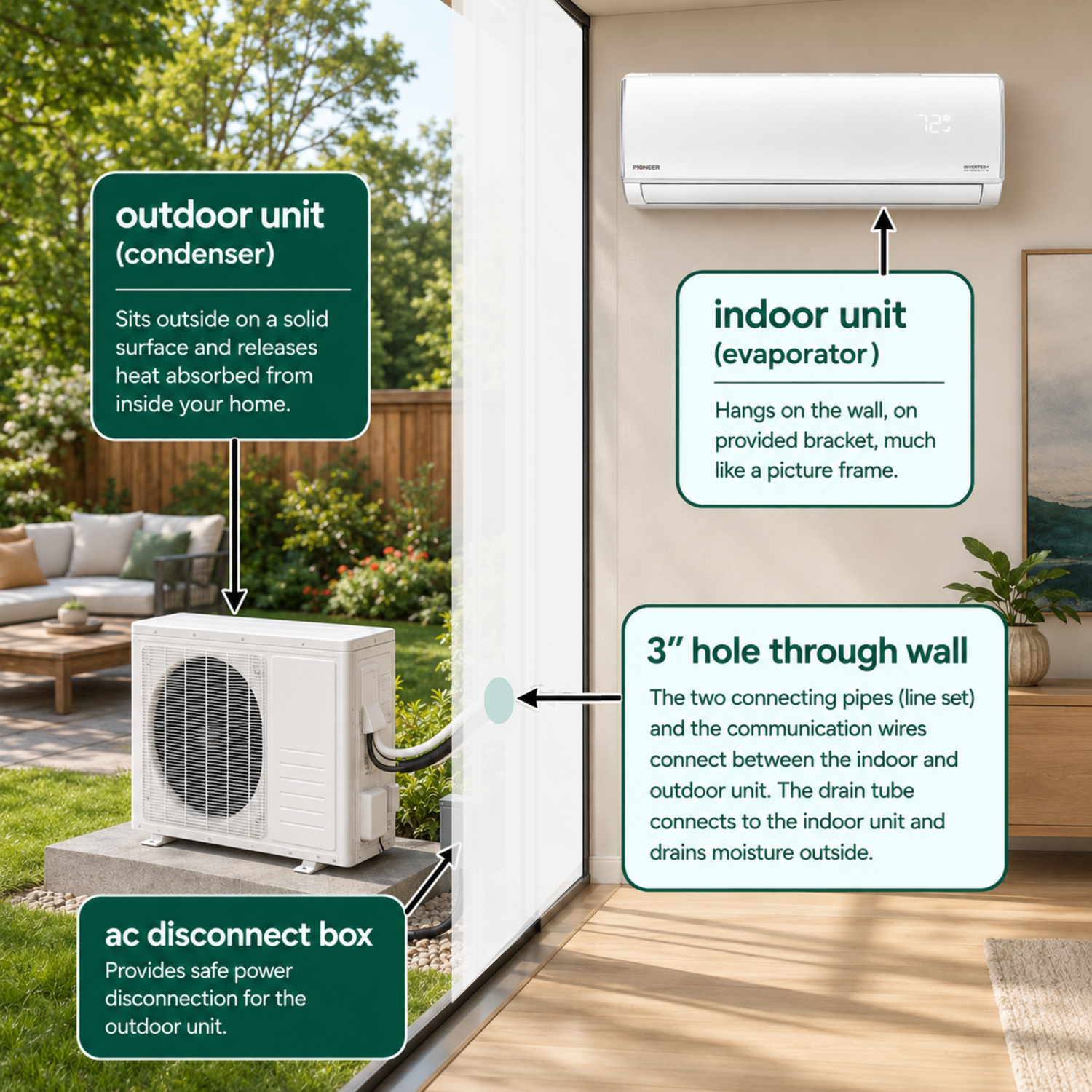

Designed for year-round climate control, the Pioneer 24,000 BTU Quantum Ultra High-Wall Series Ductless Mini Split is a heat pump system that quietly delivers heating and cooling to mid-size residential or light-commercial spaces. Combining a high-wall indoor air handler with an outdoor compressor, this model creates a flexible, duct-free solution that minimizes energy loss and simplifies installation.
This variable-speed inverter system automatically adjusts output to match demand, helping you maintain consistent temperatures while lowering operating costs. Built-in Wi-Fi connectivity lets you link the system to your smartphone for at-a-glance monitoring and straightforward adjustments from virtually anywhere.
Key Features and Benefits of the Pioneer 24,000 BTU Quantum Ultra Mini-Split
- High Efficiency: Ultra-high 23 SEER2 efficiency rating reduces monthly energy expenses, keeping comfort affordable throughout the year.
- Inverter Technology: Variable-speed DC inverter technology modulates output, eliminating temperature swings and enhancing overall system longevity.
- Four Operating Modes: Cooling, Heating, Dry, and Ventilation modes give you precise control across seasons, whether you need moisture removal or gentle air circulation.
- Automatic Louvers: Dual-axis motorized louvers deliver wide, balanced airflow, so conditioned air reaches every corner of rooms up to 1,000 square feet.
- Energy Saving Modes: ECO and SLEEP modes fine-tune performance overnight or during low-activity periods, conserving energy without sacrificing comfort.
- TURBO Mode: TURBO mode ramps up compressor and fan speeds for rapid temperature pull-down or heat-up when you return to a warm attic office or a chilly workshop.
- IFEEL Sensor Technology: The IFEEL sensor technology reads the temperature at the handheld remote, ensuring the setpoint matches where you actually spend time, not just at the indoor grille.
- Self-Clean Mode: Self-clean cycle dries internal surfaces after operation, helping prevent mold growth and minimizing maintenance chores.
- Washable Filters: Washable air filters capture dust and allergens, saving you replacement costs and supporting better indoor air quality.
- Eco-Friendly Refrigerant: The environmentally friendly R-454B refrigerant offers a lower global warming potential than legacy blends, aligning with upcoming regulatory requirements.

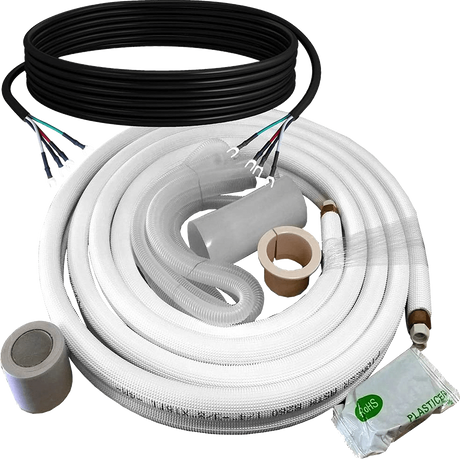

Note: The 1/4 x 5/8 inch line set is not included.
All-Season Reliability
Heat pump performance often drops off when winter temperatures plummet, but the Quantum Ultra Mini-Split is engineered to keep running efficiently in subzero conditions. The compressor’s advanced control board and cold-weather firmware sustain heating output down to -13 degrees F, making it suitable for mountain cabins, northern rentals, and detached workshops that need dependable warmth. During peak summer heat, the outdoor unit maintains cooling up to 131 degrees F, so server rooms and sun-soaked living areas stay protected against temperature spikes. This broad operating range reduces the need for supplemental heaters or backup window air conditioners, simplifying equipment planning for property managers and builders alike.
Sylvane’s Expert Take
If you need an efficient, stand-alone system that handles both heating and cooling without ductwork, the Quantum Ultra Mini-Split hits the mark. Its inverter compressor, Wi-Fi control, and thoughtful operating modes provide a balanced mix of performance and convenience, while the wide temperature range supports reliable service in demanding climates. For retrofit projects or new construction where flexibility and low operating costs are priorities, this Pioneer model offers a straightforward, future-ready solution.
Specifications
Specifications
-
Energy Efficiency Ratio 2 (EER2)12
-
Mounting TypeWall
-
Number of SpeedsVariable
-
Seasonal Energy Efficiency Ratio 2 (SEER2)23
-
Total Cooling Capacity (BTUs)23000
-
Total Heating Capacity (BTUs)25000
-
CertificationsAHRI, cETLus
-
ColorWhite
-
Compressor TypeInverter Rotary
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)735.0
-
Maximum Indoor Noise Level (dB)54
-
Maximum Operating Temperature - Cooling (degrees F)131
-
Maximum Operating Temperature - Heating (degrees F)86
-
Minimum Operating Temperature - Cooling (degrees F)5
-
Minimum Operating Temperature - Heating (degrees F)-13
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)1000
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)23000
-
Zone Heating Capacity (BTUs)25000
-
Maximum Cooling Amperage (Amps)8.3
-
Maximum Cooling Wattage (W)1860
-
Maximum Heating Amperage (Amps)9
-
Maximum Heating Wattage (W)2000
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)13.13
-
Indoor Unit Height (in.)8.75
-
Indoor Unit Weight (lbs.)30.9
-
Indoor Unit Width (in.)43.13
-
Maximum Line Length (ft.)25
-
Outdoor Unit Depth (in.)16.63
-
Outdoor Unit Height (in.)31.63
-
Outdoor Unit Weight (lbs.)104.7
-
Outdoor Unit Width (in.)38.5
-
Additional FeaturesRemote Control, Energy Star, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty5-Year Parts and Compressor Limited Warranty (with required warranty registration)
