Pioneer 27,000 BTU Tri-Zone Quantum Ultra Mini Split Heat Pump 9k+9k+9k

Name: Pioneer 27,000 BTU Tri-Zone Quantum Ultra Mini Split Heat Pump 9k+9k+9k
Brand: Pioneer
Price: 2812.0 USD
Availability: InStock

SKU: pi17325k | Model: WYT030GLSI24M3-9W-9W-9W

$2,812.00 $3,299.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

What's In The Box?

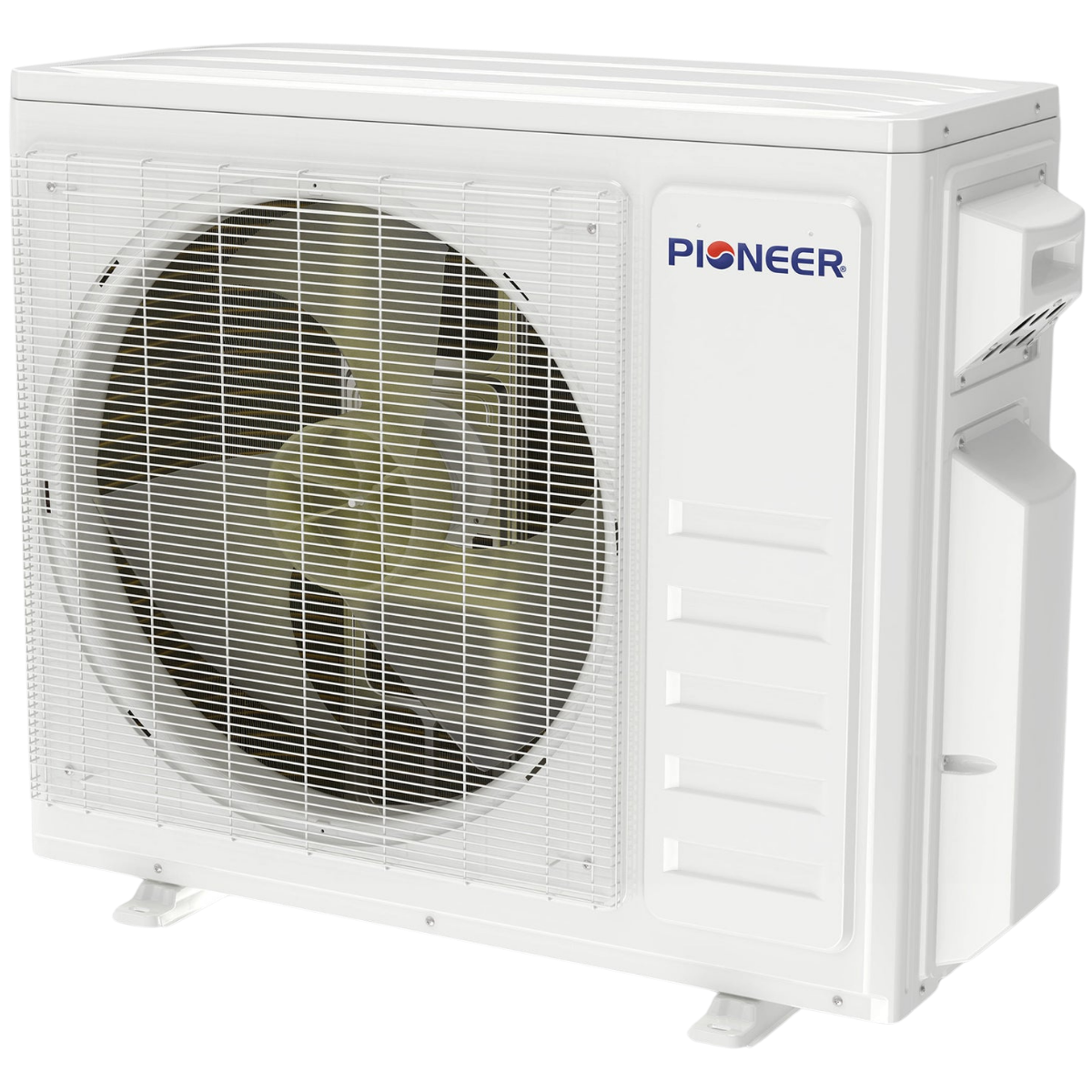

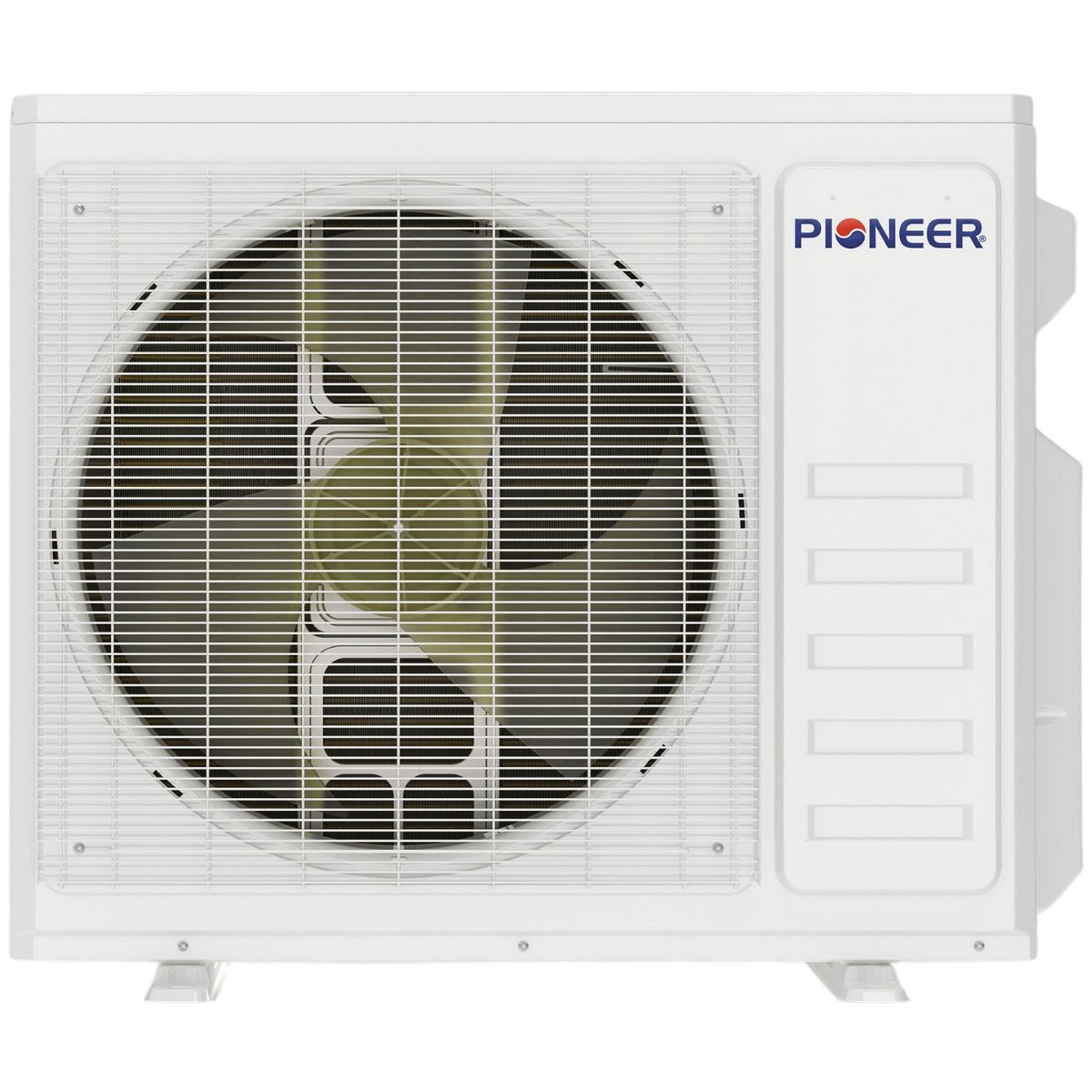

Pioneer 30,000 BTU Tri Zone Outdoor Condenser YN030GLSI24M3G
Pioneer 9,000 BTU Indoor Evaporator WT009GLSI24HLG (3)
Installation Manual
Owner's Manual

Info & Guides

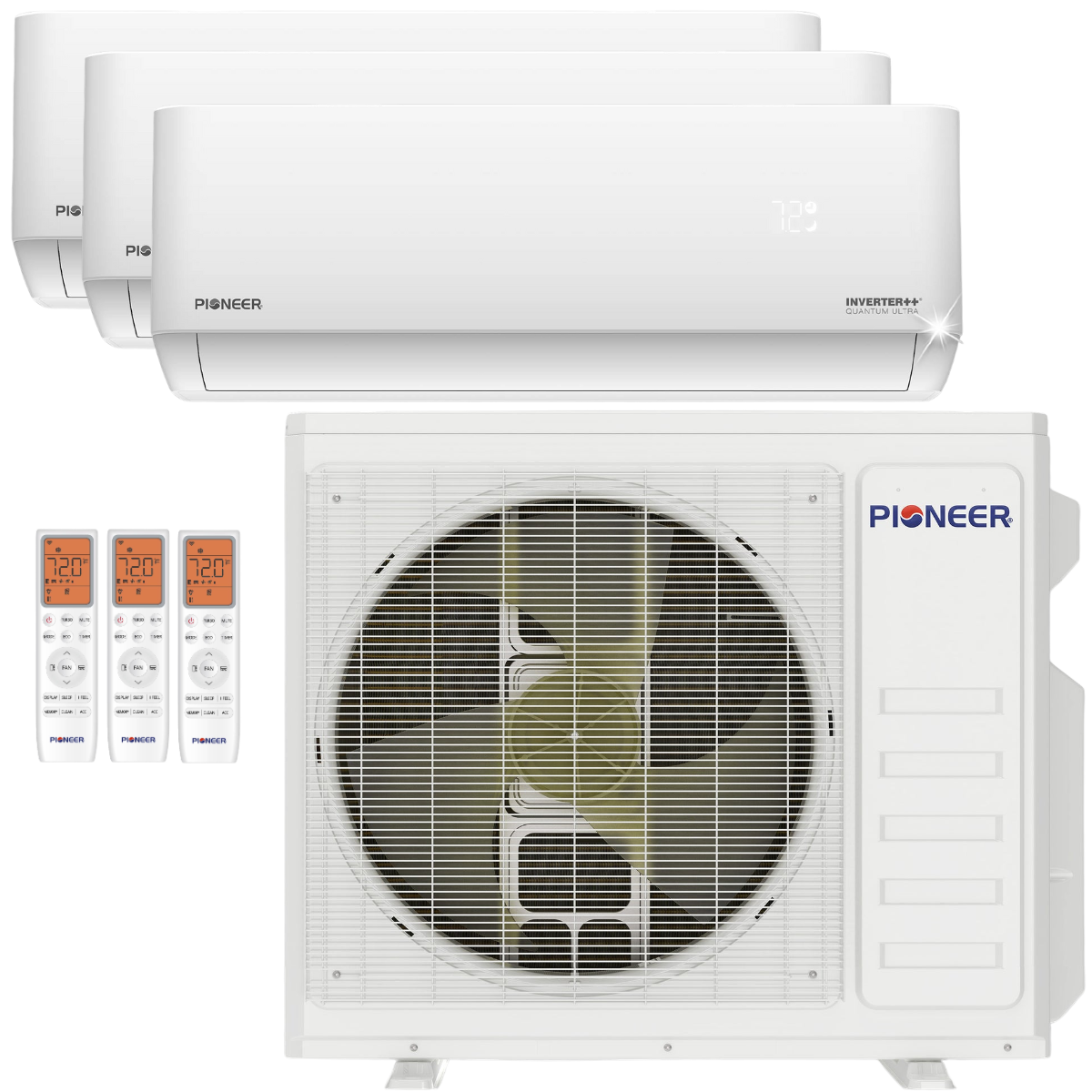

Pioneer’s 27,000 BTU Tri-Zone Quantum Ultra Mini-Split features an inverter-driven heat pump with three 9,000 BTU indoor air handlers, giving you precise heating and cooling in multiple rooms from a single outdoor compressor unit.

Designed for professional applications, this ductless system delivers dependable comfort while maintaining high energy efficiency. The system's variable-speed inverter automatically matches output to real-time demand, helping you manage energy use across the year without sacrificing performance.

Whether you're outfitting a new build or upgrading an existing property, this Pioneer mini-split is an adaptable, low-maintenance solution for zone-by-zone climate control.

Key Features and Benefits of the Pioneer 27,000 BTU Tri-Zone Quantum Ultra Mini-Split

Three-Zone Flexibility: Heat and cool three separate 350-square-foot spaces with 9,000 BTU air handlers and a 30,000 BTU outdoor compressor, giving you room-by-room temperature control and helping reduce energy waste in unused spaces.
High Efficiency Operation: This system's 24 SEER2 cooling and 10.0 HSPF2 heating ratings allow it to perform with lower operating costs compared with traditional split systems, helping you keep operating costs under budget.
Pioneer Inverter++ Compressor: The compressor's patented Pioneer Inverter++ technology automatically scales the output from 30 to 100 percent of capacity as needed, alleviating temperature swings and eliminating the hard start cycles that shorten equipment life.
Eco-Friendly Refrigerant: This model uses R-454B refrigerant, which has a lower global warming potential compared to legacy blends, supporting sustainability goals and regulatory requirements.
Quiet Operation: A 62 dB outdoor and 43 dB max indoor noise level minimizes disturbance in living spaces, offices, and patios.
Wi-Fi Ready Air Handlers: Pair the indoor air handlers with the Pioneer Free Airlink App, Google Assistant, Amazon Alexa, and other third-party voice control apps for remote scheduling, temperature adjustments, and zone monitoring from any smartphone. It also comes with a remote control for each air handler.

Note: This mini-split requires professional installation and does not include the 1/4 x 3/8-inch line sets required for proper installation.

All-Climate Performance

This Pioneer mini-split heat pump is engineered for year-round reliability, operating with peak performance even in ambient temperatures as low as -13 degrees F and high as 131 degrees F. The outdoor compressor unit's corrosion-resistant cabinet withstands anything you can throw at it, while built-in freeze protection safeguards internal components during extended cold snaps.

Sylvane’s Expert Take

If you need a versatile three-zone solution that performs well in both scorching summers and frigid winters, Pioneer’s Quantum Ultra checks every box. The system's high SEER2 rating, cold-climate capability, and low-GWP refrigerant position it as a top choice for residential retrofits or new-build projects. When you combine all those features with straightforward installation and a robust warranty, you get a dependable mini-split system that delivers value from day one.
