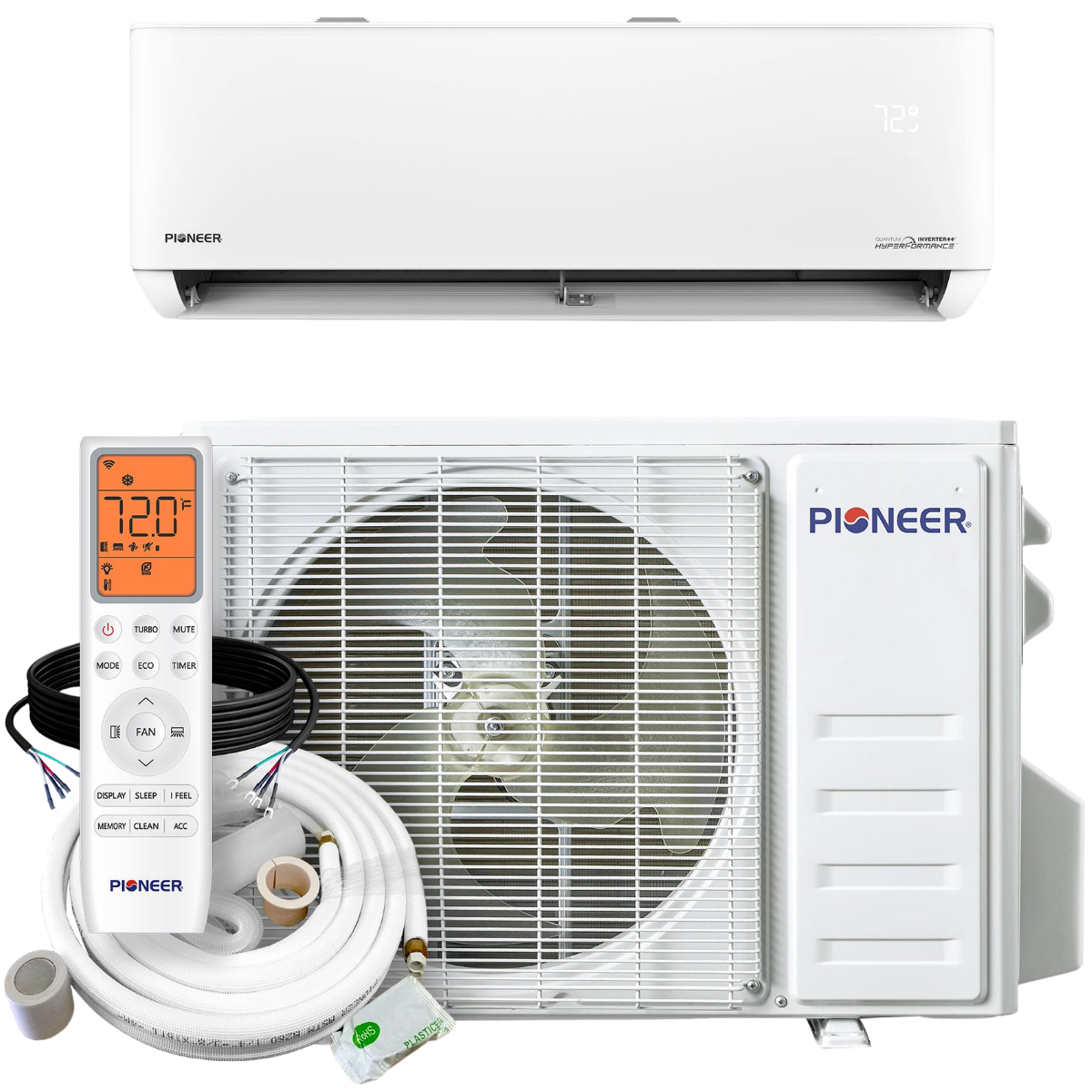

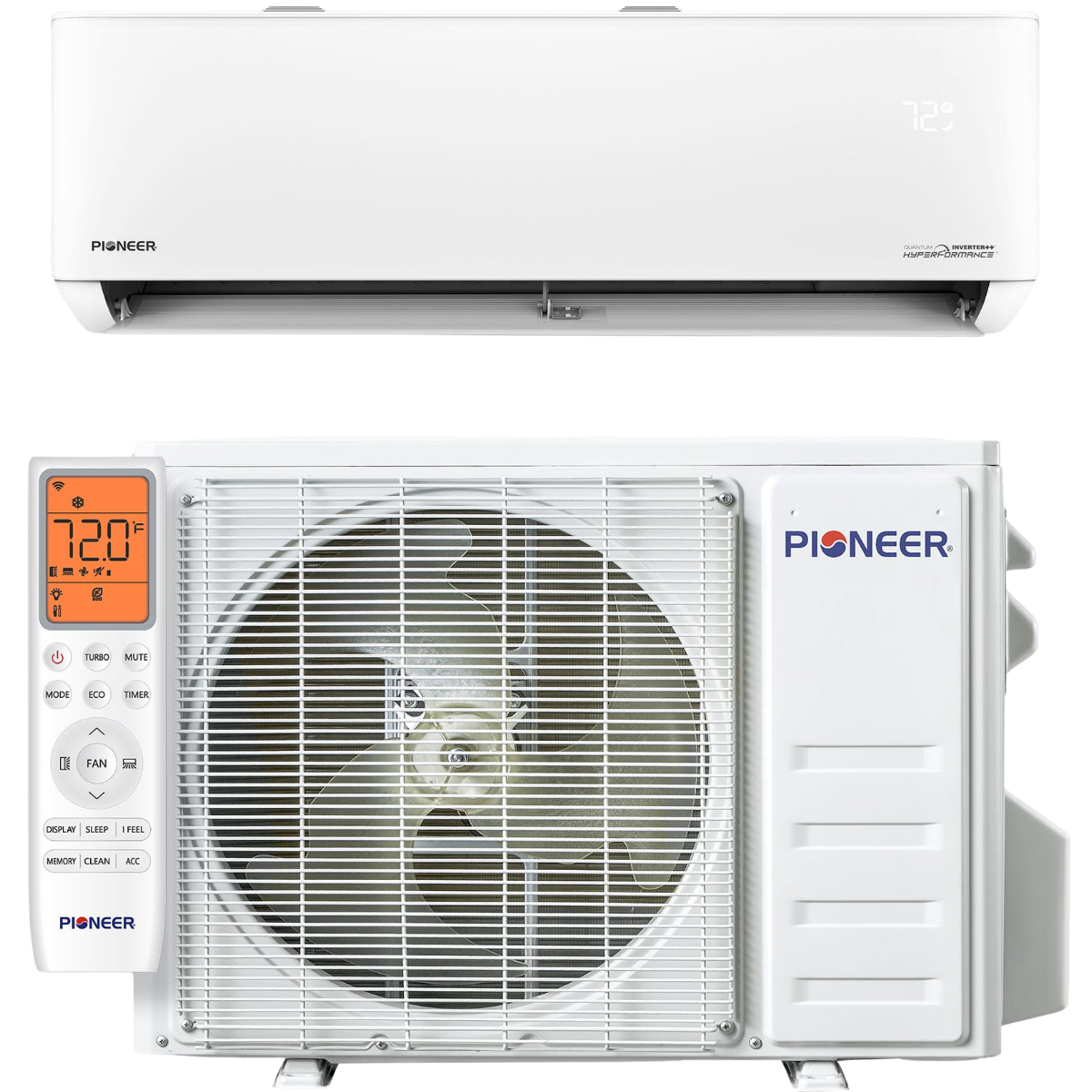

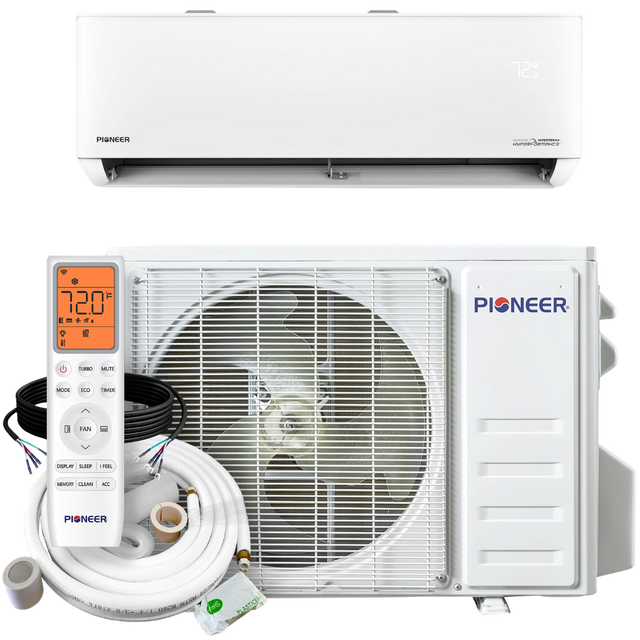

Pioneer 9,000 BTU Quantum Hyperformance Mini Split Heat Pump 230V

SKU: pi17400k  |  Model: WYT009GLSI25RH-16S
$1,312.00 $1,599.00
Pioneer Copper Piping Kit for Mini Split Installation 1/4 x 3/8 (Length)

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

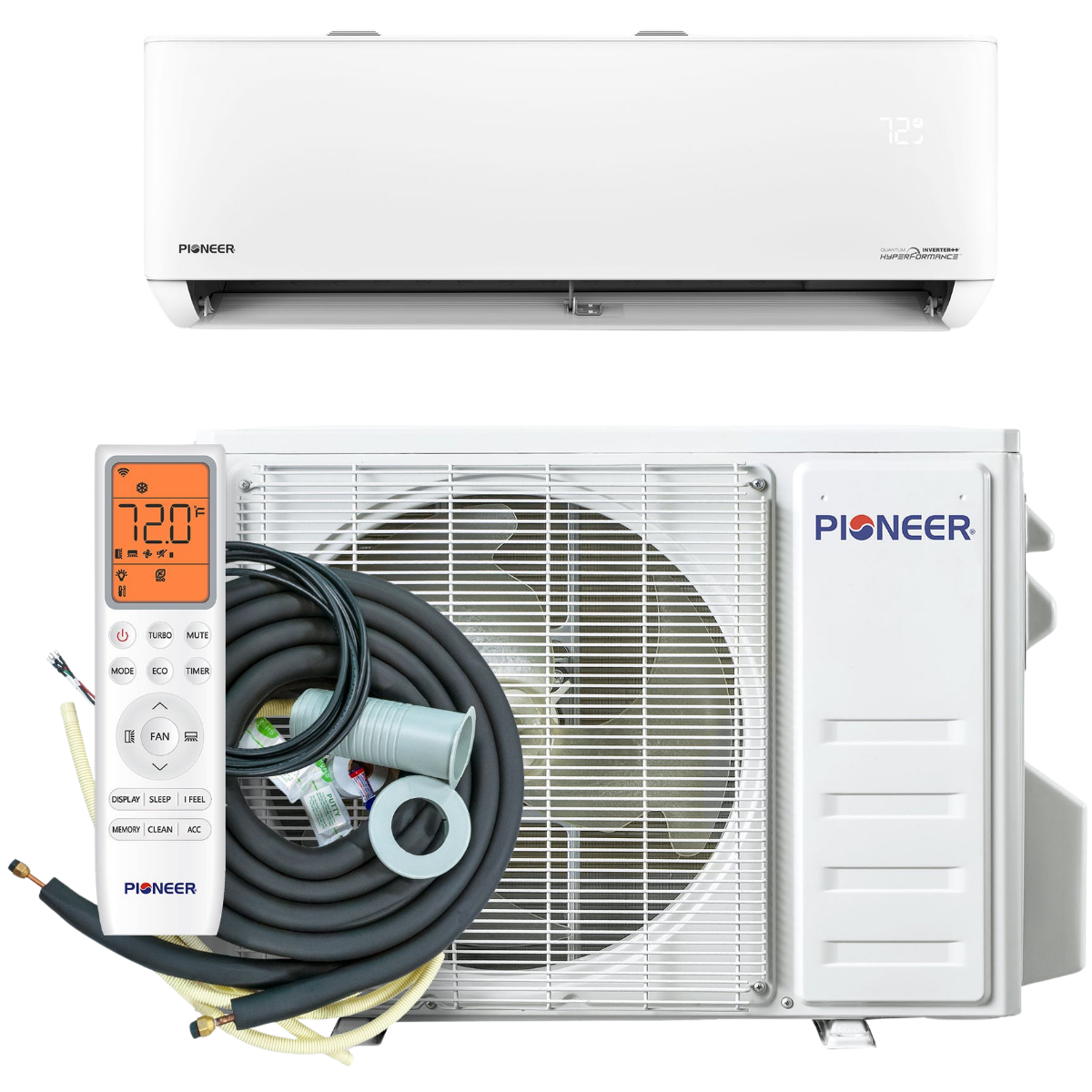

What's In The Box?

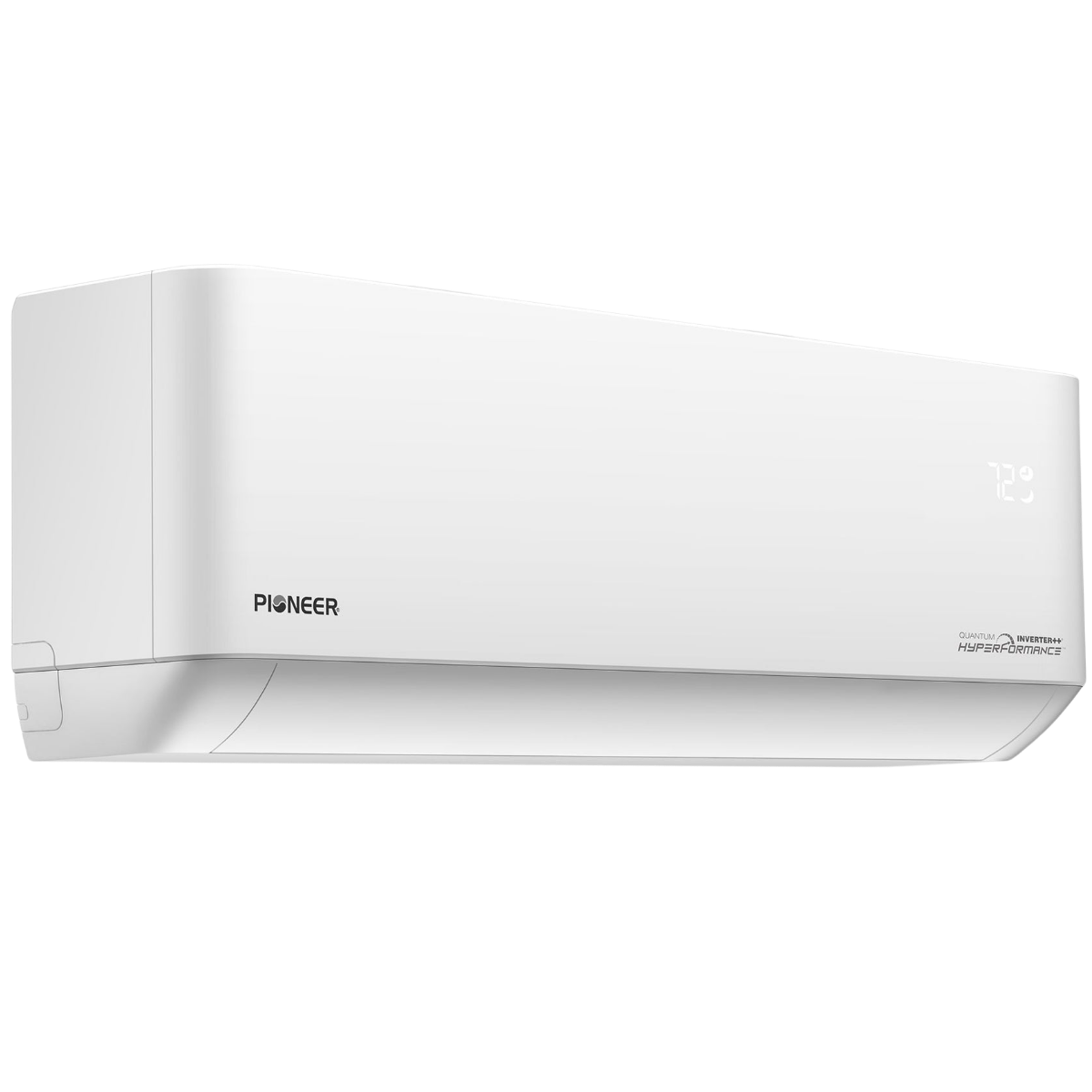

  • 9,000 BTU Indoor Unit

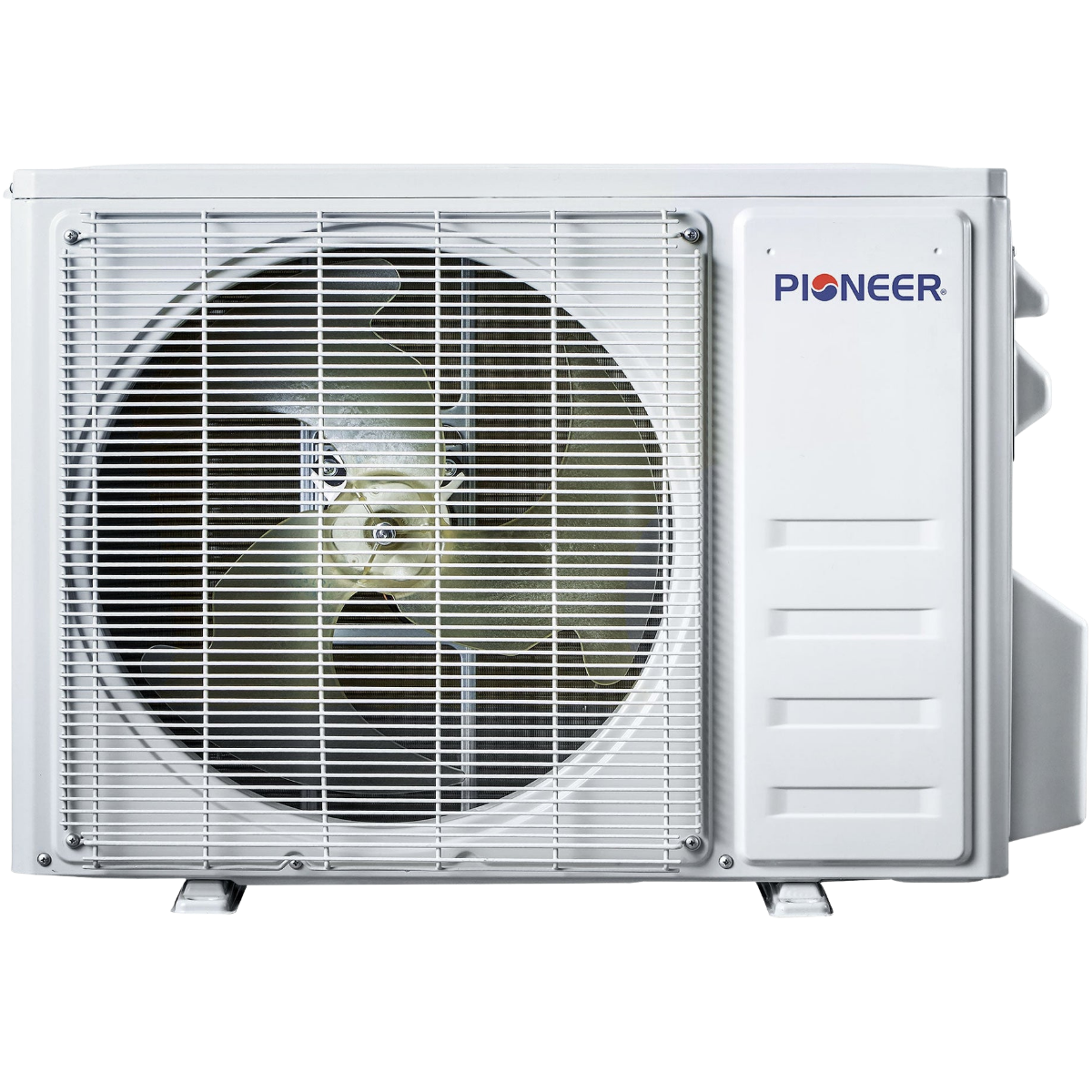

  • 9,000 BTU Outdoor Unit

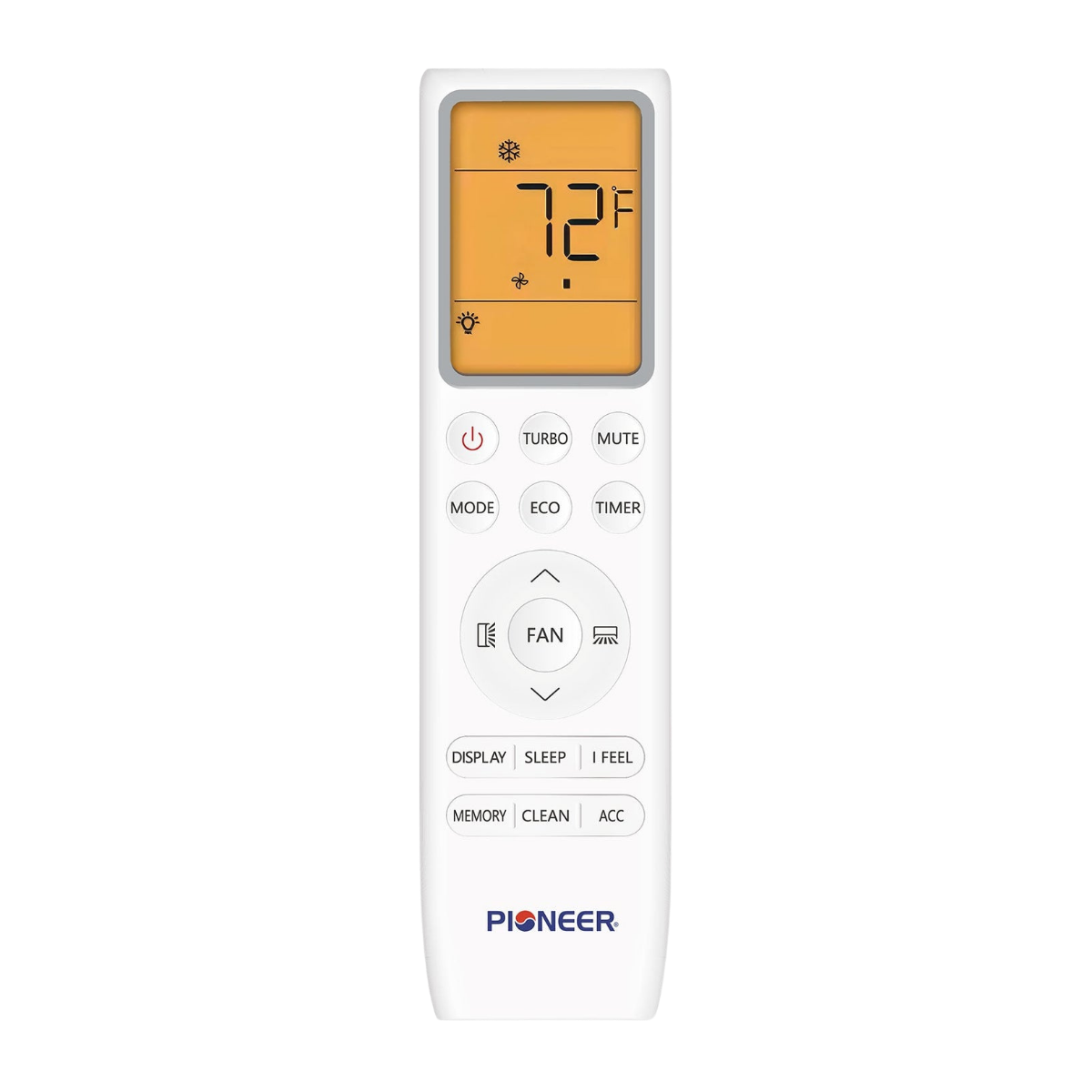

  • Wireless Remote Control
  • Remote Control Wall Holder and Batteries

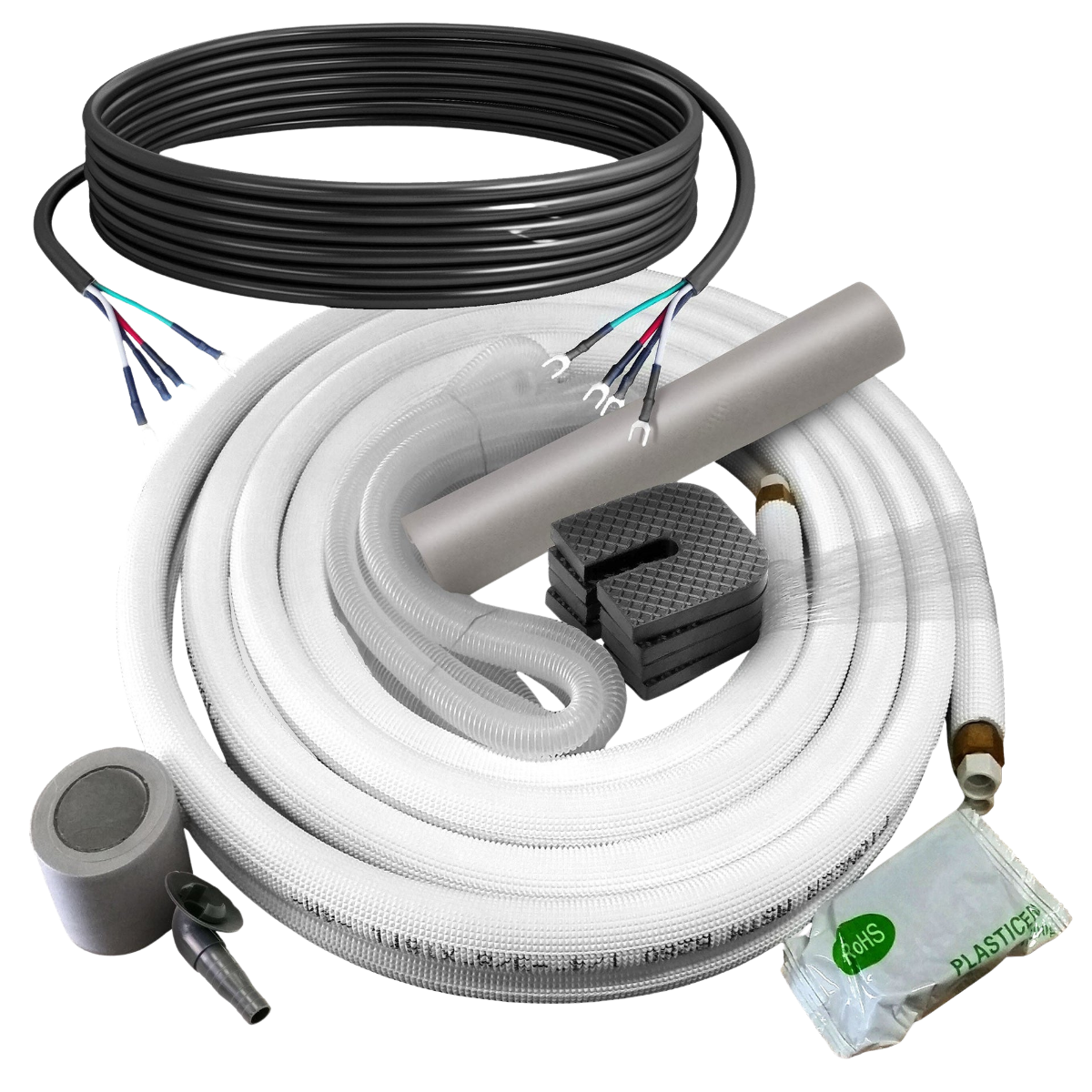

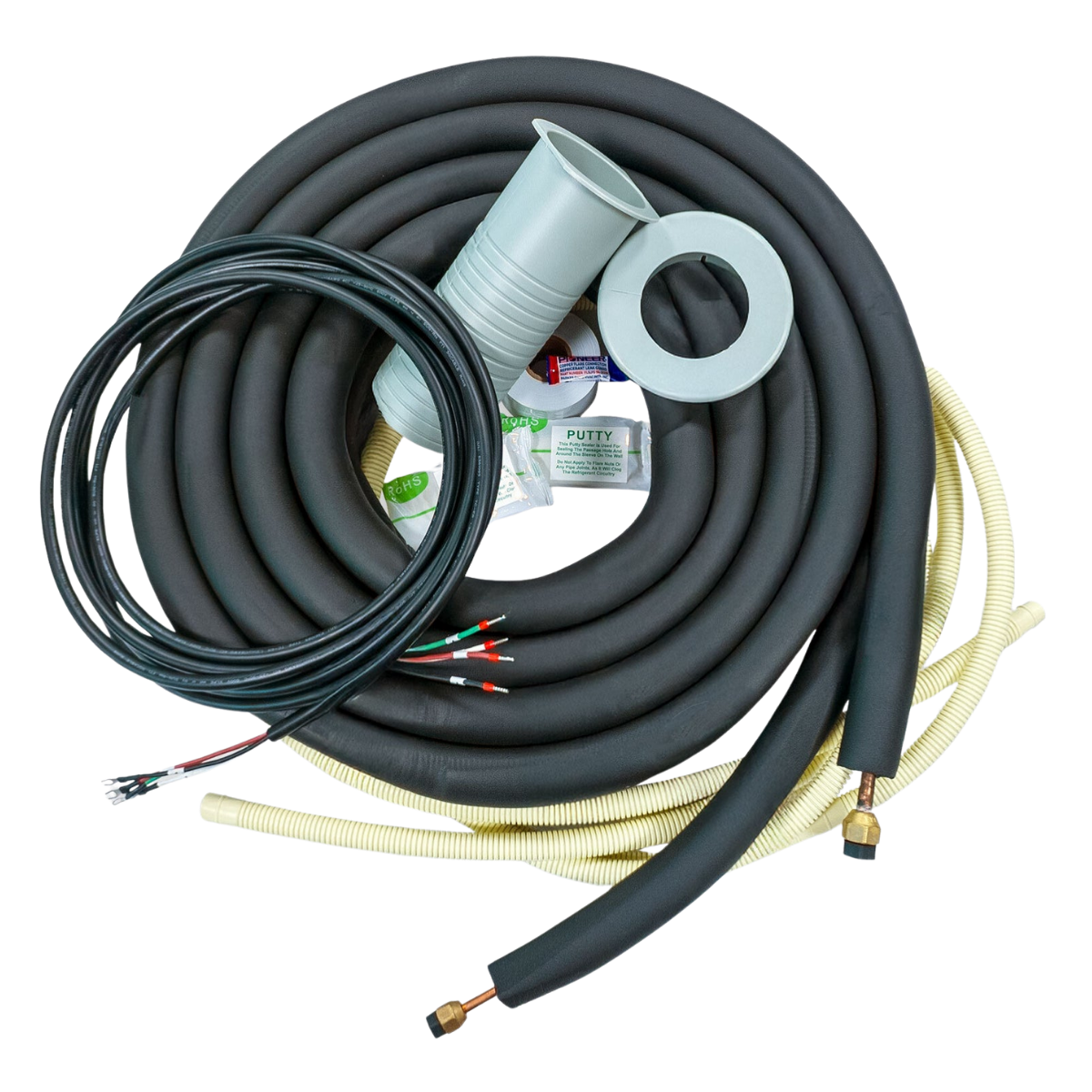

  • 16-, 25-, 33-, or 50-foot Line Set
  • 10 Foot Drain /li>
  • Wall Passage Sleeve
  • Hardware
  • Installation and User's Manual

Info & Guides

Meet the Pioneer 9,000 BTU Quantum Hyperformance Mini-Split Heat Pump 230V. This Energy Star-rated ductless heating and cooling solution uses variable-speed inverter technology to efficiently condition spaces without the complexity of traditional HVAC systems.

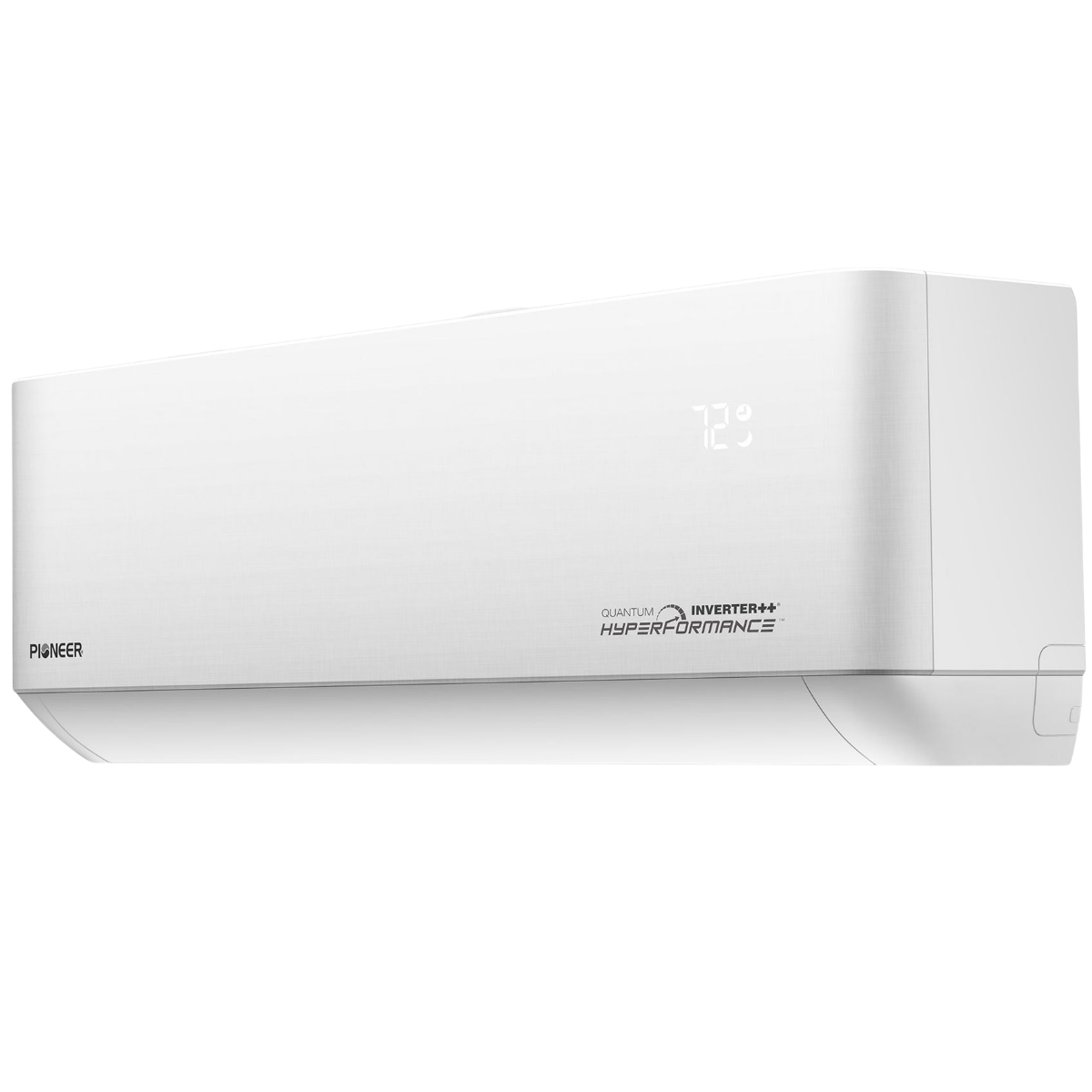

Designed for 150 to 350 square foot rooms, the system delivers reliable comfort year-round while operating in a broad temperature range. Built-in Wi-Fi connectivity and a compact indoor air handler make day-to-day control straightforward, whether you're heating an open office or cooling a small bedroom.

Key Features and Benefits of the Pioneer 9,000 BTU Quantum Hyperformance Mini-Split Heat Pump

  • High Efficiency Ratings: This model's 25 SEER2 and 14.5 EER2 cooling ratings, and 10.5 HSPF2 heating efficiency rating mean that it will help lower operating costs, so you spend less on energy while maintaining consistent temperatures.
  • Inverter-Driven Performance: A variable-speed DC inverter adjusts the device's output from 3,200 to 12,400 BTU in cooling and 2,100 to 15,100 BTU in heating, matching the load instead of cycling on and off and extending equipment life.

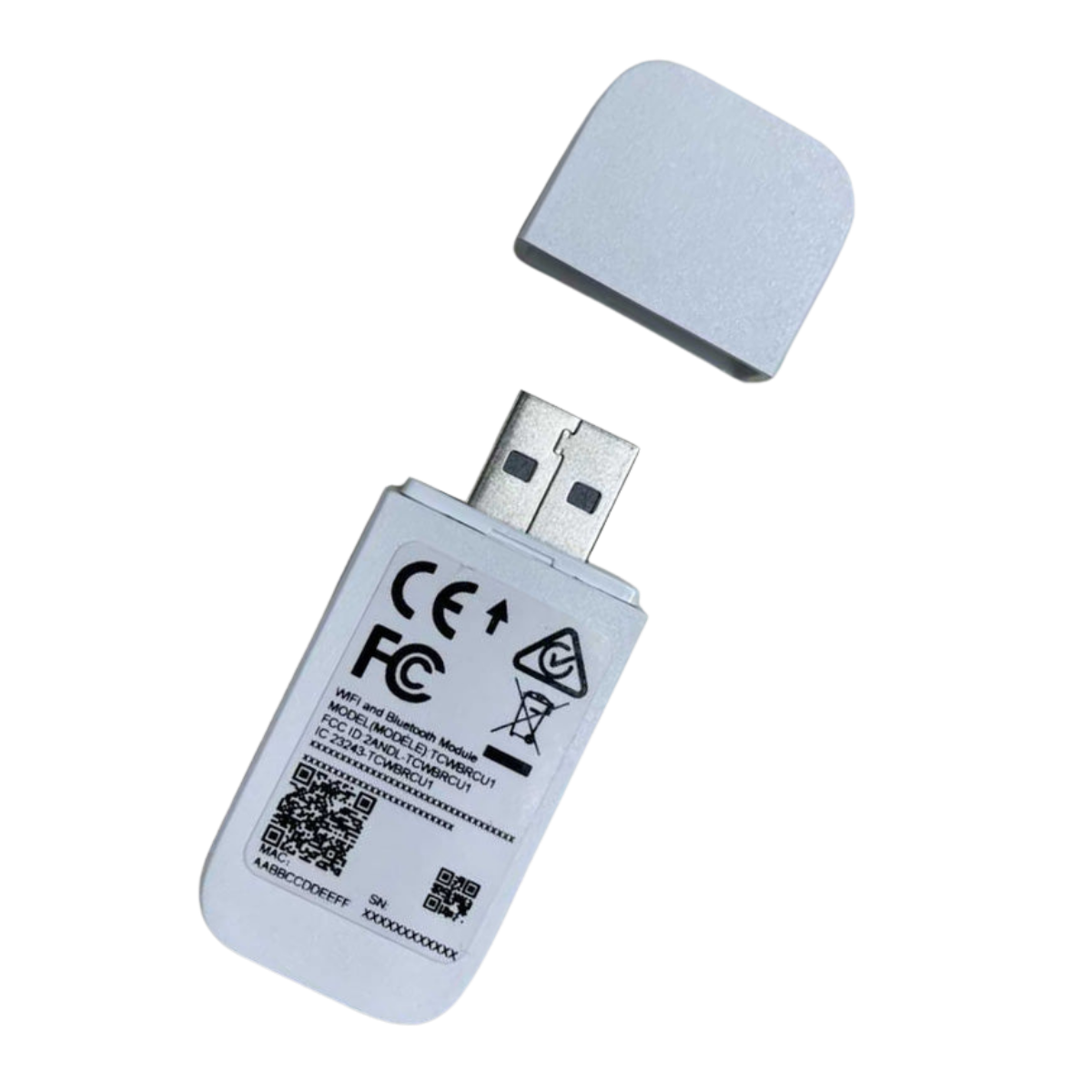

  • Smartphone Control: The integrated Wi-Fi connection pairs with the Pioneer Airlink app and voice assistants, allowing you to set modes, schedules, and temperatures from anywhere.
  • Dual-Axis Airflow: Motorized horizontal and vertical louvers distribute conditioned air evenly, reducing hot or cold spots in compact rooms and open layouts alike.
  • Flexible Installation: Drainage ports on either side of the indoor air handler simplify installation by giving you more options for how you route condensate drain lines.
  • Washable Air Filters: A reusable filter captures dust and particulates before they clog up the motor and supports better indoor air quality.
  • Quiet Operation: This model operates as quietly as 26 dB indoors (about the noise level of a whisper), so that heating and cooling won't interrupt your sleep, work, or everyday life.
  • Eco-Forward Refrigerant: Charged with R-454B refrigerant, the system has a lower global-warming potential than legacy blends, supporting sustainability goals and future regulatory compliance.
  • Optional Linesets: You can select this mini-split with a 16, 25, 33, or 50-foot line set.

All-Season Performance

Extreme outdoor temperatures can sometimes challenge standard mini-split systems, but this model is designed to maintain a reliable output in heatwaves or deep freezes. It continues to cool effectively in up to 131 degrees F and heats even when outdoor temperatures are as low as -22 degrees F. This wide operating range gives you a single piece of equipment that covers the full calendar.

Sylvane’s Expert Take

The Pioneer Quantum Hyperformance series stands out for its ability to pair true cold-climate heating with high efficiency operation in a 9,000 BTU package. With this model, you'll have intuitive app controls, versatile installation features, and a lower-impact refrigerant, all in one convenient package that arrives ready for professional hookup. For targeted zone heating and cooling where comfort, efficiency, and flexibility are equally important, this mini-split delivers dependable results.
