Pioneer 9,000 BTU Quantum Ultra High-Wall Ductless Mini Split Heat Pump 230V

Name: Pioneer 9,000 BTU Quantum Ultra High-Wall Ductless Mini Split Heat Pump 230V
Brand: Pioneer
Price: 1112.0 USD
Availability: InStock

SKU: pi17130k | Model: WYT009GLSI24RL-16S

$1,112.00 $1,349.00

Pioneer Copper Piping Kit for Mini Split Installation 1/4 x 3/8 (Length)

16 Ft 25 Ft 33 Ft 50 Ft

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty (with required warranty registration)

What's In The Box?

Pioneer Quantum Ultra High-Wall Ductless Mini Split 9,000 BTU Air Handler WT009GLSI24HLG
Pioneer Quantum Ultra High-Wall Ductless Mini Split 9,000 BTU Outdoor Condenser YN009GLSI24RPG
16 to 50-Foot Line Set
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries
10-Foot Drain
Wall Passage Sleeve
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

Compact, efficient, and ready for any season, the Pioneer 9,000 BTU Quantum Ultra High-Wall Ductless Mini-Split Heat Pump 230V delivers precise cooling and heating for spaces up to 350 square feet.

It’s an ideal upgrade for home offices, guest rooms, small apartments, or workshop areas where traditional HVAC solutions are either impractical or too costly. With whisper-quiet operation and energy-saving inverter technology, this mini-split AC keeps you comfortable while trimming utility bills.

Key Features and Benefits of the Pioneer Quantum 9,000 BTU Mini-Split

High Efficiency: The variable-speed DC inverter technology adjusts output to match demand, cutting energy use and operating costs compared to fixed-speed systems. It has a 24 SEER2 rating.
Year-Round Performance: Provides 9,000 BTU of cooling and 10,000 BTU of heating, maintaining comfort from sweltering 131-degree F summers down to 5 degrees F winters.
Dual-Axis Louvers: The motorized louvers redirect up-down and left-right airflow, pushing conditioned air evenly across the room, eliminating hot or cold spots.
I-FEEL Sensing: The handheld remote monitors conditions surrounding it, ensuring more accurate climate control.
ECO and SLEEP Modes: The 9,000 BTU mini-splits' one-touch settings automatically fine-tune output for lower power draw overnight or during light-load periods.
TURBO Mode: The turbo mode increases the fan speed and compressor output for rapid cooling or heating when you walk in the door.
Simple Maintenance: Its reusable filters and self-cleaning cycle reduce mold, dust, and odor buildup inside the indoor unit, promoting cleaner air and easier maintenance.
Flexible Installation: Dual-drainage ports, a compact 20-pound indoor unit, and up to a 33-foot height difference between units give installers more placement options.
Automatic Restart: It's designed to restart with the previous settings after a power loss.
Freeze Protection: If the temperature reaches 46 degrees F, it automatically heats to prevent pipes or interiors from freezing in unoccupied cabins or garages
Environmentally Conscious Refrigerant: The R-454B refrigerant offers lower global warming potential than older refrigerants, helping reduce your environmental footprint.
Line Set Included: This model includes a 16-foot 1/4 x 3/8 Line Set.

Note: This mini-split air conditioner must be installed by a qualified professional.

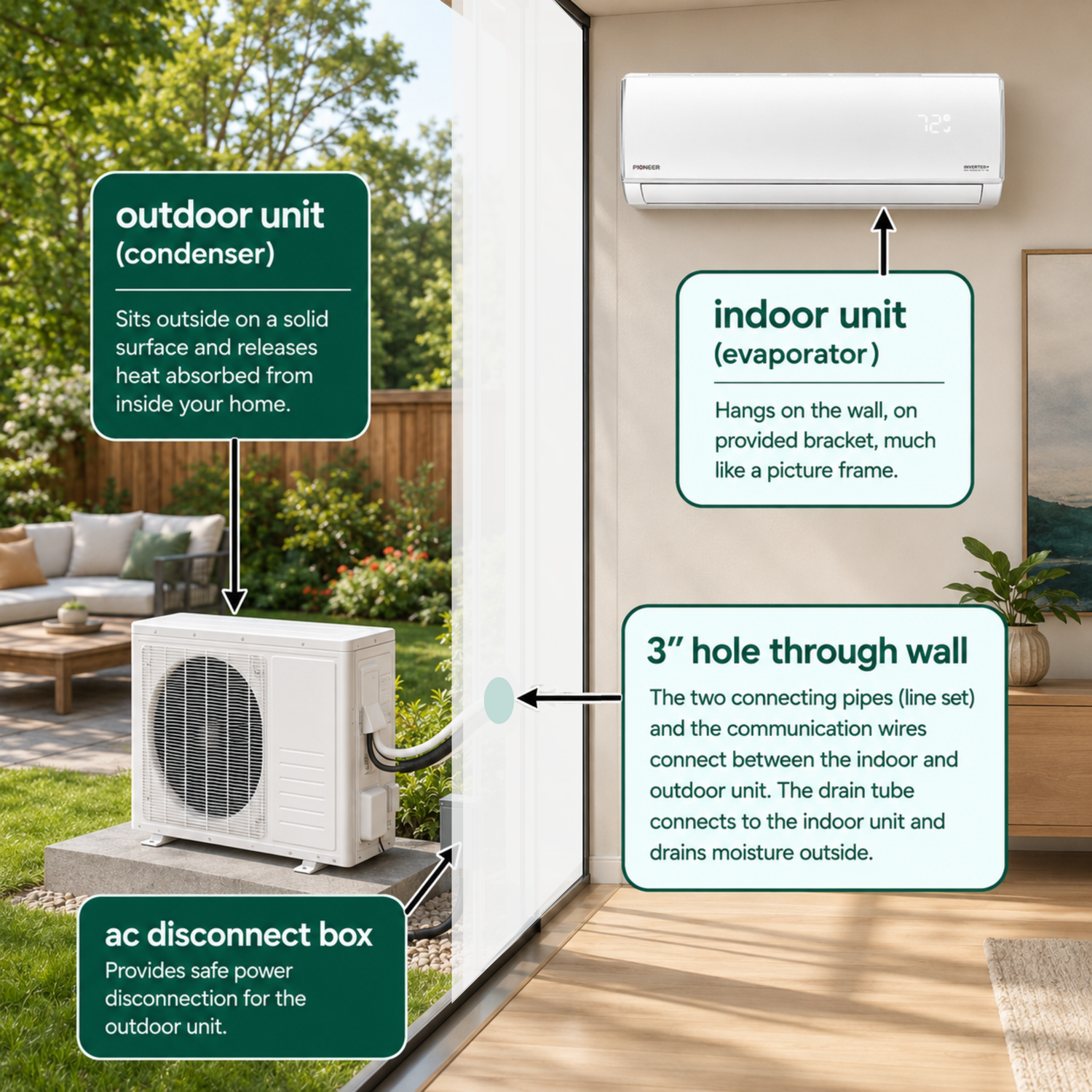

Why a Ductless Mini-Split is Ideal

Ductless air conditioning systems like this Pioneer mini-split deliver both cooling and heating through a single, wall-mounted unit, eliminating the need for separate appliances. Because the compressor sits outdoors, indoor noise stays low, often quieter than a refrigerator.

The absence of ductwork means no energy loss through leaky vents, a common issue that can waste up to 30 percent of conditioned air in traditional setups. Finally, installation leaves only a small, three-inch wall opening, allowing you to preserve window views and natural light while gaining a sleek, unobtrusive climate solution.

Sylvane’s Expert Take

If you’re searching for an all-season comfort upgrade in a small-to-medium room, the Pioneer Quantum 9,000 BTU mini-split is a standout. Its high SEER2 rating, wide operating range, and user-friendly features deliver the performance of a premium ductless mini-split without the premium price. Add in flexible installation options and eco-forward R-454B refrigerant, and you have a reliable, energy-smart choice that pays dividends in comfort and savings long after installation day.
