Pioneer Essenza 18,000 BTU Gen 2 Ductless Mini Split Heat Pump 230V

Name: Pioneer Essenza 18,000 BTU Gen 2 Ductless Mini Split Heat Pump 230V
Brand: Pioneer
Price: 1128.0 USD
Availability: InStock

SKU: pi18977k | Model: WYT018GLUI20RL

$1,128⁰⁰

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Compressor and Parts Limited Warranty (With Registration)

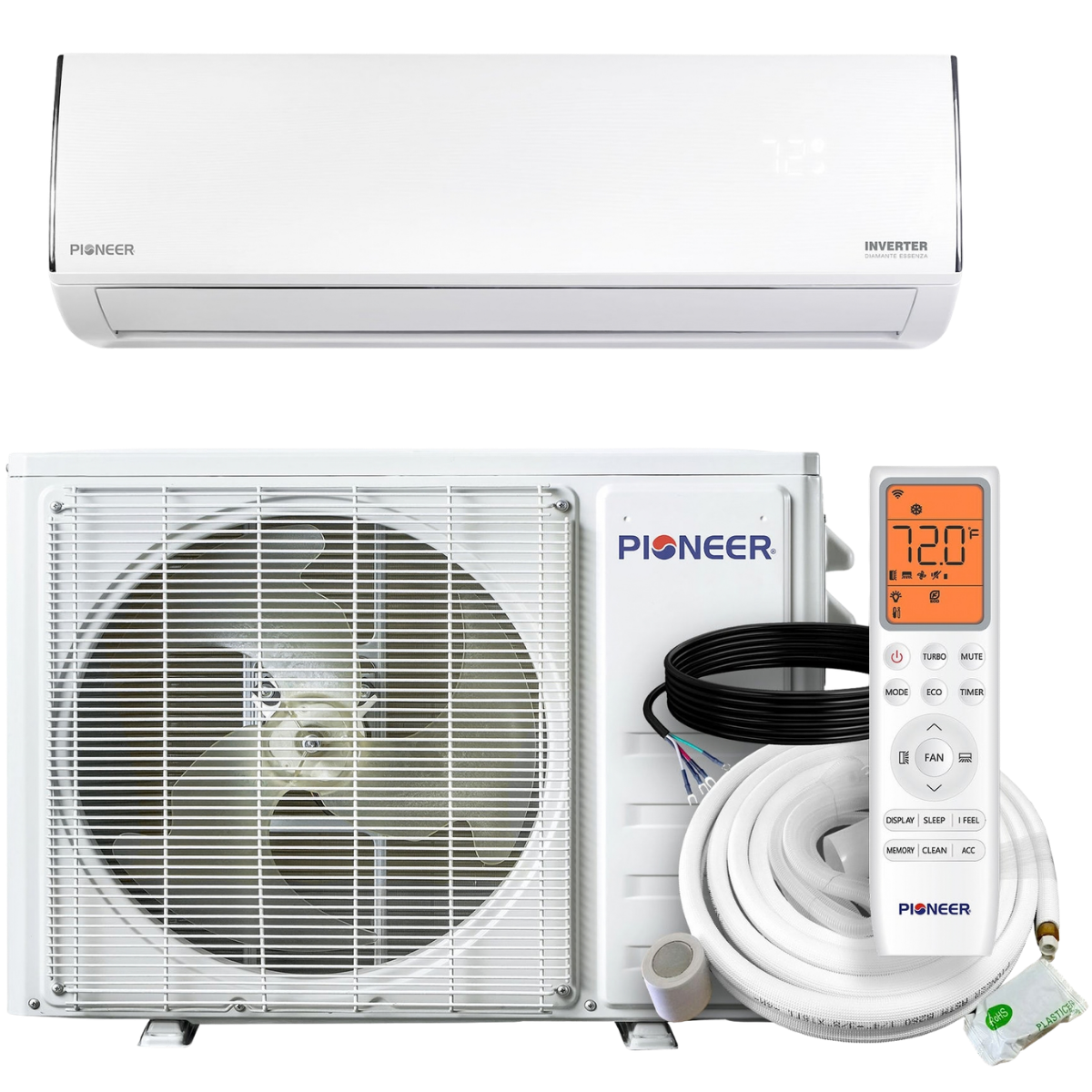

What's In The Box?

Pioneer Essenza 18,000 BTU Gen 2 Indoor Air Handler 230V (WT018GLUI20HLB)
Pioneer Essenza 18,000 BTU Gen 2 Outdoor Condensor 230V (YN018GLUI20RPB)
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries

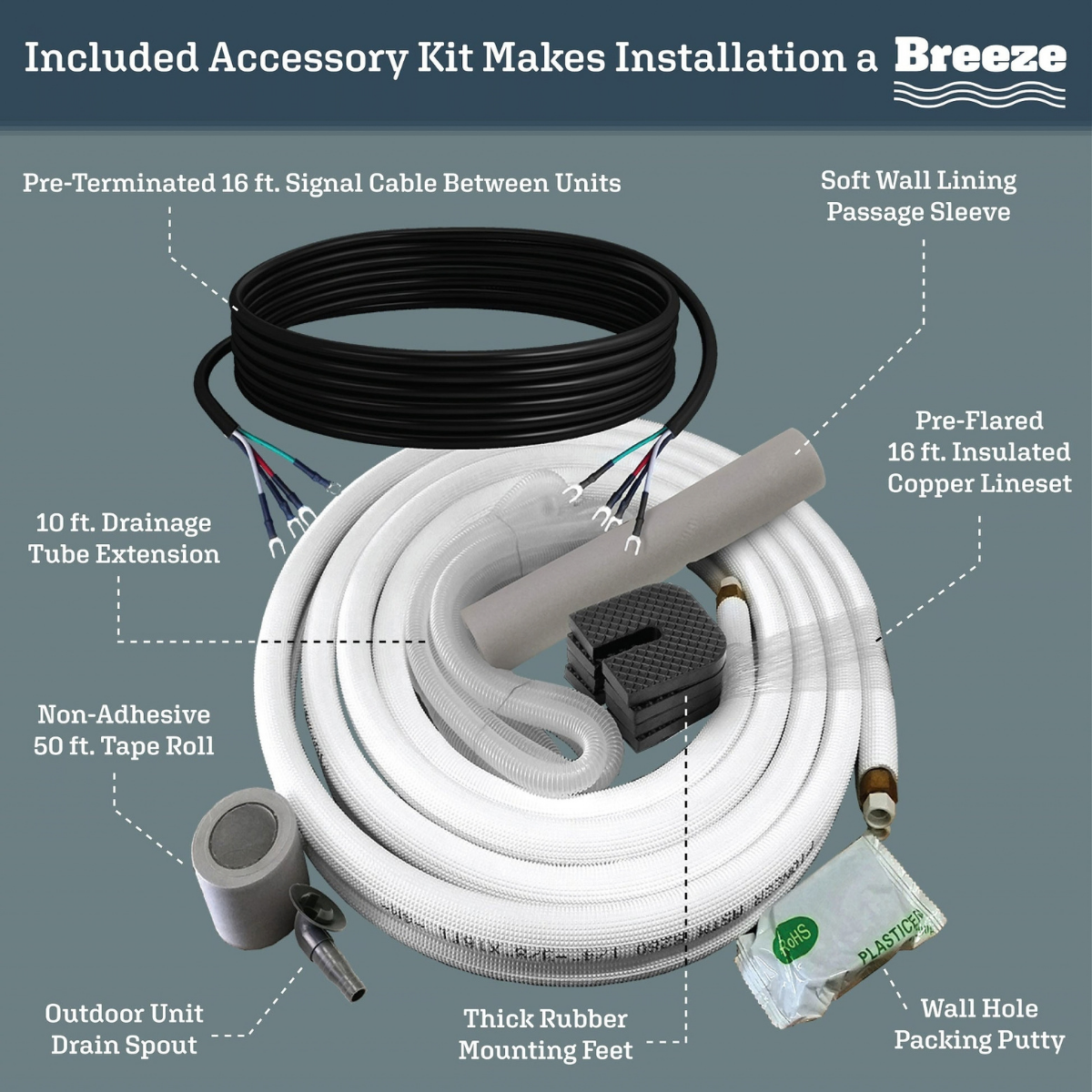

16-Foot Copper Lineset
16-Foot Electrical Wire
10-Foot Drain Tube
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Owner's Manual, Guides, and Other Documents

Info & Guides

Description

Rooms your central system never quite reaches, such as a finished attic or converted garage, may call for a single-zone mini-split like the Pioneer Essenza 18,000 BTU Gen 2, which pairs a wall-mounted air handler with a variable-speed DC inverter outdoor condenser.

This model features an inverter compressor that adjusts heating and cooling output, letting the system hold your set temperature steadily instead of cycling hard on and off. Heating works in outdoor temperatures from -4 to 75 degrees F, while cooling runs from 5 to 122 degrees F, extending use through cold snaps and summer heat.

Note: Professional installation is required for this system.

Key Features and Benefits of the Pioneer Essenza 18,000 BTU Gen 2 Ductless Mini Split Heat Pump 230V

High Cooling Efficiency: With cooling efficiency ratings up to 21 SEER2 and 10.5 EER2, you spend less on electricity during long summer runtimes.
Cold-Climate Heating: Provides 18,000 BTU of heat, with HSPF2 efficiency ratings as high as 9.5.
COP2 Ratings: This model's COP2 values of 3.41 at 47 degrees F and 1.8 at 5 degrees F show heat-transfer efficiency in milder and colder conditions.
Indoor Sound: The Mute Mode runs at 32 dB, and Turbo Mode tops out at 49 dB. Low Mode is rated at 37 dB; Medium is 42 dB; High is 47 dB.
Adjustable Airflow: Moves between 382 and 617 CFM across its fan speeds, so you can choose a gentle draft or a fast temperature change.

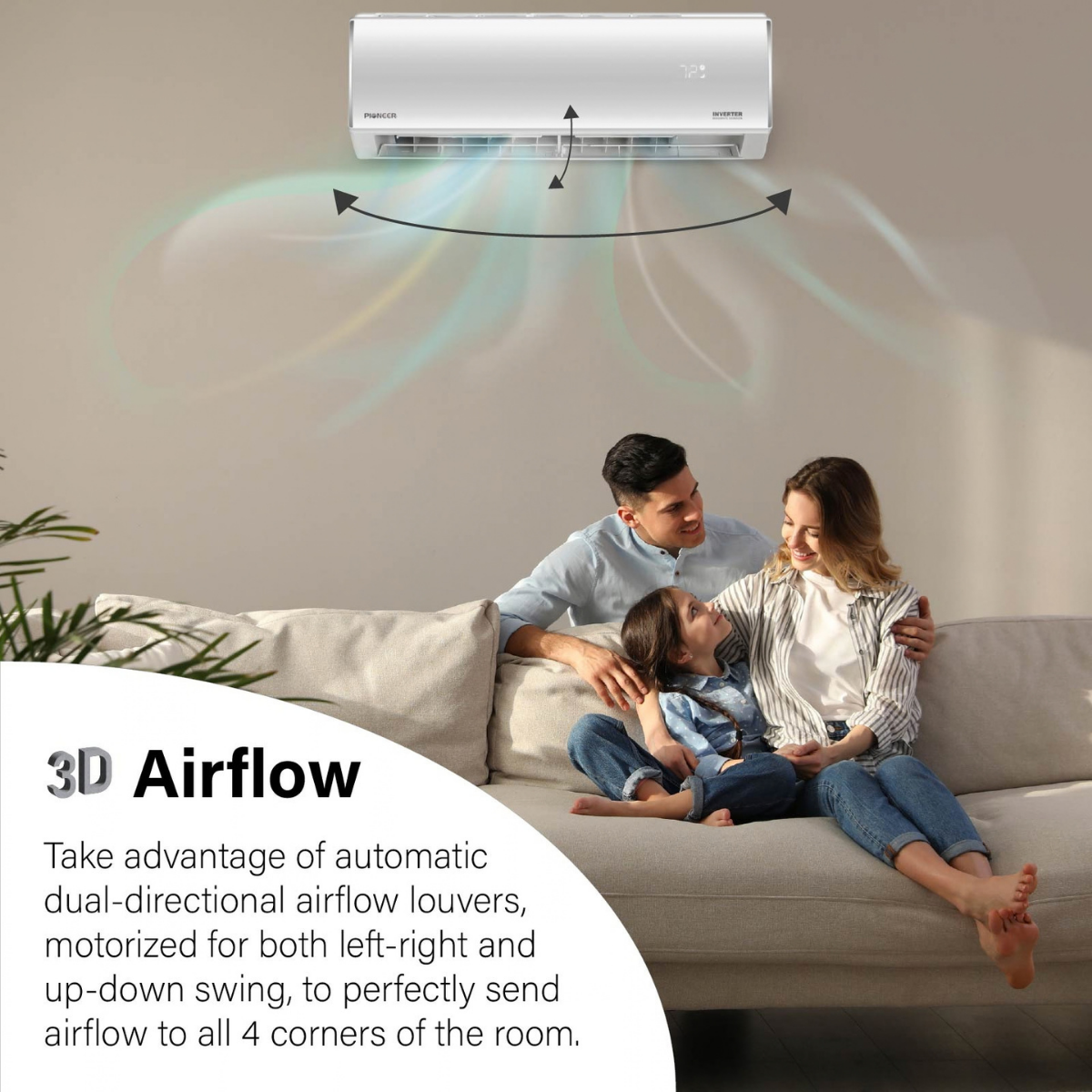

Dual-Axis Louvers: Motorized up-down and left-right louvers spread conditioned air across your room instead of pushing it toward one spot.
Operating Modes: The four modes cover Cool and Heat, plus Dry and Ventilation, letting you respond to humid shoulder seasons as well as peak heat and cold.
IFEEL Remote Sensing: The IFEEL mode detects local temperature and adjusts the system. ECO and SLEEP support energy conservation, while MEMORY recalls settings and TURBO handles high demand.
Self-Clean Maintenance: The Self-Clean cycle and washable, reusable air filters keep your routine upkeep down to a quick rinse.

Check the Wall Space and Condensate Route

Before your installer arrives, confirm you have wall space for an air handler measuring 39.75 x 9 x 12.375 inches (L x W x H) and weighing 27.6 pounds. The mounting plate comes in the box. The outdoor condenser measures 34 x 13.75 x 23.75 inches (L x W x H) and weighs 70.5 pounds. It includes a 16-foot 3/8 x 1/4 line set, but for power you'll need a 20-amp double-pole breaker on a 208/230 volt circuit with 12 AWG wire.

For condensate, the included 10-foot drain line connects at either drainage port. That lets you route water out whichever side of the air handler suits your wall.

Sylvane's Expert Take

Choose this Pioneer Essenza mini-split when you need to condition an open-plan addition or a large living area that your central system misses. During everyday operation, inverter compressor operation is the standout: its low-end capacity can reduce short cycling. If your room has uneven temperatures, IFEEL's local-temperature adjustment is another feature to consider. For a room that needs heating through cold weather and cooling in summer, the Essenza Gen 2 provides both in one system.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

9.5
Mounting Type

Wall
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

20.0
Total Cooling Capacity (BTUs)

18000
Total Heating Capacity (BTUs)

18000

General

Certifications

AHRI, cETLus
Color

White
Compressor Type

Inverter Rotary
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

16 ft
Maximum Cubic Feet per Minute (CFM) (CFM)

524.0
Maximum Indoor Noise Level (dB)

49.0
Maximum Operating Temperature - Cooling (degrees F)

127.0
Maximum Operating Temperature - Heating (degrees F)

75.0
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

-4.0
Number of Zones

1
Recommended Coverage Area (sq. ft.)

750

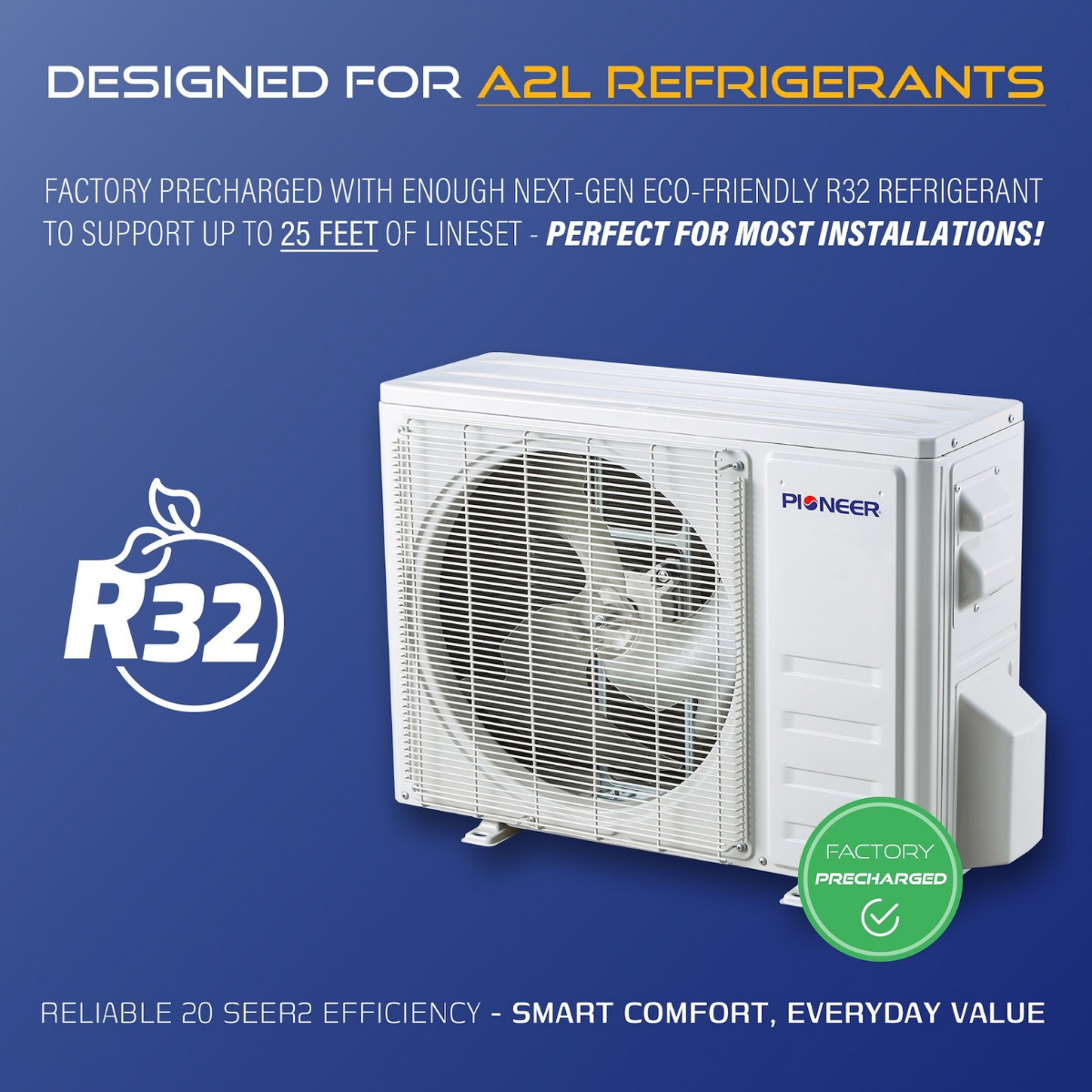

Refrigerant Type

R-32
Zone Cooling Capacity (BTUs)

18000
Zone Heating Capacity (BTUs)

18000
