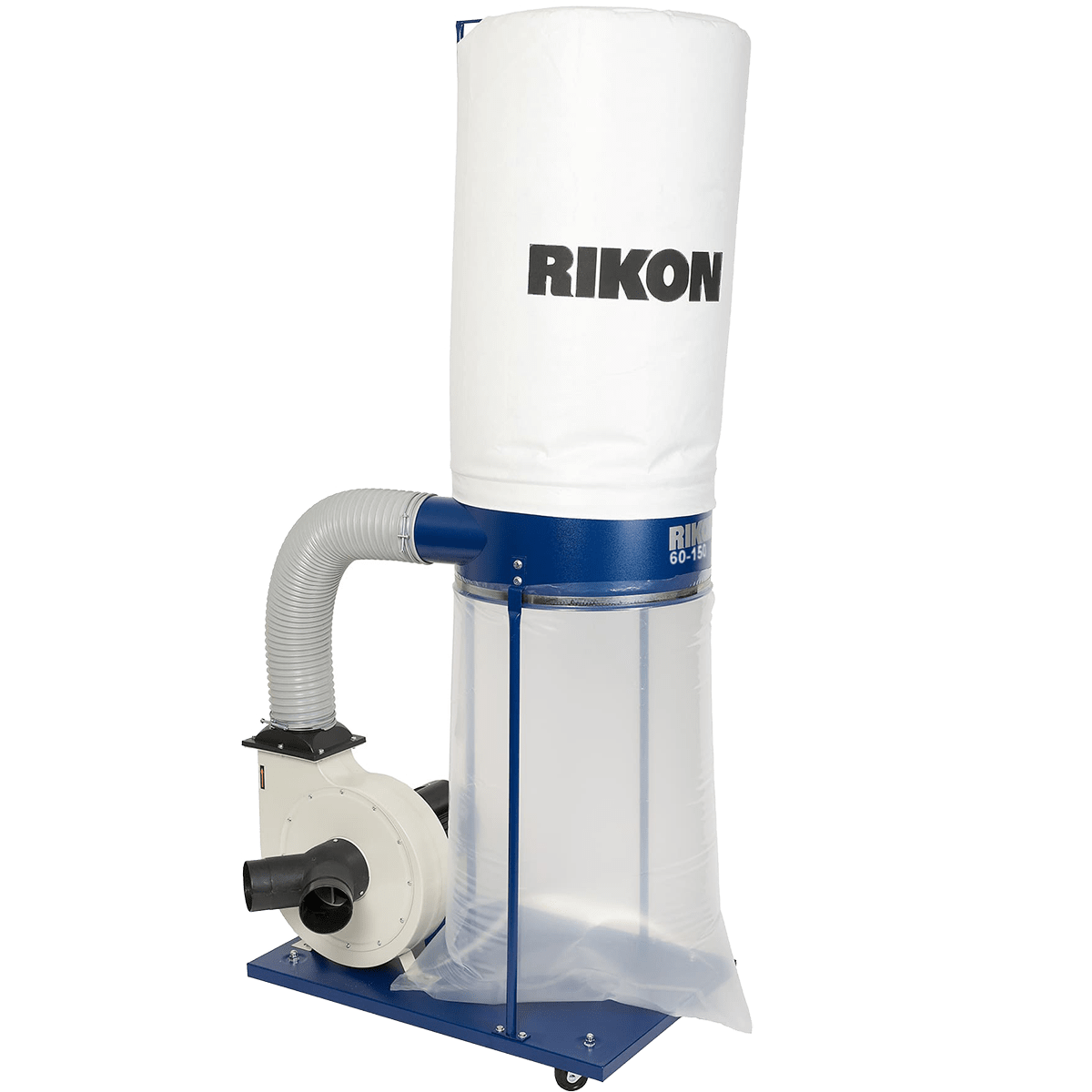

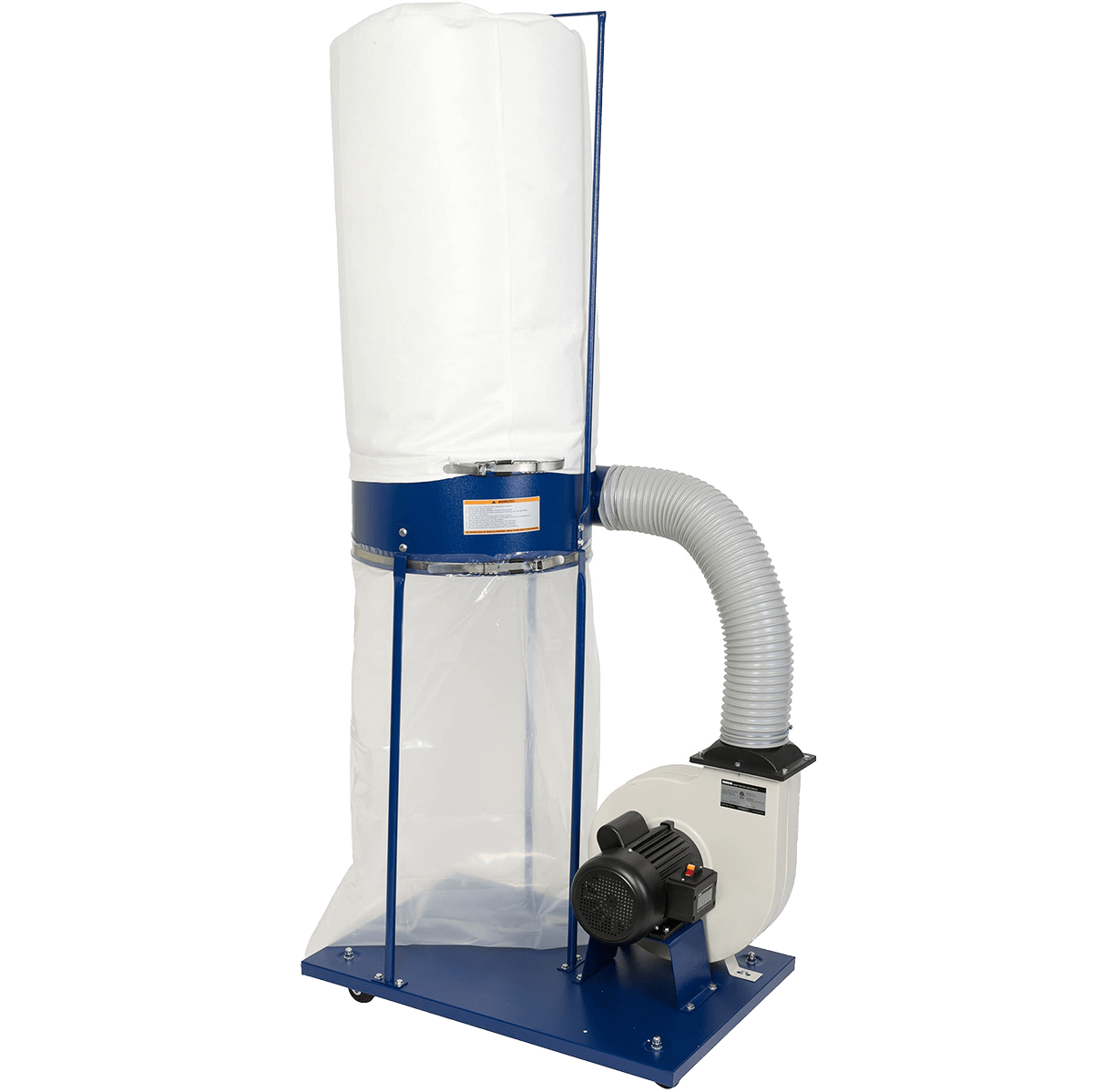

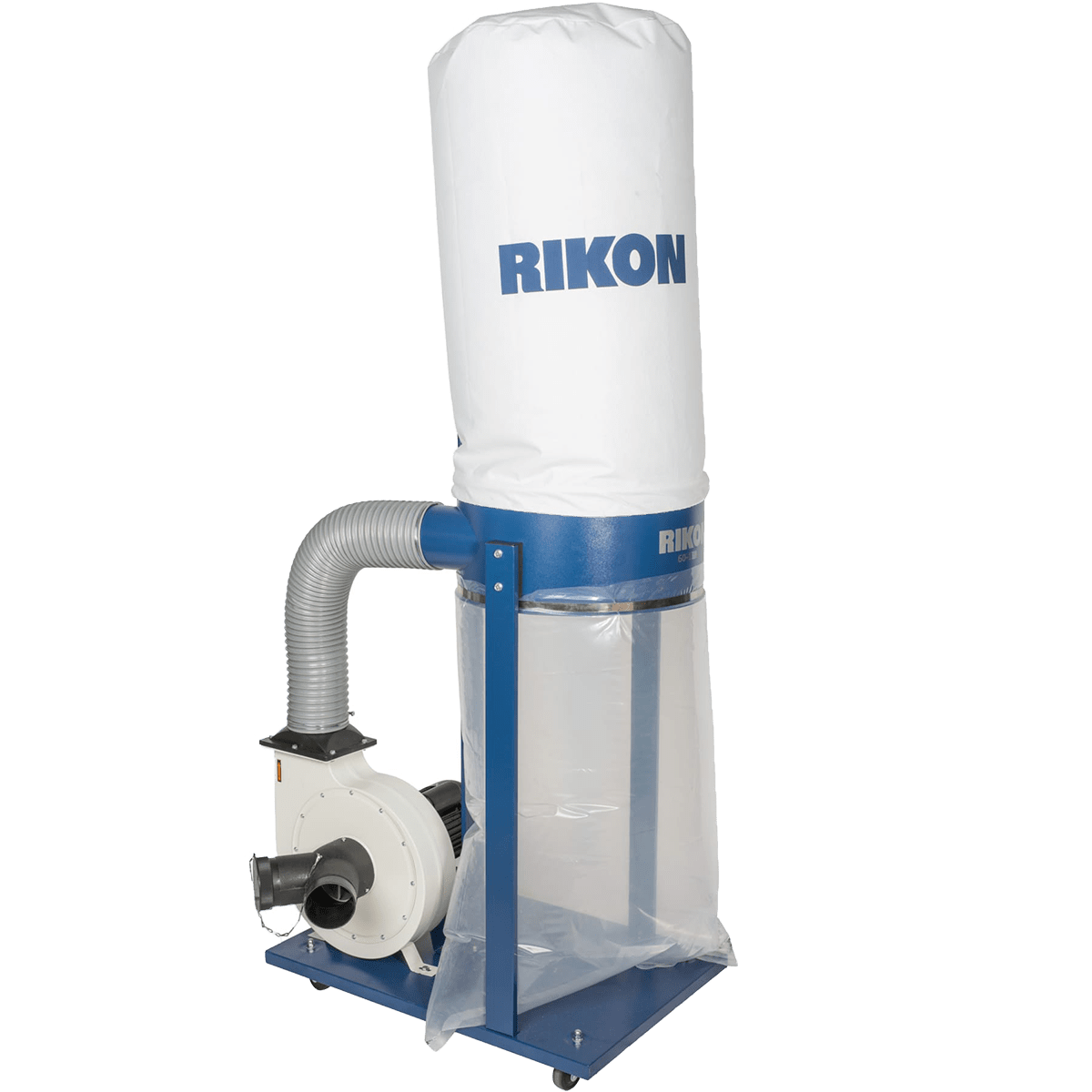

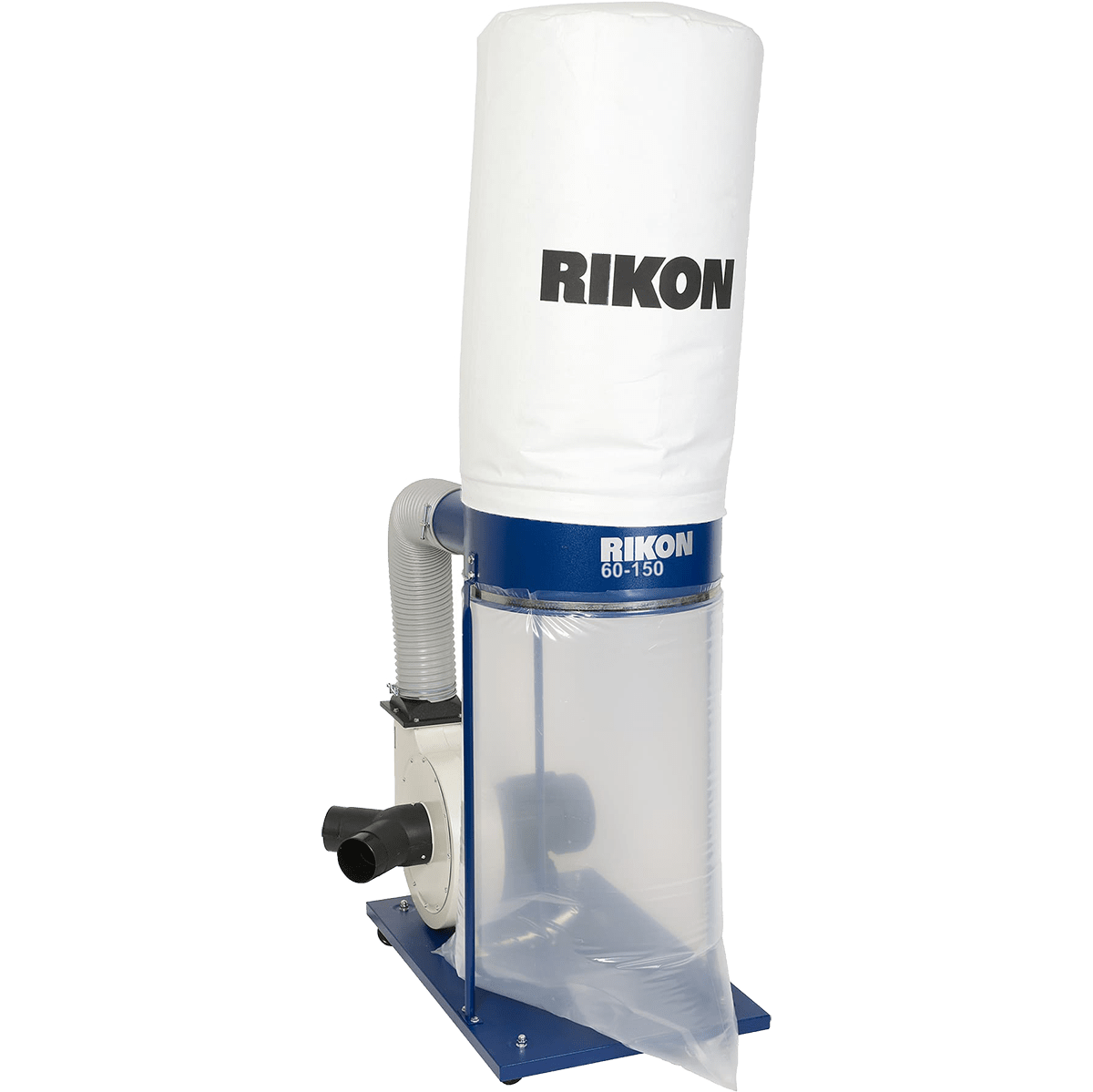

Rikon 60-150 1.5HP Portable Dust Collector
Rikon 60-150 1.5HP Portable Dust Collector is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Rikon 60-150 1.5 HP Dust Collector
- Owner's Manual
Info & Guides
Info & Guides

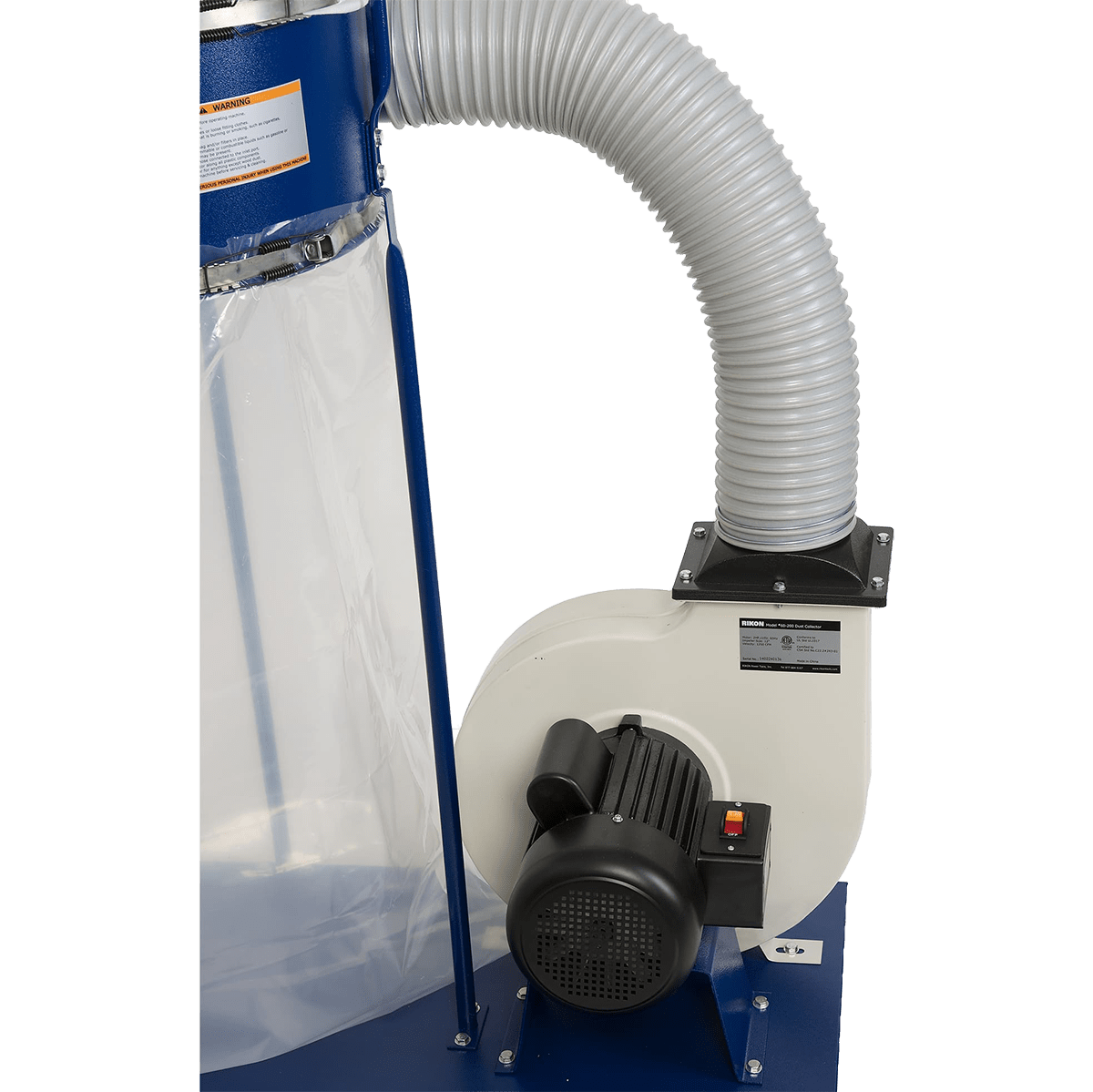

Rikon 60-150 1.5HP Portable Dust Collector
Description
Description
A larger 1.5-horsepower motor increases the airflow of this dust collection system to 1,046 cfm, making it suitable for use with larger machinery.

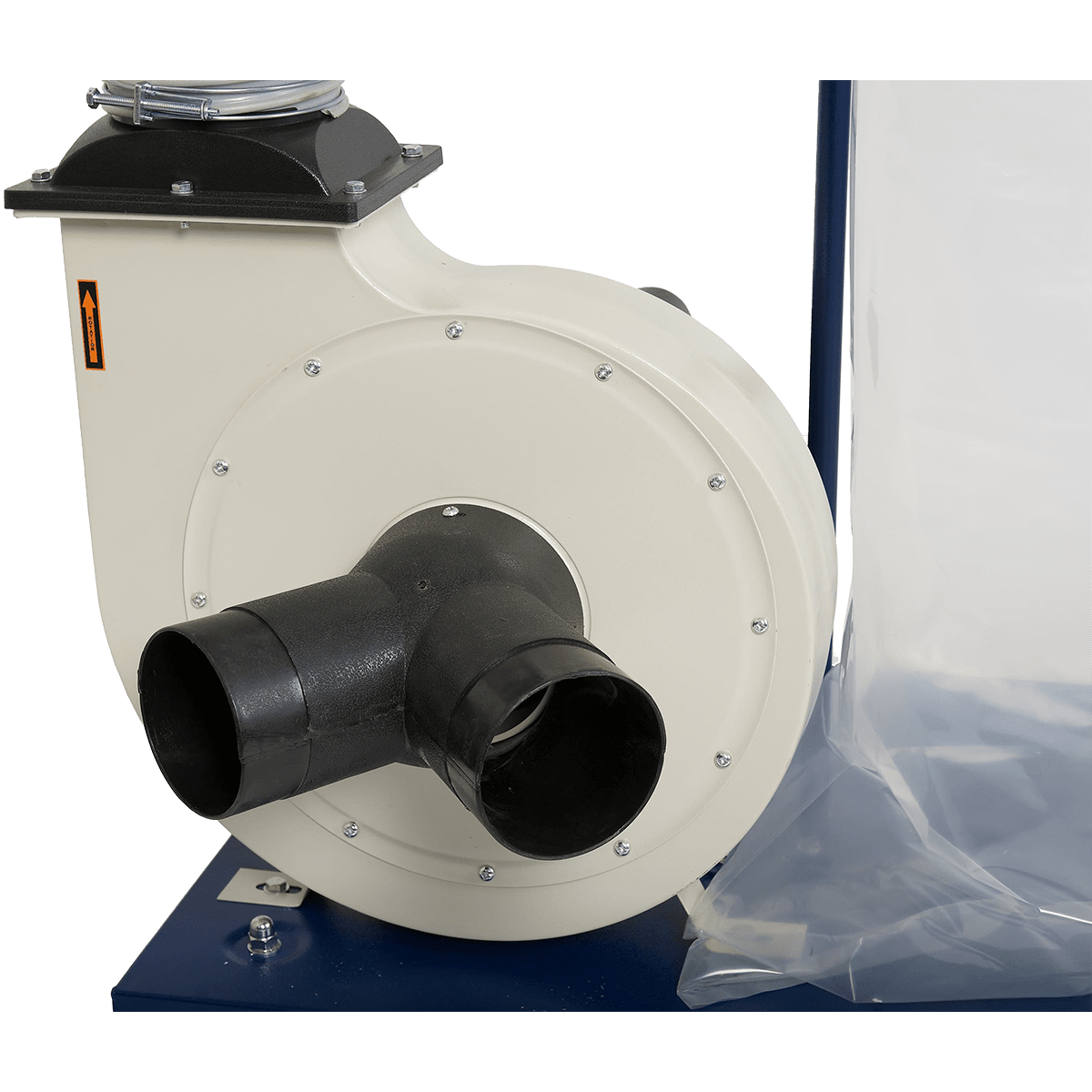

- Versatile Collection: Single 5-inch dust port or dual 4-inch dust intake fitting for use when operating two machines at one time.
- Built-in Casters: Casters make this dust collector easy to move from tool to tool.
- All Metal Construction: This sturdy machine is constructed from steel from the base to the blower wheel.
- Cloth Bag Filtration: It filters particles as small as 5 microns and quickly picks up chips and dust in the 5.4 cubic foot collection bag.
Safe Operation
- Grounding: Full instructions for grounding are included to prevent static discharge from igniting fine dust particles. Grounding should be installed for both flexible and rigid plastic and metal ductwork.

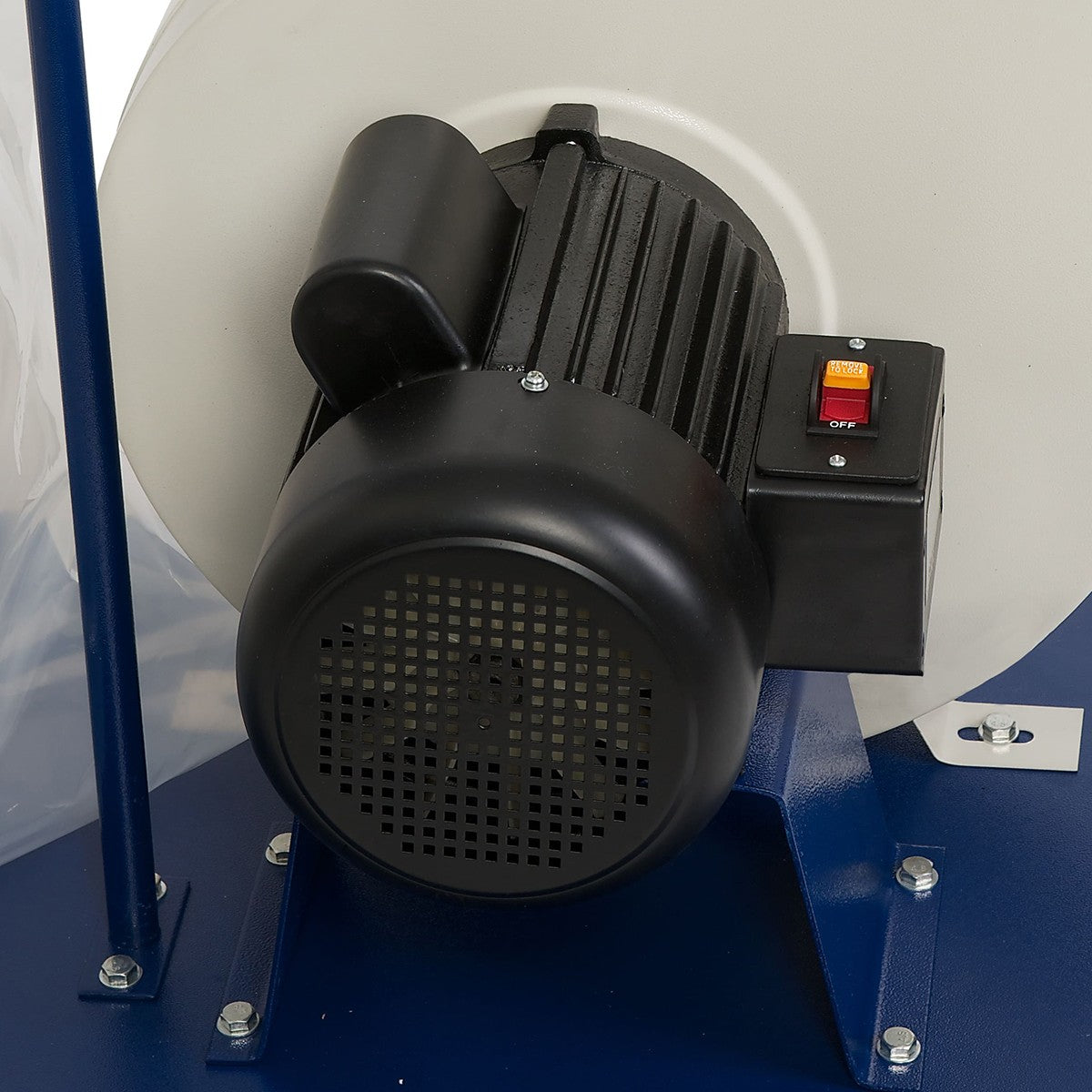

- Locking Switch: The on/off locking toggle switch has a center key which can be used to prevent unauthorized use of the dust collector. It must be inserted before the machine can be used.
Included Parts

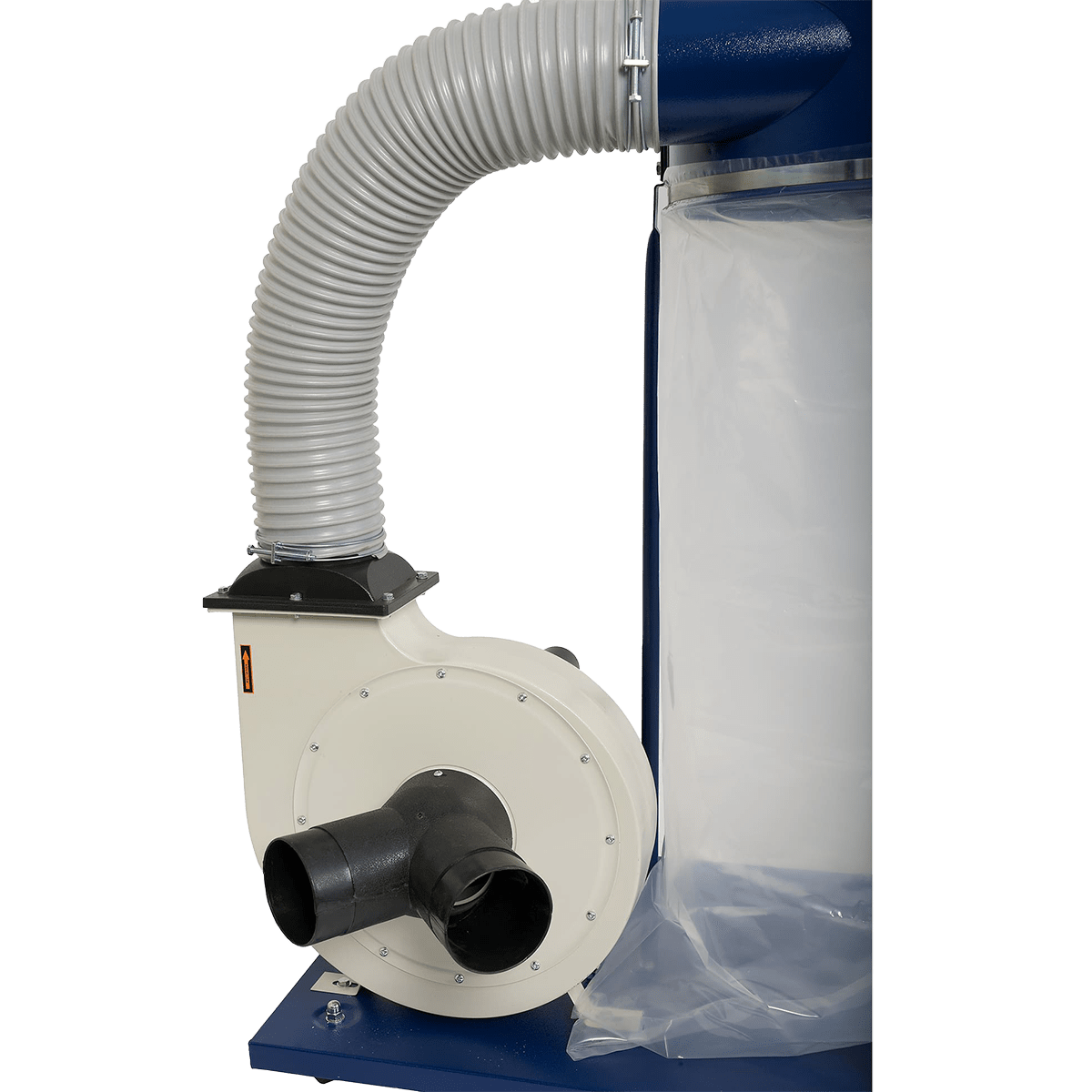

In addition to the ‘Y’ fitting, the 60-150 dust collector includes a 5-inch hose, two hose clamps, all assembly hardware, and two filter bags for your convenience.
Additional Specifications
- Hose Inlet: 5-inch single inlet; 4-inch dual inlet diameter
- Motor: 1.5 horsepower
- RPM: 3,400 rpm
- Amps: 10.4 A
- Airflow: 1,046 cfm at 4-inch diameter
- Sound: <84.3 dB at 3 ft.
- Static Pressure: 4.35 in. w.c.
- Blower Wheel Diameter: 10 in.
Summary
The Rikon 1.5 horsepower dust collector quickly and safely captures wood dust and chips in larger workshops. The top cloth filter bag and lower disposable plastic chip bag are connected with included quick-release band clamps.
Specifications
Specifications
-
Filtration SystemPre-Filter
-
Number of Speeds1
-
TypePortable, Air Scrubber
-
California Residents⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov/wood.www.p65warnings.ca.gov.
-
ColorWhite
-
ControlsToggle Switch
-
Maximum Cubic Feet per Minute (CFM) (CFM)1046.0
-
Maximum Noise Level (dB)84.3
-
Number of Filters to Change1
-
Ozone EmissionNone
-
Pre-Filter Type5 Microns Bag Filter
-
Recommended ForCommercial/Industrial, Woodworking
-
Amperage (Amps)10.4
-
Voltage (V)110-120
-
Depth (in.)37.0
-
Depth (with front cover) (in.)37.0
-
Height (in.)76.5
-
Height (with front cover) (in.)76.5
-
Weight (lbs.)84
-
Width (in.)22.0
-
Width (with front cover) (in.)22.0
-
Additional FeaturesCasters
-
Manufacturer's Warranty5-Year Manufacturer's Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
Rikon

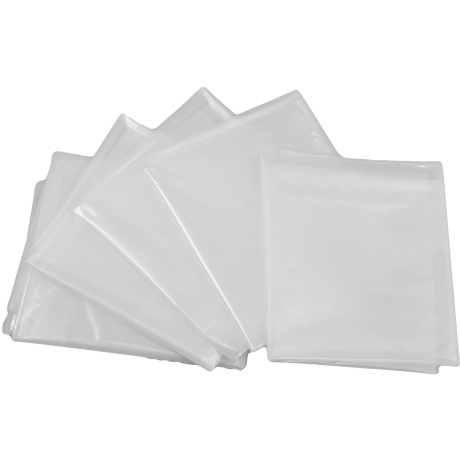

60-902 Plastic Dust Bag for 1.5 HP and 2 HP Dust Collector - 5-pack
$54.99Unit price /Unavailable -
Rikon

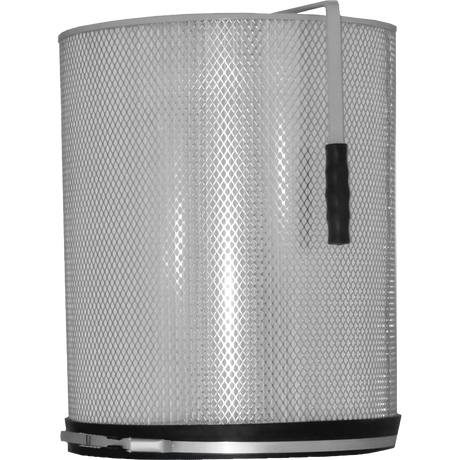

60-905 Filter Cartridge for 1.5 HP, 2 HP, 3 HP Dust Collector
$449.99Unit price /Unavailable -
Rikon

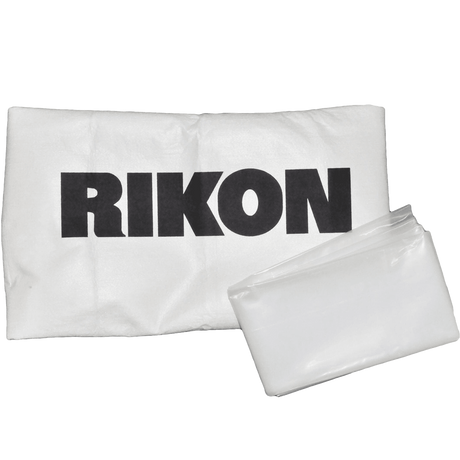

60-928 Replacement Filter and Dust Bag for 1.5 HP and 2 HP Dust collector
