Rikon 63-110 Dust Extractor 12 Gallon Capacity w/ Wall Mount
Rikon 63-110 Dust Extractor 12 Gallon Capacity w/ Wall Mount is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Rikon 63-110 12-Gallon Dust Extractor
- Wall-Mount Bracket and Installation Hardware
- Owner's Manual
Info & Guides
Info & Guides
Rikon 63-110 Dust Extractor 12 Gallon Capacity w/ Wall Mount
Description
Description

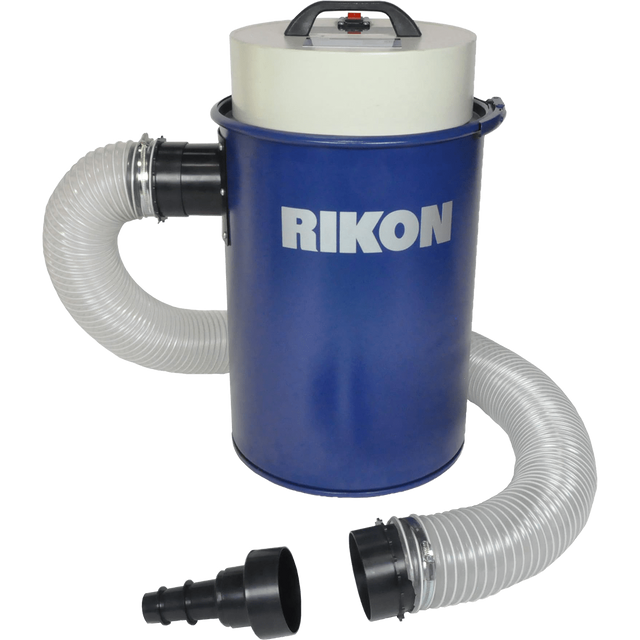

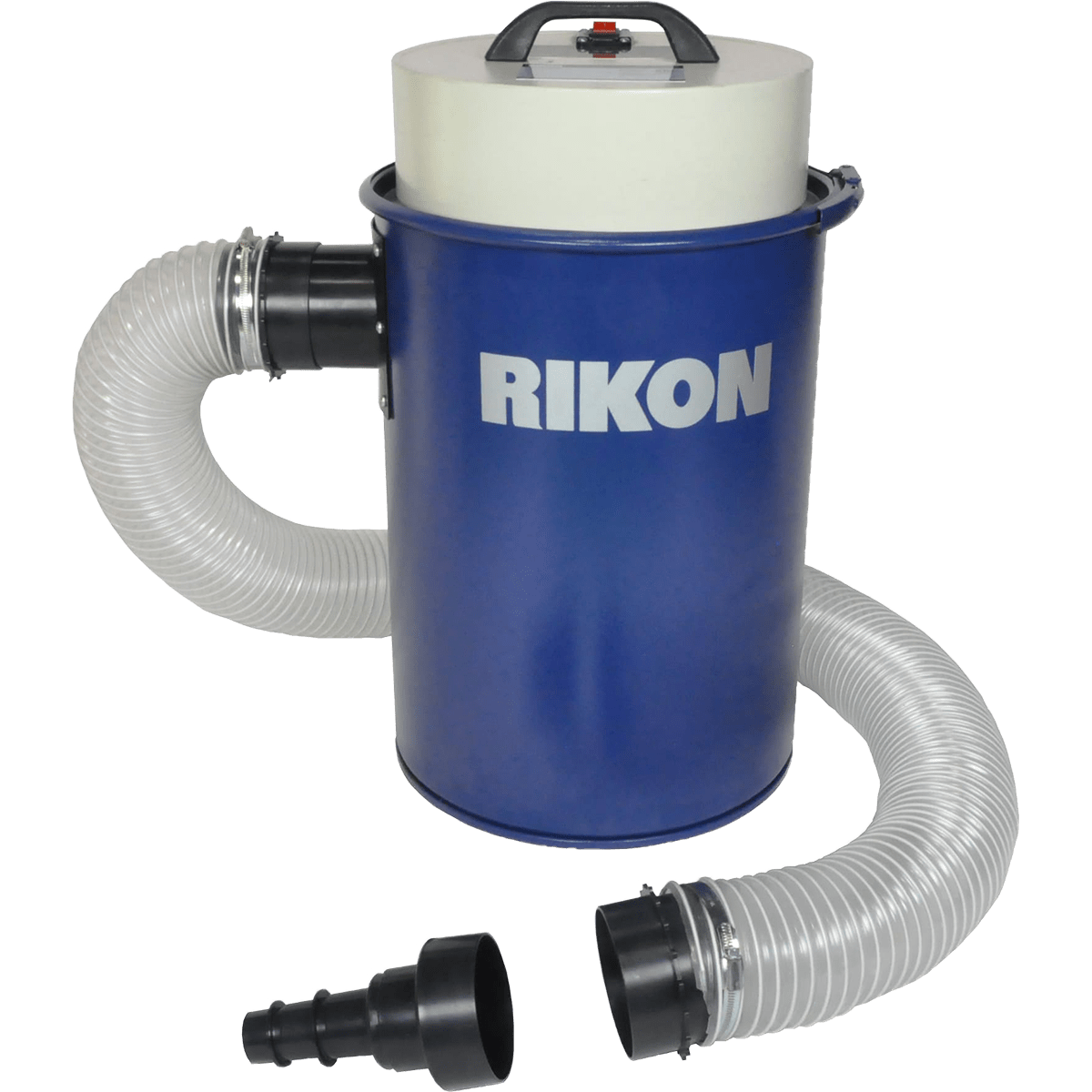

Equipped with a powerful 1.5-horsepower motor and 12-gallon metal collection container, the Rikon 63-110 Dust Extractor is an effective and easy-to-use canister vacuum system.

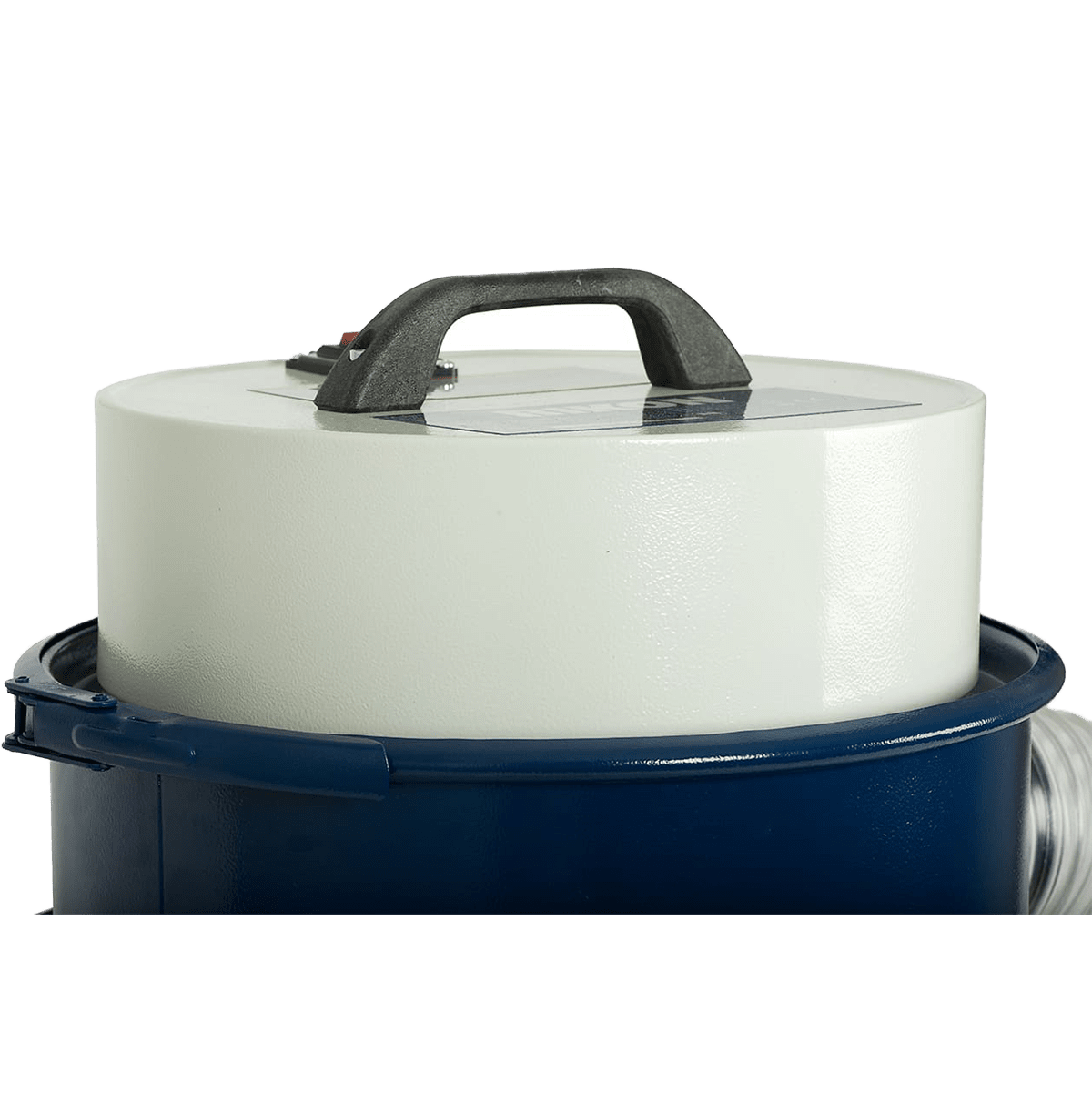

- Easy to Transport: Carry the Rikon from machine to machine using the convenient top carry handle.

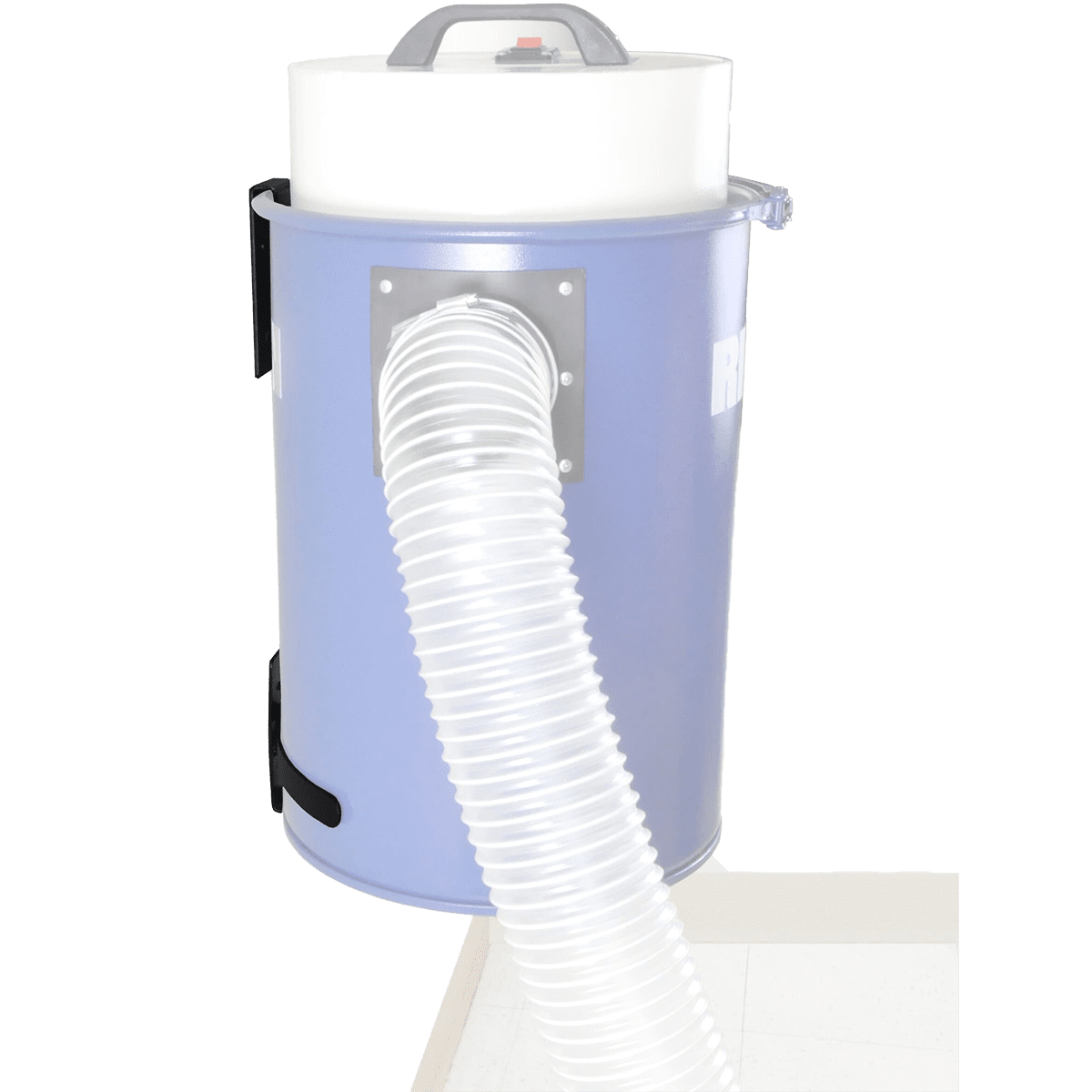

- Wall Mountable: This impressive industrial dust extractor includes a wall mounting bracket for a more permanent installation.
- Parts Included: The system includes a 6.5-ft. hose with a 4-in. diameter, two hose clamps, two 4-in. hose connector fittings, a set of four hose fittings, a filter cartridge, and four replacement paper filters.
- Dry Use Only: Use the Rikon 63-110 for dry debris and dust collection only.

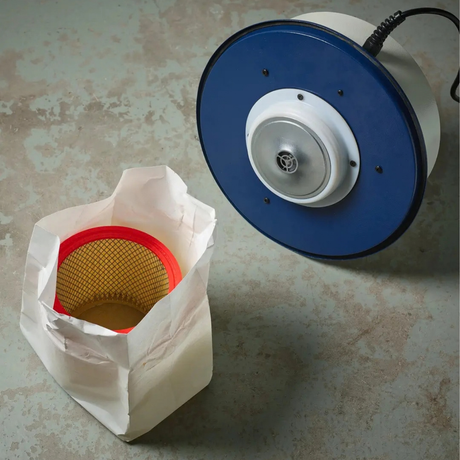

Two-Stage Filtration
The Rikon 63-110 dust extractor features a two-stage filtration system consisting of a canister filter enclosed by a paper filter bag.

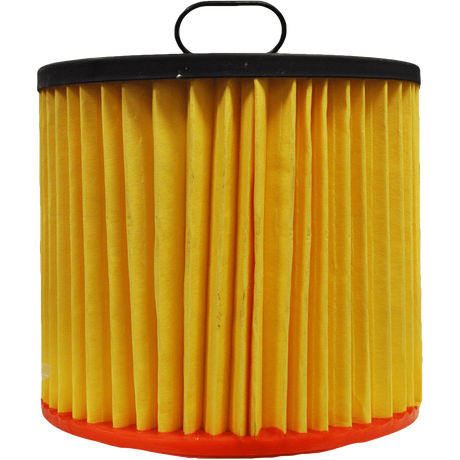

- Filter Cartridge: The cylindrical cartridge has a pleated surface to capture fine dust and particles. It can be cleaned with a vacuum cleaner or replaced if necessary.

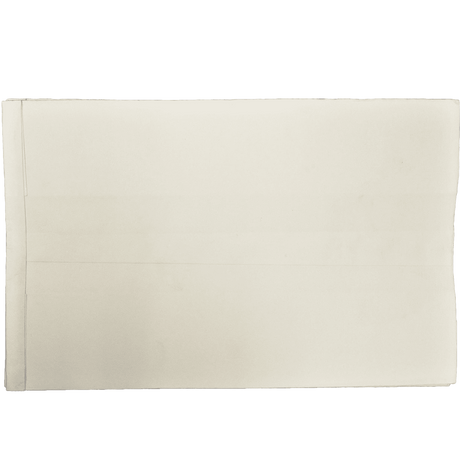

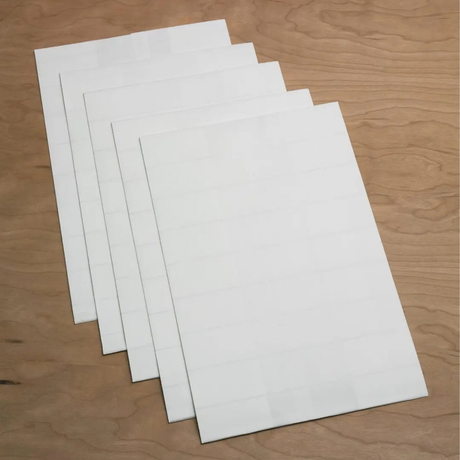

- Filter Bag: The paper filter bag helps to contain fine dust down to 0.5 microns that may get through the cartridge filter. This should be replaced whenever the 12-gallon container is emptied.

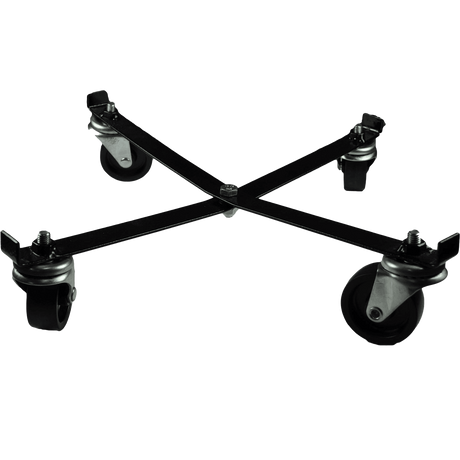

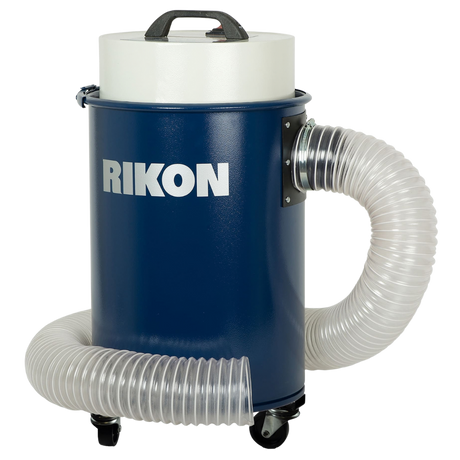

Optional Mobility Kit
This optional mobility kit can mount the Rikon dust collector on it for even easier transport. It consists of a bracketed frame with four rolling casters on which the 63-110 can be positioned for easy maneuvering.
Additional Specifications
- Motor: 1.5 horsepower
- Power: 120 V, 60 Hz, 9.2 A
- Material: Steel
- Blower Wheel Diameter: 10 in.
- Canister Filter: 7.25-in. diameter pleated filter
- Bag Filter: 0.5-micron paper filter
- Airflow: 142 CFM
- Sound: 95 dB at 3 ft.
- Hose Size: 6.5 ft. x 4 in. diameter
Summary
The Rikon 63-110 12-Gallon Dust Extractor functions as a high-capacity canister vacuum to remove debris and dust from your woodworking space. It is easily transported using the handy carry handle and can also be mounted to a wall for permanent installation.
Specifications
Specifications
-
Filtration SystemPre-Filter
-
Number of Speeds1
-
TypePortable, Air Scrubber
-
California Residents⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov/wood.www.p65warnings.ca.gov.
-
ColorBlue
-

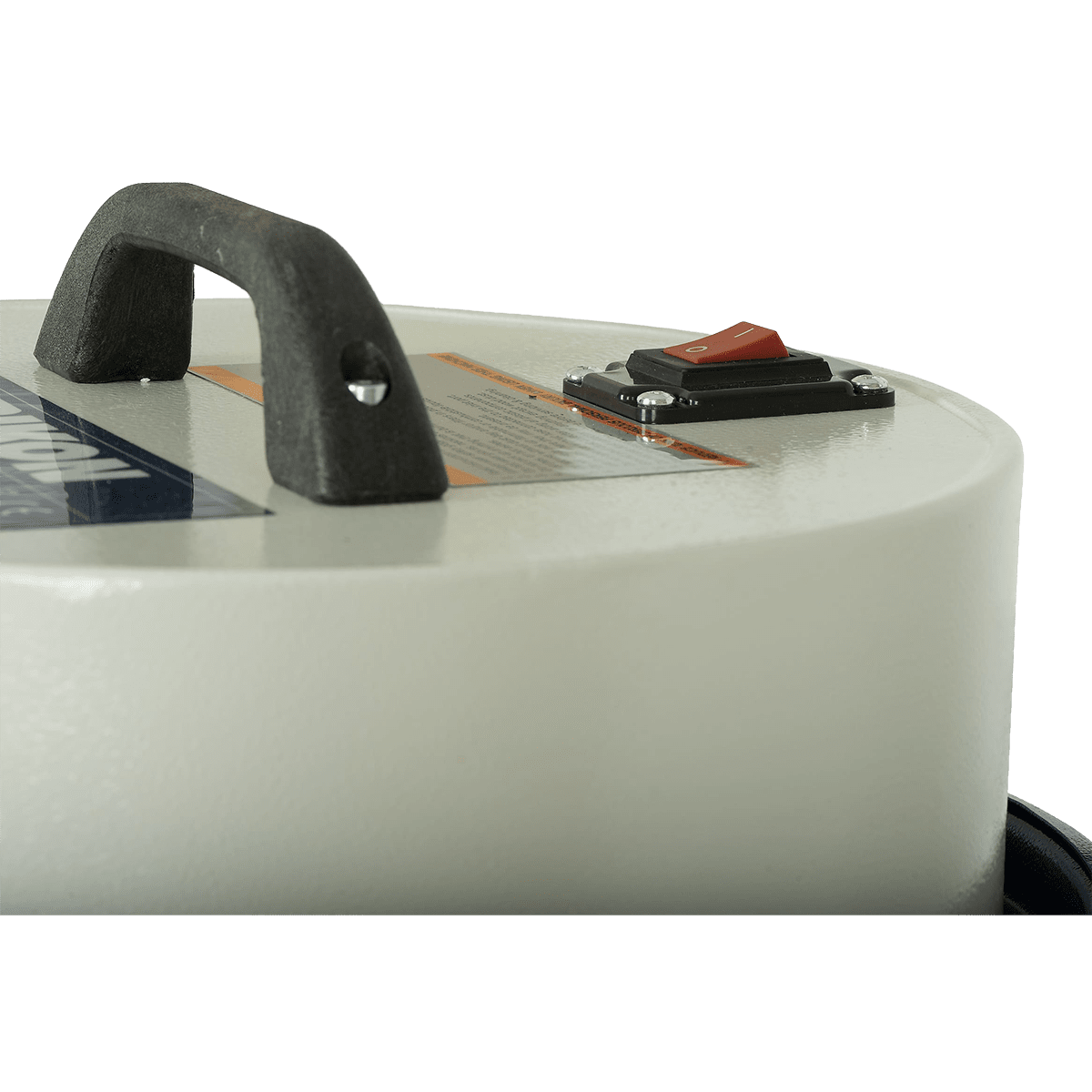

ControlsToggle Switch
-
Maximum Cubic Feet per Minute (CFM) (CFM)142.0
-
Maximum Noise Level (dB)95
-
Number of Filters to Change1
-
Ozone EmissionNone
-
Pre-Filter TypePaper Filter
-
Recommended ForCommercial/Industrial, Woodworking
-
Amperage (Amps)9.2
-
Voltage (V)110-120
-
Depth (in.)15.0
-
Depth (with front cover) (in.)15.0
-
Height (in.)25.25
-
Height (with front cover) (in.)25.25
-
Weight (lbs.)23.4
-
Width (in.)15.0
-
Width (with front cover) (in.)15.0
-
Manufacturer's Warranty5-Year Manufacturer's Warranty
