Ruck Air Movement 10-In. Prime 1015 CFM Mixed Flow Inline Duct Fan

Name: Ruck Air Movement 10-In. Prime 1015 CFM Mixed Flow Inline Duct Fan
Brand: Ruck Air Movement
Price: 202.0 USD
Availability: InStock

SKU: ru14510 | Model: 147491

$202.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $24.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $250.

2-Year Replacement Extended Warranty - $29.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $250.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

Ruck Air Movement 10-inch Prime Mixed Flow Inline Duct Fan
Mounting Bracket
Owner's Manual

Info & Guides

Owner's Manual

Description

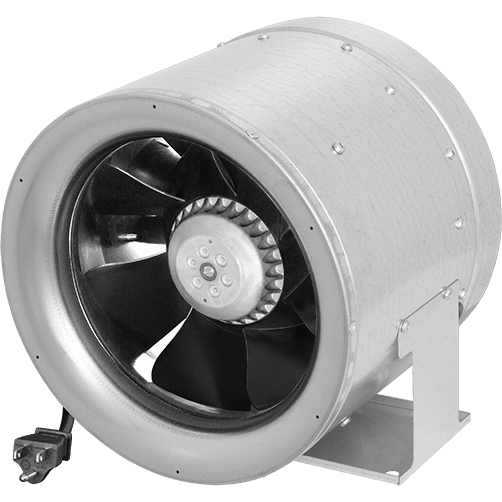

This Ruck Air Movement 10-inch Prime Mixed Flow Inline Duct Fan is equipped with a single-phase AC motor with an integrated 3-speed switch.

Designed and manufactured in Germany, with three-dimensionally shaped impeller blades for the highest aerodynamic efficiency and powerful airflow, this fan also carries an IPX4 rating for use in moist areas.

Powerfully Efficient

The Ruck mixed flow inline duct fan delivers a maximum airflow of 1015 CFM while pulling only 1.9 Amps. The motor is enclosed in the hub area of the robust galvanized sheet steel housing.

Features & Highlights

10-inch Inline Duct Fan
3D Shaped Impeller Blades
Galvanized Metal Housing
Integrated 3-speed Switch
Dual Pole
IPX4 Unit Rating
Minimum Operating Temperature of -13° Fahrenheit (-25° C)
Maximum Operating Temperature of 122° Fahrenheit (50° C)
Included Mounting Bracket
Motor is located in the protected Hub

Summary

The Ruck Air Movement Prime Mixed Flow Inline Duct Fan is available in this 10-inch size. Equipped with a single-phase AC motor, integrated 3-speed switch, and 3D impeller blades. Also available in 6-in, 8-in, 12-in, 14-in, 16-in, 18-in, and 20-in sizes.

Specifications

Key Specifications

Number of Speeds

3
Sound Level (Sones) (sones)

37.0
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting
Certifications

UL, CSA
Color

Gray
Controls

Toggle Switch
Maximum Air Temperature (degrees F)

122
Maximum Cubic Feet per Minute (CFM) (CFM)

1015.0

Power

Amperage (Amps)

1.9
Power Supply

Hardwired
Voltage (V)

110-120
Watts (W)

217

Dimensions

Depth (in.)

11.02
Depth (with front cover) (in.)

11.02
Duct Diameter (in.)

10.0
Height (in.)

8.66
Height (with front cover) (in.)

8.66
Weight (lbs.)

11.49
Width (in.)

10.63
Width (with front cover) (in.)

10.63
