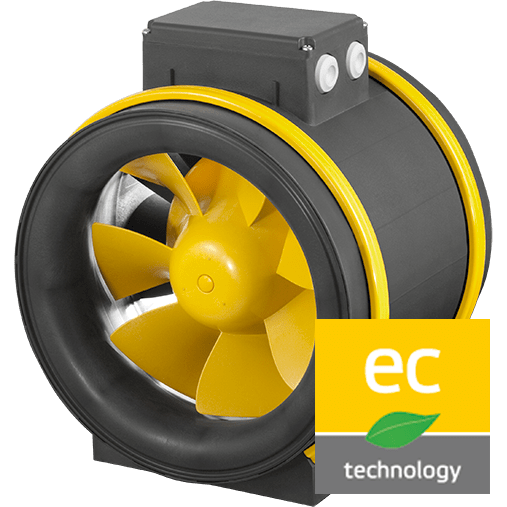

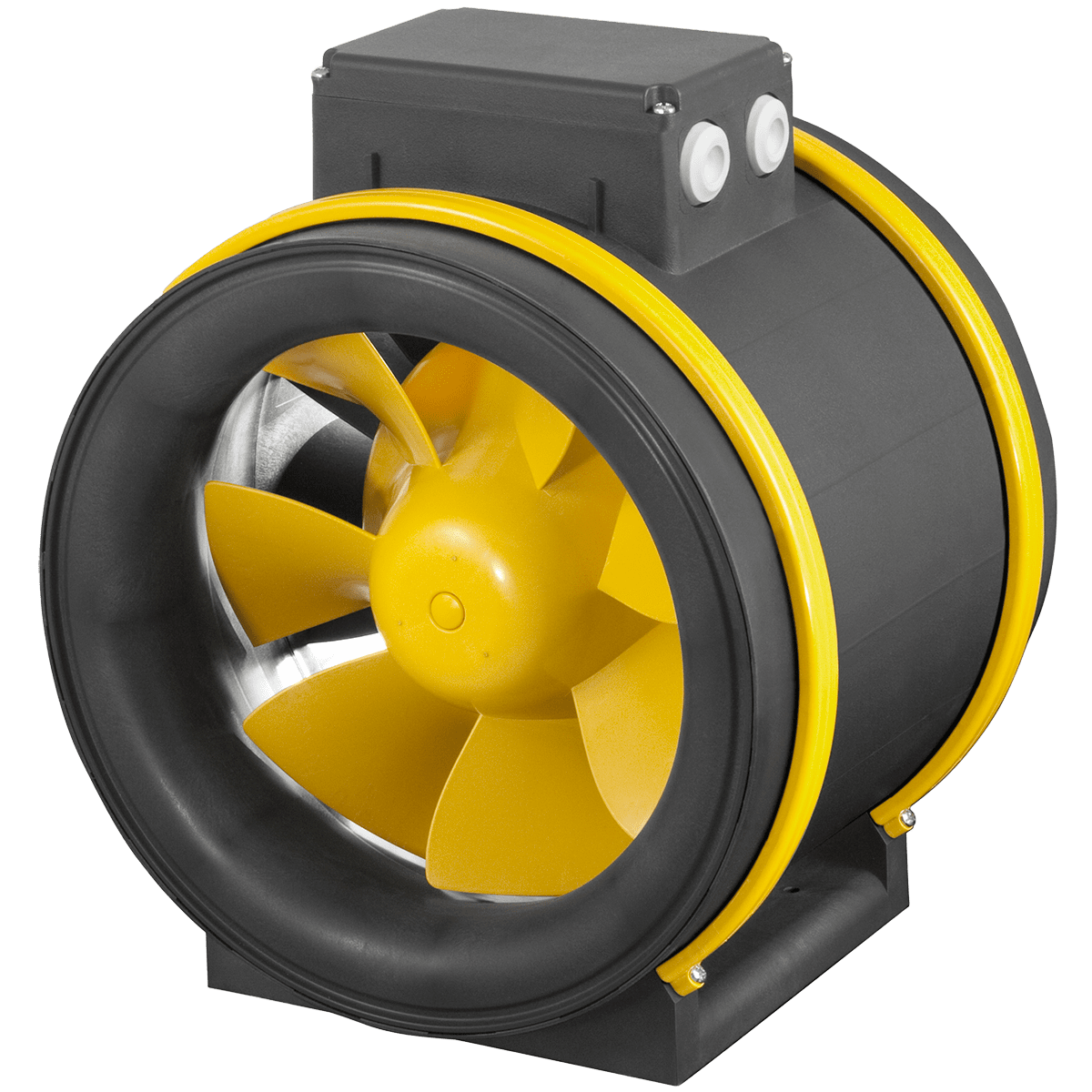

Ruck Air Movement 12-In. Prime EVO EC 1448 CFM Mixed Flow Inline Duct Fan

SKU: ru14528  |  Model: 147716
$602.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.


Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $1,500.

learn more

A 4-year major appliance warranty for products less than $1,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

  • Ruck Air Movement 12-inch Prime EVO EC Mixed Flow Inline Duct Fan
  • Mounting Bracket
  • Owner's Manual

Info & Guides

Description

The Ruck 12-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.

Manufactured in Germany, this fan is ETL-listed and costs less to operate than traditional centrifugal fans.

Efficient, Silent Ventilation

Pulling only 3 amp at maximum operation, the Prime EVO EC fan can run at as much as 3200 RPM, producing up to 1448 CFM.

Features & Highlights

  • 12-inch Duct Fan
  • 3D Shaped Impeller Blades
  • Corrosion Resistant Plastic Housing
  • 0-10V Speed Control
  • Motor IP30 Rating
  • Terminal Box IP44 Rating
  • Minimum Operating Temperature of -22° Fahrenheit (-30° C)
  • Maximum Operating Temperature of 140° Fahrenheit (60° C)
  • Included Mounting Bracket
  • Motor is protected in the Hub

Summary

The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 12-inch duct size. Equipped with insulated, corrosion-resistant housing, 0-10V speed control, and aerodynamic design. Also available in 6-inch, 8-inch, 10-inch, 14-inch, and 16-inch duct sizes.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      52.0
    • Type
      Low Noise Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL, CSA
    • Color
      Black
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1448.0

    Power

    • Amperage (Amps)
      3.1
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      262

    Dimensions

    • Depth (in.)
      12.6
    • Depth (with front cover) (in.)
      12.6
    • Duct Diameter (in.)
      12.0
    • Height (in.)
      15.87
    • Height (with front cover) (in.)
      15.87
    • Weight (lbs.)
      10.41
    • Width (in.)
      12.6
    • Width (with front cover) (in.)
      12.6

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Warranty
