Ruck Air Movement 16 inch 4055 CFM Axialine Tubeaxial Fan
Ruck Air Movement 16 inch 4055 CFM Axialine Tubeaxial Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 16-inch Axialine 4055 CFM Tubeaxial Fan (AL 400 D4 01)
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 16 inch 4055 CFM Axialine Tubeaxial Fan
Description
Description

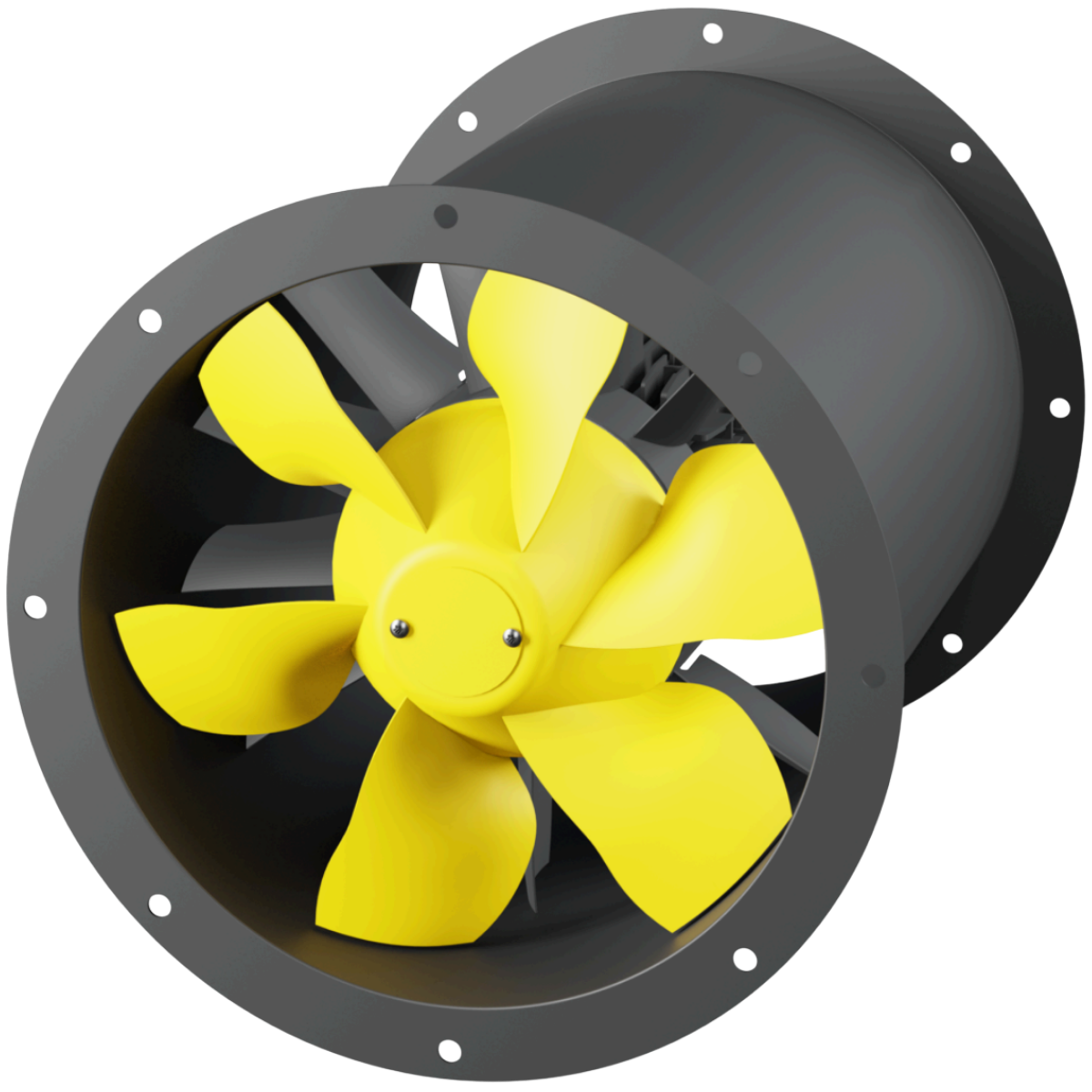

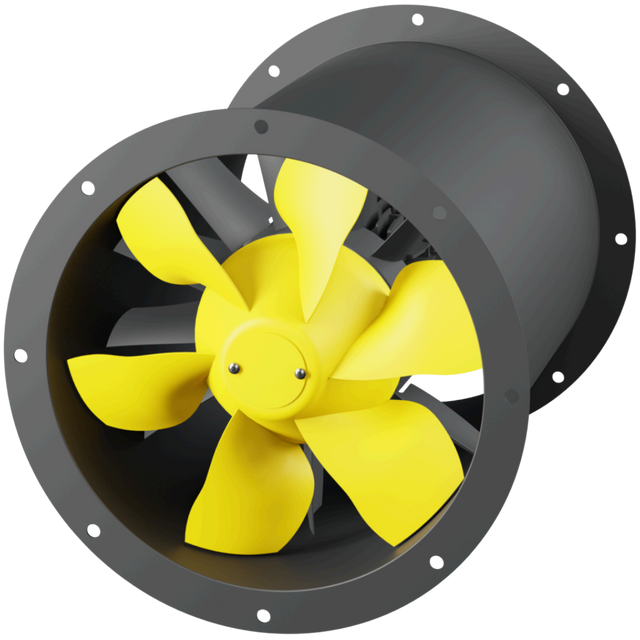

Move large volumes of air with the Ruck Air Movement 16-inch Axialine 4055 CFM Tubeaxial Fan.
Built for contractors, facility managers, and manufacturers who need dependable mechanical ventilation, this compact axial fan couples high airflow with energy-saving engineering, delivering up to 4,055 CFM while drawing just 0.75 kW.

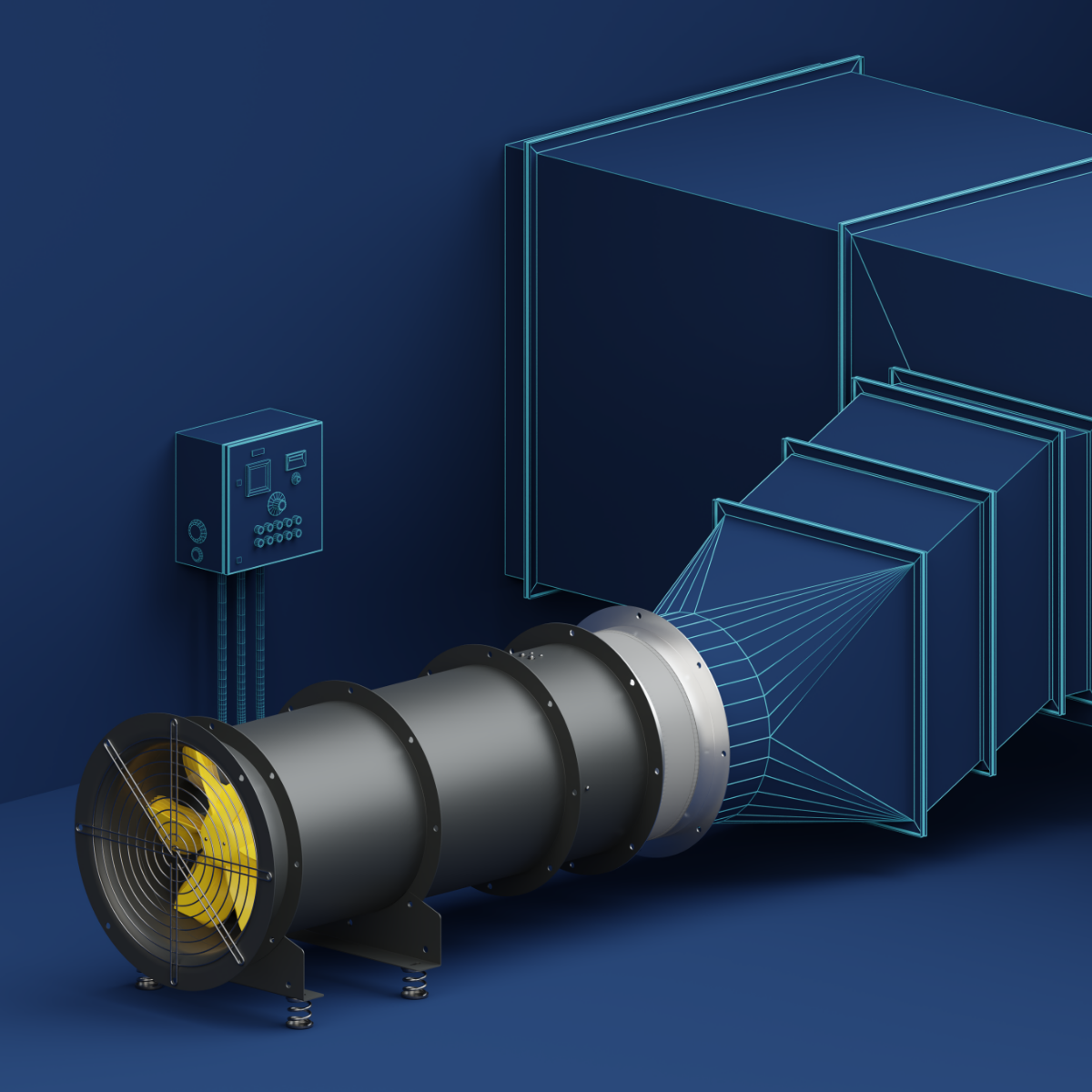

Whether you’re exhausting heat from a manufacturing line, supplying fresh air to a paint booth, or balancing airflow in a long duct run, its computational fluid dynamics optimized design keeps airflow high while keeping operating costs low.
Key Features and Benefits of the Ruck 16-Inch Axial Duct Fan
- High-Volume Airflow: The 4,055 CFM airflow clears heat, fumes, and humidity quickly, helping maintain safe, comfortable working conditions in warehouses, workshops, and production spaces.
- CFD-Optimized Impeller: Aerodynamic steel blades minimize turbulence, boosting efficiency and keeping noise lower than traditional axial fans.
- Frequency-Controllable Speed: Connect to a VFD (variable frequency drive) device to dial in the perfect airflow without sacrificing performance or motor life.
- Robust Temperature Range: Reliable operation in temperatures between –4 and 140 degrees F, making it suitable for hot manufacturing plants, chilly loading docks, and anywhere in between.
- IPX4/IP55 Protection: The splash-proof housing and a dust-tight terminal box guard the motor and wiring in moist or dusty applications.
- Simple DN400 Connections: Standard 16-inch flanges align with common duct accessories, no custom adapters required.
Engineered Efficiency for Industrial Airflow
Every component of this tubeaxial fan was modeled using computational fluid dynamics (CFD) to squeeze more performance from each watt. The precision-balanced impeller generates up to 300 Pa of static pressure, letting you push air through filters, bends, or long duct runs without oversizing the motor.
Pair it with a VFD, and you can fine-tune speed from low-flow standby to full-speed purge, ideal for processes with fluctuating ventilation demands. This flexibility not only saves energy but also extends equipment life by preventing unnecessary starts and stops.
Sylvane's Expert Take
If you need high airflow in a compact, energy-conscious package, this 16-inch axial fan is tough to beat. Its IE3 motor keeps operating costs in check, while CFD-refined blades deliver strong performance even with moderate static pressure conditions.
Add frequency control, broad temperature tolerance, and IP protection, and you have a versatile workhorse ready for industrial, commercial, or specialty OEM projects. In short, it’s a smart choice when reliable ventilation and long-term efficiency are non-negotiable.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeTubeaxial
-
ApplicationDucting, Industrial
-
CertificationsCE
-
ColorBlack, Yellow
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)4055.0
-
Amperage (Amps)1.3
-
Power SupplyHardwired
-
Watts (W)1006
-
Depth (in.)14.5
-
Depth (with front cover) (in.)14.5
-
Duct Diameter (in.)15.75
-
Height (in.)18.9
-
Height (with front cover) (in.)18.9
-
Weight (lbs.)51.4
-
Width (in.)15.75
-
Width (with front cover) (in.)15.75
-
Manufacturer's Warranty3-Year Limited Warranty
