Ruck Air Movement 16 inch EC 5238 CFM Axialine Tubeaxial Fan

Name: Ruck Air Movement 16 inch EC 5238 CFM Axialine Tubeaxial Fan
Brand: Ruck Air Movement
Price: 1768.0 USD
Availability: InStock

SKU: ru17157 | Model: 154093

$1,768.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $79.99

learn more

A 2-year major appliance warranty for products less than $2,500.

4-Year Warranty - $129.99

learn more

A 4-year major appliance warranty for products less than $2,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

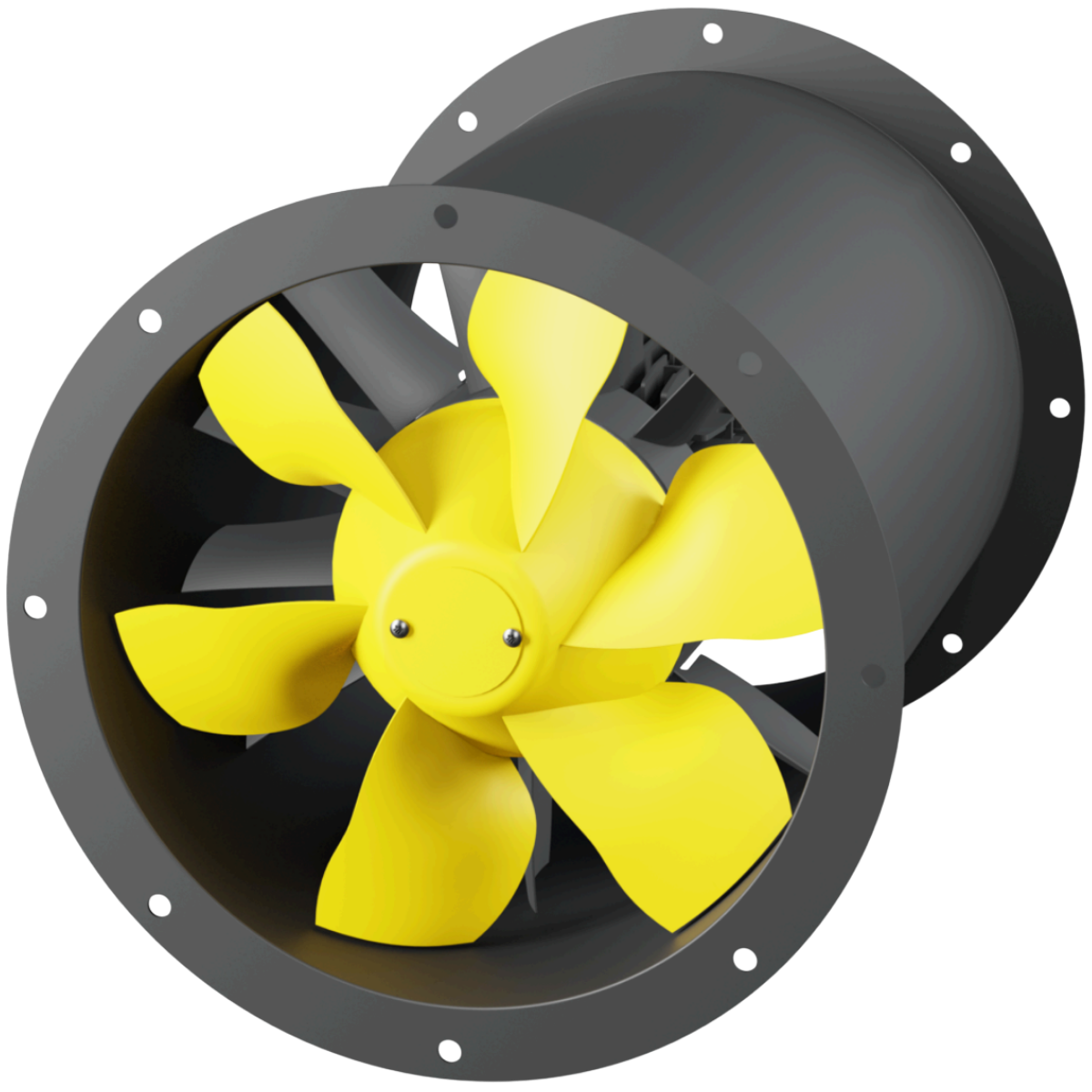

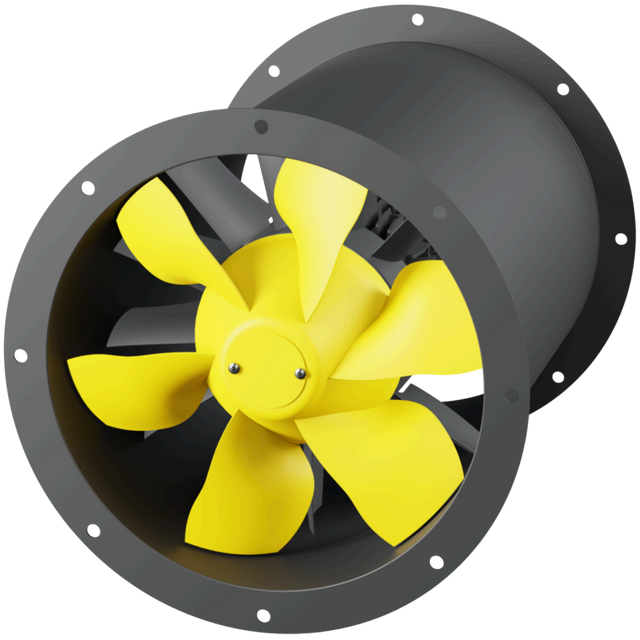

Ruck Air Movement 16-inch Axialine 5238 CFM Tubeaxial Fan (AL 400 D4 01)
Owner’s Manual

Info & Guides

Description

Deliver high-volume airflow wherever you need it with the Ruck Air Movement 16-inch Axialine EC 5238 CFM Tubeaxial Fan.

Built for contractors, facility managers, and OEM designers who require reliable, energy-efficient ventilation, this compact powerhouse moves up to 5,238 CFM while maintaining precise, stepless speed control. From manufacturing lines to large commercial HVAC systems, it supplies consistent air exchange with lower energy requirements than traditional motors.

Key Features and Benefits of the Ruck 16-Inch Axial EC Tubeaxial Fan

High-Output Airflow: The 5,238 CFM airflow capacity rapidly removes heat, fumes, or stale air in large rooms and duct runs, keeping workspaces safer and more comfortable.
Stepless EC Motor Control: Dial in exactly the speed you need, no wasted energy, making it perfect for variable-load processes or seasonal adjustments.
Wide Temperature Range: Dependable performance in hot areas up to 140 degrees F, or cold areas down to -4 degrees F.
Powder-Coated Construction: The fan housing resists corrosion and mechanical stress to offer a long service life in demanding industrial and commercial environments.
IP55 Protection Rating: The IP55-rated housing shields the motor and electronics against dust and water, reducing downtime from environmental exposure.

Why EC Technology Changes the Game

This model’s integrated EC motor delivers stepless modulation from zero to full RPM. The benefits are dramatically lower kWh consumption and precise airflow matching that extends system life. For facilities aiming to hit energy-reduction targets or qualify for utility incentives, EC technology makes the upgrade decision straightforward.

Sylvane's Expert Take

Ruck’s 16-inch Axialine Fan hits the sweet spot between airflow and energy efficiency. Its CFD-driven blade design, IE3 motor, and VFD compatibility give facility managers the control they need, while the durable housing and IP ratings stand up to real-world conditions.

For anyone upgrading an existing duct run or designing a new industrial ventilation system, this fan offers reliable performance today with headroom for tomorrow’s efficiency standards.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Tubeaxial

General

Application

Ducting, Industrial
Certifications

CE
Color

Black, Yellow
Controls

Electronic
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

5238.0

Power

Amperage (Amps)

10.3
Power Supply

Hardwired
Voltage (V)

208-230
Watts (W)

1460

Dimensions

Depth (in.)

14.5
Depth (with front cover) (in.)

14.5
Duct Diameter (in.)

15.7
Height (in.)

18.9
Height (with front cover) (in.)

18.9
Weight (lbs.)

45
Width (in.)

15.7
Width (with front cover) (in.)

15.7
