Ruck Air Movement 20-In. Prime 4595 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 20-In. Prime 4595 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 20-inch Prime Mixed Flow Inline Duct Fan
- Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides

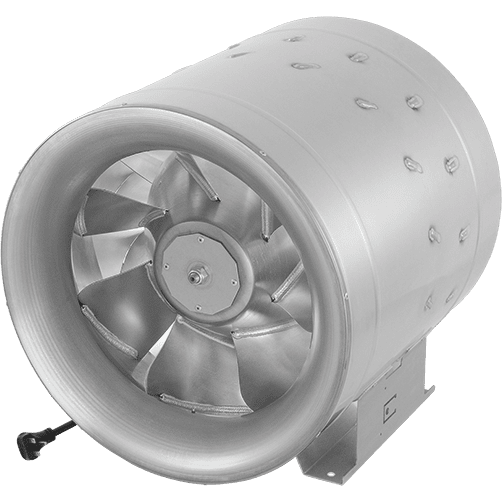

Ruck Air Movement 20-In. Prime 4595 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 20-In. Prime 4595 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
This Ruck Air Movement 20-inch Prime Mixed Flow Inline Duct Fan is equipped with a single-phase AC motor with an integrated 3-speed switch.
Designed and manufactured in Germany, it has three-dimensionally shaped impeller blades for the highest aerodynamic efficiency and powerful airflow.
Powerfully Efficient
The motor of the Ruck inline duct fan is protected, enclosed in the hub of the robust aluminum housing. This efficient mixed flow inline duct fan delivers a maximum airflow of 4595 CFM while pulling only 4.9 Amps.
Features & Highlights
- 20-inch Inline Duct Fan
- 3D Shaped Impeller Blades
- Robust Aluminum Housing
- Motor Rating IP54 against contamination from dust/particles & moisture
- Integrated 3-speed Switch
- 4-Pole
- Minimum Operating Temperature of -13° Fahrenheit (-25° C)
- Maximum Operating Temperature of 104° Fahrenheit (40° C)
- Included Mounting Bracket
- Motor is located in the protected Hub
Summary
The Ruck Air Movement Prime Mixed Flow Inline Duct Fan is available in this 20-inch size. Equipped with a single-phase AC motor, integrated 3-speed switch, and 3D impeller blades. Also available in 6-in, 8-in, 10-in, 12-in, 14-in, 16-in, and 18-in sizes.
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)59.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)4595.0
-
Amperage (Amps)4.9
-
Power SupplyHardwired
-
Voltage (V)220-240
-
Watts (W)1107
-
Depth (in.)21.42
-
Depth (with front cover) (in.)21.42
-
Duct Diameter (in.)20.0
-
Height (in.)20.83
-
Height (with front cover) (in.)20.83
-
Weight (lbs.)51.16
-
Width (in.)20.24
-
Width (with front cover) (in.)20.24
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
