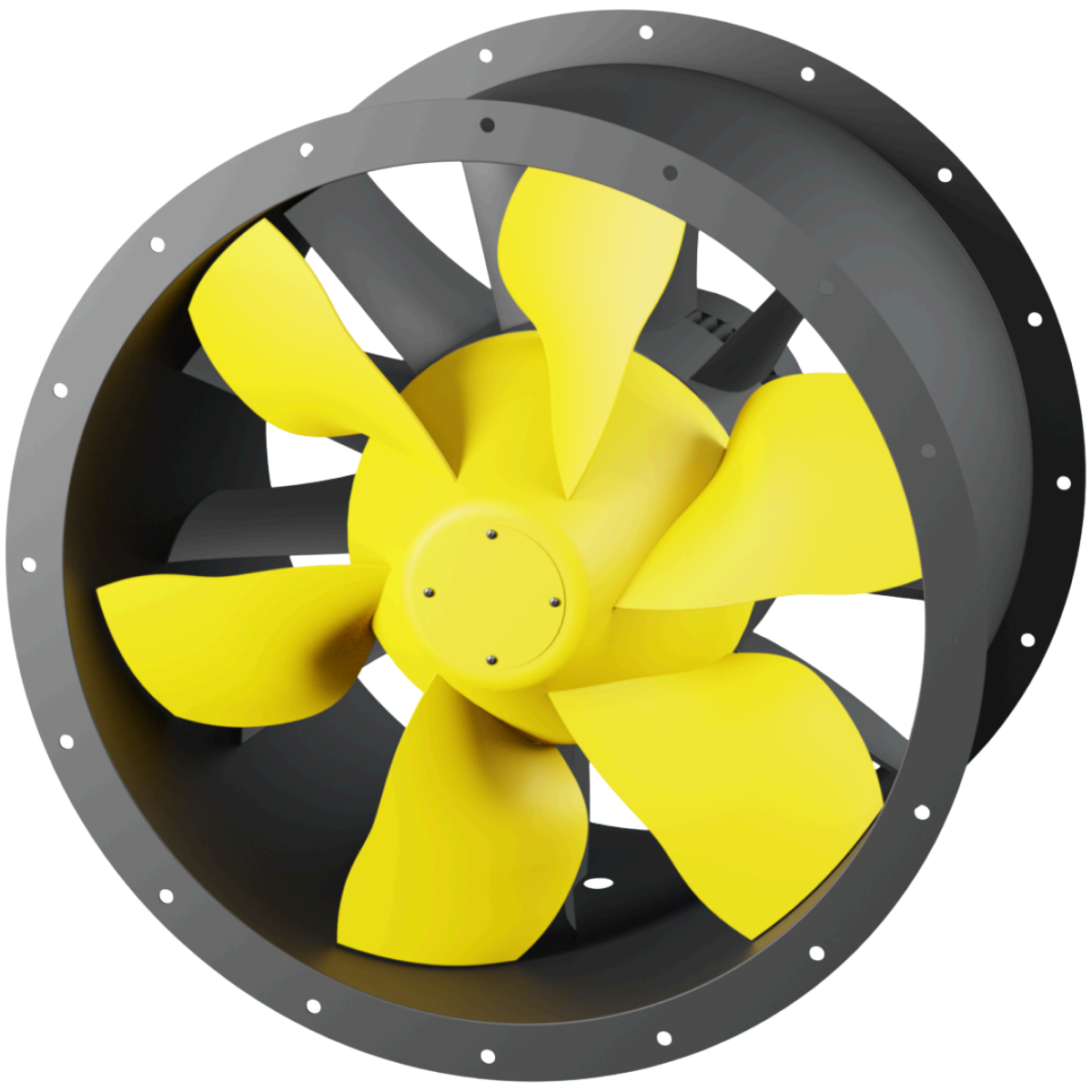

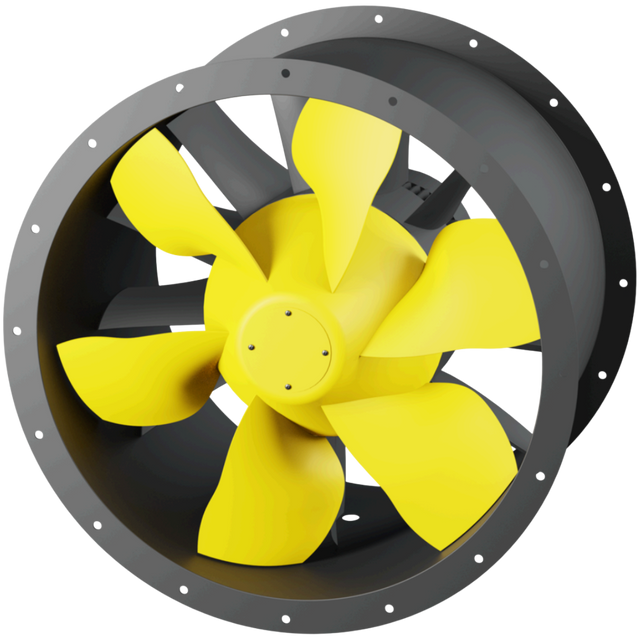

Ruck Air Movement 28 inch 13284 CFM Axialine Tubeaxial Fan
Ruck Air Movement 28 inch 13284 CFM Axialine Tubeaxial Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 28-inch Axialine 13284 CFM Tubeaxial Fan (AL 710 D6 01)
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 28 inch 13284 CFM Axialine Tubeaxial Fan
Description
Description
Engineered for large-scale ventilation, the Ruck Air Movement 28-inch Axialine 13,284 CFM Tubeaxial Fan AL 710 D6 01 delivers the high airflow, rugged durability, and energy savings professionals need to keep industrial and commercial spaces comfortable and compliant.
Whether you need ventilation, air conditioning or cooling in industrial plants or commercial buildings, or a central air exhaust in buildings or parking garages, this fan offers reliable, continuous operation in extreme temperatures.
Key Features and Benefits of the Ruck 28-Inch Axialine Tubeaxial Fan
- High-Volume Air Movement: Rapidly replaces stale or hot air with an airflow of up to 13,284 CFM, reducing heat buildup and exhausting fumes.
- Energy-Efficient Motor: The IE3-rated motor outputs an impressive airflow while using 2.2 kW, helping you lower utility expenses and meet sustainability targets.
- CFD-Optimized Impeller Design: The precision blades maximize airflow while keeping static pressure up to 320 Pa, ideal for long duct runs or resistance-heavy systems.
- Frequency-Control Ready: Pair with a VFD to fine-tune speed (up to 1,180 RPM) and airflow on demand, reducing wear and extending service life.
- Durable Housing: The powder-coated steel housing resists corrosion in demanding environments for years of dependable service.
- Wide Operating Temperature Range: You can confidently install in hot manufacturing areas up to 140 degrees F, cold-storage areas down to -4 degrees F, or in outdoor mechanical spaces.
Designed for Reliability
The Axialine series is engineered for maximum uptime in demanding environments. Its durable design and protected components contribute to reliable, continuous operation, even at elevated temperatures.
The fan's IPX4 body and IP55 terminal box provide robust protection against dust and water spray, ensuring performance in harsh conditions. Those protections, coupled with the fan’s capacity to operate at high temperatures, are crucial for industrial processes that run 24/7, maintaining ventilation during heat spikes or production surges.
Sylvane's Expert Take
Ruck’s Axialine 28-inch Tubeaxial Fan pairs serious airflow with forward-thinking efficiency, making it a standout solution for facilities managers tasked with moving big volumes of air on a tight energy budget.
The frequency-control capability and optimized blades simplify system balancing, while robust construction keeps maintenance to a minimum. If you’re designing or upgrading an industrial or commercial ventilation system, this Ruck model delivers dependable performance today and future-ready efficiency for years to come.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeTubeaxial
-
ApplicationDucting, Industrial
-
CertificationsCE
-
ColorBlack, Yellow
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)13284.0
-
Amperage (Amps)4.7
-
Power SupplyHardwired
-
Watts (W)2212
-
Depth (in.)17.0
-
Depth (with front cover) (in.)17.0
-
Duct Diameter (in.)28.0
-
Height (in.)31.9
-
Height (with front cover) (in.)31.9
-
Weight (lbs.)160
-
Width (in.)28.0
-
Width (with front cover) (in.)28.0
-
Manufacturer's Warranty3-Year Limited Warranty
