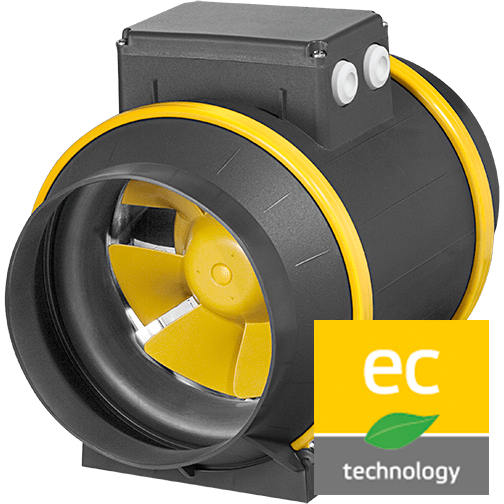

Ruck Air Movement 6-In. Prime EVO EC 483 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 6-In. Prime EVO EC 483 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 6-inch Prime EVO EC Mixed Flow Inline Duct Fan
- Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides
Description
Description

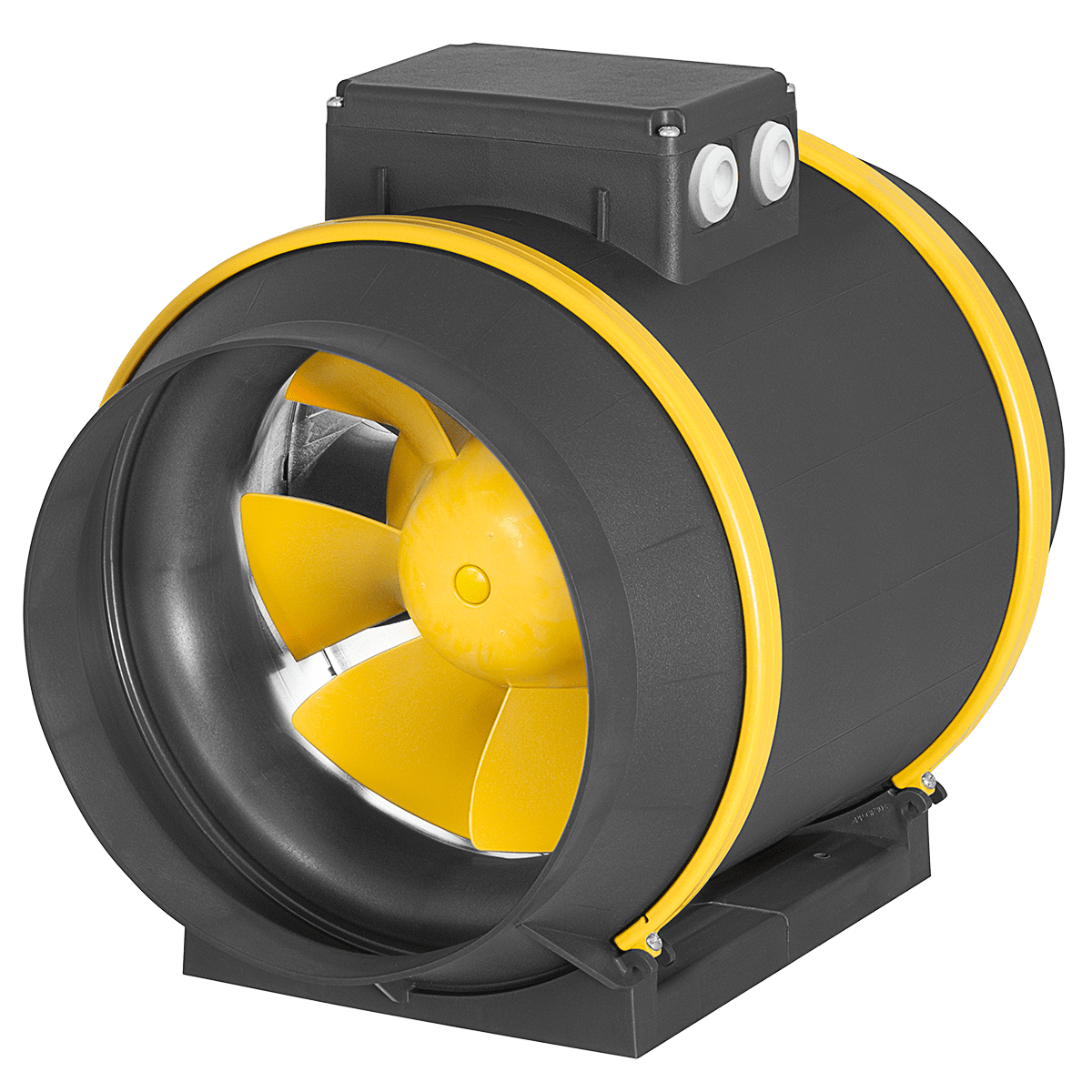

The Ruck 6-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.
Manufactured in Germany, this fan is ETL-listed and IPX4 rated (complete unit) for high-humidity environments, and costs less to operate than traditional centrifugal fans.
Efficient Ventilation
Pulling only 1 amp at maximum operation, the Prime EVO EC fan can run at as much as 3870 RPM, producing up to 483 CFM.
Features & Highlights
- 6-inch Duct Fan
- 3D Shaped Impeller Blades
- Corrosion Resistant Plastic Housing
- 0-10V Speed Control
- IP54 Motor
- IP44 Terminal Box
- Minimum Operating Temperature of -22° Fahrenheit (-30° C)
- Maximum Operating Temperature of 140° Fahrenheit (60° C)
- Included Mounting Bracket
- Motor is protected in the Hub
Summary
The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 6-inch duct size. Equipped with corrosion-resistant housing, 0-10V speed control, and carries an IPX4 rating for humid environments. Also available in 8-inch, 10-inch, 12-inch, 14-inch, and 16-inch duct sizes.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)34.0
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorBlack
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)483.0
-
Amperage (Amps)1
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)72
-
Depth (in.)9.02
-
Depth (with front cover) (in.)9.02
-
Duct Diameter (in.)6.0
-
Height (in.)12.6
-
Height (with front cover) (in.)12.6
-
Weight (lbs.)6.17
-
Width (in.)10.28
-
Width (with front cover) (in.)10.28
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
