Ruck Air Movement 12-In. Prime EVO EC 1448 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 12-In. Prime EVO EC 1448 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 12-inch Prime EVO EC Mixed Flow Inline Duct Fan
- Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides
Ruck Air Movement 12-In. Prime EVO EC 1448 CFM Mixed Flow Inline Du...
Description
Description

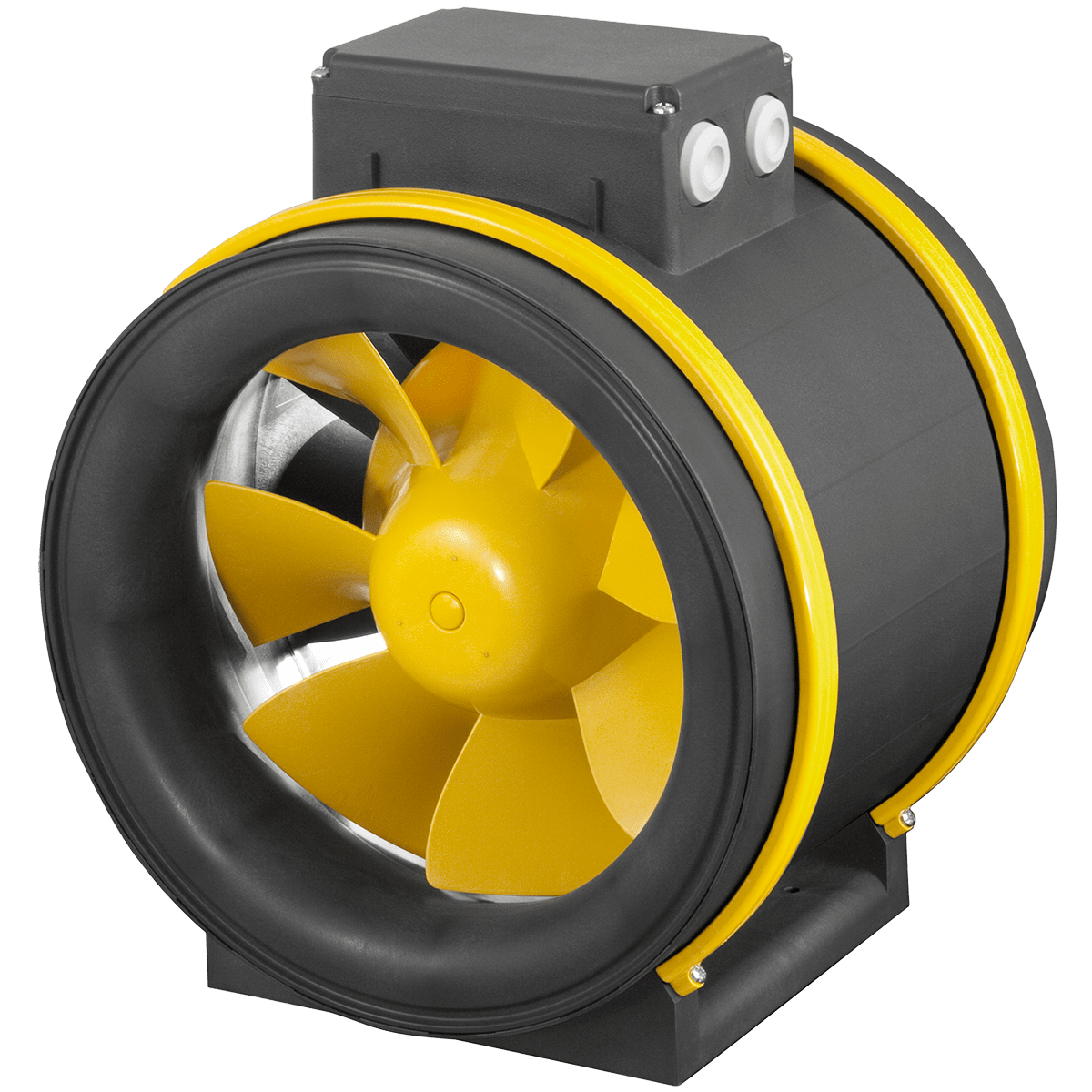

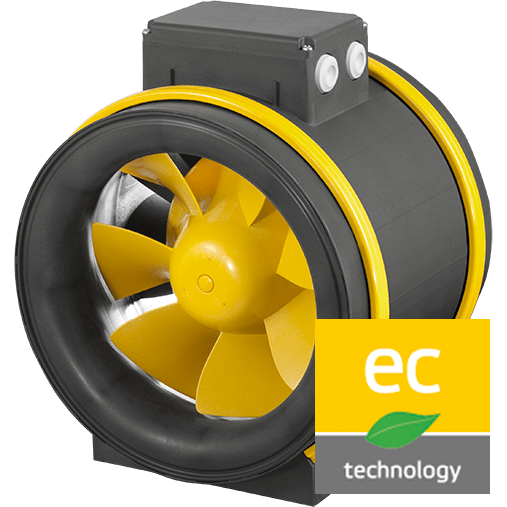

The Ruck 12-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.
Manufactured in Germany, this fan is ETL-listed and costs less to operate than traditional centrifugal fans.
Efficient, Silent Ventilation
Pulling only 3 amp at maximum operation, the Prime EVO EC fan can run at as much as 3200 RPM, producing up to 1448 CFM.
Features & Highlights
- 12-inch Duct Fan
- 3D Shaped Impeller Blades
- Corrosion Resistant Plastic Housing
- 0-10V Speed Control
- Motor IP30 Rating
- Terminal Box IP44 Rating
- Minimum Operating Temperature of -22° Fahrenheit (-30° C)
- Maximum Operating Temperature of 140° Fahrenheit (60° C)
- Included Mounting Bracket
- Motor is protected in the Hub
Summary
The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 12-inch duct size. Equipped with insulated, corrosion-resistant housing, 0-10V speed control, and aerodynamic design. Also available in 6-inch, 8-inch, 10-inch, 14-inch, and 16-inch duct sizes.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)52.0
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorBlack
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)1448.0
-
Amperage (Amps)3.1
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)262
-
Depth (in.)12.6
-
Depth (with front cover) (in.)12.6
-
Duct Diameter (in.)12.0
-
Height (in.)15.87
-
Height (with front cover) (in.)15.87
-
Weight (lbs.)10.41
-
Width (in.)12.6
-
Width (with front cover) (in.)12.6
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
