Ruck Air Movement 8-In. Classic Series Inline Centrifugal Duct Fan
Ruck Air Movement 8-In. Classic Series Inline Centrifugal Duct Fan - Classic HO is backordered and will ship as soon as it is back in stock.

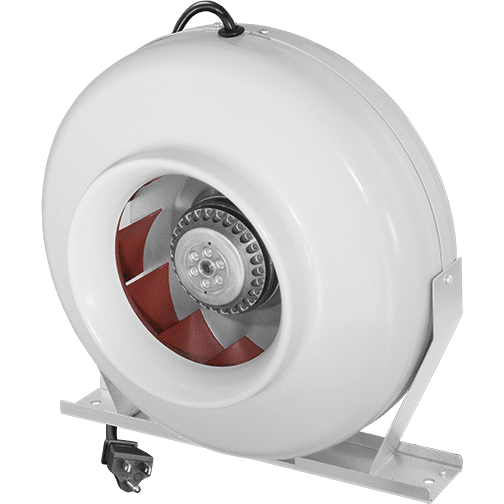

The Ruck Air Movement 8-inch Classic Series Inline Centrifugal Duct Fan is designed with a one-phase AC motor and backward curved impeller blades that maintain high efficiency. Mounting brackets are incorporated into the high-quality powder-coated metal casing, making this ventilation fan easier to install. Available in two models: the Classic fan with 527 CFM or the Classic HO fan with 765 CFM.
Ideal for Small Spaces
Equipped with backward curved impeller blades, the fans from the Ruck Air Movement Classic Series are highly efficient. The 8-inch size model comes in two options:
- 8-inch Classic: 527 CFM, 1.3 Amps, IPX4 Rating
- 8-inch Classic HO: 765 CFM, 2.4 Amps, IPX4 Rating
Features & Highlights
- 8-inch Duct Fan
- 5.5-ft Power Cord
- Backward Curved Impeller Blades
- Incorporated Mounting Brackets
- Speed Controllable
- Minimum Operating Temperature of -13 degrees Fahrenheit (-25° C)
- Classic Maximum Operating Temperature of 167 degrees Fahrenheit (75° C)
- Classic HO Maximum Operating Temperature of 122 degrees Fahrenheit (50° C)
- Made in Germany
Summary
The Ruck Air Movement Centrifugal Duct Fan is also available in 4-inch, 6-inch, and 10-inch duct sizes, also equipped with an EC motor.
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)35.0
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorWhite
-
ControlsManual
-
Maximum Air Temperature (degrees F)122167
-
Maximum Cubic Feet per Minute (CFM) (CFM)765.0527.0
-
Amperage (Amps)2.41.3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)277141
-
Depth (in.)15.75
-
Depth (with front cover) (in.)15.75
-
Duct Diameter (in.)8.0
-
Height (in.)9.84
-
Height (with front cover) (in.)9.84
-
Weight (lbs.)12.069.9
-
Width (in.)13.78
-
Width (with front cover) (in.)13.78
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited
